Vertical Long Corner Protector+Horizontal Pallet Strapping Packaging Machine for Wood, PV, Electronics
Vertical Long Corner Protector+Horizontal Pallet Strapping Packaging Machine for Wood, PV, Electronics
Vertical Long Corner Protector+Horizontal Pallet Strapping Packaging Machine for Wood, PV, Electronics
Vertical Long Corner Protector+Horizontal Pallet Strapping Packaging Machine for Wood, PV, Electronics
Vertical Long Corner Protector+Horizontal Pallet Strapping Packaging Machine for Wood, PV, Electronics
1 / 5
Vertical Long Corner Protector+Horizontal Pallet Strapping Packaging Machine for Wood, PV, Electronics
Vertical Long Corner Protector+Horizontal Pallet Strapping Packaging Machine for Wood, PV, Electronics
Vertical Long Corner Protector+Horizontal Pallet Strapping Packaging Machine for Wood, PV, Electronics
Vertical Long Corner Protector+Horizontal Pallet Strapping Packaging Machine for Wood, PV, Electronics
Vertical Long Corner Protector+Horizontal Pallet Strapping Packaging Machine for Wood, PV, Electronics

Vertical Long Corner Protector+Horizontal Pallet Strapping Packaging Machine for Wood, PV, Electronics

Customization: Available
After-sales Service: Echnical Support Will Reply Within 12 Hours.
Warranty: One Year Warranty for Core Components
Send Inquiry

Product Description

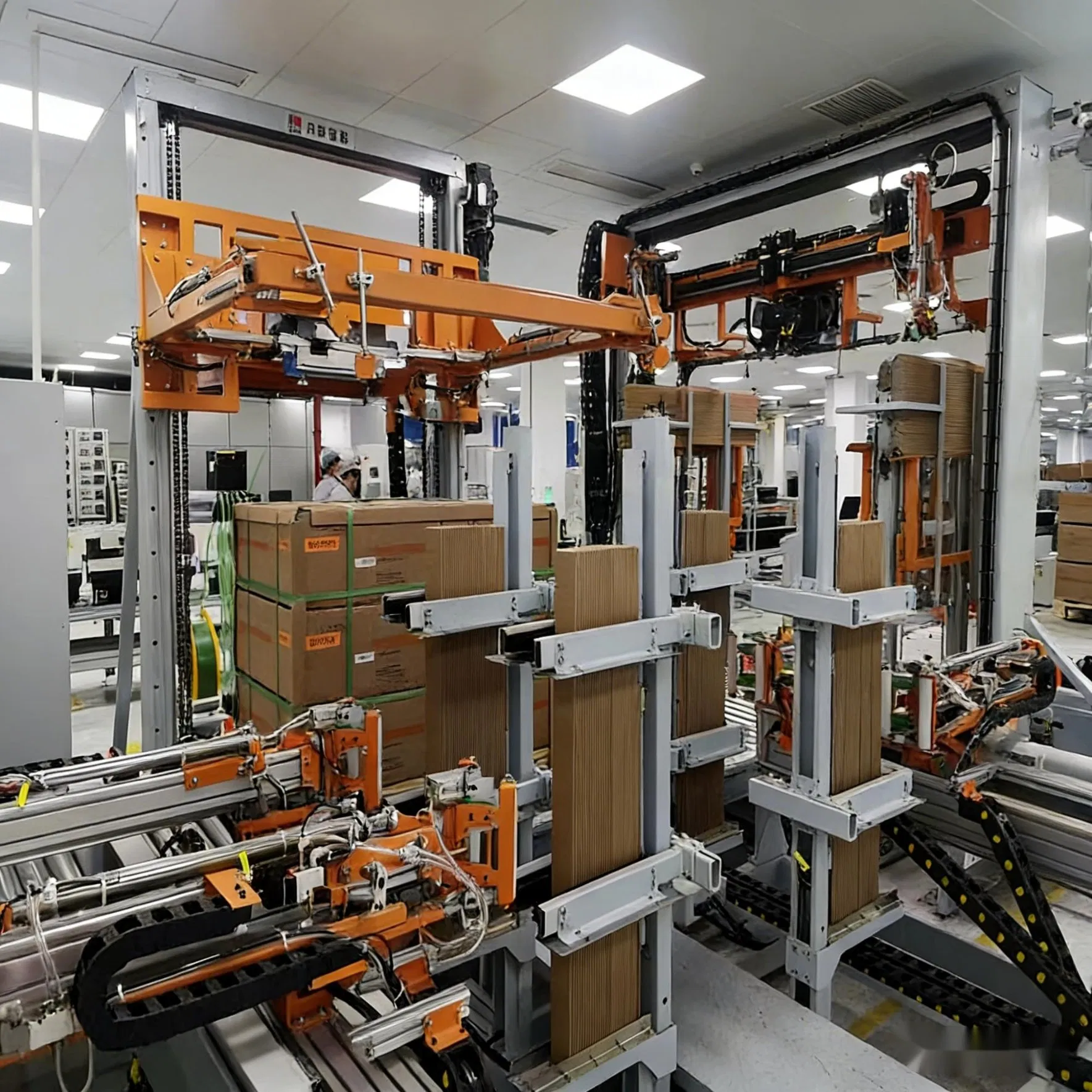

Vertical Long Corner Protector & Horizontal Strapping Packaging Machine

⚙️

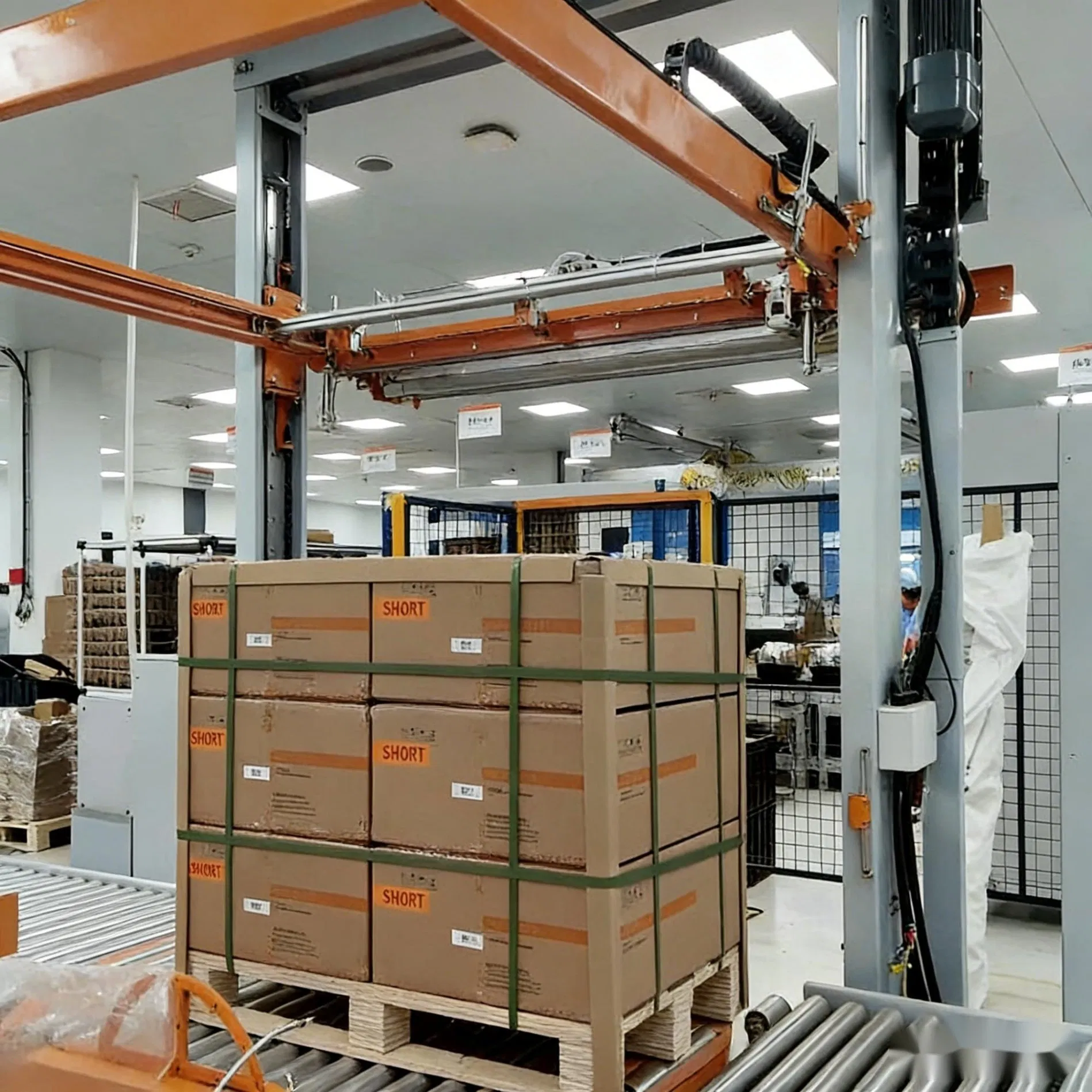

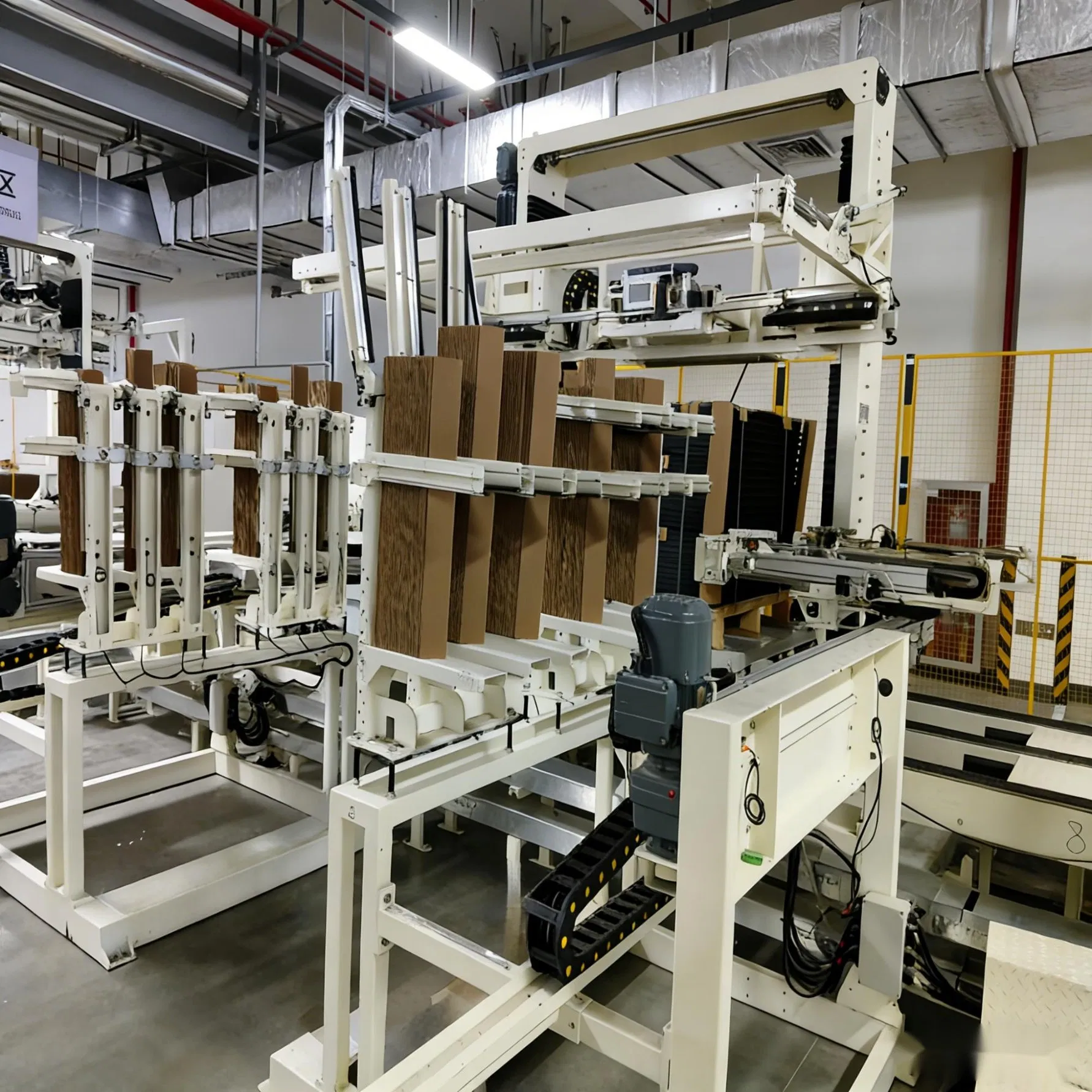

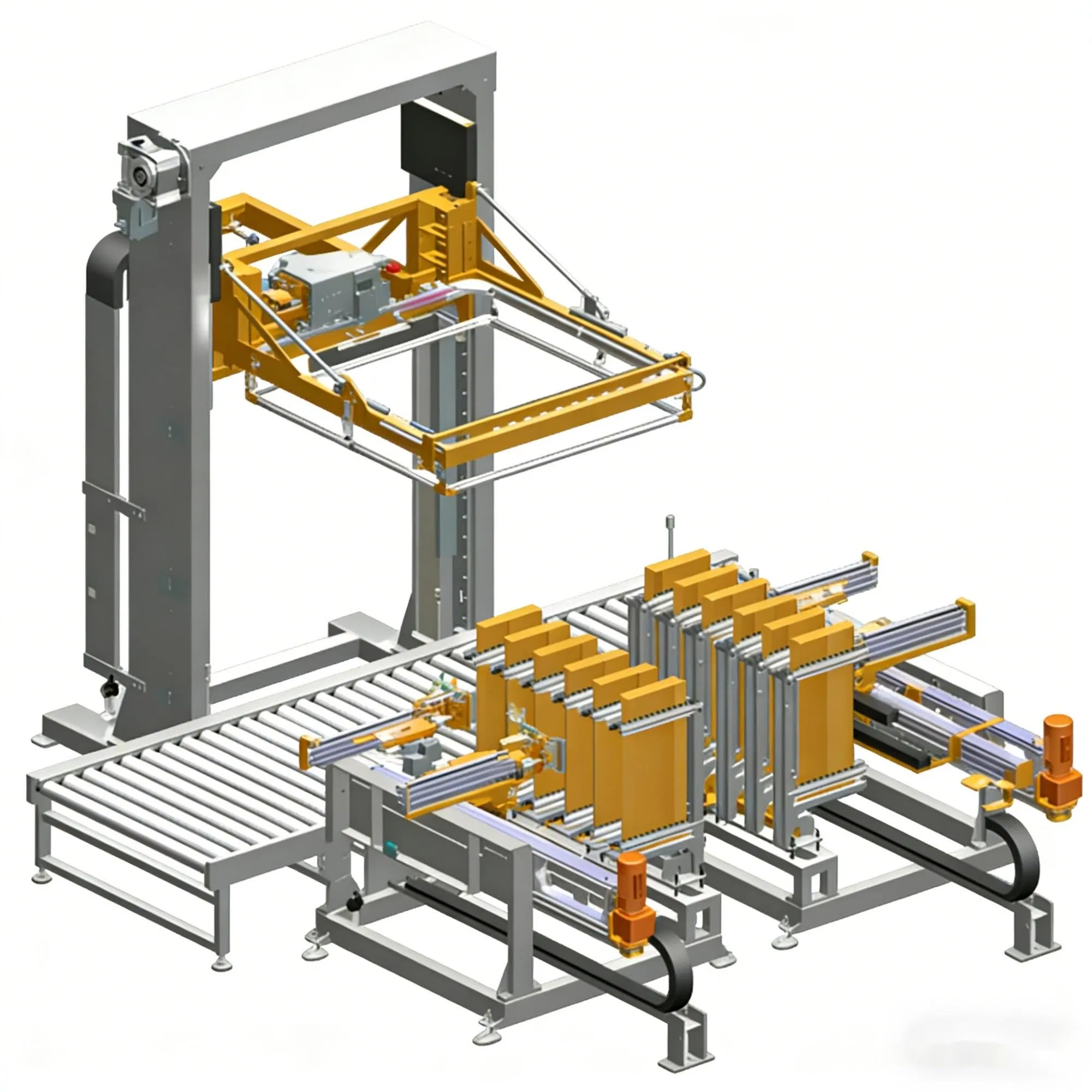

The goods are conveyed to the horizontal strapping station. The corner protector mechanism picks up and automatically places vertical corner protectors. The strapping machine head then applies the first strap. Following this, the corner protector mechanism retracts. The strapping machine continues to move and applies the second strap (the number of straps is programmable). Upon completion of the horizontal strapping, the goods are automatically conveyed onward.

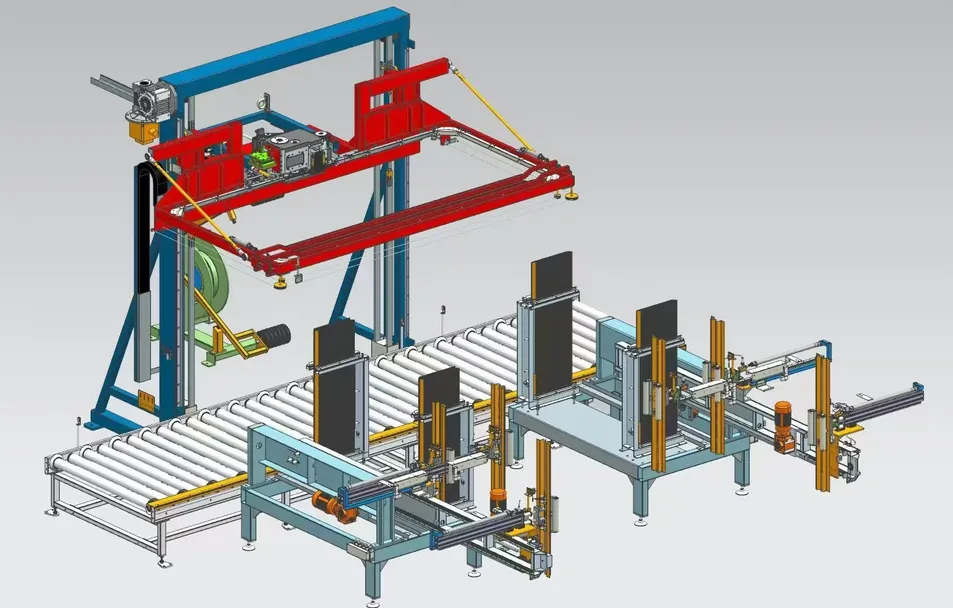

Horizontal Strapping Packaging Machine

Basic Specifications

Model NO.
LC-TB
Automatic Grade
Automatic
Driven Type
Electric
Effective Width
1400mm
Effective Height
1600mm (Inc. Pallets)
Single Strapping Time
20s
Strapping Material
Polyester Strapping
Strapping Mode
Welding Type
Pneumatic Requirement
0.6~0.8MP
Structure
Pressure Strapping
Parameter Item Technical Detail
Tape Width for Strapping HeadPET: 12-19mm
Bonding methodFriction
Fastening strength50-4000N (Adjustable)
Total Machine Weight1200KG
Voltage380V 50Hz 3pH (Customizable)
Paper Core Specification406mm

Product Gallery

Packaging Machine Details 1
Packaging Machine Details 2

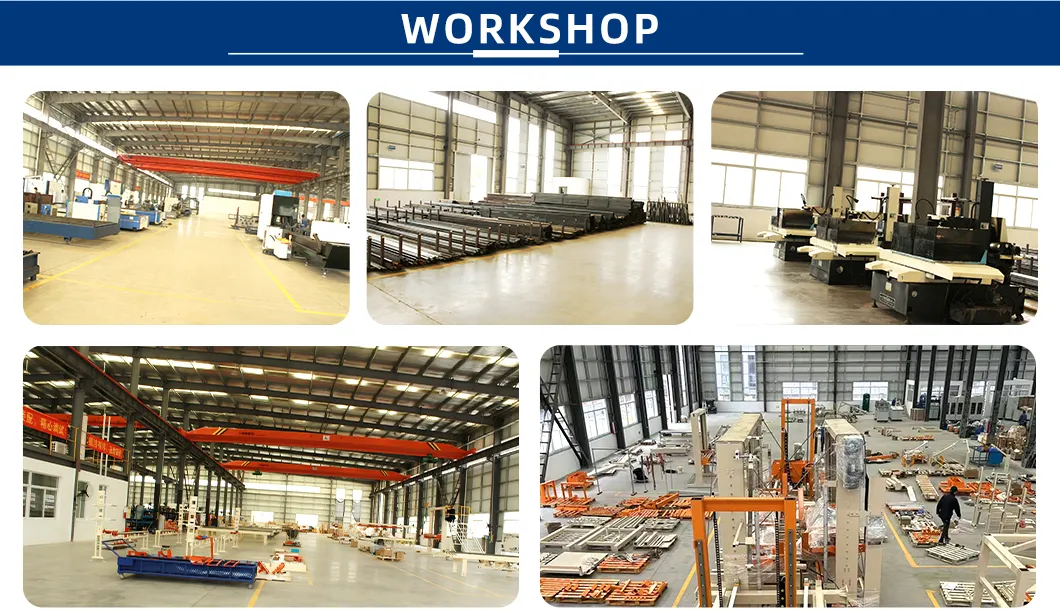

Packaging Machine Details 3
Packaging Machine Details 4

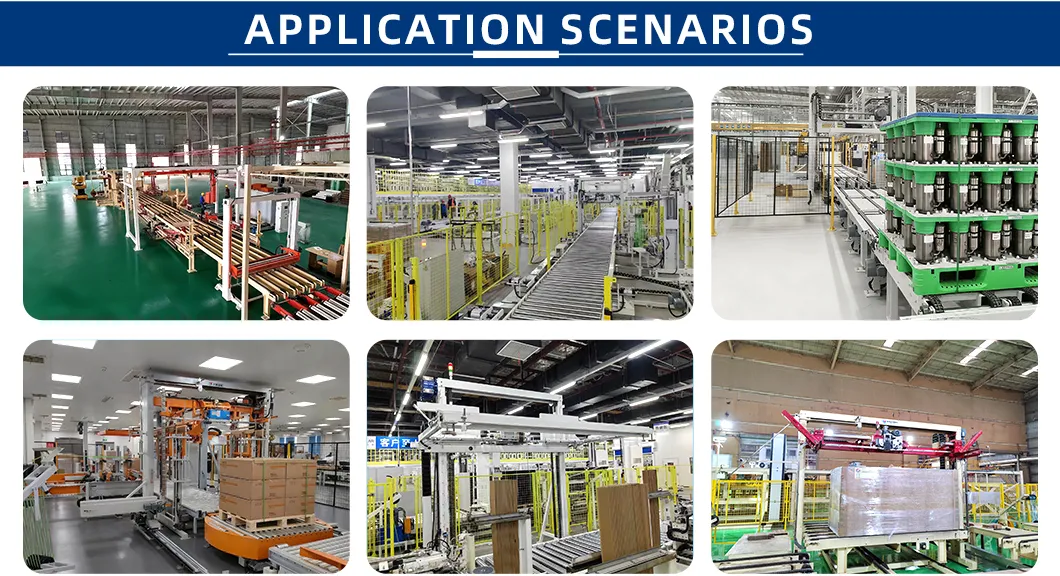

Packaging Machine Details 5
Packaging Machine Details 6
Packaging Machine Details 7
Packaging Machine Details 8
Packaging Machine Details 9
Machine Workflow

Service & Support

🛠️ Design & Technical

Complete English version technical data, including mechanical structure drawings and electrical schematics.

⚡ Installation

All equipment is factory-tested before delivery. 24-hour online technical support for installation and repair.

🛡️ Warranty

One-year guarantee for main electrical parts like motors, inverters, and PLCs (excluding artificial damage).

📞 Emergency Response

Response within 2 hours of notification and technical support solutions provided within 24 hours.

Frequently Asked Questions

How long is the warranty period for this machine?
We provide a one-year warranty for core components, including main electrical parts like the motor, inverter, and PLC.
What is the typical delivery time?
For standard machines, delivery usually takes 30 working days. Specific timing depends on machine complexity and factory schedules.
How are the goods packaged for shipment?
The equipment is securely packed in professional wooden cases to ensure safety during transit.
What trade terms do you support?
We support multiple trade methods including FOB, CIF, DDP, and more to suit your logistics needs.
Do you support on-site commissioning?
Yes, on-site commissioning by our technicians is available through a signed service contract.
Is factory inspection available?
Yes, we fully support factory inspections. Customers are welcome to visit our facility to inspect the equipment.
