| Model NO. | 240SZ |
| Automatic Grade | Automatic |
| Application | Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning |
| Type | Forming Filling Sealing Machine |
| Forming Species | Bag Moulding |
| Forming Function | Forming, Filling, Seal |
| Driven Type | Electric |
| Material Type | Powder/Liquid/Granule |
| Packaging | Bag |
| Packaging Material | Film |
| Bag Shape | Doypack, Zip Lock Bag |
| Keyword | Doypack Zipper Pouch Packing Machine |

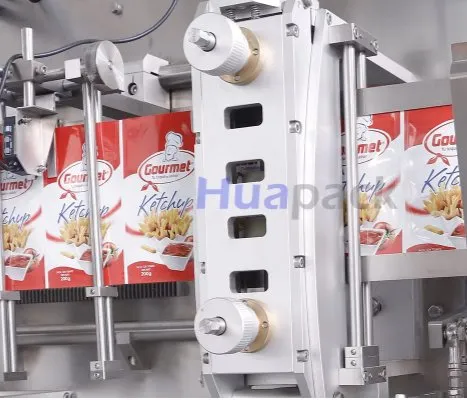

| Driven | Servo Motors |
| Film Forming | Independent Film Frame |
| Align Ensure | Film Align Device |
| Optional | Coding Device, Conveyor |
| Filling Device | Weighter or Volume Cup Filler |
| Certificate | CE&ISO |
| Function | Doypack Forming, Zipper, Filling and Sealing |
| Speed | 40-60bpm/ Duplex 80-120bpm |
| Transport Package | Plywood |
| Specification | SS304 food grade |
| Production Capacity | 500sets/Year |
| Package Size | 6700.00cm * 1200.00cm * 1800.00cm |
| Package Gross Weight | 2100.000kg |
Our series designed for doypack, with functions of making hanging hole, special shape adding zipper. Adopt Euro technology improving along with production status, coming up with machine high quality with competitive price.

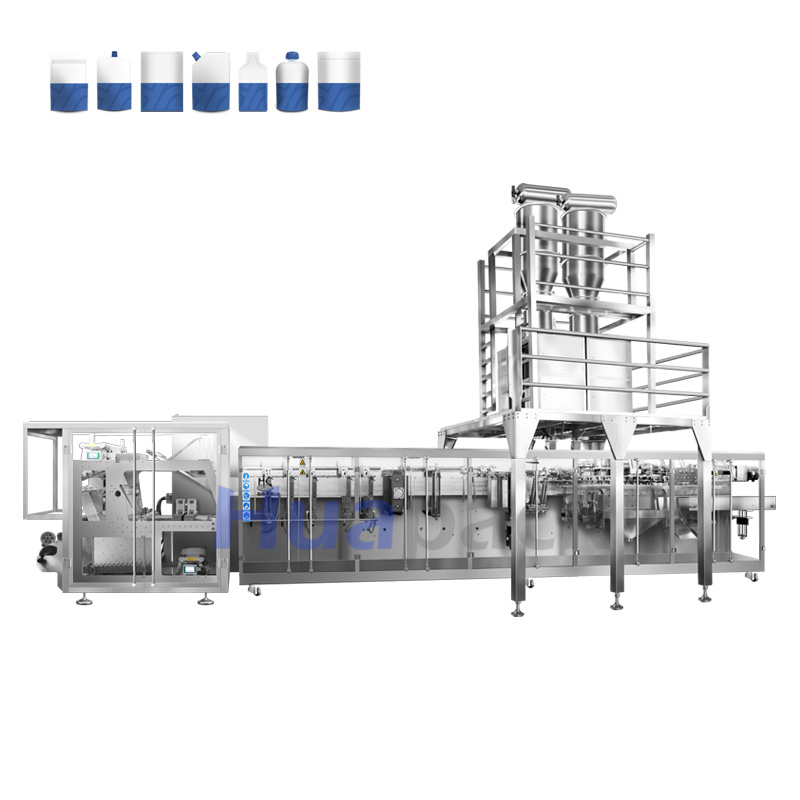

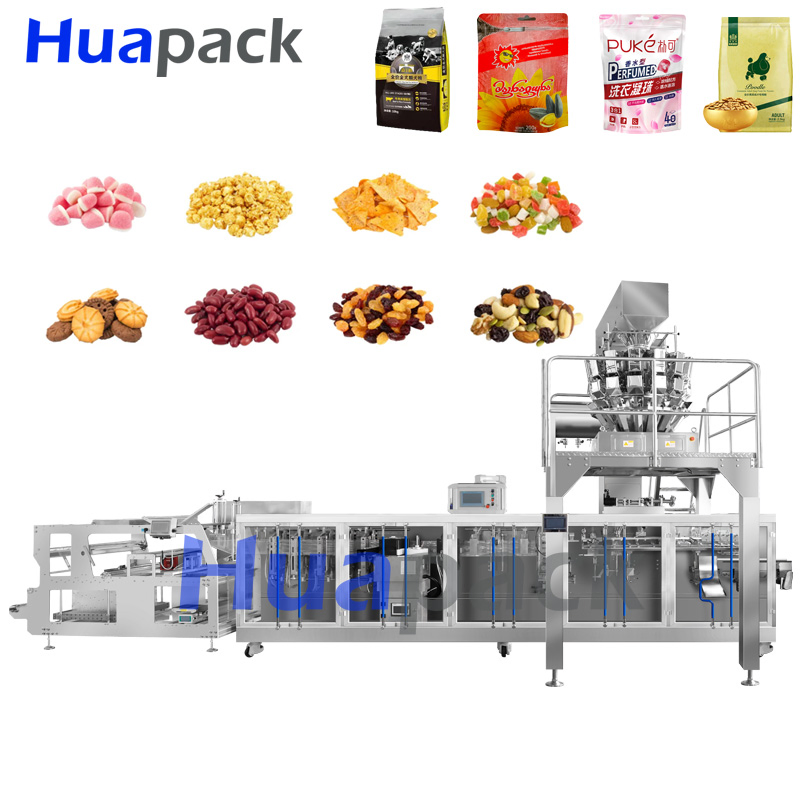

Horizontal Form Fill Seal doypack machines are packaging machines in which Forming, filling and sealing of a package take place on the same machine. Filling occurs through the open-top part of the pouch.
Our packing machine has the wide range of Horizontal Form Fill and Seal machines in the market. Our machines cover all the applications and are customized to be adapted to our customers' needs.

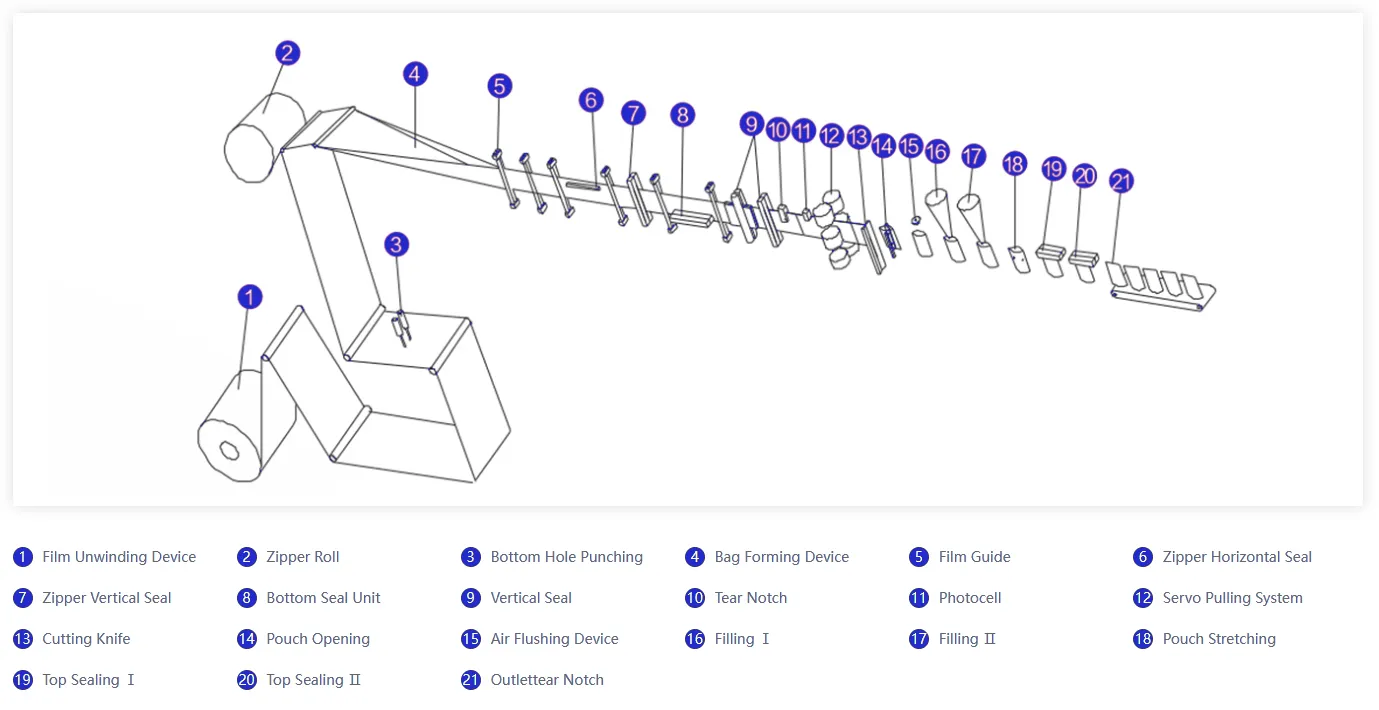

The design is based on the modular frame construction, composed of three independent modules: unwinder, pouch forming and dosing-sealing. Pouches/sachets that are made using HFFS technology are less expensive than Pre-made ones.
| No. | Feature | Description |
|---|---|---|
| 1 | coding | cold press code or touch code form, date QR code, bar code can be realized |
| 2 | easy notch | easy notch cutting |
| 3 | Hanging hole | round hole or euro hole |

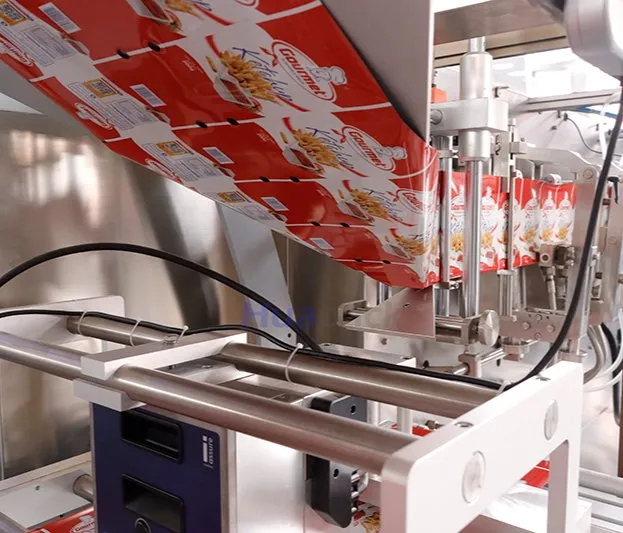

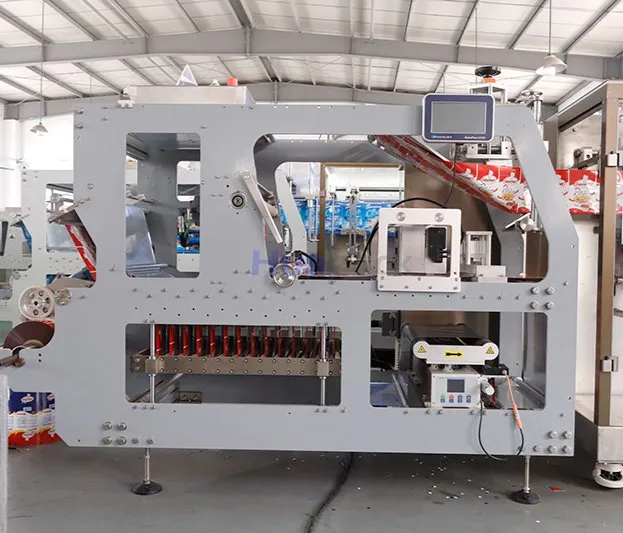

| 4 | independent film frame | Independent doypack bag forming advice |
| 5 | film align (optional) | align film automatically |
| 6 | double time filling | increase the speed by double-head filling for big package |
| 7 | bag support | adding bag support for big package |
| 8 | conveyor | select the finished product conveyor belt to transport |

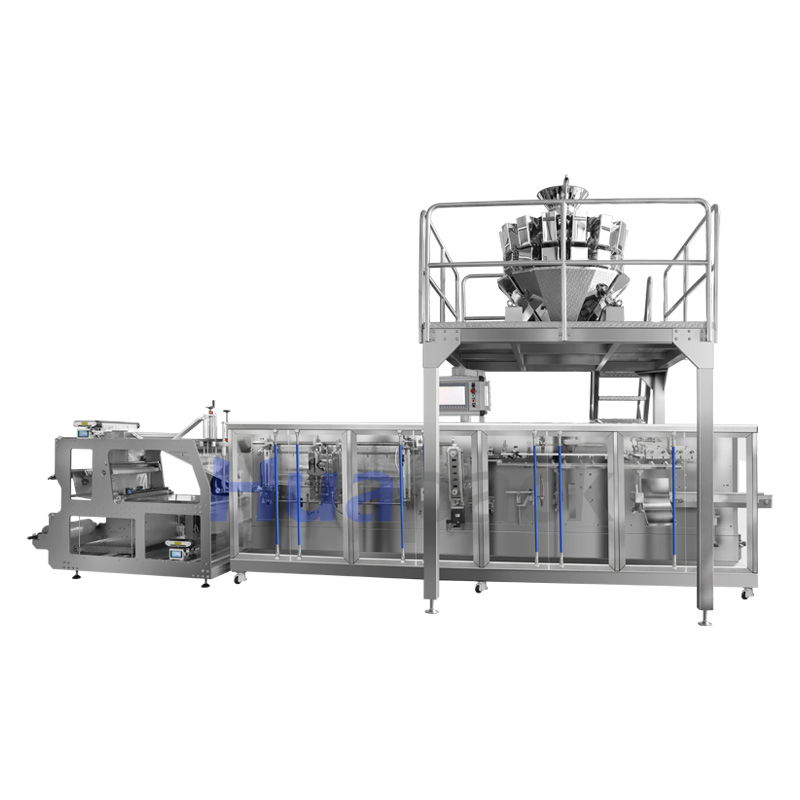

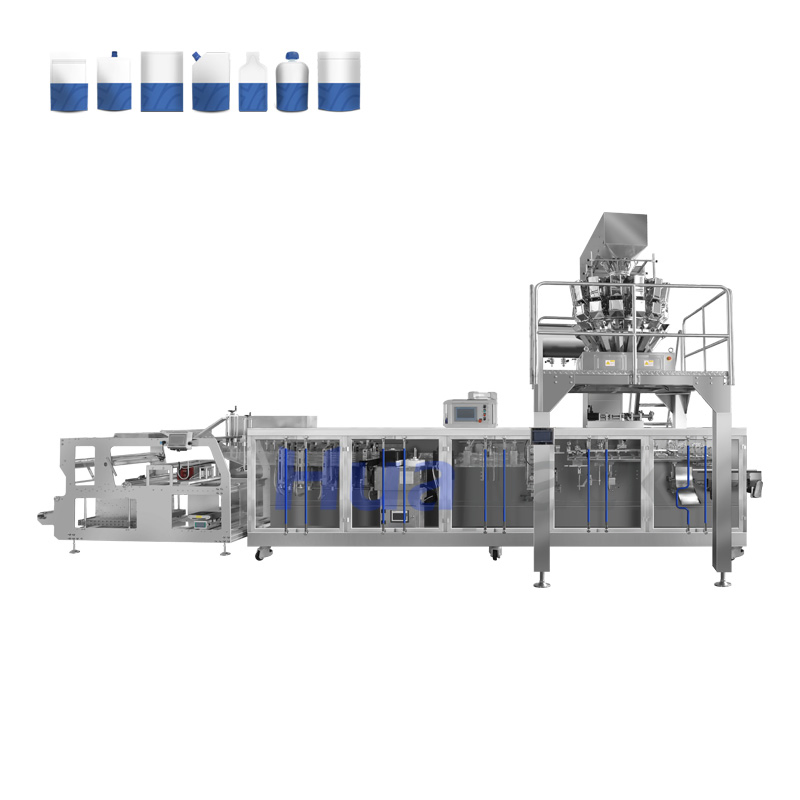

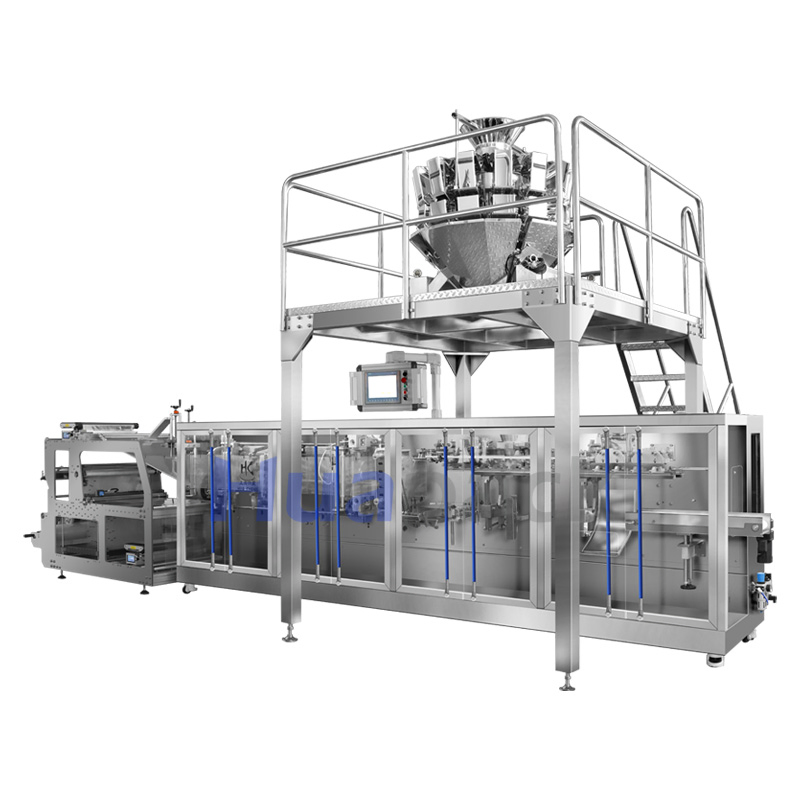

The Technical Parameters of Horizontal Automatic Roll Film Forming Zipper Doypack Filling and Sealing Machine
| Model | 180SZ | 180SDZ | 240SZ | 240SDZ | 280SZ | 280SDZ | 330SDZ | |
|---|---|---|---|---|---|---|---|---|
| Pouch Size (mm) | Min | 80*130 | 70*110 | 90*130 | 90*125 | 90*140 | 90*125 | 90*125 |
| Max | 182*250 | 90*225 | 240*300 | 120*250 | 280*300 | 140*250 | 165*250 | |
| Filling Volume | ml | 1000 | 300 | 2000 | 500 | 3000 | 500 | 700 |
| Packaging Speed | ppm | ≤60 | 60-120 | ≤60 | 60-120 | ≤50 | 60-100 | 60-90 |
| Machine Size | mm | 6500*970*1450 | 6900*970*1450 | 7200*970*1460 | 7200*970*1460 | 8000*1200*1800 | 8500*1100*1460 | 9500*1100*1460 |
| Machine Weight | kg | 2000 | 2100 | 2300 | 2500 | 3400 | 2500 | 2500 |
| Power | kw | 8 | 8.8 | 9 | 9.8 | 9.5 | 9.8 | 15.8 |
| Air Consumption | l/min | 300 | 400 | 400 | 400 | 650 | 650 | 650 |
