Basic Info.
Model NO.
SCR-60ACH
Applicable Goods
Stretch Film
Type
Automatic Wrapping Machine
Driven Type
Electric
Application
Electrical & Electronics, Machinery, Hardware, Woods
Automatic Grade
Automatic
Inclusion Degree
Fully Wrapped Winding Machine
Structure
Horizontal Winding Machine
Film Frame Structure
Mechanical Stretch
Series
S Series Horizontal Winding Machine
Color
Red with Black
Model
SCR-60ach
Transport Package
Wooden Package
Specification
5.4CBM
Origin
China
HS Code
8422400090
Production Capacity
500 Sets/ Year
Product Description
■ Product Application

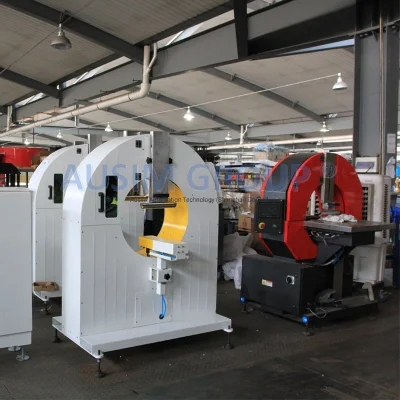

Semi-Automatic Orbital Stretch film wrapping machine SCR-60AC model is wrapping machine especially for conduits, profile, tube, pipe and similar objects. SCR-60AC has two options for customer that semi-automatic function and full-automatic function. Semi-automatic function as like conveyor uses gravity table, film cut & clamp manually, top pressers fixes manually and Automatic function usually include film break and clamp function, top pressers pneumatically, all sensors detection system.
In order to customized machine for special customer, we usually also can add some automatic functions option basic on semi-auto model.

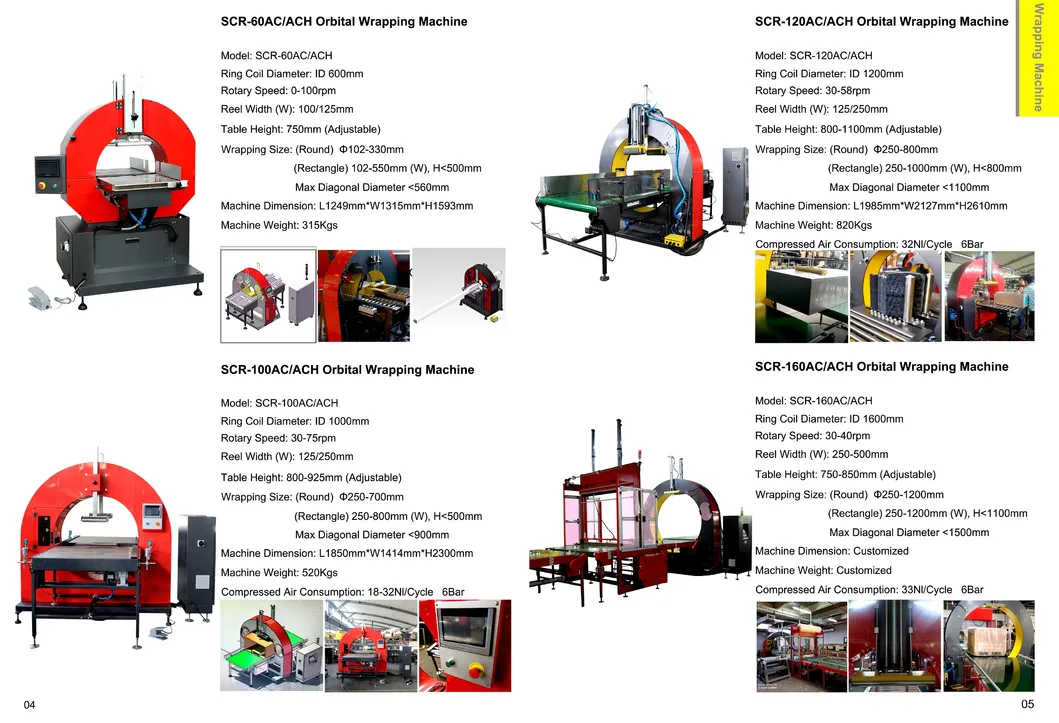

■ Parameters of 60AC
| Ring Coil Diameter |
ID 600mm |
| Rotary Speed |
0-100rpm |
| Reel Width(W) |
100-125mm |
| Table Height |
750±50mm |
| Wrapping Size |
Round Φ102-330mm
Rectangle 102-550mm(W), H<500mm |
| Machine Dimension |
1249*1315*1593mm |
| Weight |
315kg |
■ Orbital Wrapping Machine Specs & Features
- Film spool dim.: Width 76mm(3")/102mm(4")/127mm(5"); (Film) thick. 23-50µm
- Ring rotation speed variable by inverter
- Rotation speed variable by 0 to 100rpm
- Belt driven ring rotation
- Spool holder and gear roller mechanical adjustable clutch
- Unit of hooking, holding and cutting
- Pneumatic vertical pressure unit with free rollers infeed and outfeed
- End stretch film alarm
- Air pressure in exercise: 6 bar
- Infeed & Outfeed position equipped with working table
- Total Compressed air consumption: 15 NL/min
- Power supply voltage 110/220V, 1PHASE, 50/60HZ
- Total weight Kg 500
- Control console with Touch Screen and PLC to control the packaging cycle
■ Performance and Feature
- Mechanical arm matched with brake motor to en-longevity the equipment.
- With adjustable tight film carriage, film clamp device easily in use.
- SIEMENS PLC Control system.
- Manually adjustable infeed and outfeed side guides.
- Door safety device to protect the operators.

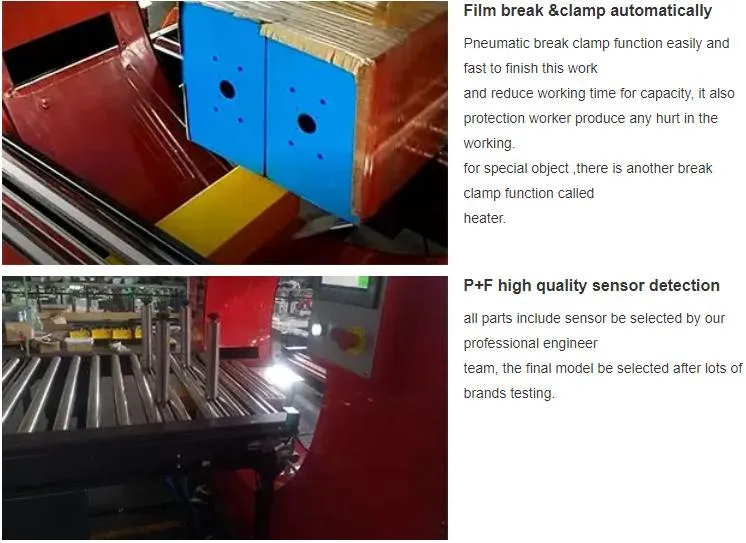

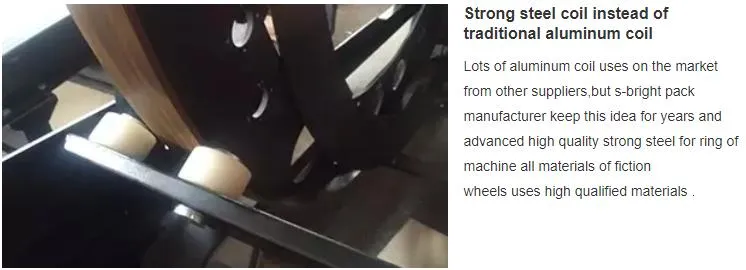

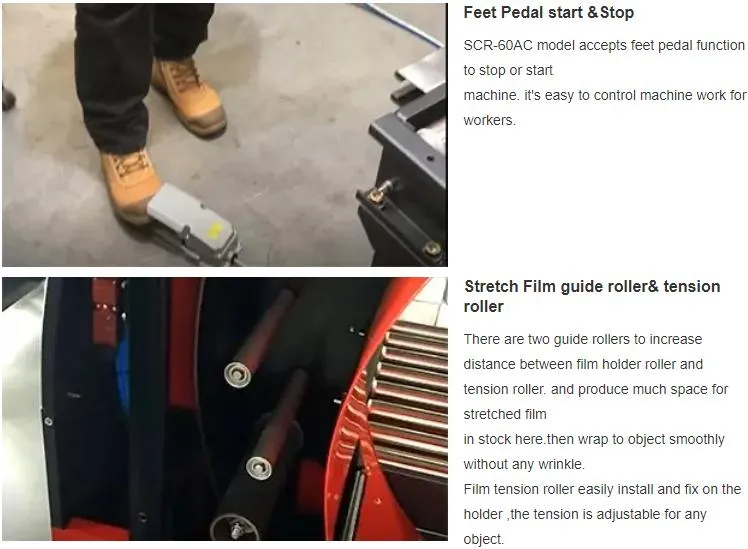

■ Detailed Images
There is special single inspection department is for qualified parts and famous brand part selection control.
Frequently Asked Questions
Q What products are compatible with the SCR-60ACH horizontal wrapping machine?
The SCR-60ACH is designed specifically for conduits, profiles, tubes, pipes, electrical parts, machinery, hardware, and wood panels. It handles round products with diameters of 102-330mm and rectangular products up to 550mm in width and under 500mm in height.
Q Does the machine support both semi-automatic and fully-automatic configurations?
Yes, the SCR-60AC series offers two functional modes. The semi-automatic setup includes a gravity conveyor, manual film cutting/clamping, and manual top pressers. The fully-automatic setup upgrades your production line with integrated film breaking/clamping, pneumatic top pressers, and an intelligent sensor detection system.
Q What are the specifications of the stretch film used in this machine?
The machine is compatible with stretch film rolls featuring spool core widths of 76mm (3"), 102mm (4"), or 127mm (5") and a recommended film thickness ranging from 23 to 50µm.
Q How is the wrapping speed controlled?
The ring rotation speed of the machine is fully adjustable and regulated by a built-in variable frequency inverter, allowing operators to fine-tune the speed dynamically from 0 to 100 rpm depending on product needs.
Q What safety features are included on the SCR-60ACH?
To guarantee operator safety, the machine is equipped with a mechanical arm integrated with a brake motor to improve longevity and response speed, combined with a door safety interlock device that automatically halts the packing cycle if opened.
