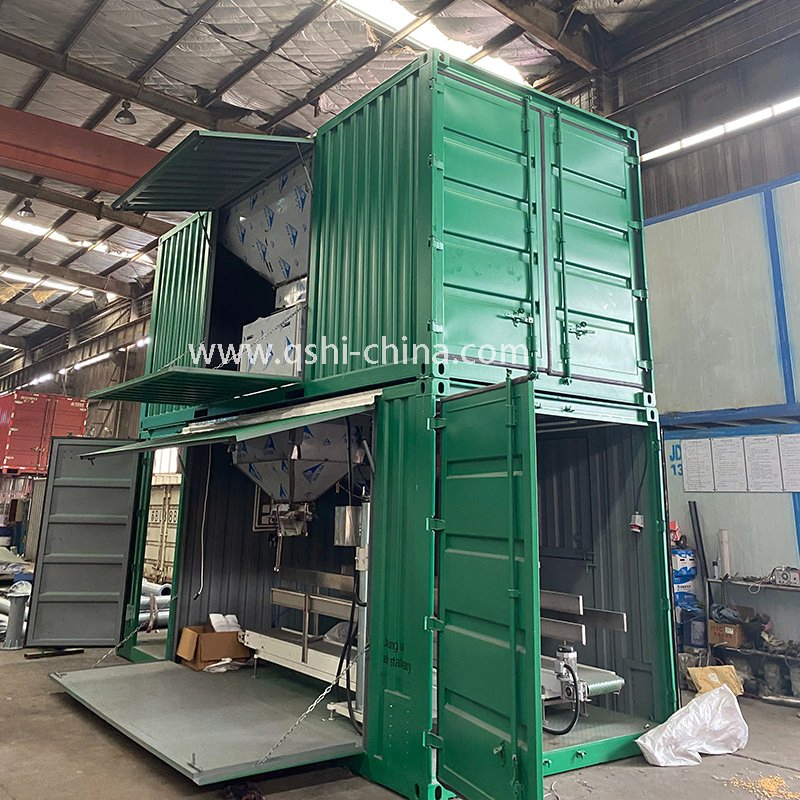

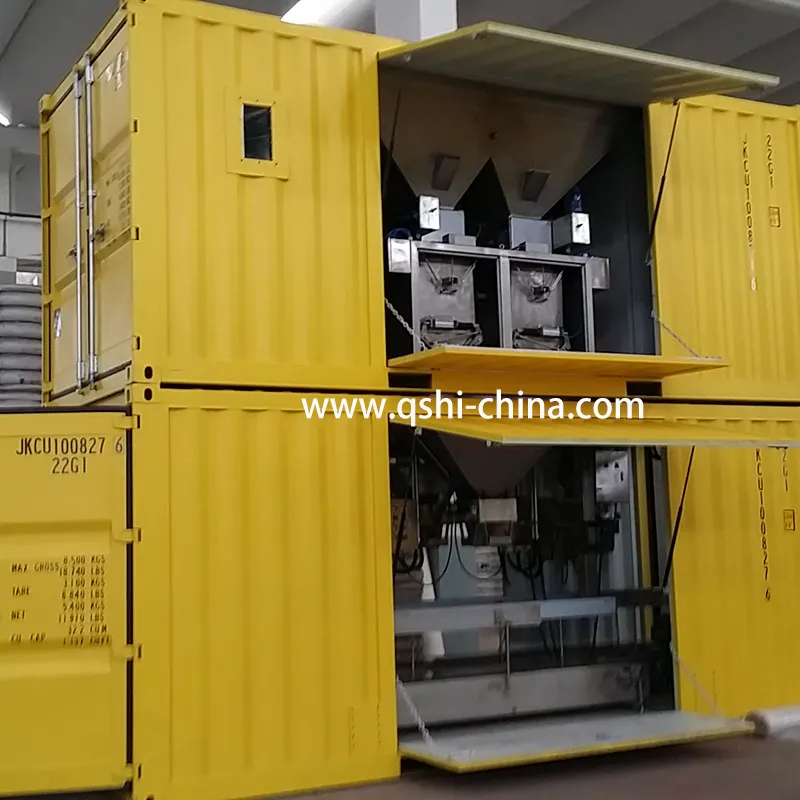

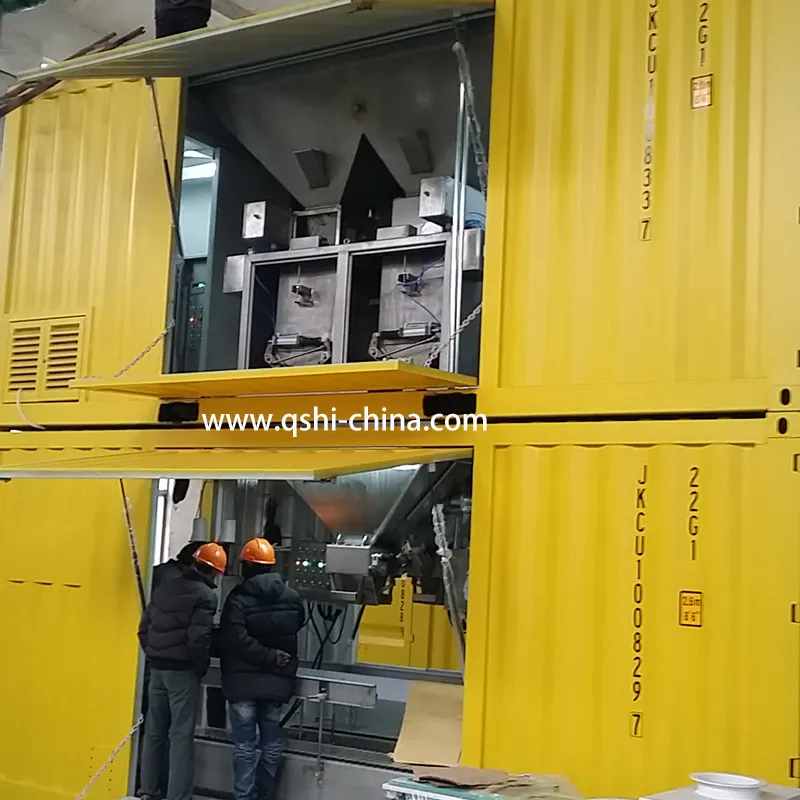

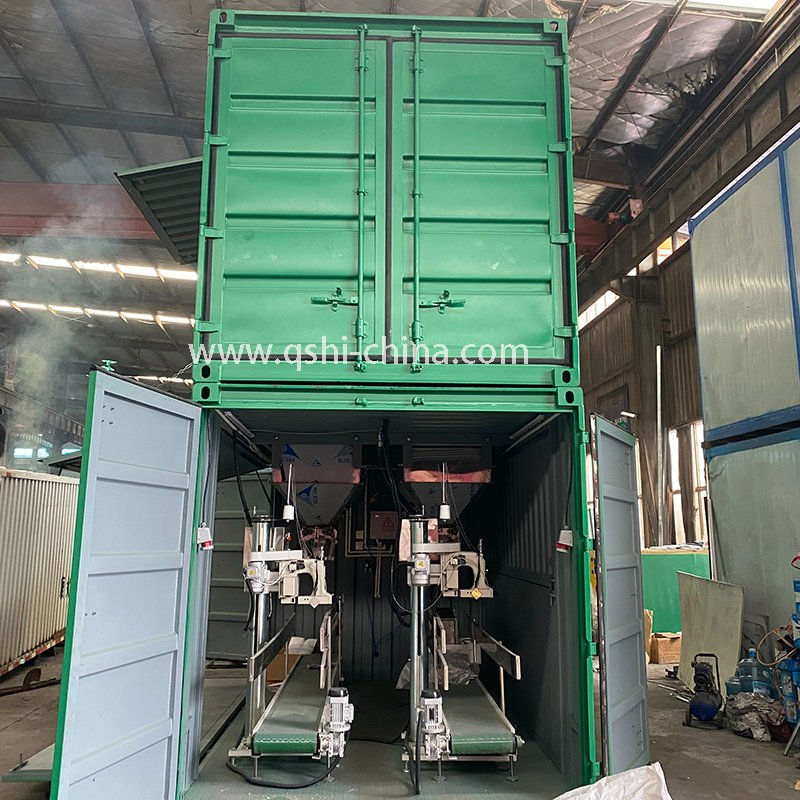

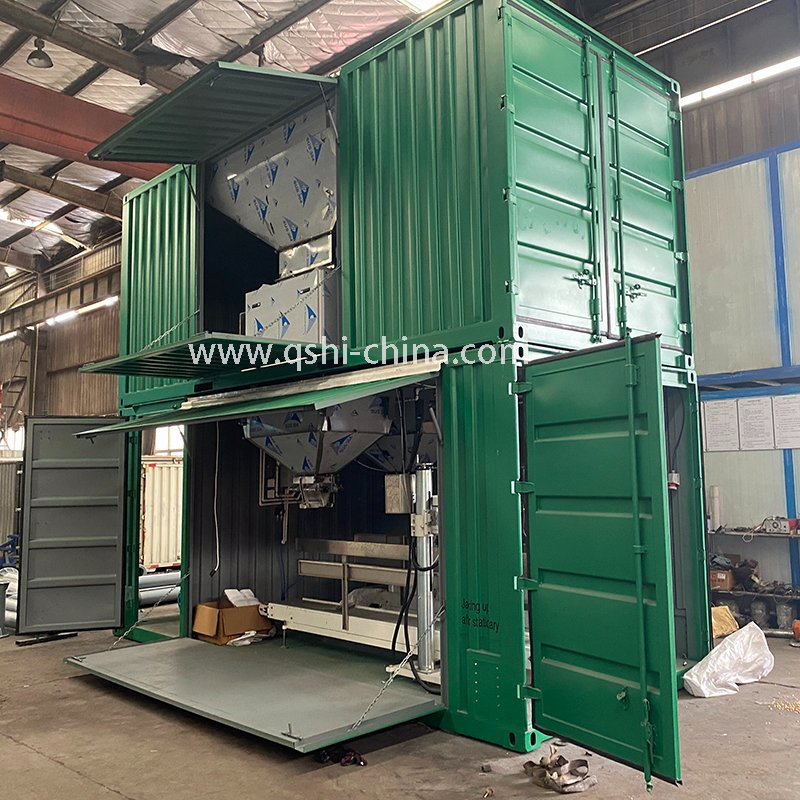

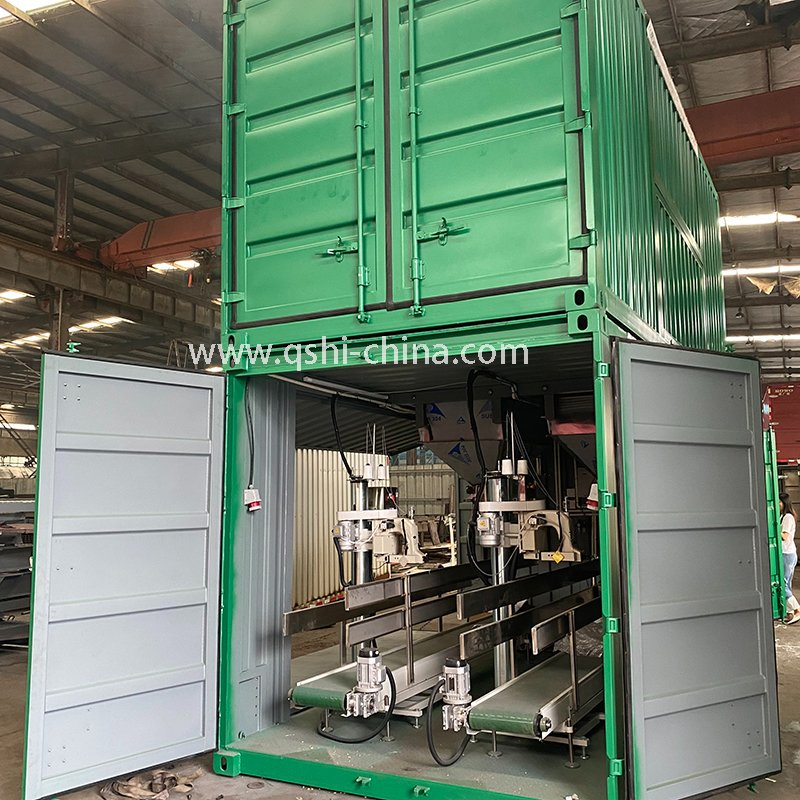

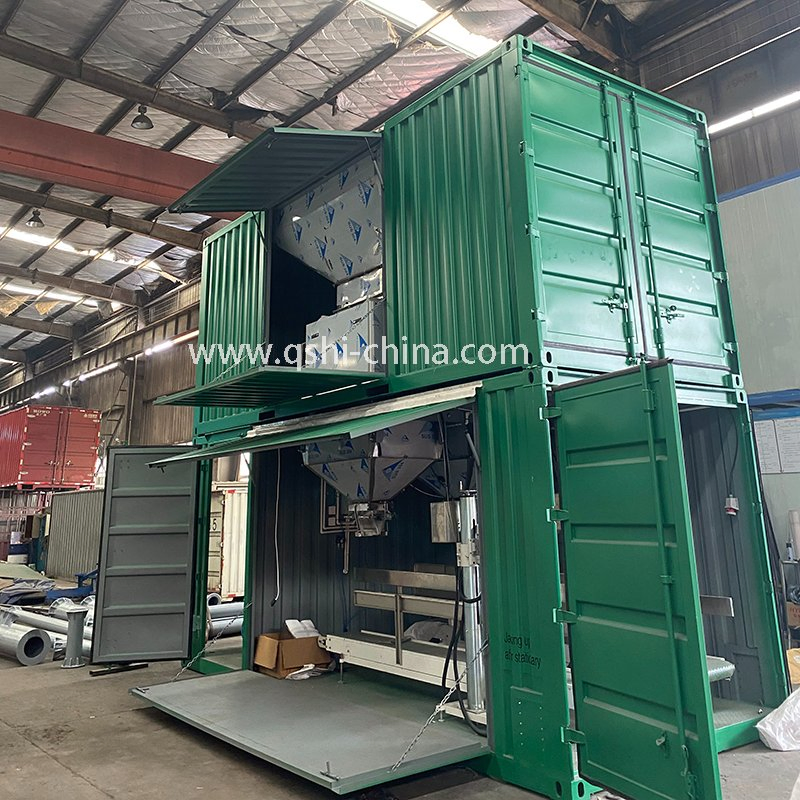

Full automatic containerized bagging machine for 25kg 50kg fertilizer bagging
Bagging machine has improved loading and unloading efficiency on ports. It can bag packages directly from the outlet to make loading and unloading easier when grab unloading bulk material from the ship. We offer various types, including containerized and movable designs, customized to client requests.
Application: Ideal for ports, storage yards, warehouses, and other bulk handling locations.
| Model | Production Line | Weighing Scale | Precision | Packing Speed | Power Source | Dimension |
|---|---|---|---|---|---|---|
| QSHI-1 | Single line two scales | 25:100kg | 0.20% | 12-20 bag/min | AC 380V 12Kw | Two containers |
| QSHI-2 | Two lines two scales | 25:100kg | 0.20% | 24-40 bag/min | AC 380V 15Kw | 6*3*5.8m |
| Environment | -20ºC ~ +40ºC | Gas Pressure | 0.55~0.65Mpa | |||
| Packing Bag | Open bag, PP woven bag or sacks (800~1250L * 500~800W mm) | |||||
| Feeding Way | Gravity type, spiral feeding, conveyor belt feeding, vibration feeding combined | |||||
| Sensor Type | Three pivot hanging type | |||||

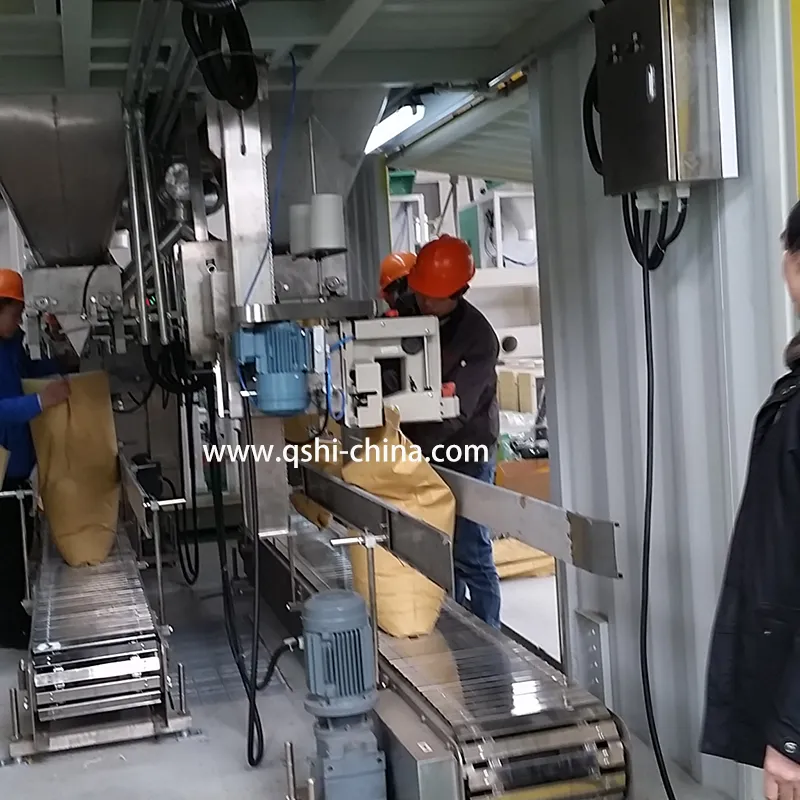

| Bagging Type | Automatic quantitative weighing, artificial bagging, automatic filling, machine to sewing bag. | |||||
We adhere to the principle of "Quality First, Service First, Continuous Improvement, and Customer Satisfaction," aiming for "Zero Defect, Zero Complaint."
Customized project design, specialized manufacturing according to client requirements, and technical personnel training.
Assistance in finding reasonable freight forwarders and developing solving plans for delivery.
Construction scheme preparation, equipment installation and debugging, operator training, and immediate troubleshooting with technical exchange.
