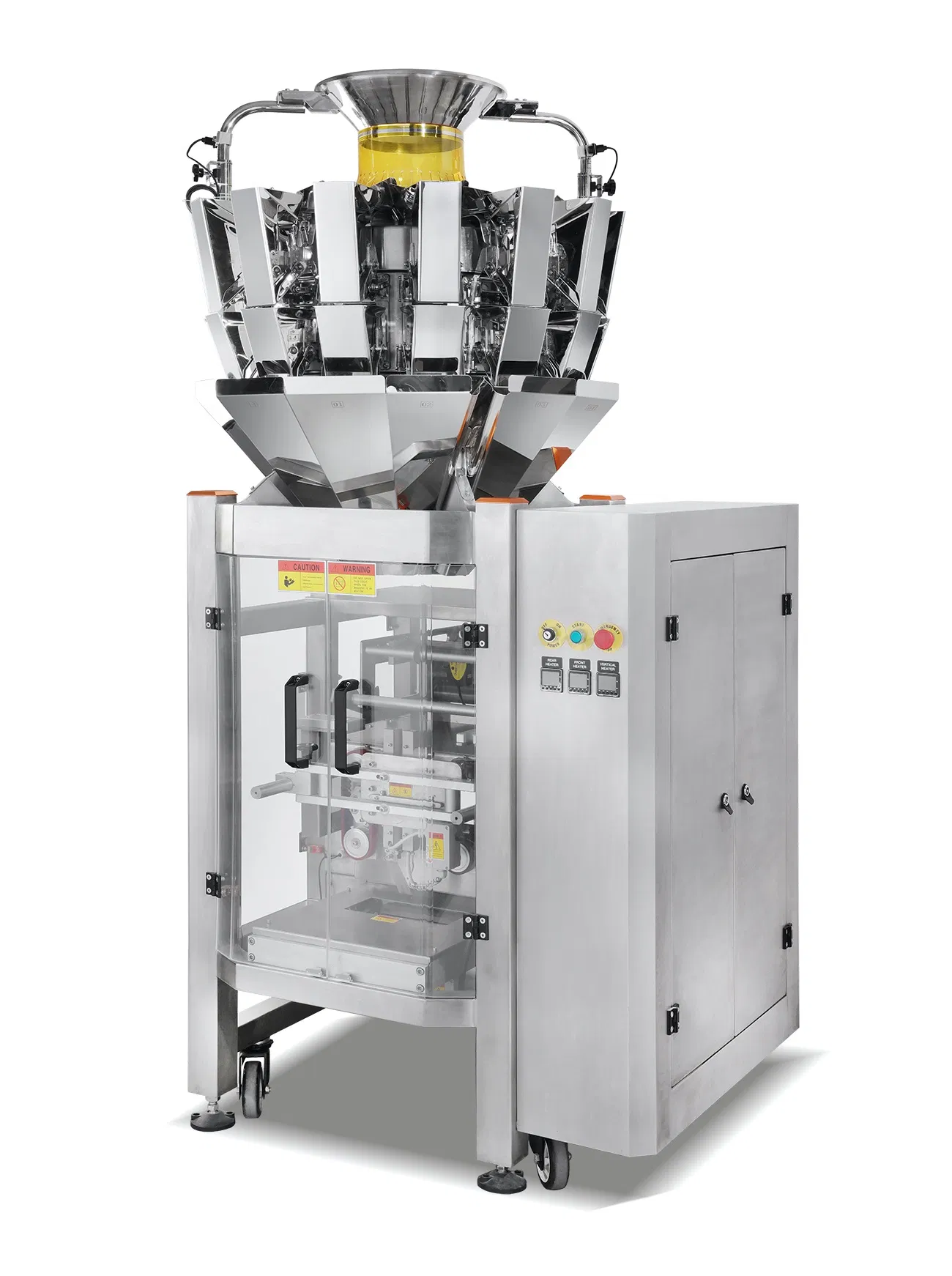

It is suitable for weighing granule, slice, roll or irregular shape products such as candy, seed, jelly, fries, coffee granule, peanut, puffy food, biscuit, chocolate, nut, pet food, frozen feeds, etc. It is also suitable for weighing small hardware and plastic components.
| Model of Packing Machines | 320VFFS | 420VFFS | 520VFFS | 620VFFS | 720VFFS |
|---|---|---|---|---|---|
| Packing Speed | 10-80p/M | 10-70p/M | 10-60p/M | 10-50p/M | 10-45p/M |
| Bag Size | 50-200mm(L)*60-150mm(W) | 60-300mm(L)*60-200mm(W) | 50-350mm(L)*50-250mm(W) | 20-400mm(L)*100-300mm(W) | 20-450mm(L)*140-350mm(W) |
| Film Width | 140-320mm | 140-420mm | 120-520mm | 620mm | 720mm |
| Bag Type | Pillow bag, gusset bag, hole punching bag, vacuum bag, quad seal bag | ||||
| Film Thickness | 0.04-0.09mm | 0.04-0.09mm | 0.04-0.09mm | 0.04-0.09mm | 0.06-0.12mm |
| Film Material | BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET, PET/PE | ||||
| Pulling Belt Type | Single/dual belt | Single/dual belt | Synchronous belt film pulling | Synchronous servo motor belt film pulling | Synchronous servo motor belt film pulling |
| Air Consumption | 0.8Mpa 0.25m³/min | 0.8Mpa 0.5m³/min | 0.7Mpa 0.4m³/min | 0.7Mpa 0.5m³/min | 0.7Mpa 0.65m³/min |
| Power Supply | Single phase 220V 50/60Hz, 2.2kw | Single phase 220V 50/60Hz, 2.2kw | Single phase 220V 50/60Hz, 3.4kw | Single phase 220V 50/60Hz, 4.0kw | Single phase 220V 50/60Hz, 4.5kw |
| Machine Dimension | 1115*800*1370mm | 1530*970*1600mm | 1560*1160*1530mm | 1250*1600*1700mm | 1360*1630*1900mm |
| Machine Weight | 300kg | 450kg | 480kg | 800kg | 900kg |

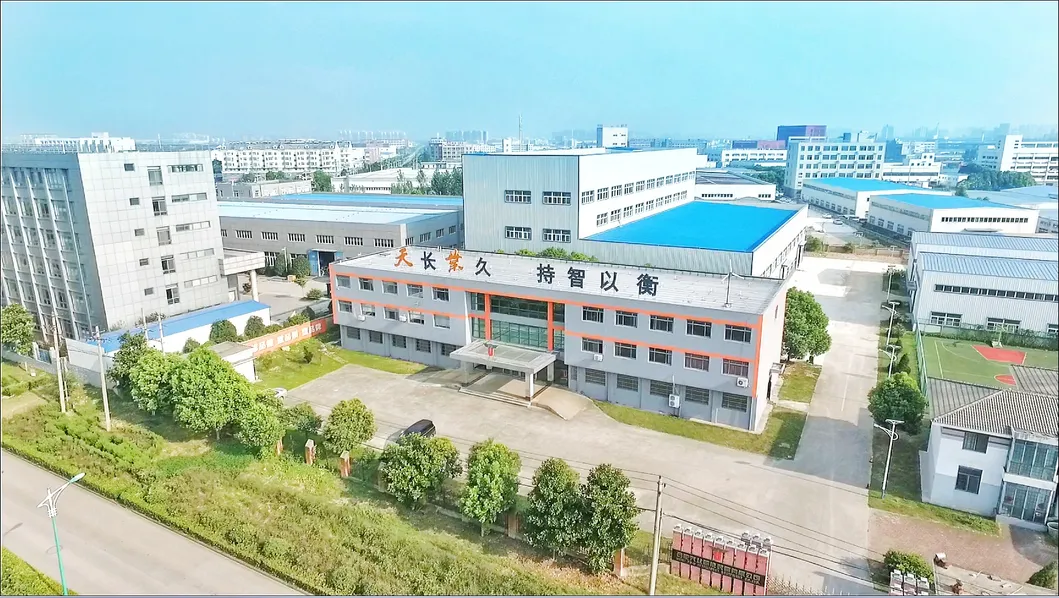

Established in 2009, focusing on the R & D, manufacturing and sales of Multi-head Weighers, VFFS, Conveyors and Inspection equipment, the products are exported to more than 80 countries and regions.

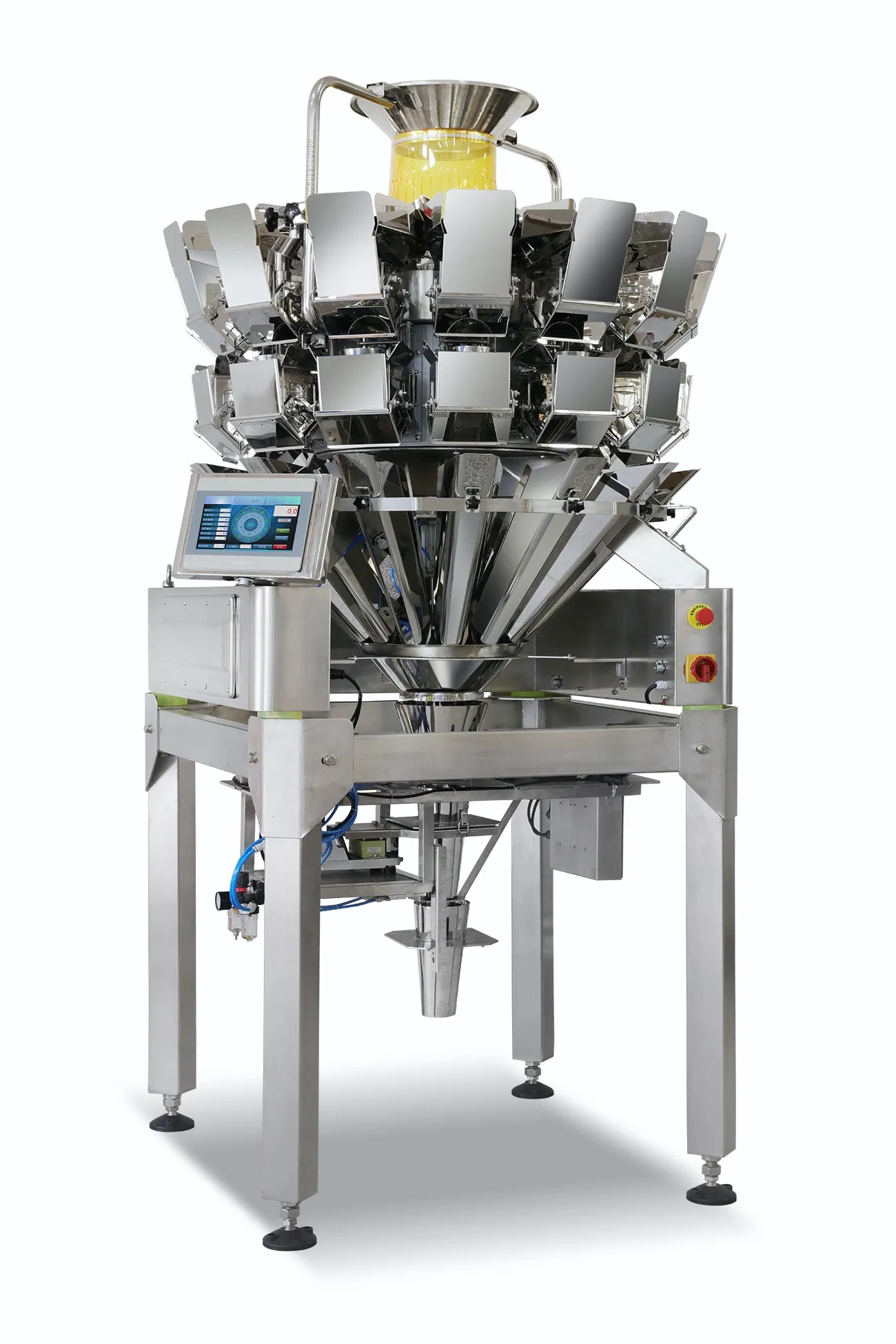

The company's 10,12,14,20,24,32 head microcomputer control and PLC control system intelligent combination scale, automatic weight detection machine and 1,2,4,8 head linear scale, creates and applies the combination scale developed by Siemens PLC and Allen Bradley PLC, which fills the technical gap of the same industry.
We adhere to customer-oriented principles, provide innovative, attractive and easy-to-use products for customers, and are committed to improving people's working conditions. Pre-sales guidance service: provide professional solutions from workers, equipment, packaging materials, packaging methods and working environment.
