Auto Plastic PVC Powder Automatic Batching Dosing & Compounding Weighing Mixing High Speed Mixer Conveying System for PVC Pipe Profile Spc Flooring Factory
Customization:
Available
Additional Capabilities:
Auto Weighing
After-sales Service:
Engineers Available to Service Machinery Overseas, Free Spare Parts, Online Support, video Technical Support

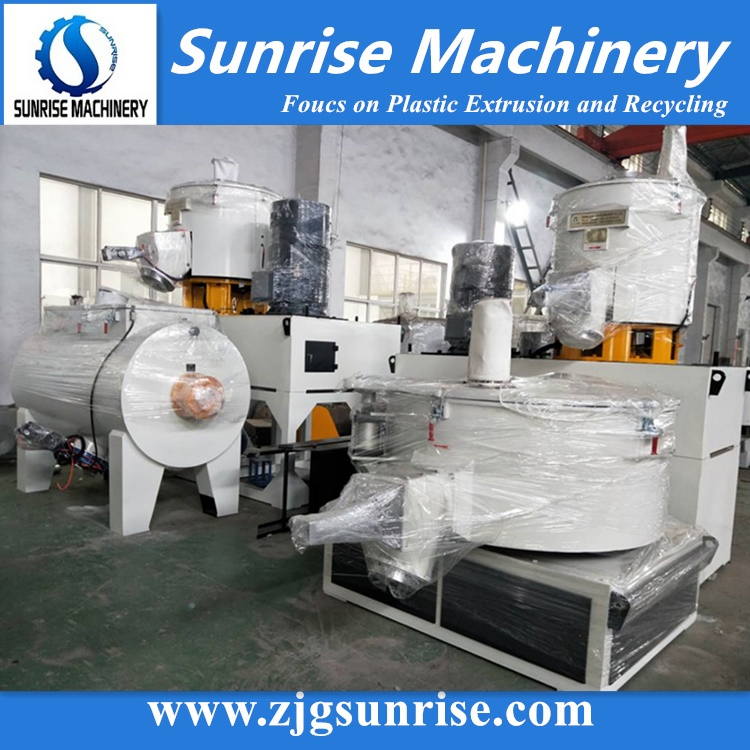

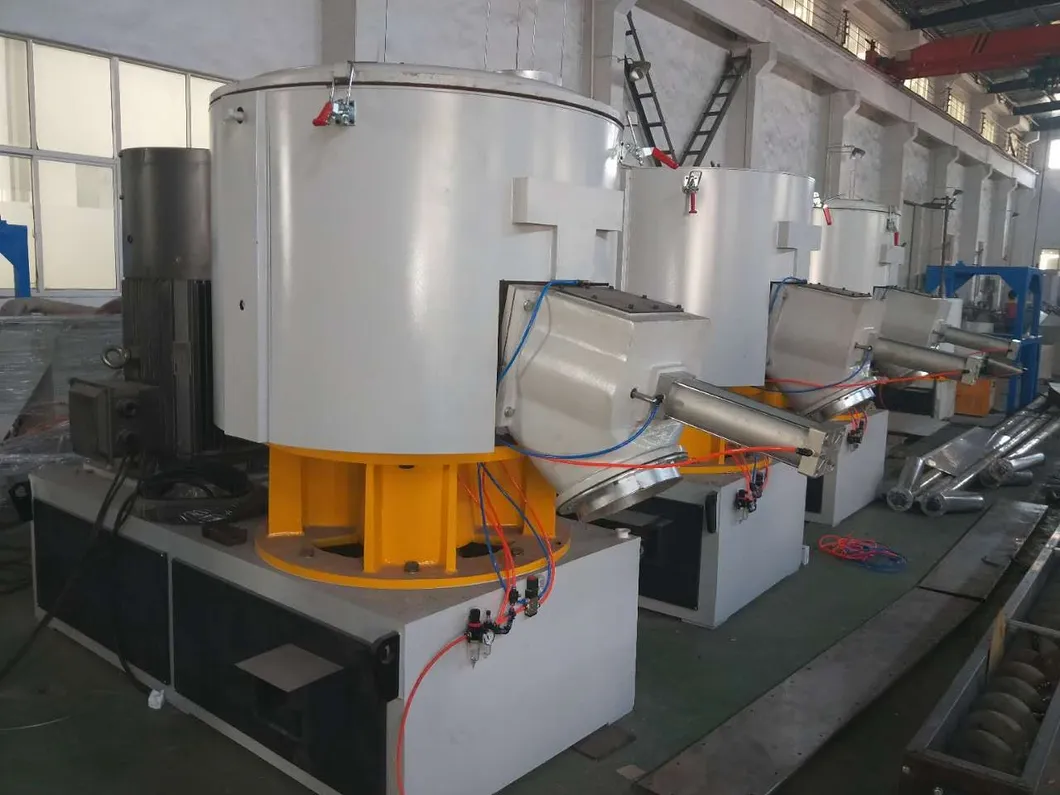

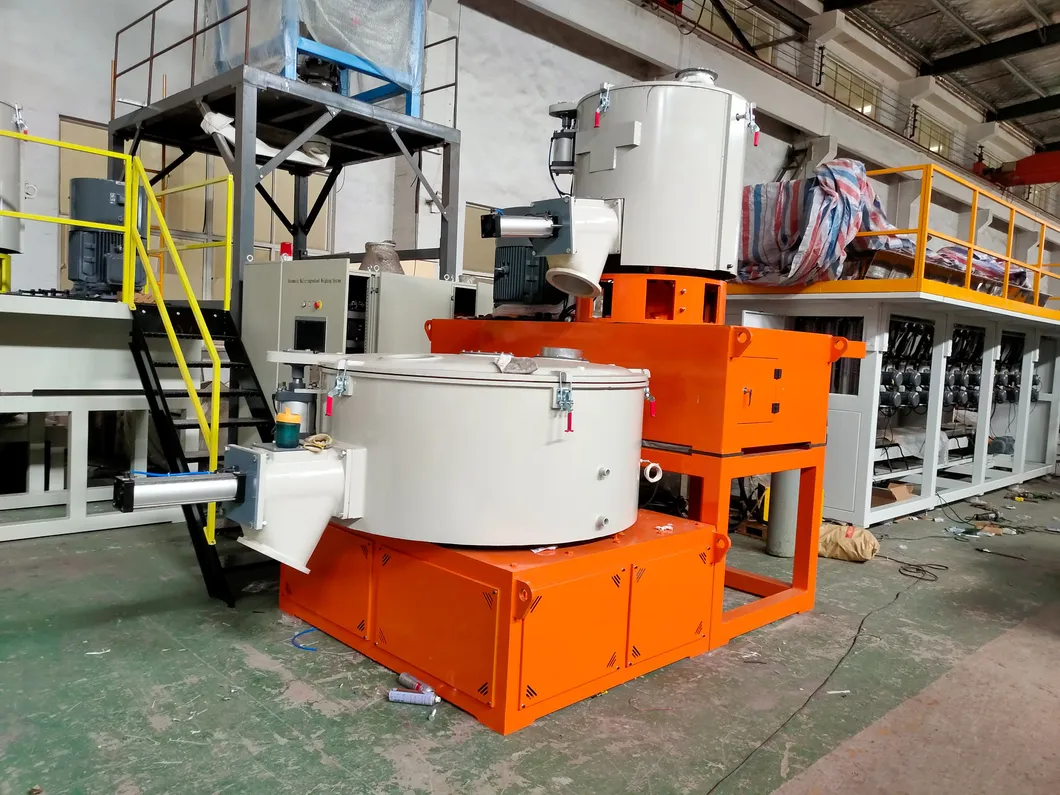

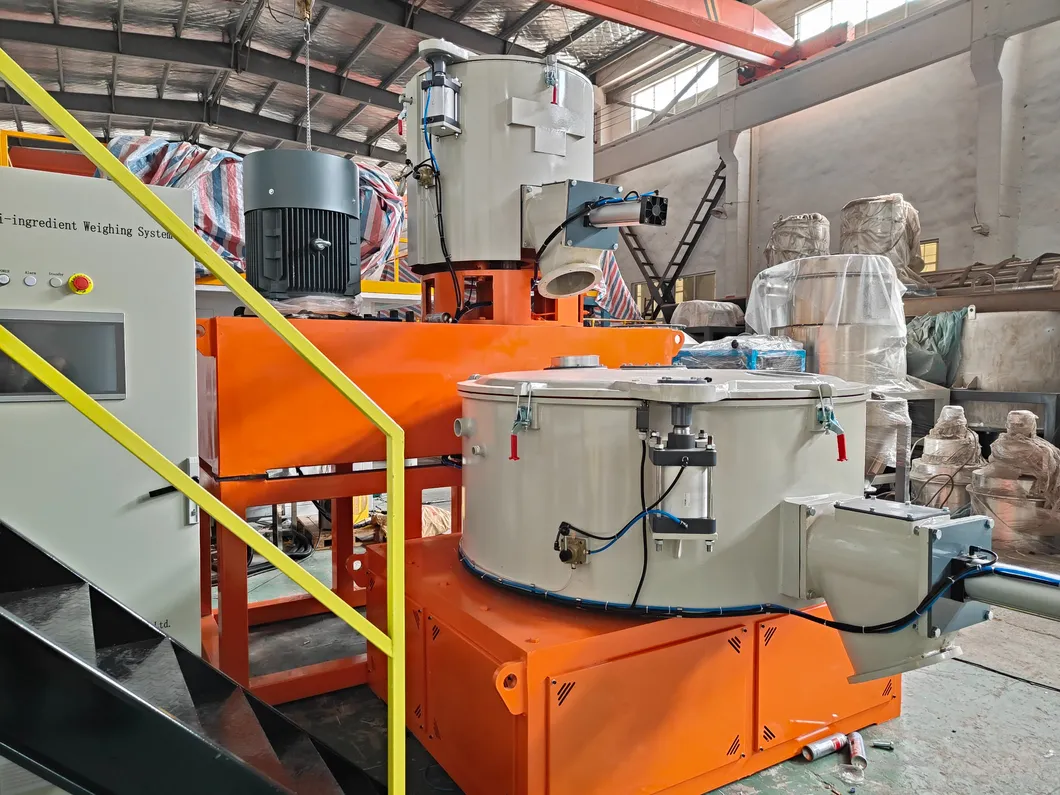

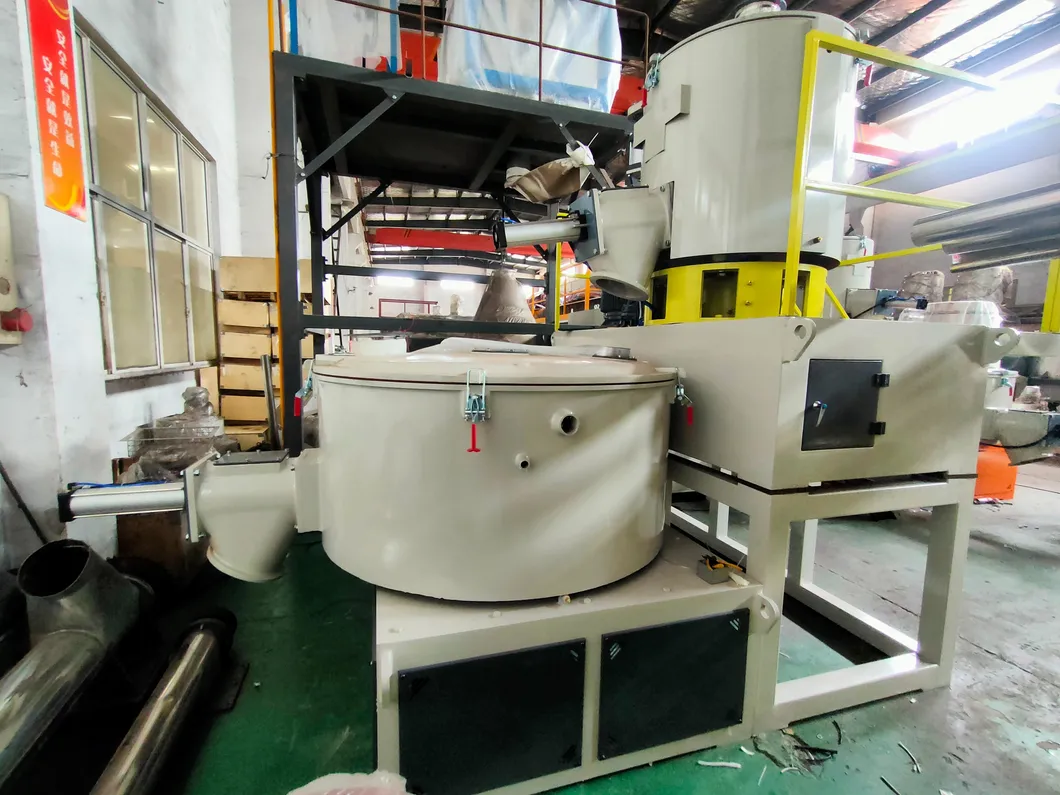

PVC mixer machine is an necessary auxiliary machine for making plastic pipes, plastic profiles, plastic board, WPC extrusion line, cable production line, etc. Its function is to mix the raw material with different kinds of additives. Usually, for PVC powder material, you need to use a high-speed hot mixer and low-speed cool mixer, which constitutes a mixer unit. For making PP PE masterbatch, or cable, a single high-speed mixer is sufficient. Currently, we offer the SRL series high-speed mixer from 10L to 2000L, with single batch capacities ranging from 3kg to 600kg.
PVC Mixer Machine Model List
Model
SRL-Z100/200
SRL-Z200/500
SRL-Z300/600
SRL-Z500/1000
SRL-Z800/2500
Effective volume (L)
75/160
150/320
200/360
375/650
600/1500
Motor power (KW)
14/22-7.5
30/42-11
40/55-11
55/75-18.5
83/110-30
Mixing time (Minutes)
8-10
8-10
8-10
8-10
10-12
Overall size (MM)
1950/1600/1800
4580/2240/2470
4800/2640/2480
5600/3000/3100
5170/3200/4480
Gross weight (KG)
2200
3400
3600
6500
9800

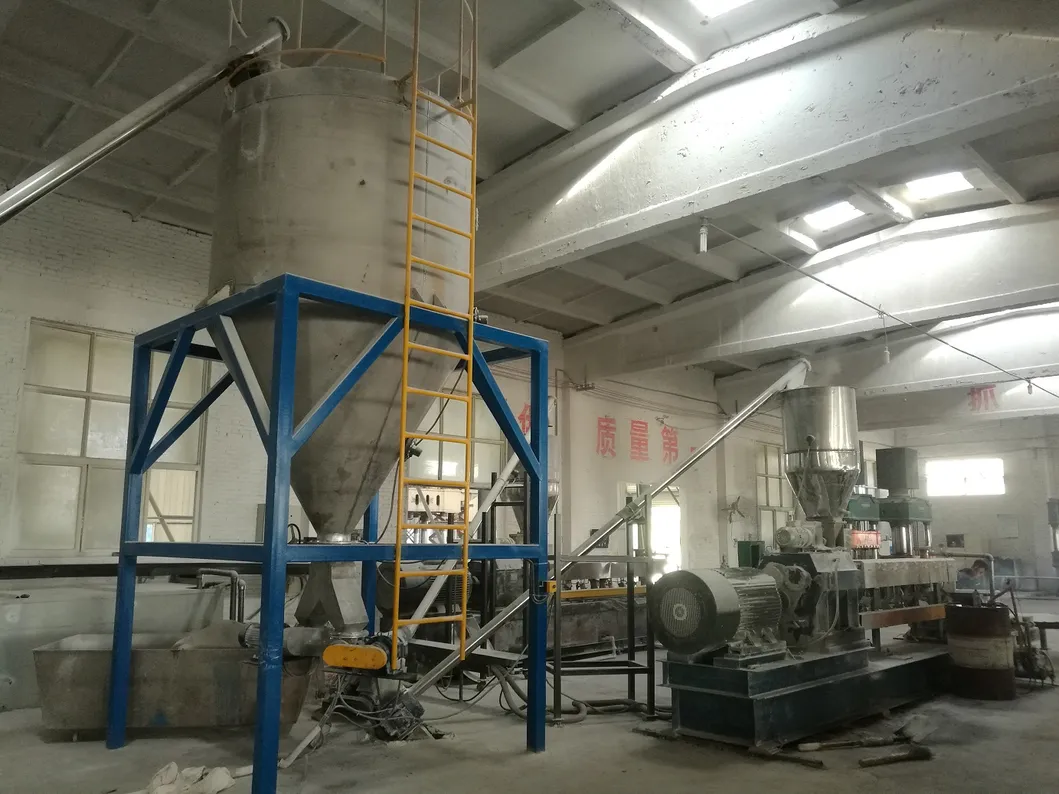

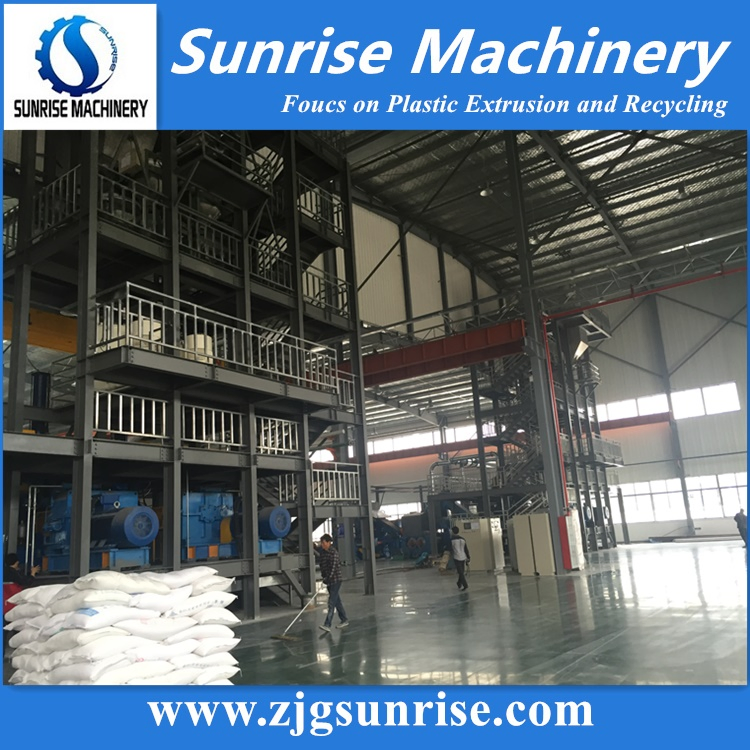

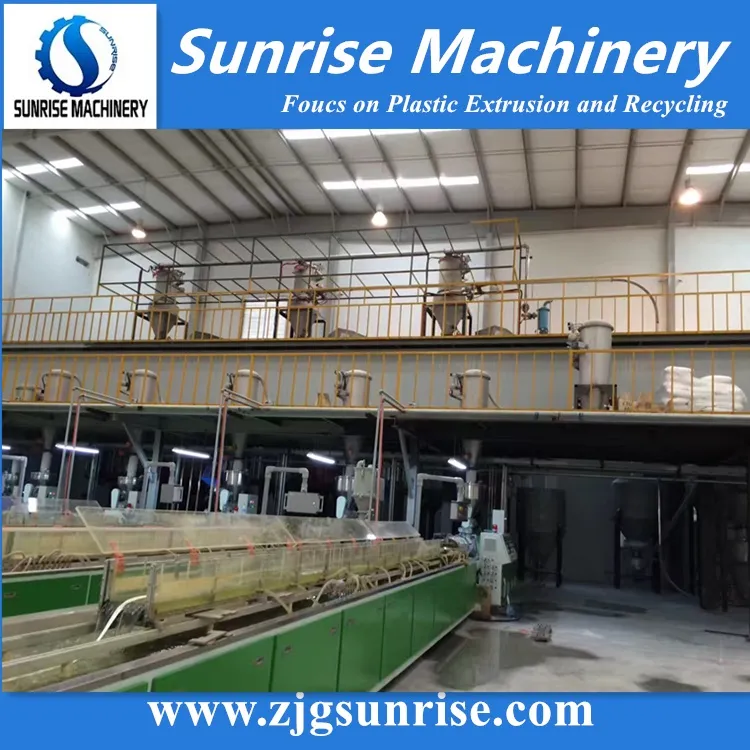

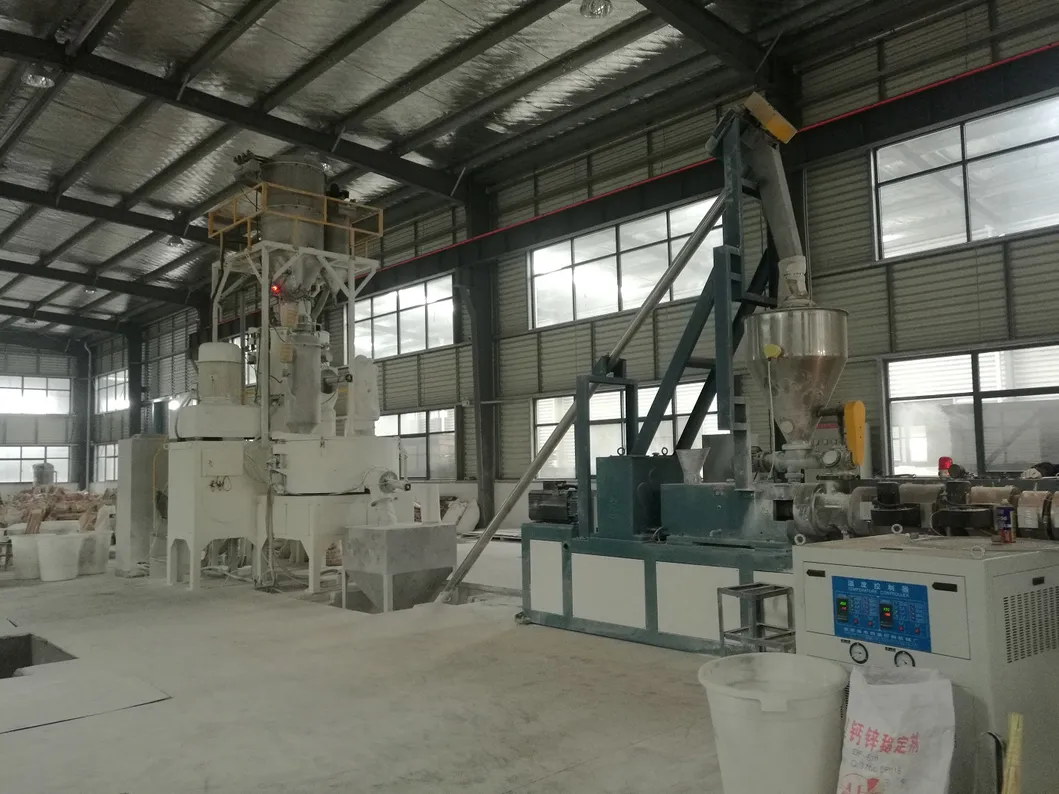

System Features: The PVC auto-weighing, mixing, and feeding system is specially designed for PVC pipe and PVC profile production fields. This system automatically weighs the PVC, CaCO3, and other additives, and feeds them into the mixer. After mixing, the dry blend is auto-fed directly to the extruders. It features dust-free operation (reducing dust by at least 95% compared to traditional mixing), labor efficiency, and fully automatic operation.
Frequently Asked Questions
What applications is this High Speed Mixer machine suitable for?
It is an essential auxiliary machine for processing granules and powders, commonly used in production lines for plastic pipes, profiles, boards, WPC extrusion, and cable manufacturing to mix raw materials with different additives.
What are the capacity ranges for the SRL series mixer units?
We offer the SRL series mixers with effective volumes ranging from 10L to 2000L. A single mixing batch can process raw materials weighing between 3kg and 600kg.
How does the auto-weighing and feeding system improve factory environments?

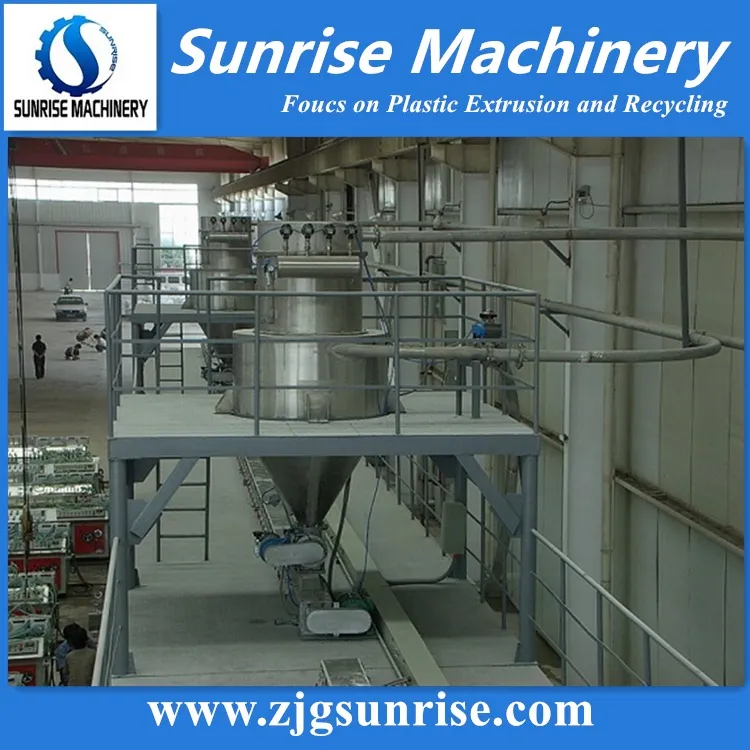

The integrated system features a highly sealed conveying loop that reduces dust levels by at least 95% compared to traditional mixing methods. This significantly lowers labor intensity and ensures a cleaner working environment.
What control and weighing components are used in the machine?

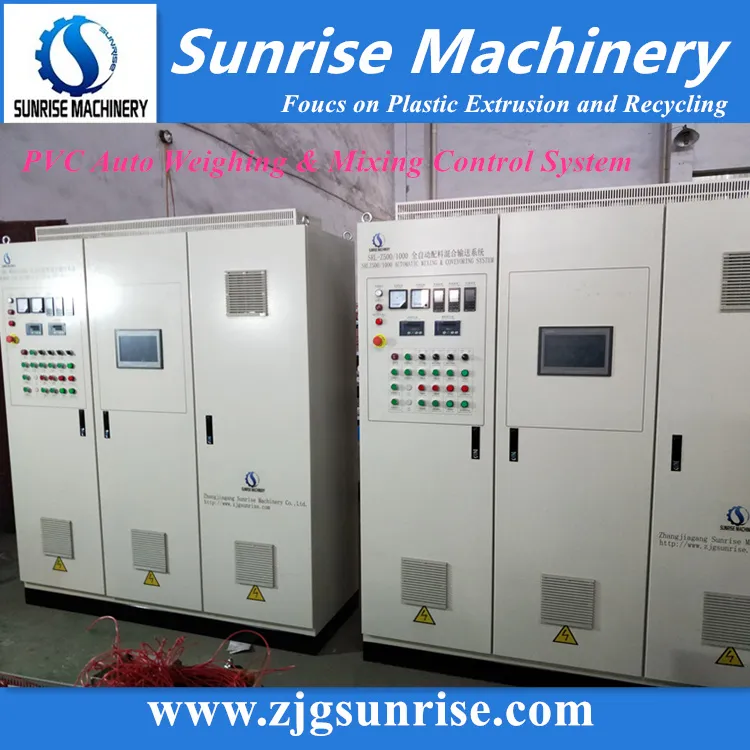

The machine is built using world-renowned components, including a Siemens PLC control system, Siemens weighing modules and contactors, alongside highly precise Toledo weighing sensors.
What heating and cooling methods are utilized in the SRL-Z series?
The hot mixing phase employs friction heating to rapidly prepare the compound, while the low-speed cooling mixer stage utilizes high-efficiency water cooling to stabilize the material prior to extrusion.
