An efficient automatic batching solution designed for accurate concrete mixing processing, enabling streamlined operations for various construction demands.

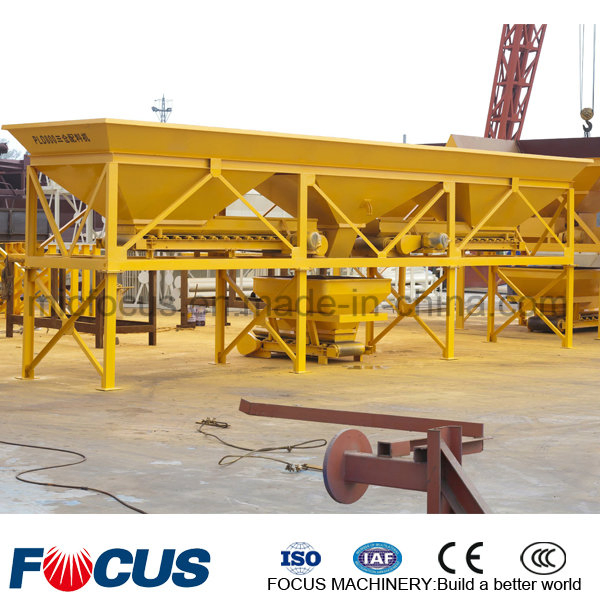

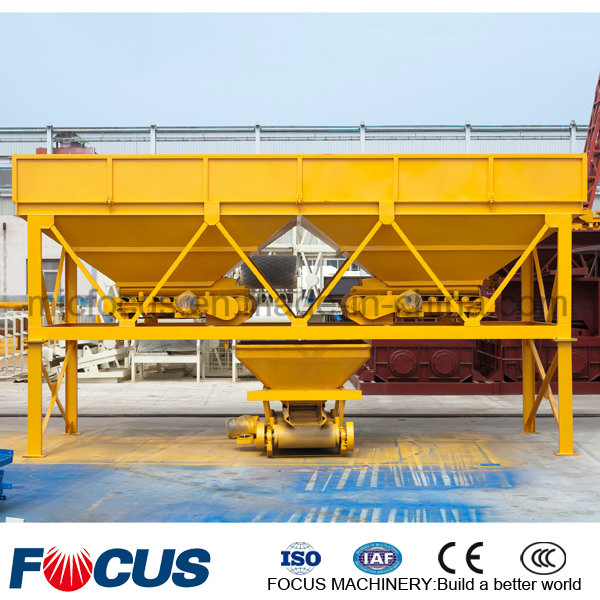

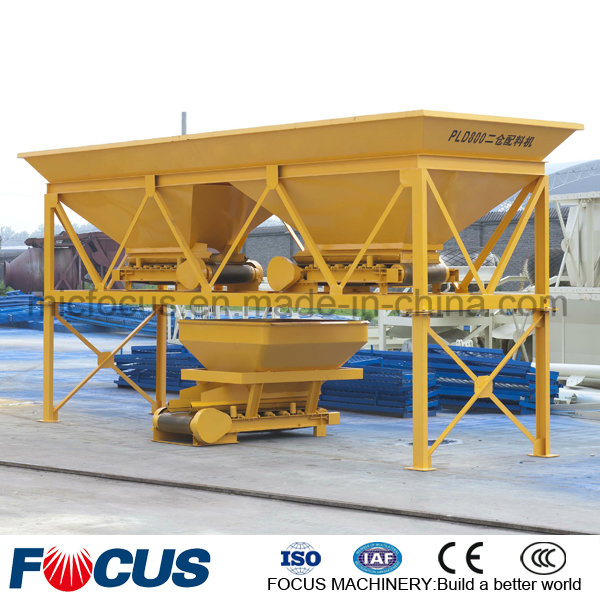

1. PLD series aggregate batcher is a kind of automatically batching equipment which can automatically finish the batching procedures of 2-6 kinds (Second grade concrete) such as sand, stone, and cement according to user designs.
2. This machine is designed to work together with concrete mixers. This serial aggregate batcher adopts electronic weighing and digital display, presenting characteristics of accurate weighing, high-precision batching, rapid operation speed, strong control function, and convenient operation.
3. Once combined with the corresponding concrete mixers, different types and specifications of combined concrete mixing stations can be formed.
1. The PLD series concrete batching machine (aggregate batcher) is an automatic batching equipment engineered to automatically finalize the batching procedures of 3-6 kinds of materials based on project designs.
2. Used in conjunction with concrete mixers, this serial aggregate batcher features advanced electronic weighing, computer control, digital display, and wired remote control operation, resulting in highly precise batching, rapid cycle speeds, and user-friendly control operations.
| Model | Weighing Hopper Volume (m³) | Storage Hopper Volume (m³) | Production Capacity (m³/h) | Batching Accuracy (%) | Max. Weighing (kg) | Batching Aggregate Category |
|---|---|---|---|---|---|---|
| PLD800 | 0.8 | 2×2 | 48 | ±2 | 1500 | 2 |
| PLD1200-3 | 1.2 | 4×2.2 | 60 | ±2 | 2000 | 4 |
| PLD1600-2 | 1.6 | 4×3.7 | 80 | ±2 | 3000 | 4 |
| PLD2400 | 2.4 | 3×12 | 120 | ±2 | 4000 | 3 |
| PLD3200 | 3.2 | 3×20 | 160 | ±2 | 5000 | 3 |
| PLD3200-4 | 3.2 | 4×20 | 160 | ±2 | 5000 | 4 |
| PLD4800 | 4.8 | 4×25 | 280 | ±2 | 8000 | 4 |
