Customization: Available
After-sales Service: Echnical Support Will Reply Within 12 Hours.
Warranty: One Year Warranty for Core Components
Send Inquiry

Product Description

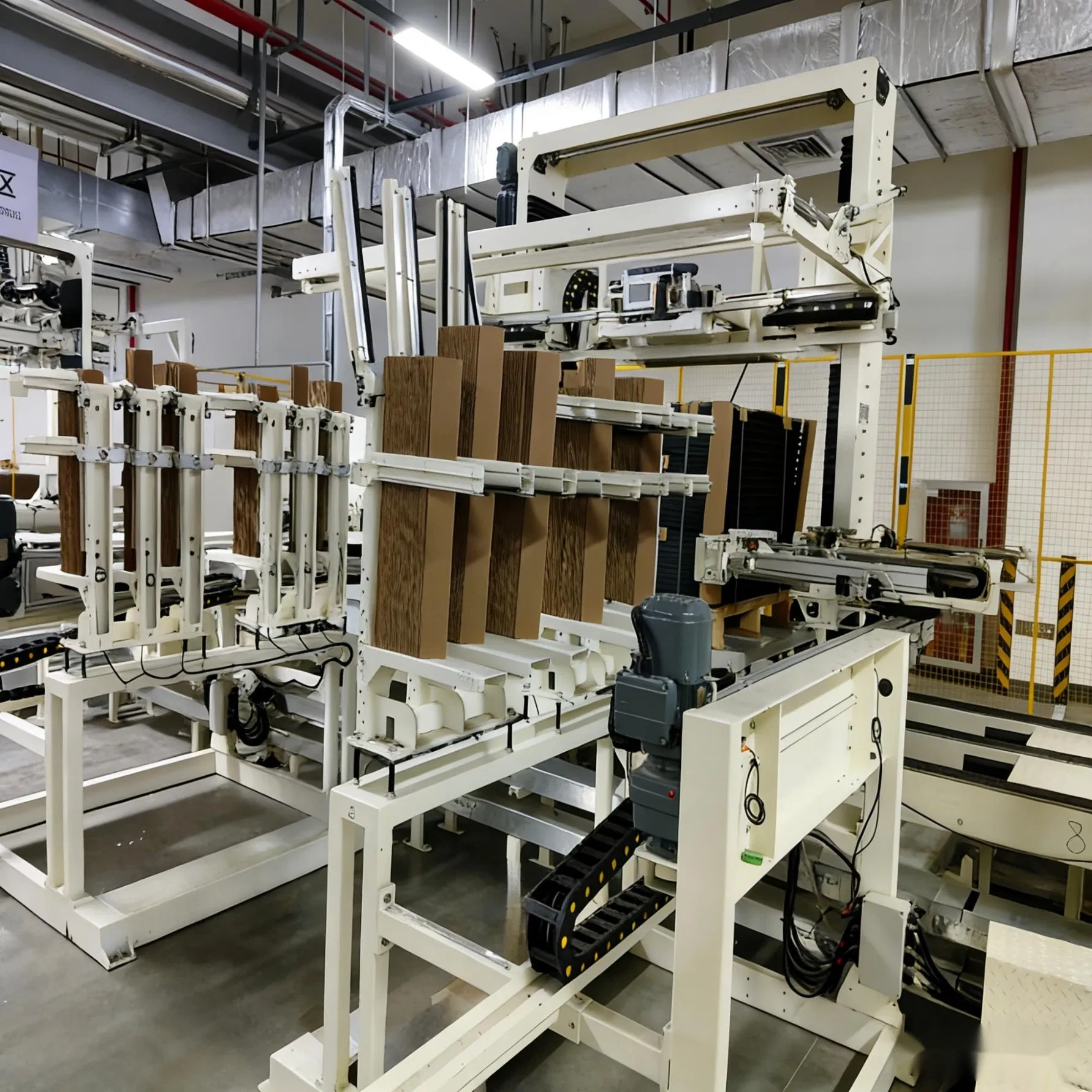

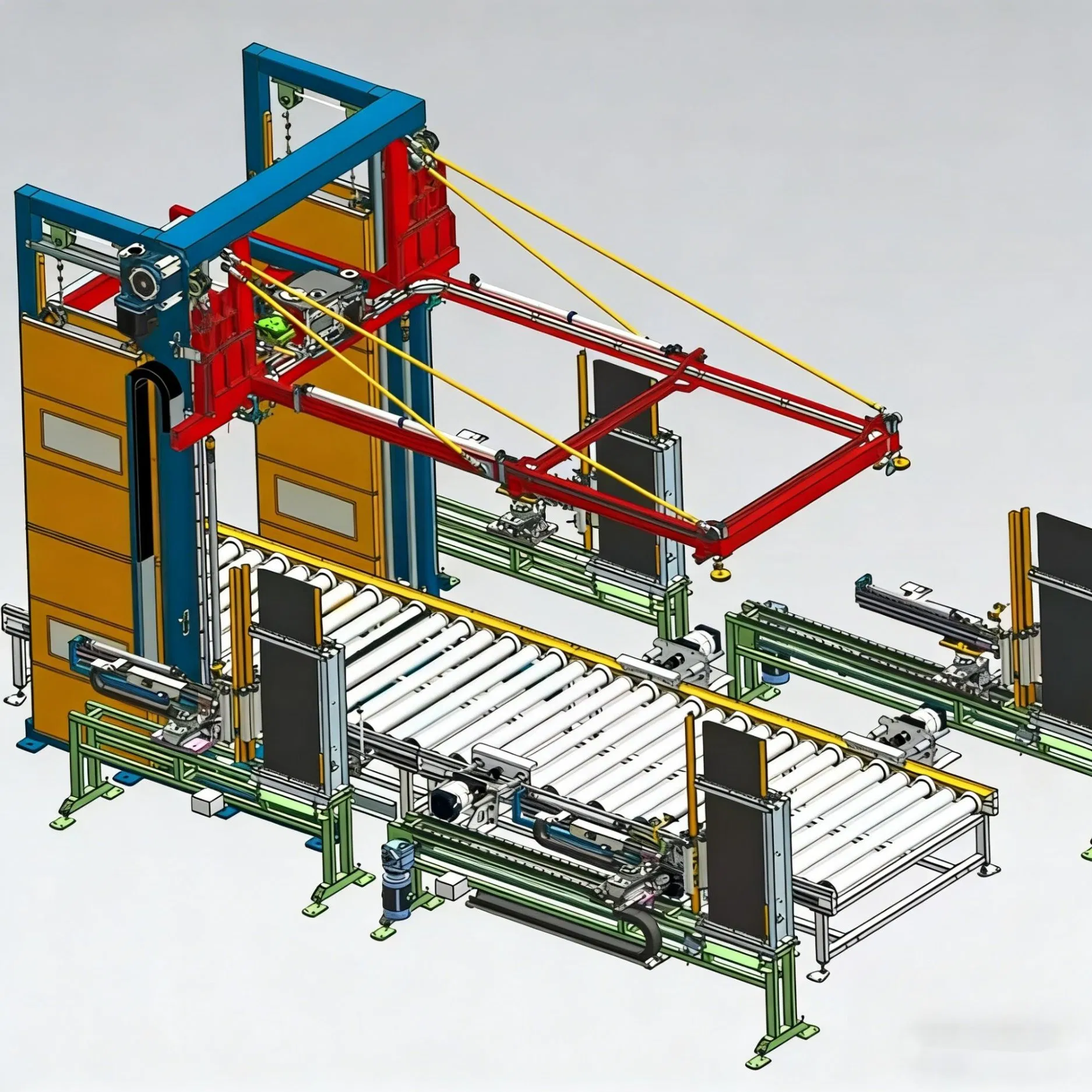

Vertical Long Corner Protector & Horizontal Strapping Packaging Machine

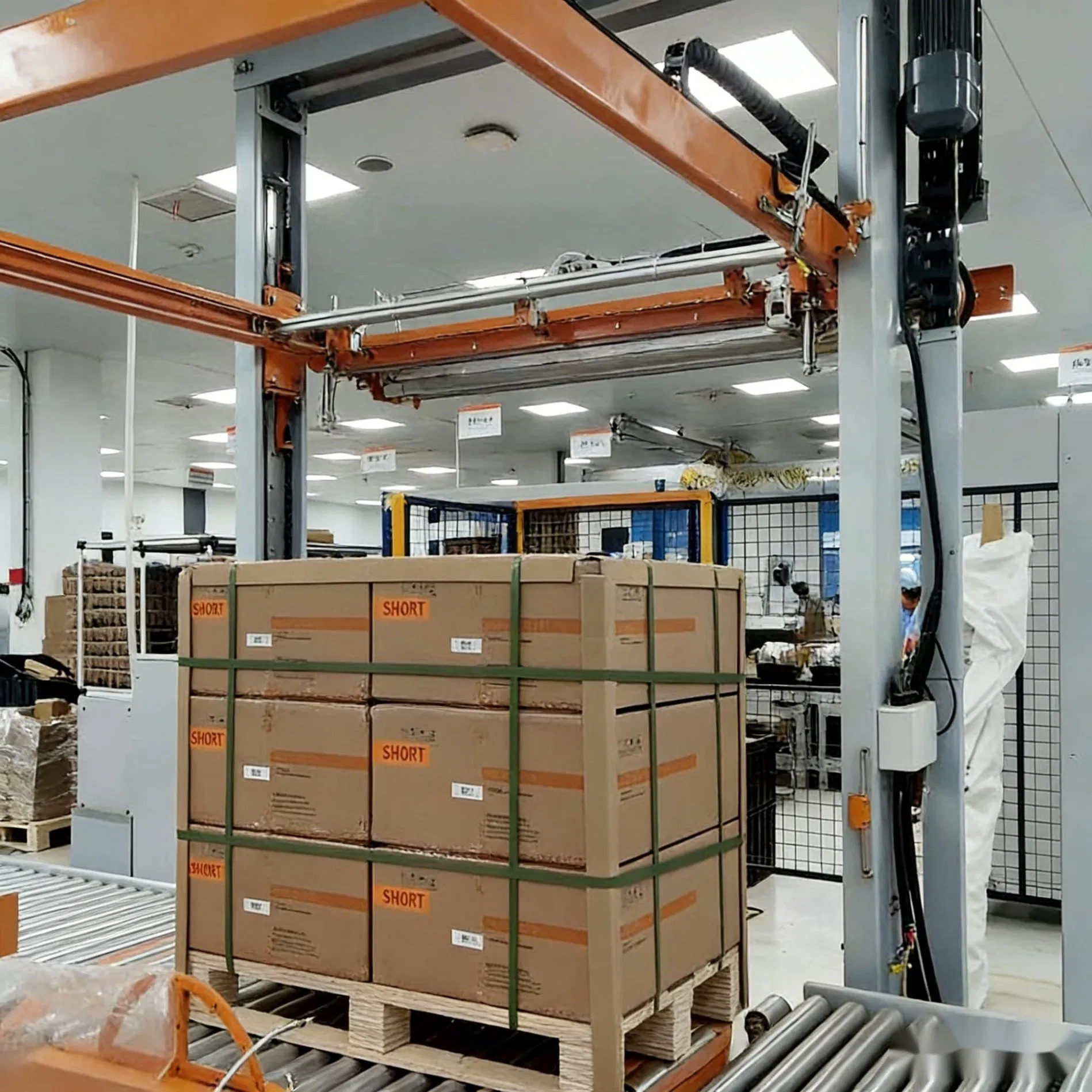

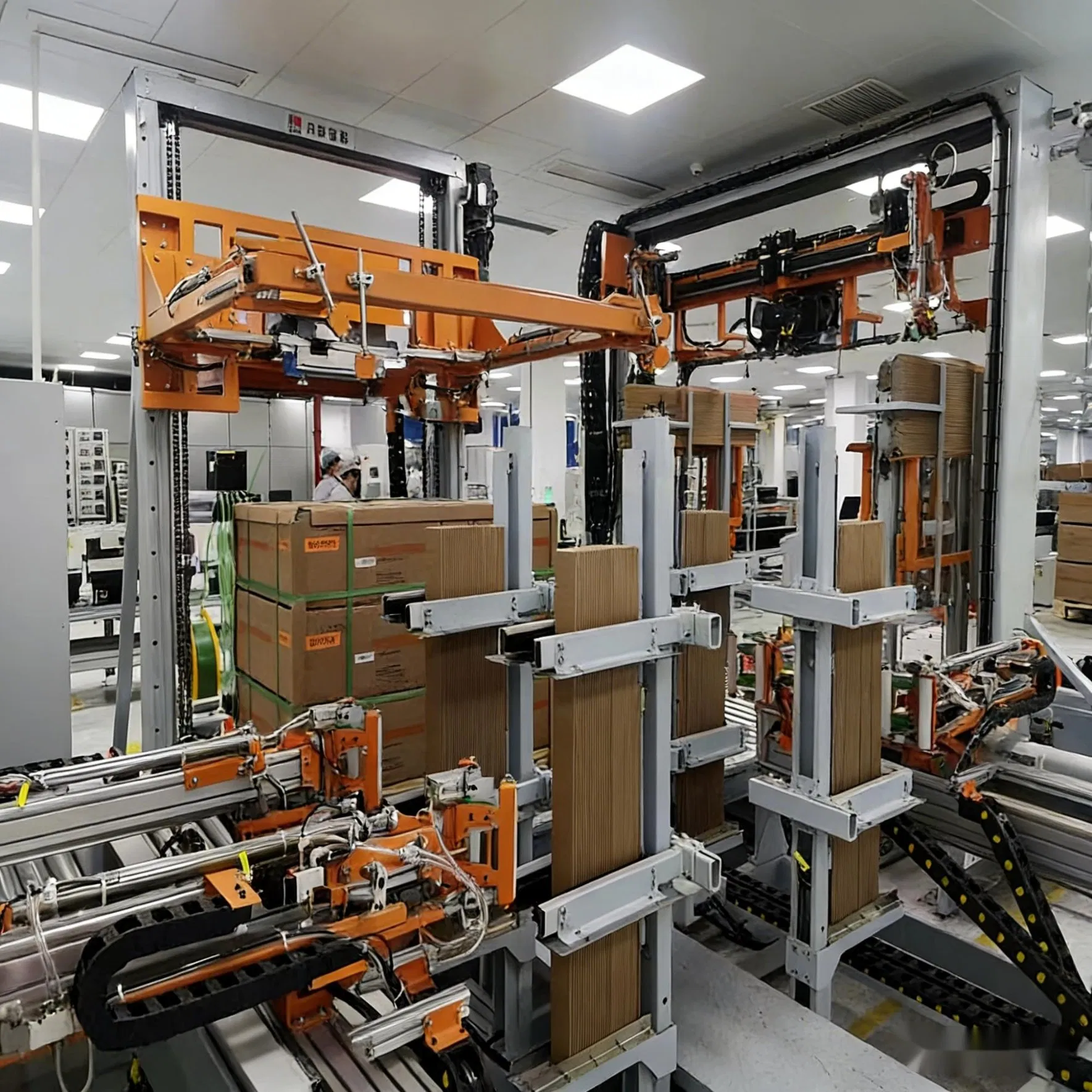

The goods are conveyed to the horizontal strapping station. The corner protector mechanism picks up and automatically places vertical corner protectors. The strapping machine head then applies the first strap. Following this, the corner protector mechanism retracts. The strapping machine continues to move and applies the second strap (the number of straps is programmable). Upon completion of the horizontal strapping, the goods are automatically conveyed onward.

📋Basic Information

Model NO. LC-TB
Application Waste Paper, Steel Pipe, Steel Coil, Alcoholic Beverages, Glass Product/Food/Textile/Machinery/Paper/Chemical
Strapping Material Polyester Strapping
Automatic Grade Automatic
Strapping Mode Welding Type
Driven Type Electric
Structure Pressure Strapping

⚙Technical Specifications

Effective width through 1400mm
Effective through height 1600mm (Including pallets)
Tape Width for Strapping Head PET: 12-19mm
Bonding method Friction
Single strapping time 20s
Fastening strength 50-4000N (Adjustable)
Pneumatic Pressure Requirement 0.6~0.8MP
Voltage 380V 50Hz 3pH (Can Be Customized)

📷Product Display

Packaging Machine Main View
Packaging Machine Side View
Packaging Process
Technical Diagram 1
Technical Diagram 2
Technical Diagram 3
Machine Structure
Operation Detail
Strapping Head
Control Panel
Finished Pallet

🛠Service & Warranty

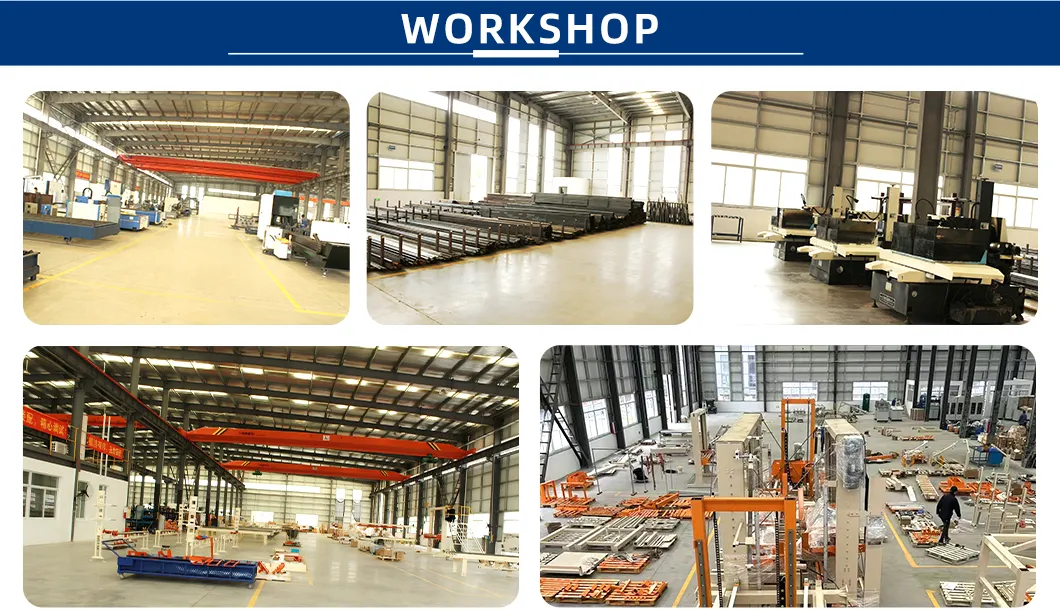

Supported by a comprehensive production system and a dedicated R&D team, precision equipment such as laser cutting machines and machining centers are utilized to provide complete sets of equipment.

✓ Design & Documentation: Before acceptance, a full set of English version technical data, including mechanical structure drawings and electrical schematics, will be supplied.

✓ Installation & Commissioning: All equipment is tested in-factory. 24-hour online technical service is available for installation, repair, and maintenance.

✓ Warranty: One year guarantee for main electrical parts (motor, inverter, PLC). Lifetime free technical support and parts available at reasonable prices after the warranty period.

✓ Response Time: Initial response within 2 hours; technical support provided within 24 hours.

Frequently Asked Questions
How long is the warranty period of the machine?
We offer a one-year warranty for core components.
How are the shipped goods packaged?
The machines are securely packed in wooden cases for standard shipping protection.
Is on-site commissioning supported?
Yes, on-site commissioning by our technicians is available via contract.
What is the typical delivery time?
For general standard machines, the delivery time usually takes 30 working days, depending on factory orders.
Do you provide spare parts service?
Yes, we provide affordable and accessible spare parts for all our customers.
What trade methods do you support?
We support various trade methods including FOB, CIF, DDP, and others.
