The bucket elevator is an indispensable tool, predominantly employed across various industries such as grain, feed, coal, metallurgy, and cement factories. Its primary function is to elevate materials like granules, dust-like particles, small blocks, or oily substances.

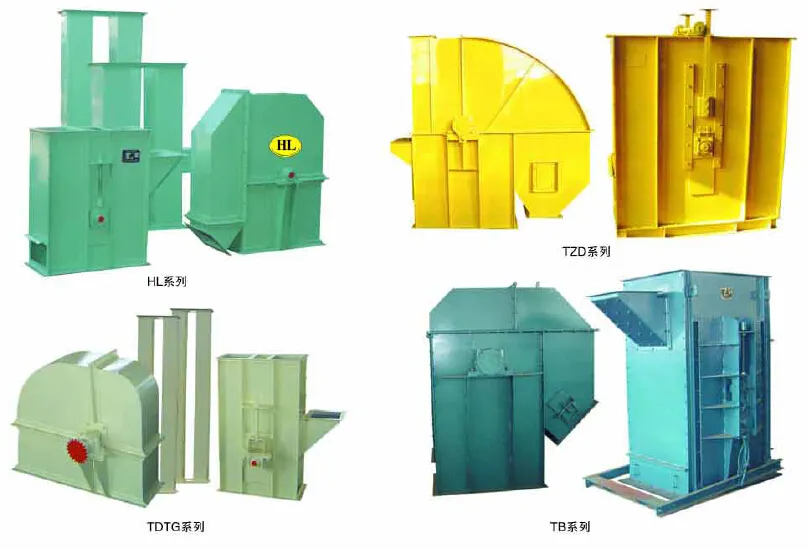

This sophisticated machine comprises an elevator top, machine barrel, elevator bottom, rubber belt (or chains), and buckets. The rubber belt encircles the head and tail wheels, with buckets affixed at regular intervals. Material enters via the inlet, is scooped by buckets, elevated along the belt, and discharged at the head wheel.

Key Components:

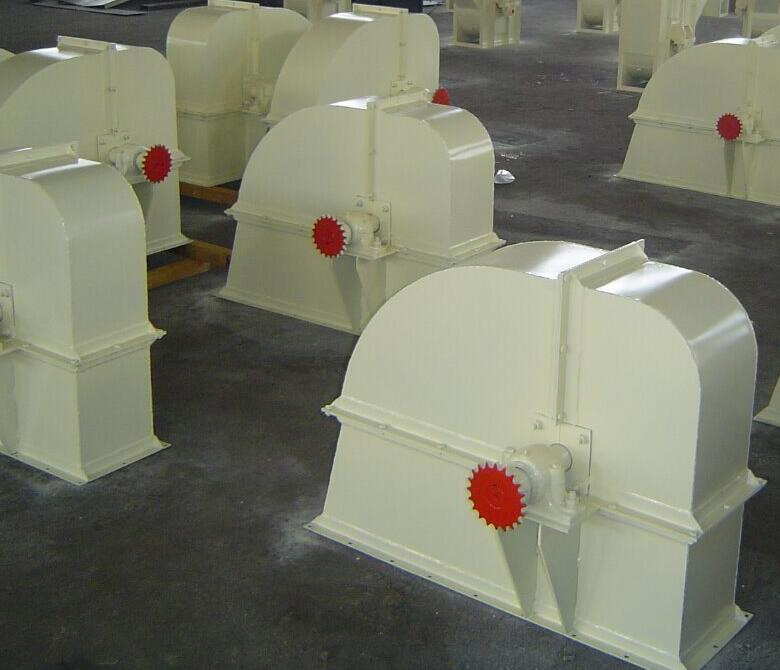

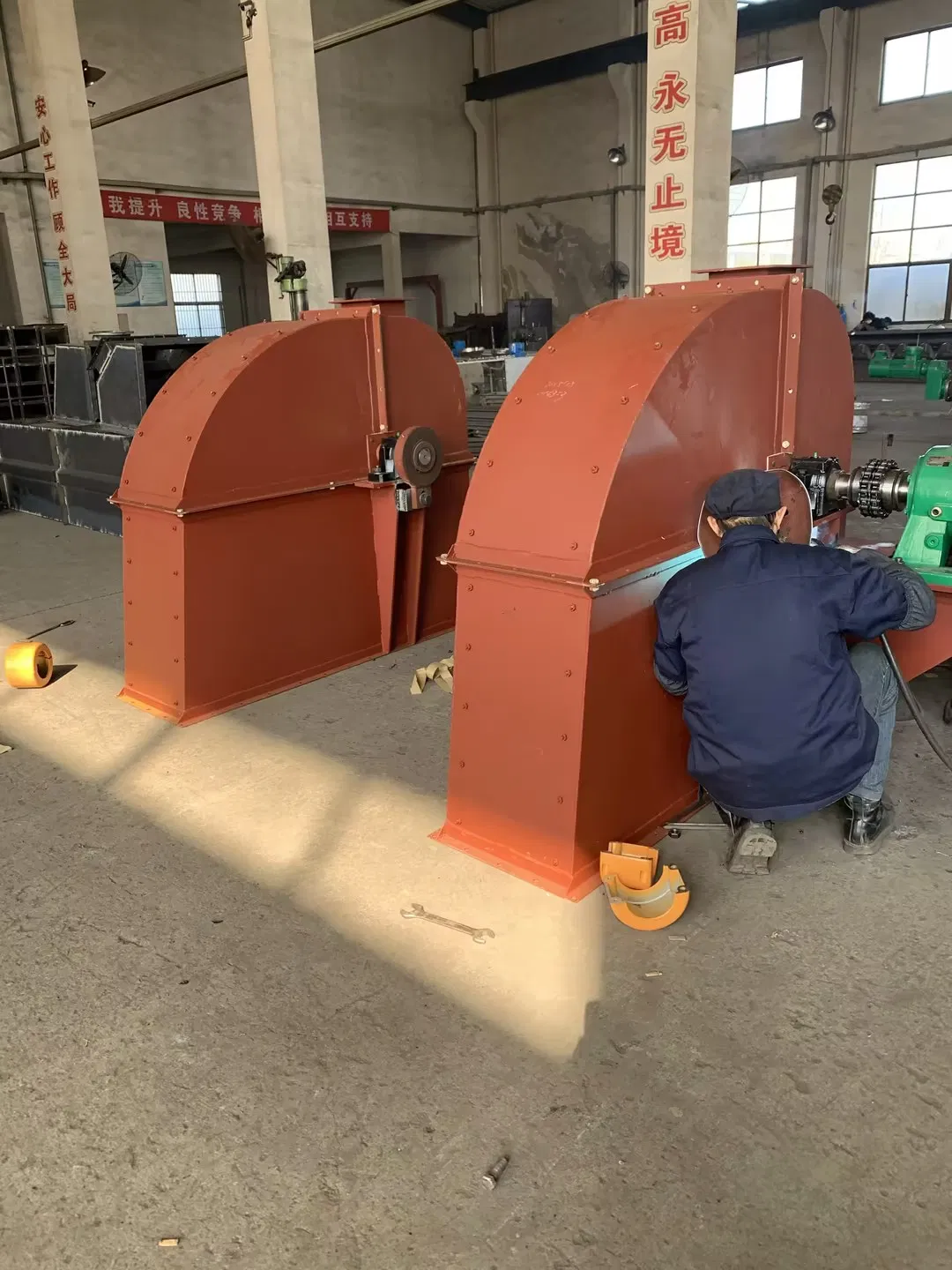

• Elevator Top: Integrates chain drive, head cap, discharge area, and bearing housing. Transmission options include flexible coupling straight drive, chain/sprocket drive, or V-belt pulley drive.
• Elevator Box: Robust construction using angle steel and steel sheets.

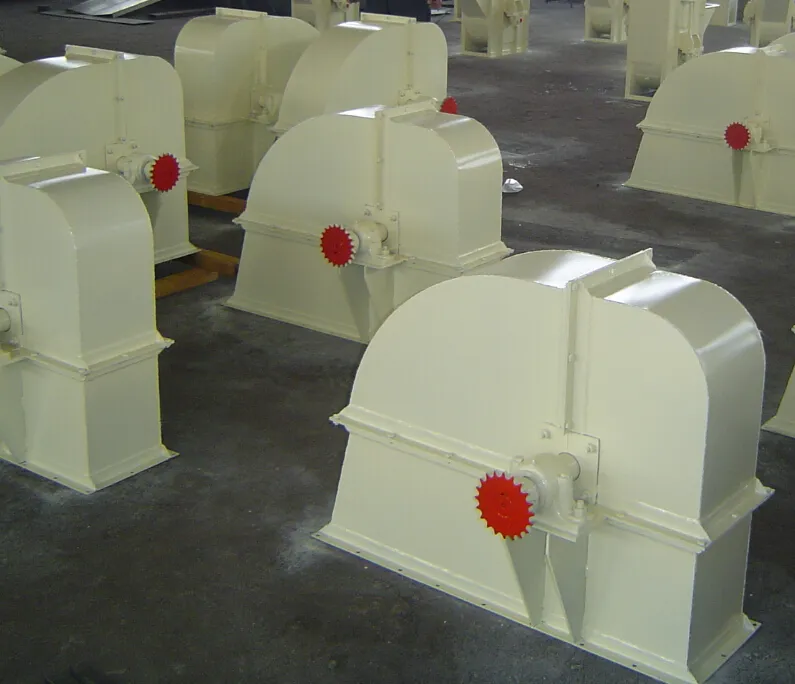

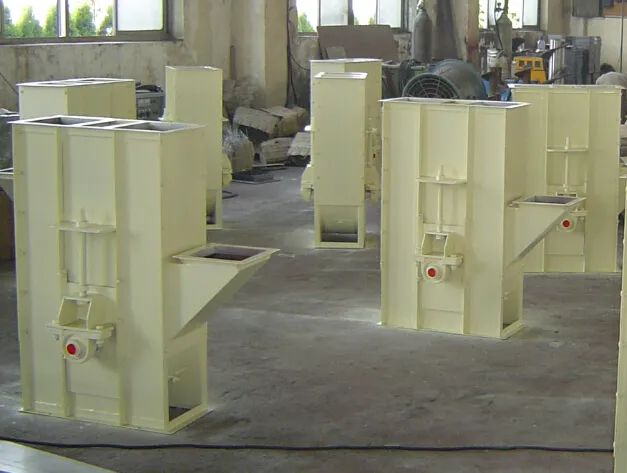

• Elevator Bottom: Features an inlet, discharge gates, and a spiral tension system to adjust the bucket belt.
• Conveying Media: Available in rubber belt or chain types. Buckets are mounted using specialized bolts, nuts, and spring washers.

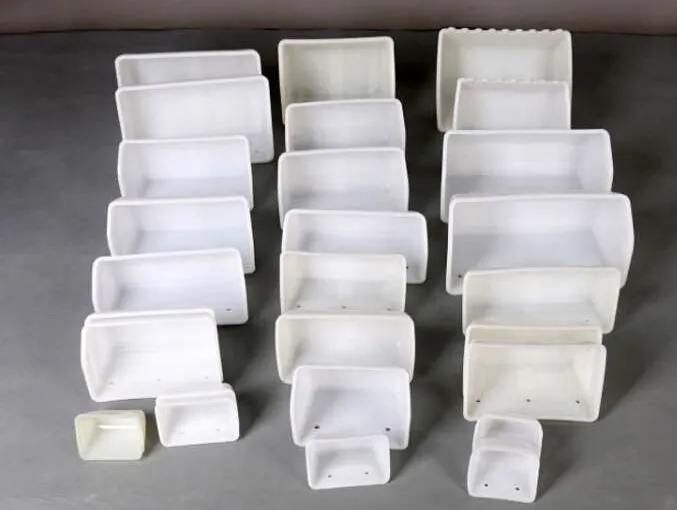

• Bucket Varieties: Deep buckets for granular materials; shallow buckets for dust-like materials.
