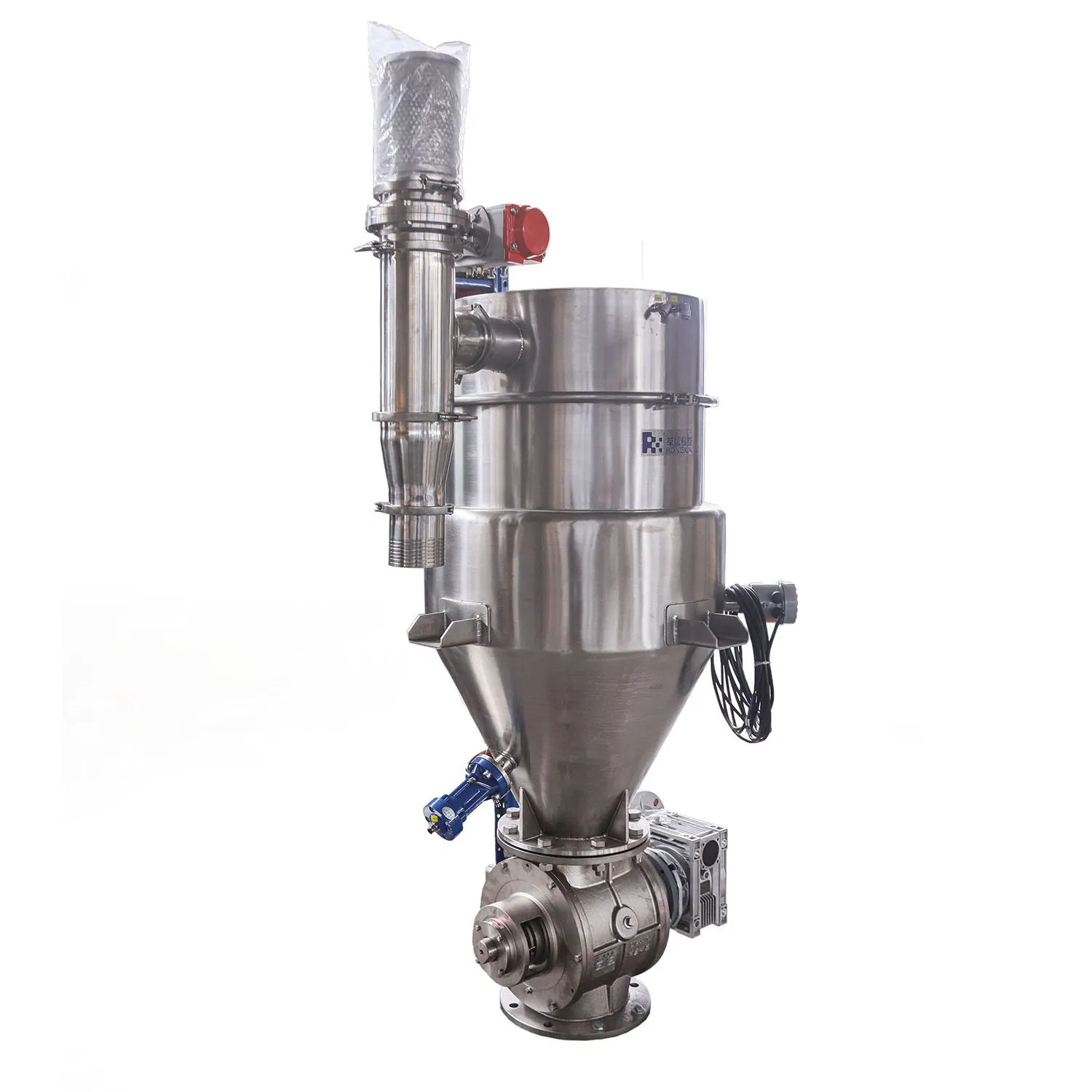

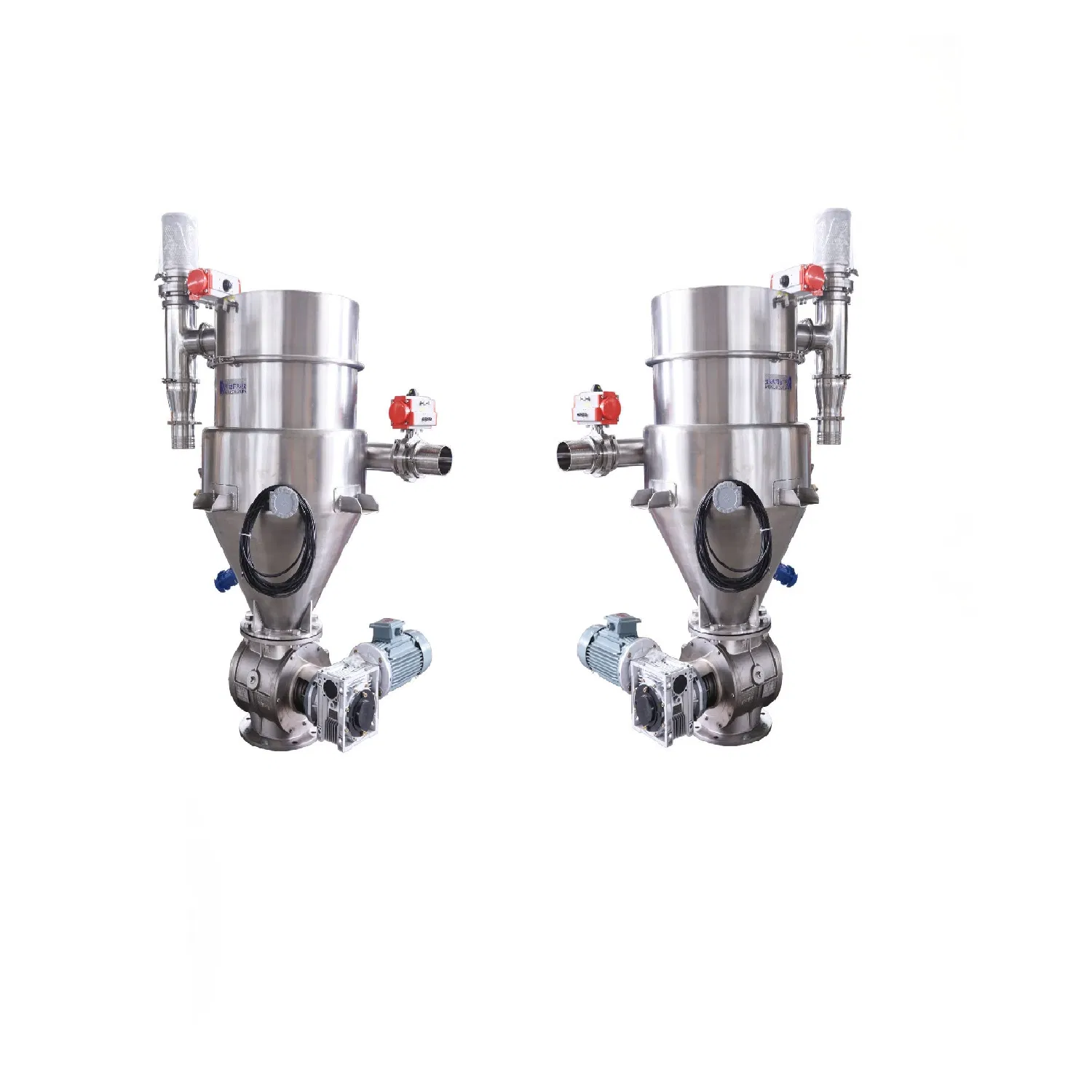

The Pneumatic Vacuum Feeder is a top-tier vacuum conveying system meticulously crafted to transport powder materials and powder particle mixtures with utmost efficiency. This cutting-edge equipment excels in delivering a wide range of materials to packaging machine hoppers, injection molding machines, crushers, and other industrial machinery. Additionally, it offers the unique capability to directly convey mixed materials to mixers like V-type mixers, two-dimensional mixers, and three-dimensional mixers, significantly reducing worker labor intensity.
| Item | RX-QXXL-200 | RX-QXXL-300 | RX-QXXL-400 |
|---|---|---|---|
| Conveying capacity | 50-900kg/h | 300-2500kg/h | 600-3500kg/h |
| The conveying capacity depends on the conveying distance, material resting angle, density, liquidity, etc. The conveying capacity is for reference only. | |||
| Suction volume | 13L/time | 38L/time | 68L/time |
| Overall dimensions | Φ200*1100 | Φ300*1300 | Φ400*1400 |
| Application Industry | Suitable for the powder and granular bulk materials' transporting in food, chemical, pharmaceutical, lithium battery industries | ||
| Working theory | The vacuum feeder forms a strong airflow under vacuum which instantly transport the bulk material to the other container by the closed pipe.During the conveying, the materials always stay in the vacuum status. Therefore, even if there is a leakage in the conveying pipeline, the material will not leak into the surrounding environment. | ||
| Characters |
|
||
| Working environment | Temperature -10ºC--+60ºC, air humidity: 35%-45%RH (decided by material properties). | ||
| Operating pressure | -30Kpa~-90Kpa | ||
Introducing the Pneumatic Powder Conveyor Loader for Fertilizer. This innovative system offers efficient bulk powder conveying for various applications.
Our vacuum feeding machine ensures closed transportation, prevents dust leakage, and eliminates cross-contamination. It is compliant with GMP standards and meets CIP requirements.
The vacuum feeding machine can transport up to 6 tons/hour, covering a distance of 50m horizontally and 30m vertically, effectively addressing powder particle layering.
Operates without vibration and produces low noise levels.
Compact size for easy and fast installation.
Dust-free operation with a modular design that eliminates dead corners. Allows for quick and convenient disassembly, cleaning, and material replacement.

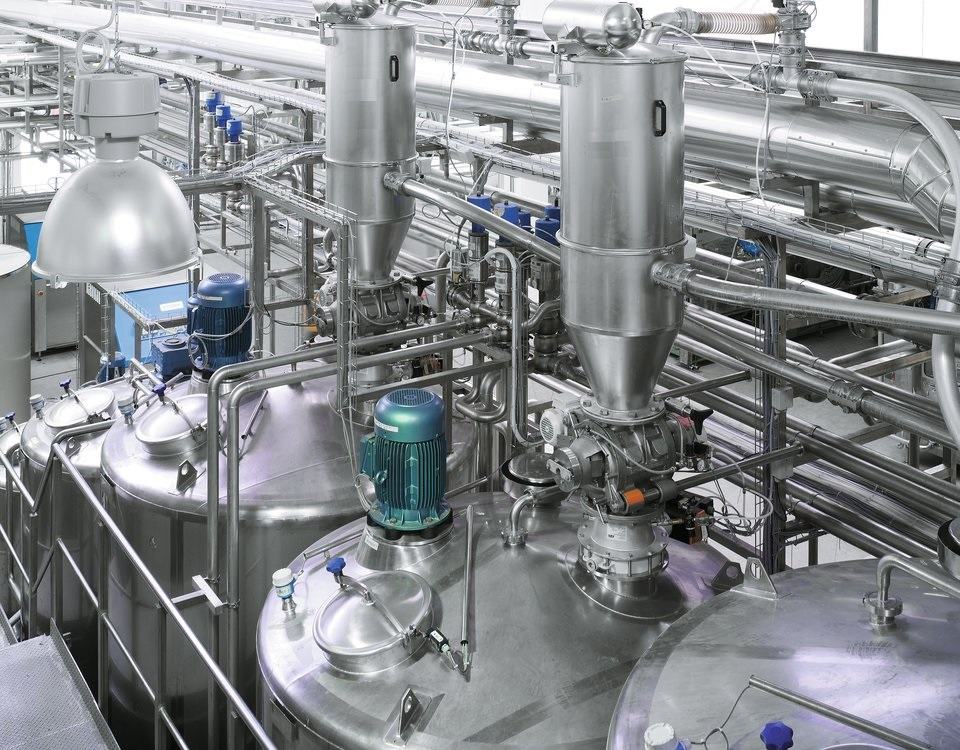

The pneumatic vacuum feeder is a versatile machine designed to directly feed materials into various equipment. It is suitable for use with mixers, reverberators, hoppers, tablet presses, packaging machines, vibrating screens, granulators, wet granulation machines, dry granulation machines, and crushers. This innovative machine reduces labor intensity, eliminates dust pollution, and complies with "GMP" production standards.
Description: The Pneumatic Powder Conveyor Loader is a mobile solution for efficiently handling bulk materials. Its innovative design ensures precise transportation of fertilizer with ease. This conveyor loader is reliable and perfect for various industrial applications.

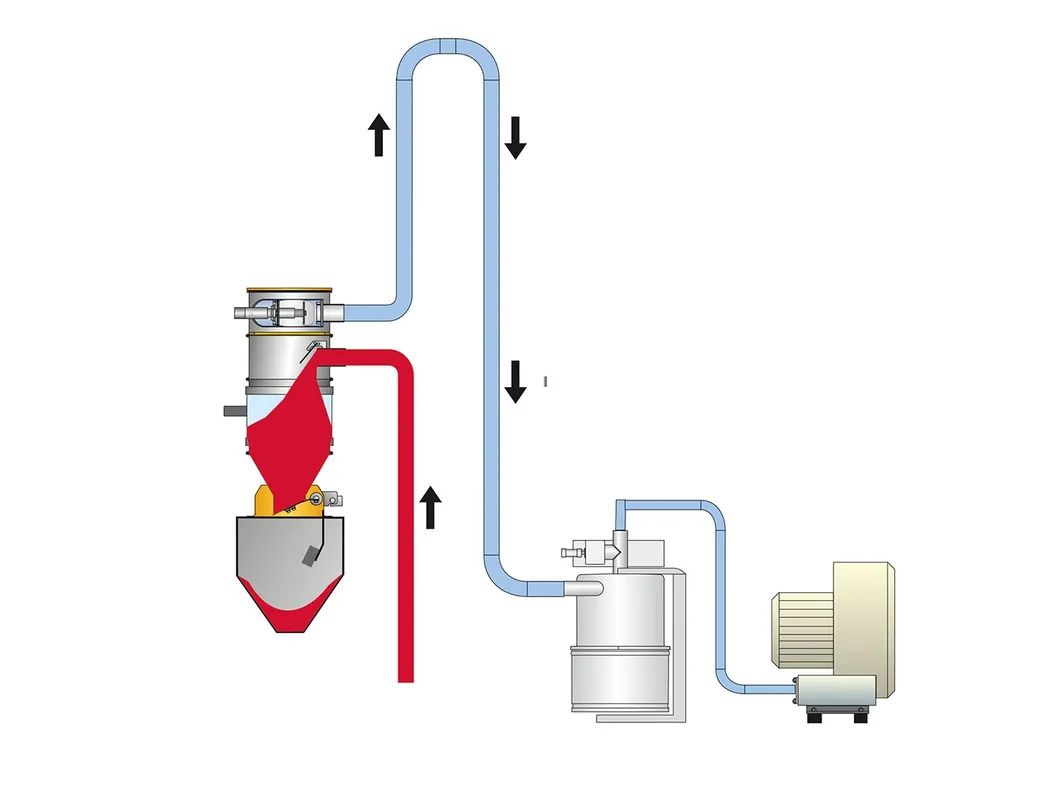

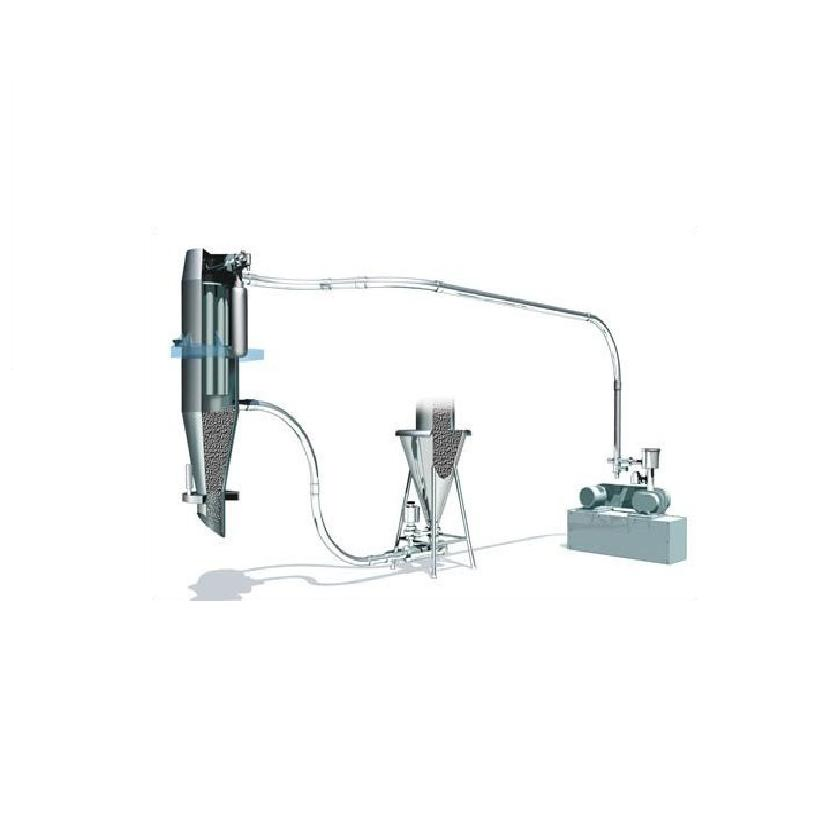

The system utilizes vacuum suction to establish a strong, controlled airflow within a sealed pipeline. This pressure differential pulls the bulk powder or granular material directly from the supply container into the designated receiver hopper without any environmental exposure.
Yes, because the material is conveyed through a fully closed, negative-pressure pipeline system. Even if a minor leak occurs in the pipe connections, air will only leak inward, ensuring no powders escape to pollute the surrounding workspace.
It is designed for a wide range of bulk solids, including raw pharmaceutical powders, tablets, capsules, food ingredients (like flour, sugar, and additives), industrial chemical powders, dyes, and agricultural items such as grain seeds and fertilizers.

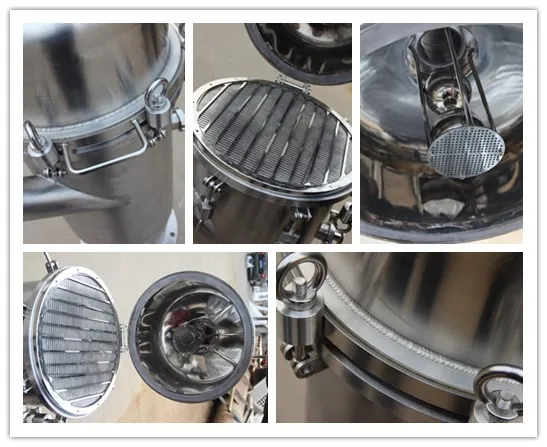

The equipment features a tool-free modular design that eliminates dead corners. This allows operator-friendly disassembly, thorough cleaning, and quick sanitization. It also supports optional built-in CIP (Clean-in-Place) spray balls for automated online cleaning.
Yes. The system is engineered to effectively eliminate material static electricity during conveying. Combined with its spark-free pneumatic operation, it is highly suitable for dust-explosion-proof and sensitive industrial applications.
Depending on the model, density, and flow characteristics of the material, the feeder can deliver a capacity of up to 6 tons per hour, with conveying distances spanning up to 50 meters horizontally and 30 meters vertically.
