| Max. Work Speed: | 200 Pack/min |
| Total Power: | 12KW |

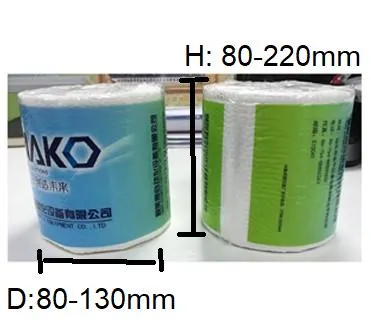

| Pack Range (mm): | Length (L): 80-220 Diameter (D): 80-130 |
Packaging film material: BOPP, CPP

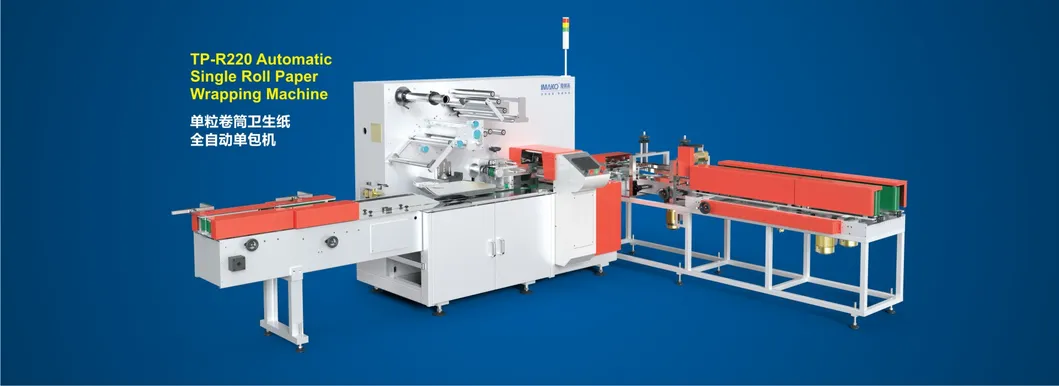

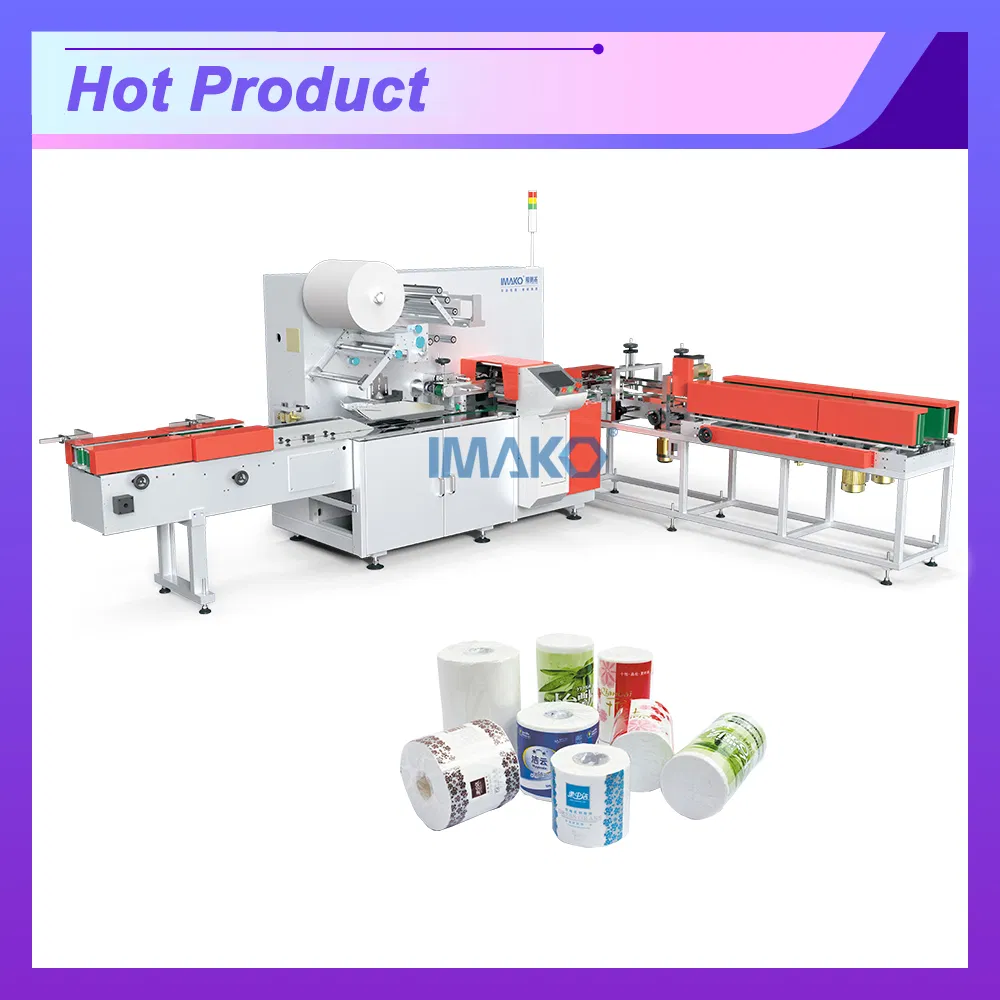

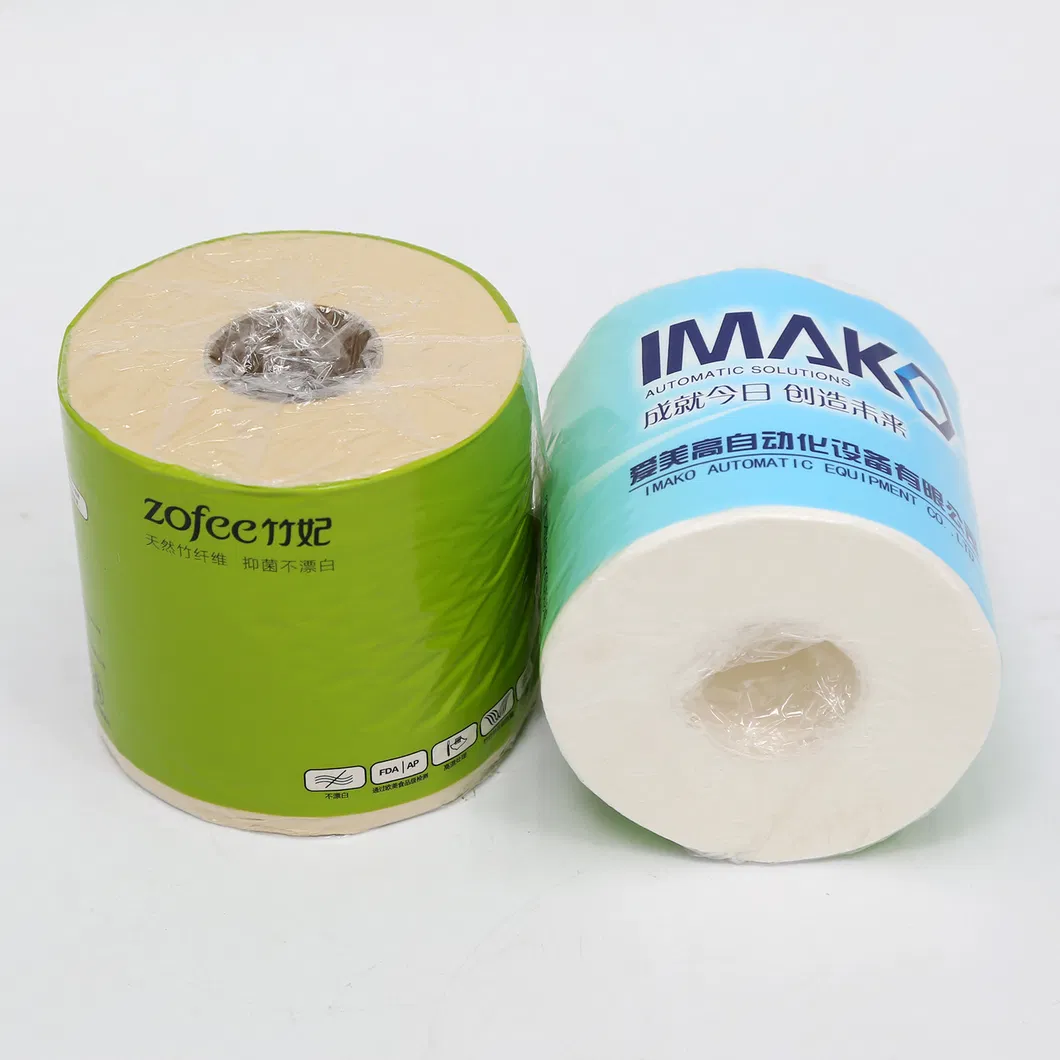

The roll paper wrapping machine is suitable for automatic packaging of either core or coreless toilet paper rolls and kitchen tissue rolls.

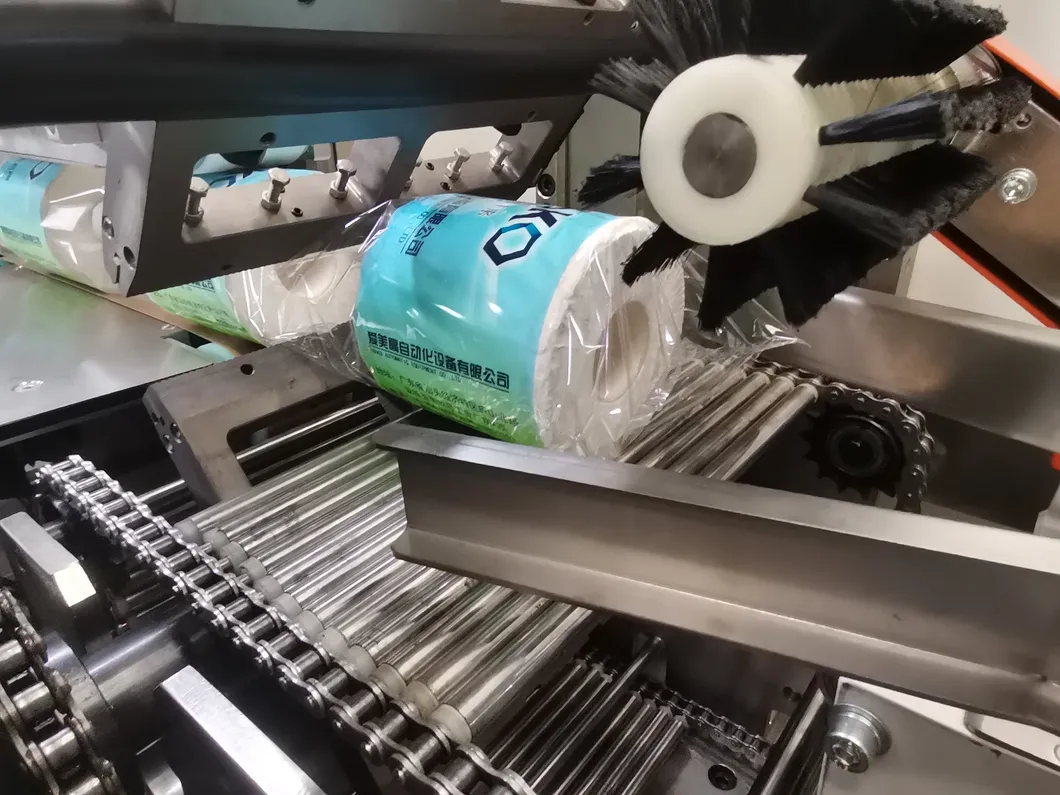

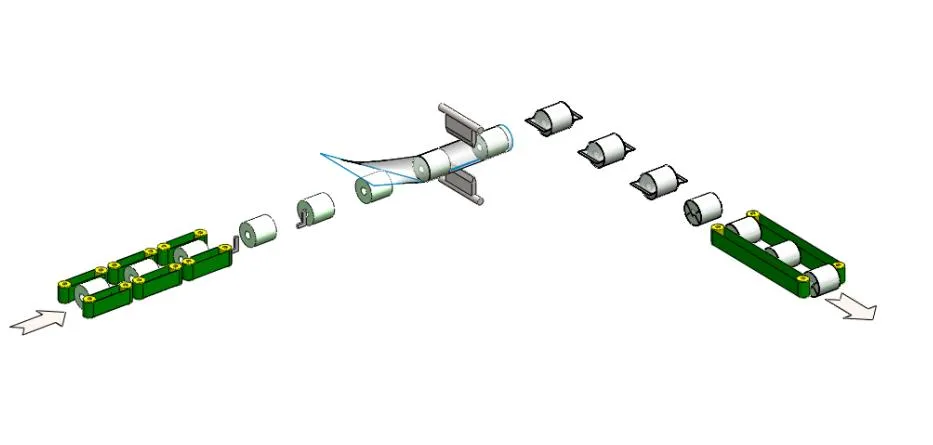

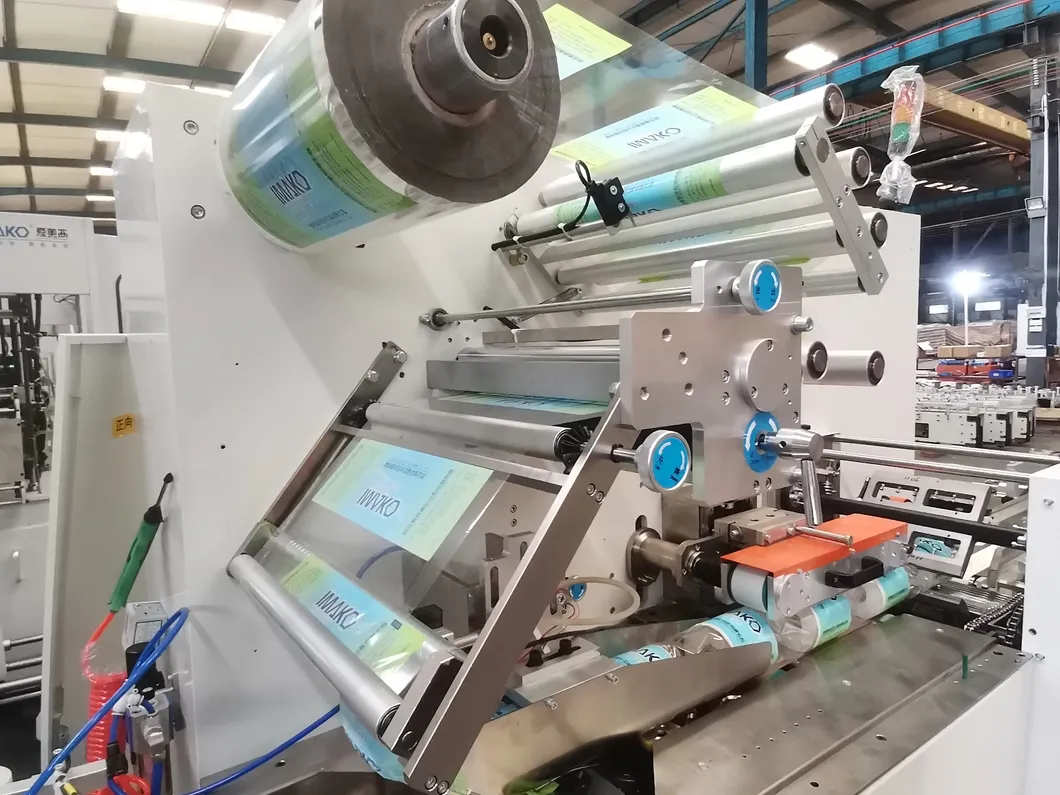

It can accomplish automatic operations of tissue roll arranging, roll feeding, film feeding, film cut off and tissue roll diverting by using servo drives.
A. Prevent Air Pack Function: If there are no rolls, the machine automatically stops. When rolls arrive, it automatically resumes running. This saves packaging film and reduces production costs.
B. Prevent Cutting Rolls Function: Features self-detection systems. If rolls are misplaced, the machine stops automatically so that the cutting blade will not damage the product.
C. Electric Self-Adjust Cutting Knife Speed: The cutting speed is managed automatically without manual adjustments, providing safe and convenient operation.

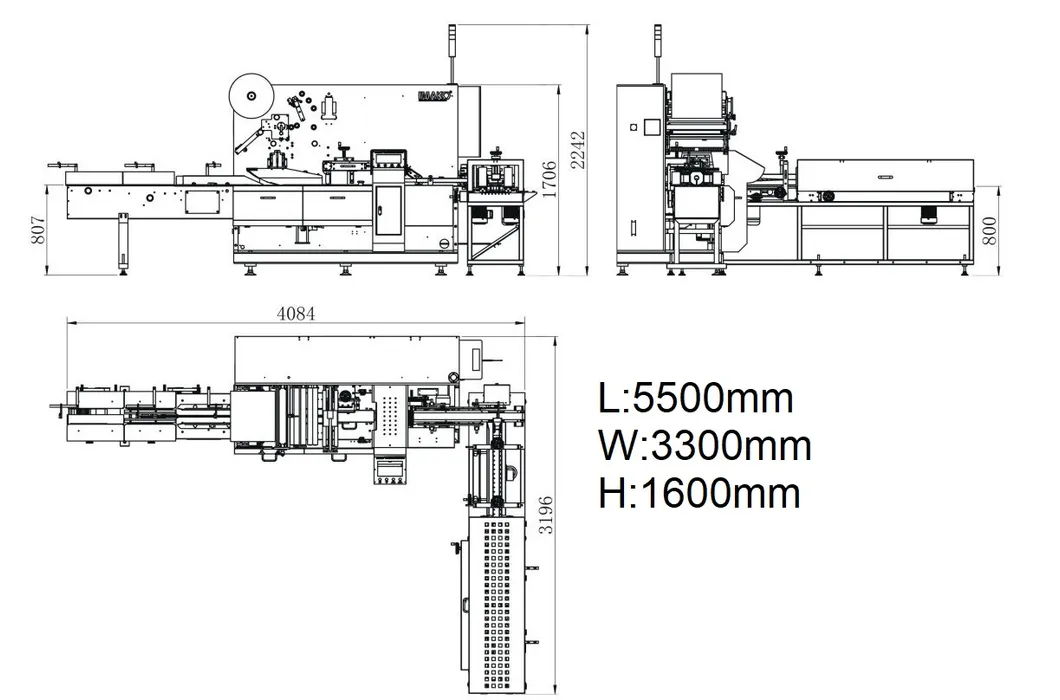

Technical specifications for the manufacturing equipment:
| Toilet Paper Machine Parameter Configuration | |
|---|---|
| Design packing speed | 220 packs/min |
| Stable packing speed | ≤200 pack/min (relative to product size) |
| Maximum film width (mm) | 430 |
| Cutter configuration | Double cutters |

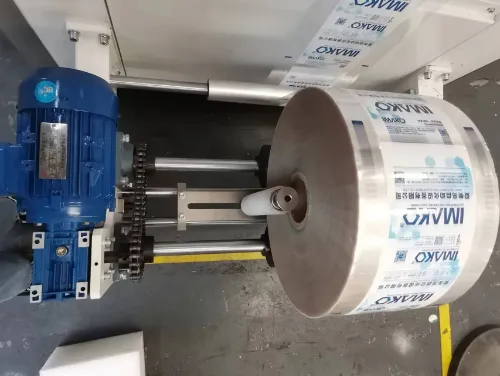

| Film install structure | Air shaft |
| Machine weight (KG) | 1800 |
| Machine noise (db) | ≤78dB |
| Percentage of pass | ≥97% |
| Efficiency | ≥85% |
| Power supply | 380V/60Hz |
| Packaging film material | BOPP, CPP |
| Film thickness | 0.018-0.03 |
Parameters: Toilet roll weight 150g/roll, efficiency factor 90%, production time 8h, production speed 180 rolls / min
Calculation: 150g/roll × 8 hours × 60 minutes × 0.90 efficiency × 180 rolls/min = 11,664kg = 11.6 tons
(Note: The above capacity calculations are for reference only)
Whether producing toilet rolls or kitchen towels, this machine adapts to multiple specifications across various production lines. Simply toggle the selection on the control screen for quick specification conversion.
We focus entirely on the design and manufacture of automated packaging equipment for the household paper industry. We aim to develop user-oriented, innovative solutions for worldwide tissue manufacturers to meet their efficiency demands.

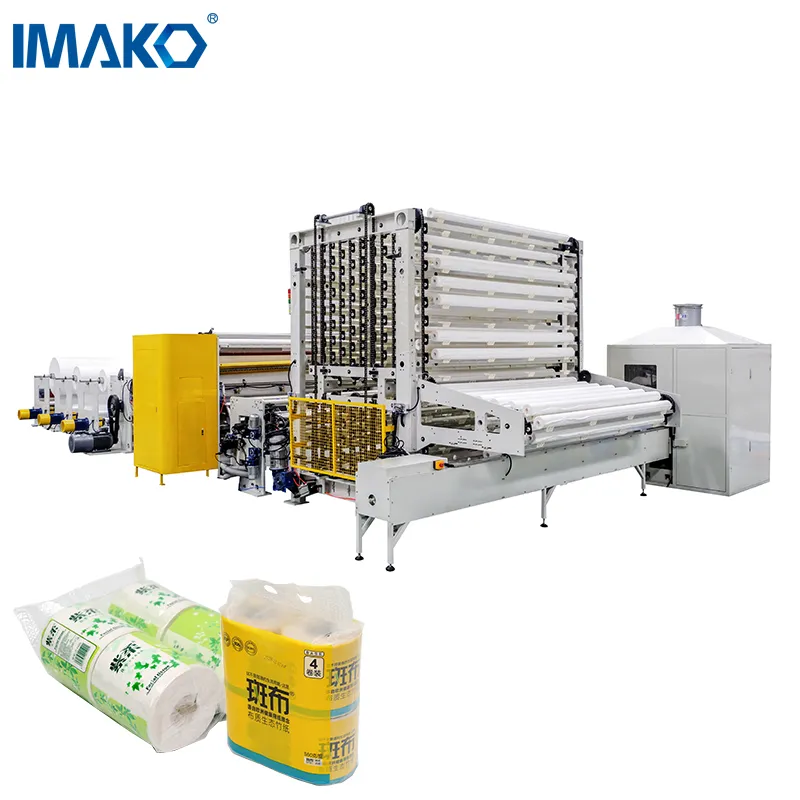

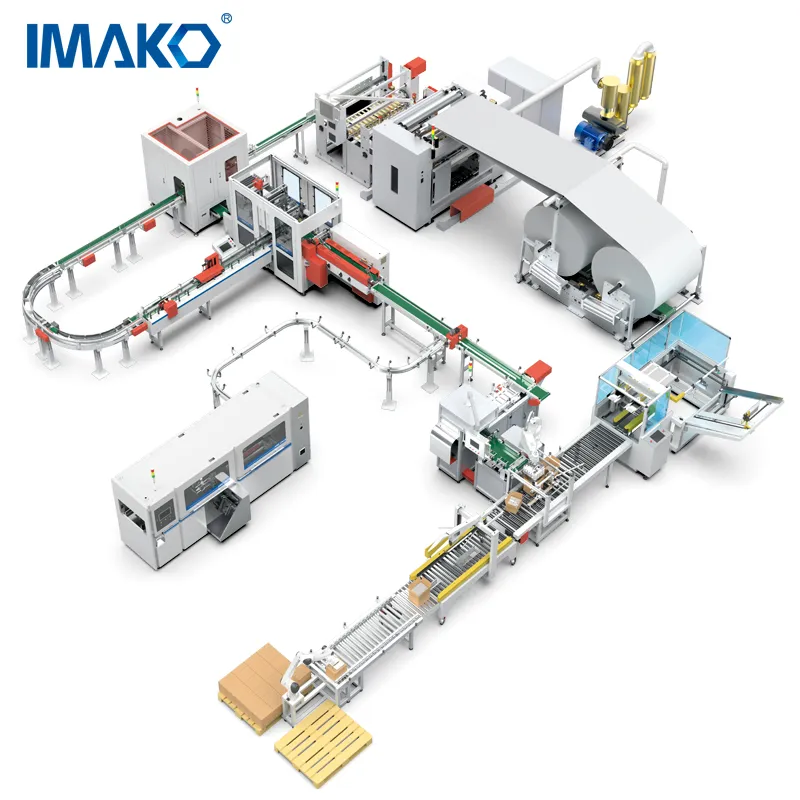

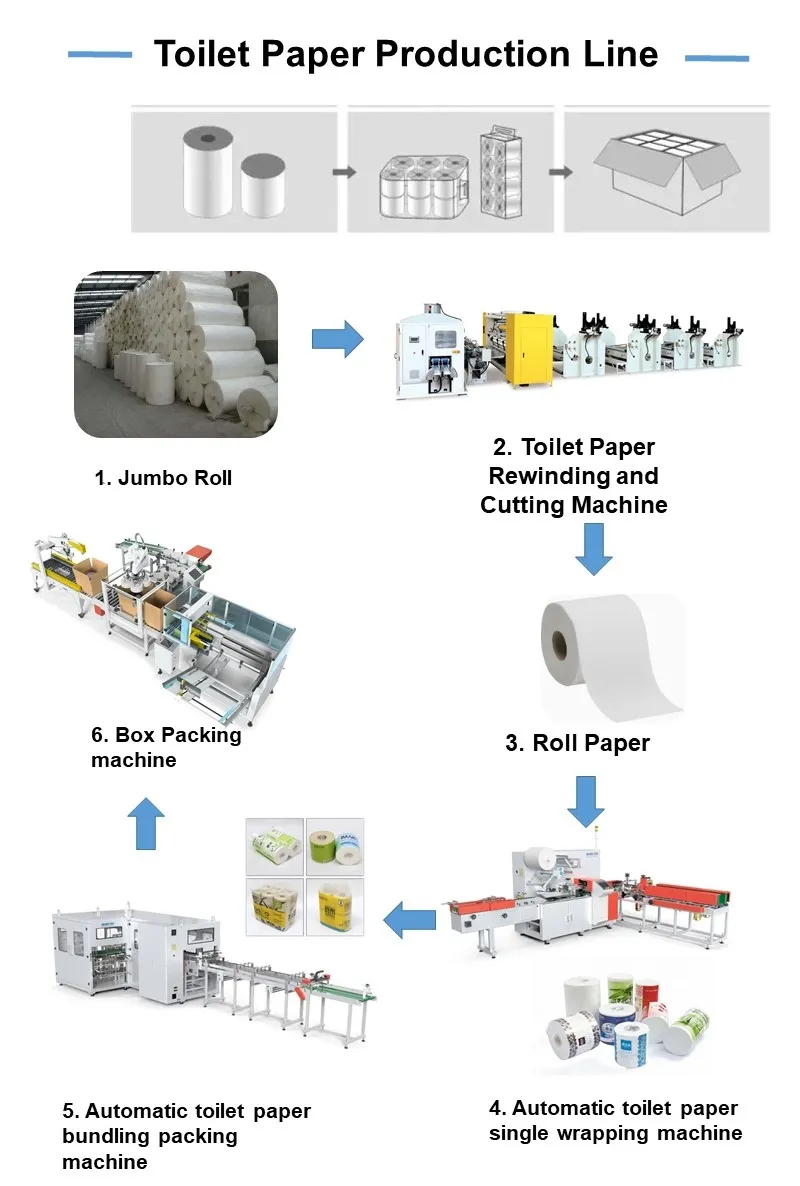

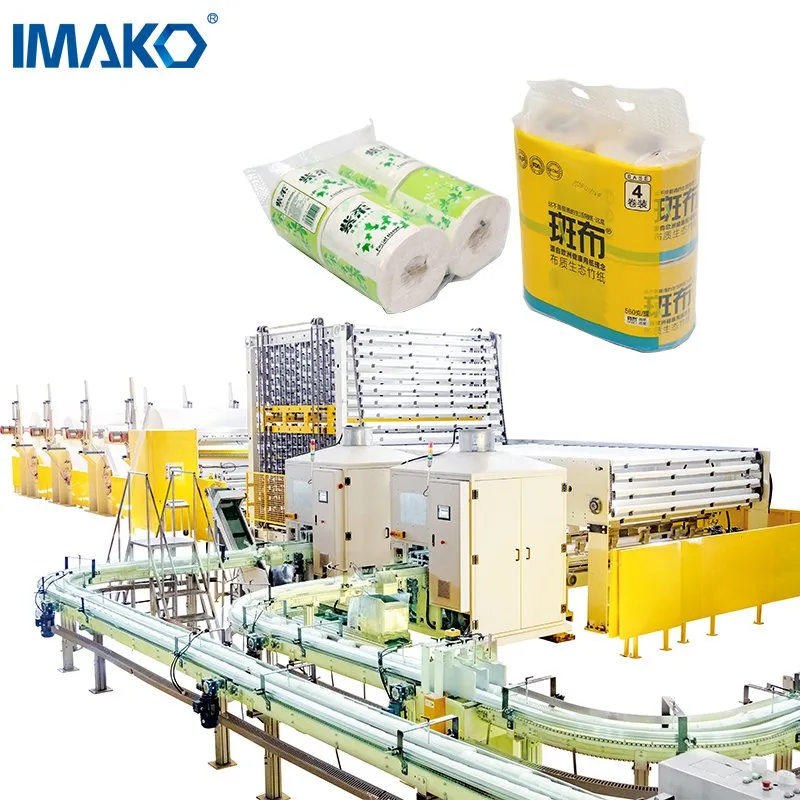

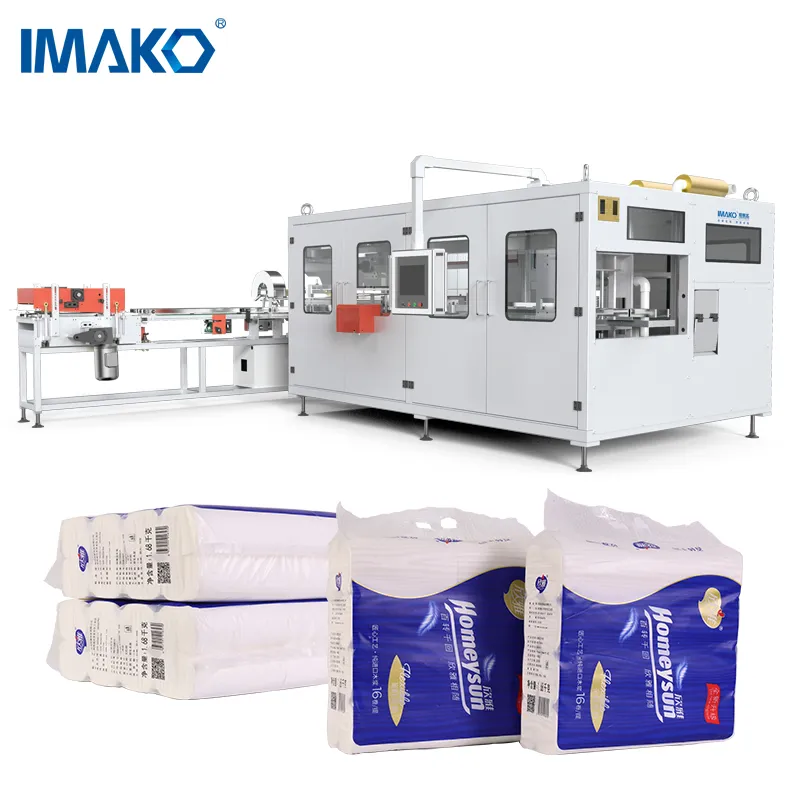

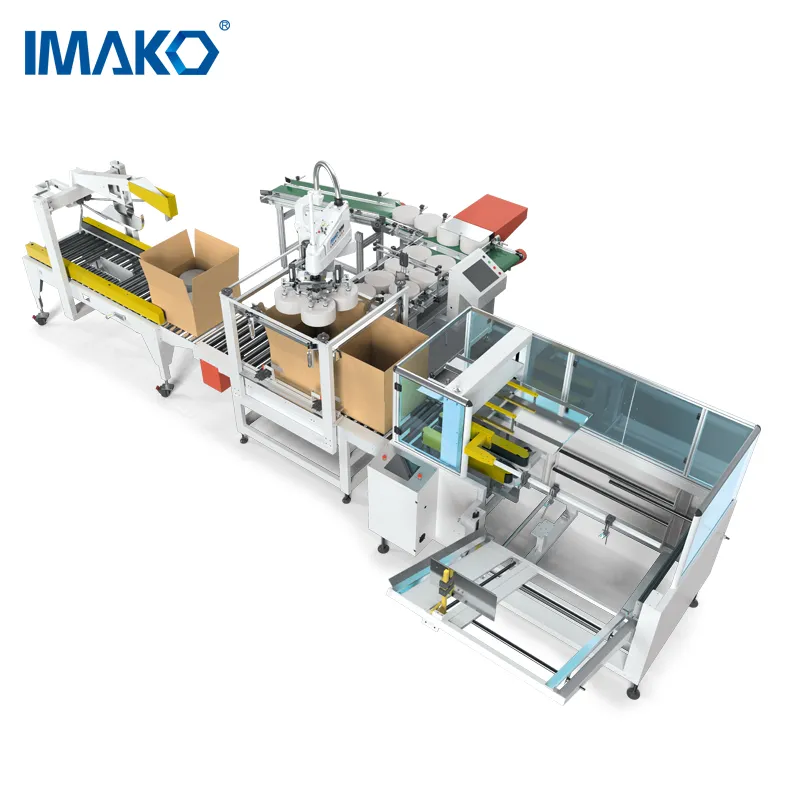

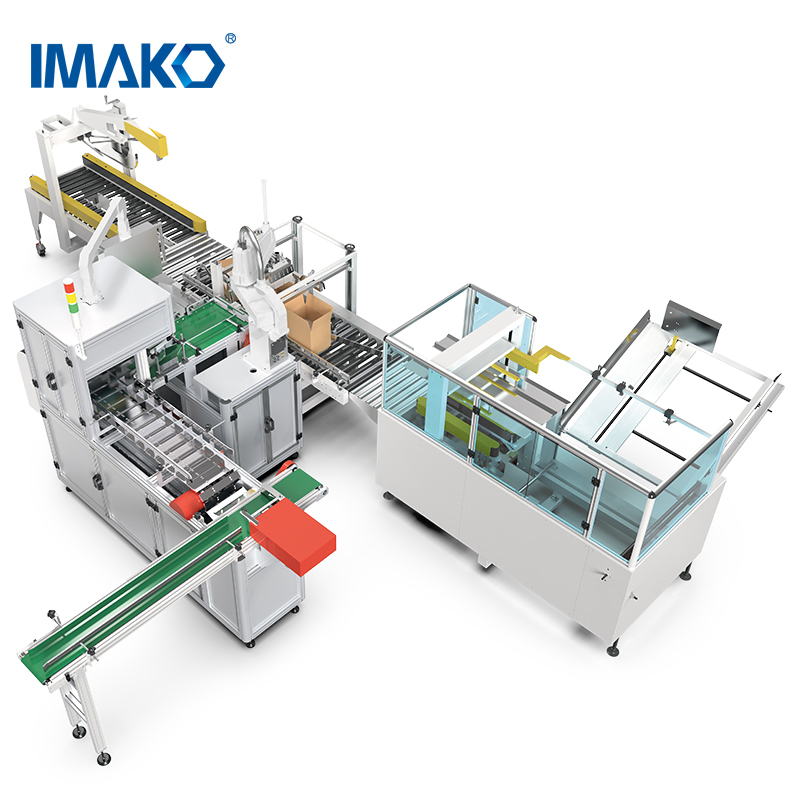

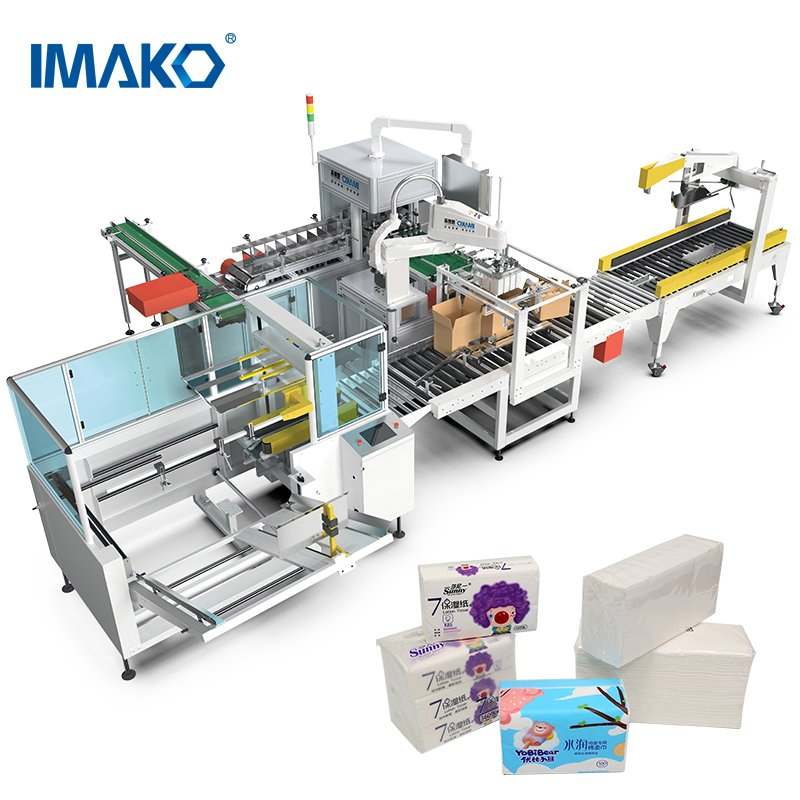

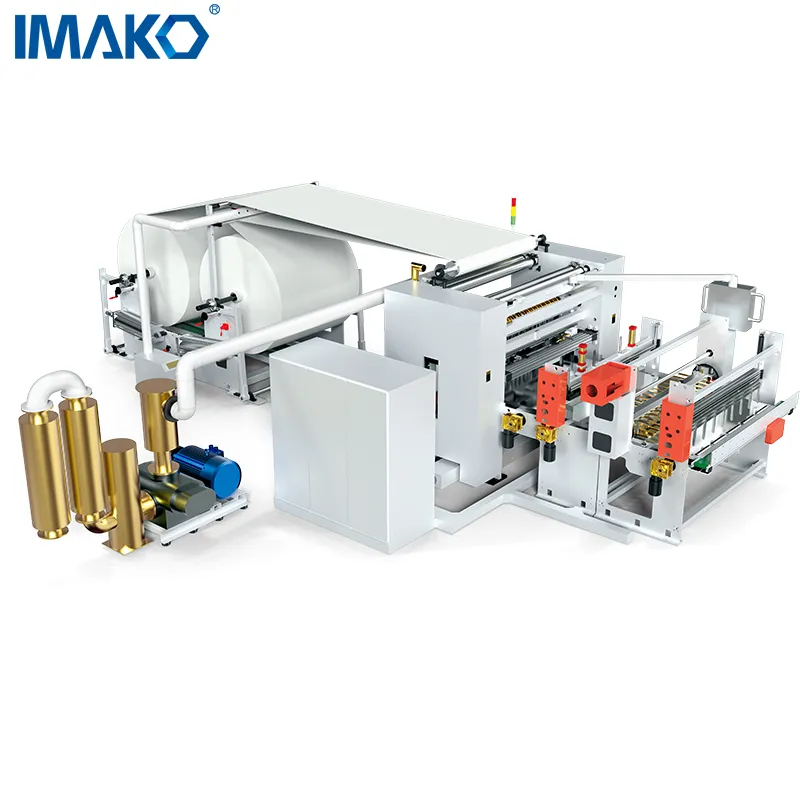

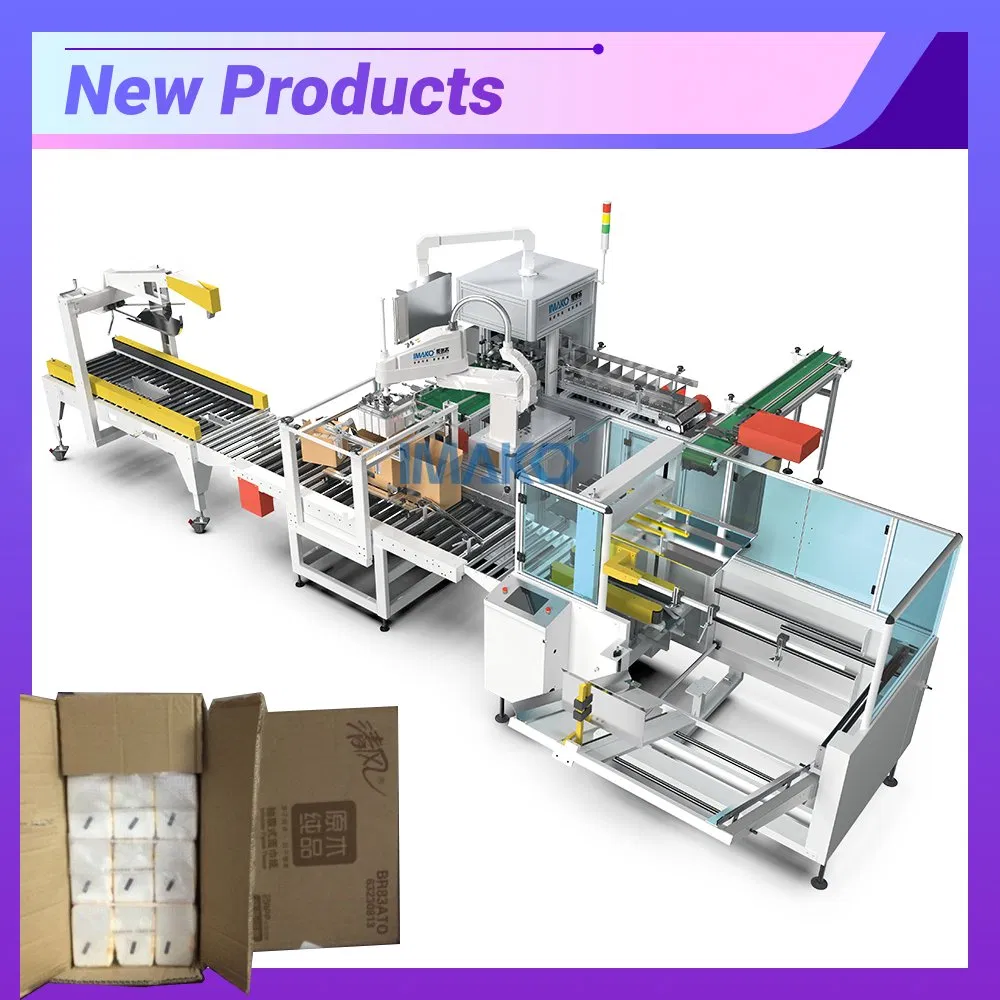

Our solutions range from full automatic toilet paper production lines, tissue napkin production lines, handkerchief production lines, and hand towel production lines, complete with rewinders, folders, cutters, single packers, bundling packaging machines, case pack machines, and robotic palletizers.
We also provide specialized packaging solutions for personal care products like baby diaper packaging machines, wet wipe packaging machines, and sanitary pad packaging machines, all built to deliver easy operation, high productivity, fast size changes, and low maintenance overheads.
| Payment Term | T/T, L/C. 30% down payment when placing order, 70% balance payment before shipment. |
| Delivery Time | Depends on machine models and size requirements. Usually within 30 days during off-season, and within 50 days during peak season upon receipt of deposit. |
Service Portfolio: Repair, Teleservice, Training, and Spare Parts support.
We repair or replace damaged parts free of charge if caused by design flaws or manufacturing defects within the warranty period. Guarantee terms do not apply to consumables; replacement consumables can be purchased at cost.
We provide systematically designed training for engineers regarding operation, maintenance, and system supervision, sharing operating knowledge on-site or via direct communication channels.
If overseas dispatch is required for installation or adjustment, the buyer covers the travel cost, accommodation, local transport, and standard technician daily allowances.
