Liquid Filling Flow Pack Machine with Bag Moulding

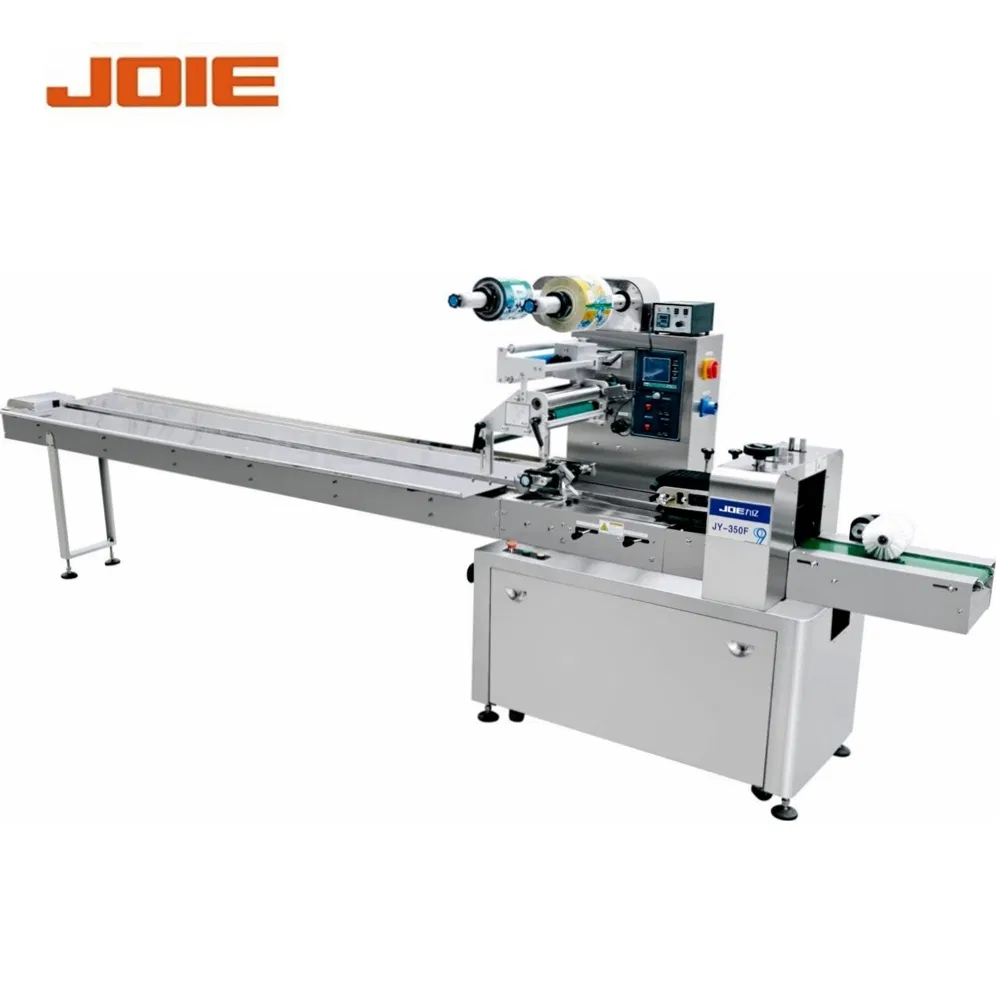

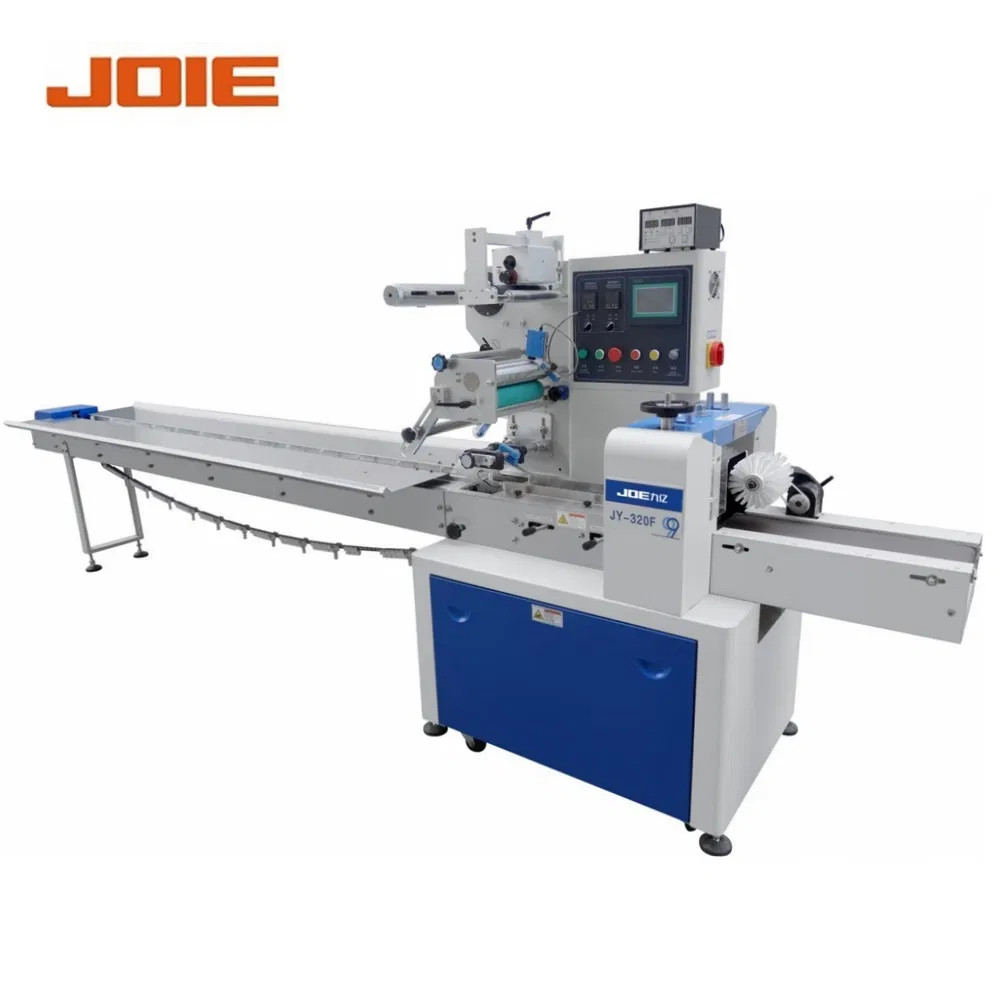

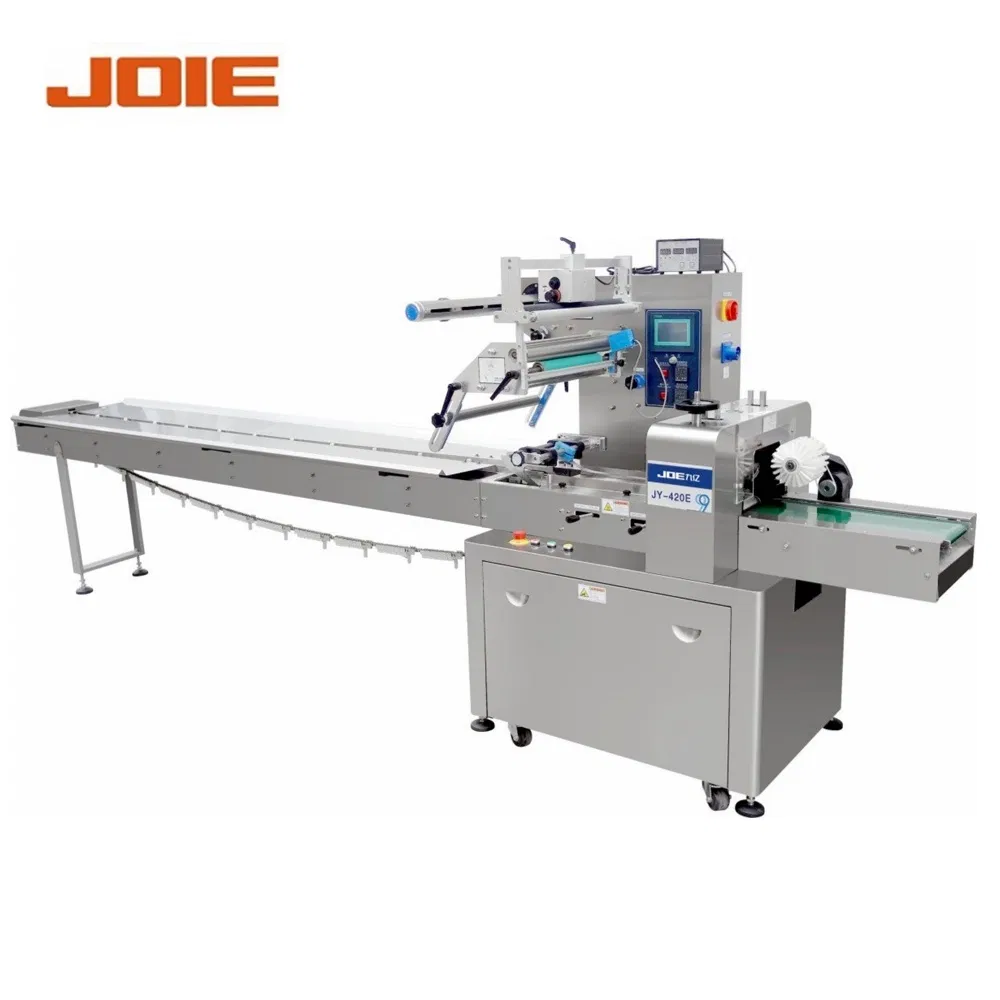

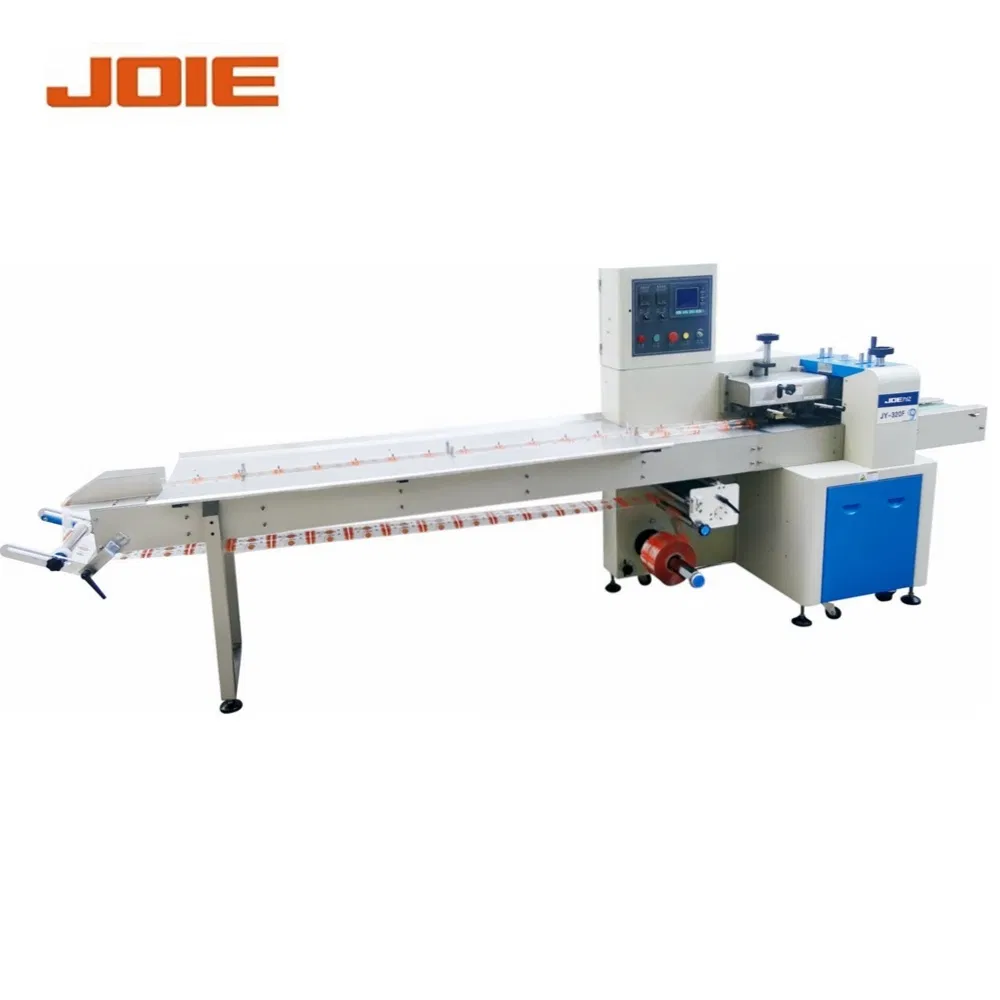

Horizontal Flow Packing Machine
JY serious flow packing machine has good performance at solid product packaging solution such as bread, cake, chocolate, energy bar, tortillas, ice-lolly, vegetable, face mask and so on.
Main Features
-
A

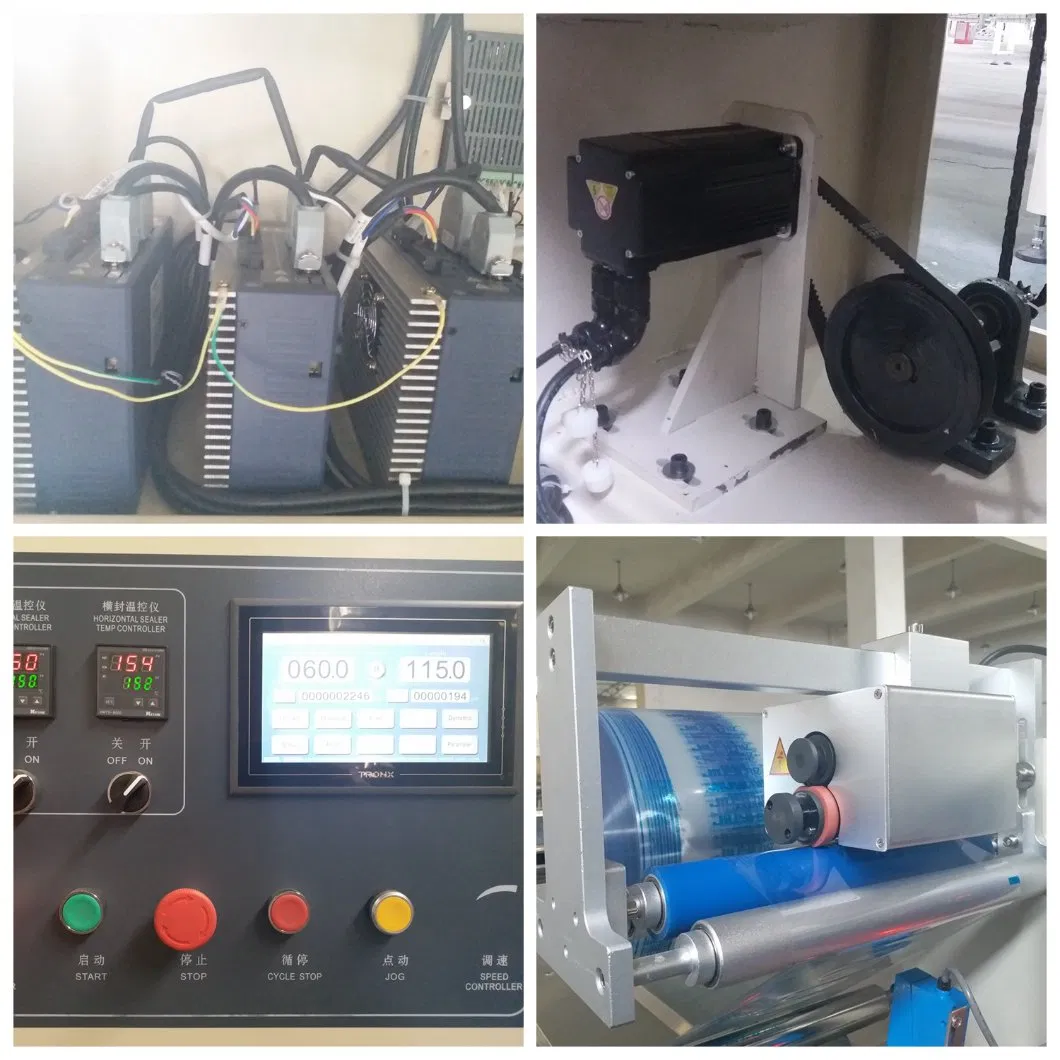

Servo motor control; Accurate bag length setting.
-
B
7 inch touch screen, easy operation and multiple language for choice.
-
C
PID Temperature control, making the seal at low temperature to raise the packing speed and reduce film burning; suitable for various packing films such as aluminium film, paper film, PE film, and composite film.
-
D

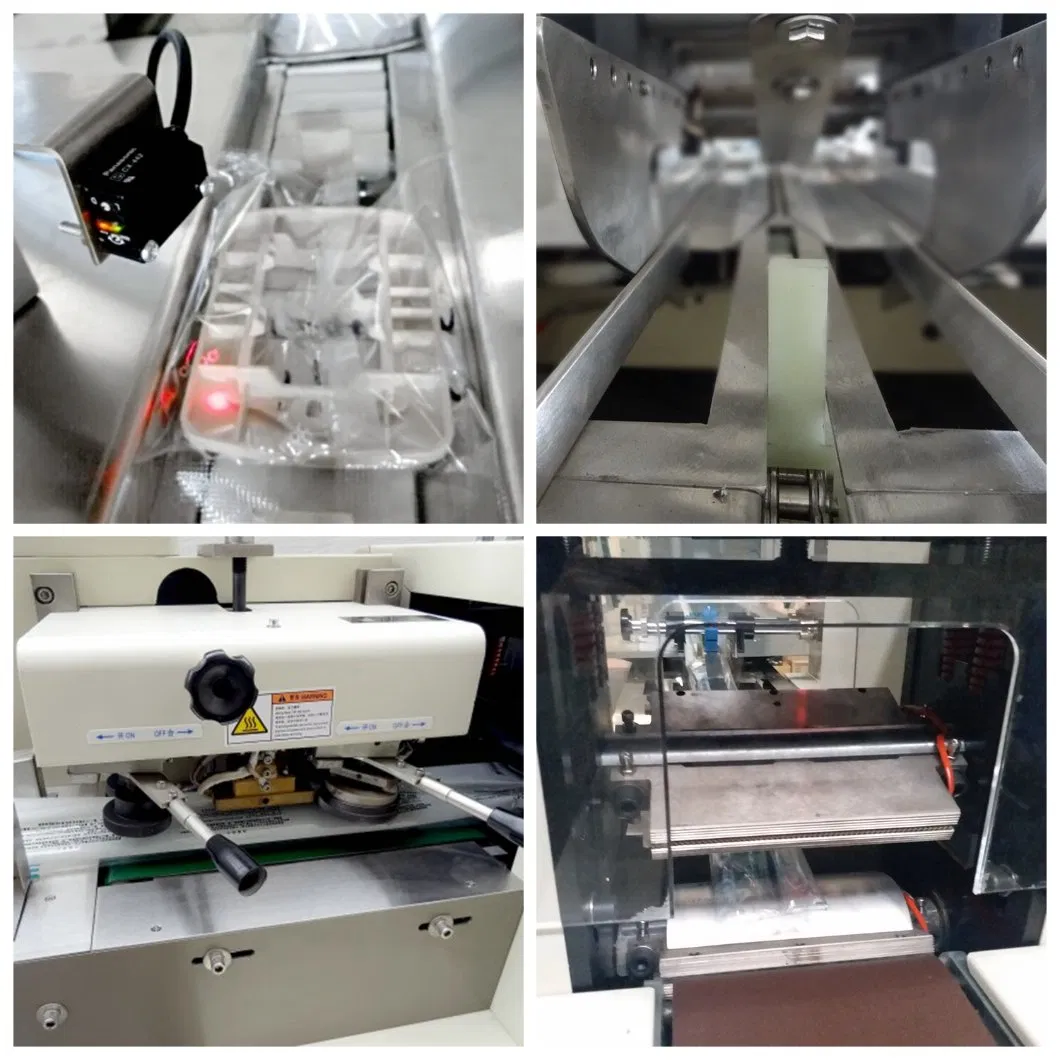

High sensitivity photoelectric eye color tracking, numerical input of cutting sealing position for extra accuracy.
-
E
10 kinds of product packing data memories for easy data setting and record.
-
F
No product, No pack.

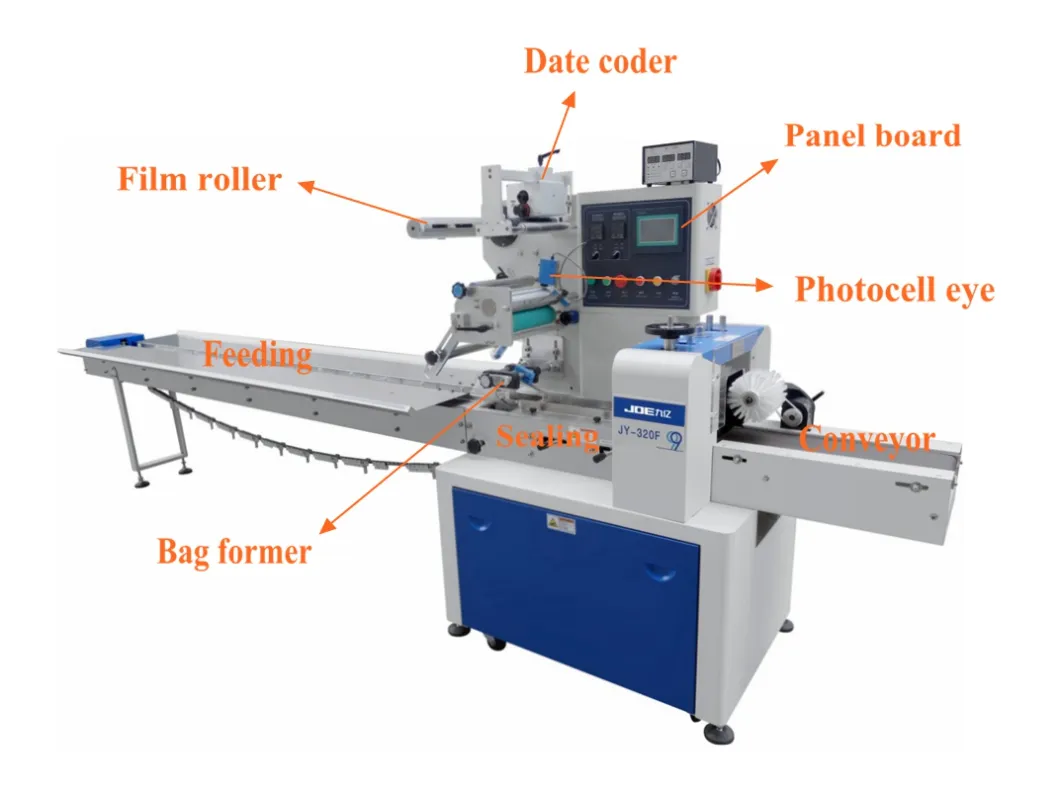

Working Process

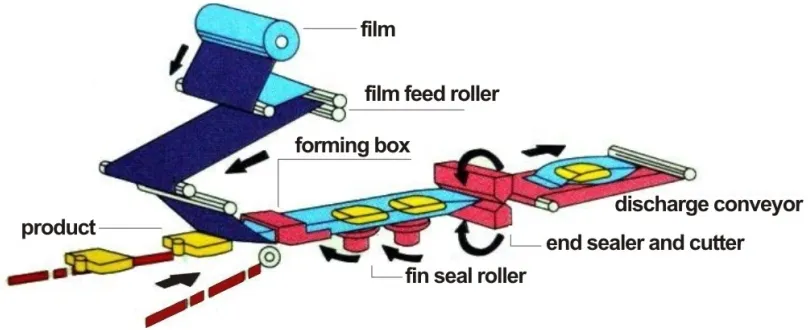

Horizontal flow packing is a full automatic packing machine which includes product feeding — film forming — product wrapping — bag sealing — bag packing.

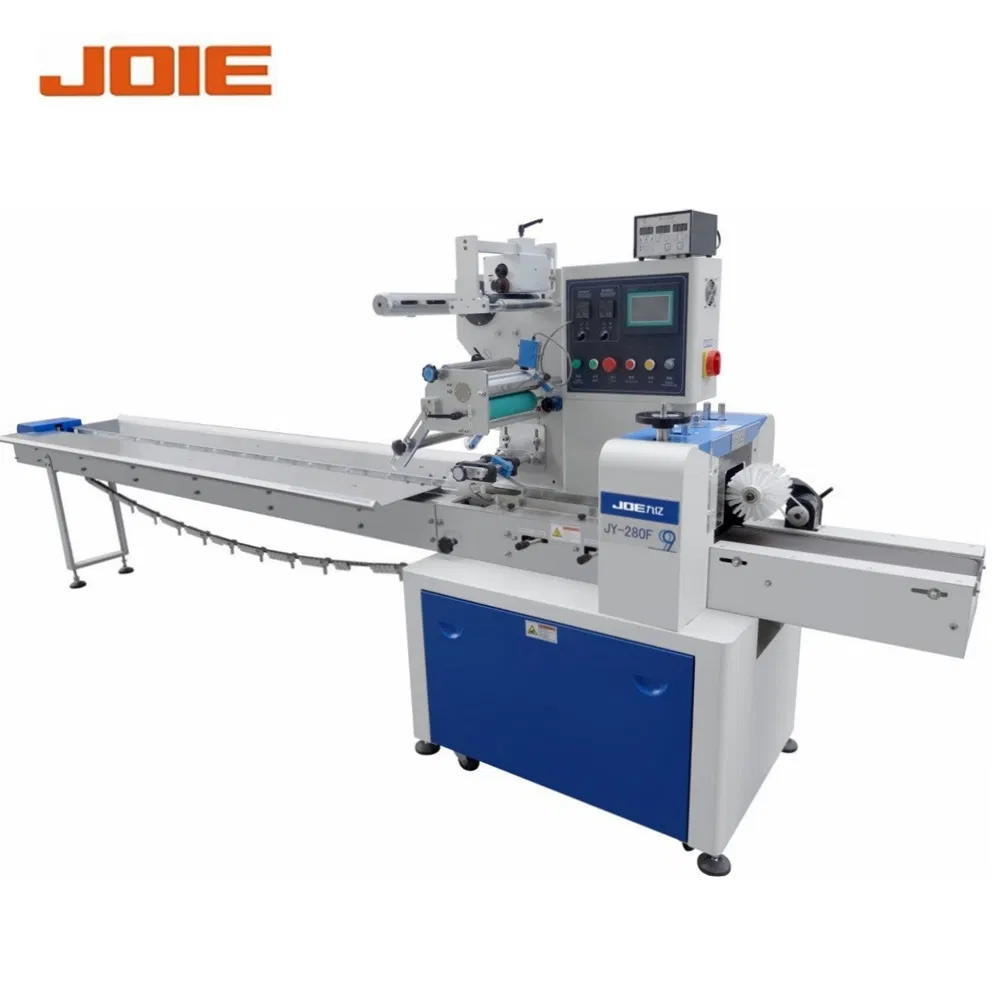

Flow Packing Machine Specification and Details
| Model |
JY-280 |
JY-320 |
JY-350 |
JY-420 |
JY-450 |
JY-700 |
JY-900 |
| Control system |
1/3 servo motor control |
| Max. Film Width |
280mm |
320mm |
350mm |
420mm |
450mm |
700mm |
900mm |
| Bag making length |
60-280mm |
60-280mm |
60-300mm |
60-320mm |
80-350mm |
100-400mm |
100-400mm |
| Bag making width |
20-120mm |
20-140mm |
20-160mm |
20-190mm |
20-210mm |
50-320mm |
100-400mm |
| Bag making height |
5-50mm |
5-65mm |
5-80mm |
5-80mm |
5-90mm |
5-120mm |
5-150mm |
| Packing speed |
300pcs/min |
300pcs/min |
300pcs/min |
250pcs/min |
200pcs/min |
160pcs/min |
100pcs/min |
| Machine construction |
Carbon steel |
Carbon steel |
Stainless steel |
Stainless steel or Carbon steel |
Stainless steel |
Carbon steel |
| Quality standard |
CE Certificate/Food standard |

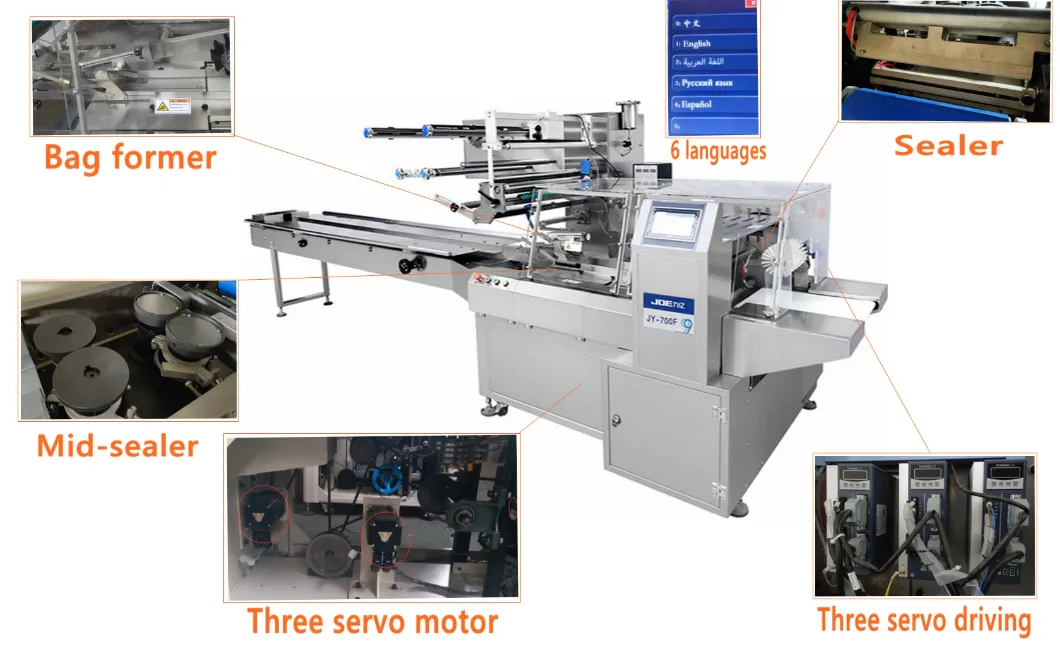

Currently, most of the flow packing machines use Double PLC control with 2 stepper motors in order to reduce machine production cost, but it is not a smart packing machine; that is why we choose servo motor drives, which provide higher efficiency than inverter systems. The machine runs more precisely.
Advantages of Servo Motor Flow Packing Machine
-
1
Accuracy: Achieves closed loop control of position, velocity, and torque.
-
2
Speed: Generally rated speed can reach 2000-3000rpm.
-
3
Stability: Low speed running smoothly; it will not exhibit stepper motor running phenomena. Suitable for high-speed response demands.
-
4
Timeliness: Motor acceleration and deceleration dynamic response time is short, usually within a few tens of milliseconds.
-
5
Comfort: Heat and noise significantly reduced.

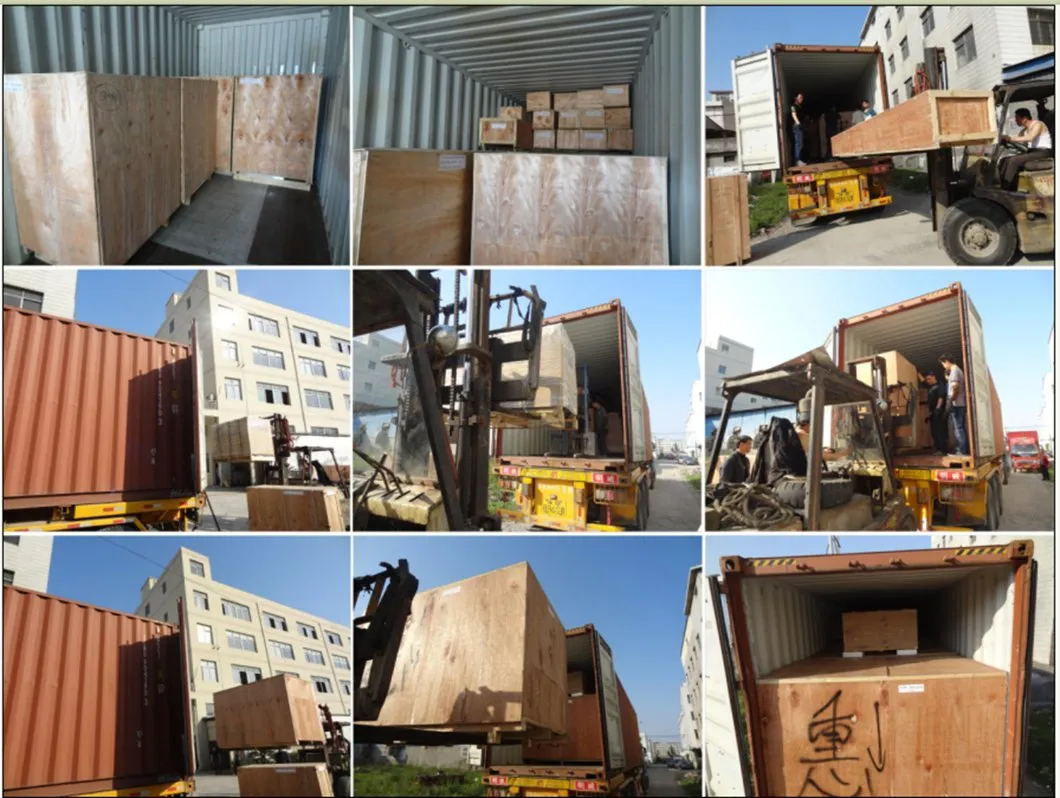

Machine Packing and Delivery
-
✓
Each flow packing machine has 2 pkgs, gross weight 450kg-700kg; about 2.5-5.0Cbm
-
✓
Nearest Seaport: Ningbo Port
-
✓
Delivery Time: within 7-15 days
About US
Why Choose US
-
★
Expert in packing; Be packaging expert.
-
★
Smart packing solution; Excellent packaging innovation.
-
★
Reliable Packing Machine Manufacturer; Always your trustworthy partner.
-
★
Mutual trust; Mutual benefit.
Frequently Asked Questions (FAQ)
Q1: What types of products can be packaged with the JY series flow packing machine?
A1: The machine is suitable for a wide range of solid products including bread, cakes, chocolate, energy bars, tortillas, ice-lollies, vegetables, face masks, and more.
Q2: What are the key advantages of choosing a servo motor control system over a stepper motor system?
A2: Servo motors achieve closed-loop control of position, velocity, and torque. They run smoothly at low speeds without stepping issues, react in tens of milliseconds, and produce significantly less heat and noise.
Q3: What packaging film materials are compatible with this machine?
A3: The PID temperature control system allows for precise adjustments, making the machine compatible with various films such as aluminium film, paper film, PE film, and composite film.
Q4: How long is the delivery time, and which shipping port is used?
A4: Orders are generally delivered within 7 to 15 days. The closest shipping point is Ningbo Port, and the machines are securely packed in wooden cases for transport.
Q5: Does the machine support customized packaging dimensions?
A5: Yes. The JY series features models supporting film widths from 280mm to 900mm, bag lengths from 60mm to 400mm, and bag widths from 20mm to 400mm to accommodate different product sizes.
Q6: What quality and safety certifications does the machine carry?
A6: All machines comply with the CE certification standards and meet high food safety manufacturing regulations.
