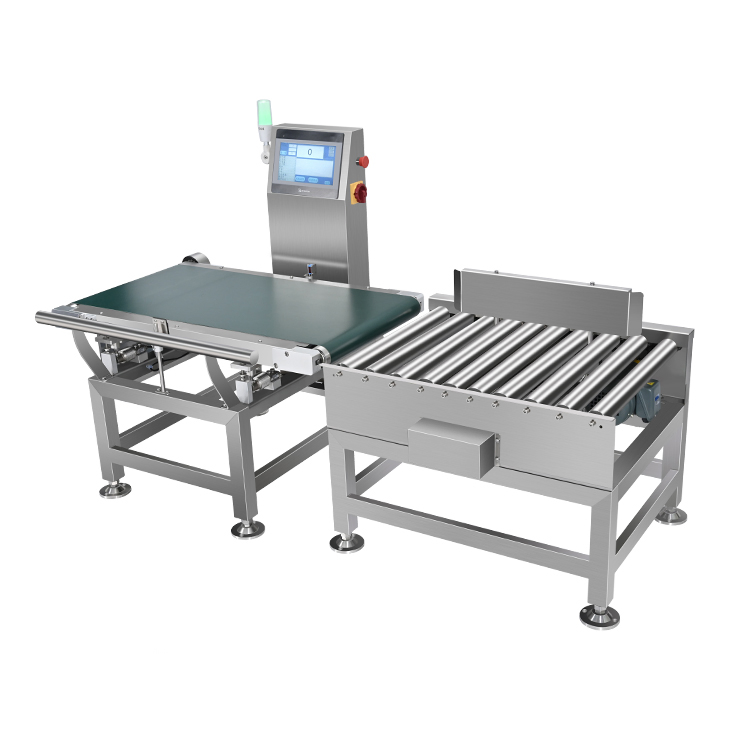

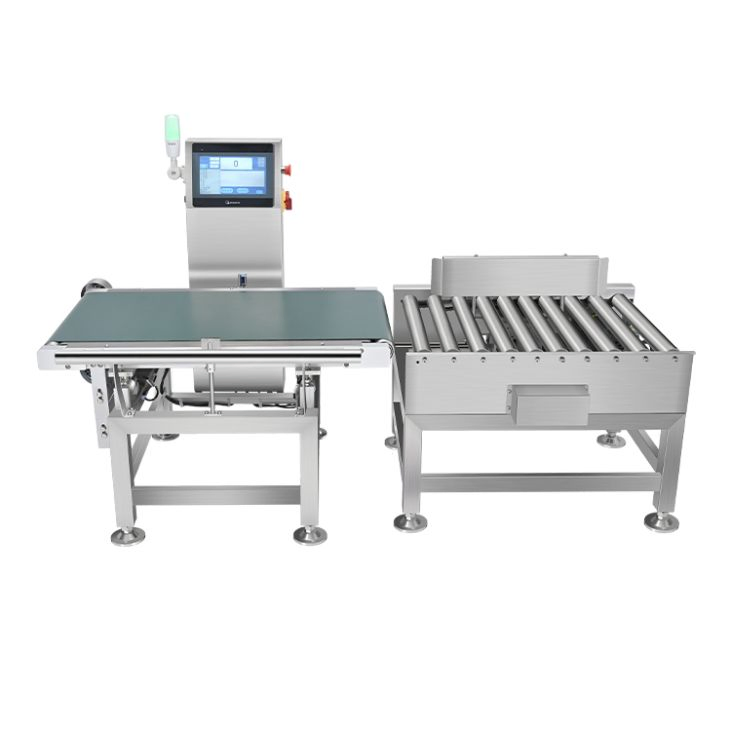

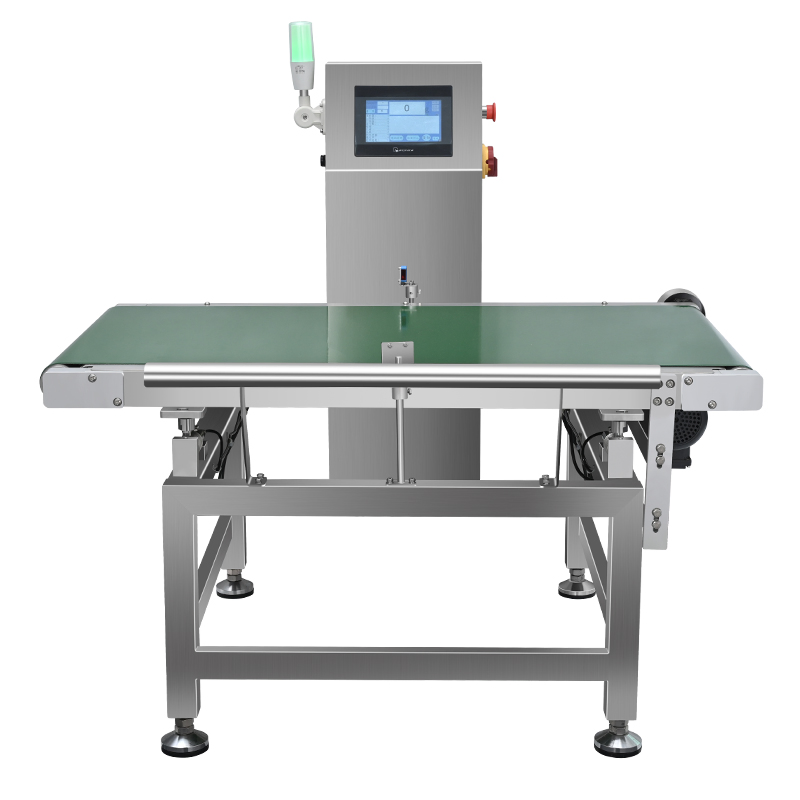

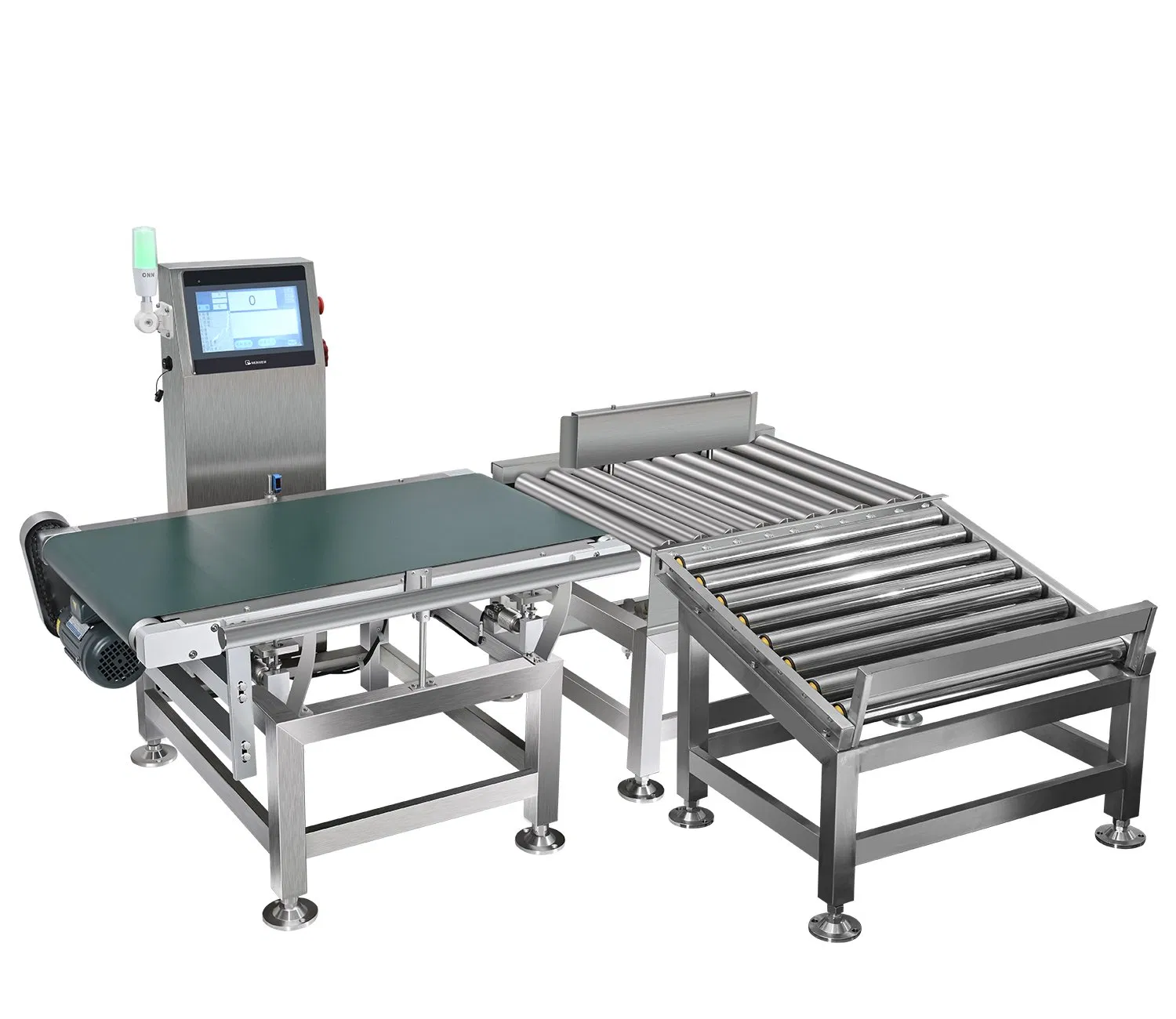

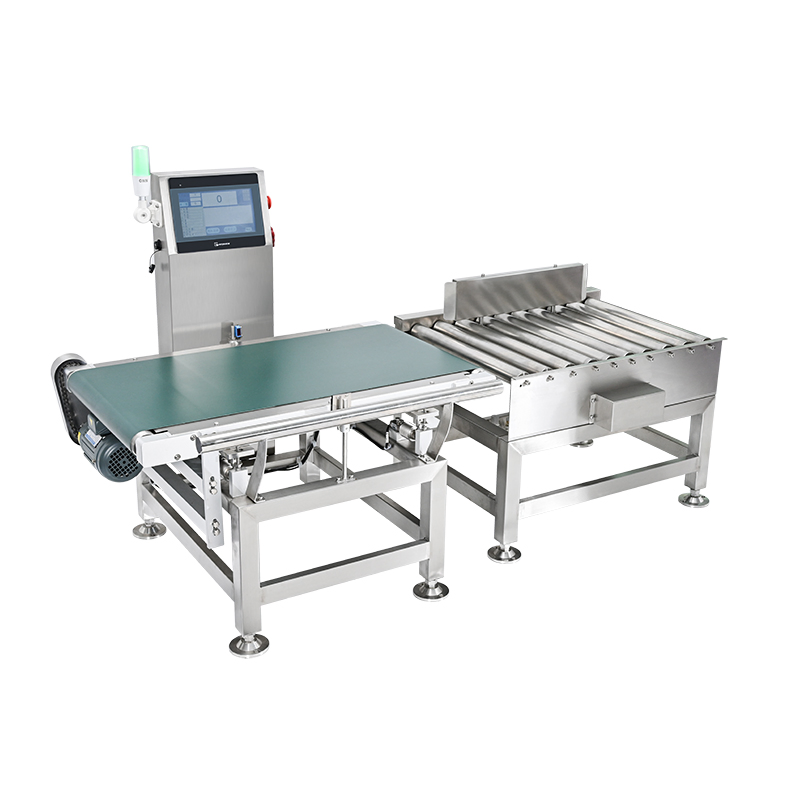

High Speed Automatic Weighing System

Product Description

China Checkweigher Machinery for Food

A checkweigher is a type of industrial scale used to automatically check the weight of products as they move along a production line. It ensures that each product meets the required weight specifications, helping manufacturers maintain quality control.

The device works by weighing each item passing through it and comparing the actual weight against pre-set limits. If the weight is within the acceptable range, the item continues down the line; if it is too light or too heavy, it can be rejected for further inspection. This helps in preventing underfilled or overfilled products from reaching consumers, thus ensuring product consistency and compliance with regulations.

Product Application
High Speed Automatic Weighing System
Key Product Features
1
Optional 7-inch and 10-inch touch screen for easy operation
2
Able to store 100 sets of parameters for different products
3
Data like number of qualified and unqualified products can be recorded and exported via USB
4
Infrared sensor makes detection more accurate
5
The whole machine is made of SUS 304
6
Adjustable speed, different sizes can be chosen
7
ISO9001 certified factory, machine is CE and RoHS certified, belt is FDA certified

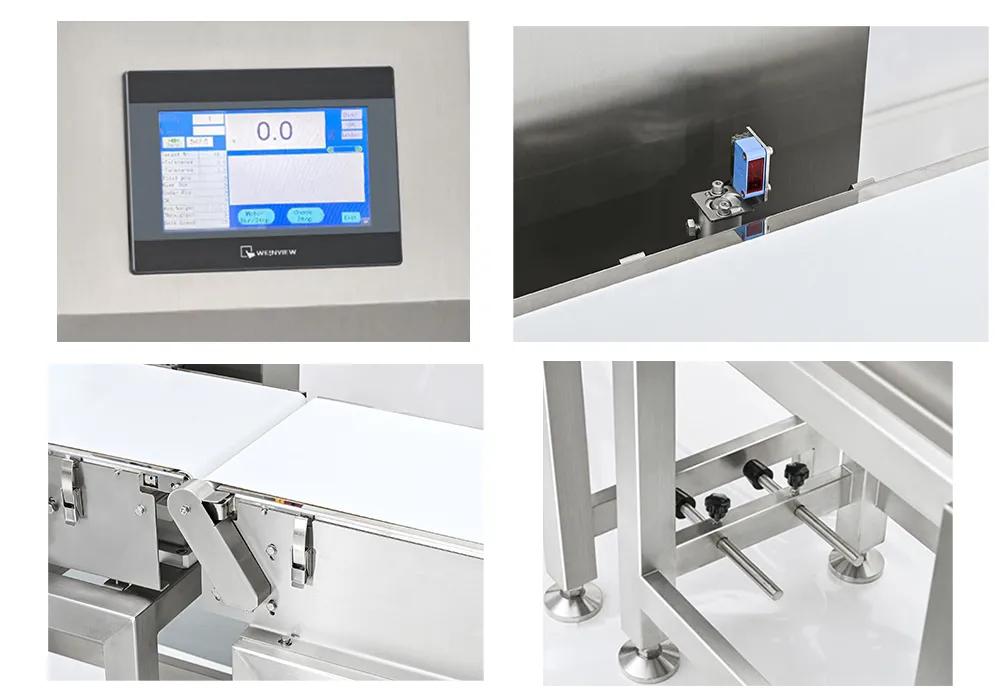

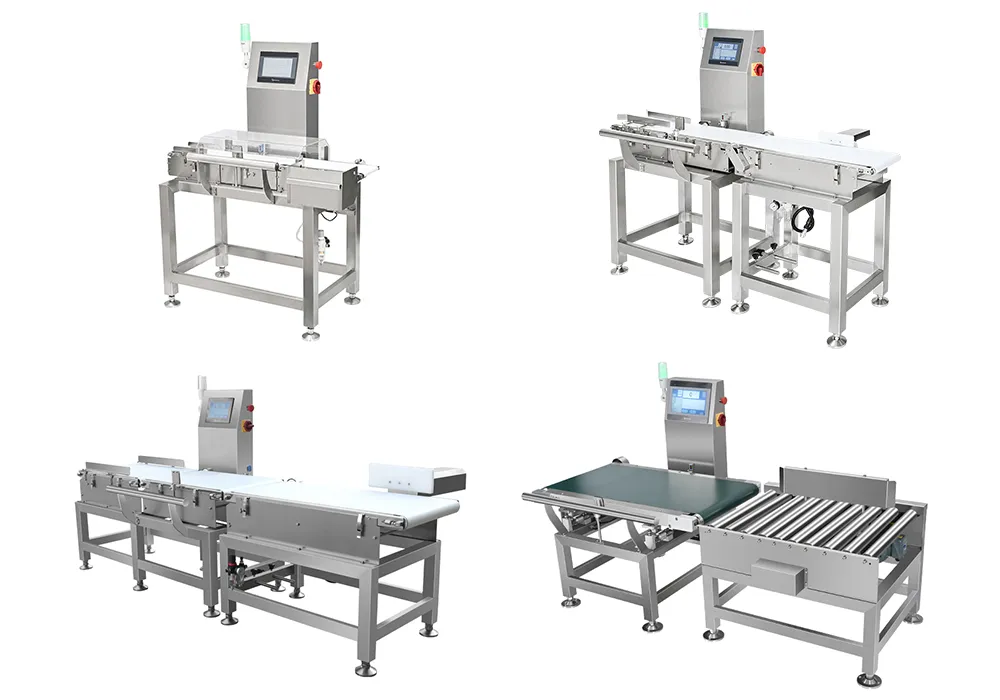

Feature Image 1 Feature Image 2
Technical Parameters

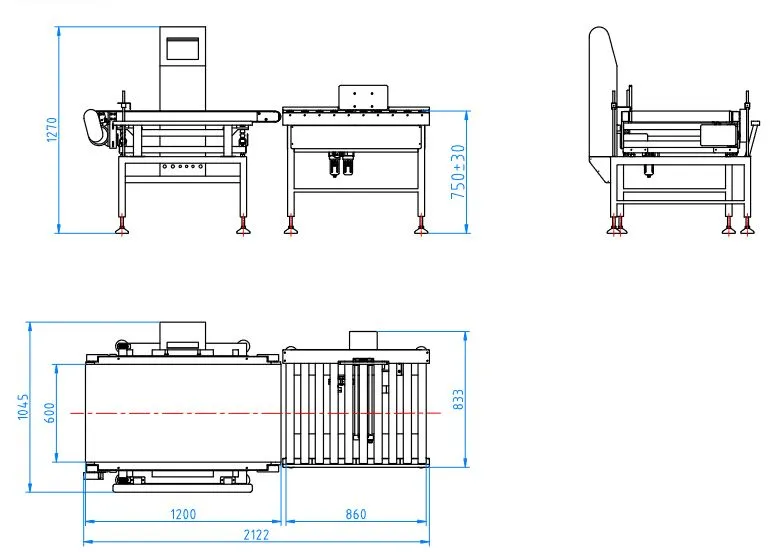

Technical Specifications
Model CW-120 CW-150 CW-200 CW-300 CW-400 CW-500 CW-600
Single Weighing Scope ≤100g ≤200g ≤1000g ≤3000g ≤20kg ≤40kg ≤40kg
Accuracy ±0.2g~±0.5g ±0.2g~±0.5g ±0.3g~±1g ±0.5g~±3g ±1g~±5g ±5g~±20g ±5g~±20g
Minimum Scale 0.01g 0.1g 0.1g 0.1g 1g 1g 1g
Conveying Speed 10-80m/min 10-80m/min 10-80m/min 10-70m/min 10-60m/min 10-50m/min 10-50m/min
Max Speed 200pcs/min 180pcs/min 160pcs/min 80pcs/min 60pcs/min 40pcs/min 35pcs/min
Product Size Length ≤100mm ≤150mm ≤300mm ≤350mm ≤500mm ≤650mm ≤650mm
Width ≤90mm ≤120mm ≤180mm ≤270mm ≤350mm ≤440mm ≤530mm
Rejection Air Blowing / Push Lever / Swing Arm / Flap / Sinking Conveyor
Environment Temperature: 0ºC~40ºC, Humidity: 30%~95%

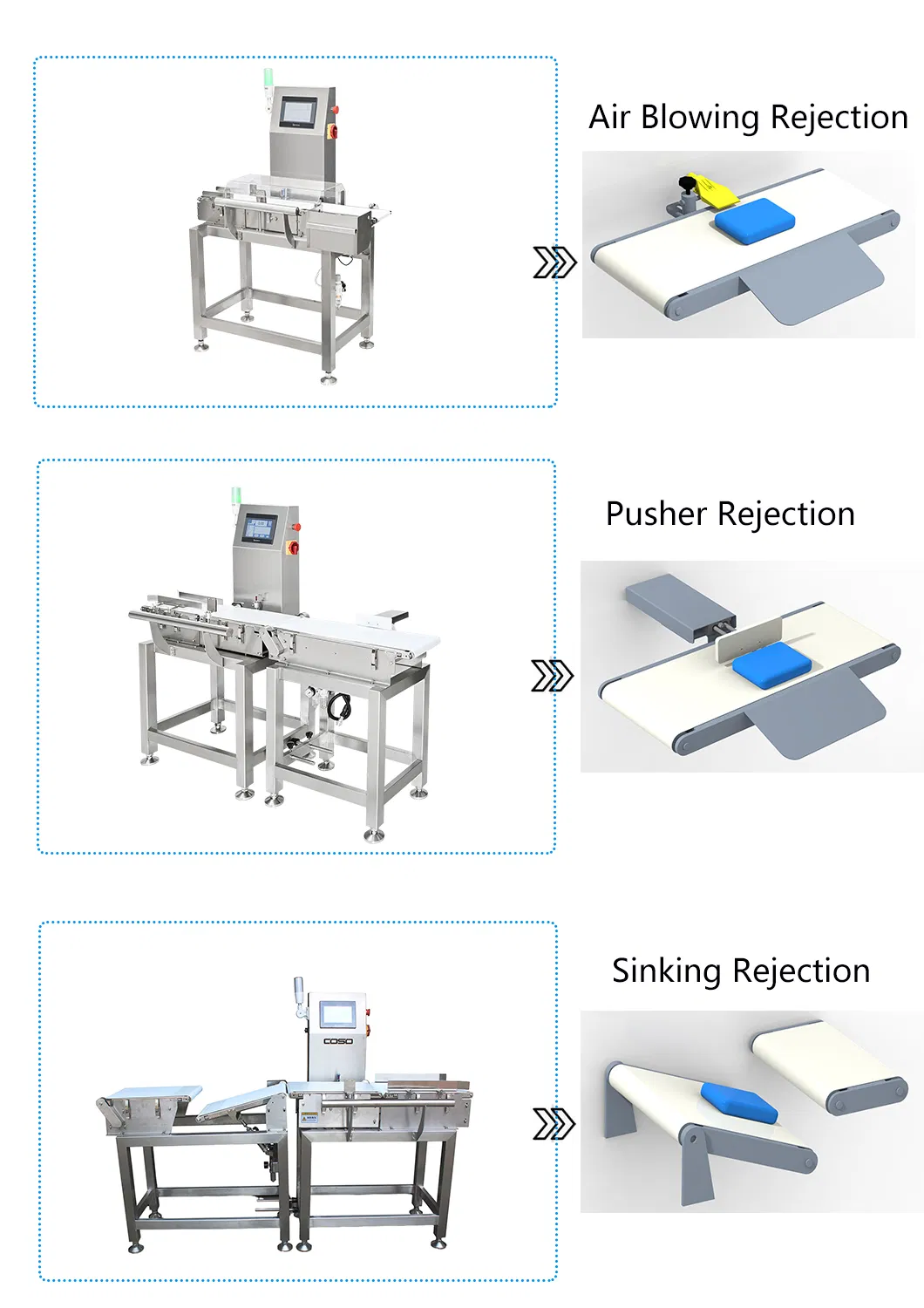

Optional Rejection Systems

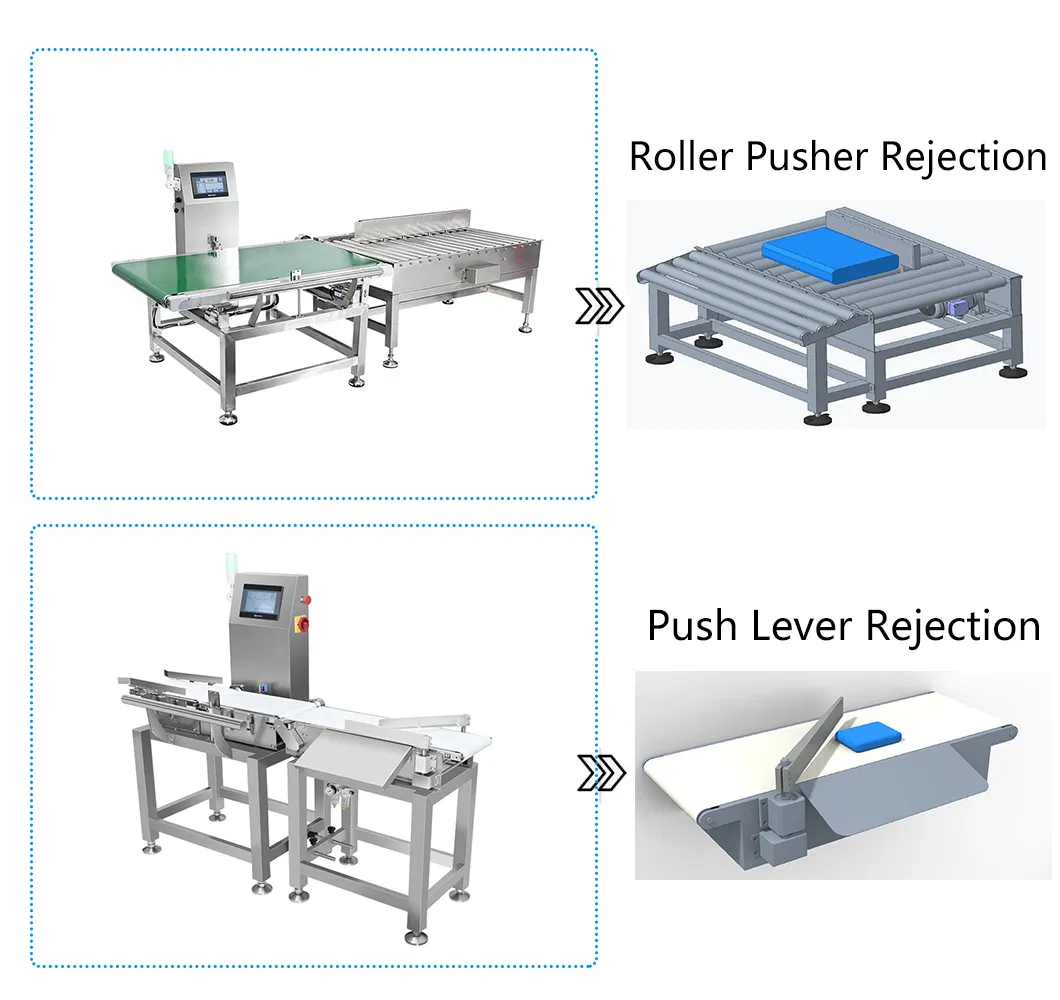

Rejection Option 1 Rejection Option 2
About Our Factory

Established in 2005, we are a professional detection equipment manufacturer. The factory is located in China with convenient transportation access and covers an area of 6000 square meters.

We concentrate on industrial metal detectors, metal separators, checkweighers, weight sorting machines, X-ray inspection systems, and needle detectors. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. With strong customization capabilities, we provide professional solutions to meet customer requirements at competitive prices. Our equipment is easy to operate due to modular design and friendly HMI.

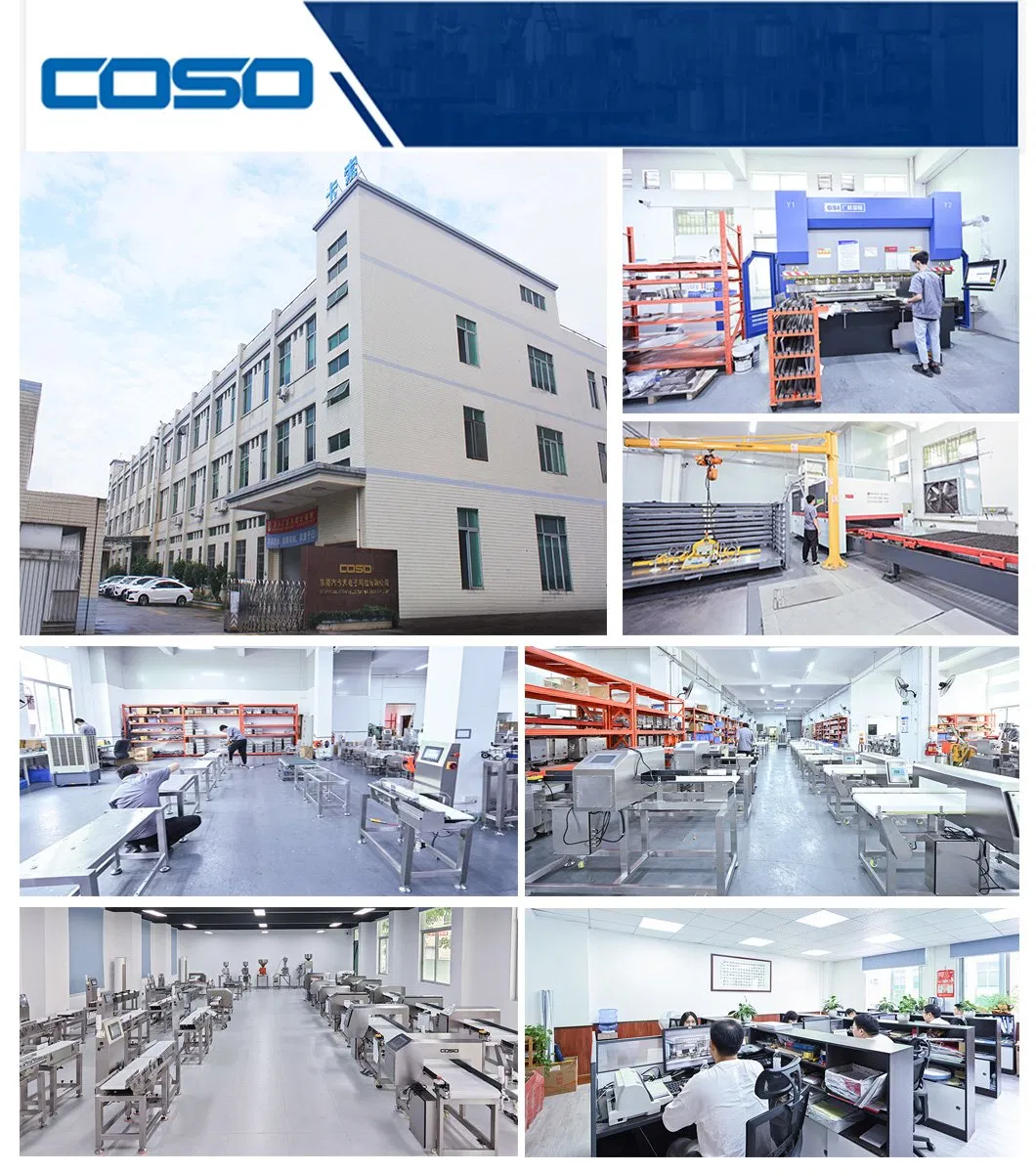

Factory Overview Workshop 1 Workshop 2 Workshop 3 Certification Exhibition
Frequently Asked Questions
Are you a manufacturer?
Yes, our factory was established in 2005. We specialize in the design and production of detection equipment exported to over 80 countries.
What kind of services do you provide?
We offer comprehensive ODM, OEM, and OBM services to meet diverse industrial needs.
How long is your delivery time?
Generally, delivery takes around 15 working days after receiving your deposit.
Do you accept product customization?
Yes, all of our products can be customized according to the specific requirements and production line needs of our customers.
What is your after-sales service policy?
We provide online technical support, a one-year warranty, and the option to send engineers to your facility for onsite assistance and training.
What is the minimum order quantity (MOQ)?
Our minimum order quantity is just one set.
