Product Description

Automatic Sleeve Sealing Shrink Wrapping Machine Packing Machine
Application

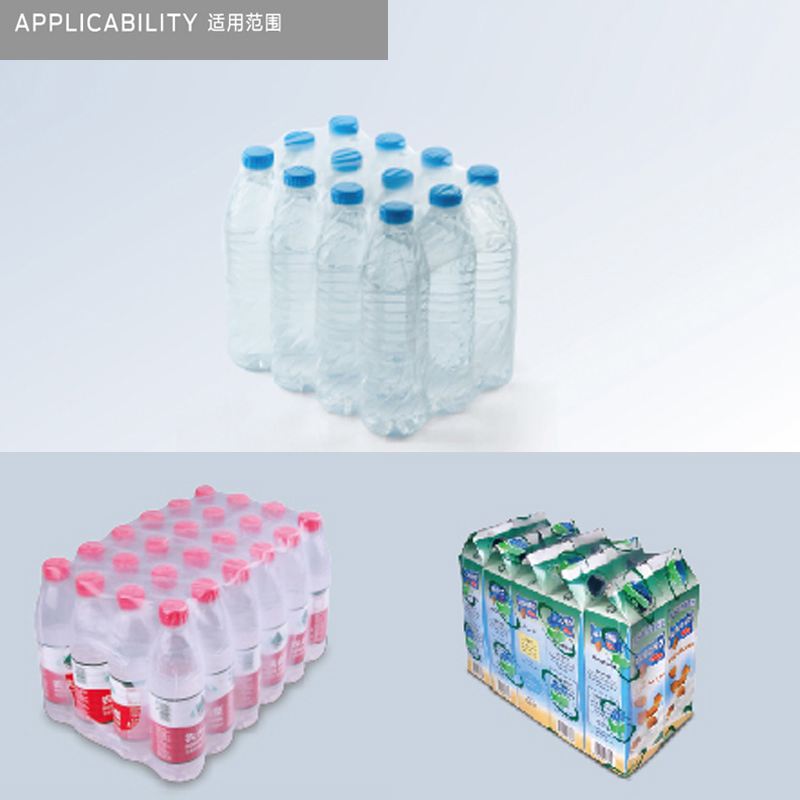

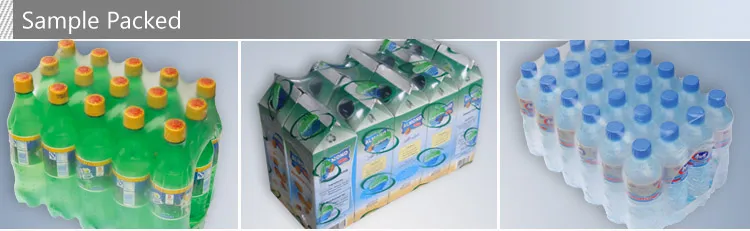

Big bottles in multi-row without trays such as drinking bottles, pure water bottles, beer bottles, etc. It can be connected and work with auto filling machine.
Features

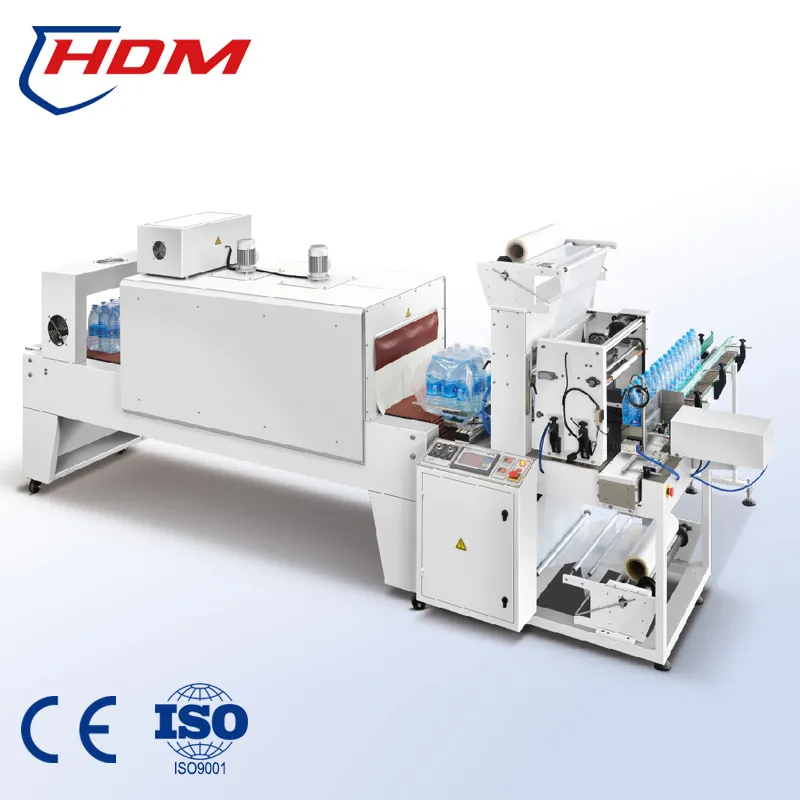

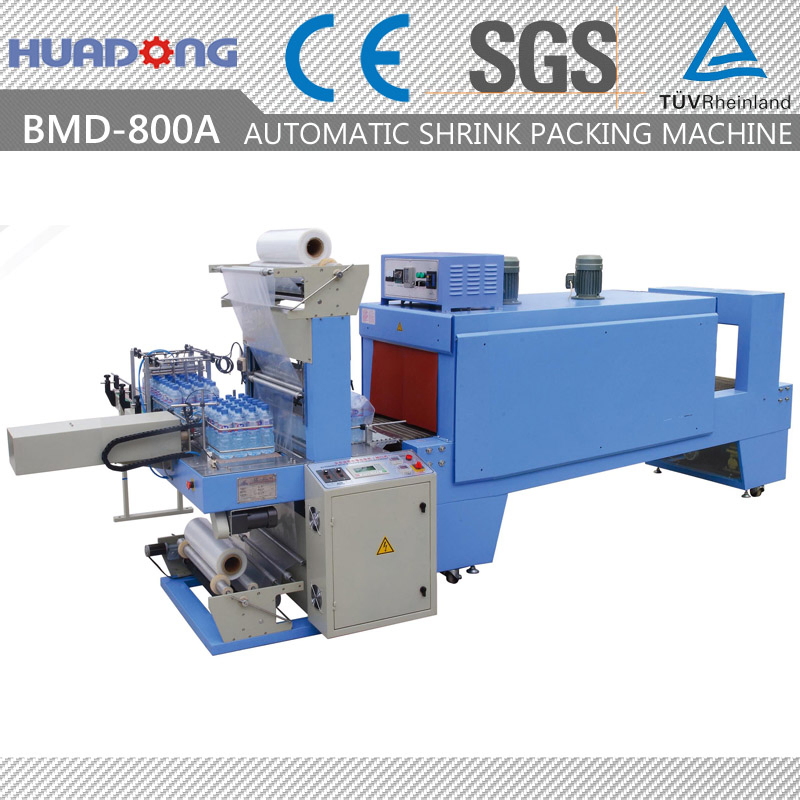

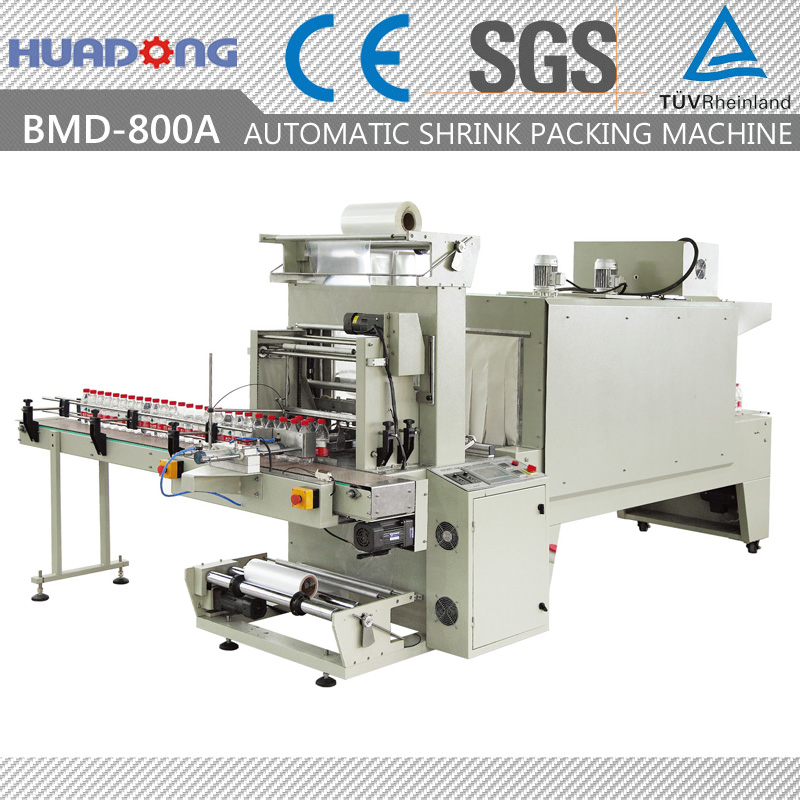

  • BMD-800A is a fully automatic shrink packaging machine including sleeve sealer and shrink tunnel which can feed products, collating, seal and cut film and shrink film bag automatically. It is widely used in food, pharmaceutical, cosmetics, printing, hardware, and other industry.
  • This machine can collate bottles (round or square), cans, gable cartons automatically. It can connect filling machine or labelling machine to make production line unmanned.
  • Bottles can be collated faster by a special faster and stable collating device and never fall down.
  • Adopt durable "U" shape alloyed sealing knife and saw teeth cutting knife with anti-stick Teflon coats supported by four columns, the sealing line is very strong and can use thicker PE film for heavy products.
  • Rows can be set on the touch screen. When product size changes only adjust packing size on the machine within a short time without changing any molds.

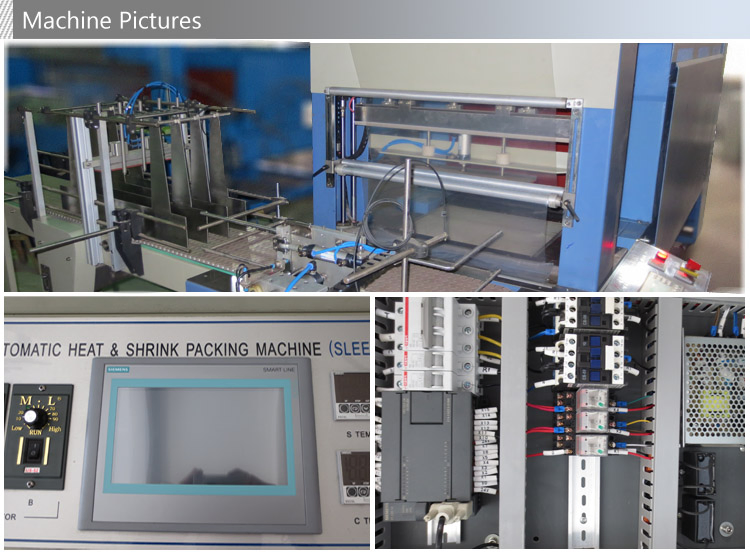

  • Adopt Siemens PLC and colorful touch screen, Omron temperature controller, timer, relay, switch, and sensor.
  • Optional output roller table or conveyors are available.
  • Optional safety cover is available.
Automatic Sleeve Sealing Shrink Wrapping Machine Packing Machine
Automatic Sleeve Sealing Shrink Wrapping Machine Packing Machine
Technical Data
Parameter Specification (BMD-800A)
Sealing type Sleeve sealing
Power supply 380V/50-60Hz/3phase
Max product size 420(L) x 300(W) x 300(H) mm
Packing capacity 8 - 20 packs/min
Film type Polyethylene (PE) film
Max film size 630 (width) x 280mm(outer diameter)
Power consumption Max. 20kw
Shrink tunnel oven size 1800mm(L) x 700(W) x 400(H) mm
Tunnel conveyor speed Variable, 15m/min
Tunnel conveyor Silicon coated rods or stainless steel mesh conveyor
Working height 850-950 mm
Air pressure 0.5MPa (5 bar)
Sealing knife Teflon coated "U" knife and sawtooth knife with permanently heated bar
Main control components Siemens PLC and touch screen, Omron temperature controller, relay and sensor
Machine main material Powder coated carbon steel

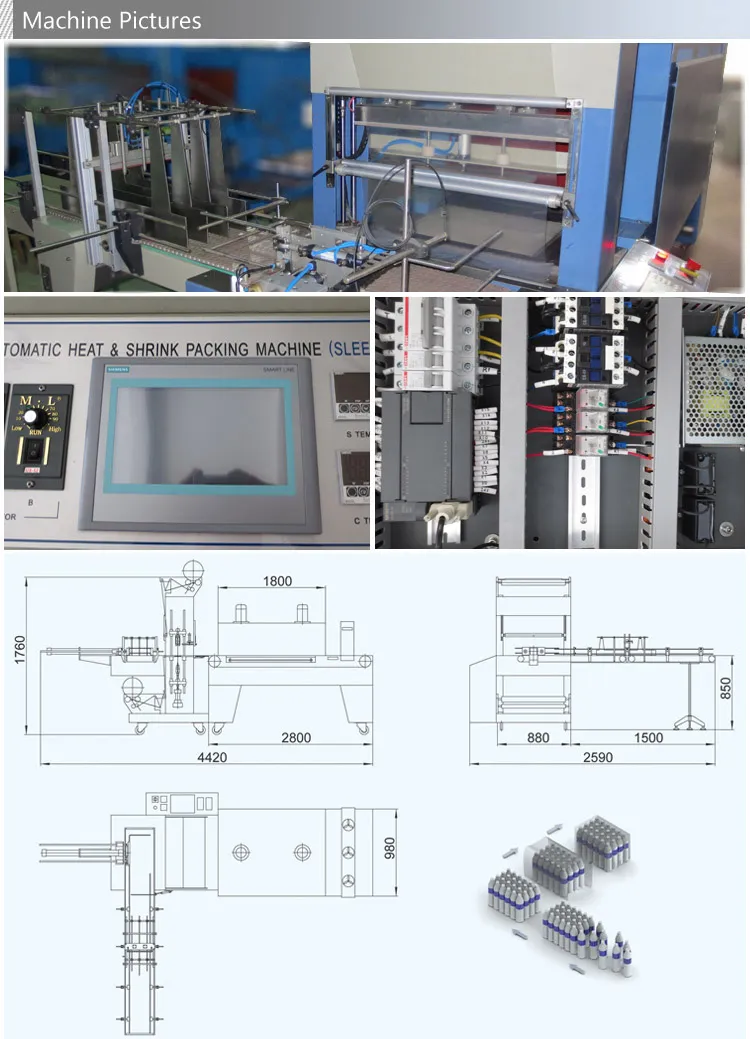

Machine dimensions 4420 x 2590 x 1760mm
Machine weight 1000kgs
Automatic Sleeve Sealing Shrink Wrapping Machine Packing Machine
Automatic Sleeve Sealing Shrink Wrapping Machine Packing Machine
Automatic Sleeve Sealing Shrink Wrapping Machine Packing Machine
Frequently Asked Questions
What materials are suitable for this sleeve sealing wrapping machine?
This machine is specifically designed to use Polyethylene (PE) film, which is perfect for packaging heavier bulk products like beverage bottles, beer bottles, and cans without requiring a base tray.
Can the machine be integrated into an existing production line?
Yes, the BMD-800A can be easily connected with automated upstream equipment, such as filling machines or labeling machines, to achieve a fully automated, unmanned production line.
How does the machine handle different product sizes?
Product row configurations and packing sizes can be set and adjusted quickly directly on the Siemens touch screen without needing to change any hardware molds.
What mechanism is used to ensure high-quality sealing?
The machine features a heavy-duty "U" shape alloyed sealing knife and a sawtooth cutting knife with a non-stick Teflon coating, supported by four columns. This design ensures highly secure seals even when using thicker PE packaging films.
What are the electrical and air pressure requirements for this machine?
The BMD-800A requires a 380V/50-60Hz 3-phase power supply, consumes a maximum of 20kW of power, and operates at a working air pressure of 0.5MPa (5 bar).
Are there optional configurations available for specific layout requirements?
Yes, we offer custom integration options, including optional output roller tables, customized conveyors, and protective safety covers to suit various working environments.
