Product Description

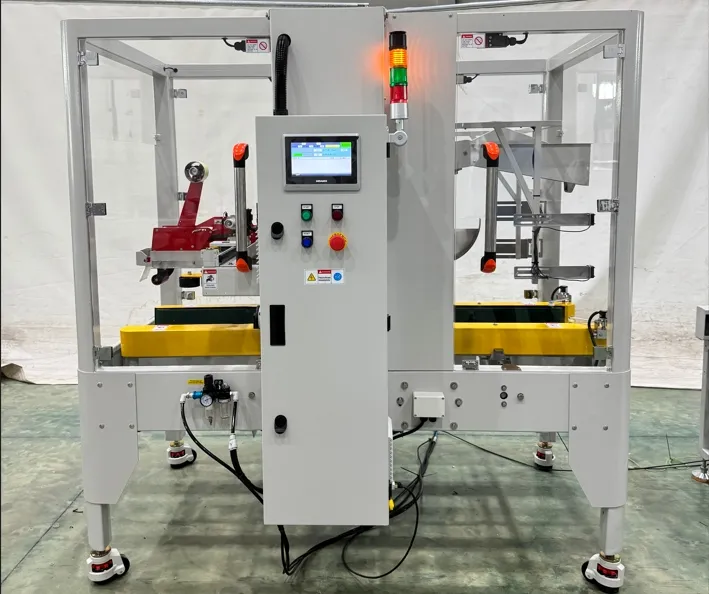

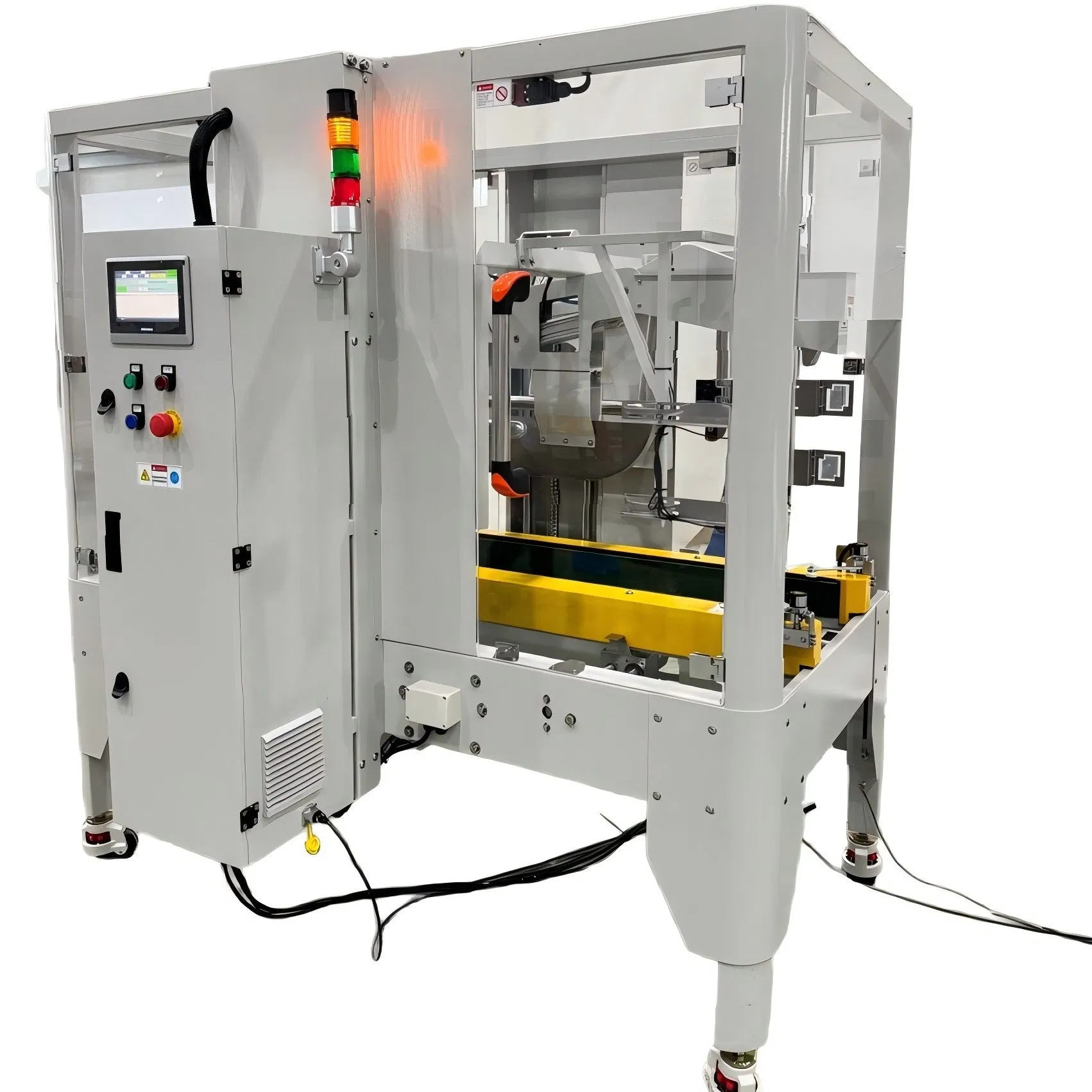

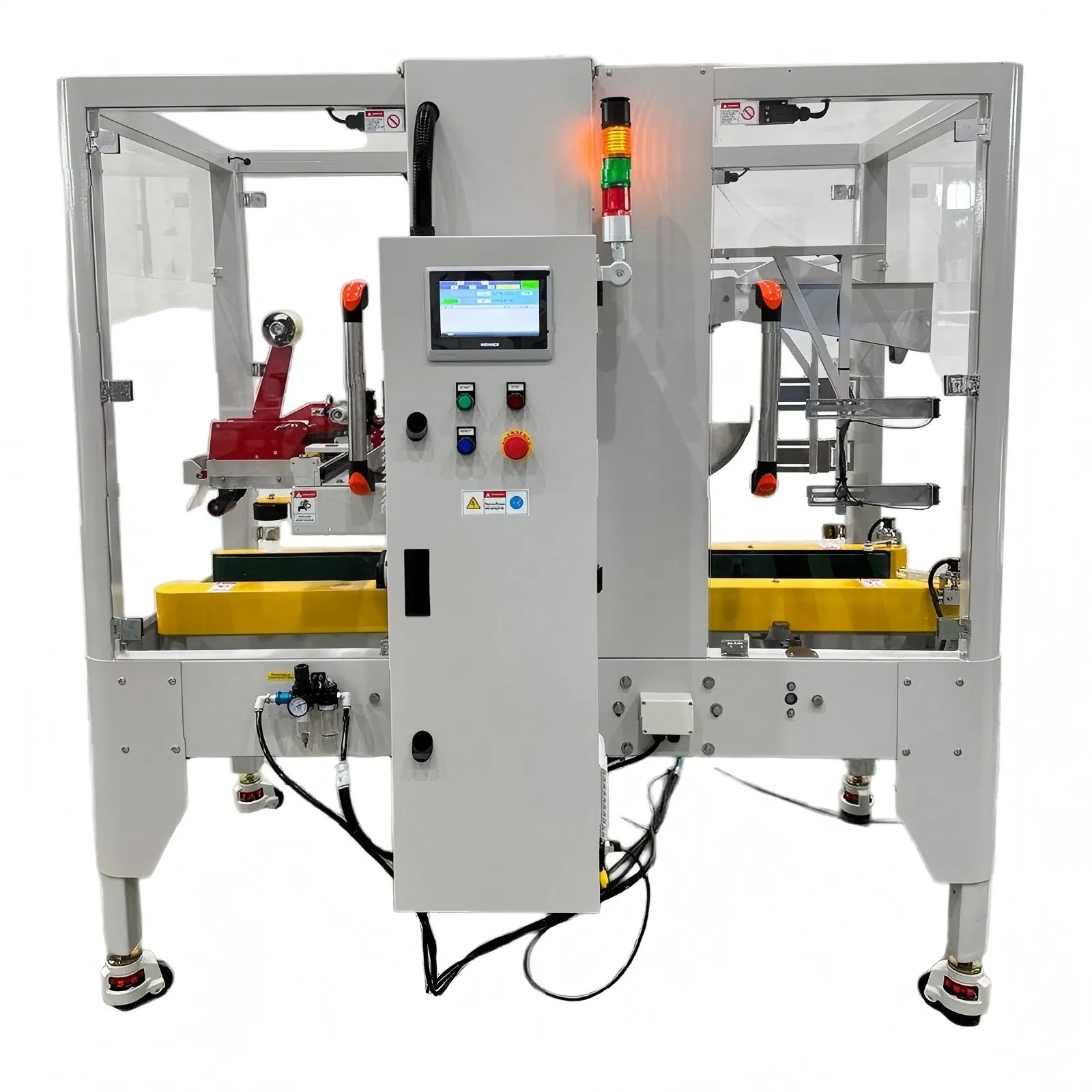

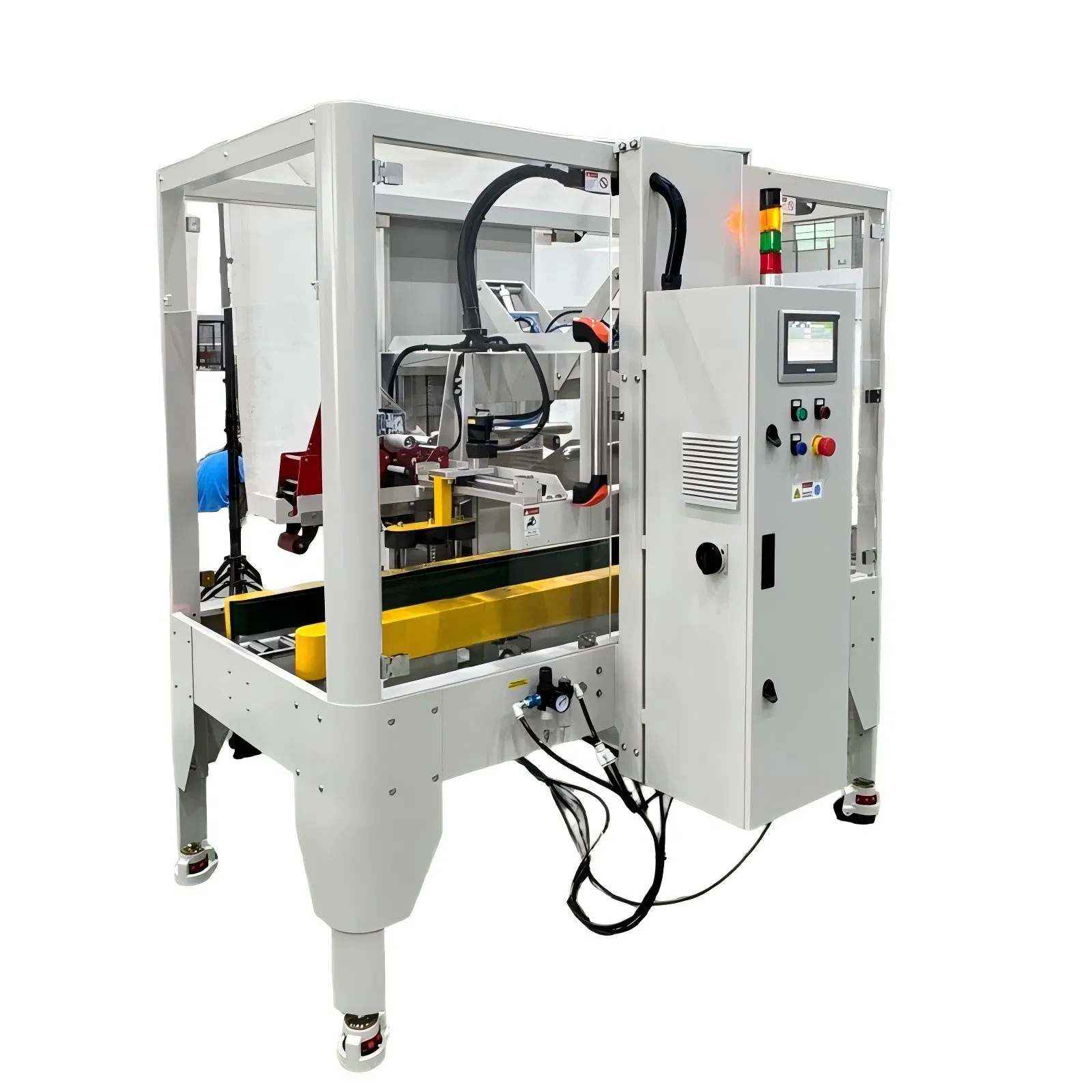

Servo Adaptive Folding and Carton Sealer

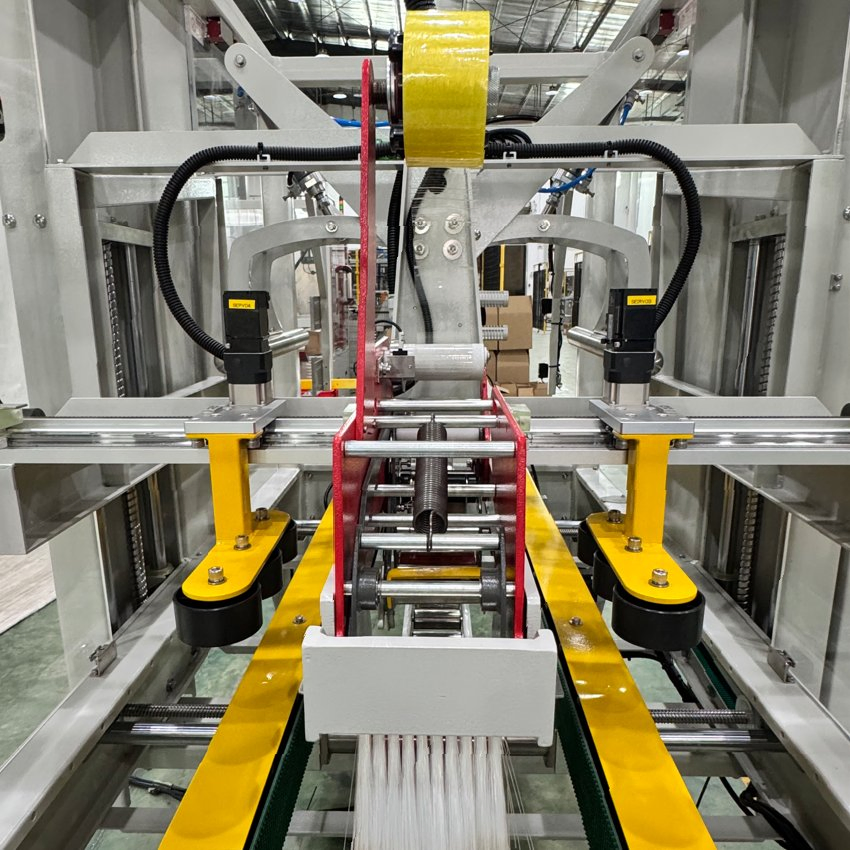

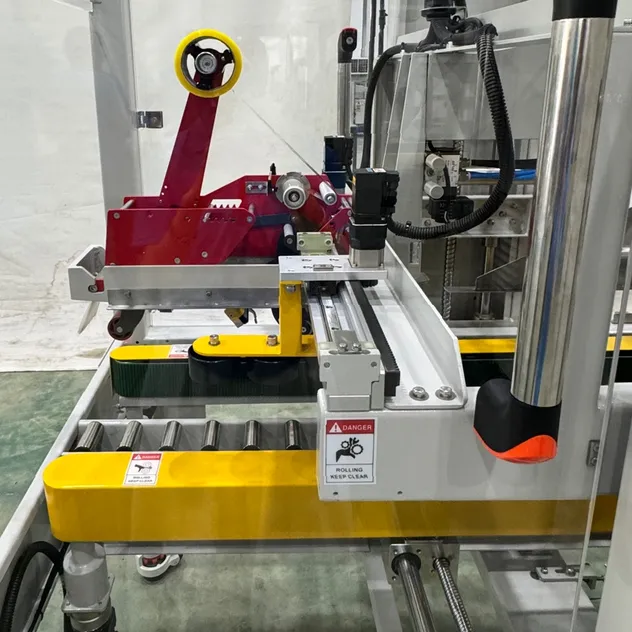

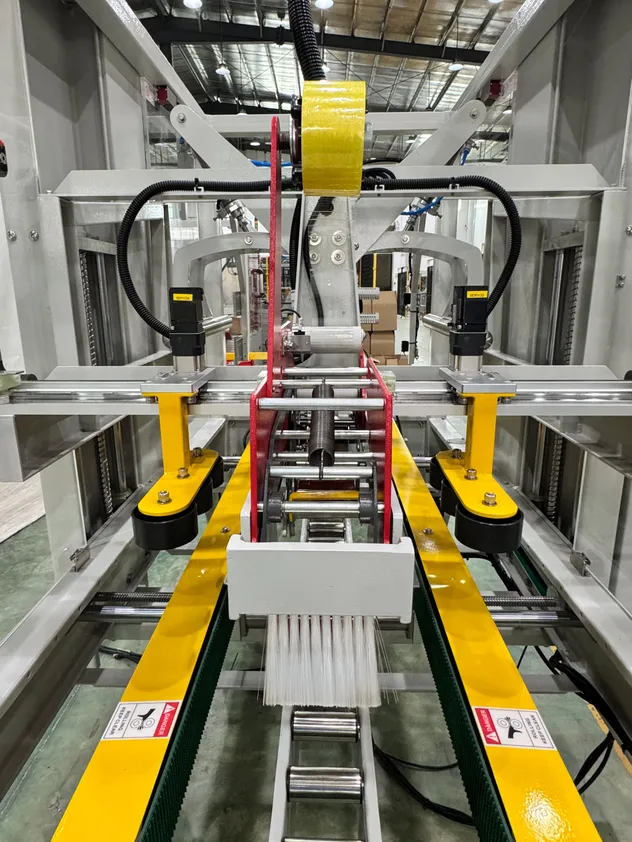

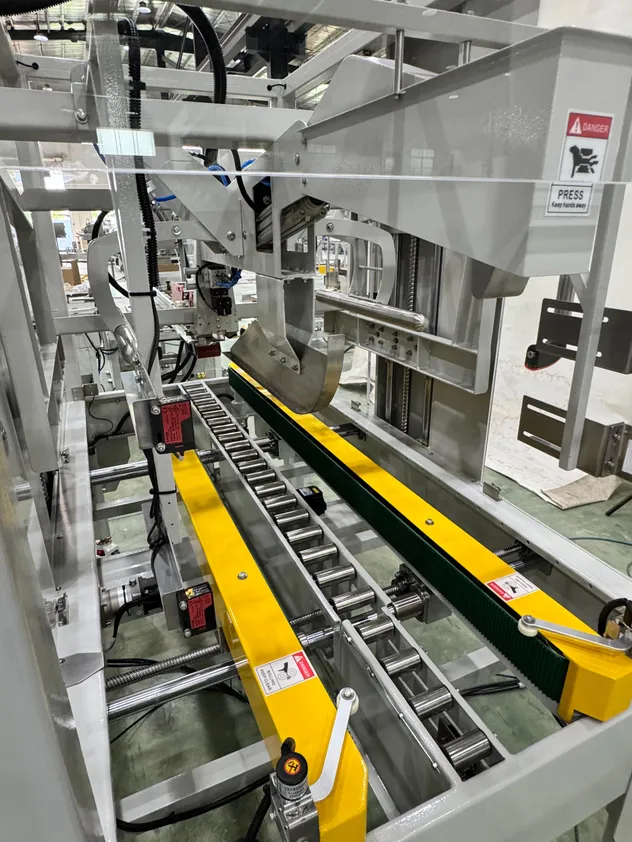

Product Introduction: This product is servo-driven, offering better stability and faster speed compared to pneumatically driven models. It has three adjustment modes: 1. Adaptive; 2. Direct data input and saving via the control panel; 3. Ethernet data link. Suitable for automatic folding of carton flaps, ensuring smooth and seamless sealing, resulting in a neat and labor-saving finish. It can be used in conjunction with other automated packaging machinery. It reduces costs, eliminates the need for manual operation, standardizes packaging, and saves on consumables. Widely used in the food, pharmaceutical, beverage, tobacco, daily chemical, automotive, cable, and electronics industries.
- Three adjustment modes: 1. Adaptive 2. Direct data input and saving via the control panel 3. Ethernet data link
- Servo-driven box sealing, high speed and stability.
- Stable box sealing speed for higher efficiency.

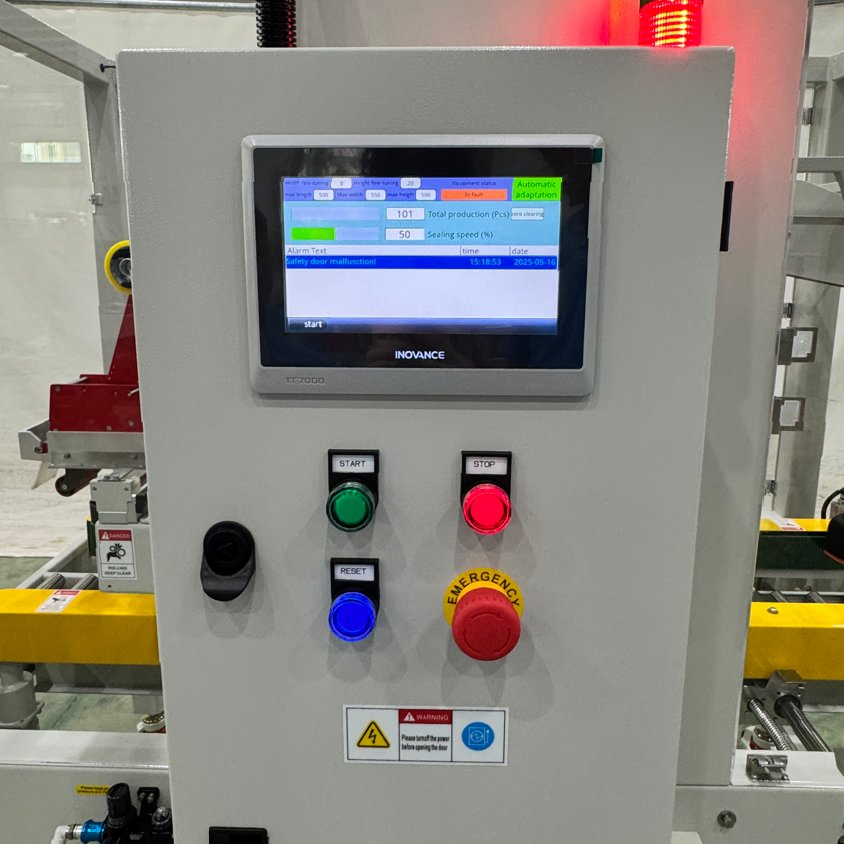

- Large-size human-machine interface for control and operation.
- User-friendly operation, simple and easy to learn.
- Stable box sealing speed for higher efficiency.
Frequently Asked Questions
What carton sizes can the APFX-500S Carton Sealer handle?

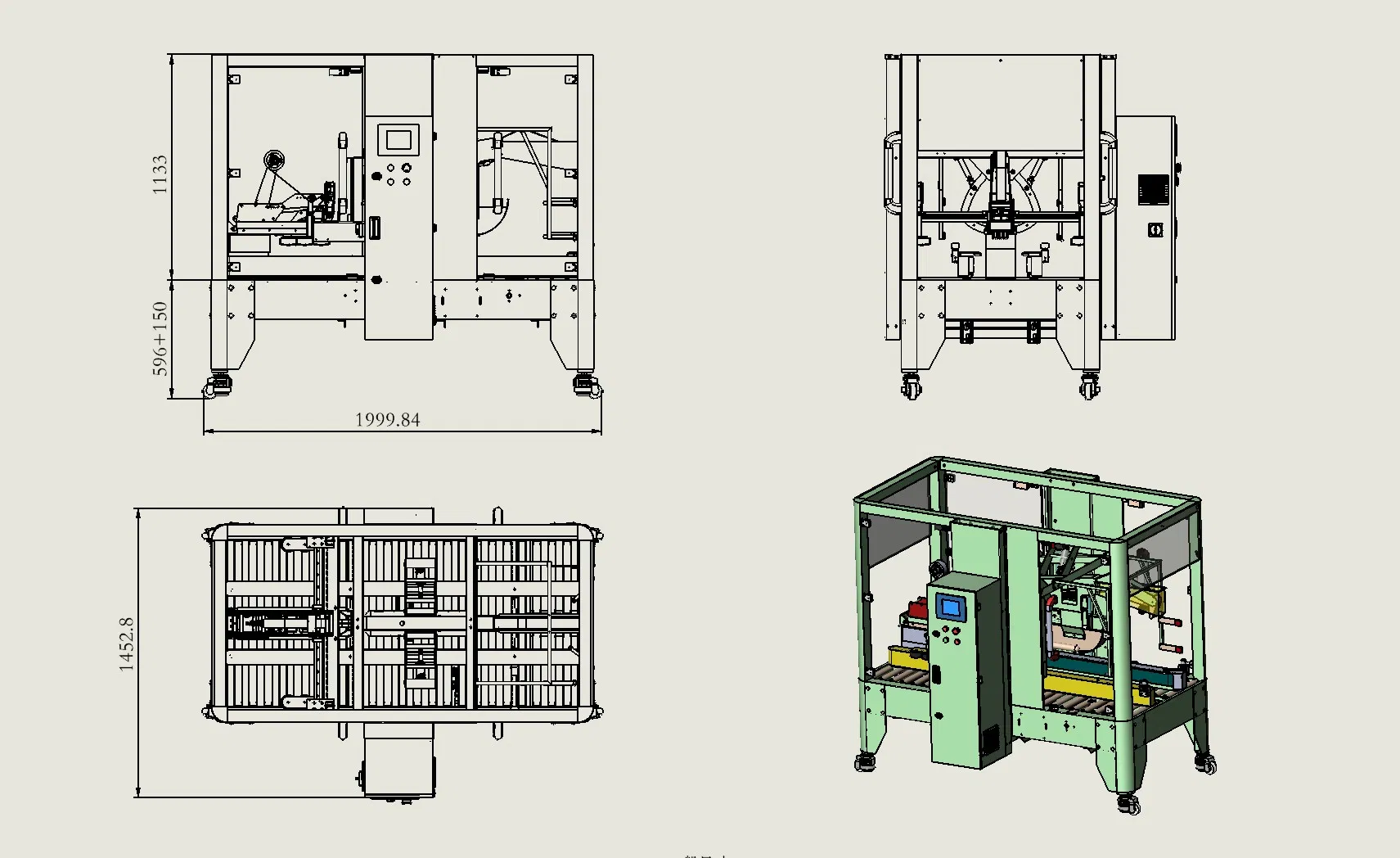

The standard model handles carton sizes ranging from L200-500 * W150-500 * H150-500mm. Custom dimensions are available upon request to fit specific project demands.
What are the adjustment modes of the carton sealer?
The machine offers three advanced adjustment modes: Adaptive mode, direct data input and saving through the control panel, and Ethernet data link communication.
How fast can this machine seal cartons?
The sealing speed ranges from 6 to 30 cartons per minute, depending on the carton size and operational settings.
What are the benefits of a servo-driven sealer over pneumatic models?
The servo-driven system provides superior stability, faster sealing speeds, and highly precise flap folding compared to standard pneumatically driven carton sealers.
What utility connections are required for operation?
The machine requires a single-phase 220V voltage supply (50/60Hz), a power capacity of 2.0KW, air consumption of 200L/min, and an operating air pressure of 0.5-0.8 Mpa.
Which industries is this automated packaging machine suitable for?
It is widely used in food, pharmaceutical, beverage, tobacco, daily chemical, automotive, cable, electronics, and various other manufacturing sectors that require automated carton packaging.
