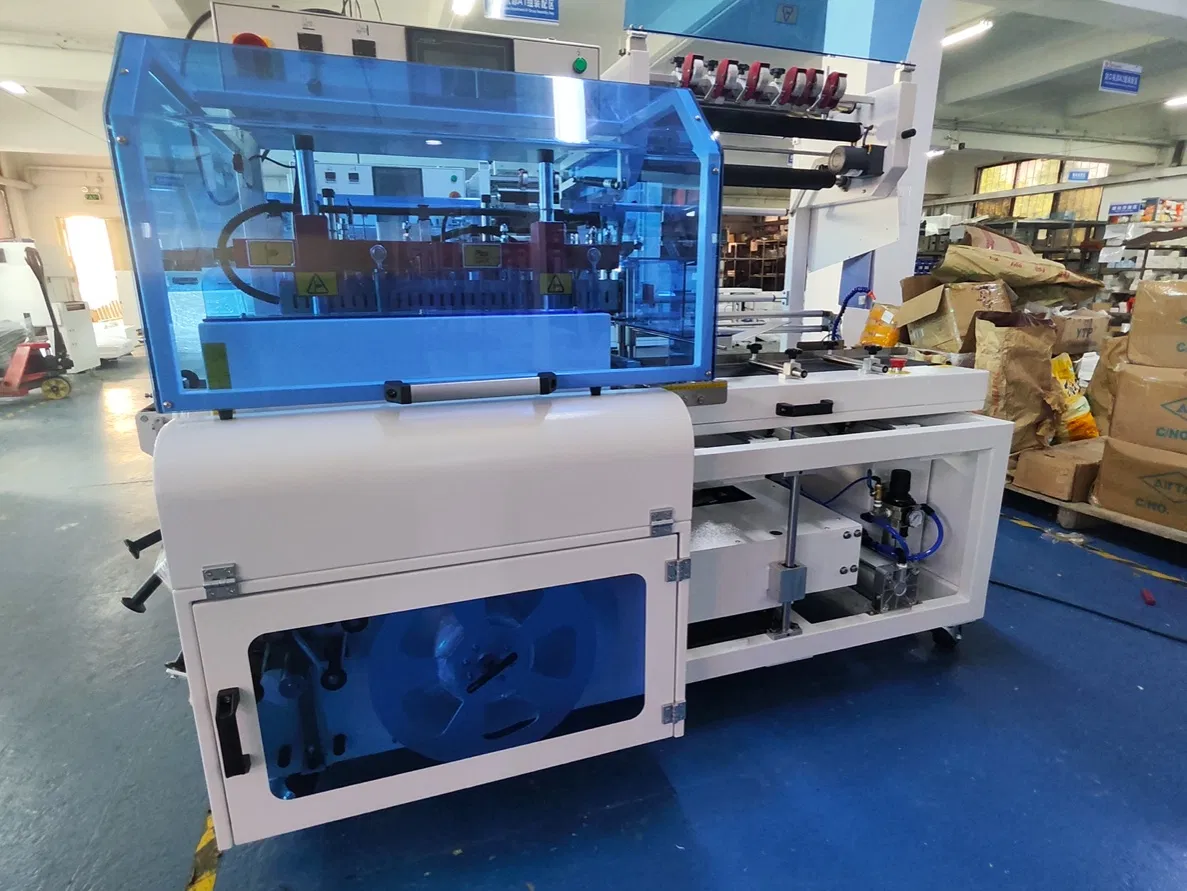

Automatic POF/PE Film Fully Automatic High Speed L Type Shrink Tunnel Heat Shrink Shrinking Packing Packaging Wrapping Sealing Machine
Automatic POF/PE Film Fully Automatic High Speed L Type Shrink Tunnel Heat Shrink Shrinking Packing Packaging Wrapping Sealing Machine
Automatic POF/PE Film Fully Automatic High Speed L Type Shrink Tunnel Heat Shrink Shrinking Packing Packaging Wrapping Sealing Machine
Automatic POF/PE Film Fully Automatic High Speed L Type Shrink Tunnel Heat Shrink Shrinking Packing Packaging Wrapping Sealing Machine
Automatic POF/PE Film Fully Automatic High Speed L Type Shrink Tunnel Heat Shrink Shrinking Packing Packaging Wrapping Sealing Machine
1 / 5
Automatic POF/PE Film Fully Automatic High Speed L Type Shrink Tunnel Heat Shrink Shrinking Packing Packaging Wrapping Sealing Machine
Automatic POF/PE Film Fully Automatic High Speed L Type Shrink Tunnel Heat Shrink Shrinking Packing Packaging Wrapping Sealing Machine
Automatic POF/PE Film Fully Automatic High Speed L Type Shrink Tunnel Heat Shrink Shrinking Packing Packaging Wrapping Sealing Machine
Automatic POF/PE Film Fully Automatic High Speed L Type Shrink Tunnel Heat Shrink Shrinking Packing Packaging Wrapping Sealing Machine
Automatic POF/PE Film Fully Automatic High Speed L Type Shrink Tunnel Heat Shrink Shrinking Packing Packaging Wrapping Sealing Machine

Automatic POF/PE Film Fully Automatic High Speed L Type Shrink Tunnel Heat Shrink Shrinking Packing Packaging Wrapping Sealing Machine

Customization: Available
Warranty: 1 Year
Application: Food, Commodity, Machinery & Hardware, Textile, Alcohol, Toy, Chemical, Apparel, Gifts & Arts, Dining, Medical
Send Inquiry

Product Description

Basic Specifications

Model NO.
Lb-726/Lb-728/Lb-729
Automatic Grade
Automatic
Driven Type
Electric
Manner of Packing
Four Side Seal Type
Type
PE/POF Shrink Film Machine
Adjust Speed
Electronic Speed Control
Heating Mode
Stainless Steel Heating
Packing Speed
40-60 (Bag/Min)

Product Description

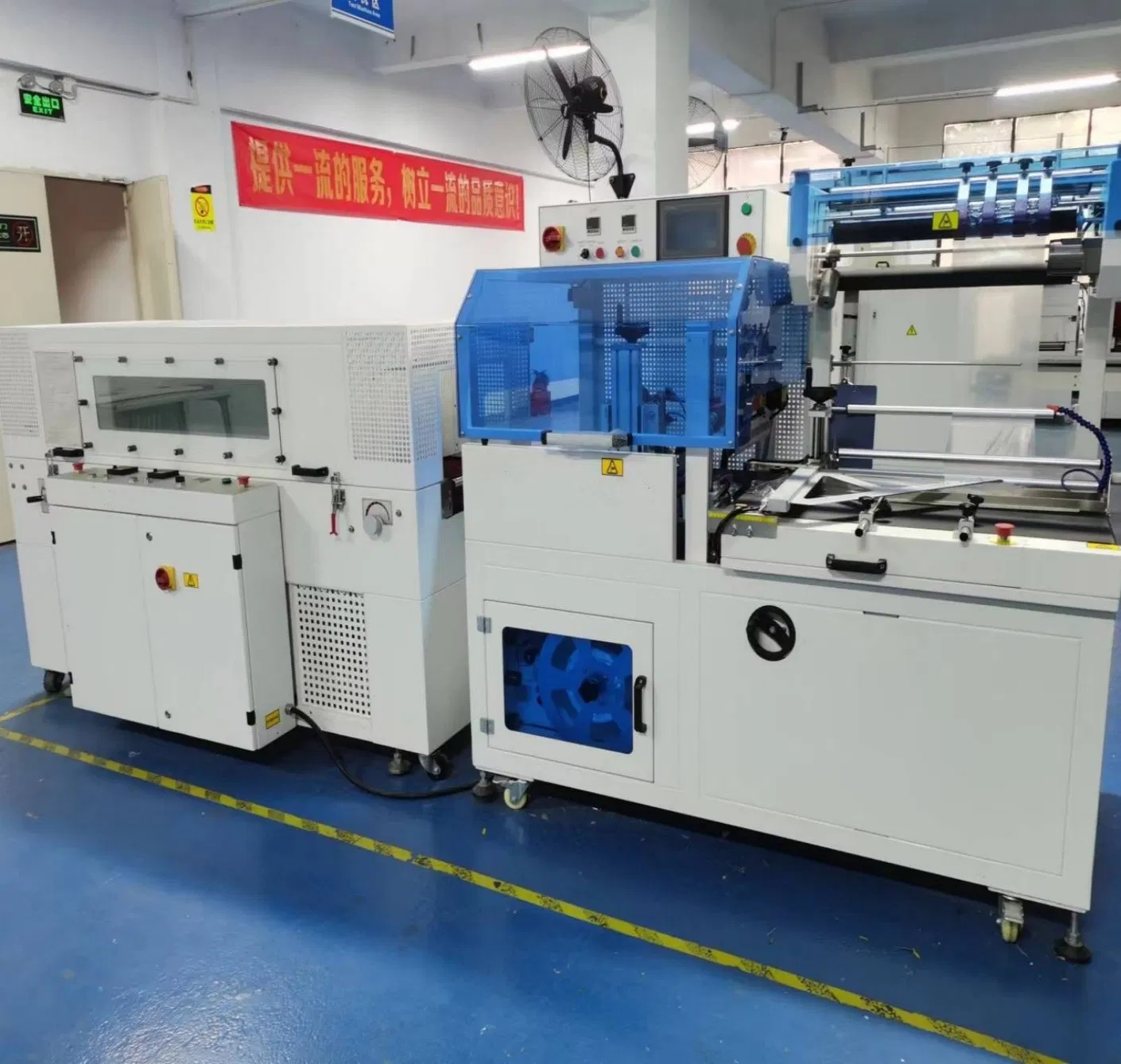

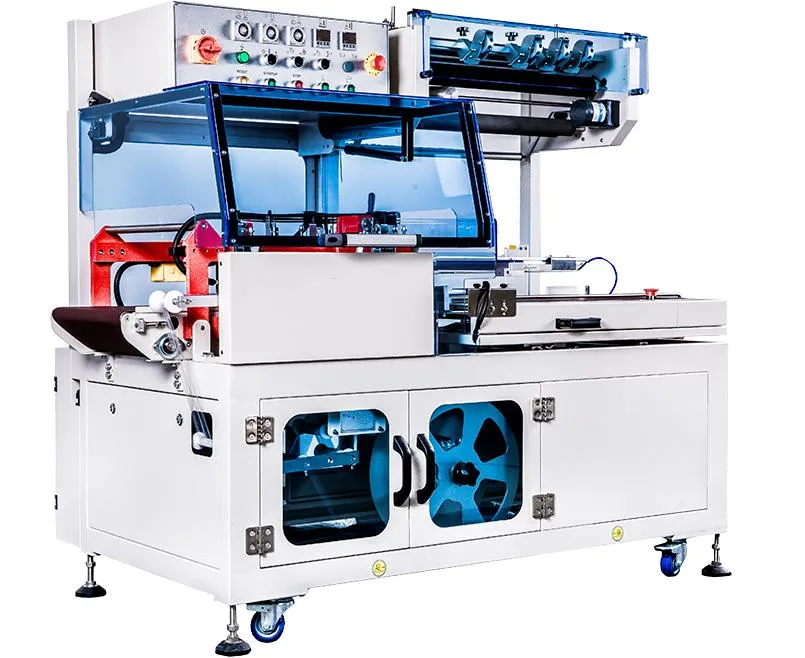

Automatic POF/PE Film Fully Automatic High Speed L Type Shrink Tunnel
Automatic L-Bar Sealer

Automatic L-Bar Sealer is an entry-level automatic sealer which provides an economical, durable and easy-operated solution for packaging. It is also widely applicable to various industries such as toys, cosmetics, tools, foods, stationeries, daily commodities, electric appliances, etc. With the uniqueness of the perforation system, it has been successfully granted us a leading position in the industry.

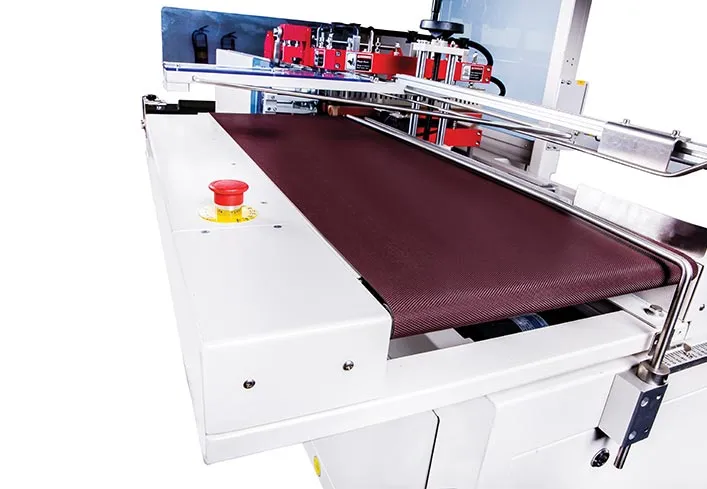

Machine Overview

Key Features

  • A broad spectrum of products can be packaged efficiently.
  • Cost-effective Automatic packing solution for various production scales.
  • Safety protection and integrated alarm system attached.
  • Sealing system capable of performing smooth and firm sealing lines.
  • Designed for easy operation and minimal maintenance.

Technical Parameters

Model LB-726 LB-728 LB-729
Machine Size (LxWxH mm) 2000x1190x1480 1795×990×1570 1890x1335x1290
Packing Size (LxWxH mm) (100~530)x(60~400)x(5~120) (100~450)x(60~350)x(5~120) (60~560)x(60~400)x(10~160)
Sealing Bar Size (LxW mm) 640x512 565×460 630x520
Max Film Width (Inches) 22" 23" 27"
Power Source 220V, 1P, 3.5Kw 220V, 1P, 3Kw 220V, 1P, 3Kw
Pneumatic (NI/min) 60 (6bar)

Optional Upgrades

We provide a range of optional upgrades to enhance your production line efficiency:

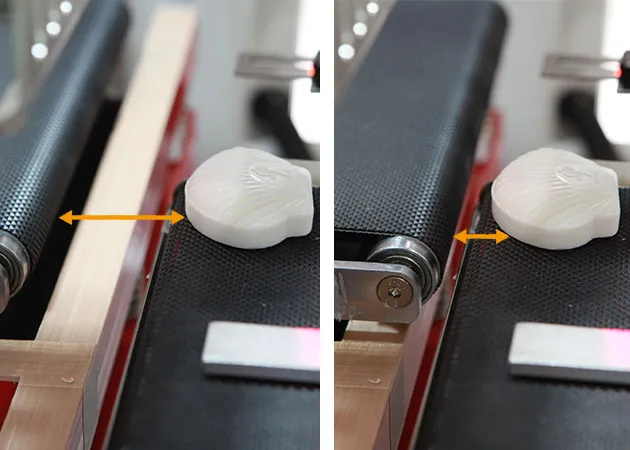

Kissing conveyor
Kissing Conveyor

Adjustable distance for small products; rear conveyor pulls back during sealing.

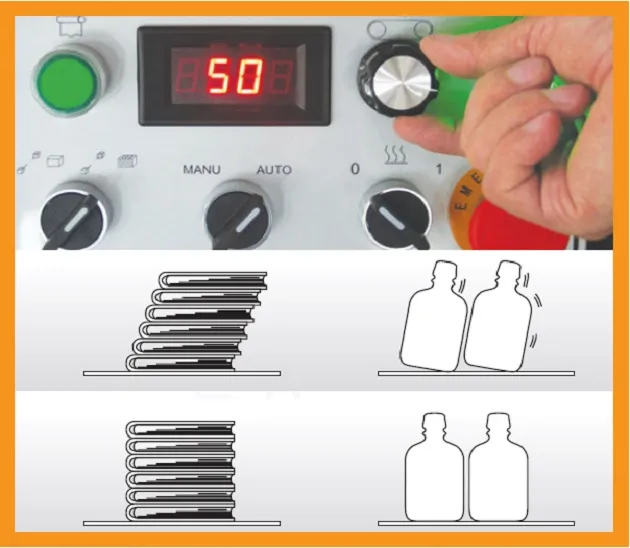

Conveyor speed control
Speed Control

Adjustable speed for unstable or slippery products like bottles or books.

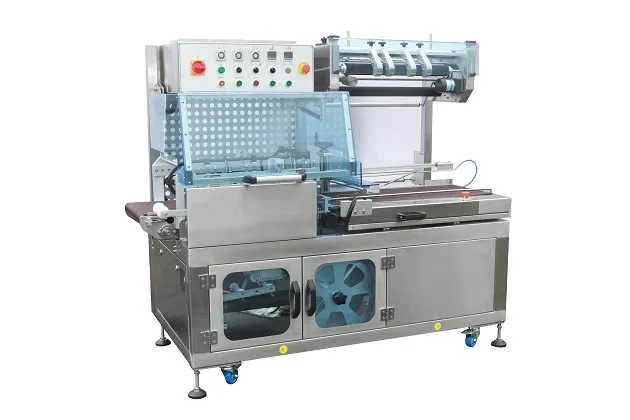

Stainless steel version
Stainless Steel Version

Ideal for high moisture and low temperature working environments.

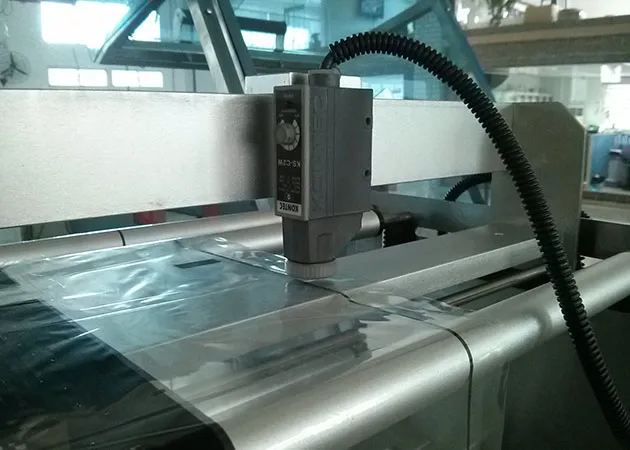

Eye-mark sensor
Eye-Mark Sensor

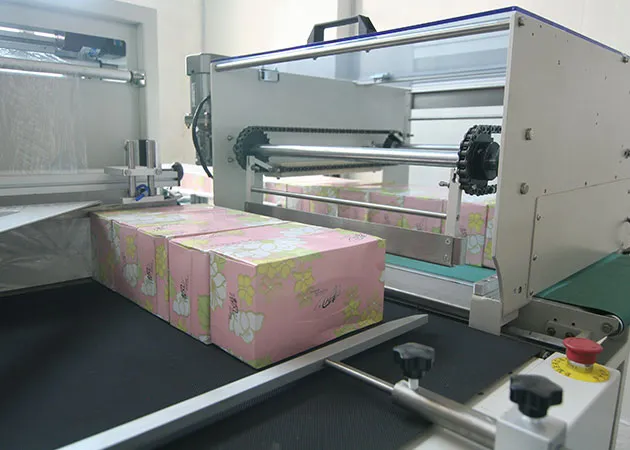

Automatic grouping
Automatic Grouping Device

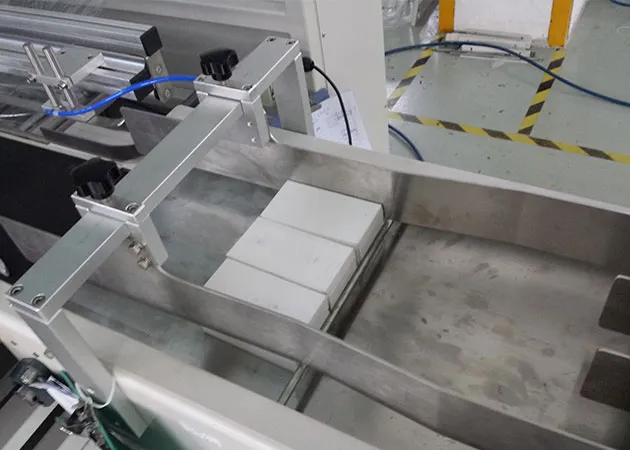

Flight bar conveyor
Flight Bar Conveyor

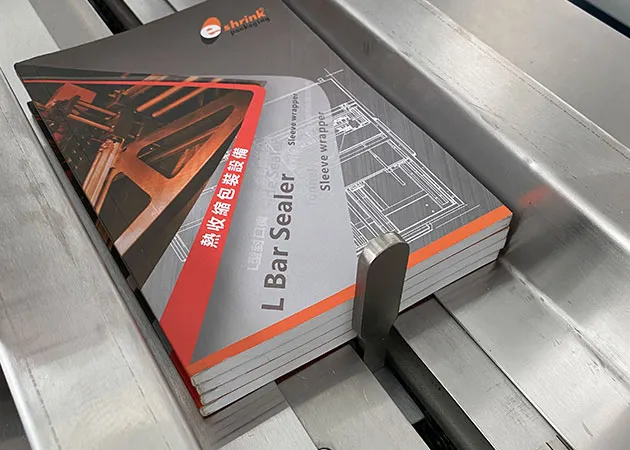

Finger conveyor
Finger Conveyor (Lug)

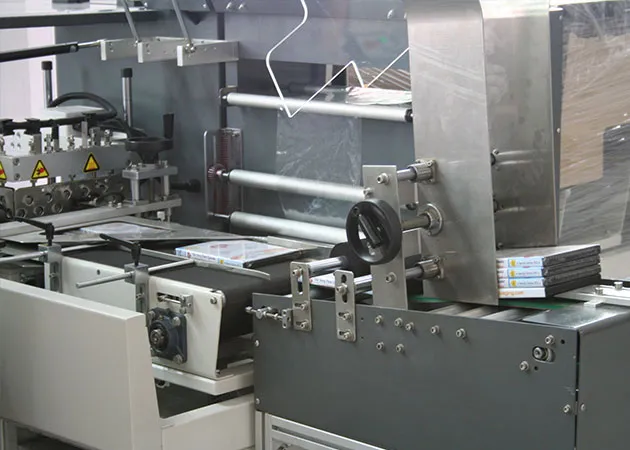

Automatic Feeder
Automatic Feeder
Application Examples
Packaging line
Frequently Asked Questions
Q1: What types of films are compatible with the L-Bar Sealer? The machine is specifically designed to work with POF and PE shrink films, commonly used for high-quality protective packaging.
Q2: Which industries can benefit from this automatic packaging solution? It is widely applicable for toys, cosmetics, tools, food items, stationeries, daily commodities, and various electric appliances.
Q3: How does the "Kissing Conveyor" option work? The Kissing Conveyor allows the front and rear belts to move closer together, making it possible to handle very small products that might otherwise fall between gaps.
Q4: Is the machine suitable for damp or cold environments? Yes, we offer an optional Stainless Steel version specifically designed to operate stably under high moisture and low-temperature conditions.
Q5: Can the machine handle multi-pack grouping? Yes, with the optional automatic grouping and feeding device, the machine can feed and align multiple products together for unified packaging.
Q6: What safety features are included? The sealer comes equipped with integrated safety protection guards and an alarm system to ensure safe operation for personnel.
