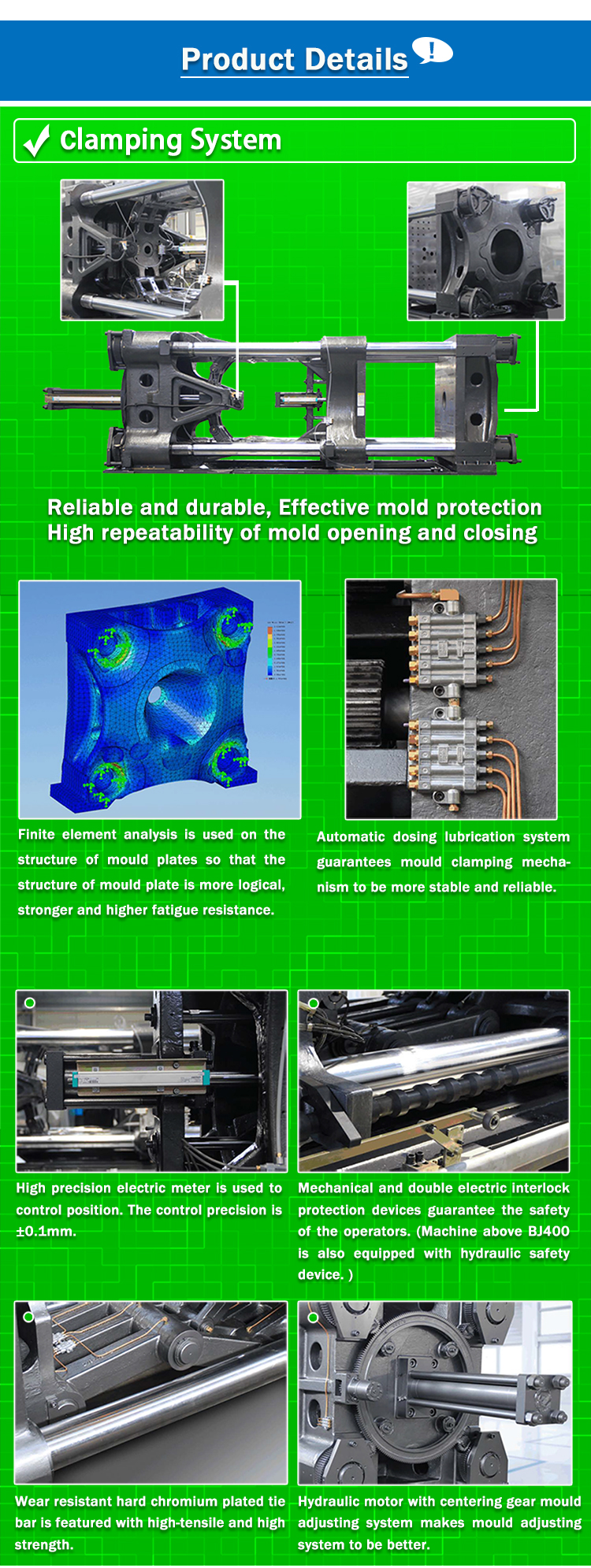

Center-pressing toggle structure design, high clamping force, high rigidity, low deformation, production fast and stable. T-slot platen, convenient and fast mould change.

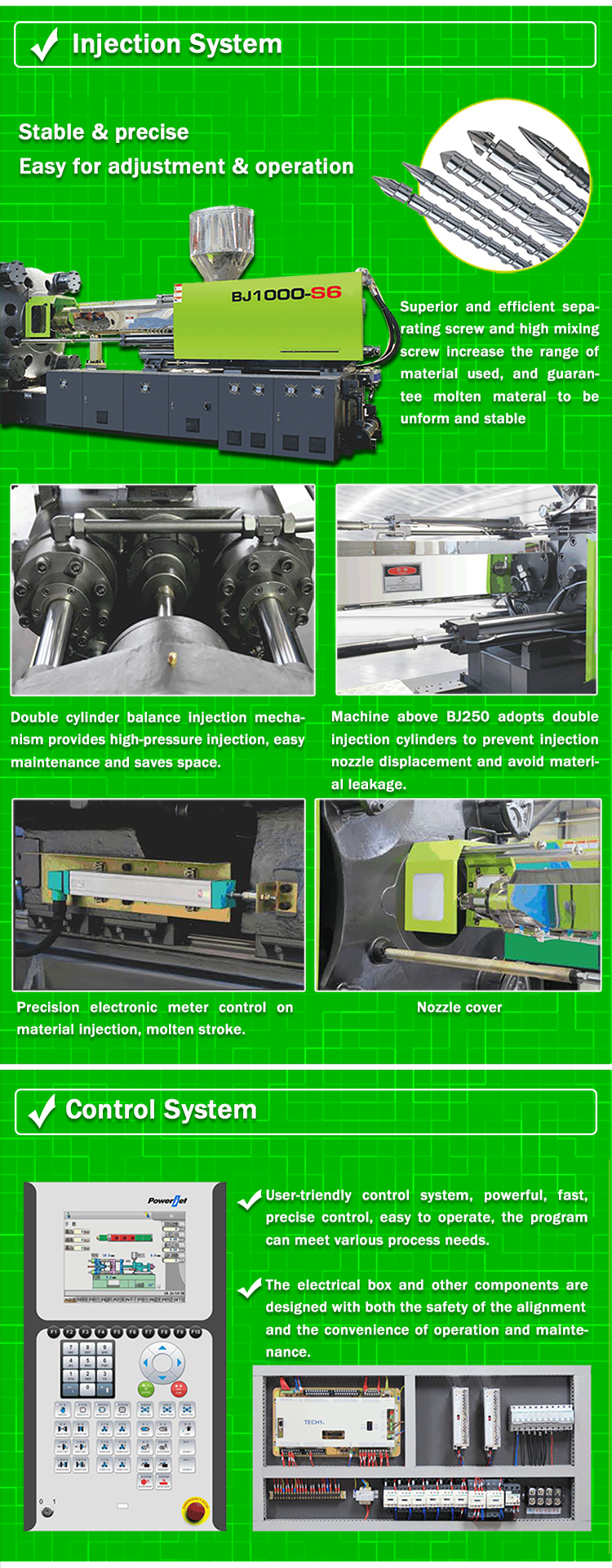

With the adoption of servo control system, the injection pressure & speed under closed loop controlled, and the stability and repeatability can be achieved.

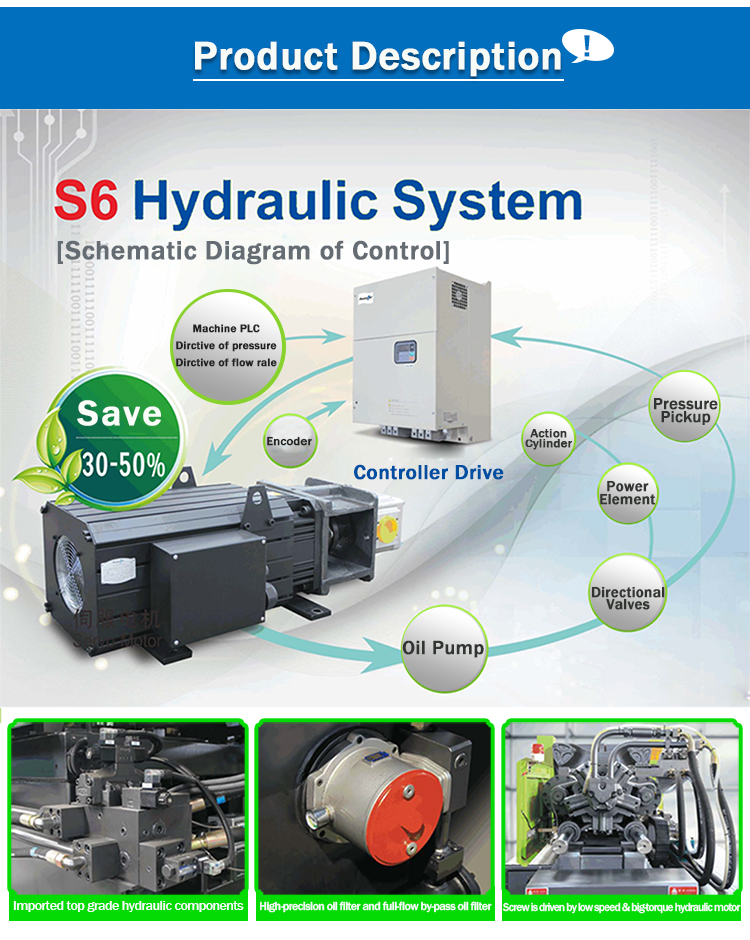

Perfect combination between computer and high efficient proportional plunger variable pump saves electricity by 25%-50%. The economic efficiency is high.
Imported top grade hydraulic components
High precision oil filter and full flow bypass oil filter
Screw is driven by low speed & big torque hydraulic motor
Finite element analysis is used on the structure of mould plates So that the structure of mould plate is more logical, stronger and higher fatigue resistance.
Automatic dosing lubrication system guarantees mould clamping mechanism to be more stable and reliable.
High precision electric meter is used to control position. The control precision is +0.1mm.
Mechanical and double electric interlock protection devices guarantee the safety of the operators. (Machine above BJ400 is equipped with hydraulic safety device. )
Wear resistant hard chromium plated tie bar is featured with high-tensile and high strength.
Hydraulic motor with centering gear mould adjusting system makes mould adjusting system to be better.

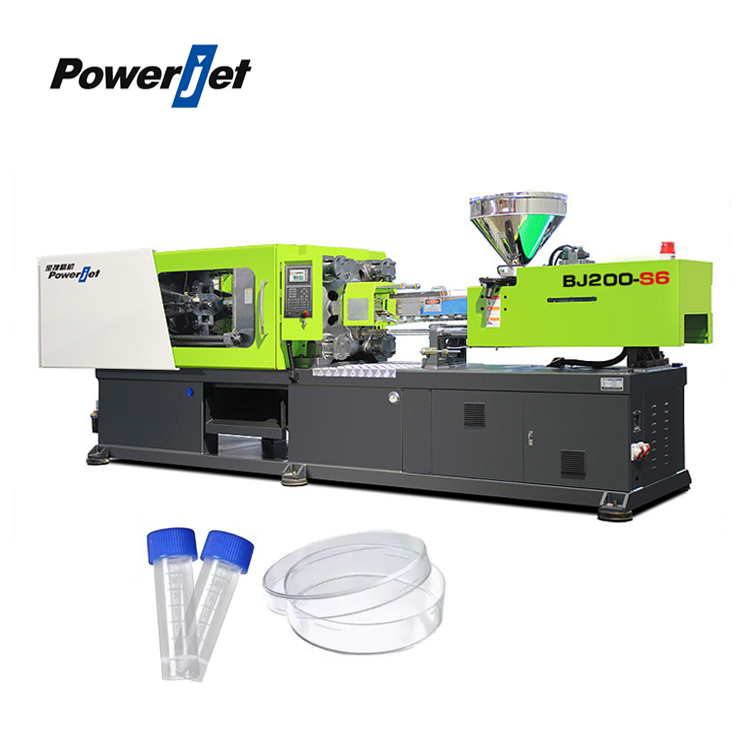

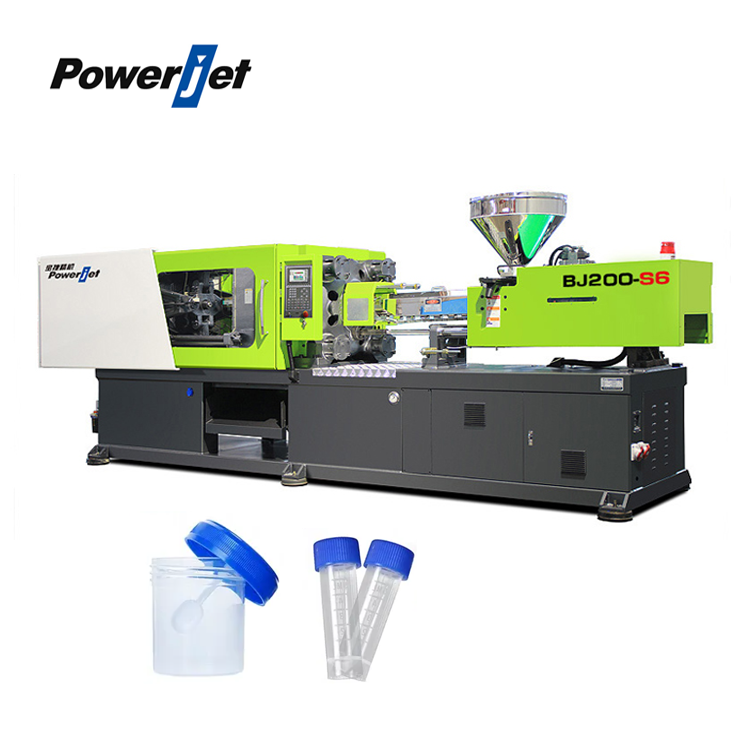

| DESCRIPTION | UNIT | BJ200-V6/S6 | |
| CLAMPING UNIT | Clamping force | KN | 2000 |
| Opening stroke | mm | 490 | |
| Max. daylight | mm | 1040 | |
| Platen size | mm | 775*755 | |
| Space between bars | mm | 510*510 | |
| Max. mold height | mm | 550 | |
| Min. mold height | mm | 230 | |
| Ejector stroke | mm | 140 | |
| Ejector force | KN | 65 | |
| INJECTION UNIT | Screw diameter | mm | 62 |
| Screw L/D Ratio | L/D | 19.9 | |
| Injection Pressure | MPa | 180 | |
| Shot volume | cm3 | 520 | |
| Screw stroke | mm | 245 | |
| Screw speed | rpm | 170 | |
| POWER UNIT | Hydraulic system Pressure | MPa | 17.5 |
| Pump motor power | KW | 18.5/21.8 | |
| Heater power | kW | 11.5 | |
We have become the booming power in the professional plastic machinery industry. Since founded in 2000, we have worked with customers all along. Focusing on every customer need.
Using “innovation plus exemplary case”, surpassing customers needs to realize the win-win cooperation. The equipment has enjoyed a good reputation both at home and abroad. With the technological accumulation for 20 years, a top technological team has been established. Being market-oriented to constantly innovate and upgrade products, devoting to reduce customers’ operating costs, providing the high-quality, innovative and optimal solution of plastics manufacture.

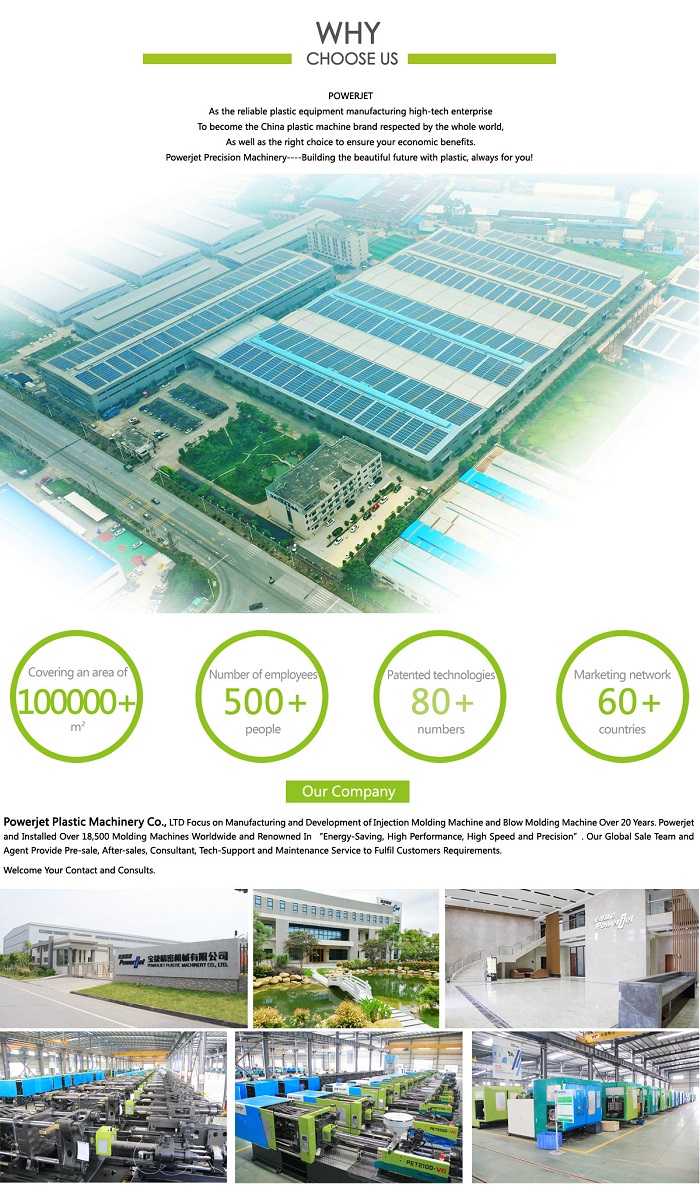

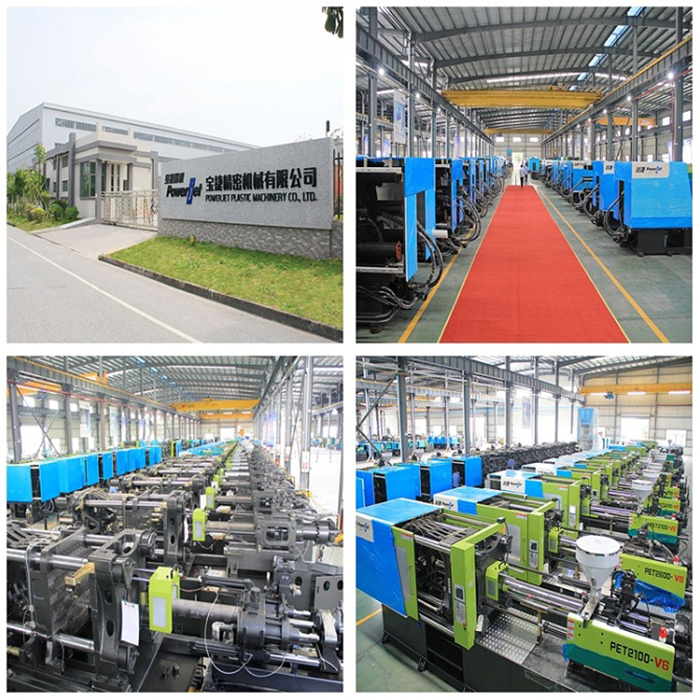

We are a high and new technology enterprise of injection molding machine and blow molding machine. Founded in 2000, our manufacturing facility introduces advanced equipments like CNC systems imported from Mitsubishi, OKUMA, and DOOSAN. We are a high and new technology enterprise specialized in the R&D, manufacturing, sales, and after-sales service of injection molding machines and blow molding machines.
To ensure the timely product delivery with the extremely fast production cycle and ensure the qualified product, we integrate the craftsmanship spirit into each detail. Passing the international ISO and CE certificates and Korean KCS certificate, we greatly ensure the low energy consumption, high precision and reliability of the products.
We have established the global marketing network to deliver the value of injection molding machine and extrusion blow molding machine to over 100 countries and areas. Multiple senior managers and business elites worldwide have become trustworthy partners, providing the most thoughtful service and fastest user support for you constantly.

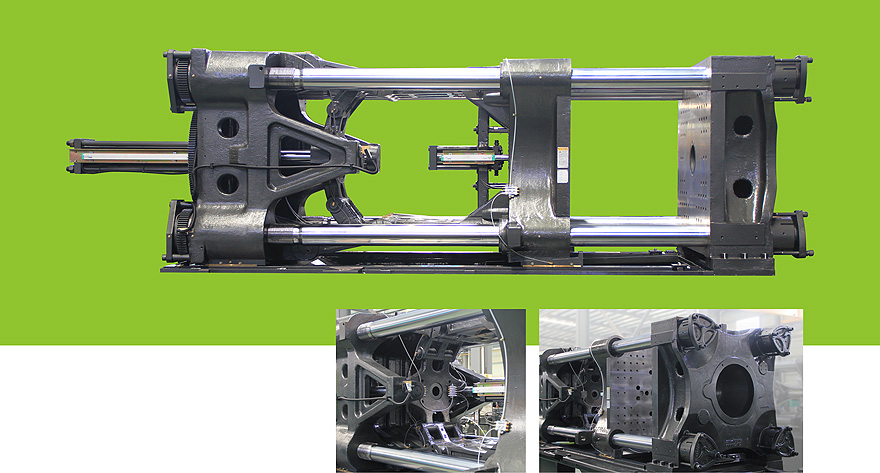

The clamping unit utilizes a center-pressing toggle structure design. This configuration provides high clamping force, exceptional rigidity, and low deformation, ensuring fast and stable production. It also features a T-slot platen for fast and convenient mold adjustments.
Compared to traditional hydraulic machines, the S6 series can save more than 50% of electricity, especially during the pressure hold and cooling stages. The V6 series, equipped with a computer-controlled, highly efficient proportional plunger variable pump, offers energy savings of 25% to 50%.
Structural integrity is optimized through finite element analysis on the mold plates to resist fatigue. For operator safety, double mechanical and electrical interlock protection devices are built-in, and machines above the BJ400 specification are additionally equipped with a hydraulic safety device.
All machinery undergoes meticulous craftsmanship and quality checking to comply with strict international standards. The products are certified with ISO, CE, and Korean KCS certifications, guaranteeing low energy consumption, reliability, and high precision.
Yes. We have built an expansive global marketing and service network covering over 100 countries and regions. Our international network of senior managers and local service partners guarantees responsive support and reliable user assistance whenever needed.
