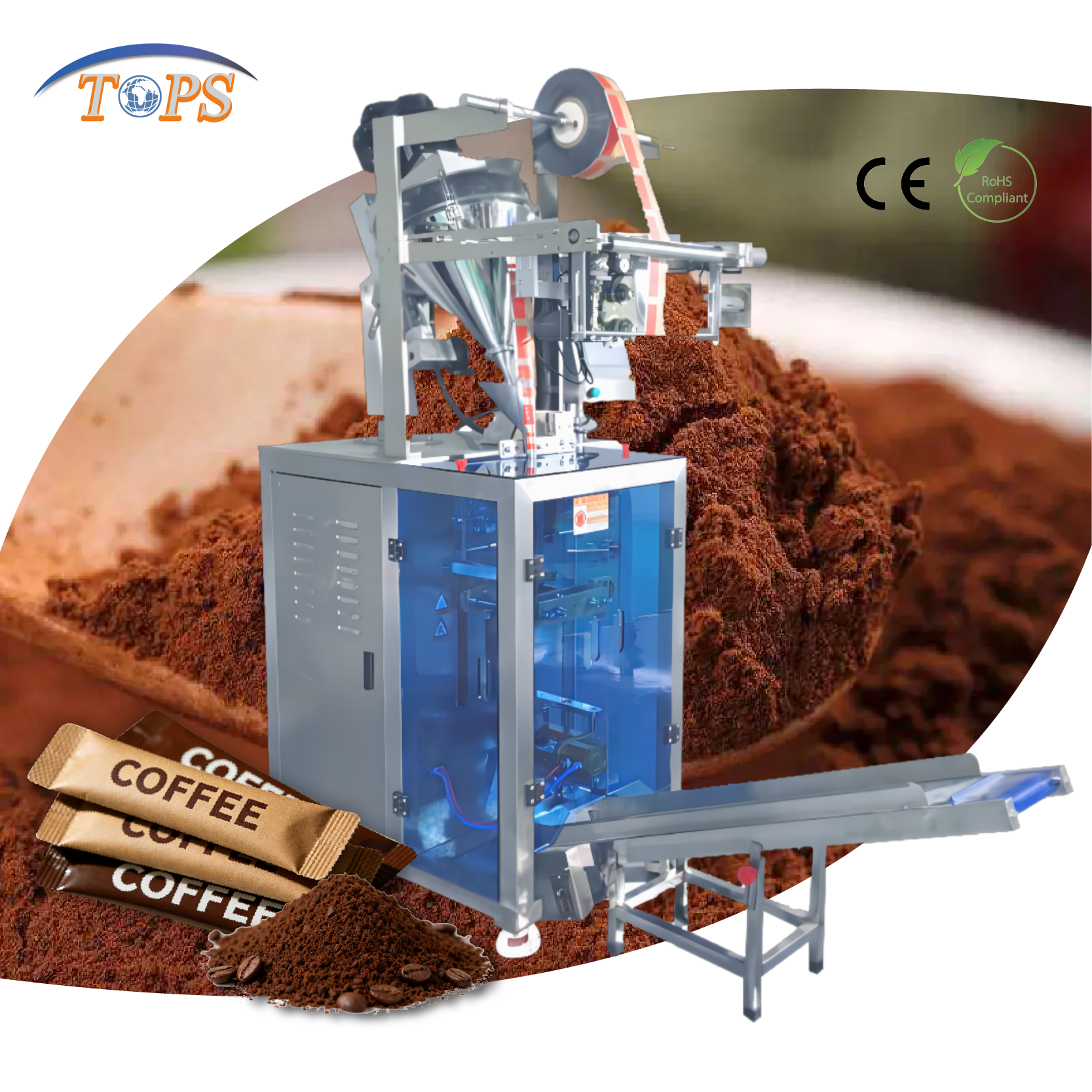

This series installed powder auger dosing system, can pack powder products such as milk powder, drinking powder, medicine and chemicals powder, etc.
| Model | TP-PF-V180 |
| Control system | Touch screen |
| Hopper | 15L |
| Film width | 40-180mm |
| Dosing type | By auger |
| Capacity | 20-70 bags/ min (Depend on Products) |
| Packing accuracy | ≤ 100g, ≤±2% |
| Bag width | W20-75(mm) |
| Bag length | L50-200(mm) |
| Power Supply | 220v 50HZ 1P (can be add transformer) |
| Total Power | 1.8 KW |
| Total Weight | 250kg |
| Overall Dimensions | 1100x820x1600mm |
Applied film material: PP, PE, PVC, PS, EVA, PET, PVDC+PVC, OPP+CPP etc.
Film thickness: 0.05-0.12mm

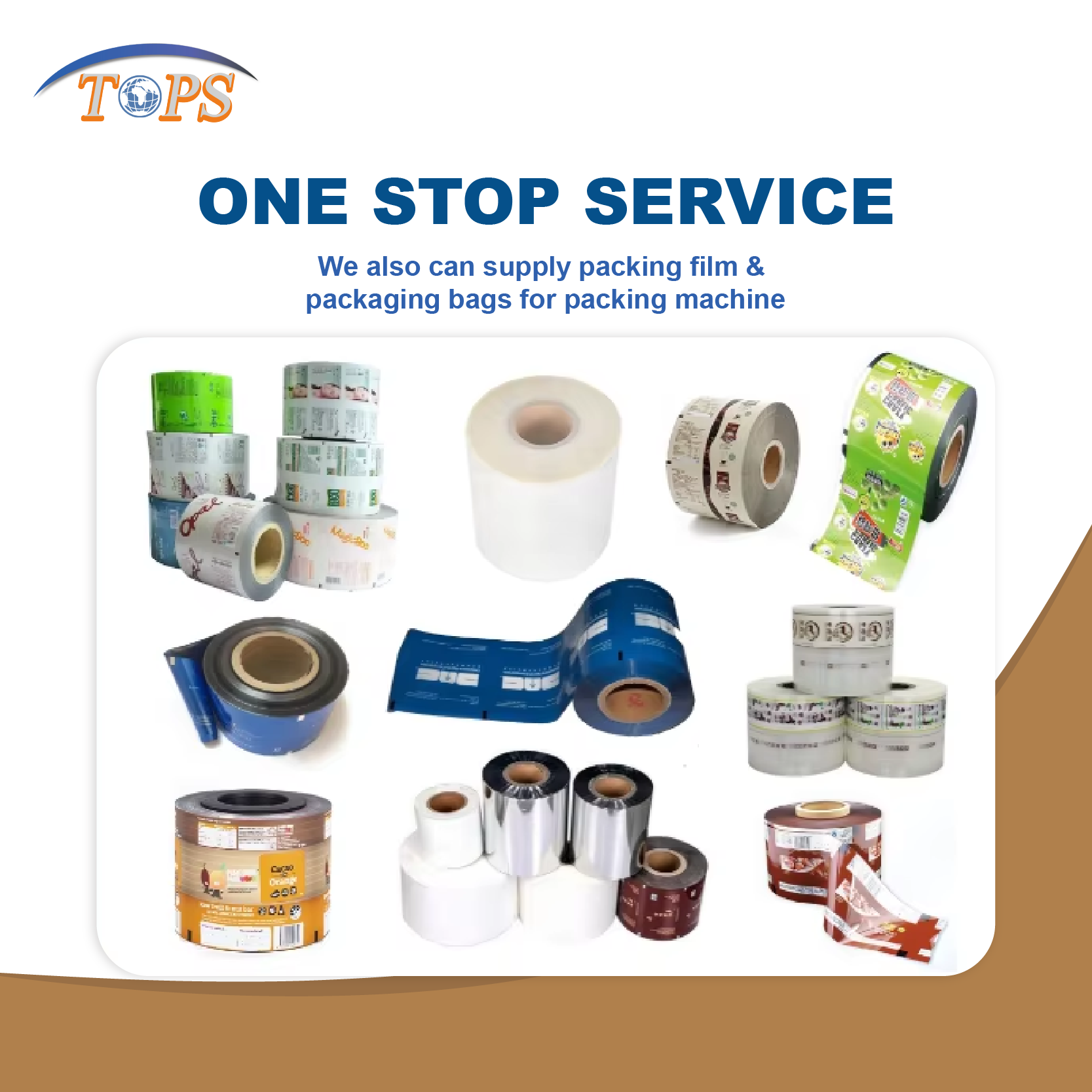

Also can supply packing film & packaging bags for packing machine.
The composite film is suitable for various automatic packaging machines. The composite films of different materials have different functions, such as aluminum foil film, aluminized film, easy tear film, easy peel film, nylon film, PET film, cooking film, boiling film, etc.
Composite film has a wide range of applications. Products from different industries are packaged with composite film through automatic packaging machines.
Surface material: PET/OPP/PA/PAPER
Middle material: VMPET/AL/PET/PA
Inner material: PE/CPP/CPE
1. Powder dosing system: Auger filler, controlled by a motor, offers high precision. The system requires no adjustments to other parts for changing bag length, ensuring accurate results.
2. Control interface: PLC and touch screen allow convenient and quick parameter settings.
3. Film pulling: Film pulling mechanism is driven and controlled by a high-performance servo motor.
4. Temperature control: Temperature independent PID control makes it suitable for various packaging materials.
5. Date printer: Integrated date printer for manufacturing/expiry dates coding.
6. Mark tracking: High-sensitivity photoelectric eye color mark tracking with digital input of sealing and cutting position, making the final alignment more accurate.
7. Dosing Options: According to different materials, measuring cups, auger filler, scales, or liquid pumps are optional.
