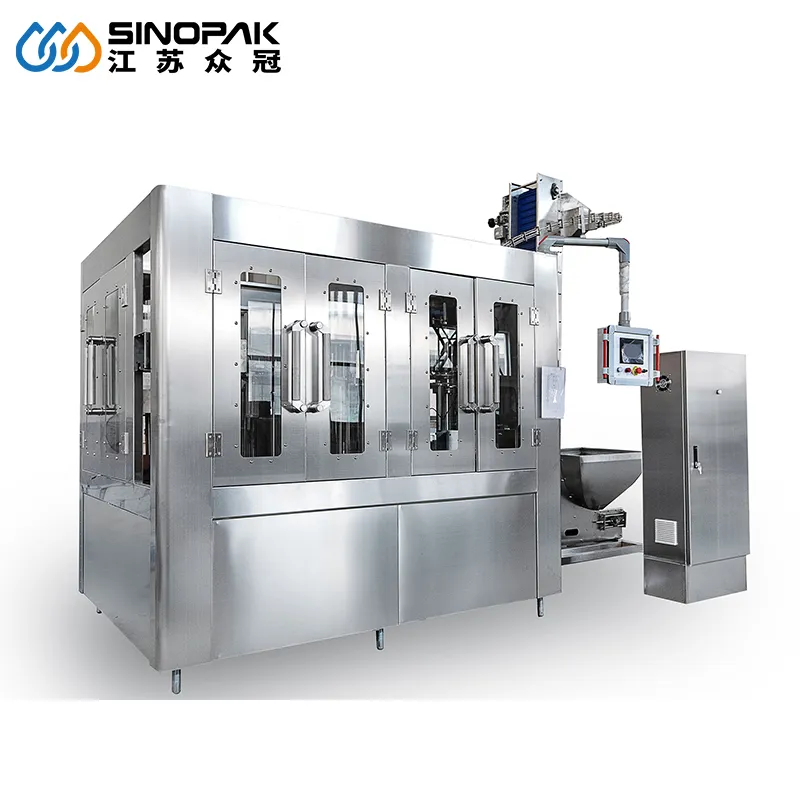

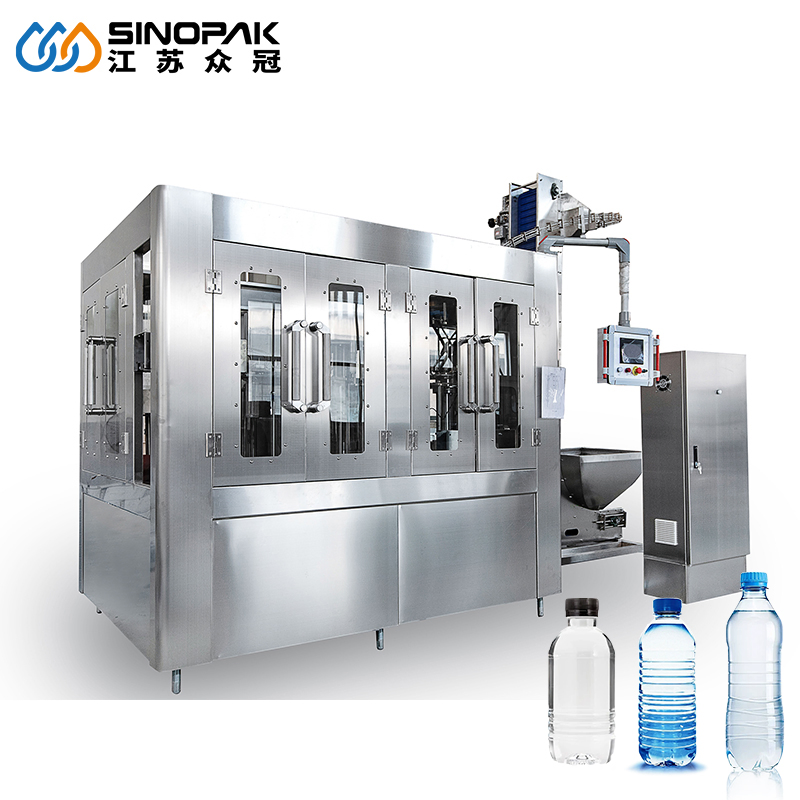

The 3-in-1 filling machine integrates rinsing, filling, and capping into a single system. It is designed for bottling mineral water, pure water, and other non-carbonated drinking water in PET bottles ranging from 200ml to 2L, with a production capacity ranging from 2,000 to 42,000 BPH.

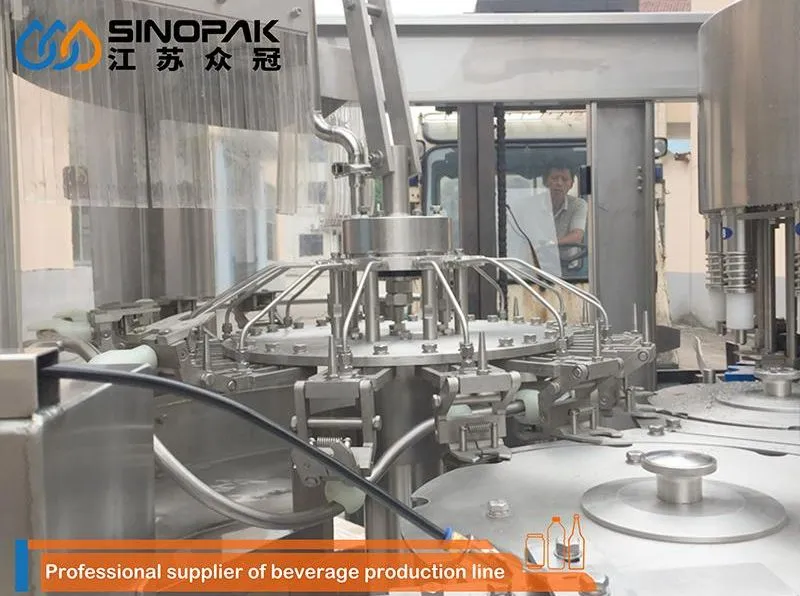

All 304 stainless steel rinser heads feature a water spray style inject design to optimize water consumption and ensure cleanliness.

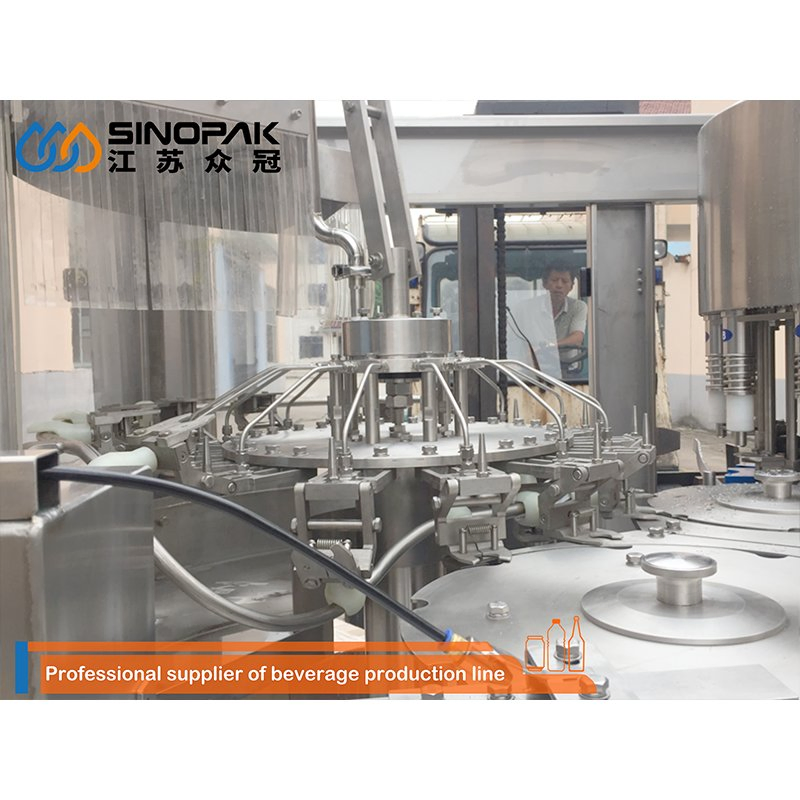

The 304 stainless steel gripper with plastic padding guarantees minimal bottle damage during the washing cycle. Clean water is pumped and distributed through 14 pipes. The clamp holds the bottle mouth and turns it 180° along the rinse rail to perform internal wall washing.

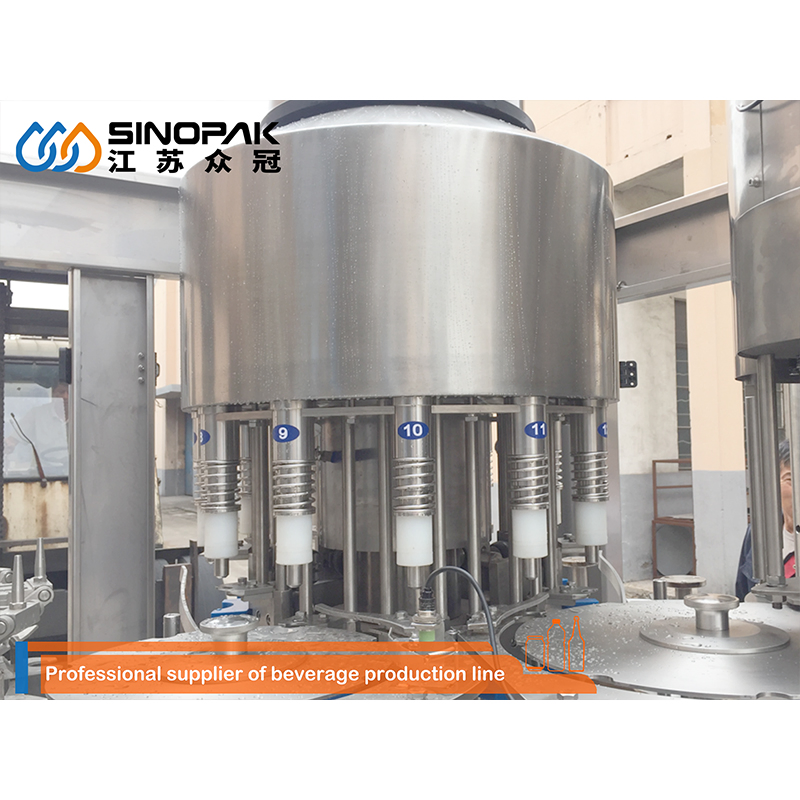

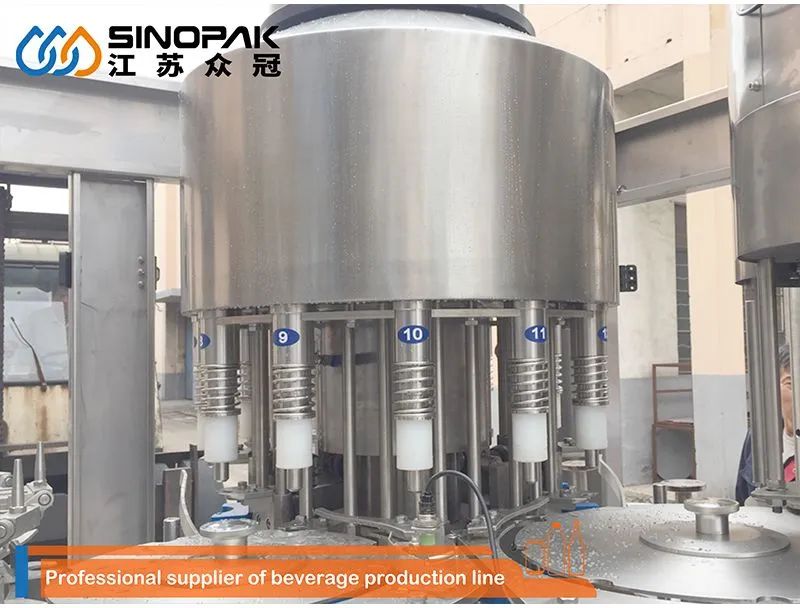

Equipped with a high-precision, high-speed gravity filling nozzle controlled by PLC variable signals to ensure stable and precise liquid levels without loss.
All contact components and liquid tanks are made of finely polished 304 stainless steel, making them scale-free and easy to clean. The machine features a "no bottle, no filling" safeguard mechanism.

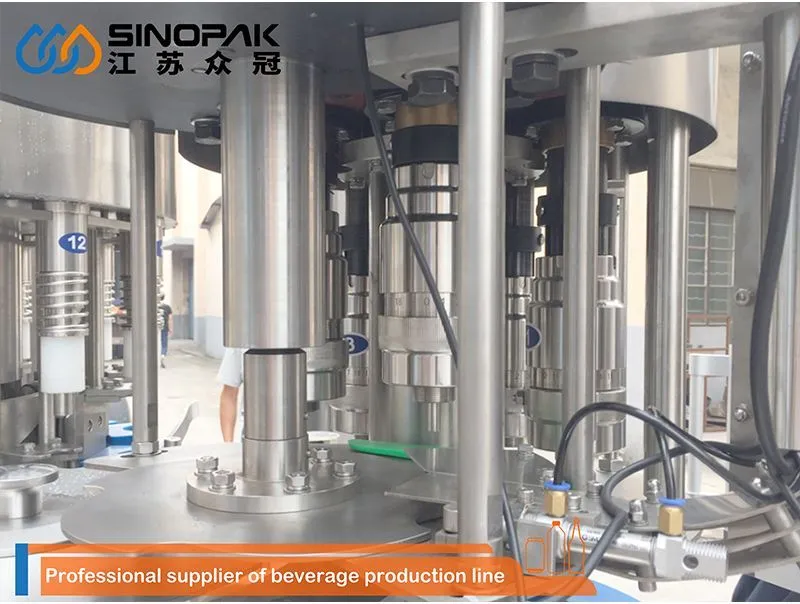

Designed with an electromagnetic capping head featuring a load-discharge mechanism, ensuring minimal bottle deformation during capping.
Constructed entirely of 304 stainless steel, it operates with a "no bottle, no capping" system and stops automatically when there is a shortage of bottles. The anti-rotation knife firmly clamps the bottleneck during rotation.

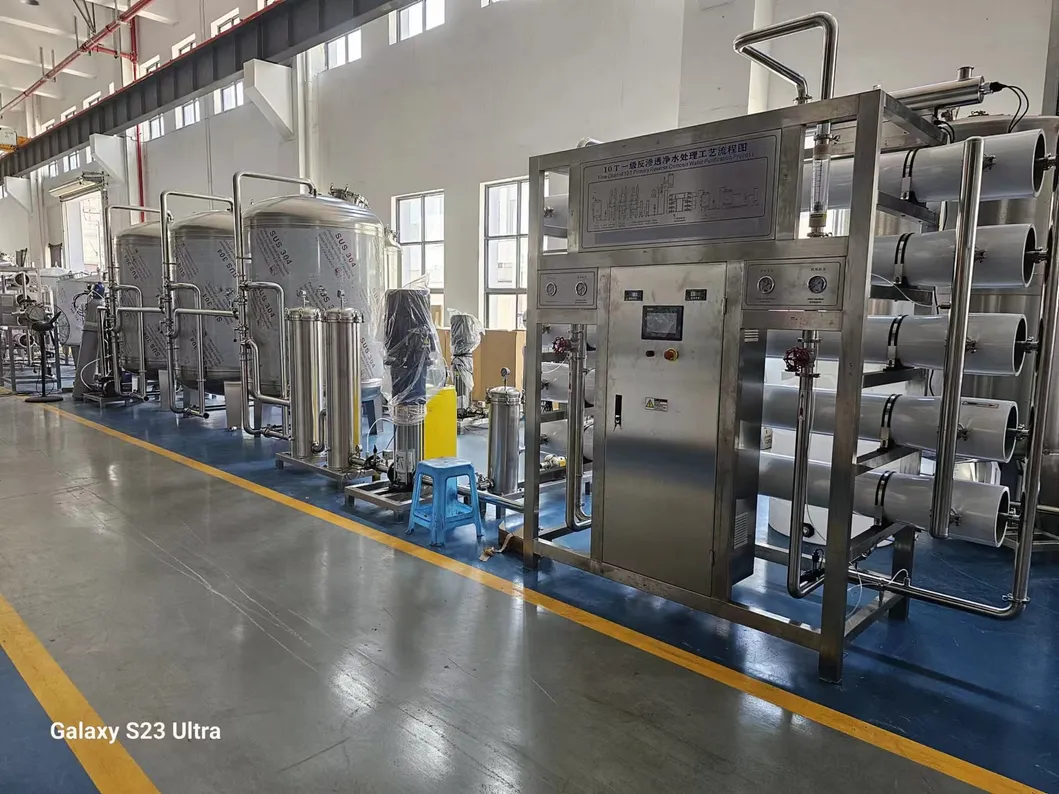

Includes raw water tanks/pumps, silica sand filters, active carbon filters, sodium ion exchangers, and security filters. Utilizes Reverse Osmosis (hollow ultrafiltration) and UV sterilizers.
Features sanitary automatic welding, Hygienic/FDA design standard compliance, and a recovery rate reaching above 80%.

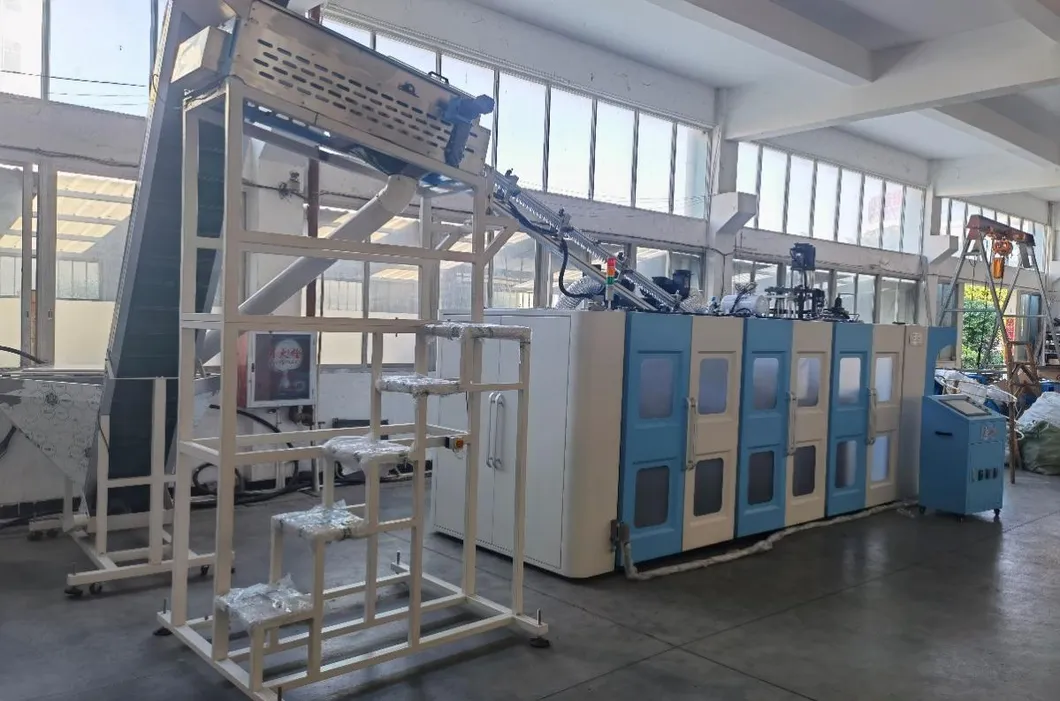

Produces PET containers for mineral water, juices, and carbonated beverages. Equipped with a double crank mold adjustment, heavy locking molds, and an infrared heating oven for even perform rotation and heating.

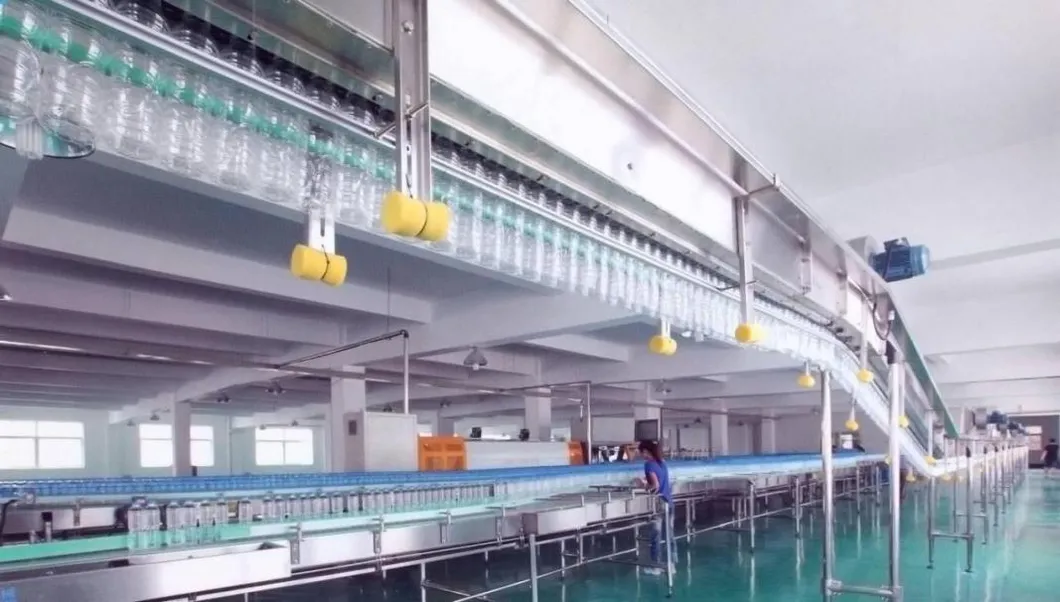

Supported by heavy tripods with fans installed overhead. Every inlet has an air filter to prevent dust from entering the bottles. Neck-clamping transport plates guide bottles smoothly into the rinsing system.
Direct coupling between the air conveying duct and the bottle feeding dial wheel simplifies shape changeovers, eliminating feed screws and conveyor chains.

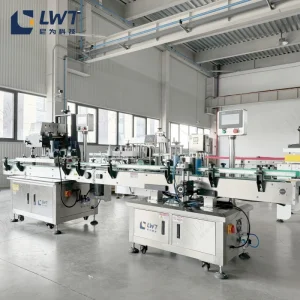

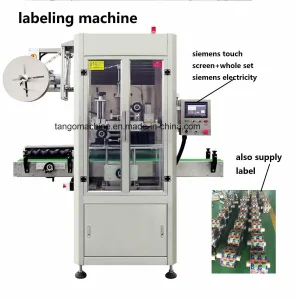

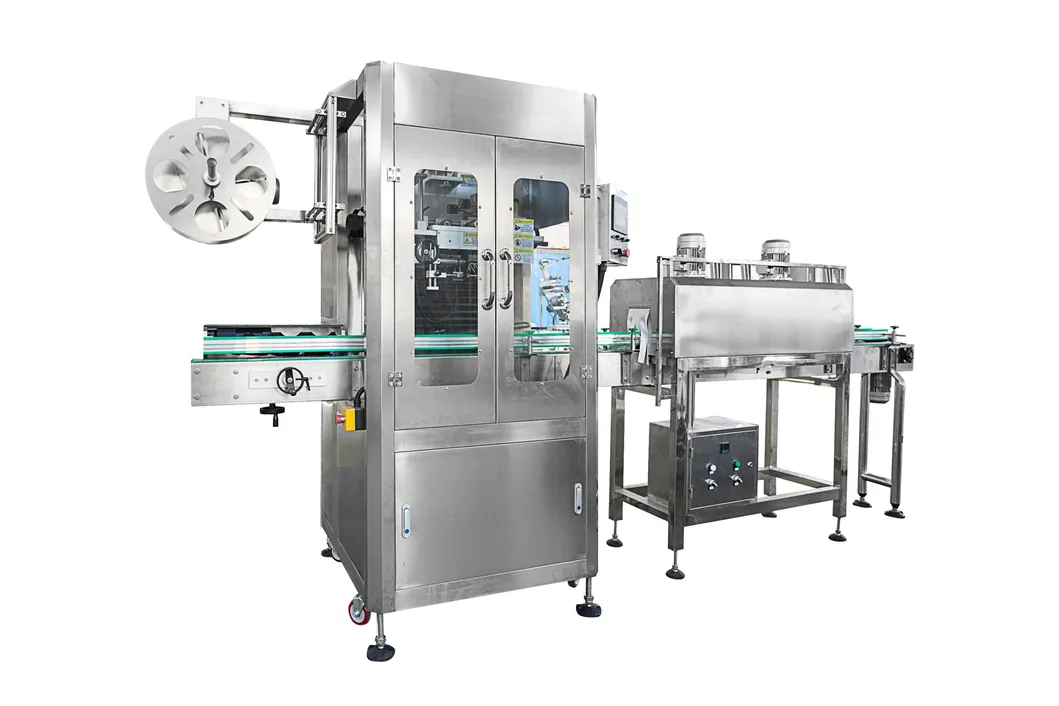

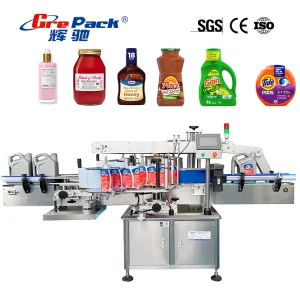

Compatible with PVC sleeve shrink labels, adhesive sticker labels, and OPP hot glue labels. Built on robust, food-grade welded stainless steel frames to minimize vibration.

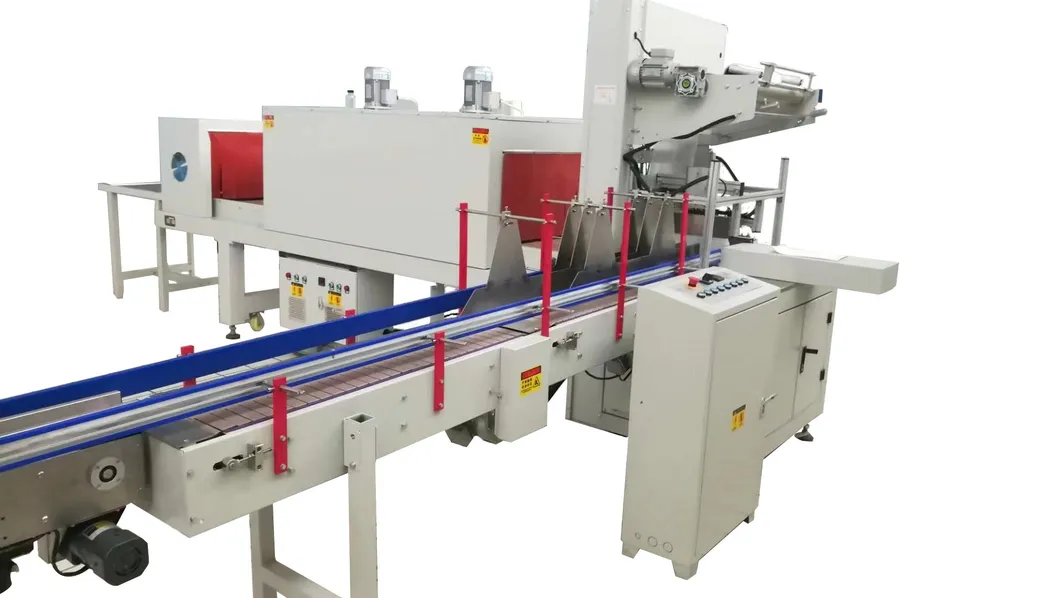

Designed for thermal shrinkage packaging. Automatically arranges PET bottles, groups them, wraps them with film, and processes them through heating, shrinking, and cooling steps to create final bundle packs.

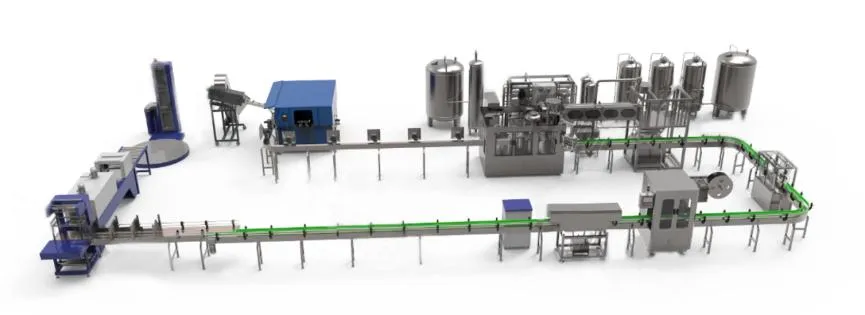

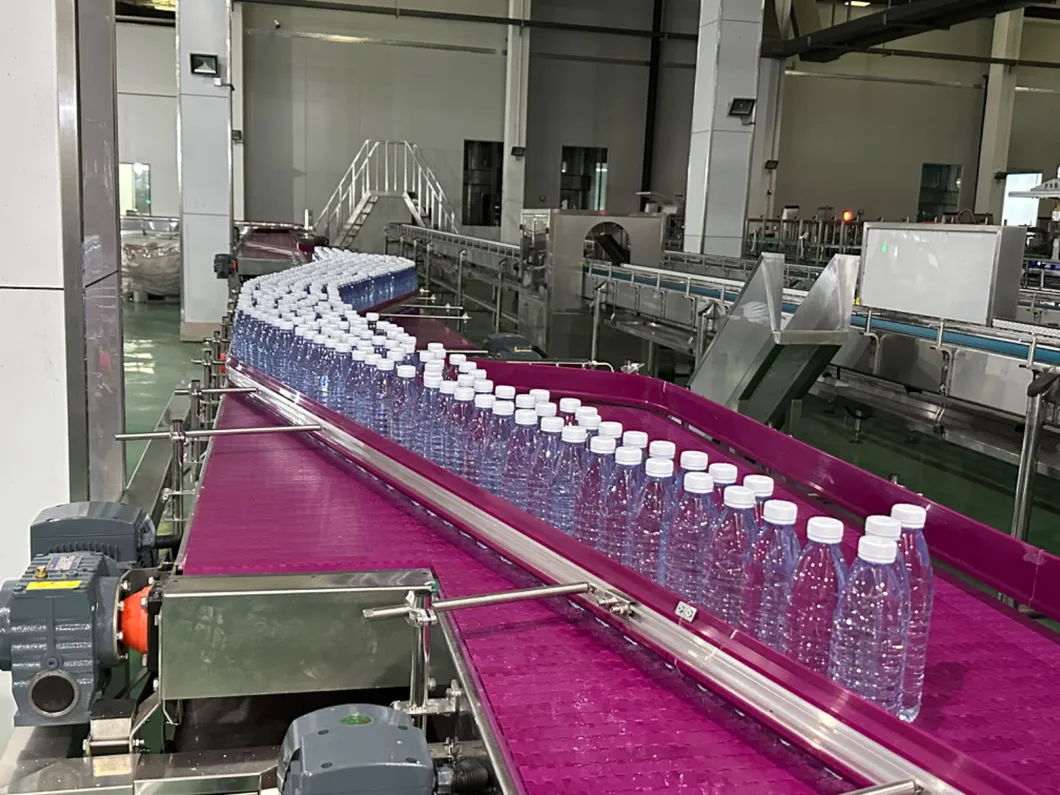

Our layout design coordinates the speed between consecutive stations. If downstream equipment stops briefly (e.g., during a label change), buffer zones prevent upstream operations from being interrupted, maintaining line uptime.
| Model Parameter | XGF8-8-3 | XGF14-12-5 | XGF16-16-5 | XGF24-24-8 | XGF32-32-8 | XGF40-40-10 | XGF50-50-15 |
|---|---|---|---|---|---|---|---|
| Washing Heads | 8 | 14 | 16 | 24 | 32 | 40 | 50 |
| Filling Heads | 8 | 12 | 16 | 24 | 32 | 40 | 50 |
| Capping Heads | 3 | 5 | 5 | 8 | 8 | 10 | 15 |
| Capacity (BPH) | 2000 | 5500 | 8000 | 12000 | 15000 | 18000 | 24000 |
| Bottle Types | PET circular or square bottles with screw caps | ||||||
| Bottle Volume | 150ml to 2.5L (Customized) | ||||||
| Bottle Dimensions | Diameter: 50-115mm | Height: 160-320mm | ||||||
| Air Pressure | 0.3 - 0.4 Mpa | ||||||
| Rinsing Pressure | >0.06 Mpa <0.2 Mpa (Aseptic Water Medium) | ||||||
| Total Power | 1.5KW | 2KW | 2.2KW | 2.2KW | 3KW | 7.5KW | 7.5KW |
| Dimension (m) | 2.0 x 1.5 x 2.5 | 2.4 x 1.8 x 2.7 | 2.9 x 2.2 x 2.8 | 2.9 x 2.2 x 2.8 | 3.4 x 2.6 x 2.8 | 4.4 x 3.3 x 2.8 | 4.7 x 3.6 x 2.8 |

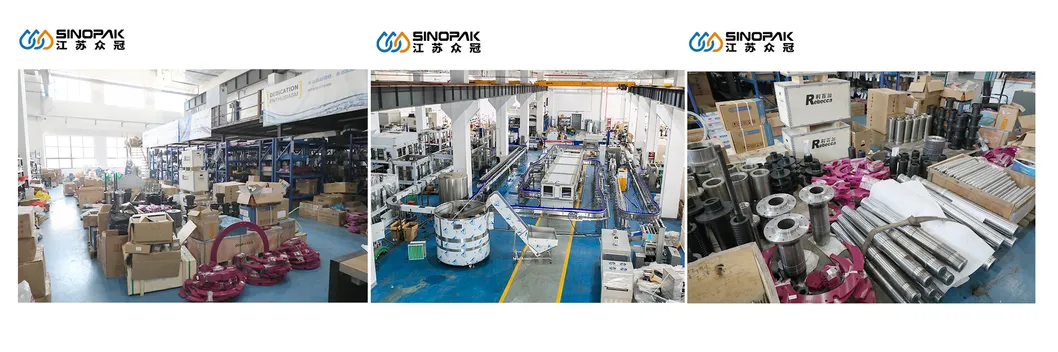

We are a professional filling & packaging machine manufacturer, dedicated to manufacturing various kinds of filling & packaging equipment, water treatment systems, beverage making systems, and bottle making machines. Founded in 2006, we operate with a modern standard workshop spanning over 8,000 square meters and a dedicated workforce of over 60 professionals.
We help our customers design and establish their ideal bottling plants. Through efficient cost control, we maintain a balanced approach that supports diverse production capacities and top-class packaging styles. Equipment uptime and operational reliability remain our key parameters for boosting client competitiveness.
