Customization: Available
After-sales Service: 1 Year Guaranteed, Full-Life Service
Warranty: 1 Year
Send Inquiry

Product Description

Basic Info.
Model NO. TB90/160
Automatic Grade Automatic
Application Cosmetics, Drinks, Cleaning, Detergent, Skin Care Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning, Dairy Products
Type Automatic Labeling Machine
Driven Type Electric
Classification Automatic Vertical Round Bottle Labeling Machine
Transport Package Wooden Case
Specification CE
Origin China
Production Capacity 9999
Product Description
Automatic Wrap-Around Labeling Machine, Round Bottle Labeler
Automatic Wrap-Around Labeling Machine, Round Bottle Labeler
Automatic Wrap-Around Labeling Machine, Round Bottle Labeler

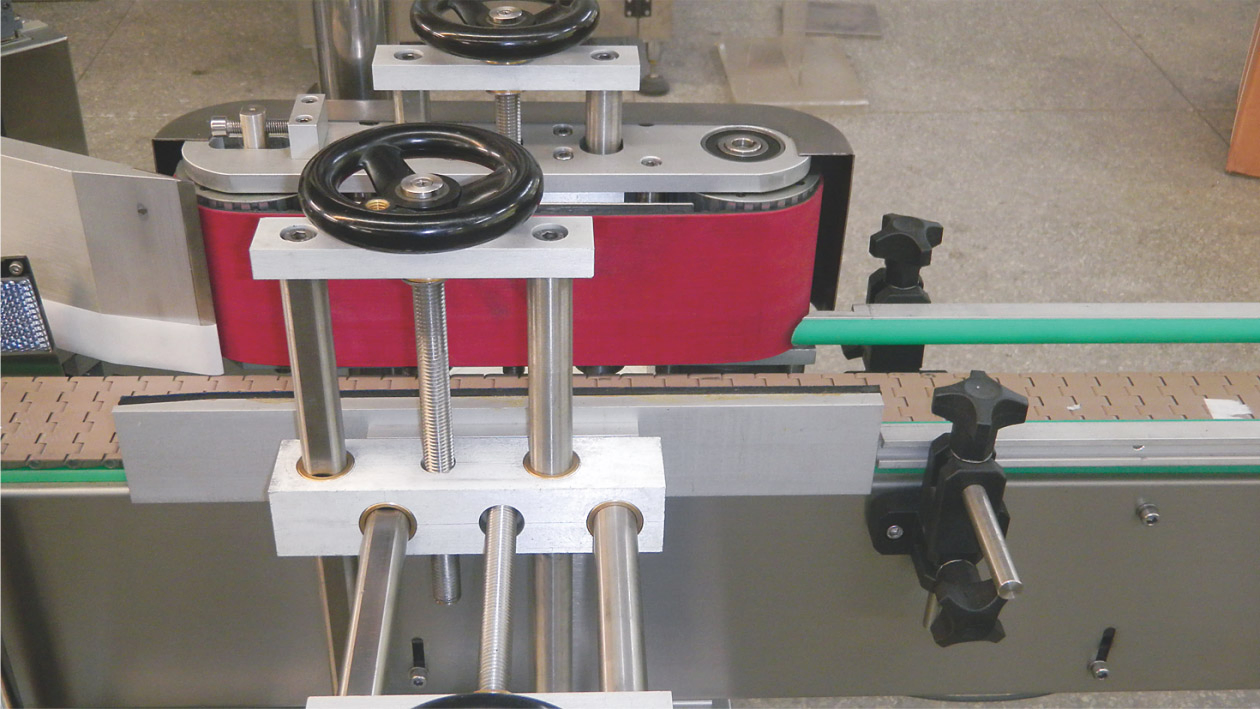

The labeling machine is specialized in round bottles. When labeling, the bottle will automatically rotate to allow the labeling device to apply the pressure for labeling. It's suitable for medicine, food, beverage and chemical industries. It can be used for plastic, glass, metal and other round containers/ bottles. Replacements of a few parts, it also can be used for square bottles.
Characteristics
  • Simple and compact in design.
  • With PLC control System with Feather touch Keyboard and LCD display.
  • Can store up to 16 different programs for setting of different type of bottles.
  • Label release and fixing mechanism to release the label.
  • With Sunx motor or Servo motor drive as per requirement.
  • On Line Batch coding (Optional).
  • As the use of optical control devices, power protection devices and other advanced systems of Sunx & Autonics company's, which with a start buffer function, the overall high sensitivity, low-speed torque, speed and stability, voltage stability, the strong ability of anti-interference and strong technical characteristics. Ensure labeling accuracy, stable, reliable and efficient.
Labeling Speed 0~350 bottles/minute
Precision ± 1mm
Inner Diameter Roll φ 76mm
Outer Diameter Roll φ 300mm
Products Diameter φ 12mm~100mm
Label Width 10mm~160mm
Label Length 15mm~350mm
Conveyor Direction L→ R / R→ L
Electrical Requirements 220V 50HZ
Power 700W
Dimension 1600mm × 1100mm × 1300mm
The speed according to the length of the label. Special needs upon your request.

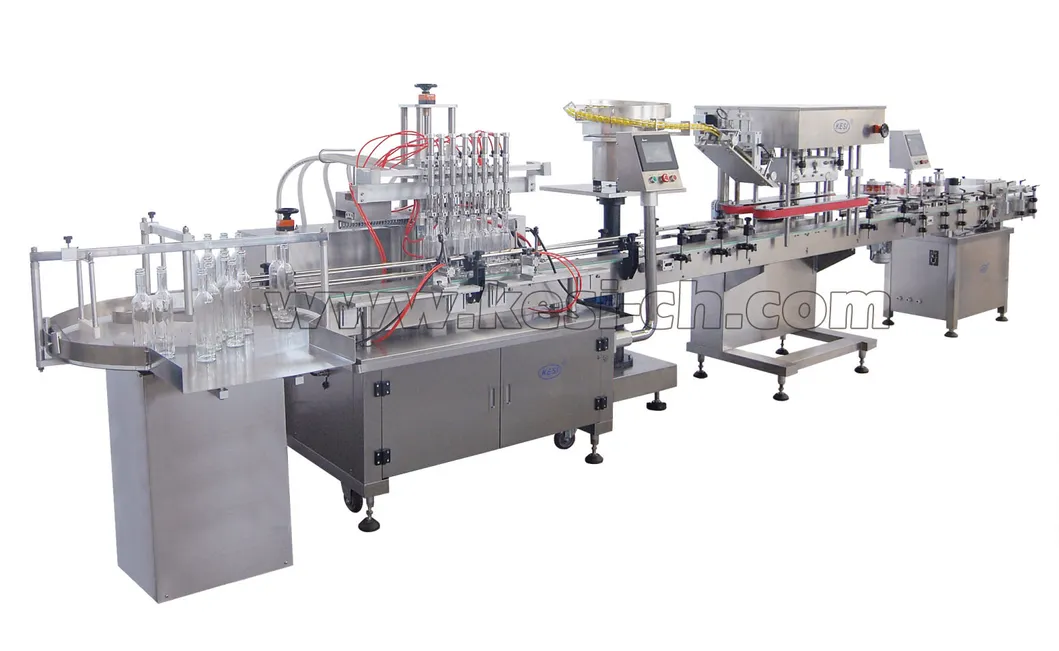

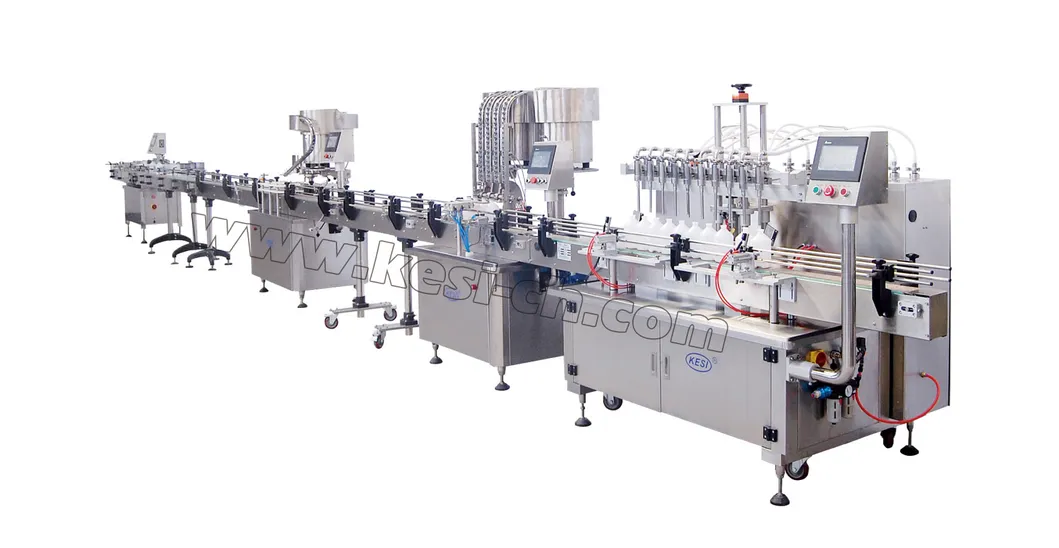

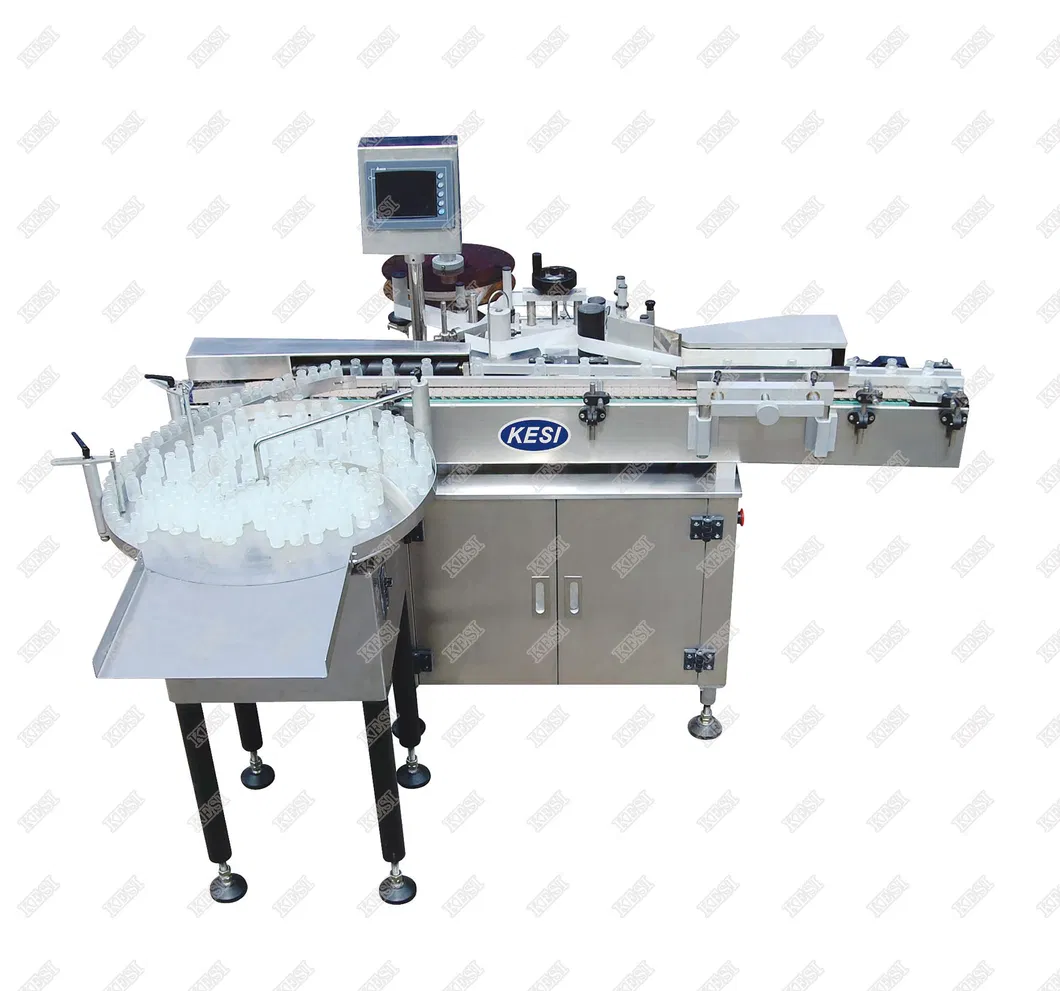

This labeling machine can be installed into various packing/filling lines as follows:
Automatic Wrap-Around Labeling Machine, Round Bottle Labeler
Automatic Wrap-Around Labeling Machine, Round Bottle Labeler
Automatic Wrap-Around Labeling Machine, Round Bottle Labeler
Certificate
Certificate
Our Product Capabilities
1. Unscrambler for Various Packing Lines
2. Filling Machine
3. Capping Machine
4. Sealing Machine
5. Labelling Machine
6. Carton Packing Machine
Frequently Asked Questions (FAQ)
What types of containers is this labeling machine suitable for?
This machine is specialized for round bottles and containers. It can process plastic, glass, metal, and other materials. With simple part replacements, it can also be configured to label square bottles.
What is the labeling precision and speed of the machine?
The machine offers high precision labeling with an accuracy of ±1mm. The labeling speed ranges from 0 to 350 bottles per minute, which varies based on the length of the label and bottle dimensions.
Does the system feature PLC controls?
Yes, it is equipped with a professional PLC control system featuring a feather-touch keyboard and an LCD display. It can store up to 16 different programs to make adjustments for different bottle designs fast and simple.
Can this equipment be integrated into a packaging line?
Absolutely. This wrap-around labeling machine is designed to be easily installed and synchronized into various liquid, cream, or gel filling and packaging lines.
What are the electrical and utility requirements?
The machine operates on a 220V 50HZ electrical supply with a total power consumption of 700W. It features optical control and power protection systems for stable and interference-free operation.
