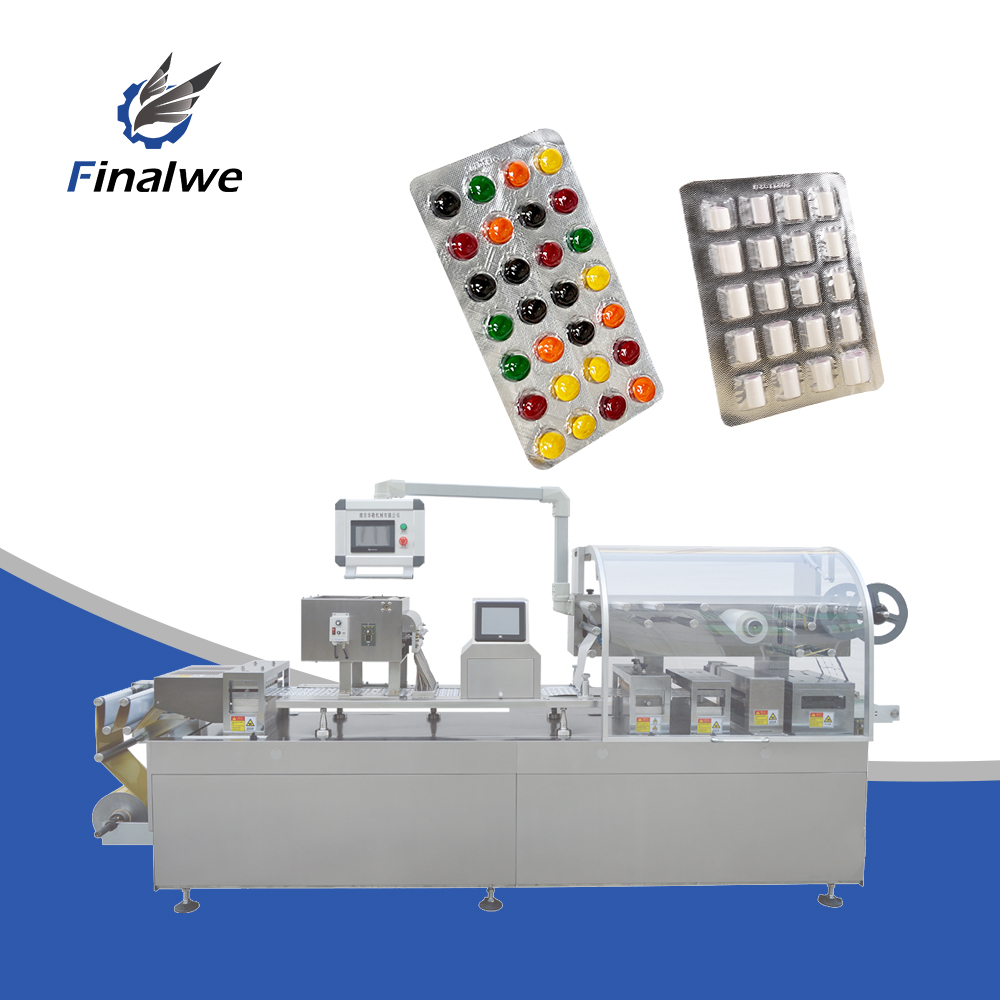

Finalwe Cheap Full Automatic High Speed Flat Chewing Gum Blister Packing Machine
Finalwe Cheap Full Automatic High Speed Flat Chewing Gum Blister Packing Machine
Finalwe Cheap Full Automatic High Speed Flat Chewing Gum Blister Packing Machine
Finalwe Cheap Full Automatic High Speed Flat Chewing Gum Blister Packing Machine
Finalwe Cheap Full Automatic High Speed Flat Chewing Gum Blister Packing Machine
1 / 5
Finalwe Cheap Full Automatic High Speed Flat Chewing Gum Blister Packing Machine
Finalwe Cheap Full Automatic High Speed Flat Chewing Gum Blister Packing Machine
Finalwe Cheap Full Automatic High Speed Flat Chewing Gum Blister Packing Machine
Finalwe Cheap Full Automatic High Speed Flat Chewing Gum Blister Packing Machine
Finalwe Cheap Full Automatic High Speed Flat Chewing Gum Blister Packing Machine

Finalwe Cheap Full Automatic High Speed Flat Chewing Gum Blister Packing Machine

Send Inquiry

Product Description

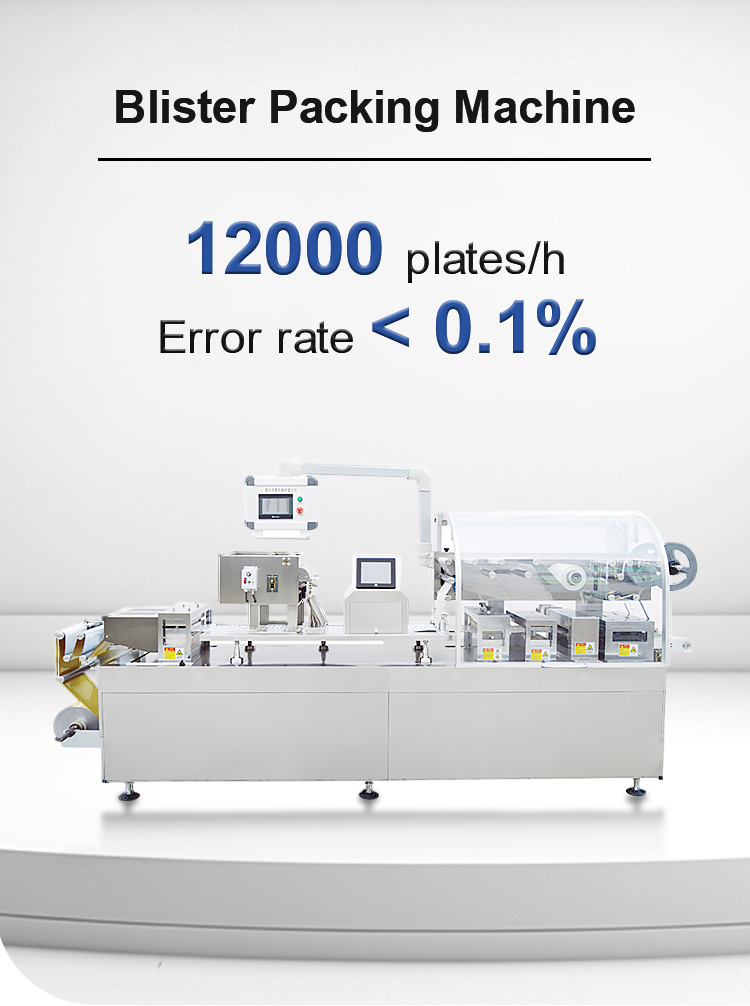

Blister Packaging Equipment Banner
Application

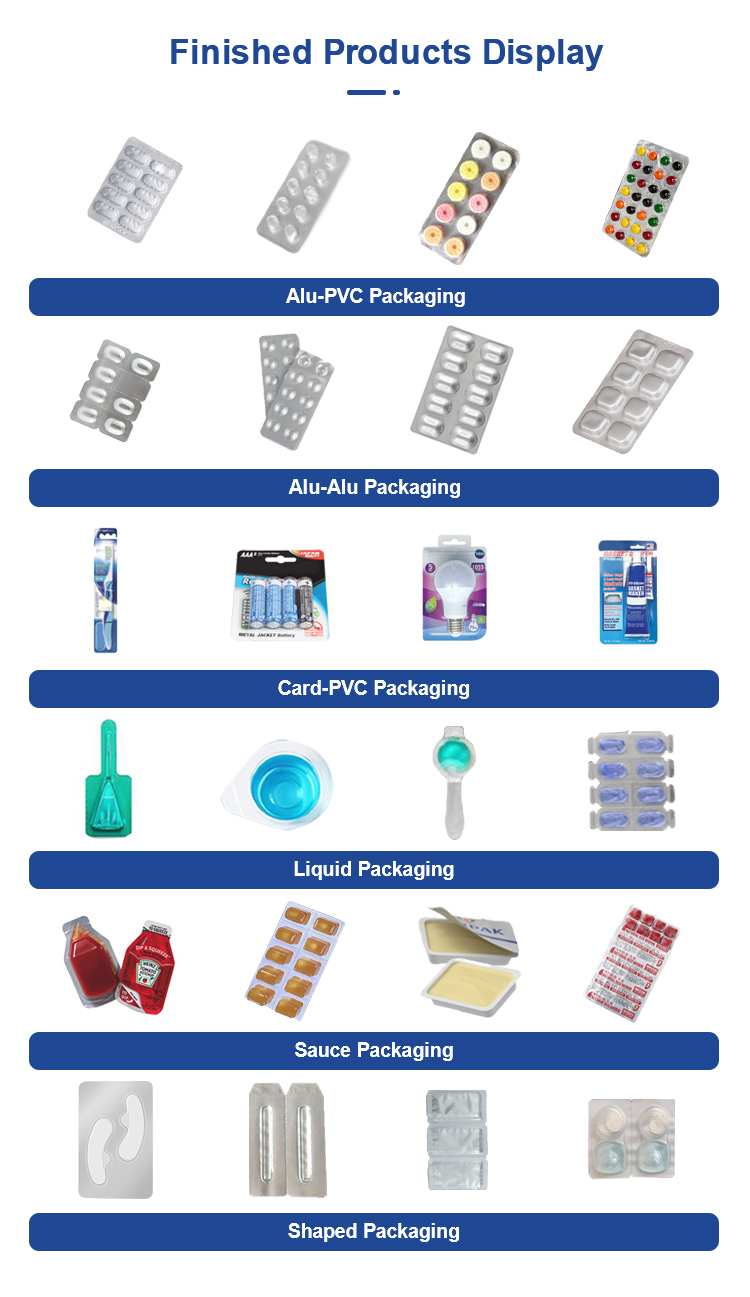

Blister Packaging Machine Application
Products Description

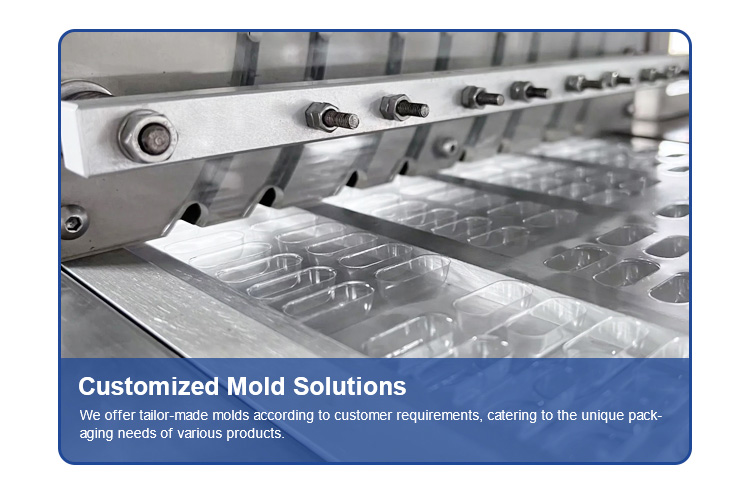

Product View 1

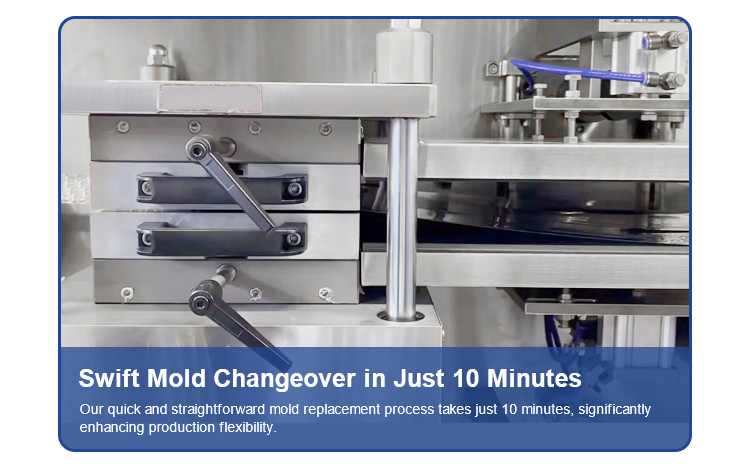

Product View 2

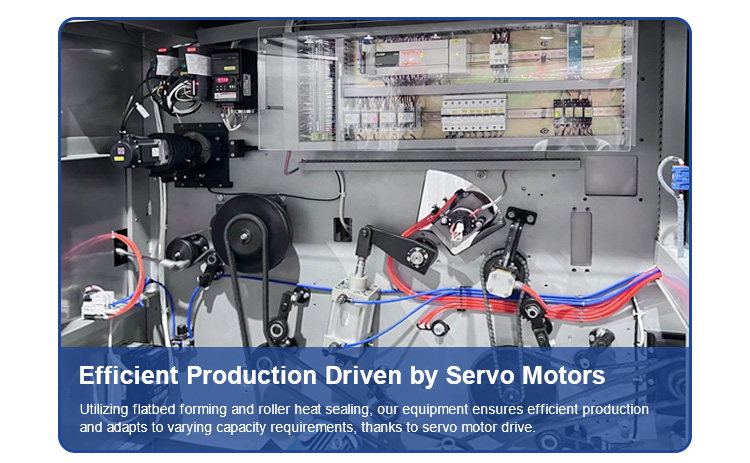

Product View 3

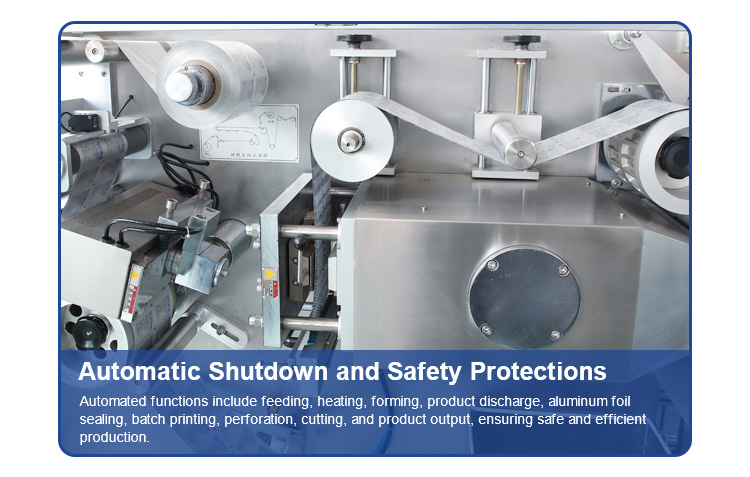

Product View 4

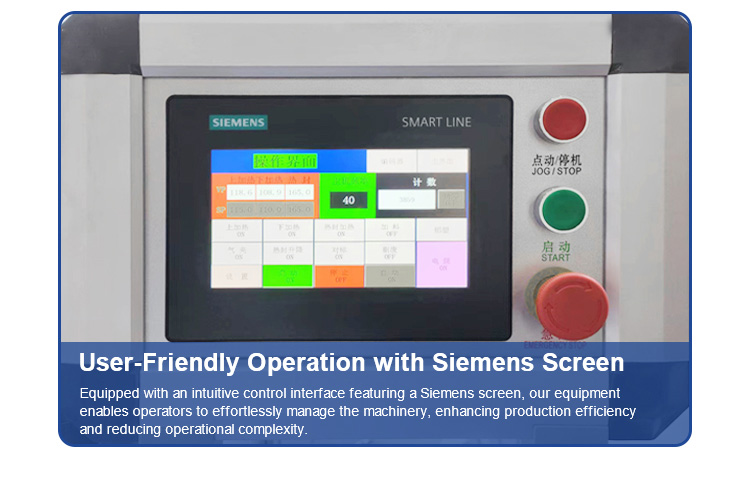

Product View 5

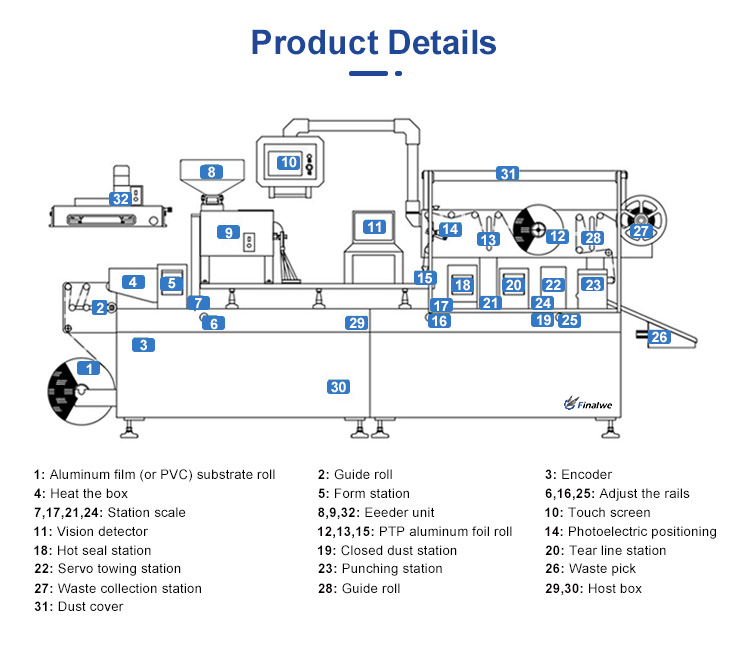

Product View 6
Specification
Model DPP-80 DPP-140 DPP-260 DPP-350
Application Tablet / Pill / Capsule
Cutting Frequency 10-40 times / min 15-45 times / min 25-50 times / min 15-45 times / min
Production Capacity 2400 Plates/h 4800 Plates/h 6000-12000 plate/h 900-2700 plate/h
Max. Forming Area And Depth 80x110x26mm (Can Be Customized) 130x110x26mm (Can Be Customized) 140x90x20mm (Can Be Customized) 350x130x15mm (Can Be Customized)
Range Of Standard Stroke 20-70mm (adjustable) 20-110mm (adjustable) 30-120mm (adjustable) 30-140mm (adjustable)
Medicinal PVC Specification 0.15-0.5×80mm 0.15-0.5x140mm 0.25-0.5×260mm 0.15-0.6×350mm
Air Pressure 0.4-0.6Mpa 0.6-0.8Mpa 0.6-0.8Mpa 0.6-0.8Mpa
Voltage 380/220V 50Hz 380/220V 50Hz 380V/220V 50Hz 380V 50Hz
Power 3.2kw 5.2kw 8.5kw 9.5kw
Dimension 1600x600x1100mm 2150x550x1370 mm 4000x760x1620mm 3650x850x1700mm
Weight 450kg 900kg 1650kg 2000kg

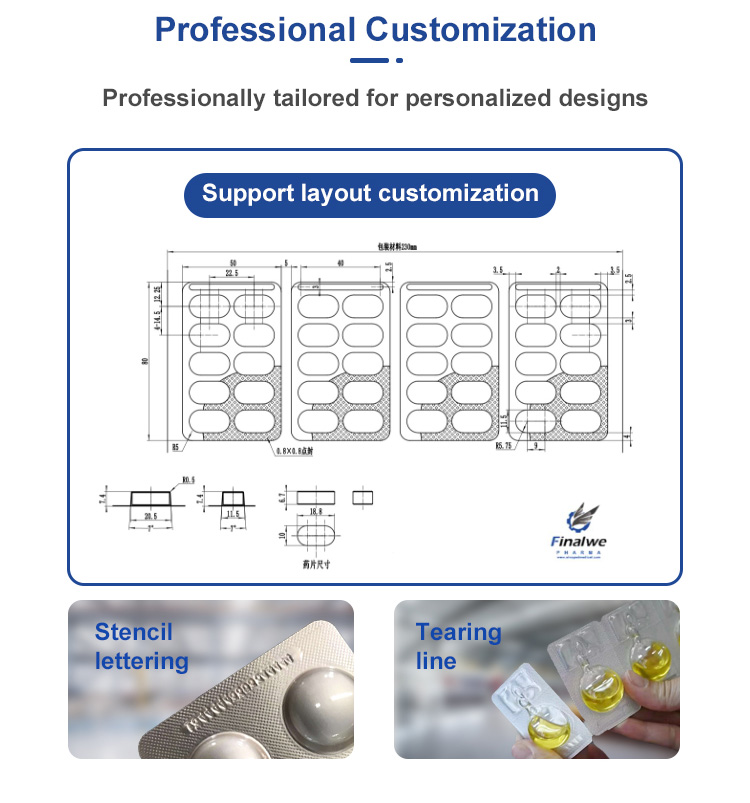

Specification details 1

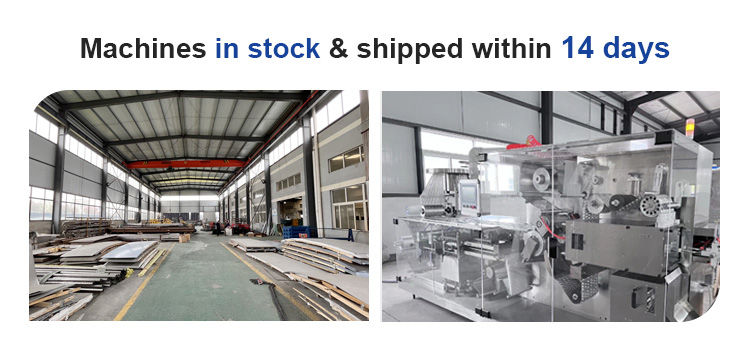

Specification details 2
Specification details 3
After-sale Service
Professional After-sale Service
Frequently Asked Questions (FAQ)
Q: What types of products can be packaged with the DPP series blister packaging machines?
The DPP series is highly versatile and primarily designed for pharmaceutical and dietary supplement products. It is exceptionally well-suited for packaging tablets, pills, capsules, and similar solid-dose shapes.
Q: Can the forming area and forming depth be customized on these machines?
Yes. While each model has its standard forming area, configurations like forming sizes and maximum forming depths can be fully customized depending on your specific layout and tablet dimensions.
Q: What is the difference in capacity between the DPP-80 and the larger DPP-260 model?
The compact DPP-80 is designed for pilot-scale, laboratory, or small batch productions with a capacity of 2,400 plates per hour. The industrial-scale DPP-260 is designed for high-capacity workflows, outputting between 6,000 and 12,000 plates per hour.
Q: What material specifications does the machine require for blister forming?
The series utilizes medicinal PVC with standard thickness specifications ranging from 0.15mm to 0.6mm, depending on the machine model you select, and matching widths from 80mm to 350mm.
Q: What type of utilities (voltage and air pressure) are necessary to run these systems?
These machines generally require standard industrial electrical outputs of 380V or 220V at 50Hz. Additionally, they run on pneumatic air compression supplies ranging between 0.4Mpa and 0.8Mpa depending on the model's size.
Q: What after-sales support do you offer for overseas equipment installations?
We provide complete online and offline assistance, which includes detailed instructional support, video demonstrations, remote diagnostic assistance, standard operating guide files, and spare parts supply to ensure seamless operations.
