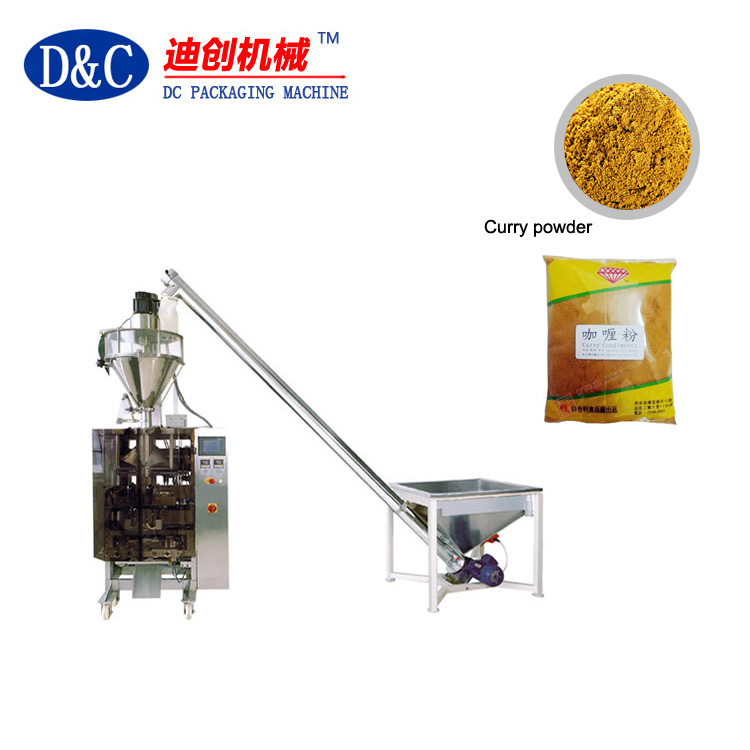

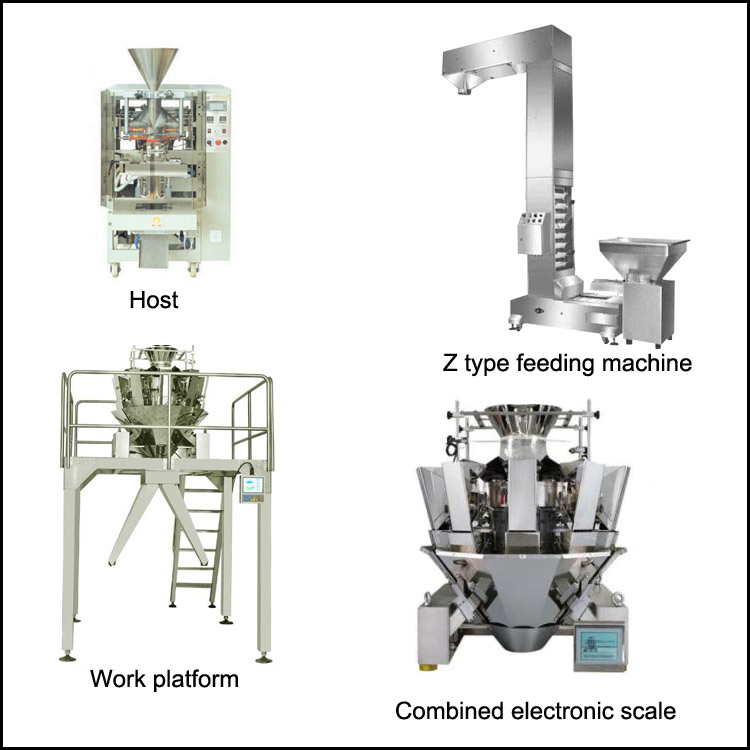

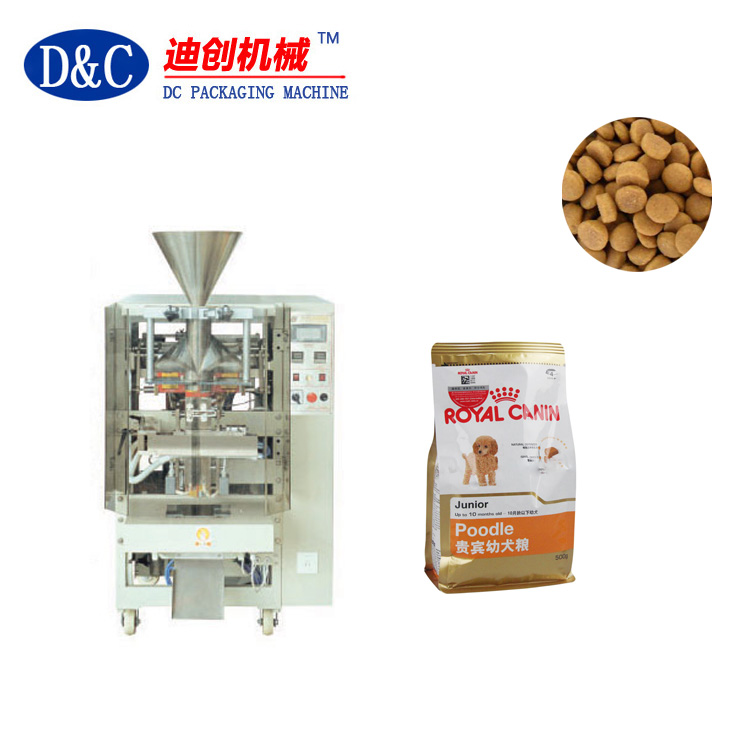

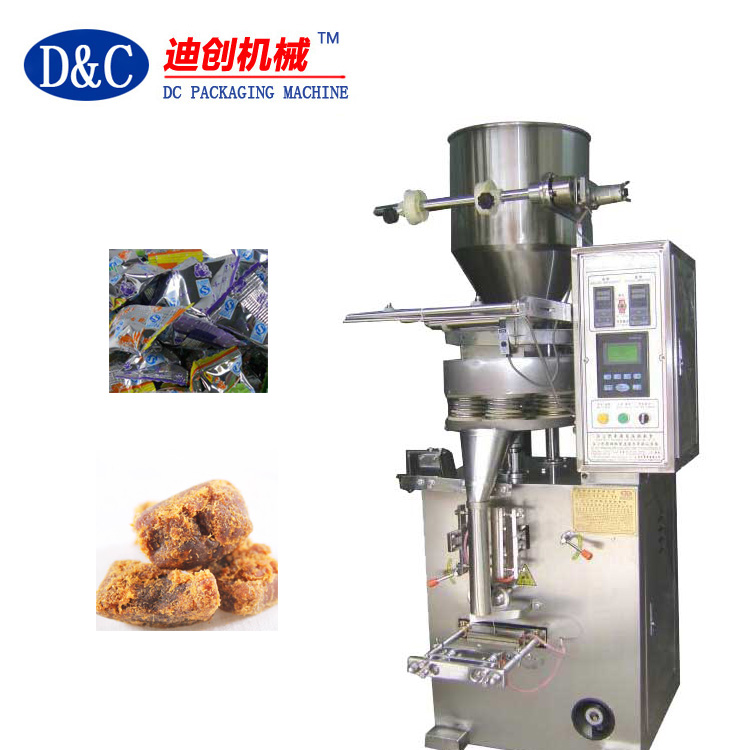

1. The machine finishes bag making, measuring, filling, sealing, coding, and counting full automatically.
2. The packing material is heat seal-able rolled packing film, offering lower operational costs.
3. Measures with volume cups (1% error), with a bag former and vertical/horizontal sealing.
4. Suitable for packing granular, loose, non-adhesive materials (150-1200ml bags).
5. Capacity of 3600 bags/hour, ensuring labor and power efficiency.
| Type | Bag Length (mm) | Bag Width (mm) | Speed (Bag/h) | Range (ml) | Voltage Power | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|---|---|
| DCK-40 | 55-110 | 30-80 | 2100-4800 | 5-40 | 220V/1.5Kw | 320 | 600*790*1780 |
| DCK-150 | 70-160 | 70-105 | 2100-4200 | 30-150 | 220V/1.6Kw | 350 | 700*800*1900 |
| DCK-60 | 30-180 | 30-140 | 2100-4800 | 5-150 | 220V/1.9Kw | 350 | 900*700*1700 |
| DCK-80 | 80-260 | 80-200 | 2100-3000 | 5-500 | 220V/1.9Kw | 400 | 1000*900*2200 |
| DCK-420 | 80-300 | 50-200 | 300-3600 | 1200(Max) | 220V/2.2Kw | 540 | 1320*950*1360 |
| DCK-520 | 80-350 | 80-250 | 300-3600 | 2000(Max) | 220V/4.0Kw | 800 | 1430*1200*1750 |

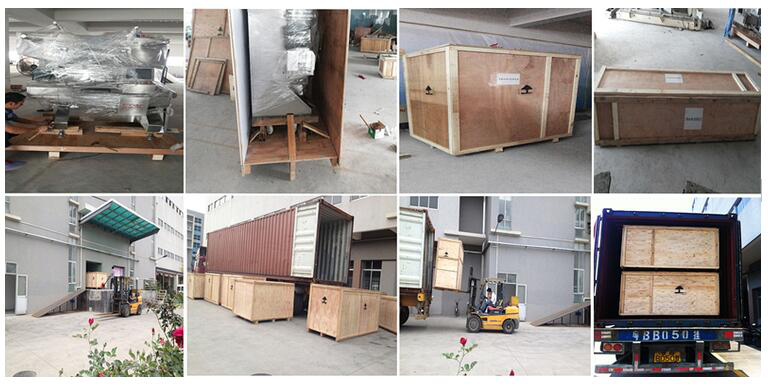

Machines are wrapped in plastic film internally and packed in fumigation wooden cases externally. These cases are designed for long-distance sea transport, preventing corrosion from salt water.
Shipping: Delivery date within 3-15 days upon receipt of payment. Available via Sea, Air, or Express (DHL, etc.).

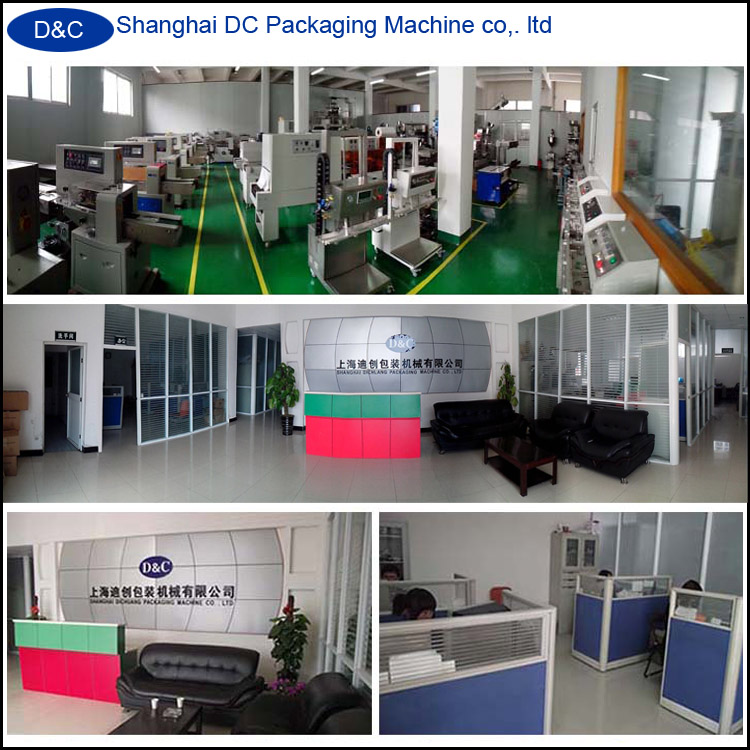

Specializing in the development, production, and sales of packaging machinery, our enterprise utilizes strong technical force and professional personnel to customize equipment. Products include full automatic and semi-automatic packers, sealing machines, vacuum packaging machines, and various liquid/powder/granule solutions.
