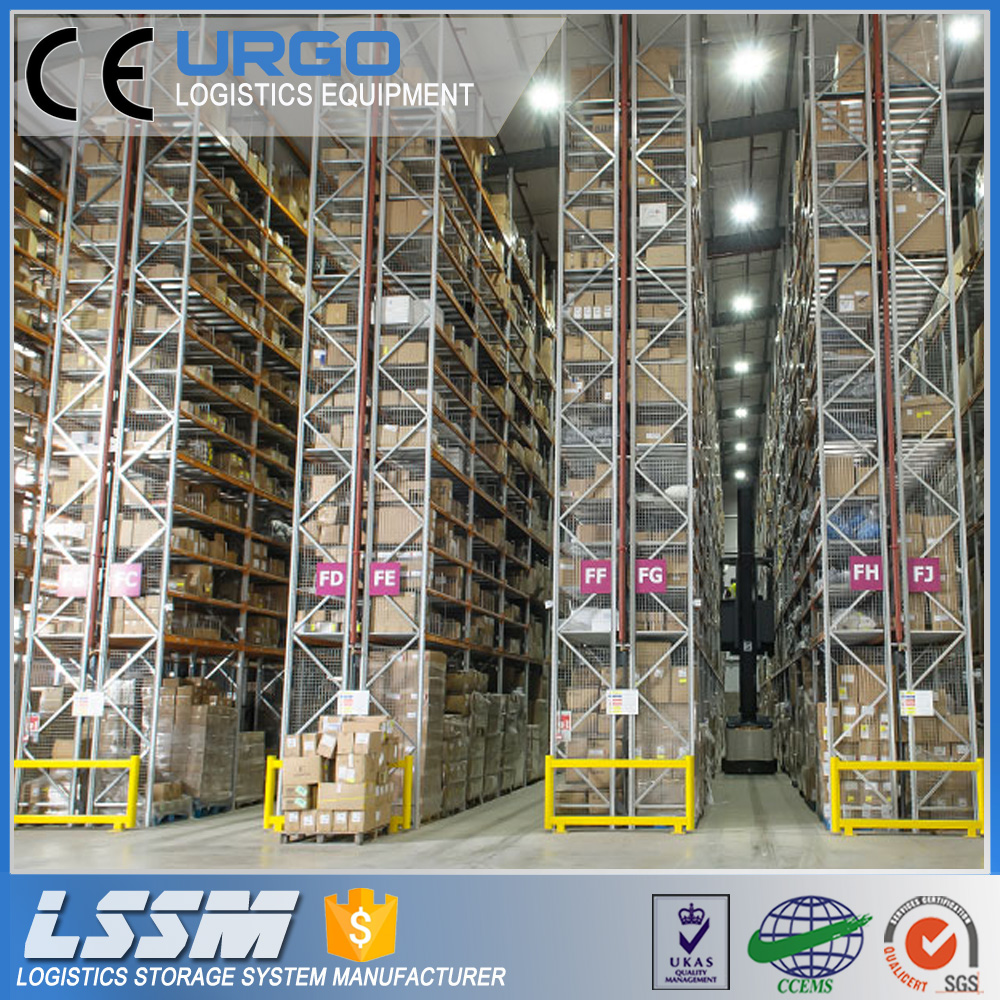

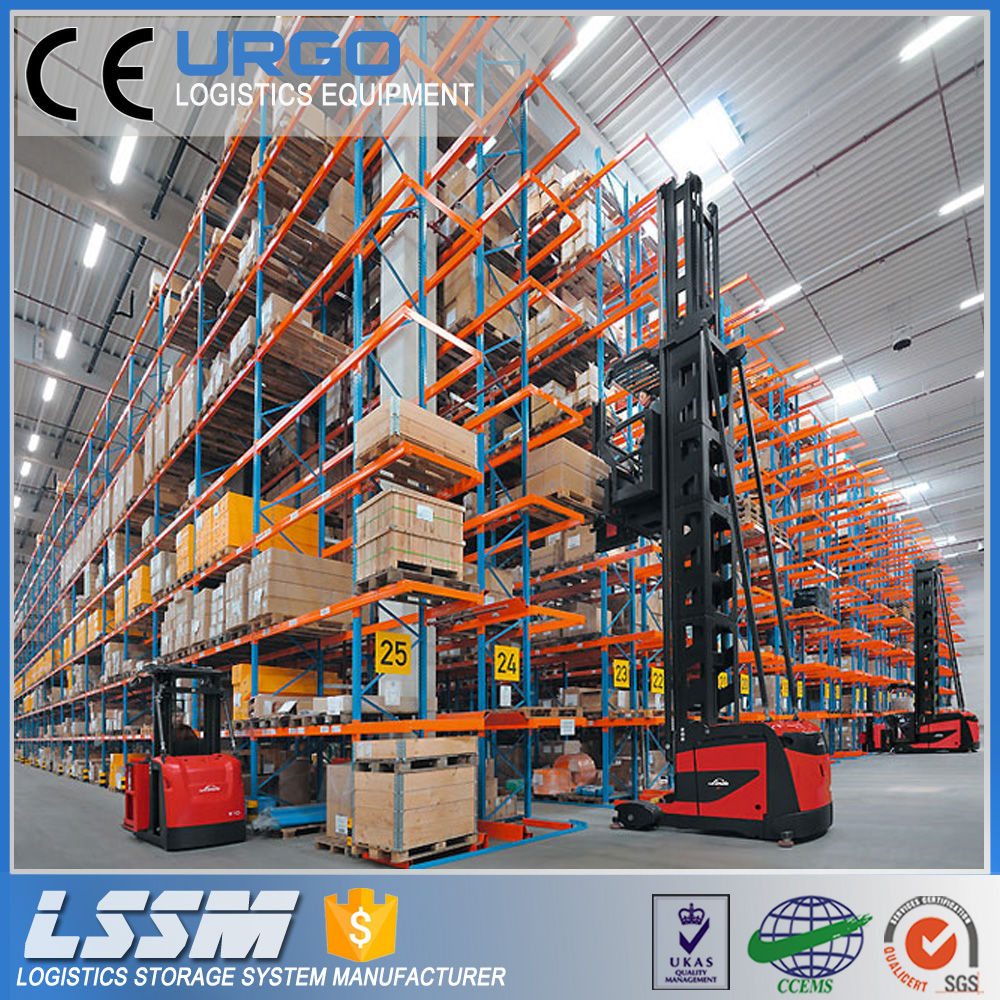

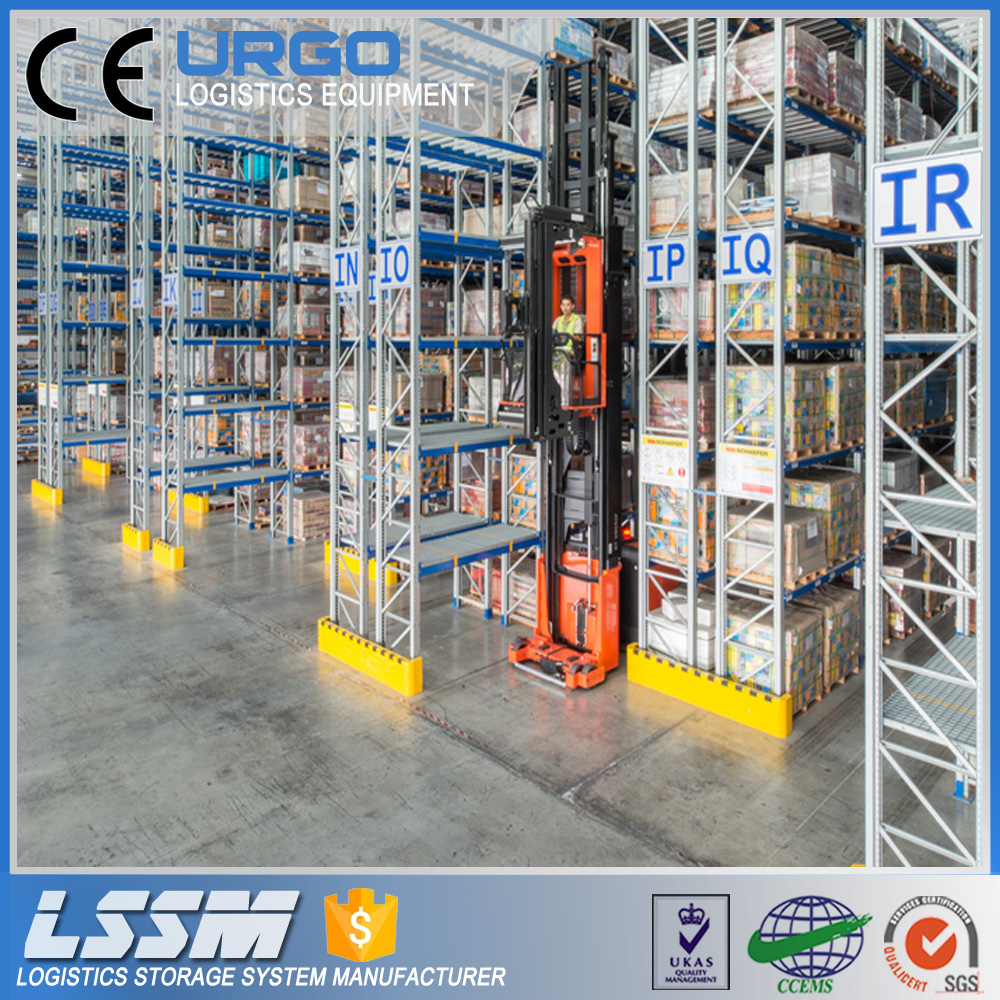

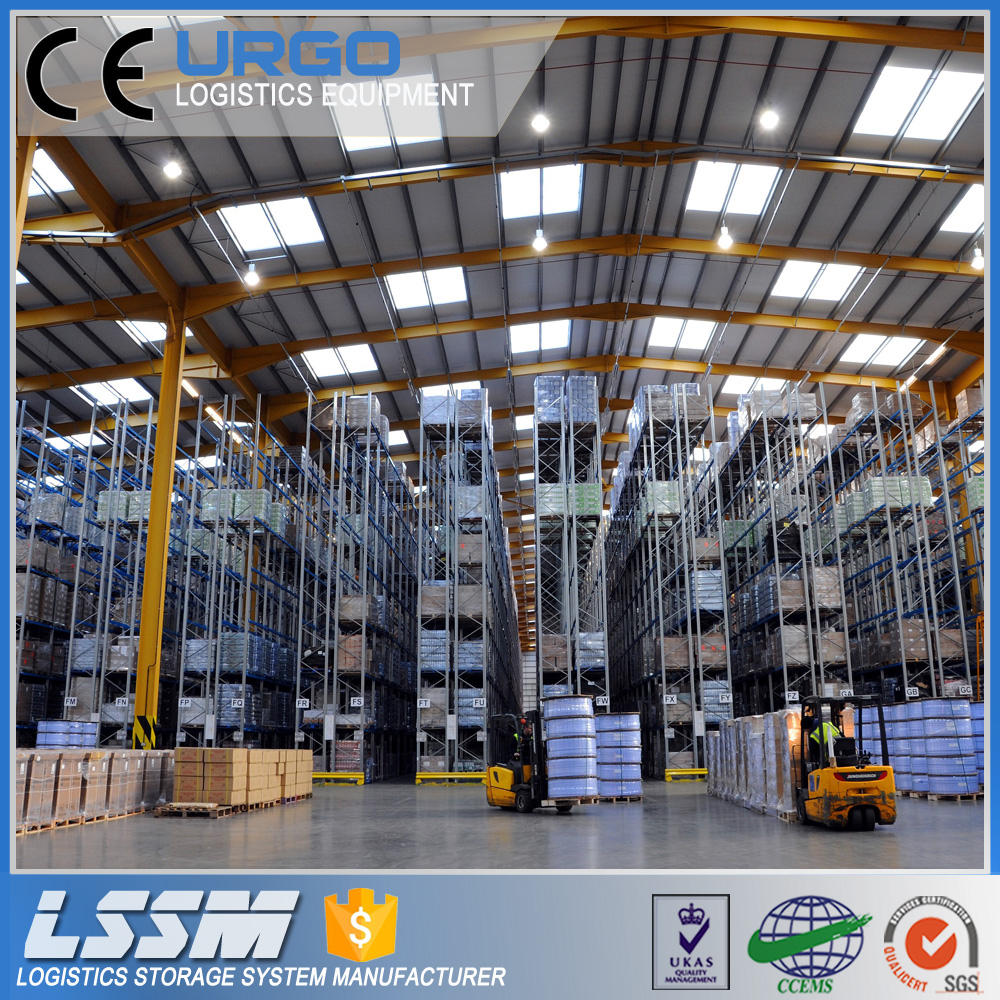

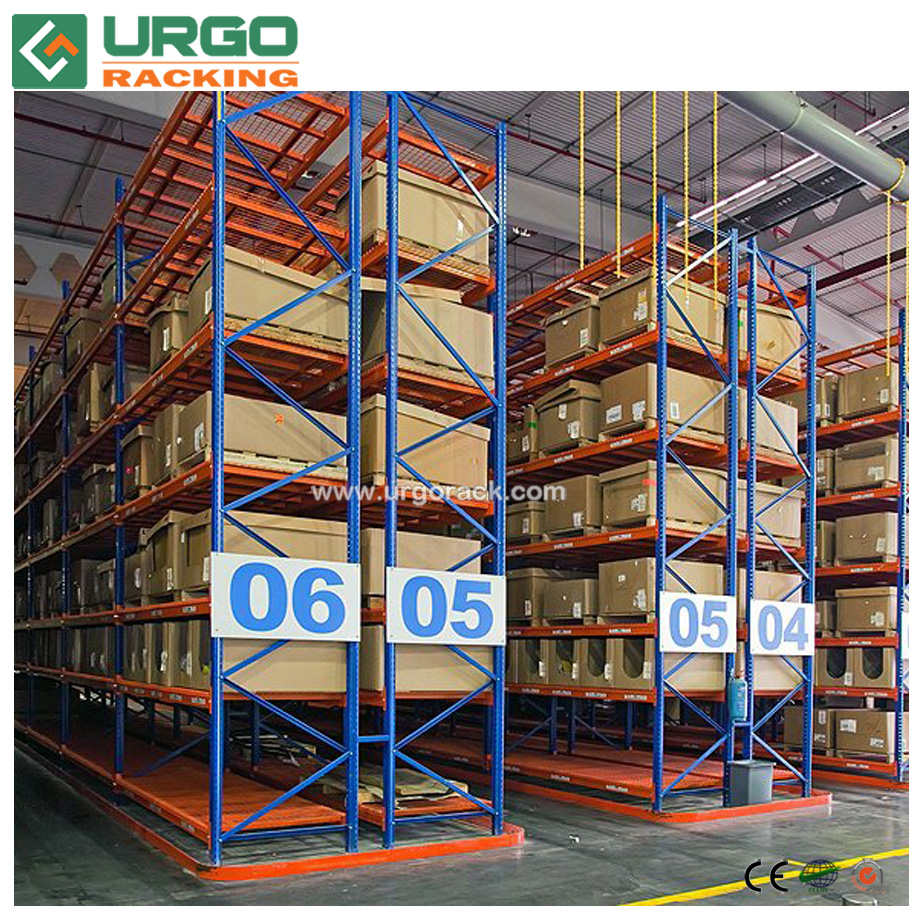

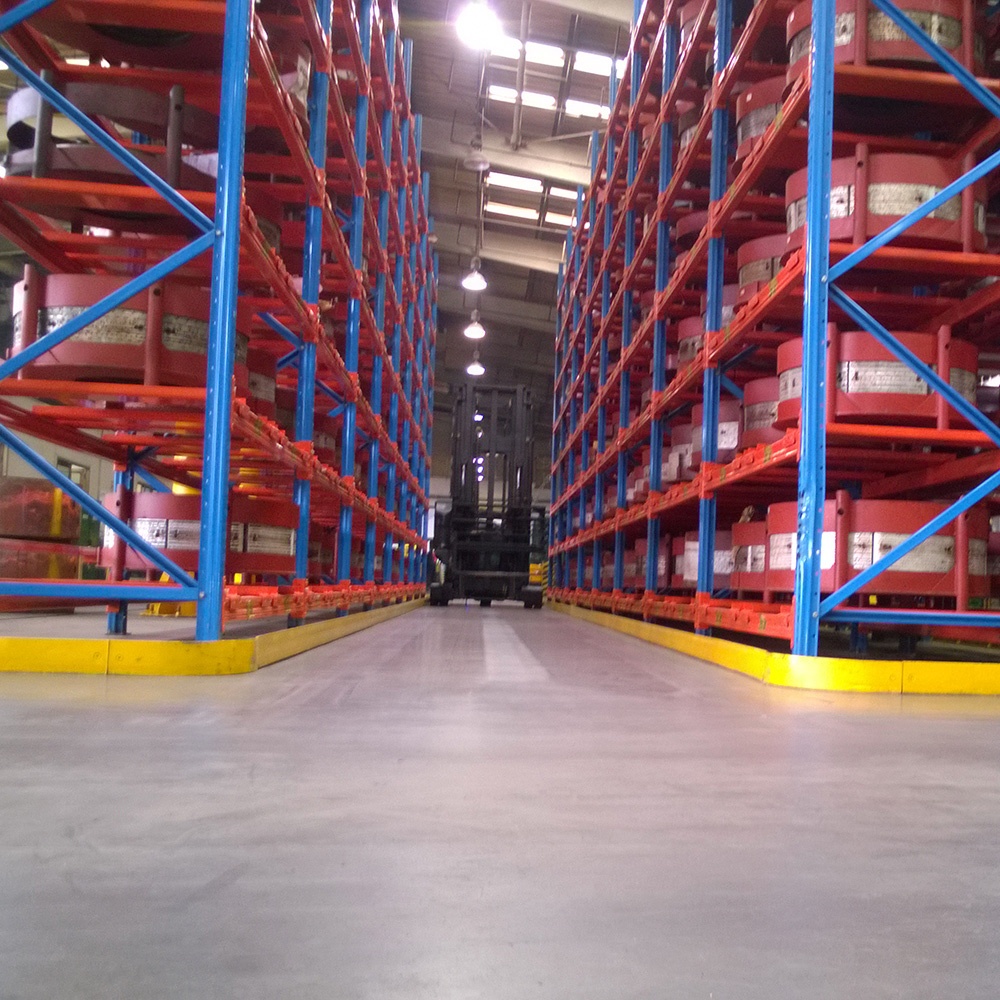

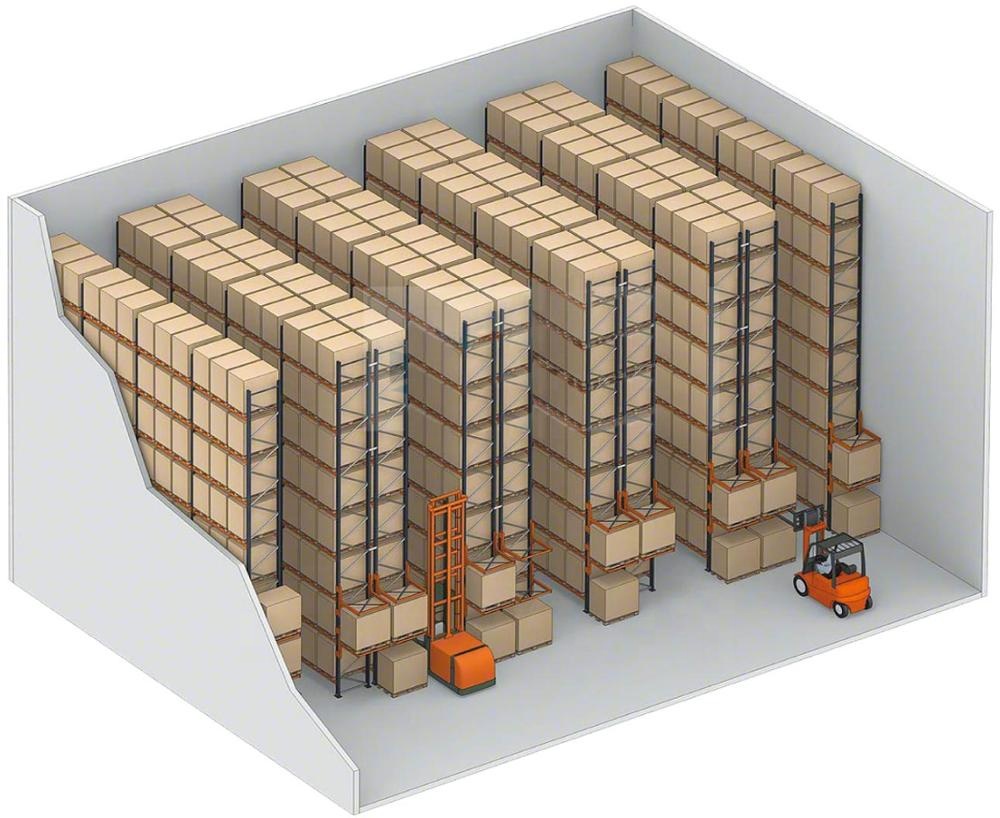

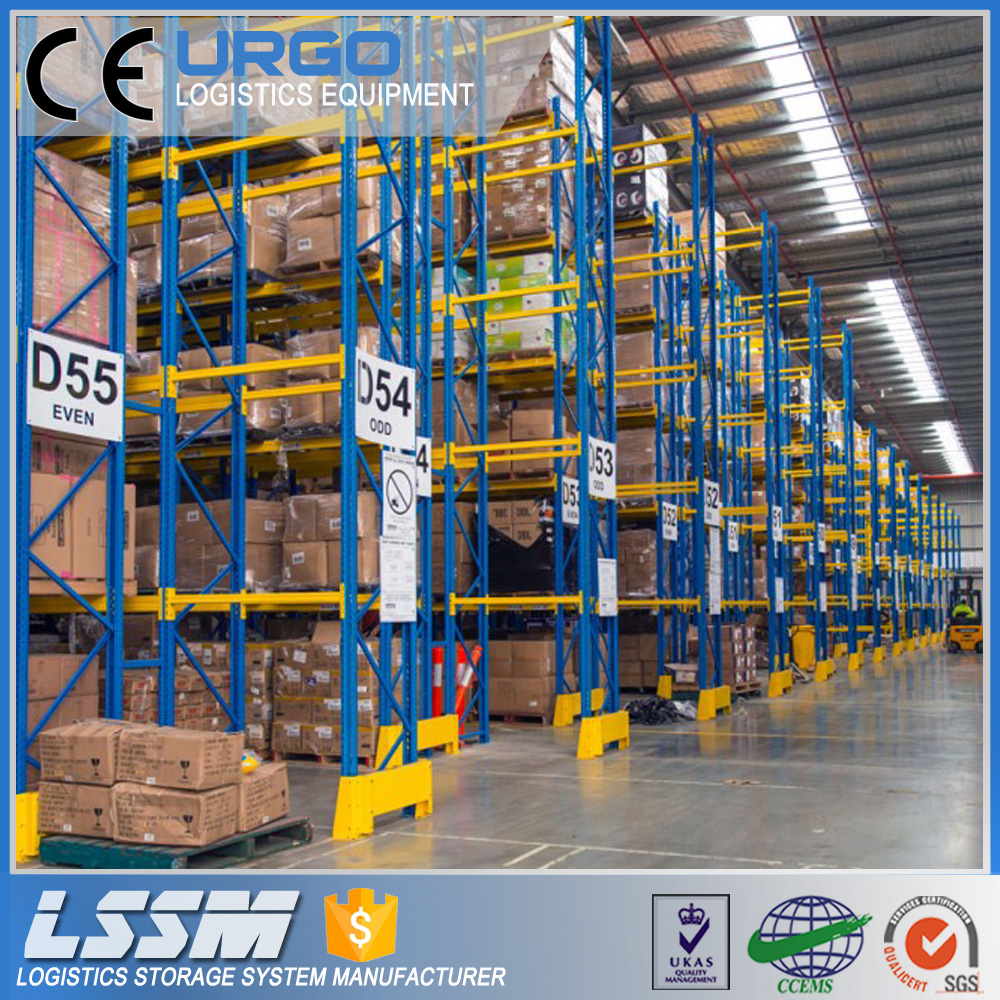

| Category | Details |
|---|---|
| Main Features |
• 90% picking efficiency for heavy goods by pallet. • Surface finishing with araldite static powder coating. • High strength and durability; easy installation. • Pallets can be accessed and moved individually. • Bottom level pallets can be stored on the floor to lower costs. |
| Beam & Frame |

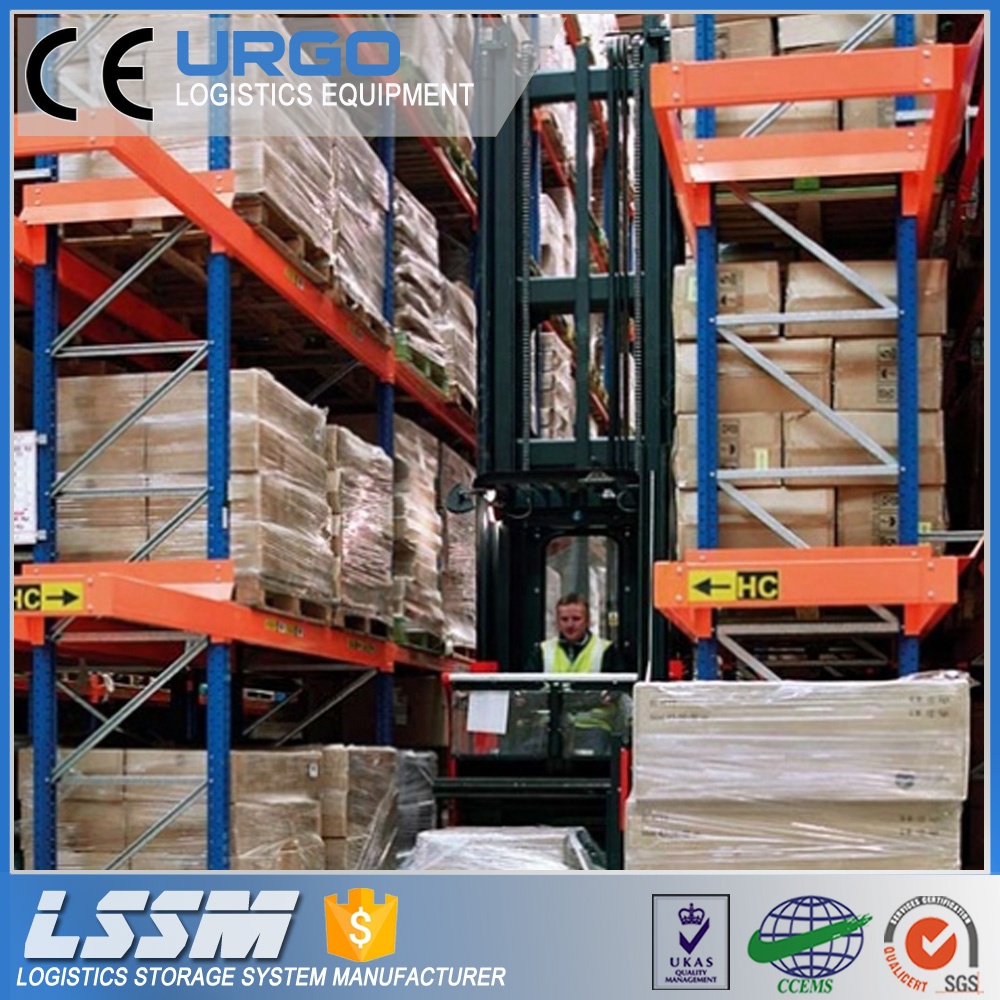

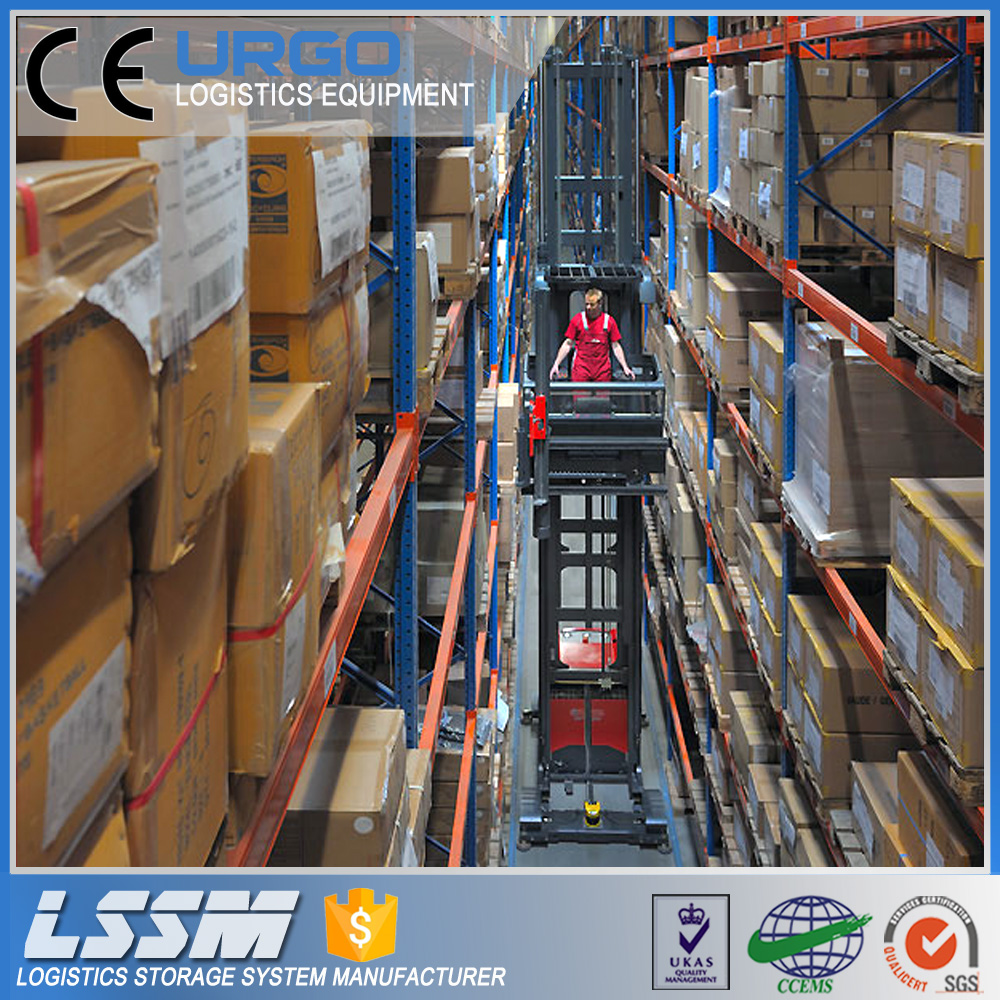

• Frame depth: 800-1000mm. • Beam length: 1000-3300mm. • Operation aisle: 2200-3800mm (depends on truck type). |
| Main Components |

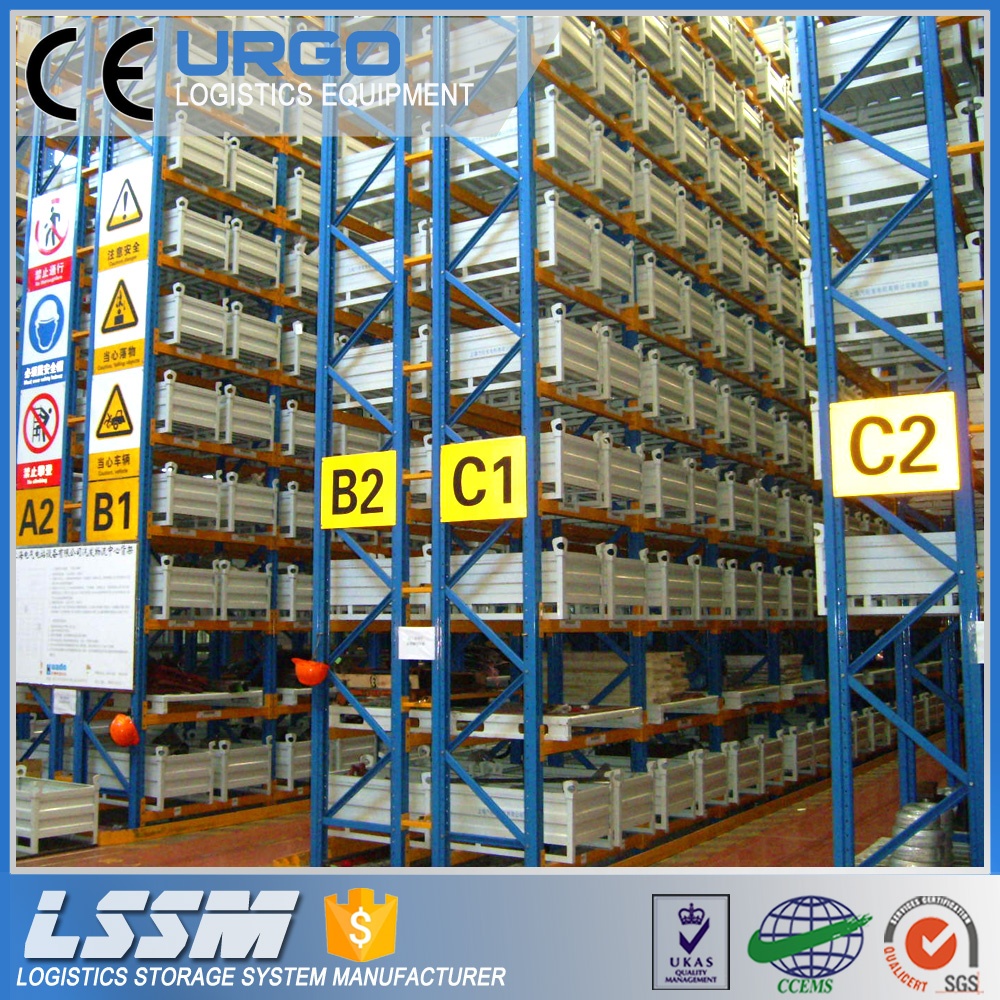

• Upright sections: 80*60, 90*70, 100*70, 120*95 (mm). • Box beams: 80*50 to 180*50 (mm). • Includes braces, footplates, safety pins, and anchors. |
| Load Capacity |
• Loading capacity: 500-4,000 kgs UDL per level. • Height: up to 11,000mm. • Depth: 400-1,500mm. |
| Column Specification (mm) | Thickness (mm) | Upright Loading (kg) |
|---|---|---|
| W80 x D60 | 1.8-2.0 | 4000-6000 KG |
| W85 x D67 | 1.8-2.3 | 7500-12500 KG |
| W90 x D60 | 1.8-2.5 | 8000-10000 KG |
| W90 x D70 | 1.8-2.5 | 10000-12000 KG |
| W100 x D70 | 2.0-2.5 | 11000-14000 KG |
| W120 x D95 | 2.3-3.0 | 17000-21000 KG |
| Specification (mm) | 1500mm | 2300mm | 2700mm | 3300mm | 3900mm |
|---|---|---|---|---|---|
| 80 x 50 x 1.5 | 3000 | 1340 | 1010 | - | - |
| 100 x 50 x 1.5 | 4470 | 2260 | 1680 | 1040 | - |
| 120 x 50 x 1.5 | - | 3200 | 2358 | 1518 | - |
| 140 x 50 x 1.5 | - | 4330 | 3330 | 2370 | 1505 |
| 160 x 50 x 2.0 | - | - | - | 4170 | 2840 |
Conventional accessories include: cross beam, back brake beam, back mesh, side mesh, steel plate, grid plate, wood plate, column protector, and guard bars.
