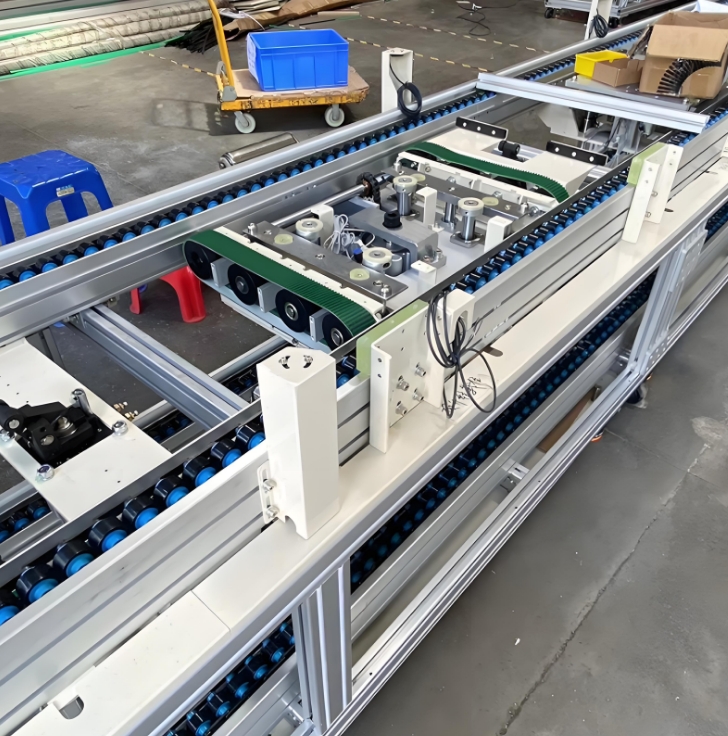

Pallet Handling Automation Solution: Customized Automated Conveyor System for Palletizing and Pallet Movement

⚙️

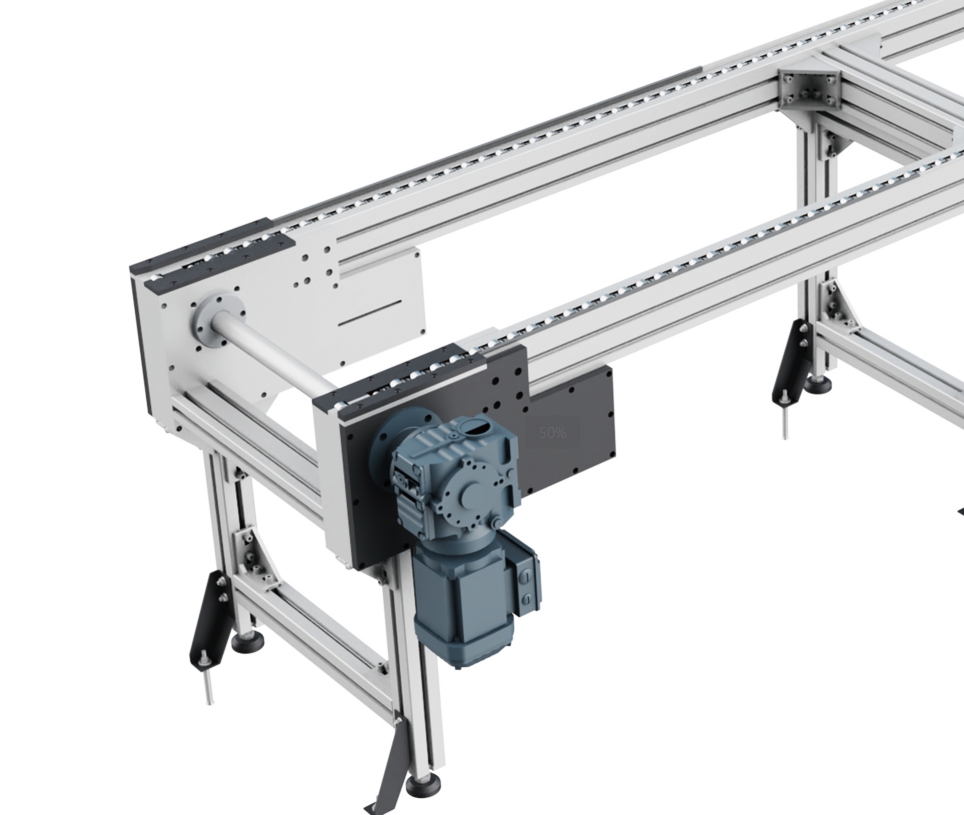

Accumulated Chain Conveyor Specification

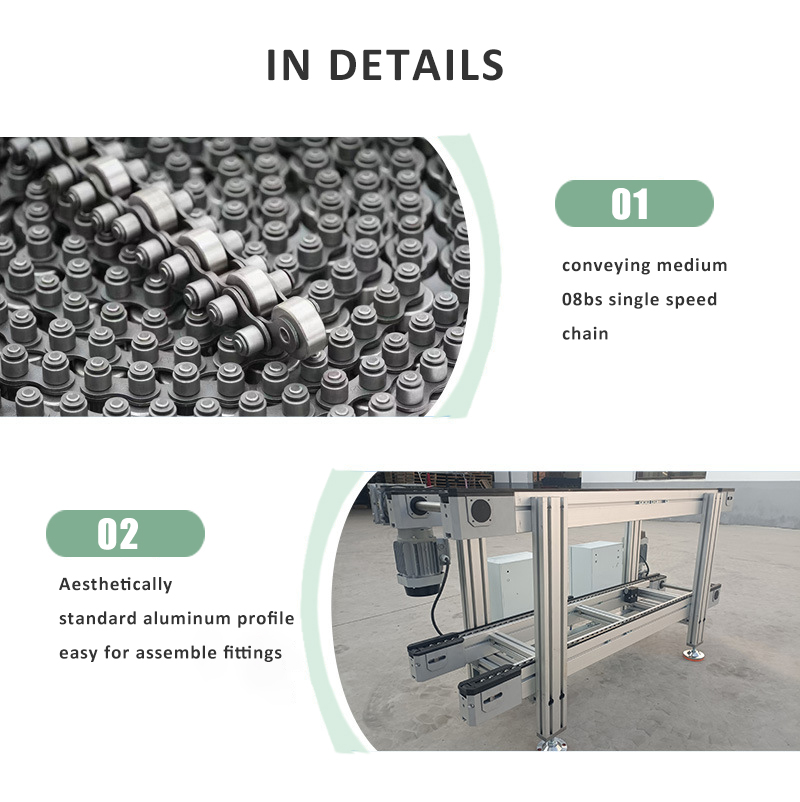

Conveyor Medium: Accumulated Roller Chain
Pallet Width In Transport: 400 ≤ Bwt ≤ 1600 mm
Conveyor Length: 1000 ≤ L ≤ 20000 mm
Nominal Speed (M/Min): 6, 9, 12, 15, 18
Max. Load: 2500 Kg
Drive Method: 3 Phase Motor (L, R, M mounting)
Voltage/Frequency: 220/380 AC, 50 Hz

🏗️

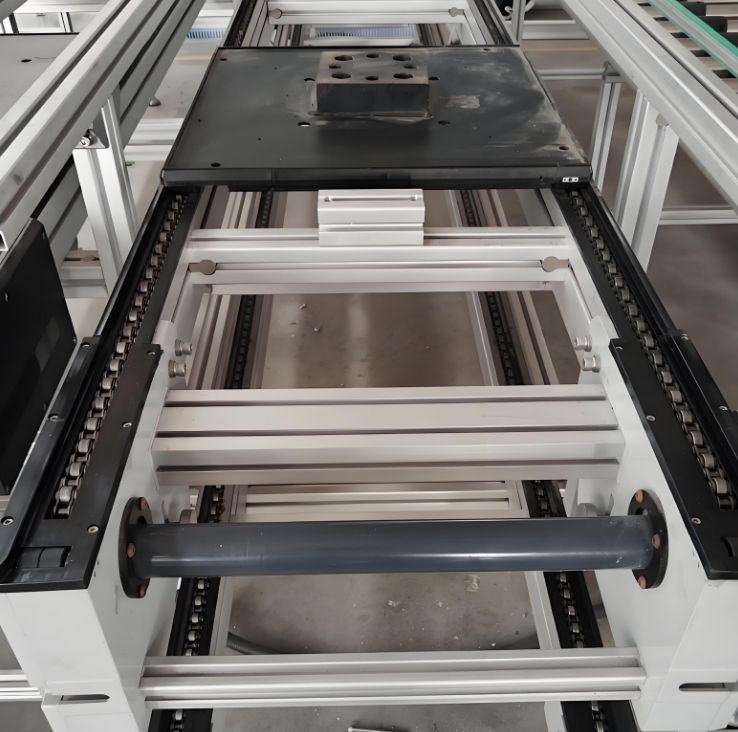

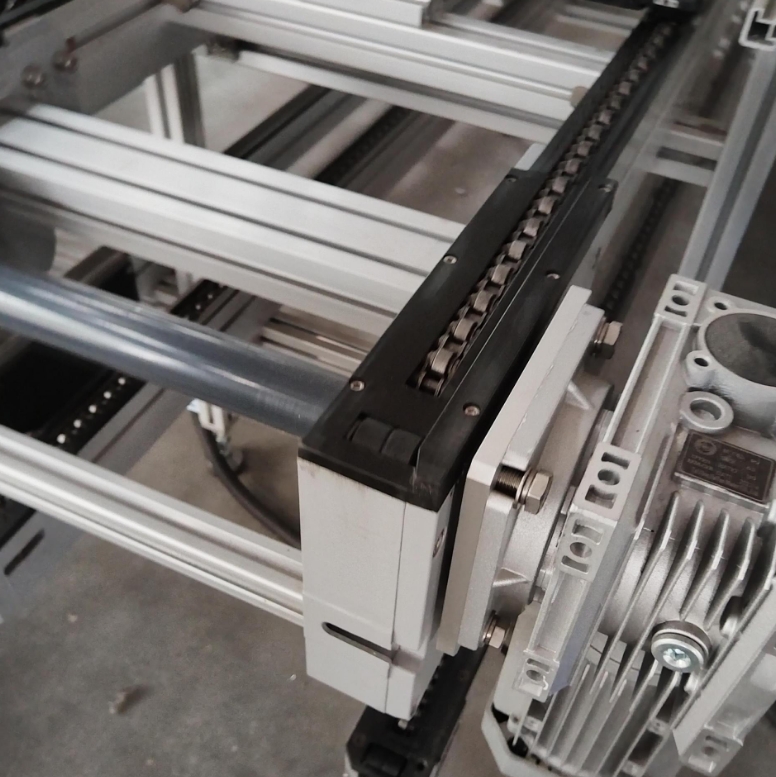

Heavy-Duty Pallet Conveyor System

Introducing our robust Pallet Conveyor System, fortified with a Heavy-Duty Roller Chain Conveyor, designed to handle substantial loads and accommodate extended lengths. This powerhouse solution is engineered to enhance efficiency and durability, making it an ideal choice for industries with demanding material handling requirements.

💎

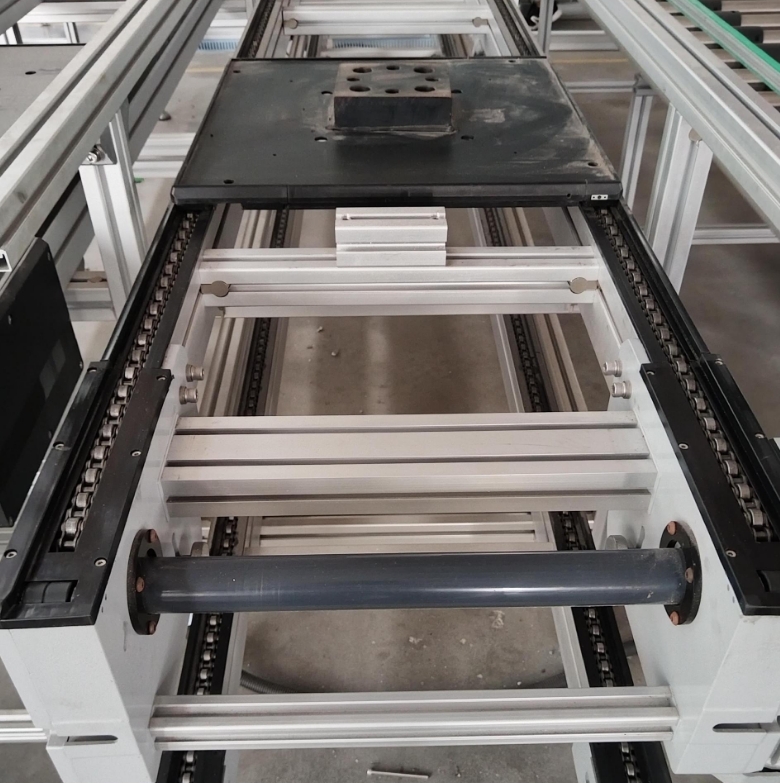

Key Benefits

Precise Pallet Transport
Twin Chain Design For Accumulated Operating

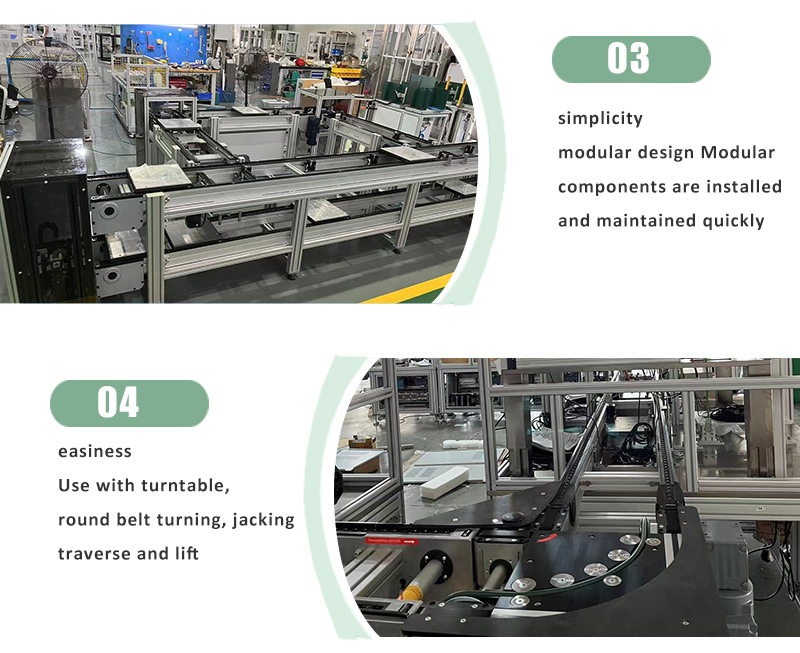

Modular Design For Easy Installing
Loading Capacity 2KG/CM
Allowed Maximum Loading 2500KG
Allowed Maximum Conveyor Length 20000mm

🏭

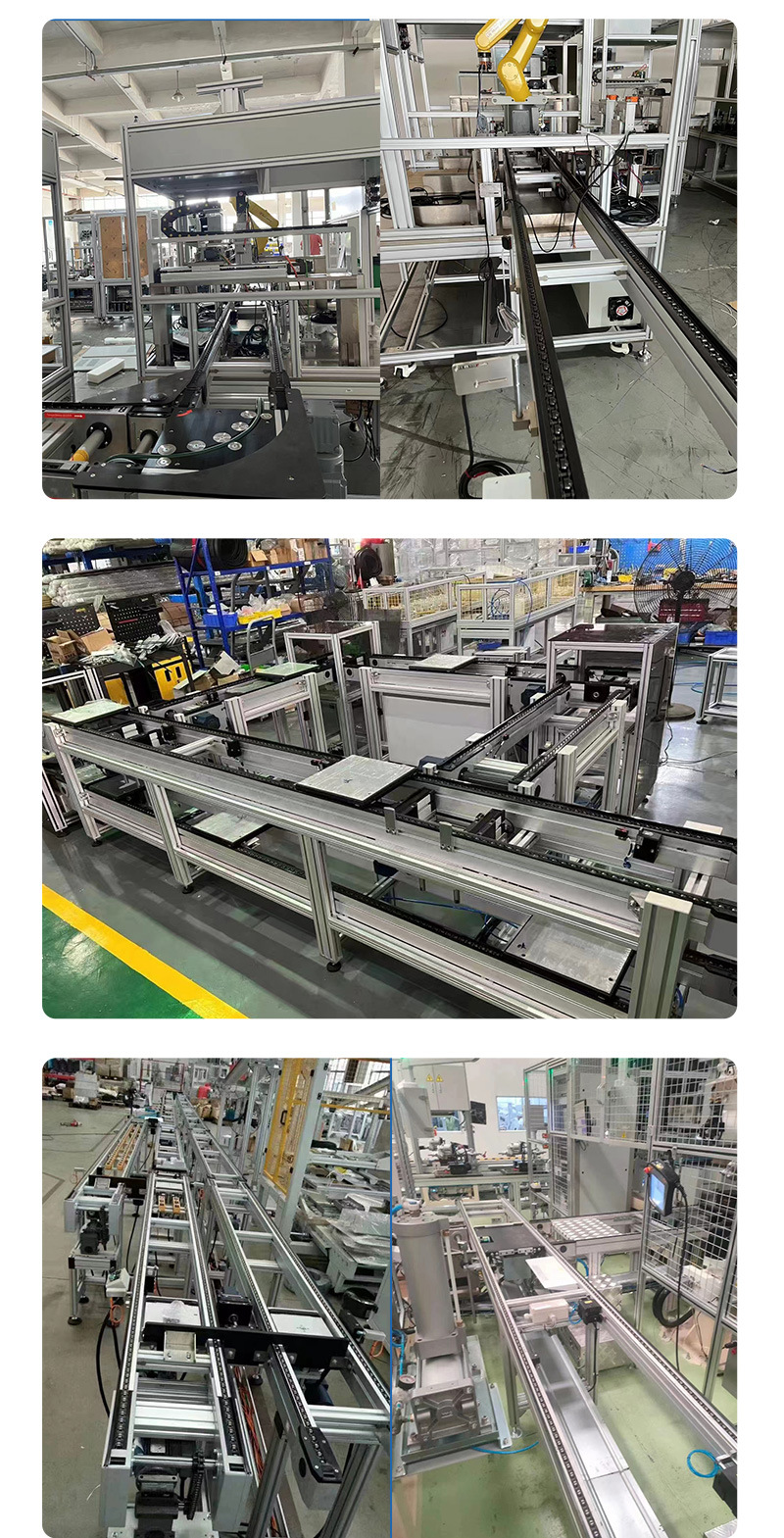

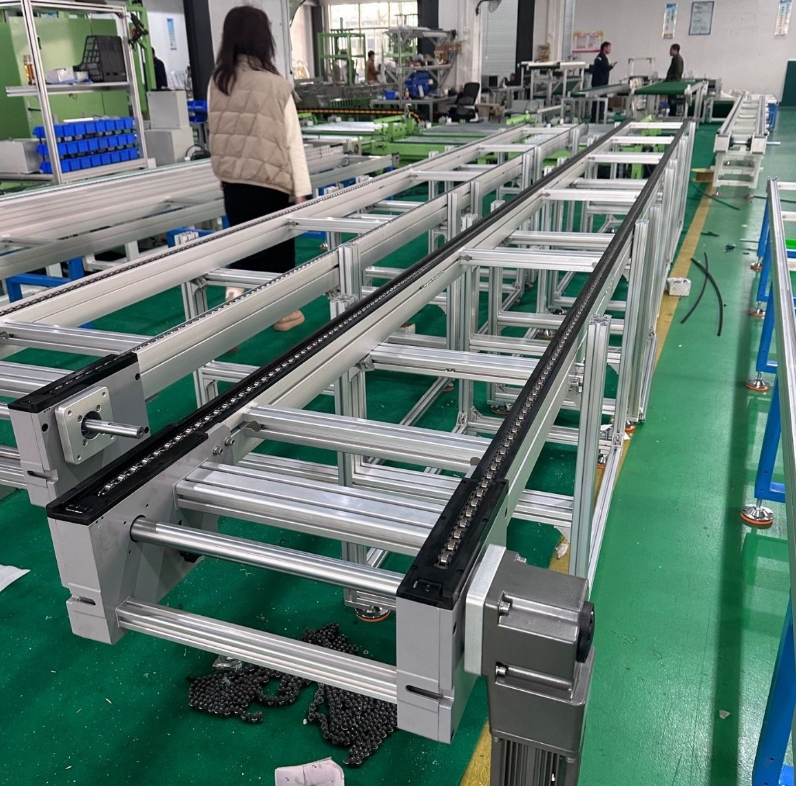

Applications

Manufacturing Plants - Product Assembly
Warehouse - Product Transfer
Testing Line - Transfer Between Stations

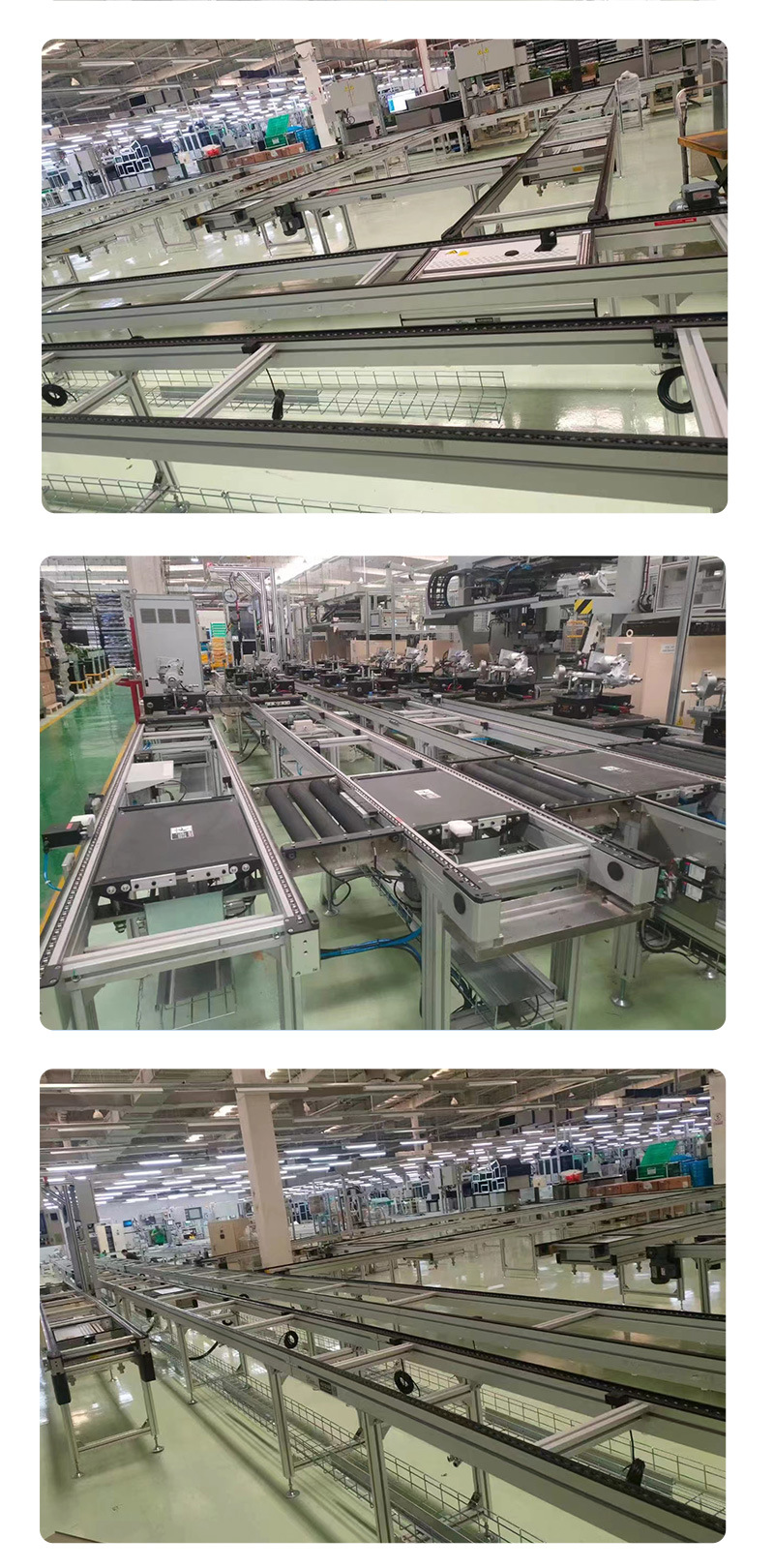

Production Automation

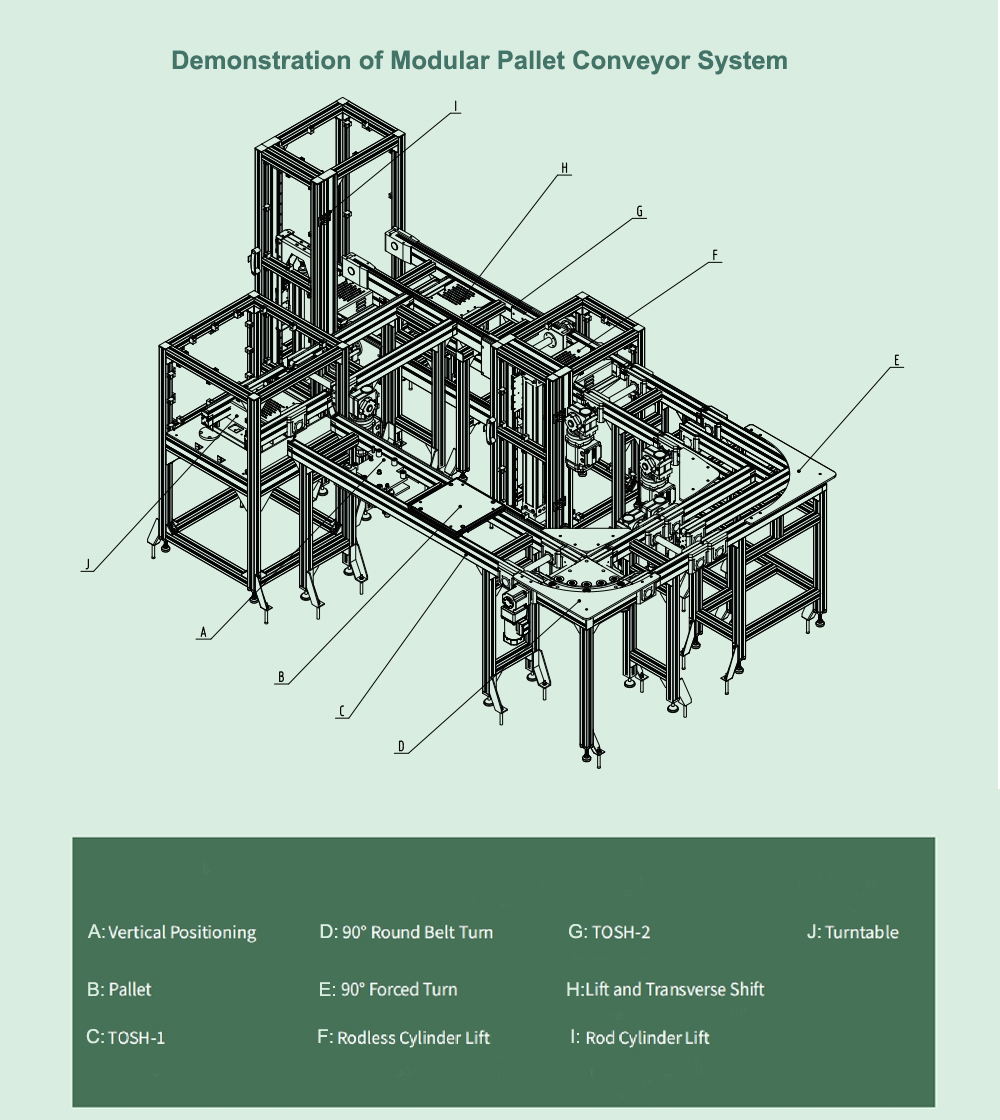

The pallet conveyor utilizes pallets as carriers to transport work-pieces through the operation of the conveyor equipment, facilitating positional changes between different workstations. To meet diverse load and production line requirements, it is equipped with various standard line bodies and corresponding functional mechanisms. The modular design ensures a high level of modularity, featuring a simple structure, easy assembly, smooth operation, high reliability, low noise, and convenient maintenance.

📊

Technical Specifications

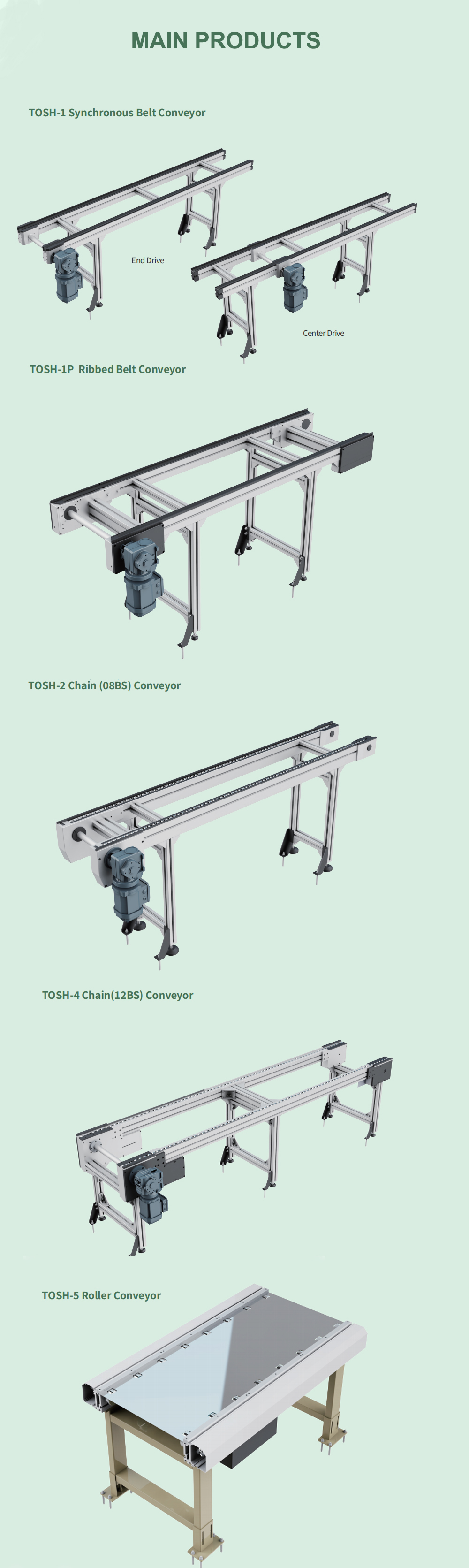

Model	Conveyor Length	Pallet Width	Conveyor Height	Conveyor Speed	Max Load	Roller Spacing
TOSH-1	400-6000mm	160-1200mm	As Needed	Max 20m/min	60KG	/
TOSH-1P	1200-12000mm	160-1200mm	As Needed	Max 20m/min	150KG	/
TOSH-2	600-12000mm	160-1200mm	As Needed	Max 20m/min	2200KG	/
TOSH-4	1000-20000mm	400-1600mm	As Needed	Max 20m/min	2500KG	/
TOSH-5-CC	1000-6000mm	300-1200mm	As Needed	Max 15m/min	2000KG	158/197/247mm
TOSH-5-GC	1000-6000mm	300-1200mm	As Needed	3-15m/min	2500KG	160/200/250mm
TOSH-5-CS	1000-6000mm	300-1200mm	As Needed	Max 15m/min	3000KG	158/197/247mm
TOSH-5-GS	1000-6000mm	400-1200mm	As Needed	3-15m/min	3000KG	160/200/250mm

🛡️

Manufacturer Profile & Quality

The leading manufacturer in pallet conveyors and pallet transfer systems for over 10 years. The quality is verified by wide use in various industrial automated production and assembly lines. Benefiting from rich supply chain sources, we offer conveyor systems with competitive pricing and short lead times.

📜

Certifications & Standards

❓

Frequently Asked Questions

Q1: Are you a trading company or a manufacturer?

A: We're a manufacturer. We have our own factory in three locations to support our production needs.

Q2: What are your terms of payment?

A: T/T 100% as deposit for parts orders; 50% deposit and the balance before delivery for conveyor systems. We provide product photos and test videos.

Q3: What are your Incoterms and delivery times?

A: Incoterms: EXW, FOB, CFR, CIF, DDU, etc. Delivery: 1-2 days for stock parts, 7-15 days for customized parts, and 20-40 days for full conveyor systems.

Q4: Can you produce according to samples?

A: Yes, we can produce by your samples or technical drawings. We can build molds and fixtures for testing and evaluation.

Q5: Do you test all your goods before delivery?

A: Yes, we perform 100% testing on all products before delivery to ensure quality and performance.

📦
