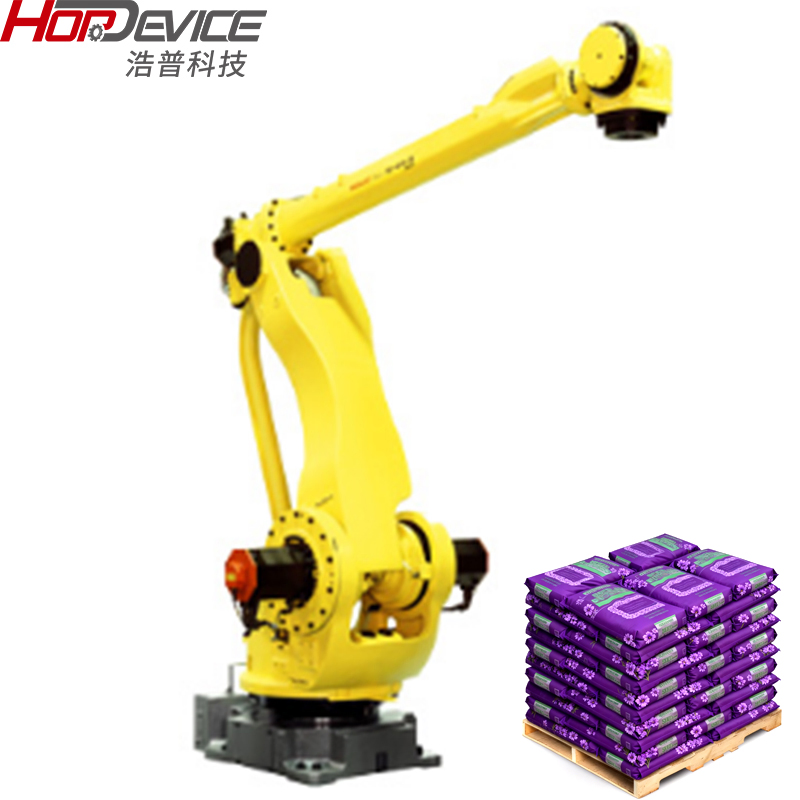

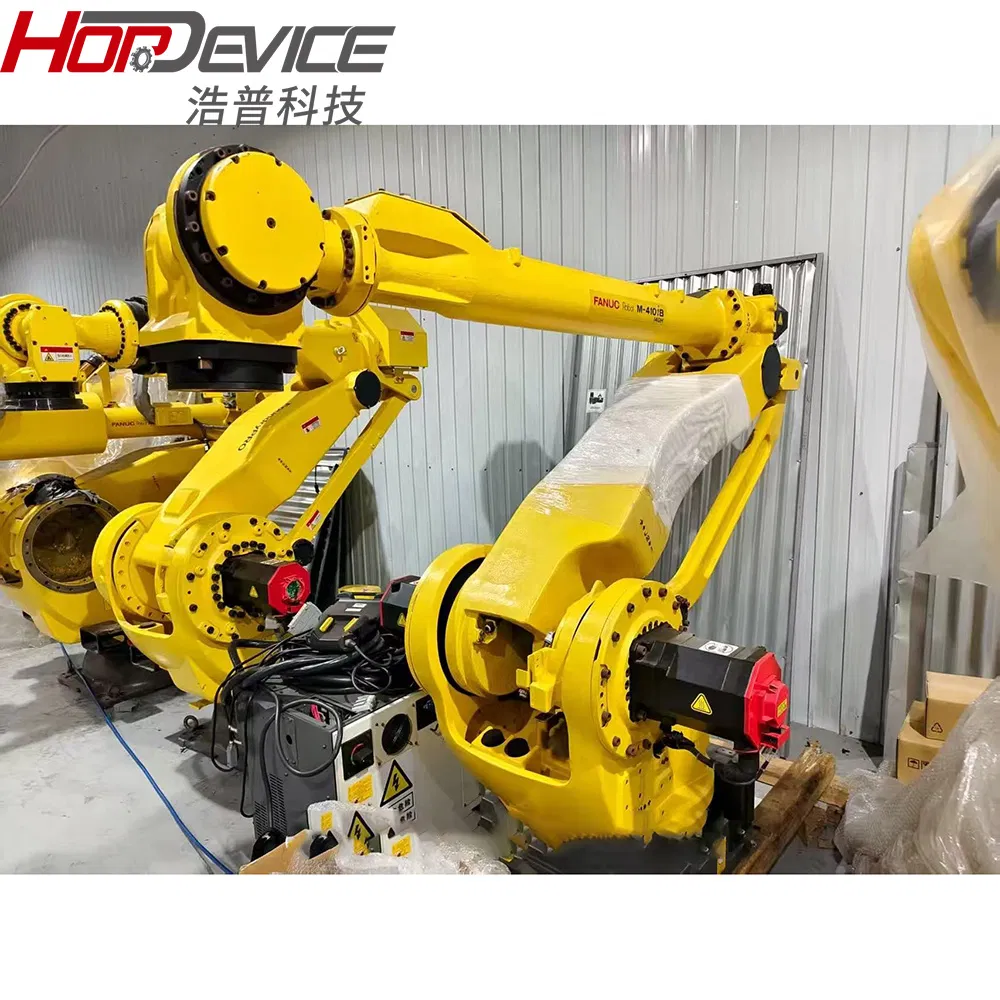

| Model NO. | M-410iB/140H |
| Reach | 2 meters |
| Usage | Assembly Line, Machining, Material Handling, Packaging, Welding |
| Pose Repeatability | ±0.2mm |
| Number of Axes | 5 |
| Robot Quality | 1200 Kg |
| Installation Method | Ground Installation |
| The Highest Speed | 3000 mm/S (Wrist) |
| Drive Mode | Servo Motor Drive |
| HS Code | 848640390 |
| Capacity | 2000 Units/Year |
| Package Size | 340.00cm * 280.00cm * 300.00cm |
| Gross Weight | 1085.000kg |
| Transport Package | Exported Wooden Case |
| Specification | 5-15 CBM |
System Overview
FANUC provides the industry's broadest portfolio of robots to meet diverse application and industrial needs. With over 50 years of expertise in robotic technology, FANUC delivers highly flexible, application-specific automation solutions that are easy to integrate and trusted worldwide.
Designed for continuous 24/7 operation with robust construction, minimal downtime, and high resistance to harsh industrial environments.
Integrated control systems, built-in iRVision, force sensing, and collaborative robots (CRX series) enable high-speed, high-accuracy tasks.
Comprehensive range of robots—from 0.5 kg to 2300 kg payloads—suitable for diverse applications across all industries.
Industry-specific software packages and compatible peripherals allow for fast deployment, simplified programming, and seamless system integration.
Extensive local service centers, training programs, and technical support ensure prompt assistance and maximum operational uptime.
Long service life, high efficiency, and low maintenance requirements deliver outstanding return on investment and reduced lifecycle costs.

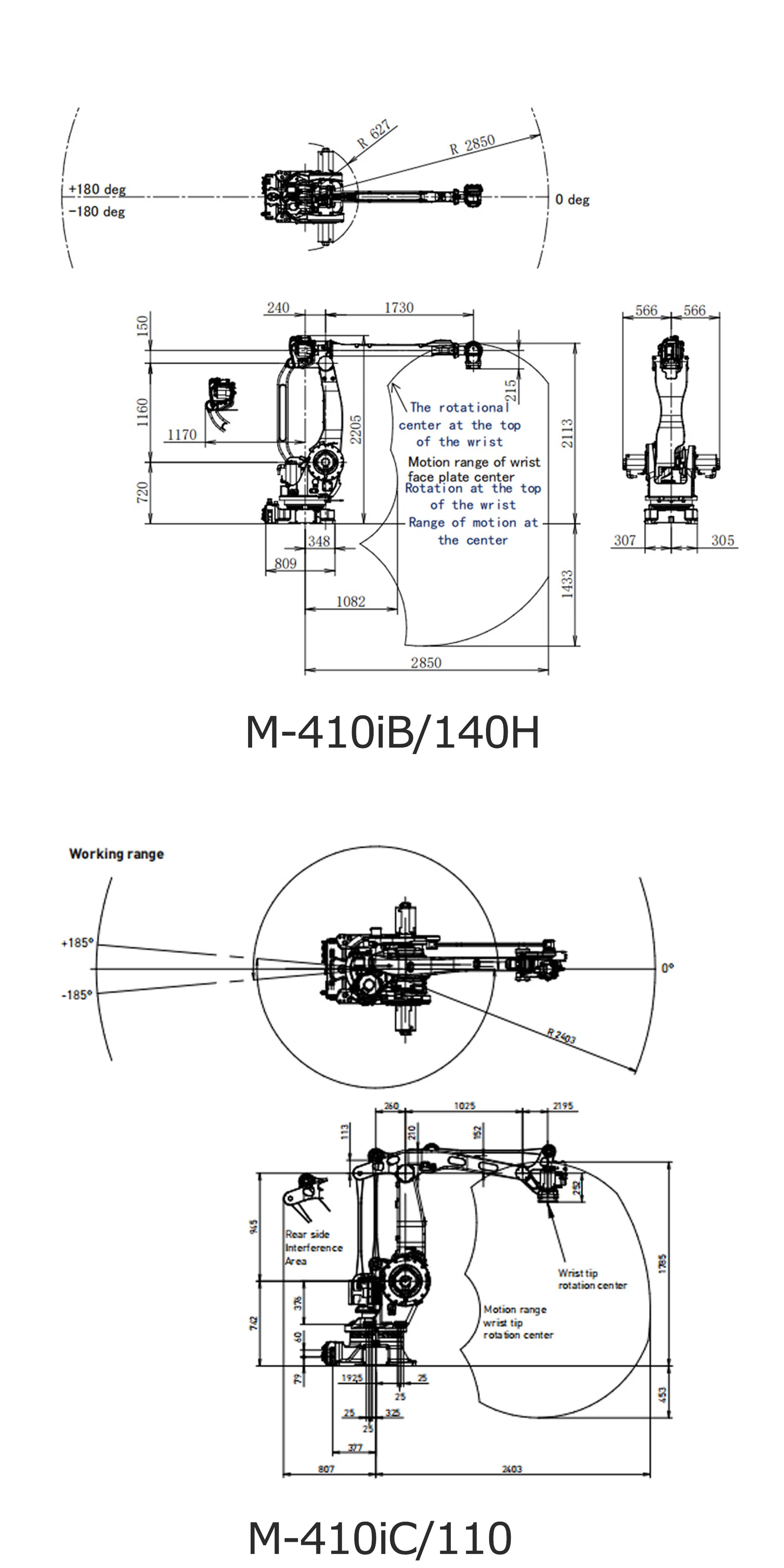

| Parameters and Characteristics | |||
|---|---|---|---|

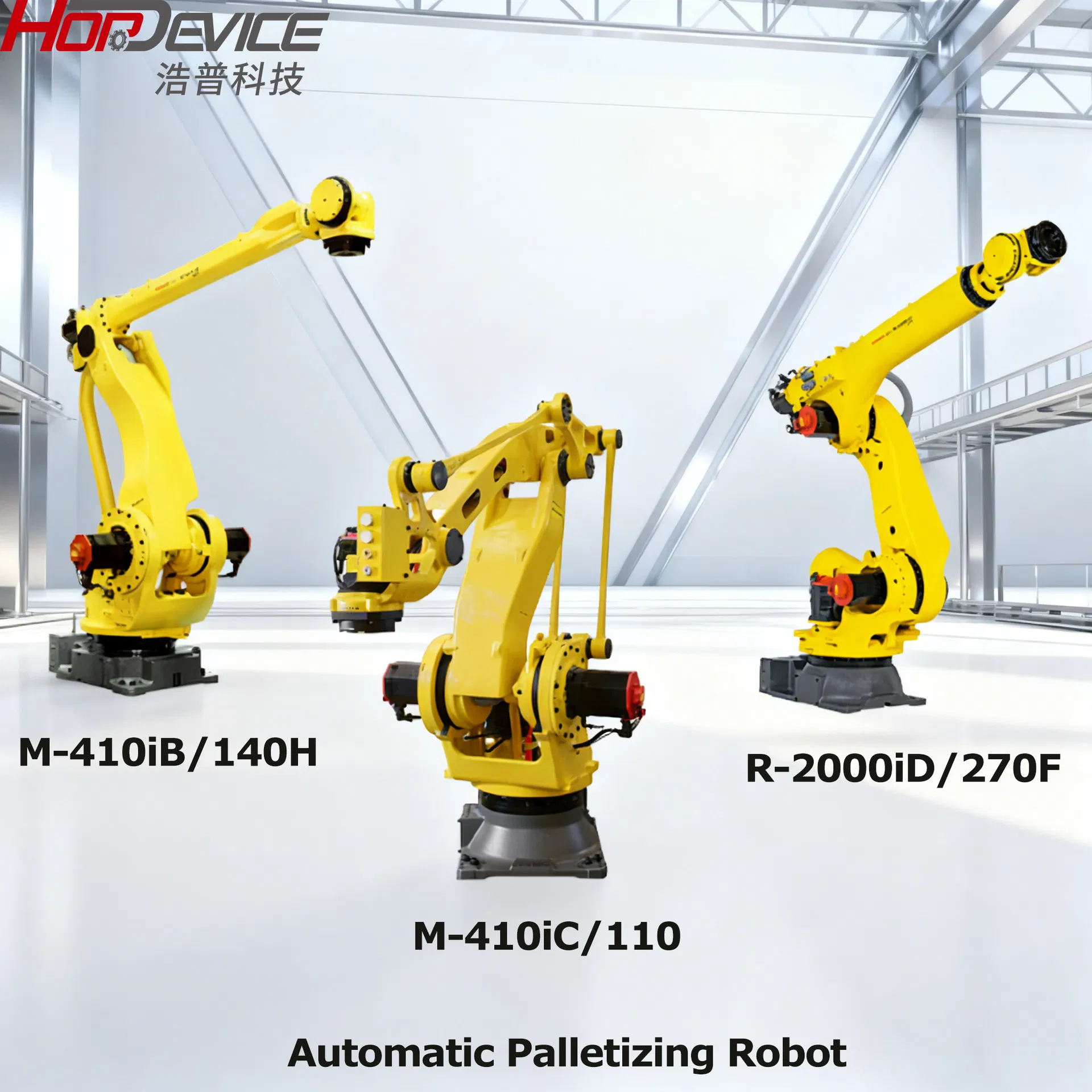

| Version | M-410iB/140H | M-410iC/110 | |
| Max Load Capacity at wrist [kg] | 140 | 110 | |
| Reach [mm] | 2850 | 2403 | |
| Controlled axes | 5 | 4 | |
| Repeatability [mm] | ±0.2 | ±0.05 | |
| Mechanical weight [kg] | 1200 | 1030 | |
| Motion Range [°] | J1 | 360 | 370 |
| J2 | 155 | 125 | |
| J3 | 112 | 140 | |
| J4 | 20 | 720 | |
| J5 | 720 | / | |
| Maximum Speed [°/s] | J1 | 140 | 145 |
| J2 | 115 | 130 | |
| J3 | 135 | 140 | |
| J4 | 135 | 420 | |
| J5 | 420 | / | |
| J4 Moment/Inertia Nm/kgm² | 147 | 53 | |
| J5 Moment/Inertia Nm/kgm² | 53 | / | |
| Average power consumption (kw) | 3 | 3 | |
| Protection | Body Standard | IP54 | |
| Wrist & J3 Arm | IP54 | ||

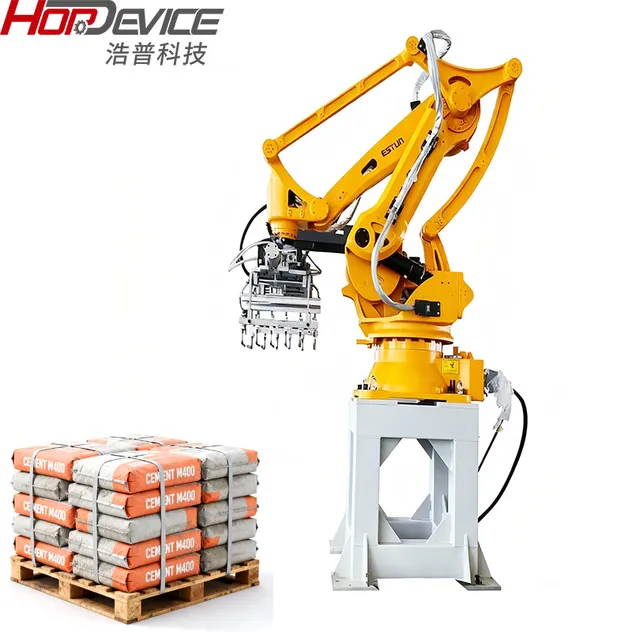

The palletizing and handling robot workstation is an automated solution that integrates robots with peripheral equipment such as conveyors, end effectors, and pallet feeders. Utilizing high-precision robotics and sensing technologies like vision-guided positioning, it enables accurate material grasping and adaptive stacking adjustment to ensure stable and orderly pallet loads.
Designed for high adaptability, it handles diverse materials and heavy loads even in challenging environments involving high temperature, dust, or hazardous conditions. Widely used in food and beverage, chemicals, logistics, pharmaceuticals, and electronics, it enhances operational efficiency and workplace safety by replacing manual palletizing tasks.
Material handling / Packing / Assembly
High efficiency automatic robotic palletiser for stacking, palletizing robot, palletizer can be used in any production line, providing intelligent, mechanization for production site. It is a palletising logistic system which can be used in the industries of beer, water, soft drink, milk, beverage and foodstuff etc. It is widely used for cartons, plastic crates, bottles, bags, barrels, shrink wrapped products and cans etc.
A: Yes, we are a professional manufacturer specialized in palletizing robots, packaging machines, conveyors, etc., with over 15 years of industry experience and a strong design & technical team. We can design and manufacture equipment according to your specific requirements.
A: Please provide us with the details of your project and the workpiece, such as layout drawings and dimensions of the product to be handled.
A: The minimum order quantity is 1 set. Payment terms require a 30% down payment against the order by T/T, with the remaining 70% balance paid upon delivery. Standard delivery time is approximately 20-30 working days after receipt of the formal order and deposit.
A: All goods are securely wrapped by film for protection and then packed in durable wooden boxes designed for safe export.
A: Yes, engineers are available to service machinery overseas to help customers with installation, setup, training, and troubleshooting.
A: The warranty period is 12 months following delivery for all mechanical parts (excluding electrical/electronic components and parts subject to normal wear and tear). The warranty is limited to the replacement of broken components after checking and verifying the manufacturing fault.
