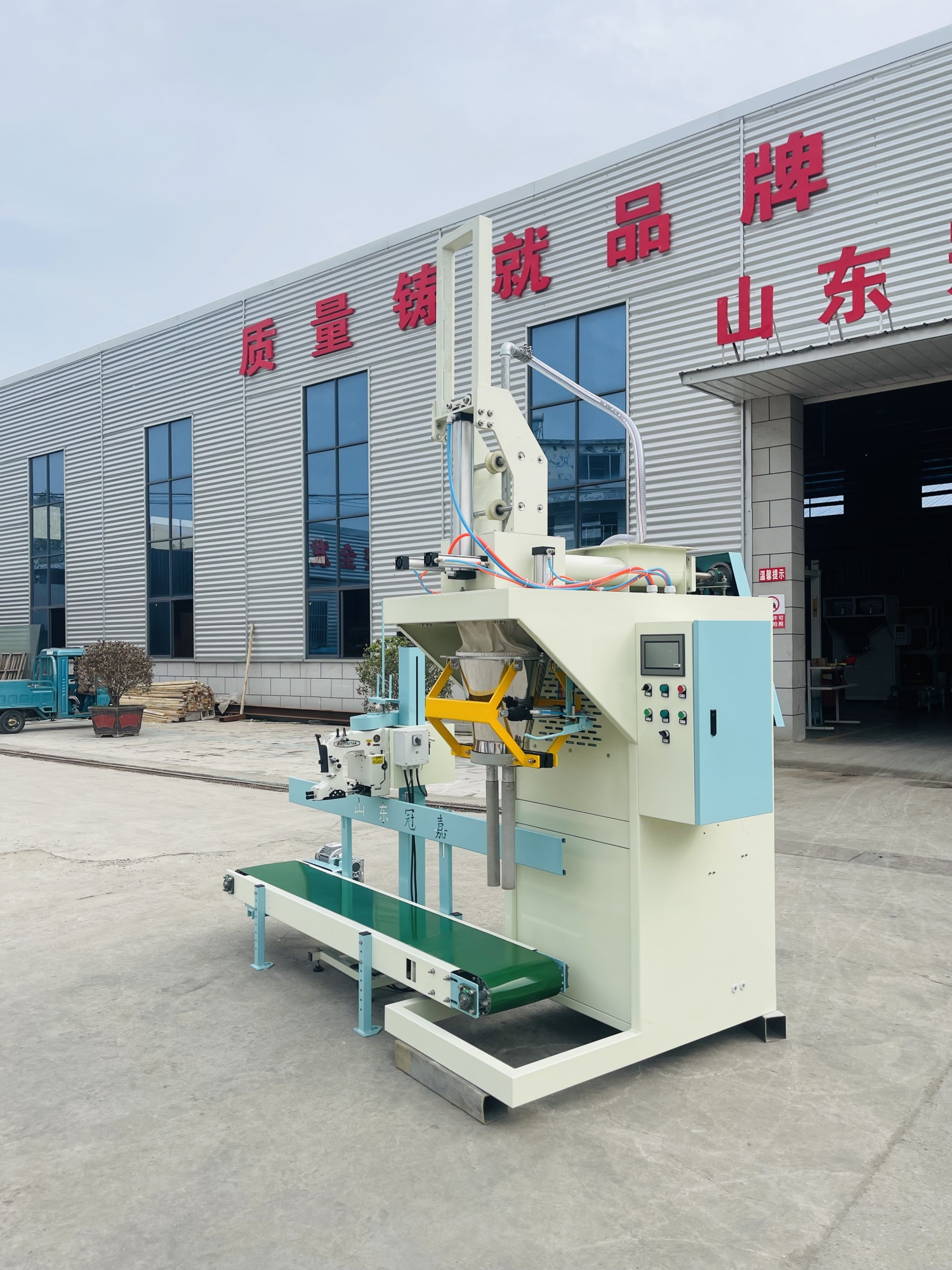

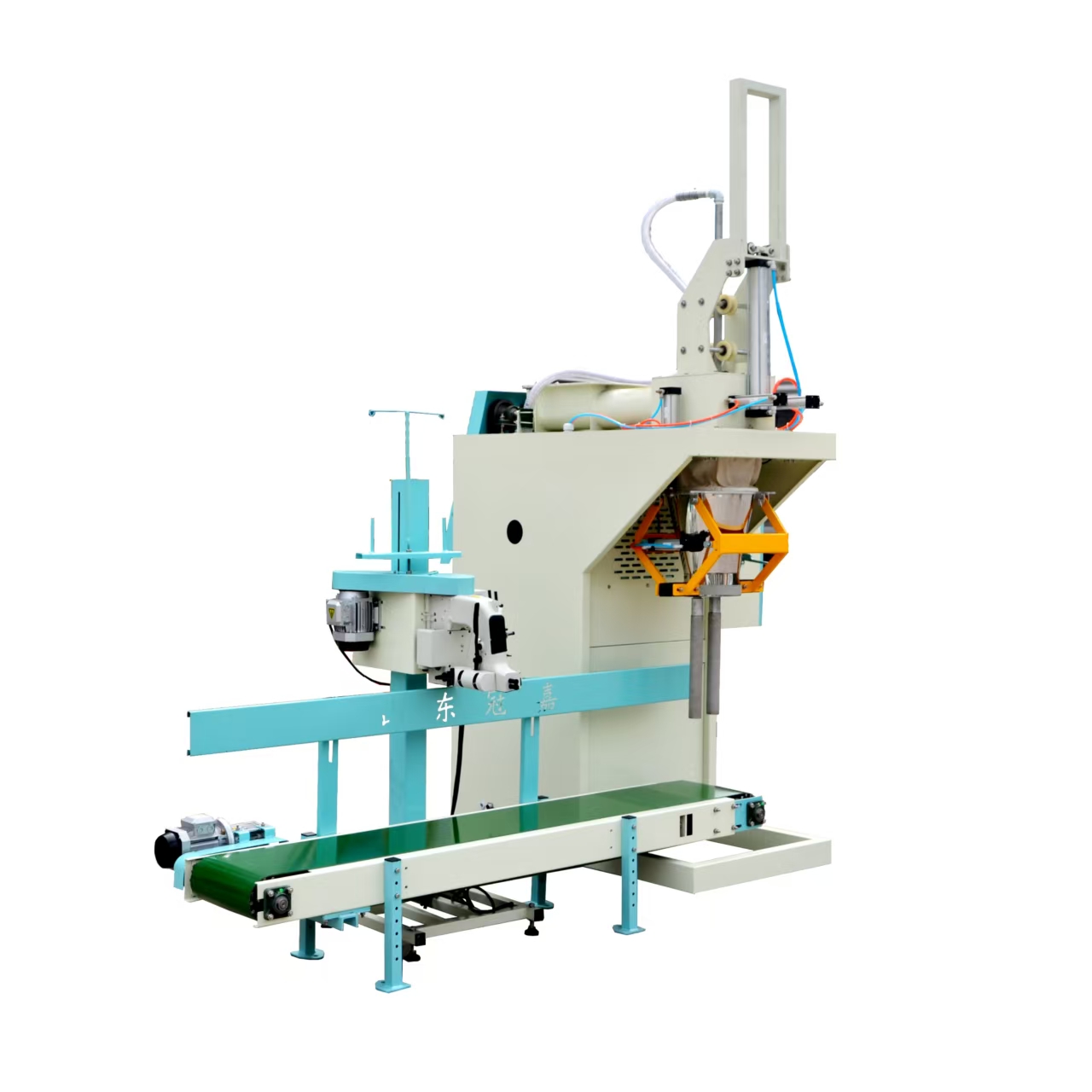

Accurately measures 5kg to 50kg for precise bagging needs.
Efficient production with capacity up to 80-160 bags per hour.
Handles woven bags, kraft paper sacks, and various open bags.
Runs on 3kW, significantly saving energy and operational costs.
Touch screen control panel with Chinese-English interface support.
| DCS-CL-SW-50 Technical Parameters | |
|---|---|
| Body Material | Carbon Steel. Plate thickness ≥ 2.5mm |

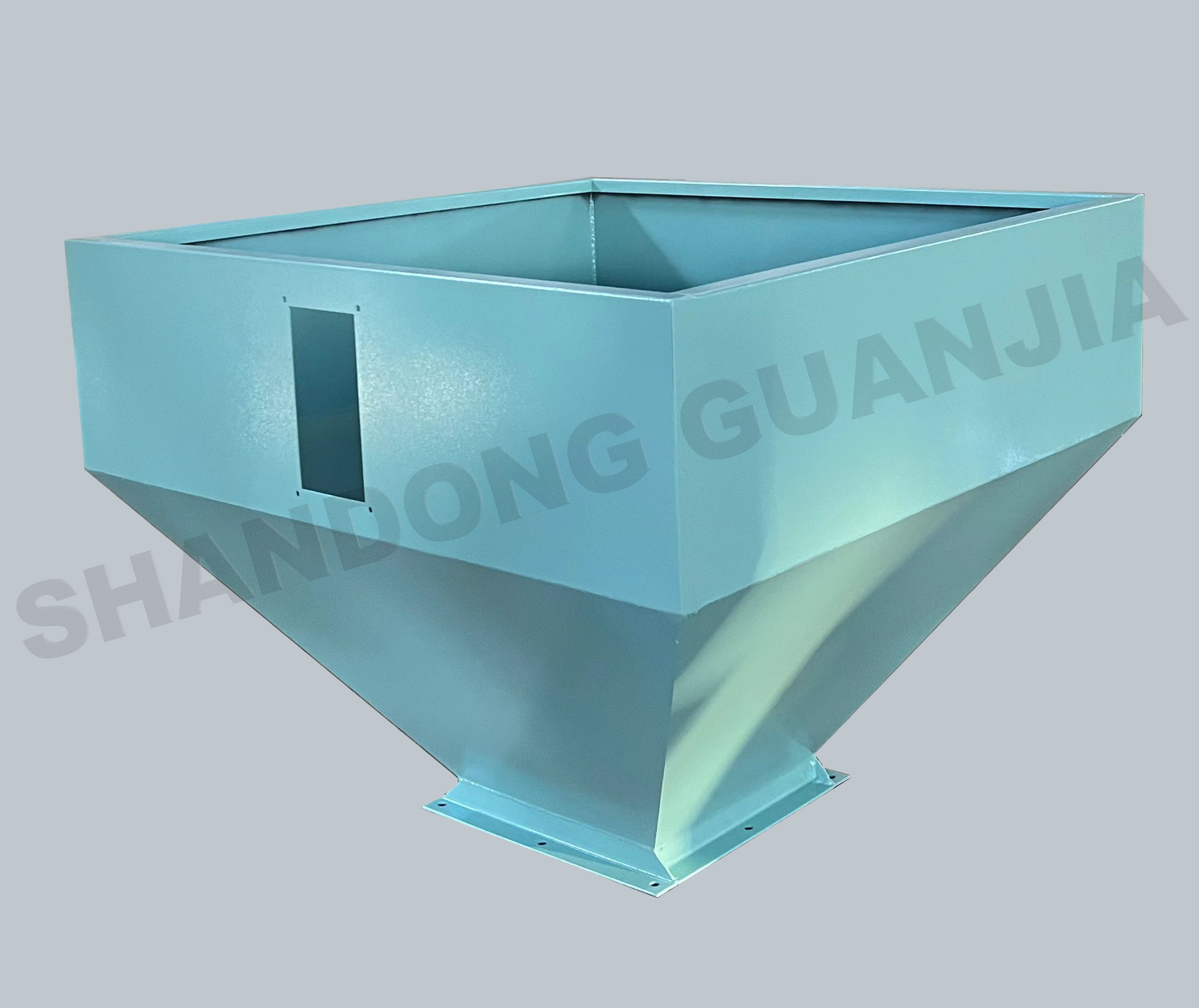

| Hopper Material | Stainless Steel 304 (Contact parts) or Customized |
| Gross Weight | 700KG |
| Packing Capacity | 80-160 Bags / Hour |
| Quantify Precision | 5-50kg or Customized |

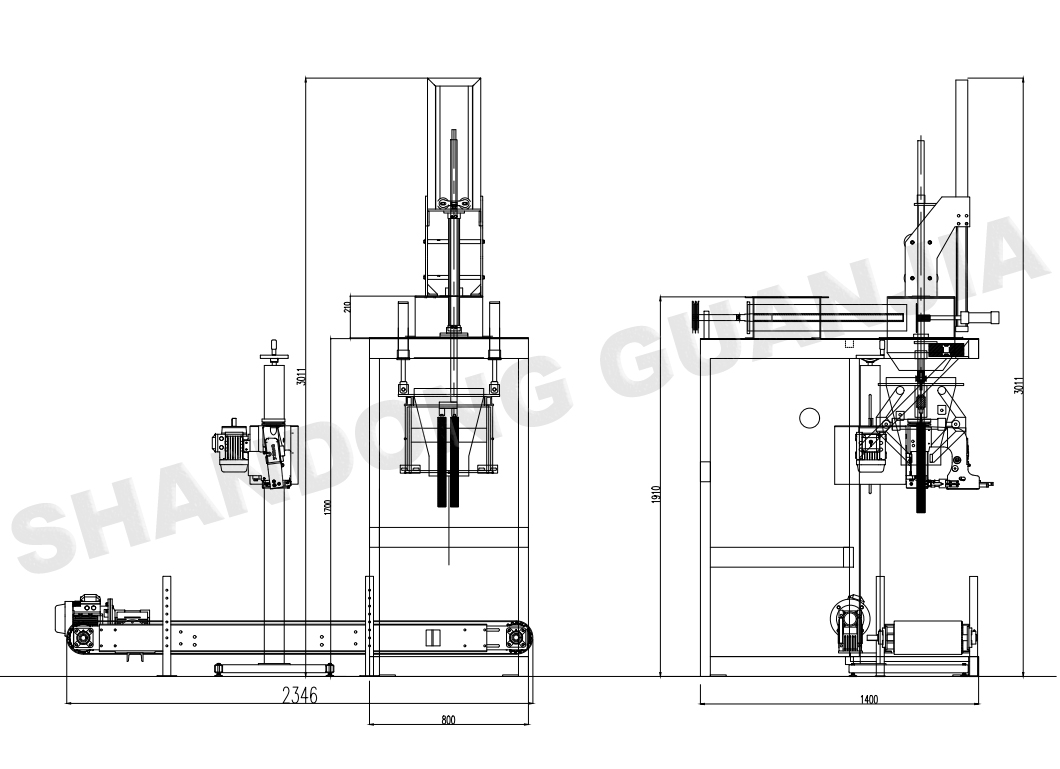

| Dimensions (L×B×H) | 2400*1000*1960 mm |
| CBM | ~3m³ (For reference) |
| Power / Supply | 3kw | AC 220V/380V 50 HZ or Customized |
| Air Source | 0.5~0.7MPa 0.36m³/min (3KW air compressor required) |
| Packaging Accuracy | ± 0.2% F.S |
| Bag Types | Paper, Woven, Kraft, Nylon, Aluminum Foil, Plastic Bags |

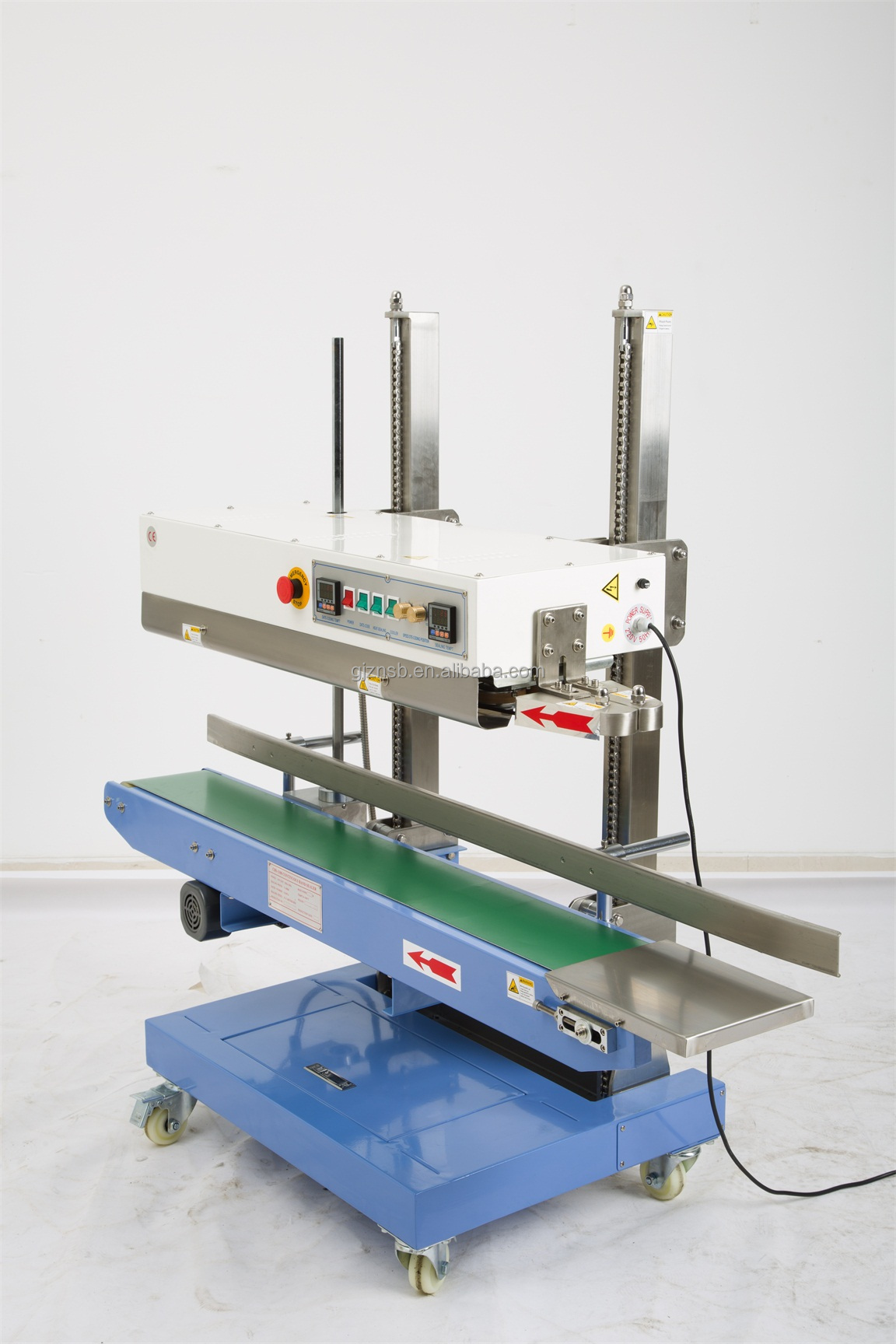

| Sealing Method | Sewing (Paper/Woven/Nylon) or Heat Sealing (Plastic/PE/Foil) |

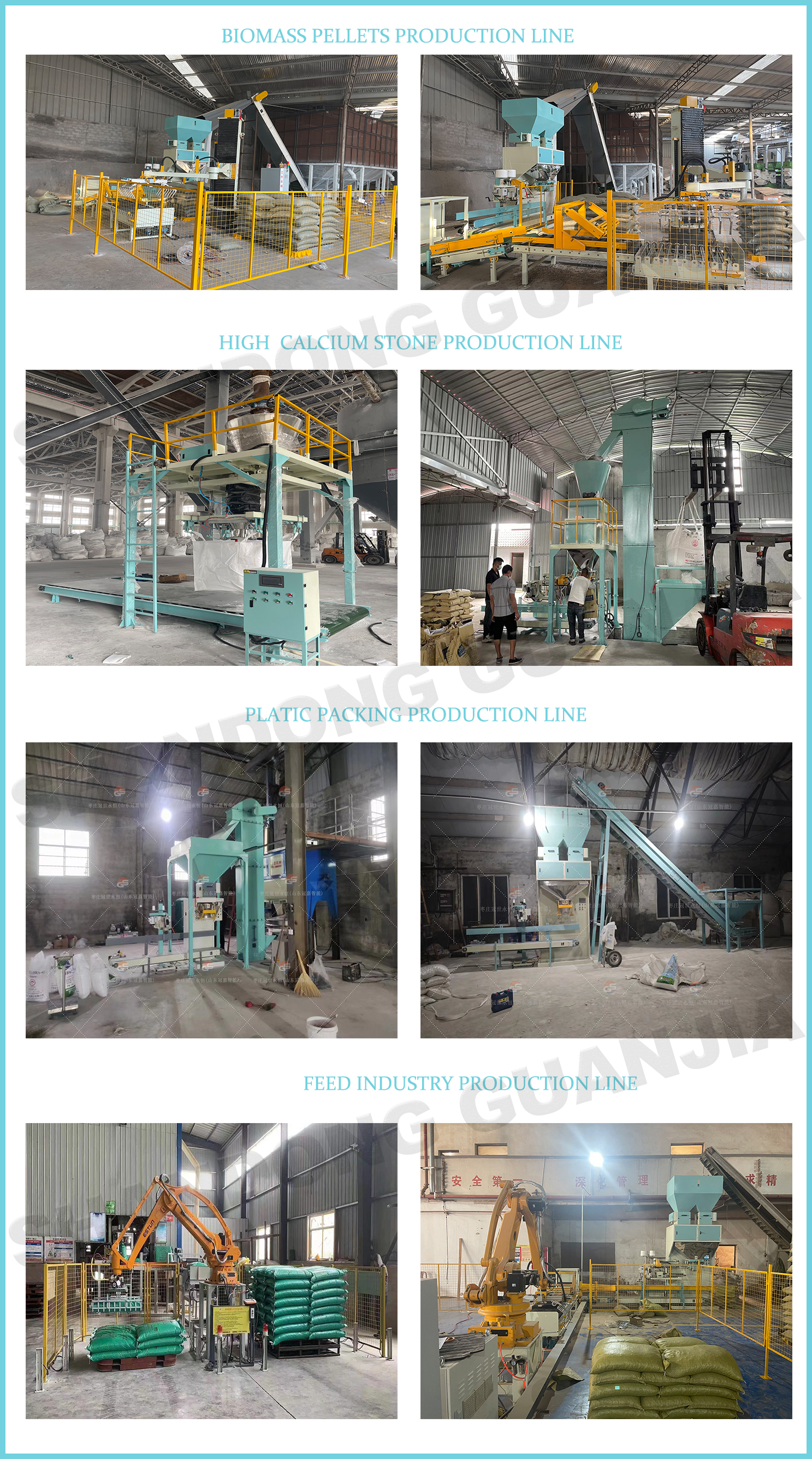

| Application Material | Food, Seasoning, Chemicals, Fertilizer, Powder Construction industry |
