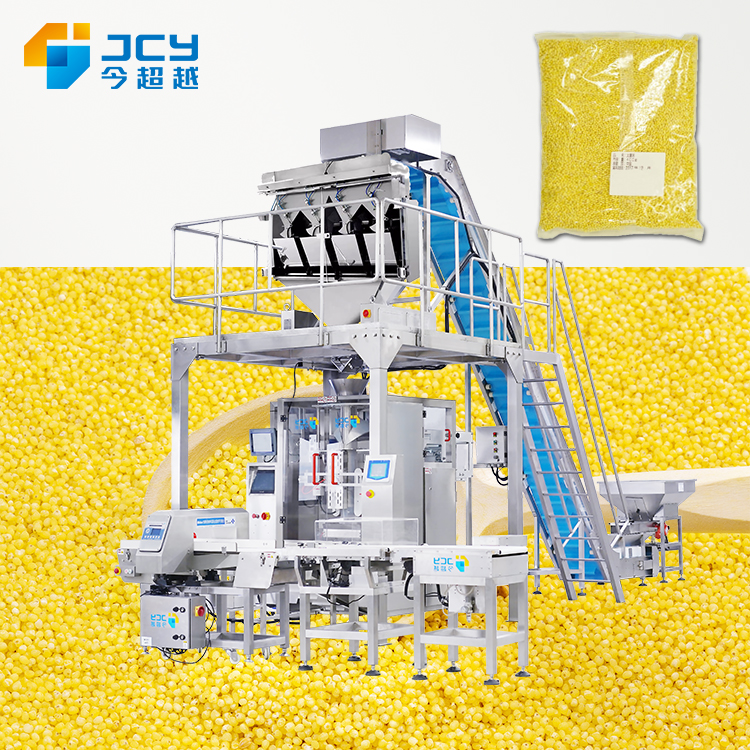

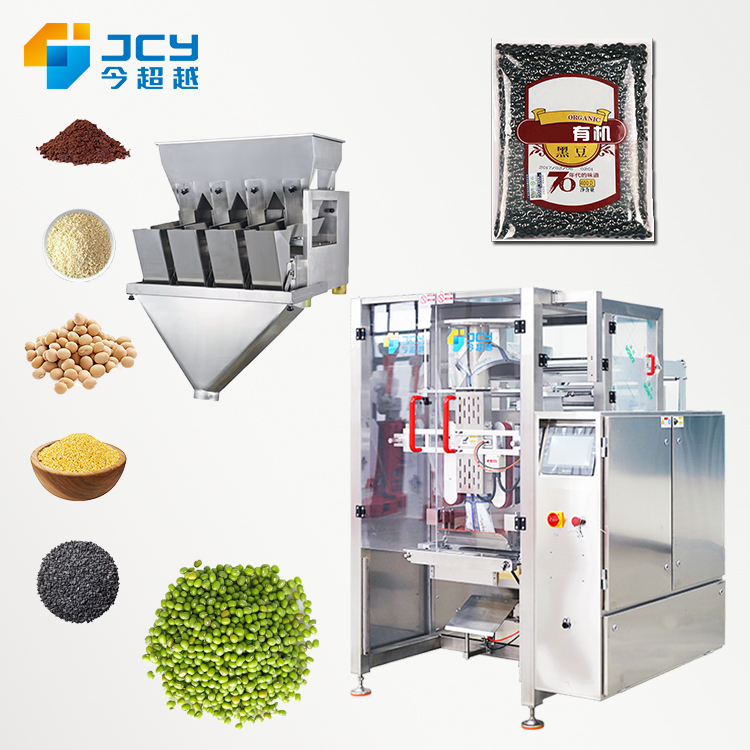

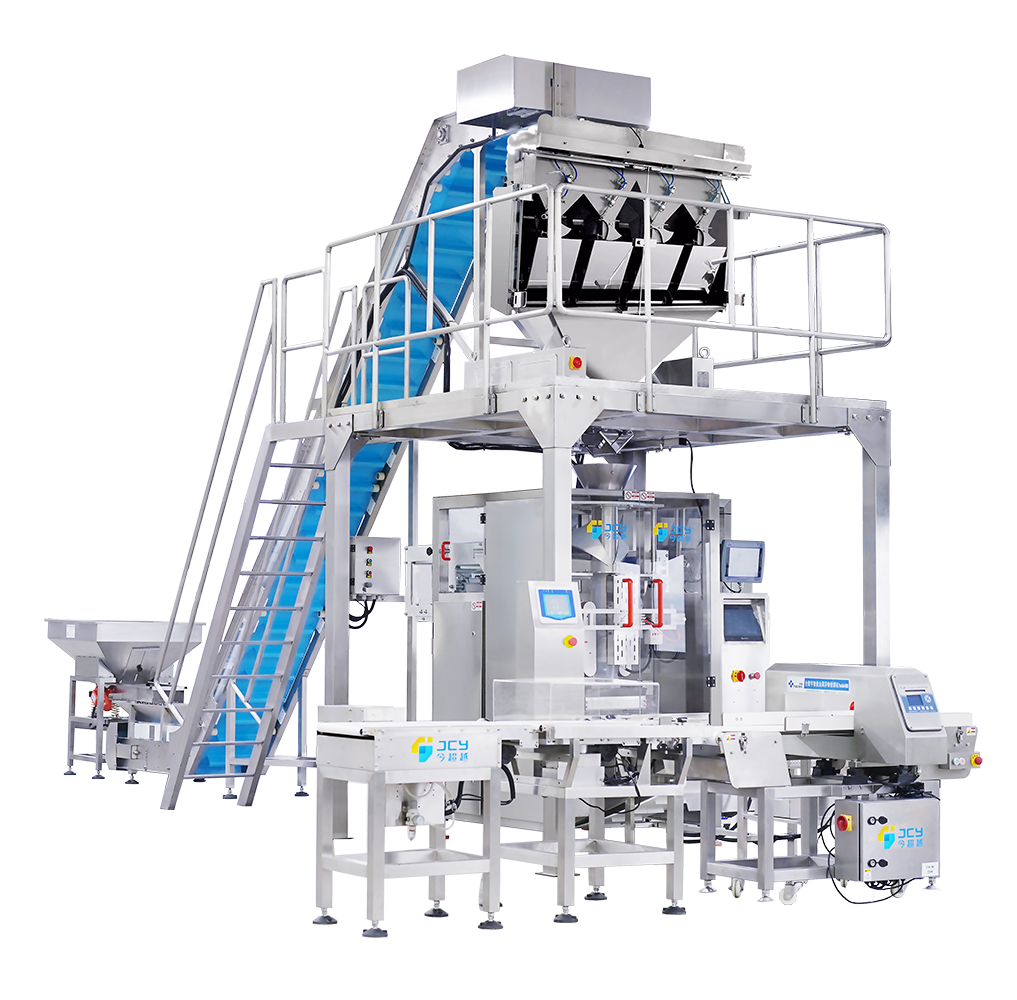

Linear scale vertical packaging machine is suitable for quantitative weighing of relatively uniform powdered and small granular materials such as sugar, salt, seeds, rice, sesame, monosodium glutamate, chicken essence, milk powder, coffee, seasoning powder, etc.
Features:
Brand-new high-precision modular control system.
Automatic amplitude adjustment function, more convenient debugging.
Can weigh a variety of different materials at the same time to achieve mixed material packaging.
Parameters can be modified directly during operation according to production conditions, easy to operate.
The stepless vibration feeding system is used to make the material more uniform and the weighing range larger.
Products Description
Product Parameters
Model
JCY-730
JCY-520
JCY-420
Packing Speed
20-70 Bags / Min
20-75 Bags / Min
20-75 Bags / Min
Filling Range
200 G - 2500 G
200 G - 1000 G
200 G - 500 G
Film Thickness
0.05-0.1MM
0.05-0.1MM
0.05-0.1MM
Max Width Of Packaging Film
730 MM
520 MM
420 MM
Air Consumption
0.5 M³ / Min
0.5 M³ / Min
0.5 M³ / Min
Power
5.5 KW
5.5 KW
3.5 KW
Power Supply
380V / 50-60HZ
380V / 50-60HZ
380V / 50-60HZ
Net Weight
850 KG
800 KG
750 KG
Overall Dimension (L*W*H)
1800*1440*1900 MM
1800*1220*1680 MM
1500*1035*1850 MM

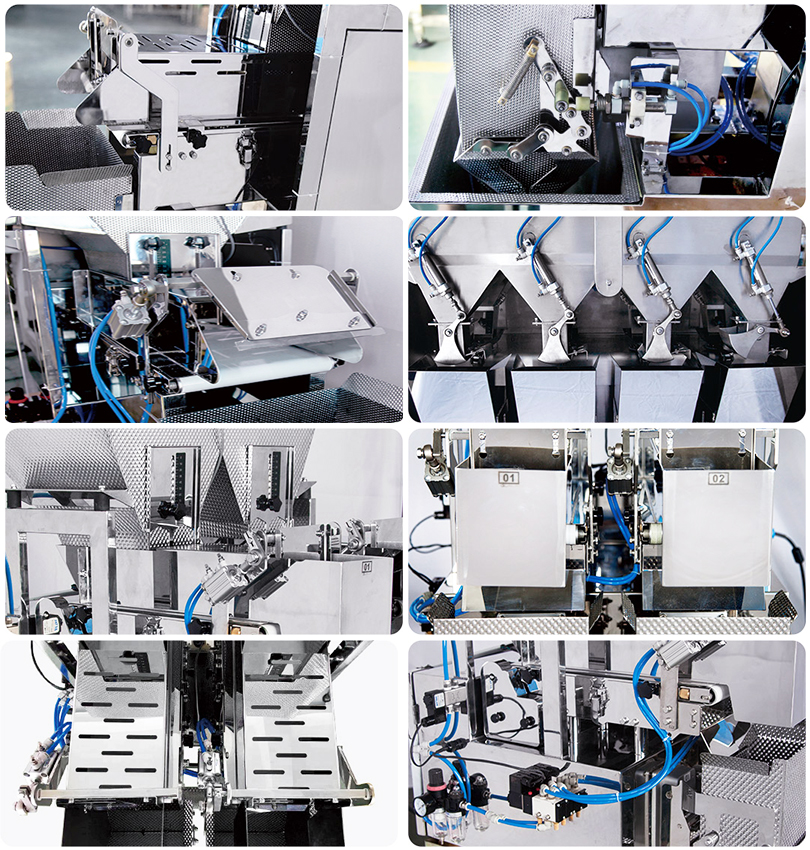

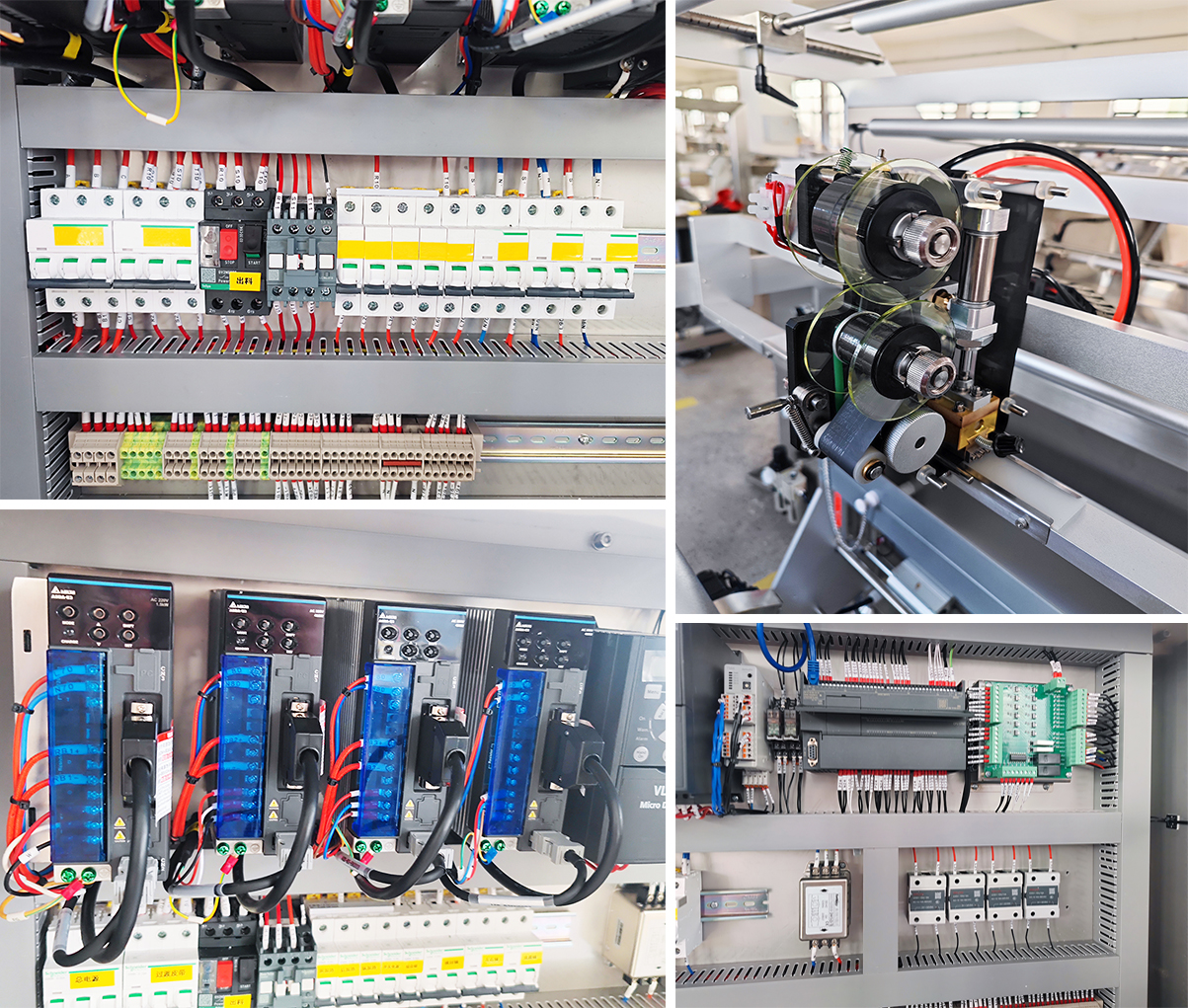

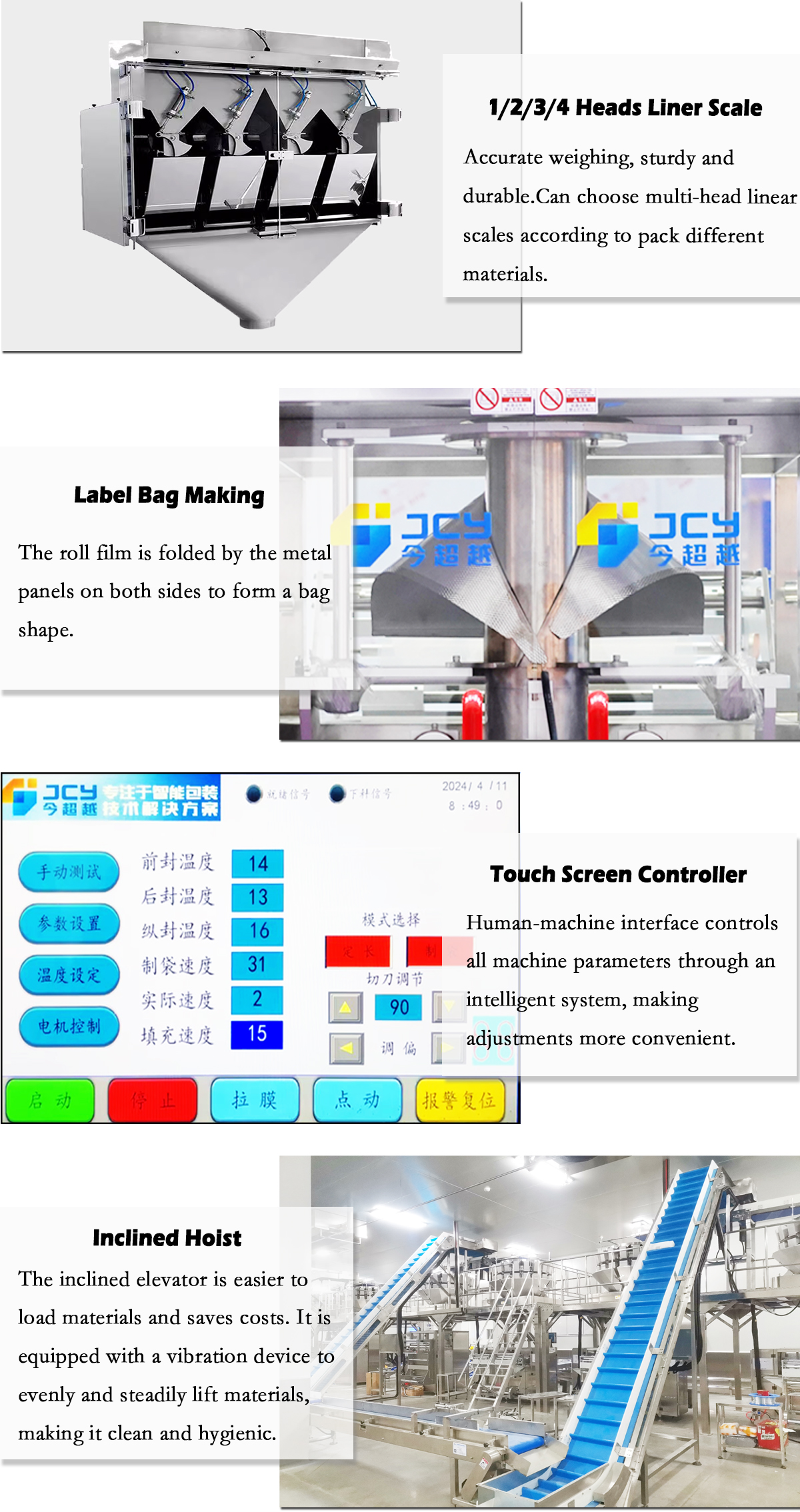

Details Images
Application Scope

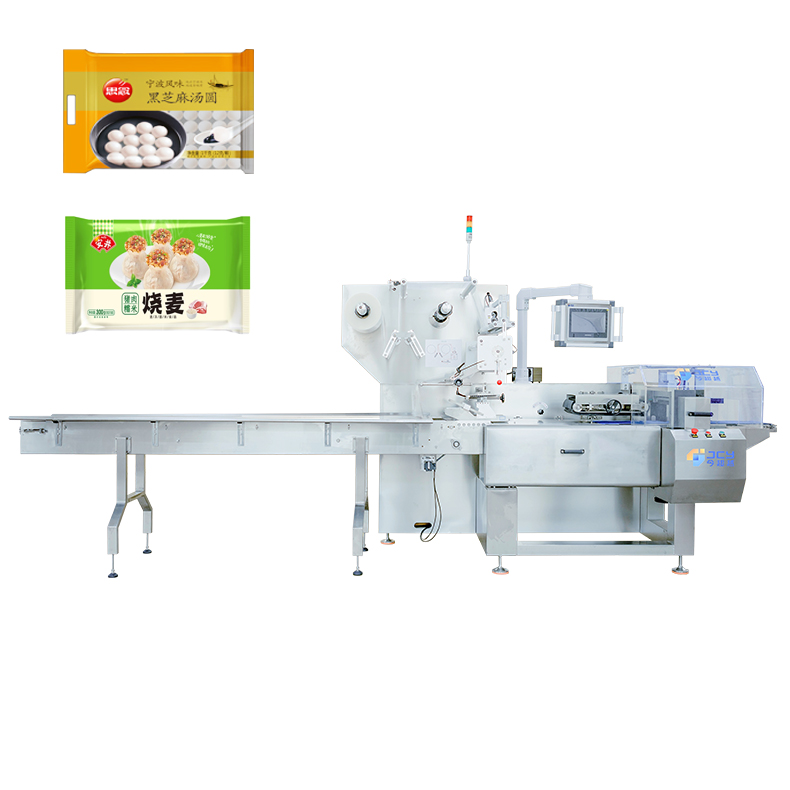

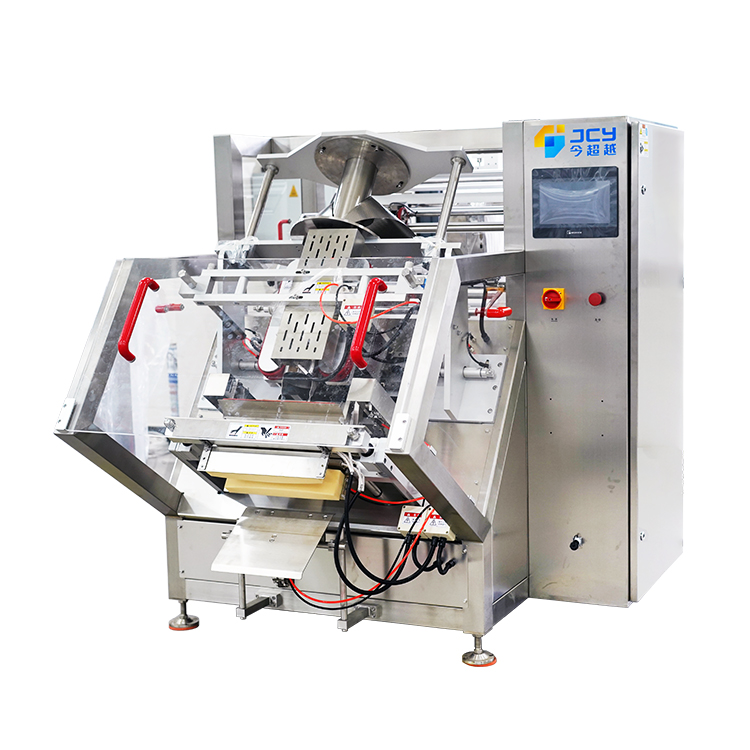

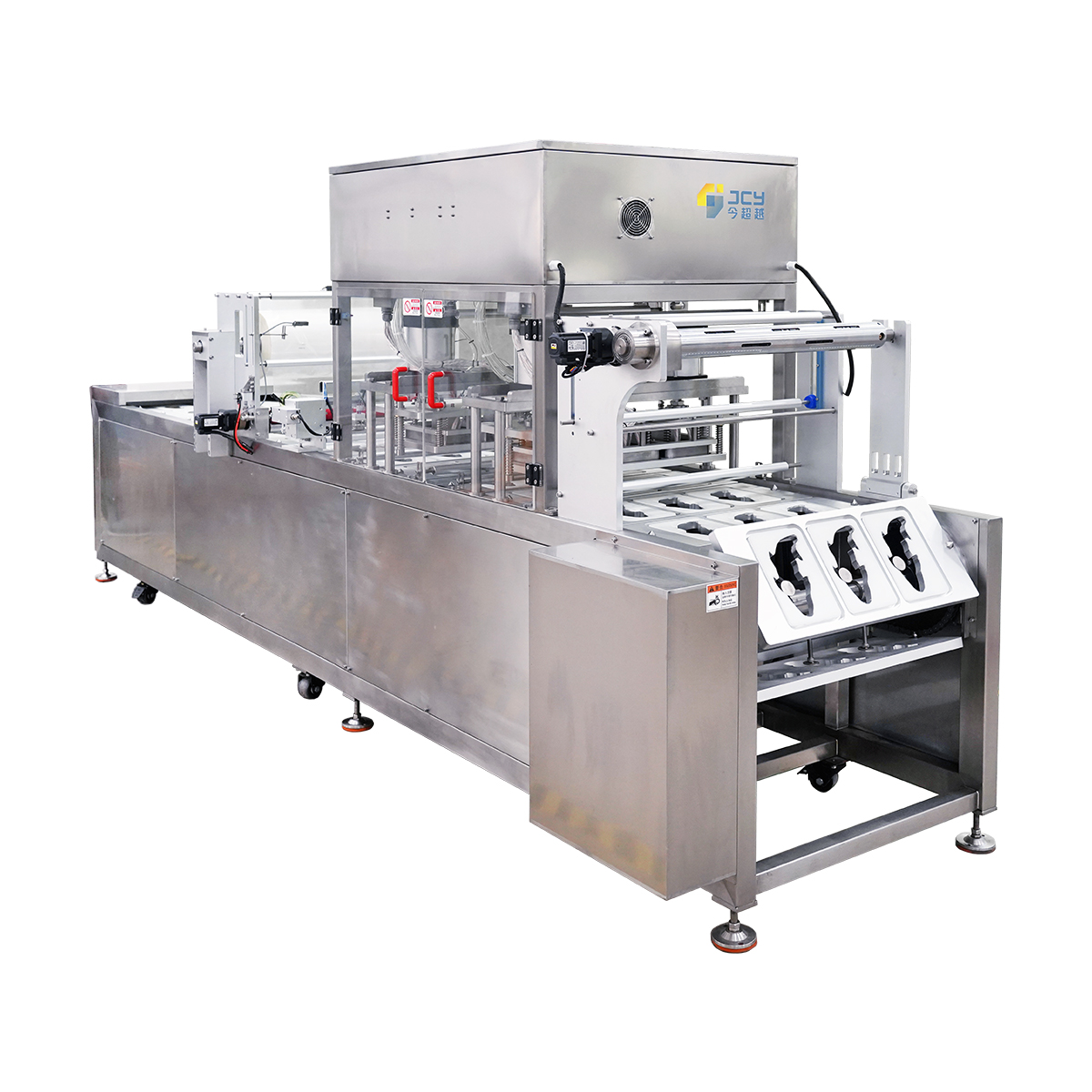

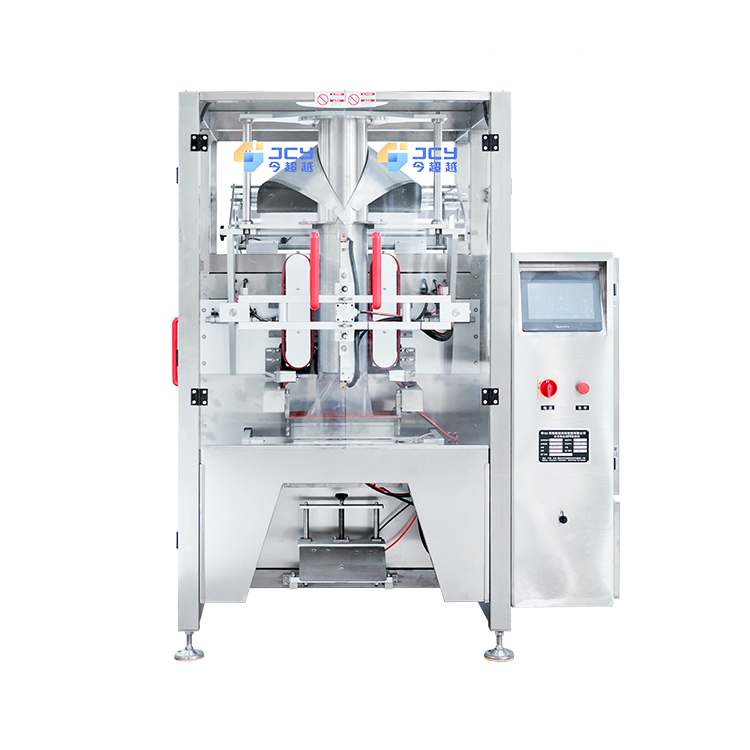

Related Products
Production Process

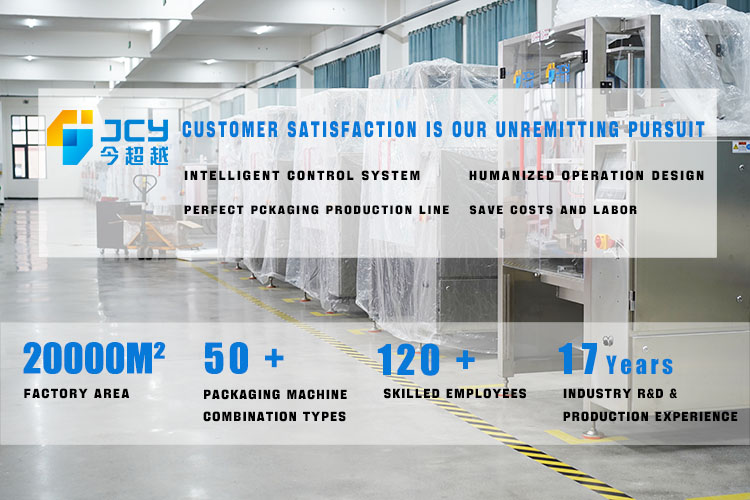

Company Profile
Certifications
Partners
Frequently Asked Questions
Q: Which materials is this vertical liner scale packaging machine suitable for?
A: It is ideal for quantitative weighing and packaging of relatively uniform powdered and small granular materials, such as sugar, salt, seeds, rice, sesame, monosodium glutamate, chicken essence, milk powder, coffee, and seasoning powder.
Q: Can I modify the packaging parameters while the machine is running?
A: Yes, parameters can be modified directly during operation according to actual production conditions. This feature makes it highly convenient and easy to operate without stopping production.
Q: Does this packaging machine support mixed material packaging?
A: Yes, the machine is designed to weigh a variety of different materials simultaneously, allowing you to achieve precise mixed material packaging.
Q: What is the advantage of the modular control system?
A: The brand-new high-precision modular control system ensures more stable performance, higher weighing accuracy, and much easier maintenance or upgrades.
Q: What is the film thickness and width limitation for JCY series?
A: The compatible packaging film thickness is 0.05-0.1MM. The maximum width of packaging film varies by model: 420 MM for JCY-420, 520 MM for JCY-520, and 730 MM for JCY-730.
Q: How does the automatic amplitude adjustment benefit the debugging process?
A: The automatic amplitude adjustment function automates the calibration process, ensuring a more uniform and consistent material feeding pattern, which makes debugging faster and simpler.
