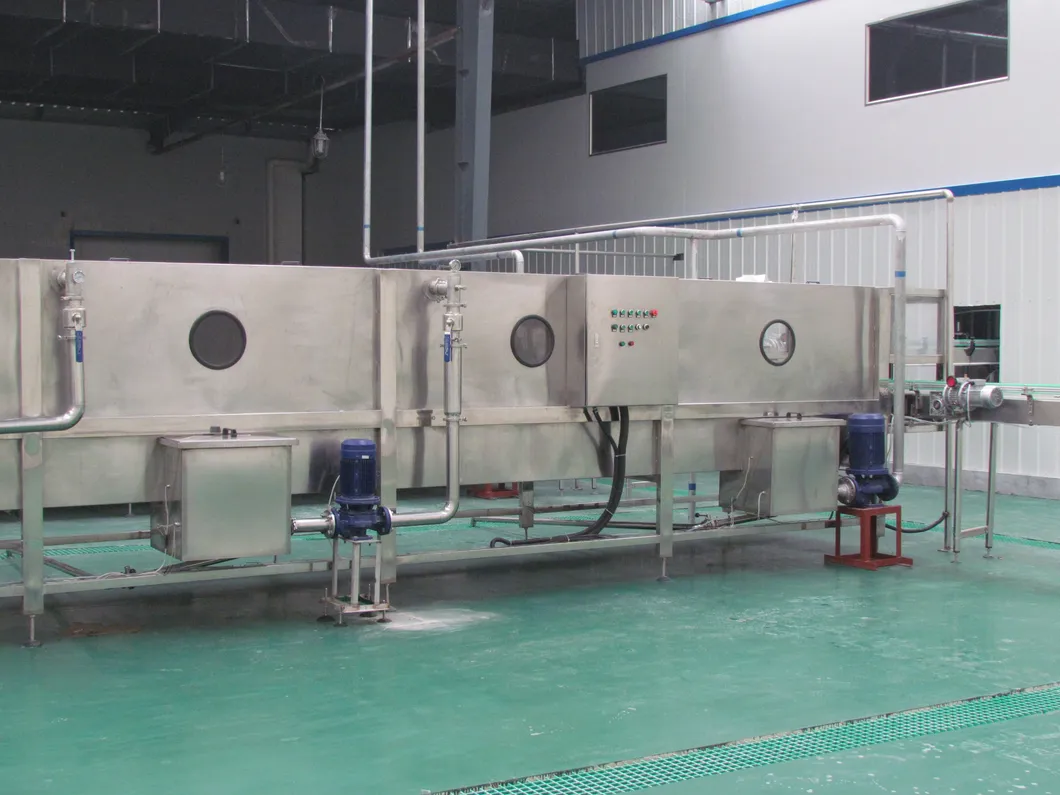

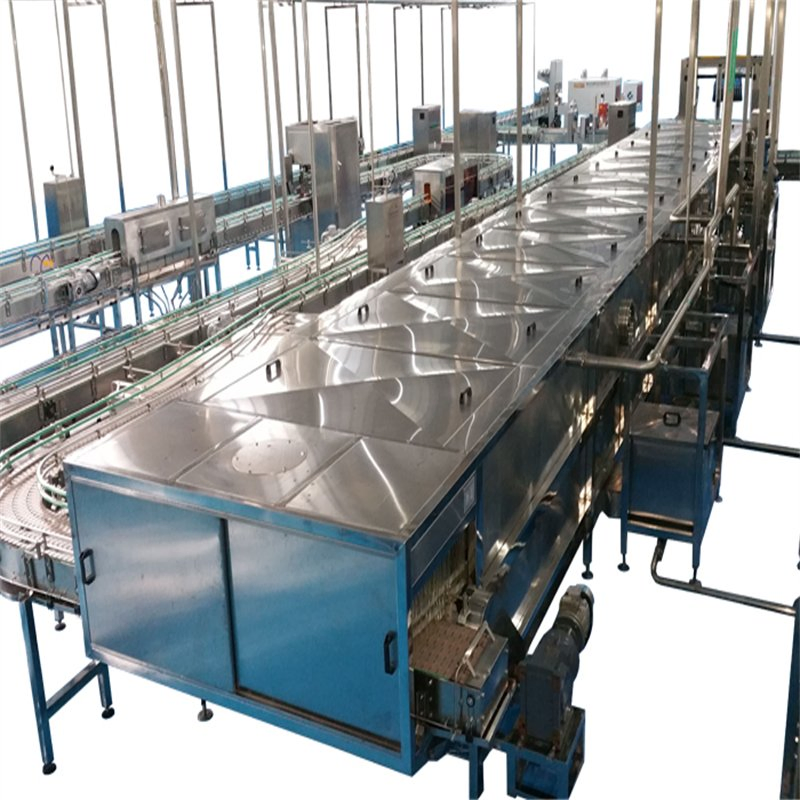

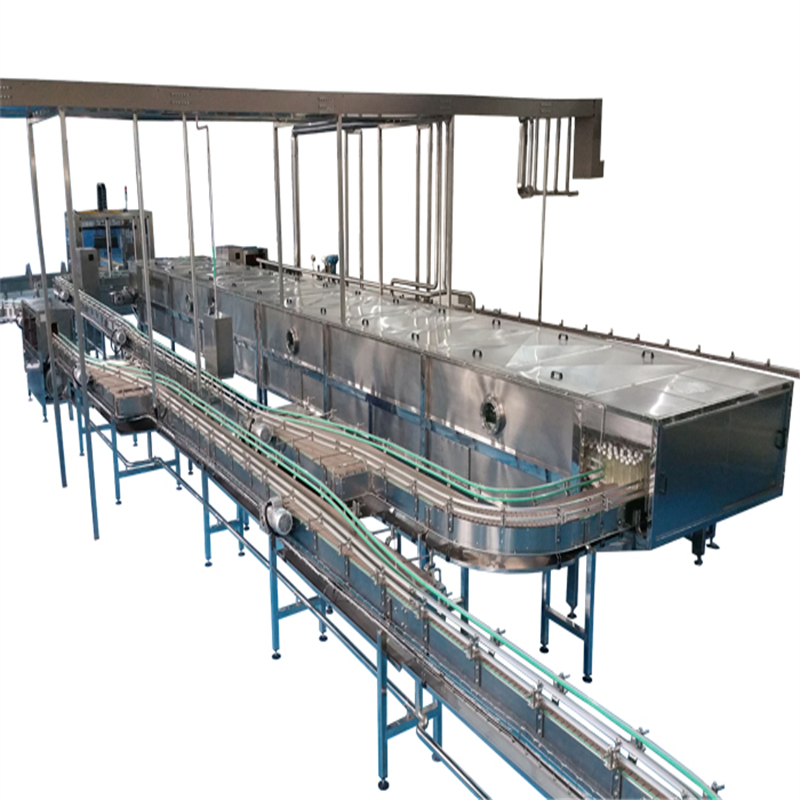

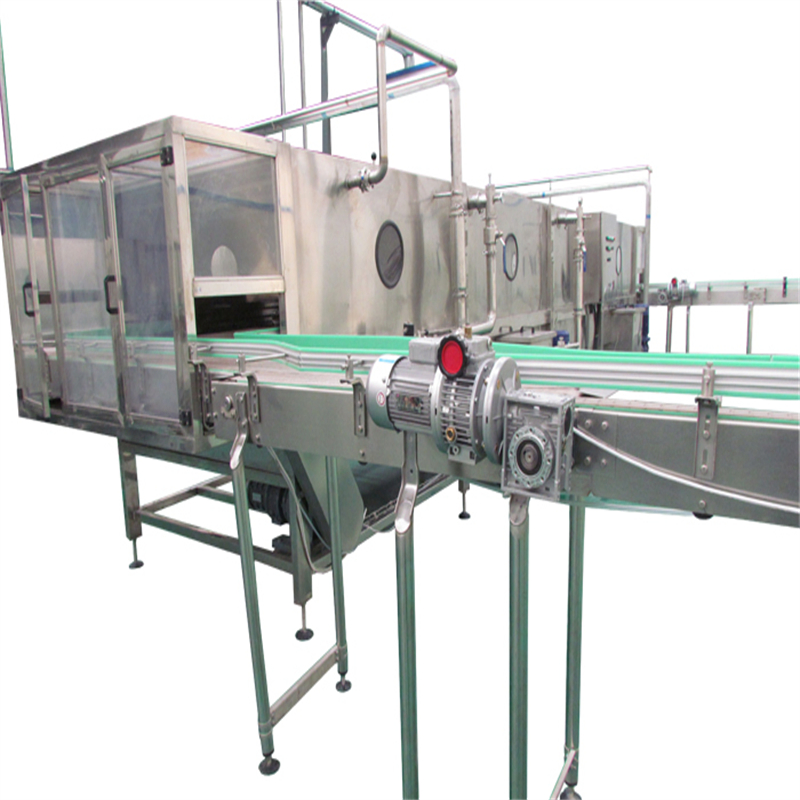

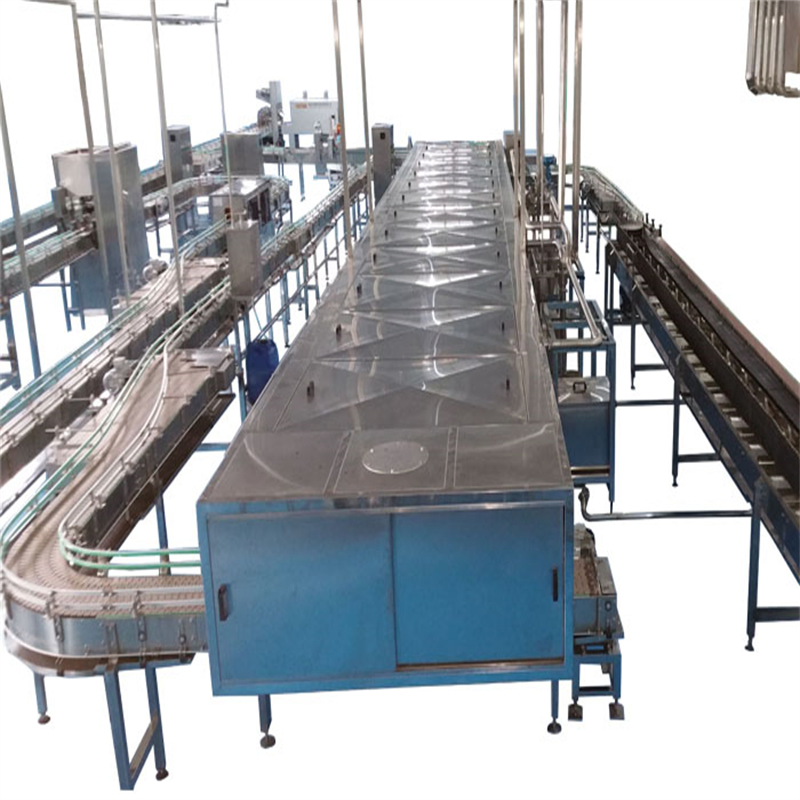

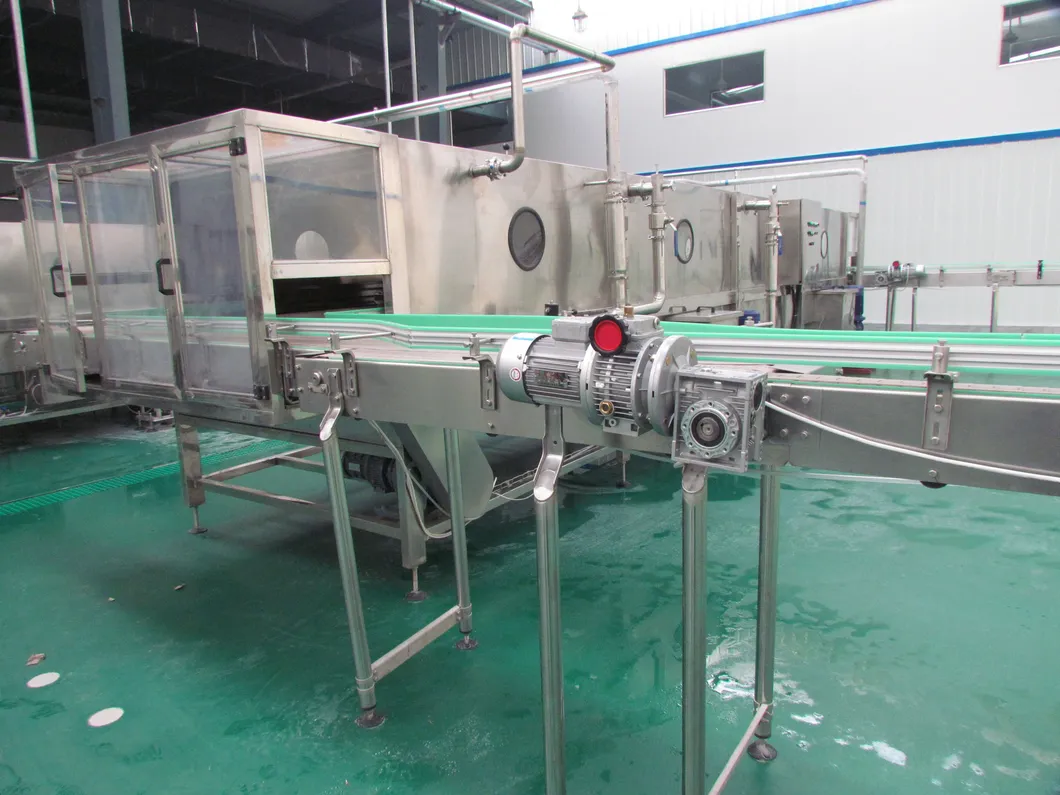

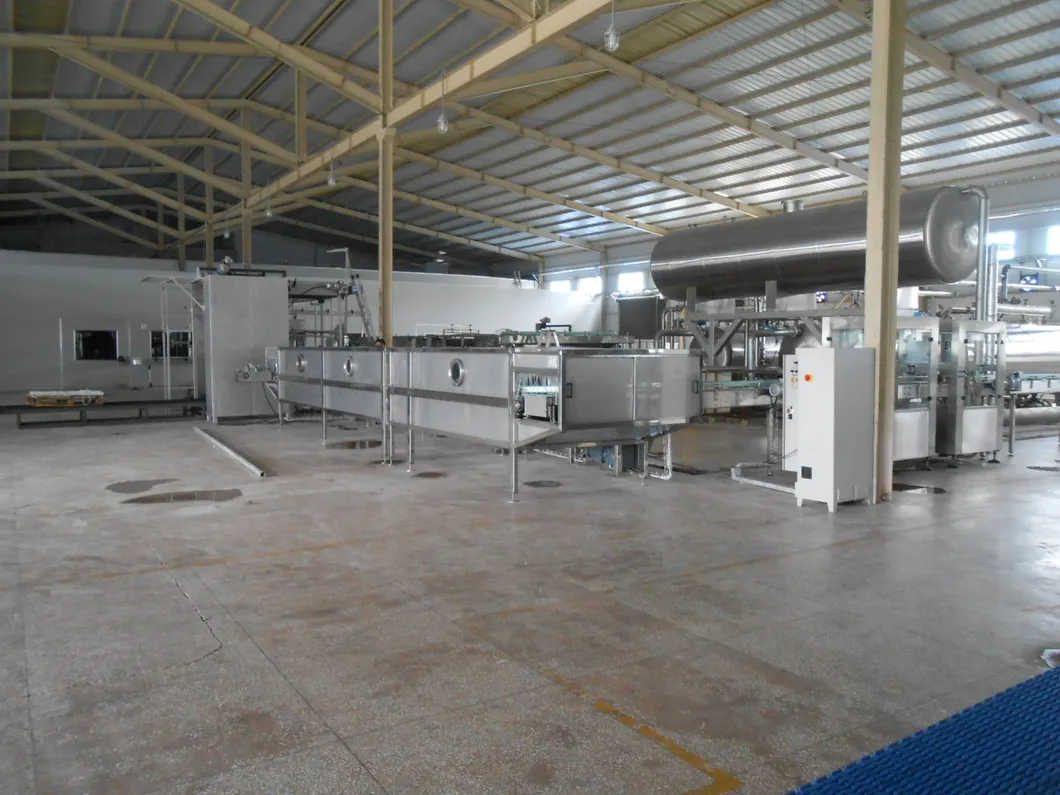

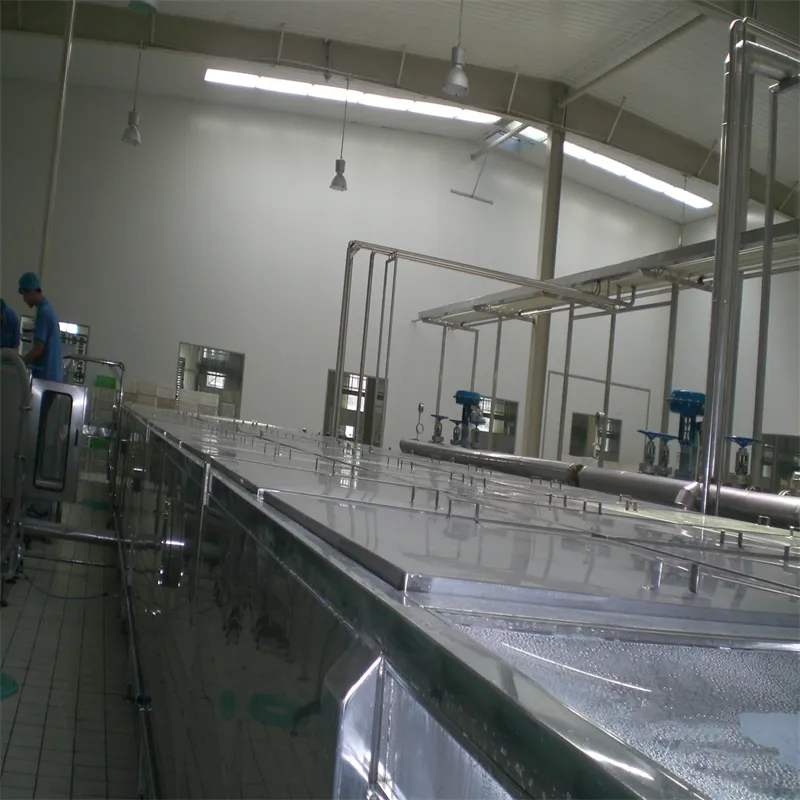

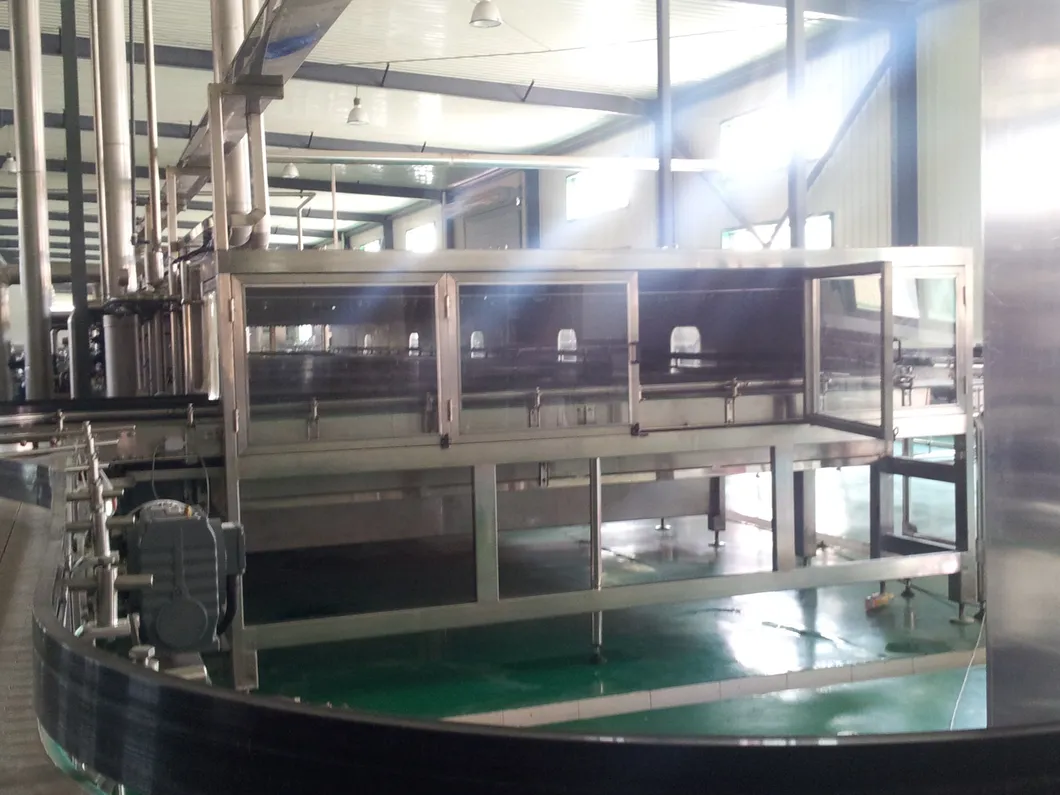

The pasteurizer mainly adopts SUS304 stainless steel material. Specific structure and features include:

• The machine width is 2000mm, the length is determined by capacity and processing demand, the height is determined by bottle's height. The inlet and outlet feature a seal design. Chain net and comb board are imported material with high intensity, offering temperature resistance up to 115 degrees without stretching during operation. The thickness of the chain net is δ24.6mm. The machine adopts a straight sectional cross supporting type to ensure chain net operating steady without wobble. Chain net height can be adjusted from 1000mm to 1100mm, and operation speed can be adjusted from 0 to 1000mm/min.
• Main frame utilizes 100X50X2 and 50X50X1.5 high-quality SUS304 stainless steel tube. The internal case material is high-quality SUS304 stainless steel plate with a thickness of 2mm. The upper cover is high-quality SUS304 stainless steel plate with a thickness of 1.5mm. The upper sprinkler adopts industrial stainless steel seamless pipe to prevent overpressure bursting.
• The spraying nozzles adopt SUS304 stainless steel with a 3mm spraying hole diameter to prevent blocking. They provide acid, alkali, and high-temperature resistance. Sprinkler heads are evenly distributed to ensure bottles make even contact with water.

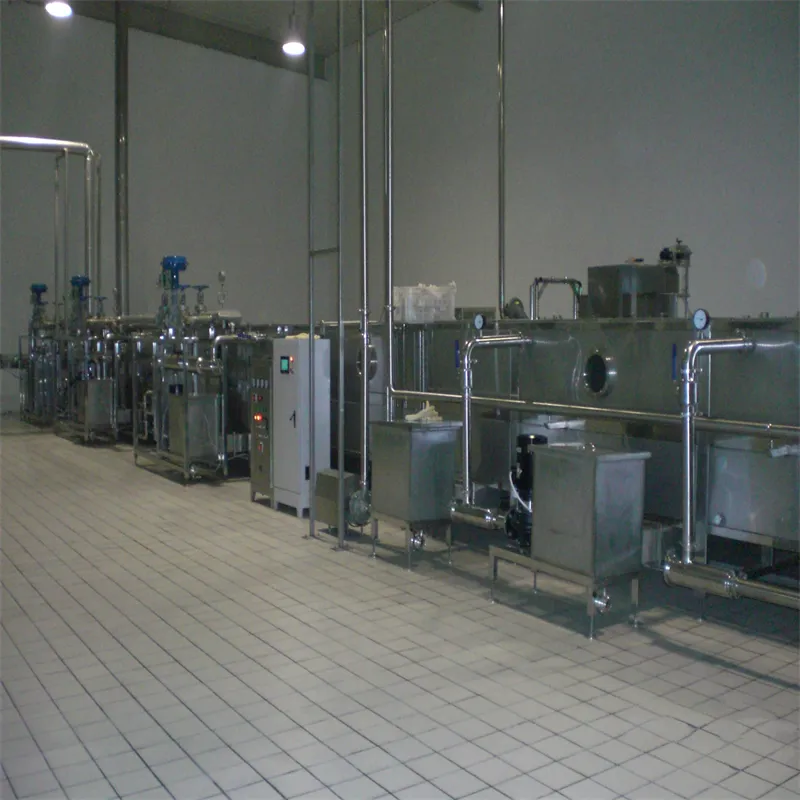

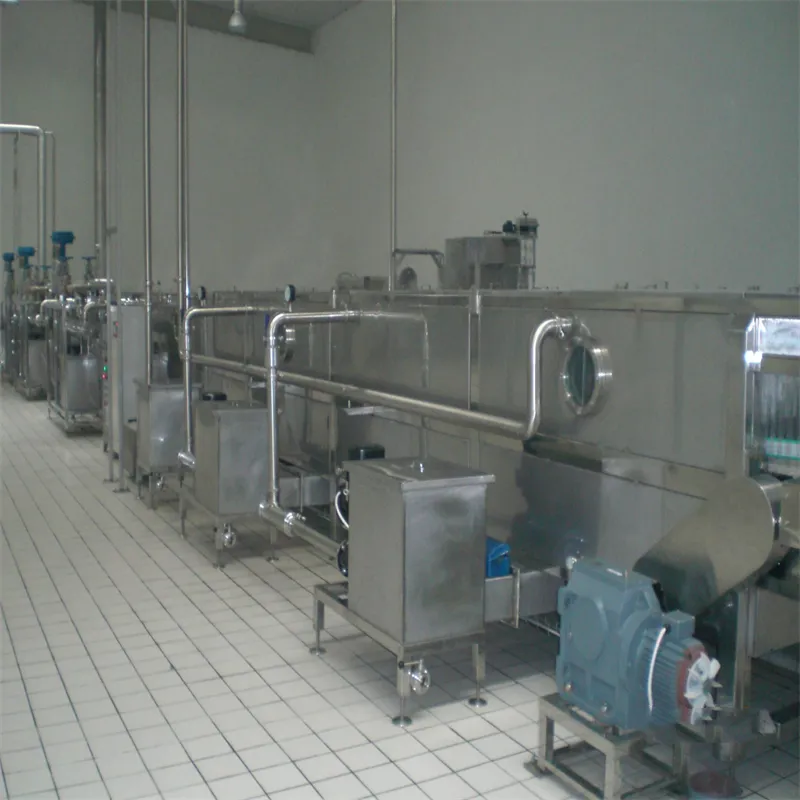

• Pump inlet is linked with the sump tank outside the pasteurizer (sump tank adopts square stainless steel flange linked downside of the pasteurizer by screw), featuring two-stage filter nets before sump tank water enters the pump.
• The whole machine consists of a heat reservation zone and a cooling zone. A straight spraying type for heating is adopted.
• Fitted with an operation box showing real-time spraying temperature, chain net operation speed, and motor reducer operation frequency on the touch screen panel for easy operation.
• Fitted with cleaning manholes and overflow ports to facilitate cleaning and discharging residuals. The equipment also features a main manual water supply port and an automatic auxiliary water supply port.

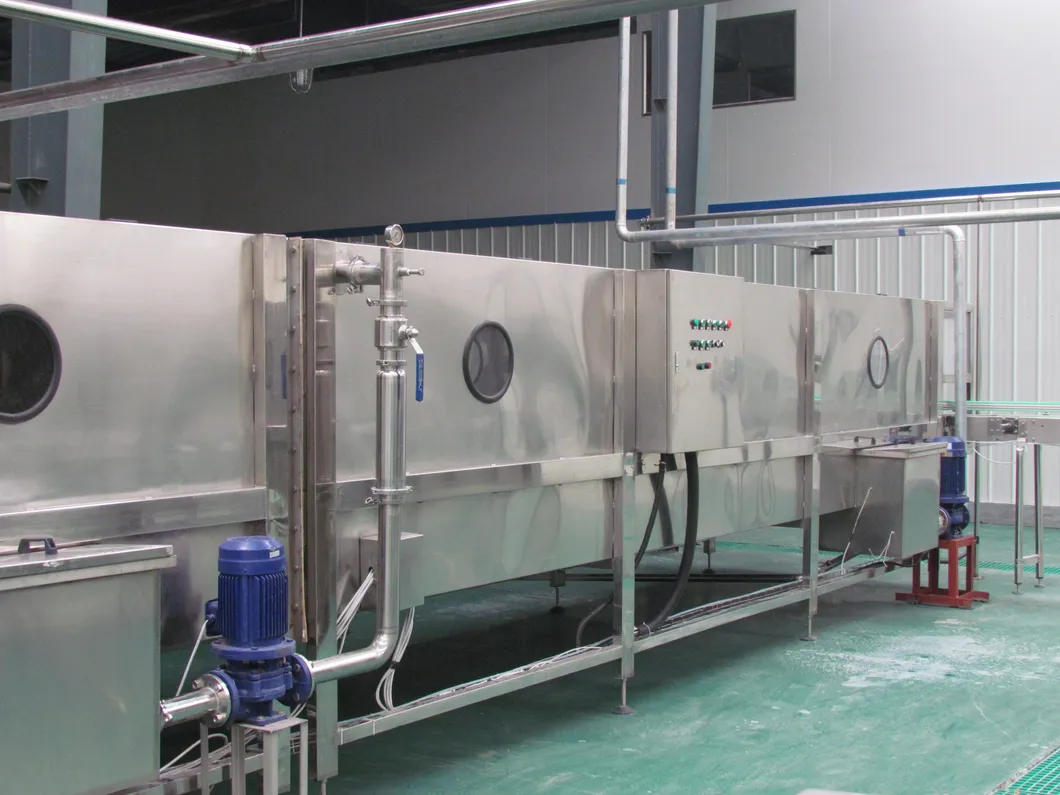

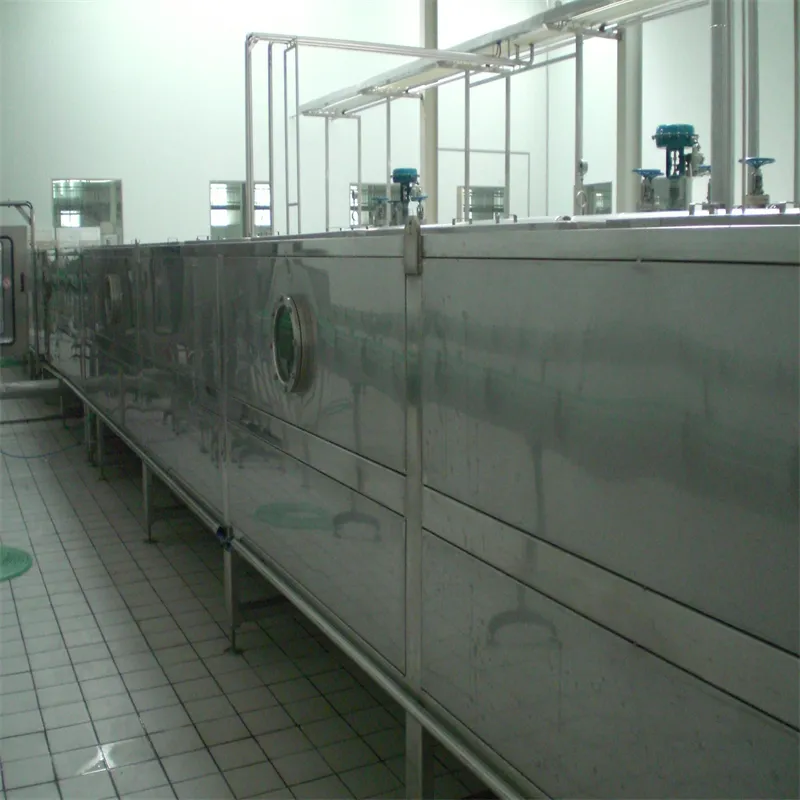

• Equipped with a glass window to observe operation status and a float level meter to automatically detect the liquid level.

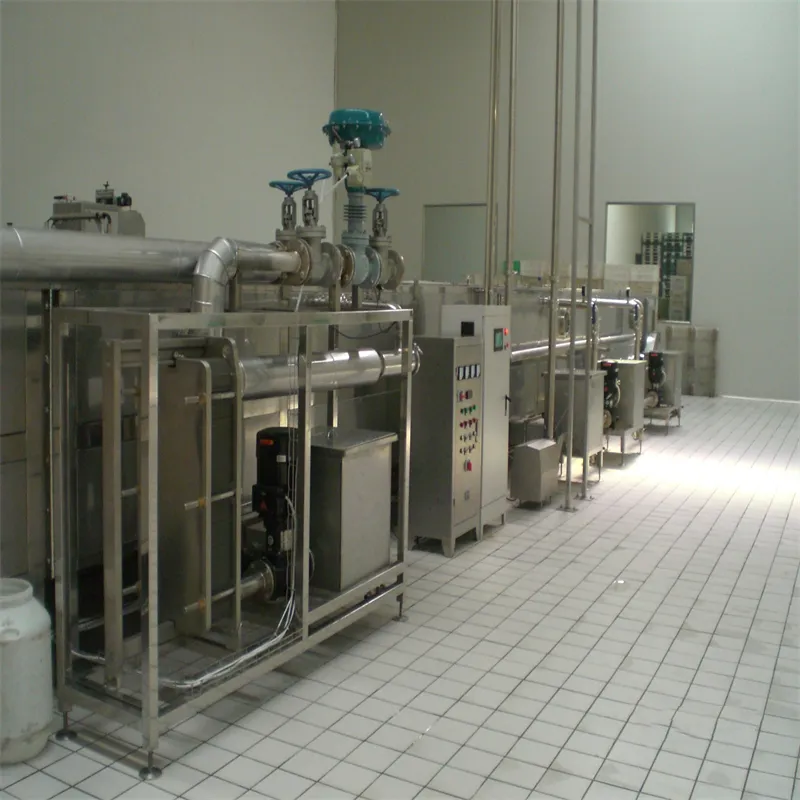

• Spraying sterilizer distributes spraying pipes and steam pipes with standard steam configuration. Pipes include filter, pressure reducer, diaphragm proportional control valve, and steam by-pass.
