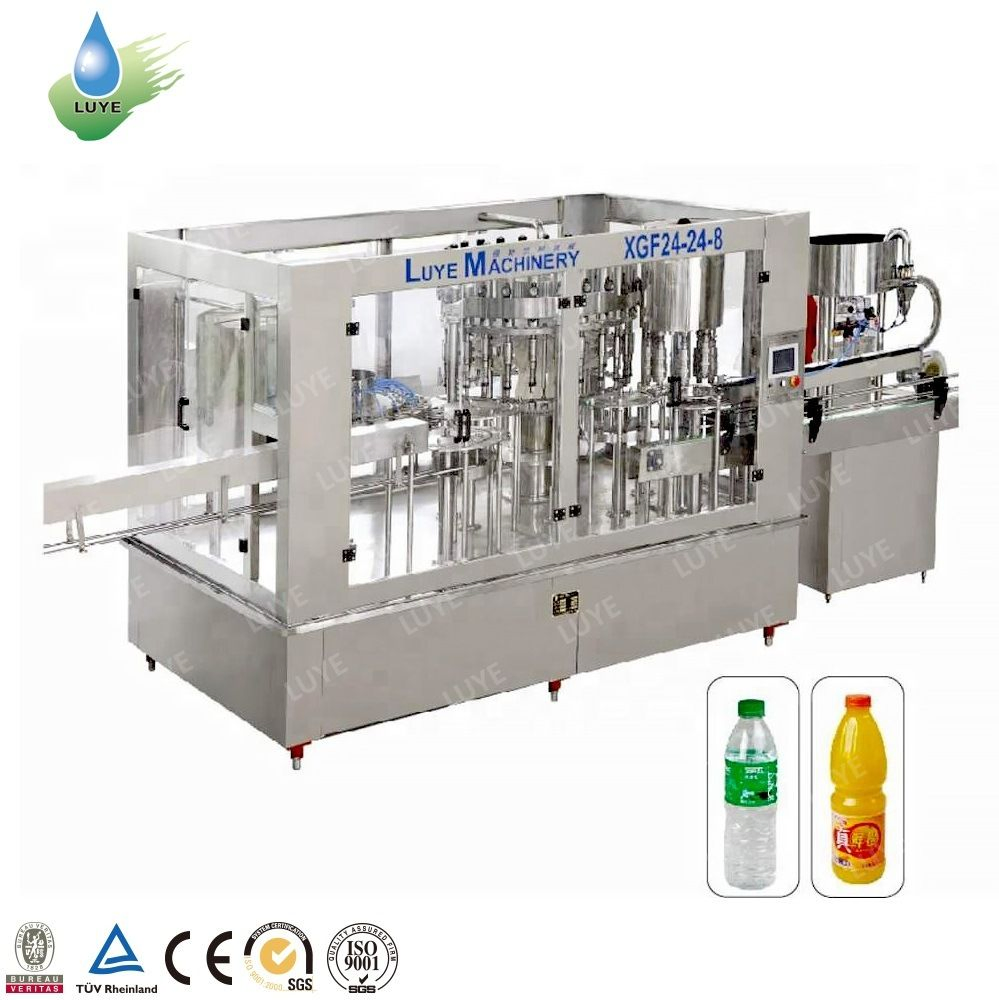

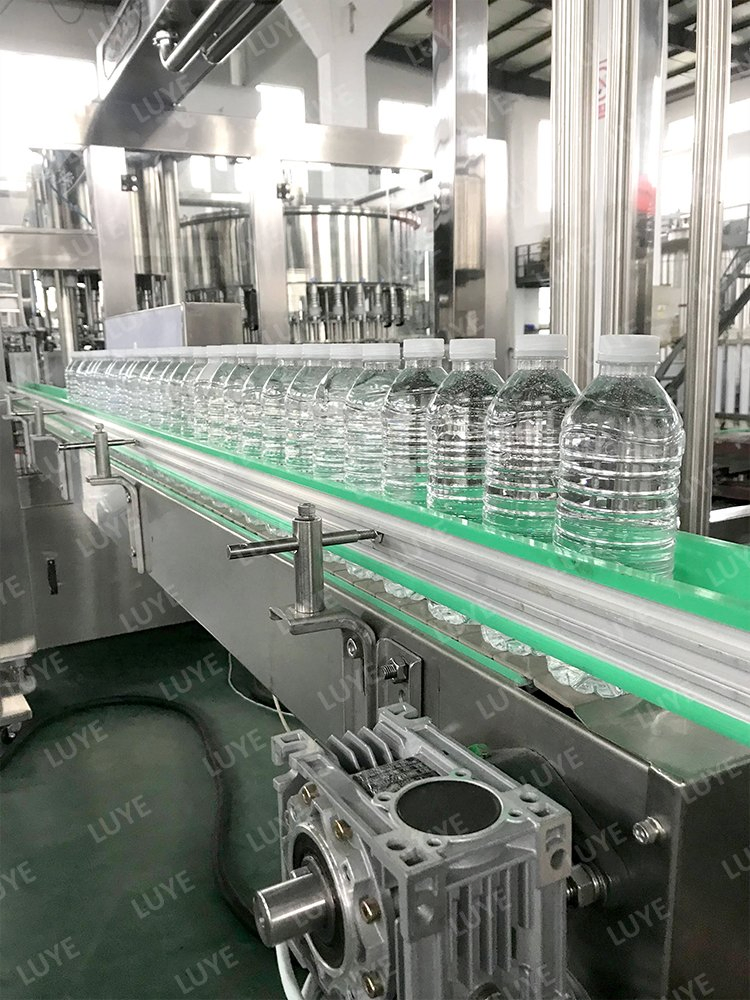

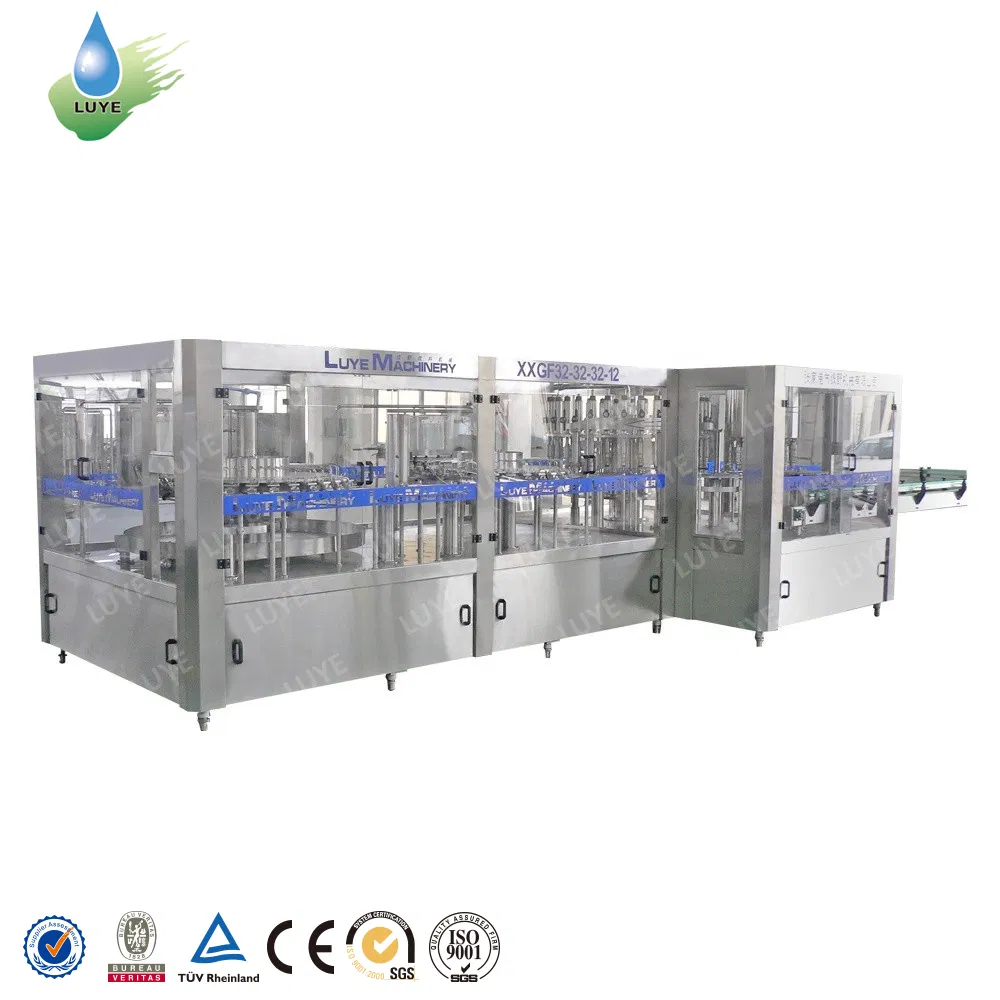

This automatic rinsing, filling and capping machine is applicable for quantitative filling and capping of drinking water, mineral water, and pure water. It features disinfectant rinse and aseptic water rinsing functions. The system automatically manages liquid filling tank levels and inlet materials. Bottles are fed via air conveyor or screw conveyer. The machine is designed to automatically rinse, open valves, and feed caps, with a built-in safety sensor to prevent operation if no bottles are present.
| APPLICATION FOR BOTTLE | Round or square bottle; Volume 200 - 2000ml; Diameter: Φ50~120mm; Height: 160~320mm; Mouth Diameter: Φ25~38mm |
| CAPACITY PER HOUR | 2000~24000BPH |
| GUARANTEE | Free warranty since 12 months after installation & commissioning, or 15 months after delivery date |
| AFTER SERVICE | Life-long maintenance |

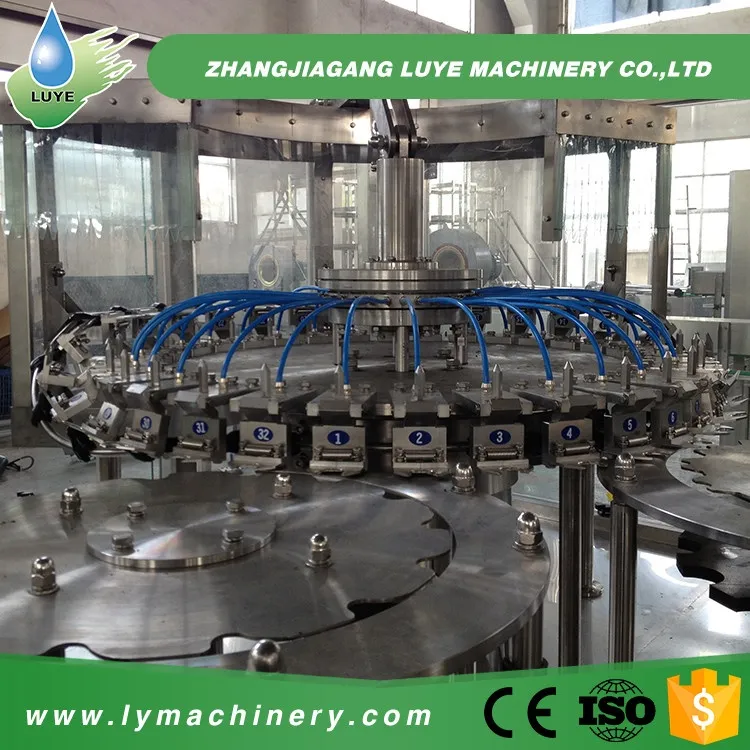

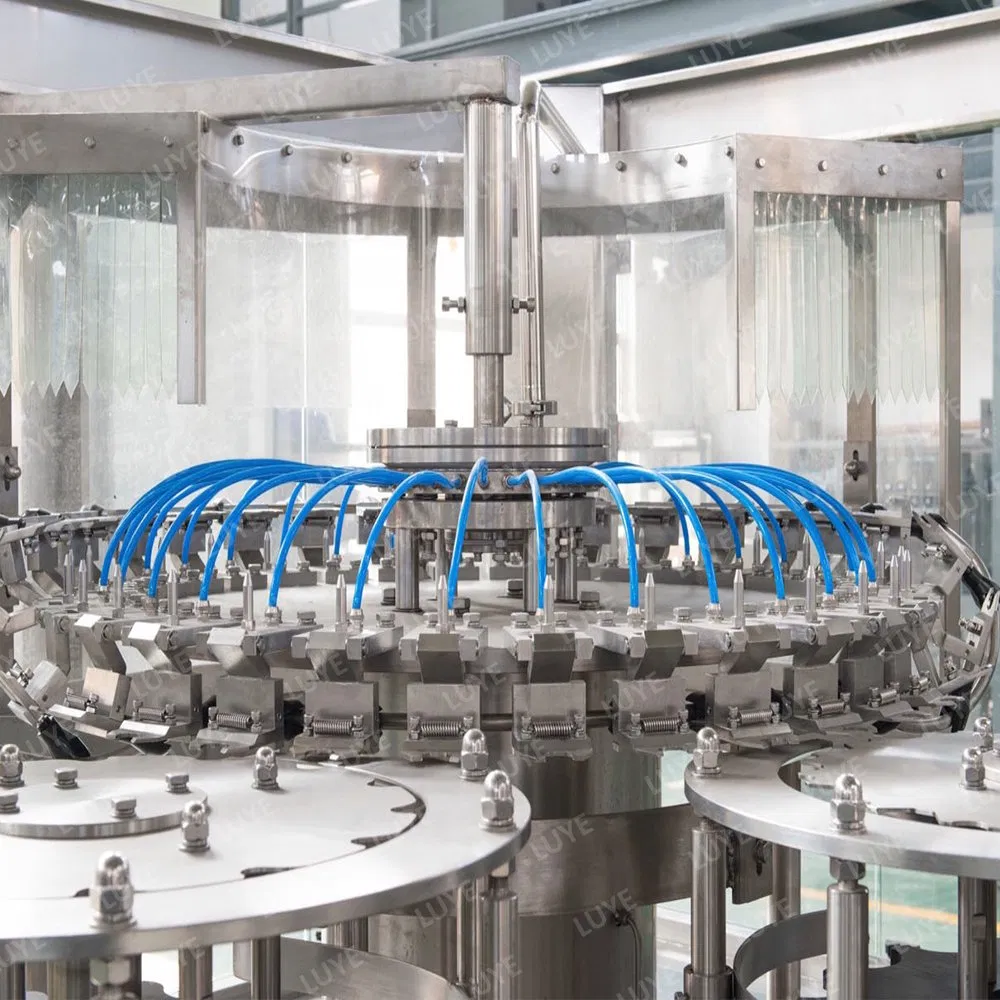

Composed of bottle washing clamps, rotary plate, and water distributing device. Clamps grip the bottle neck and overturn 180° for thorough internal cleaning and drying before returning to the upright position.

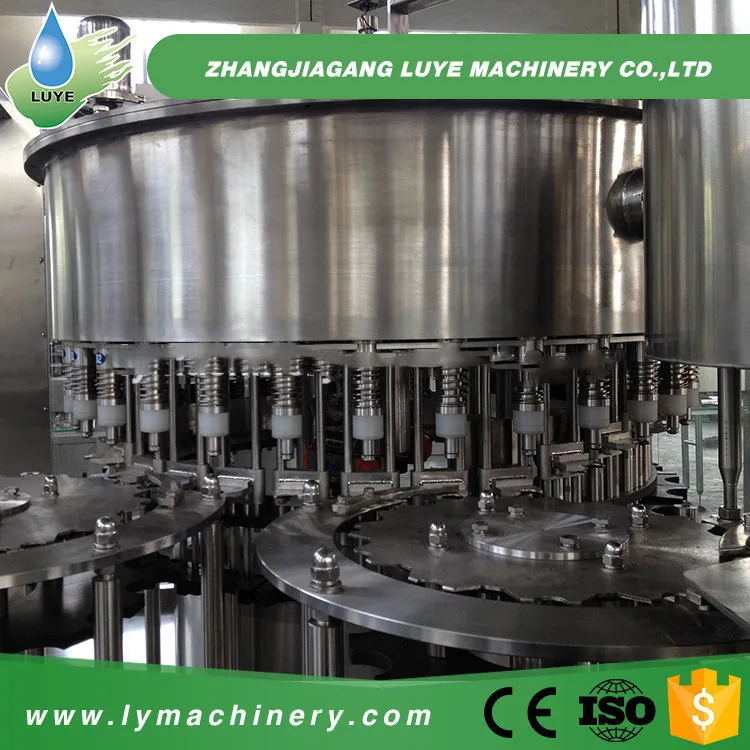

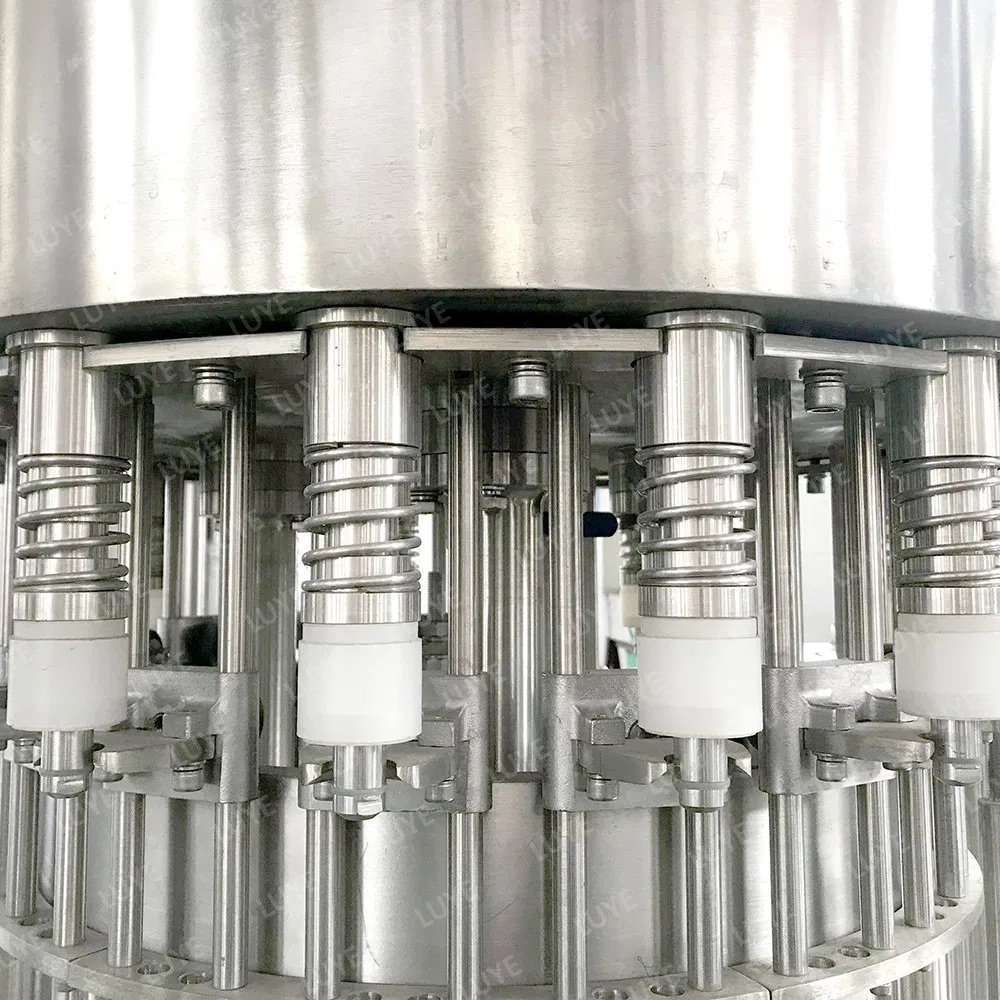

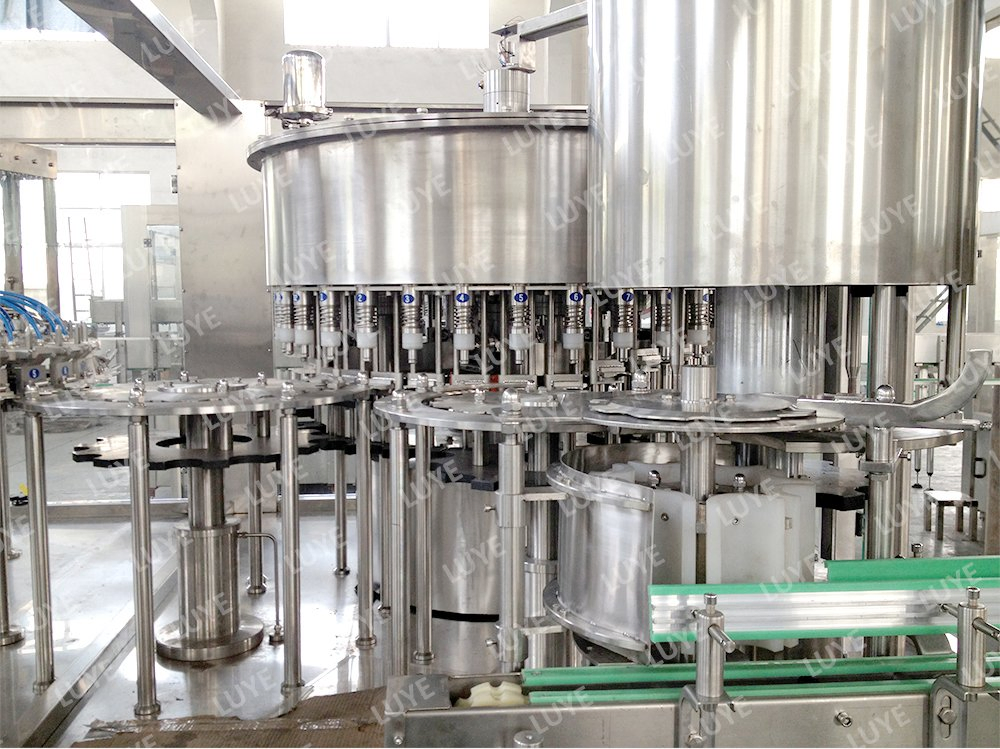

Utilizes a bottling barrel and high-precision valves. Bottles ascend along guide rails to open the filling valves. Once filling is complete, the valves close automatically as bottles descend.

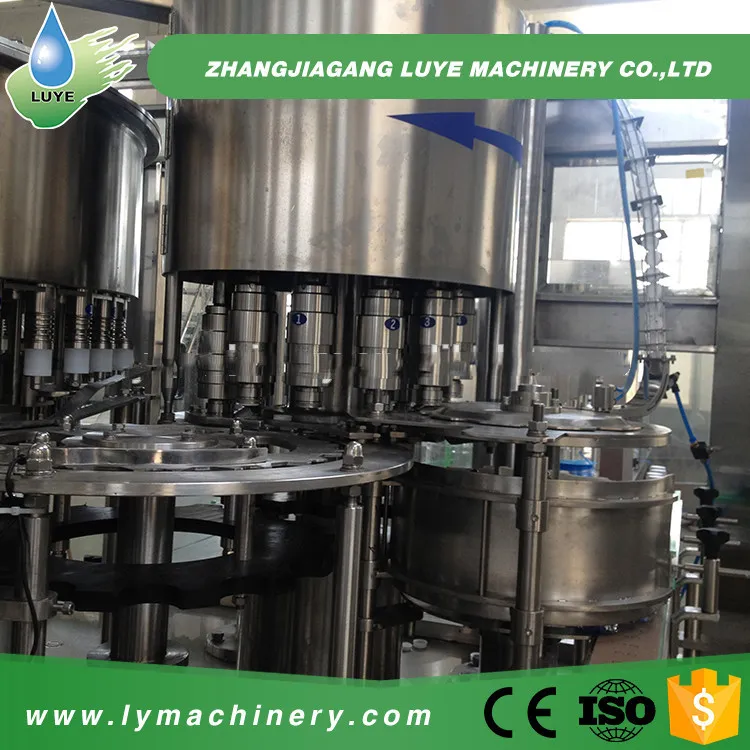

Features a harmonious cap arranging and separating mechanism. Capping heads apply constant torque to tighten caps securely onto bottle mouths via a precision cam system.

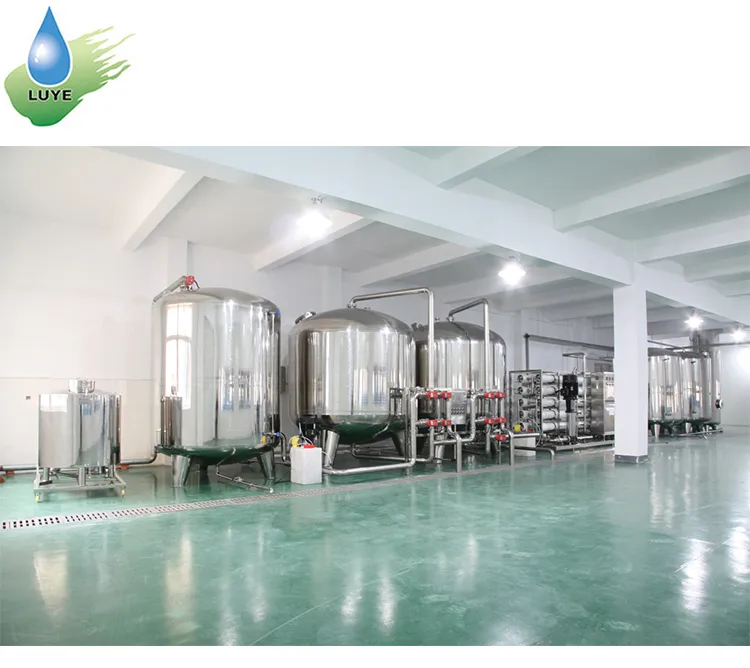

RO Water Treatment System

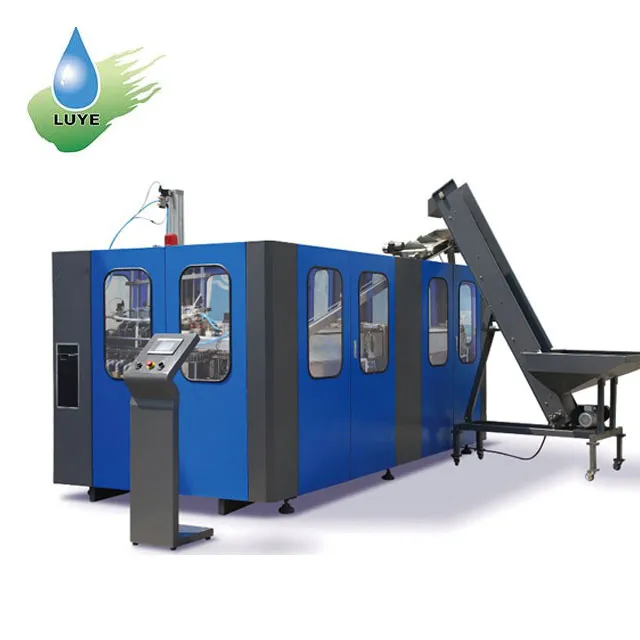

Bottle Blowing Machine

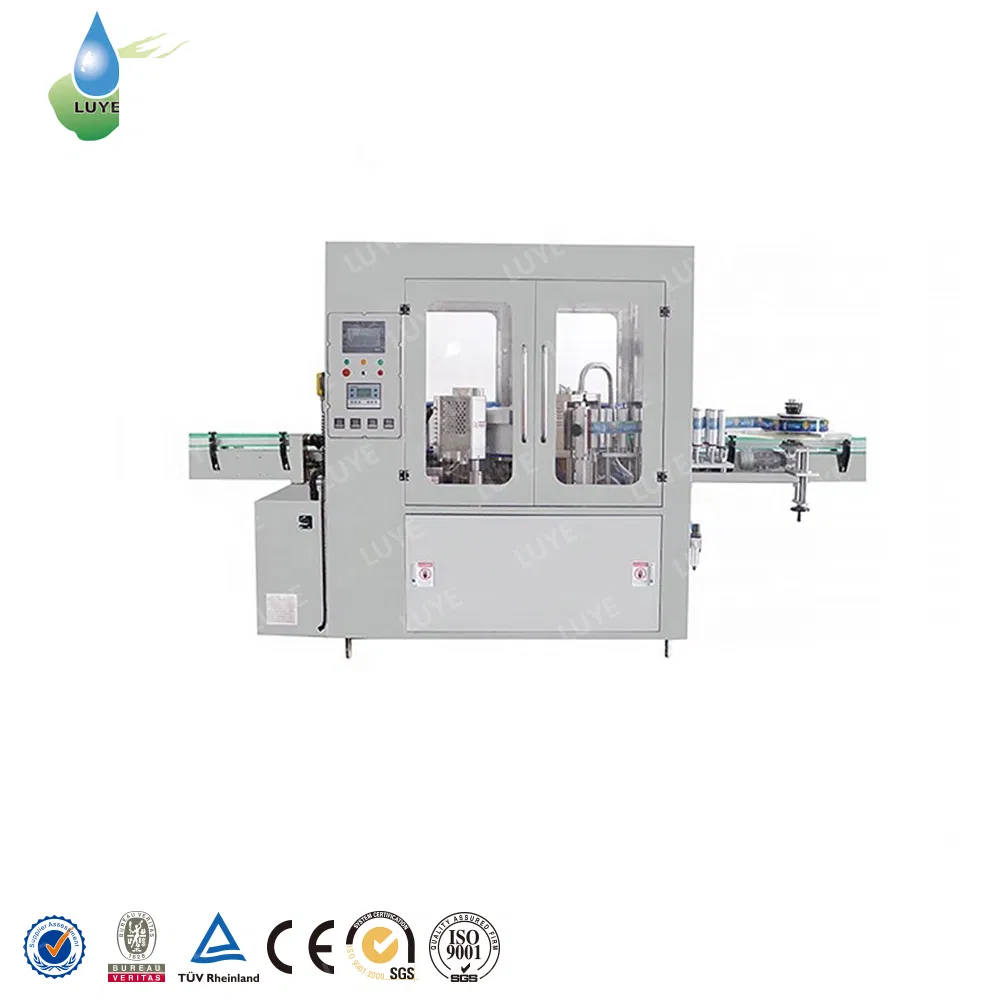

Labeling Machine

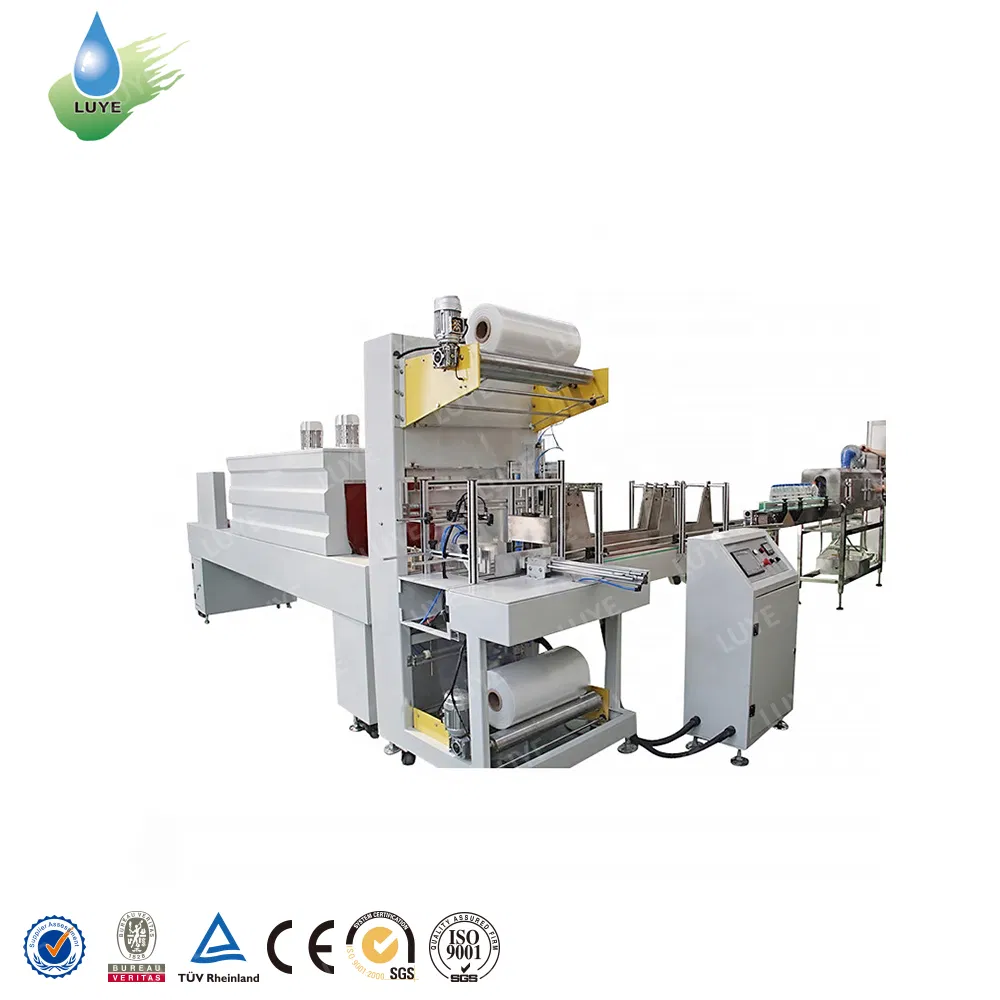

PE Film Shrink Wrapping Machine
