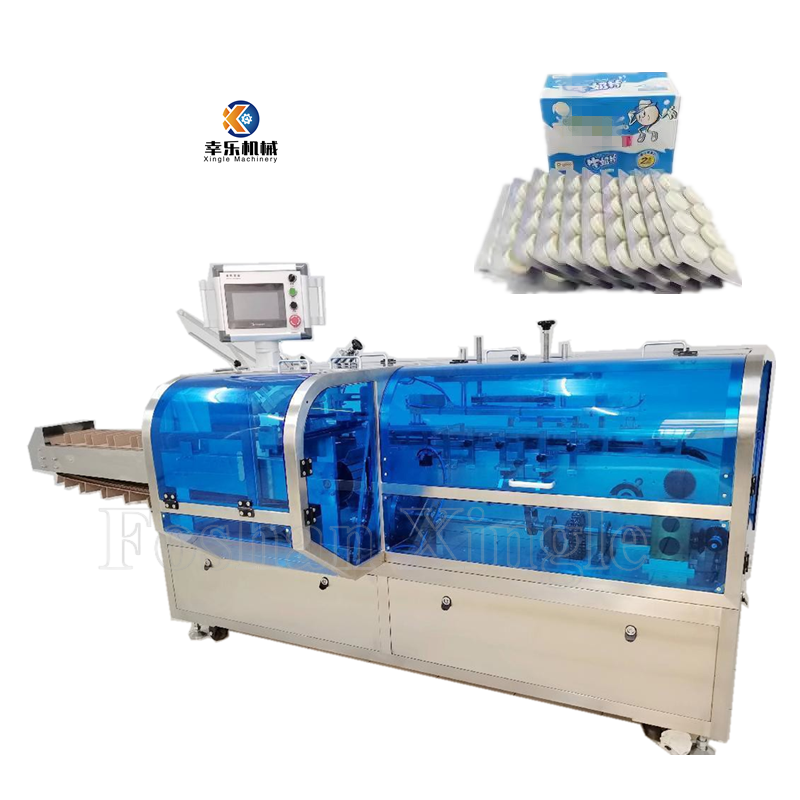

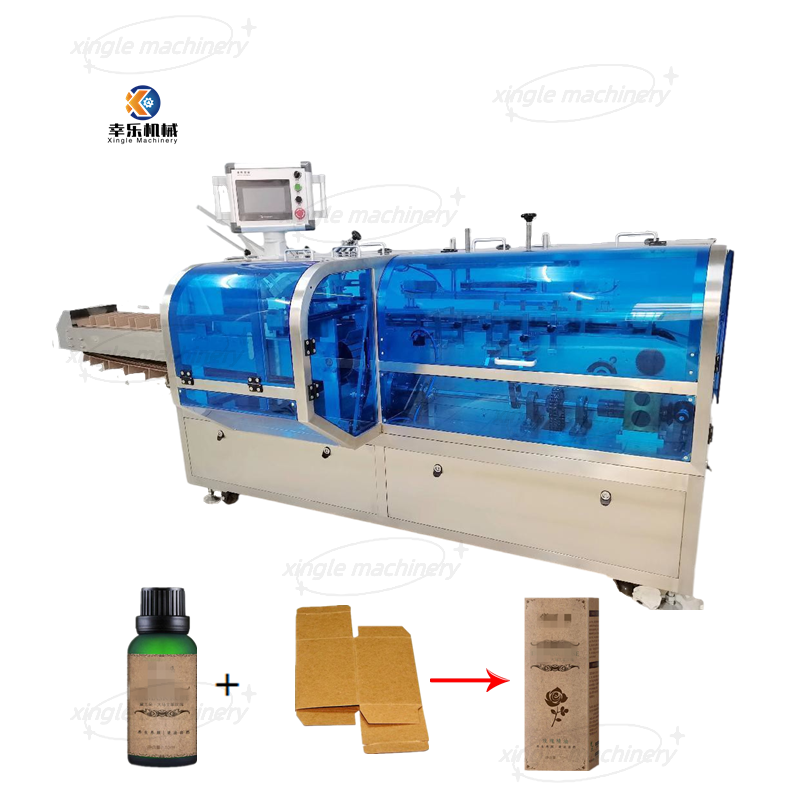

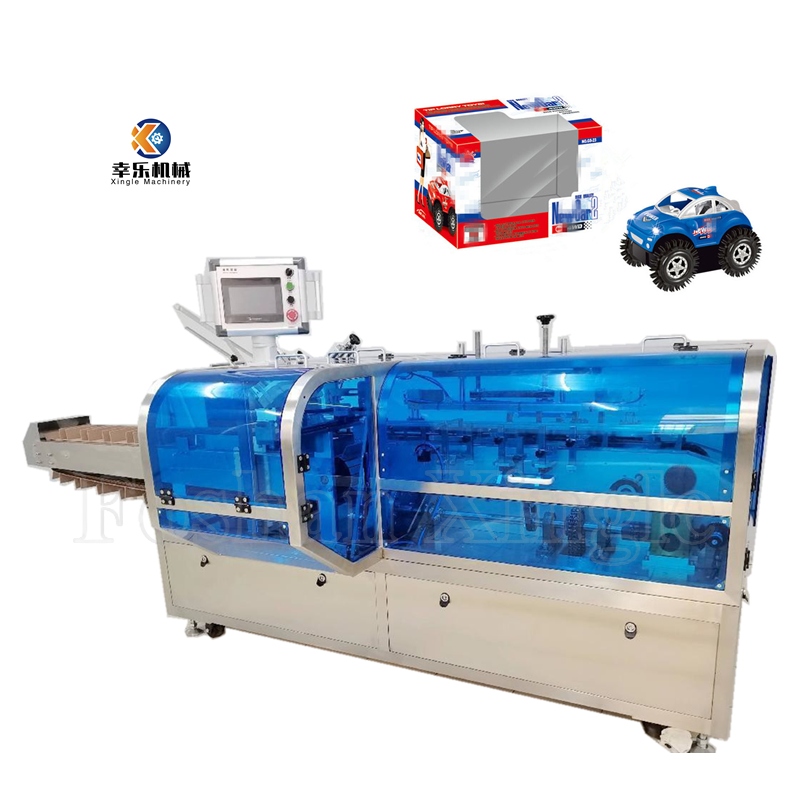

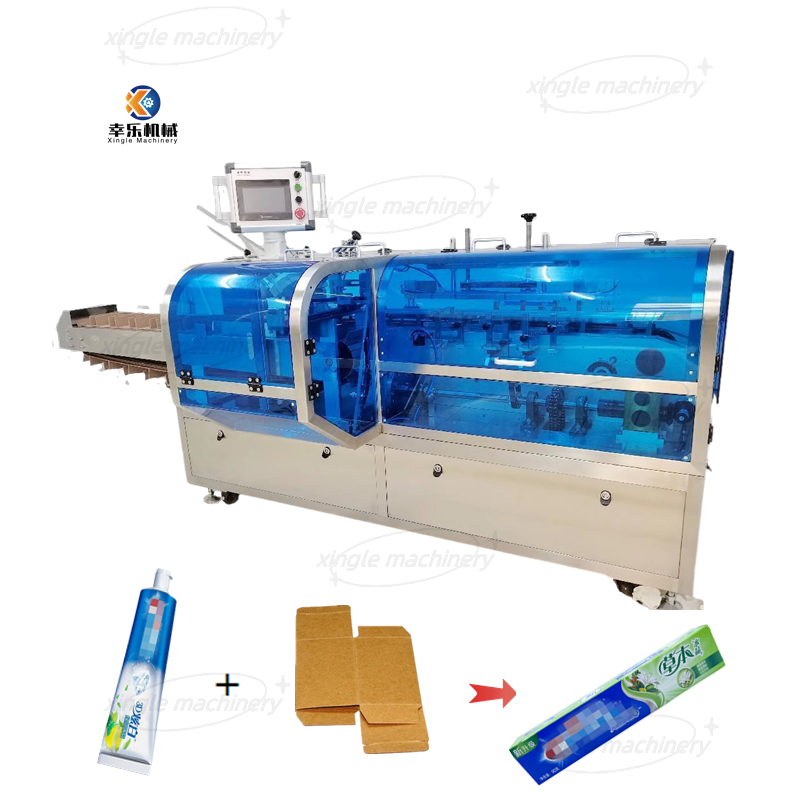

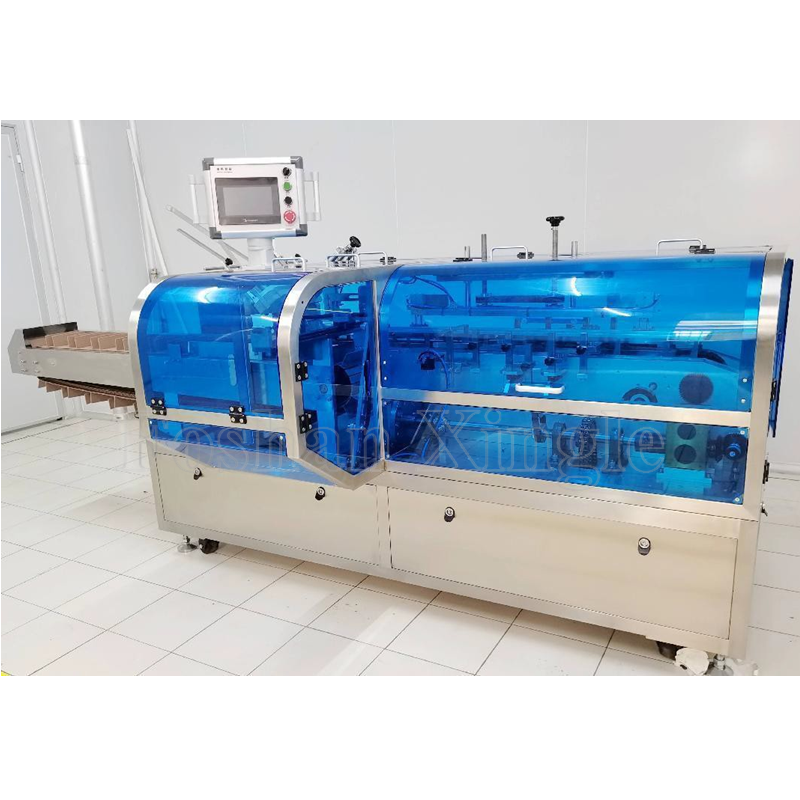

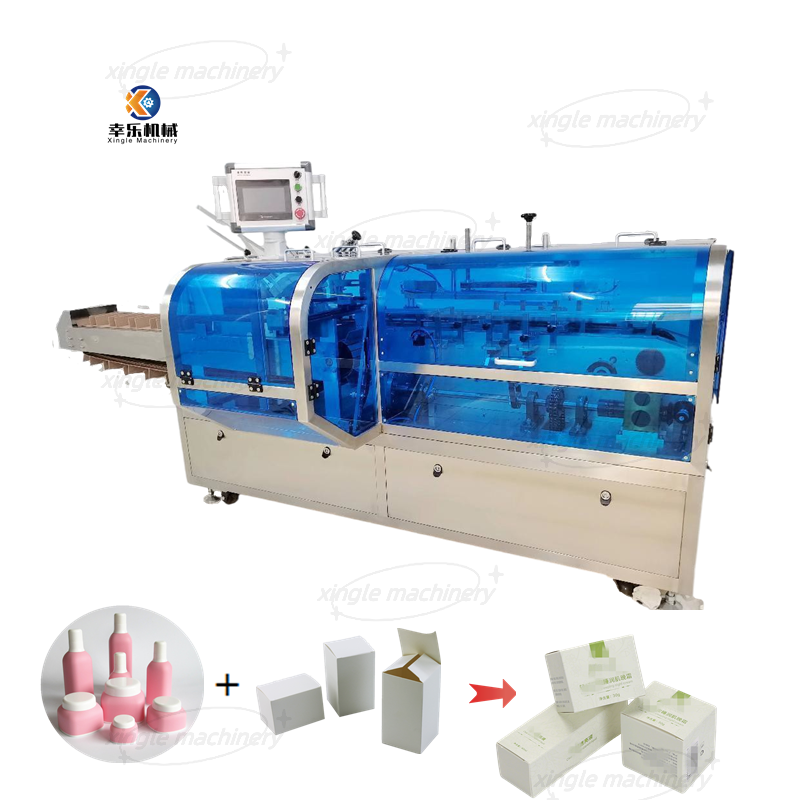

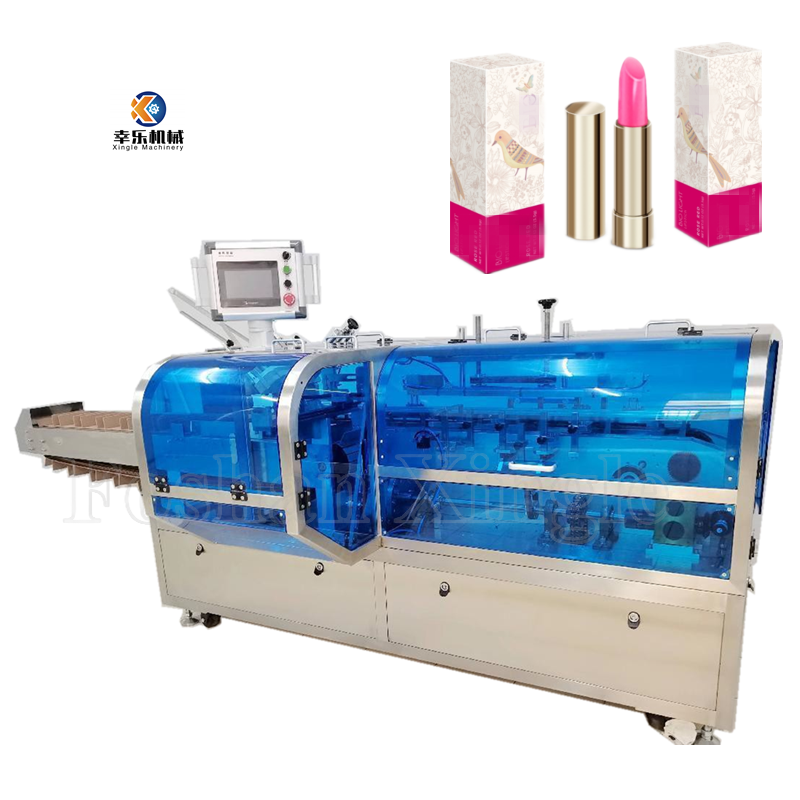

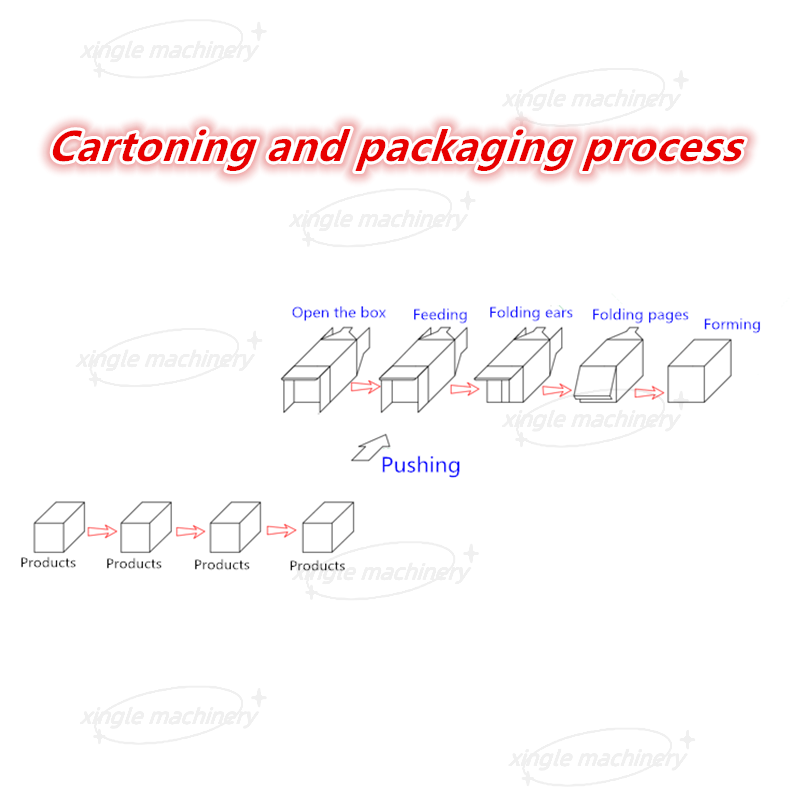

Packaging equipment that integrates box opening, cartoning, folding, and sealing functions.
Brand new design featuring a bright appearance, fine quality components, and a highly reasonable structure for increased speed and overall efficiency.
Imported PLC full computer control system combined with a human-machine interface digital display to easily monitor and manage cartoning speed, quantity, and programmed controls.
Equipped with an imported photoelectric sensor to ensure precise positioning, excellent stability, and clean packaging.
Configured with multiple automatic alarm protection functions to minimize system errors and prevent material loss.
Compatible with: material handling lines, robotic arms, 3D packaging machines, vertical packaging machines, horizontal packaging machines, filling machines, labeling machines, and inkjet printers.
Scope of Application
Suitable for the packaging processes of cosmetics, food, daily necessities, stationery, health care products, hardware, auto parts, and other similar products.
Product Parameters
Parameter Specification
Value / Details
Model
JR-A180 (Spray glue)
Carton length
80-180mm
Carton width
40~92mm
Carton height
20~60mm
Paper requirements
250-400 Gray and white card
Packaging rate
15-100 box/min
Use air supply
0.5-0.7Mpa
Air consumption
15-60L/min
Power
220V 50Hz 0.75 KW
Machine size
2430(L) X 1370(W) X 1550(H)
Machine weight
About 800Kg
Remark
Customized machines do not accept returns due to their special nature.
Frequently Asked Questions (FAQ)
QWhat functions are integrated into this packaging system?
The system integrates box opening, cartoning, folding, and sealing functionalities into a unified, automatic operational design.
QWhat carton sizes are compatible with the JR-A180 model?
The compatible carton size limits are: Lengths of 80 to 180mm, Widths of 40 to 92mm, and Heights of 20 to 60mm.
QWhat type of paper cardstock is required for the boxes?
The machine is optimized for 250-400g gray and white cardstock to ensure stable and secure folding.
QWhat is the speed and packaging rate of this equipment?
Depending on box dimensions and feeding speed, the machine achieves a packaging rate of 15 to 100 boxes per minute.
QCan this system connect to other processing machinery?
Yes, it is designed for integration with material handling lines, robotic arms, 3D packaging systems, filling machines, labeling machines, and more.
QWhat control and security systems are built in?
It includes an imported PLC computer control system, a digital display for settings, and multiple auto-alarm protections to prevent damage and reduce product loss.
