Product Description

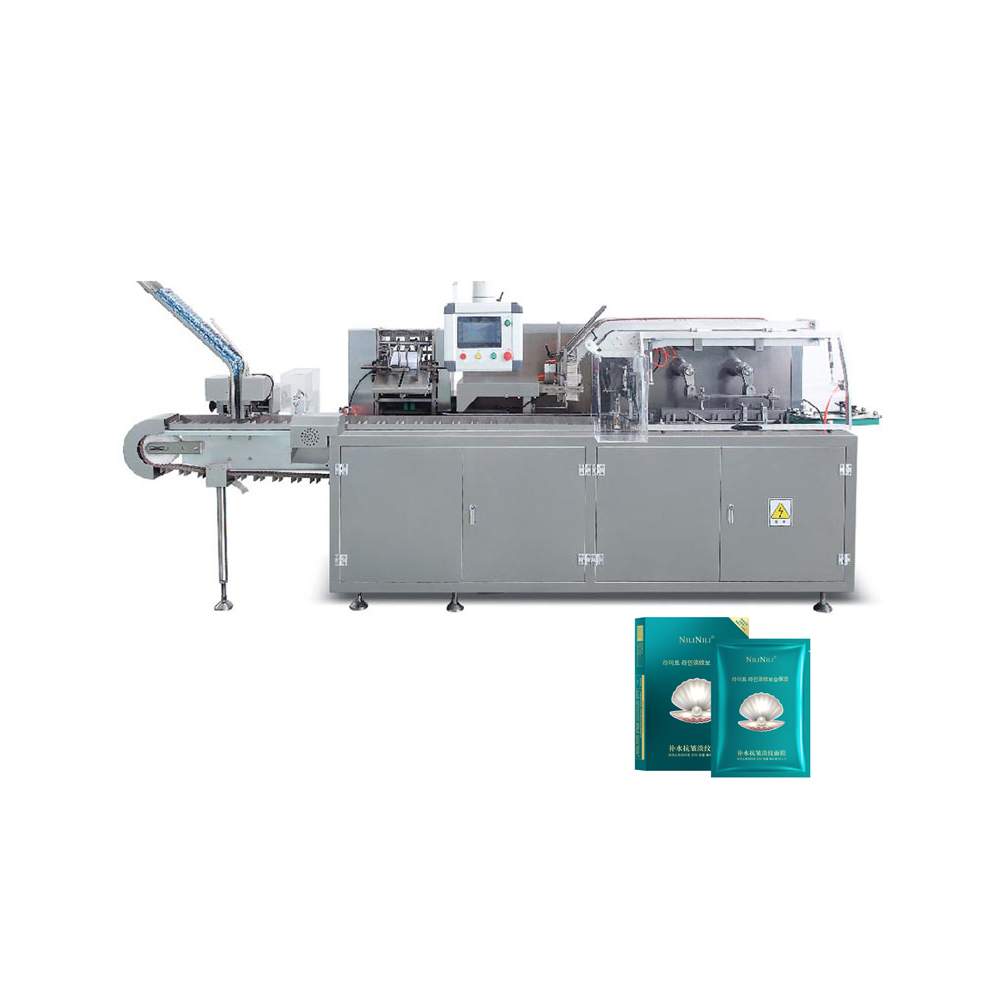

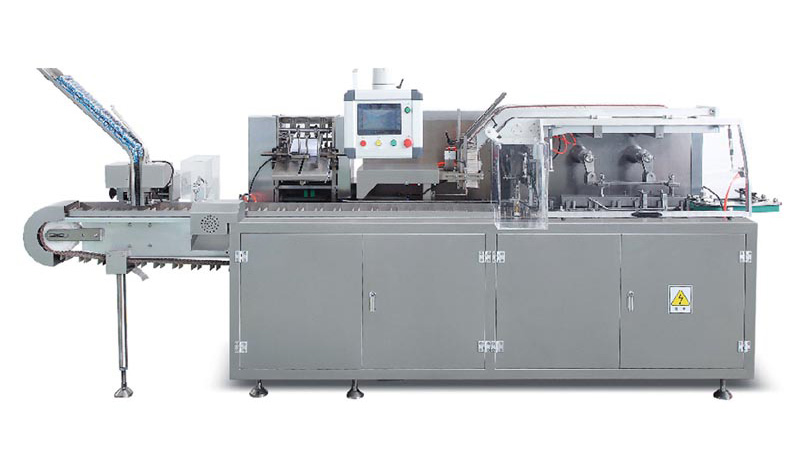

DXH-130 Fully Automatic Cartoning Machine
The machine suitable for automatic feeding and packing such as blister, bottle, plaster, granule and some similar bag type products into the carton. Automatic feeding structure adjust conveniently, randomly set the bag number in touch screen. Online products feeding and detecting, leaflet folding (1-4 folds) and feeding, leaflet detecting, carton opening and forming, products and leaflet pushing into carton, printing lot number, sealing carton with tuck-in or hot melt glue device. Automatic reject lacking of package products and leaflet, convey the finished products, This machine appearance all uses the high quality stainless steel cover, the work surface by the organic glass doors and windows closed, strictly according to the industry "GMP" standard request innovation design. The machine can be used single or joint with other equipment for a production line.
Features:
- Adopt international famous brand of electrical component such as PLC, Frequency inverters, etc.
- Adopt Human-machine operation System.
- Servo feeder suitable for different specification blister and bag feeding.
- Automatically stop when machine is overloaded.
- Automatically reject lacking of package products and leaflet.
- Automatically display trouble, alarm and counting.
- Stable performance, easy operation.
Other Models

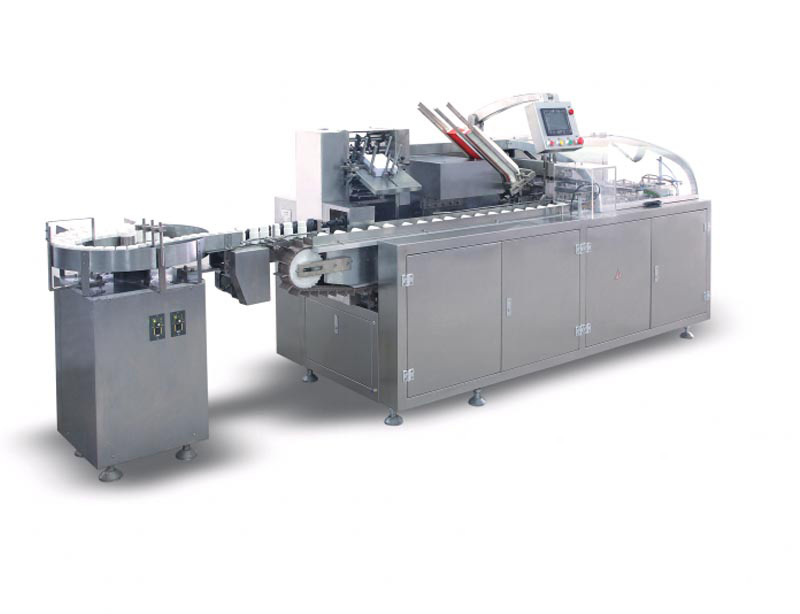

DXH-100P Automatic Cartoning Machine
Applications:
The machine suitable for automatic feeding bottle (round and square shape) into carton, online bottle unscramable and feeding, leaflet folding (1-4folds) and feeding, leaflet detecting, carton opening and forming, products and leaflet pushing into carton, printing lot number, sealing carton with tuck-in or hot melt glue device. Automatic reject lacking of package products and leaflet and convey the finished products.
Features:
- Adopt international famous brand of electrical component such as PLC, Frequency inverters, etc.
- Adopt Human-machine operation System.
- Automatically stop when machine is overloaded.
- Automatically reject lacking of package products and leaflet.
- Automatically display trouble, alarm and counting.
- Stable performance, easy operation.
Main Technical Parameters:
| Encasing speed |
30-100 boxes/min |
| Box Quality requirement |
250-350g/m² (according to its dimensions to confirm) |
| Box Dimension range (L*W*H) |
(65-180)*(35-85)*(15-50)mm |
| Leaflet Quality requirement |
60-70 g/m² |
| Unfolded leaflet specification |
(80-250)*(90-170)mm |
| Folded leaflet specification |
1-4 folds |
| Compressed air Working pressure |
≥0.6mpa |
| Compressed air Air consumption |
20m³/h |
| Power supply |
220V, 50Hz |
| Motor power |
0.75kw |
| Machine dimension (L*W*H) |
3970*1100*1550mm |
| Machine weight |
1600kg |

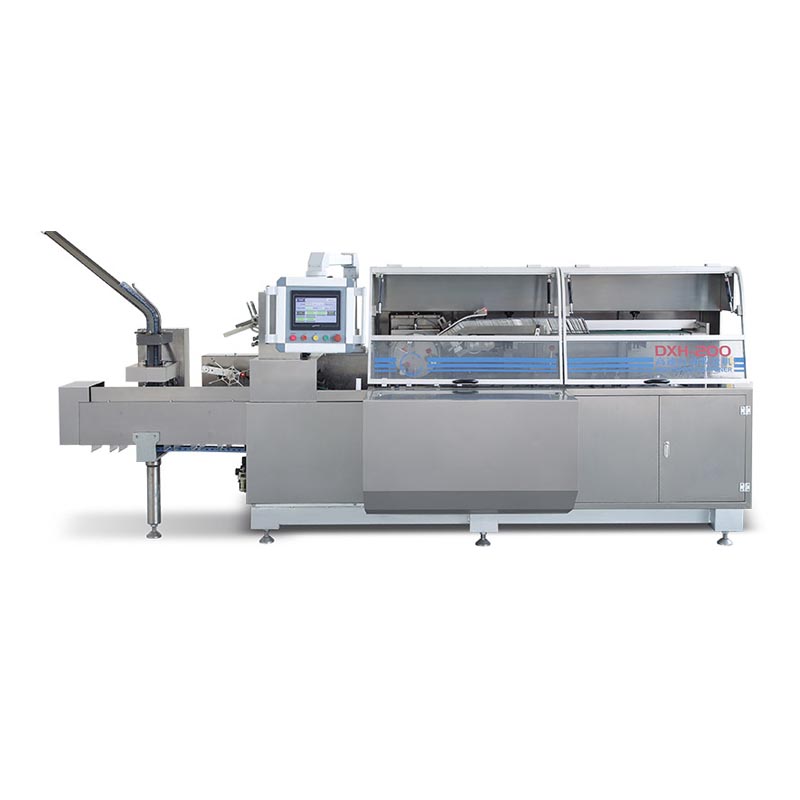

DXH-200 High-speed Automatic Cartoning Machine
Applications:
DXH-200 High-speed Automatic Cartoning Machine belong to the continuity, High speed, incorporated pneumatic-photo-electro-machanic High technology products. The machine suitable for automatic feeding and packing products such as ALU-PVC Blister, bottle, cosmetics, commodity, hardware, card, and some other similar products into the carton, which can automatic finish the leaflet folding, carton opening, feeding, printing lot number, sealing, etc.
Features:
- Adopt international famous brand of electrical component such as PLC, Frequency inverters, etc.
- Adopt Human-machine operation System.
- Servo feeding suitable for different specification Alu-pvc blister.
- Automatically stop when machine is overloaded.
- Automatically reject lacking of package products and leaflet.
- Automatically display trouble, alarm and counting.
- Stable performance, easy operation.
Main Technical Parameters:
| Encasing speed |
80-200 boxes/min |
| Box Quality requirement |
250-350g/m² (according to its dimensions to confirm) |
| Box Dimension range (L*W*H) |
(70-200)*(50-120)*(14-70)mm |
| Leaflet Quality requirement |
60-70 g/m² |
| Unfolded leaflet specification |
(80-260)*(90-190)mm |
| Folded leaflet specification |
1-4 folds |
| Compressed air Working pressure |
≥0.6mpa |
| Compressed air Air consumption |
20m³/h |
| Power supply |
380V, 50Hz |
| Motor power |
2.2kw |
| Total power |
5kw |
| Machine dimension (L*W*H) |
4070*1600*1600mm |
| Machine weight |
3100kg |

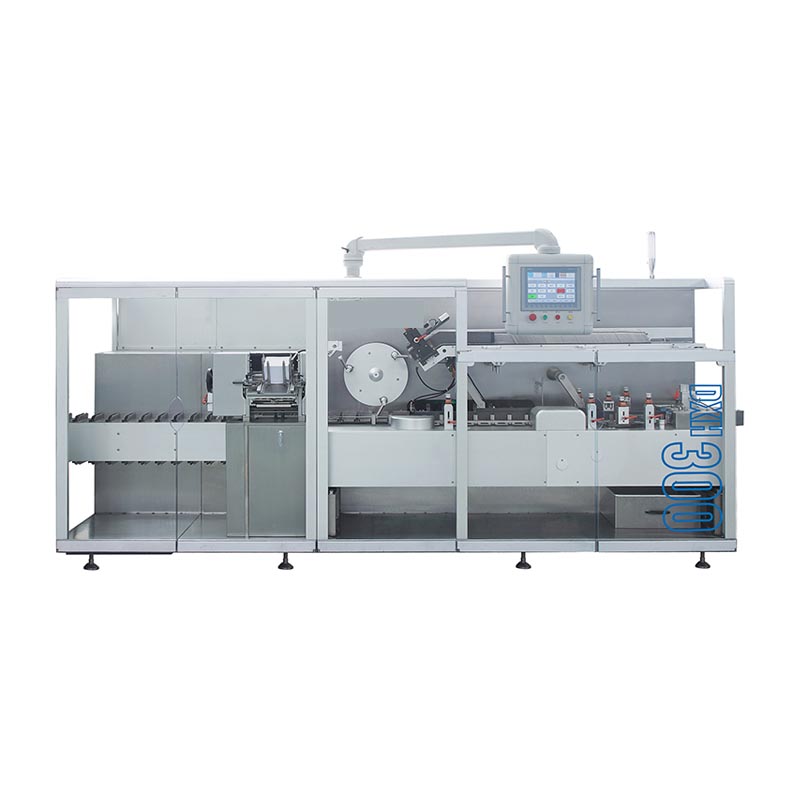

DXH-300 High-speed Automatic Cartoning Machine
Applications:
DXH-300 High-speed Automatic Cartoning Machine belong to continuity, High speed, incorporated pneumatic-photo-electro-machanic High technology products. The machine suitable for automatic feeding and packing products such as ALU-PVC Blister, bottle, cosmetics, commodity, hardware, card, and some other similar products into the carton, which can automatic finish the leaflet folding, carton opening, feeding, printing lot number, sealing, etc. The machine adopt PLC control, and the photoelectricity detection each parts, can automatic show the reason when the machine stopped by abnormity, easy for eliminate the failure. The machine can be used single or joint with pillow-type packing machine or other equipment for a production line.
Features:
- Adopt international famous brand of electrical component such as PLC, Frequency inverters, etc.
- Adopt Human-machine operation System.
- Servo feeding suitable for different specification Alu-pvc blister.
- Automatically stop when machine is overloaded.
- Automatically reject lacking of package products and leaflet.
- Automatically display trouble, alarm and counting.
- Stable performance, easy operation.
Main Technical Parameters:
| Encasing speed |
80-300 boxes/min |
| Box Quality requirement |
250-350g/m² (according to its dimensions to confirm) |
| Box Dimension range (L*W*H) |
(70-200)*(50-120)*(14-70)mm |
| Leaflet Quality requirement |
60-70 g/m² |
| Unfolded leaflet specification |
(80-260)*(90-190)mm |
| Folded leaflet specification |
1-4 folds |
| Compressed air Working pressure |
≥0.6mpa |
| Compressed air Air consumption |
20m³/h |
| Power supply |
380V, 50Hz |
| Motor power |
3.5kw |
| Total power |
5.5kw |
| Machine dimension (L*W*H) |
4600*1500*1750mm |
| Machine weight |
3200kg |
Frequently Asked Questions
What products can be packaged using the DXH series cartoning machines?
These machines are designed to automatically feed and pack various items, including blisters, round or square bottles, plasters, granules, cosmetics, hardware, cards, and similar products, into cartons.
Do the machines support automatic leaflet folding and inserting?
Yes, the machines support automatic leaflet folding (1 to 4 folds), feeding, and online detection to ensure each carton correctly contains the leaflet.
What happens if there is an overload or missing product?
The machines are equipped with automatic safety systems that stop operation when overloaded and automatically reject cartons that lack the target product or leaflet.
What is the production speed range across the different models?
The output speed depends on the model: DXH-100P ranges from 30 to 100 boxes/min, DXH-130 ranges from 80 to 130 boxes/min, DXH-200 ranges from 80 to 200 boxes/min, and the high-speed DXH-300 can achieve 80 to 300 boxes/min.
Can these cartoning machines be integrated into an existing production line?
Yes, the machines can be operated independently or connected with other equipment, such as pillow-type packing machines, to run seamlessly as part of a complete production line.
Are these machines compliant with GMP standards?
Yes, the machine structures utilize high-quality stainless steel covers and the workspace is fully enclosed with organic glass doors and windows, strictly complying with industry GMP design requirements.
