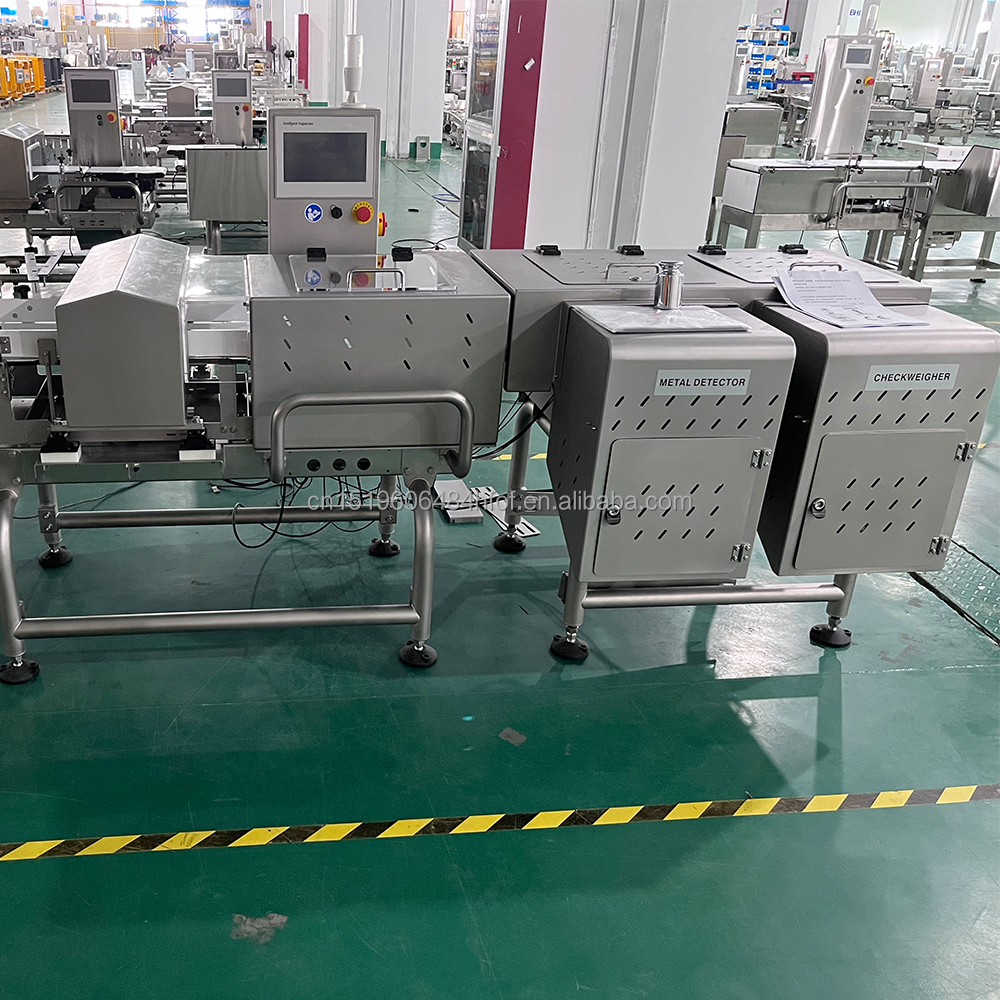

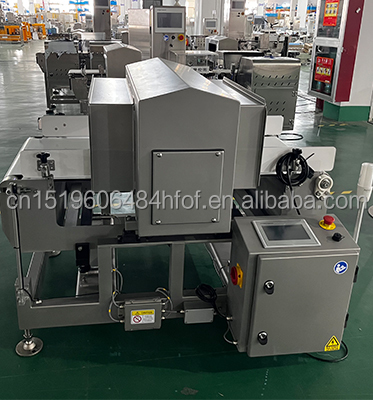

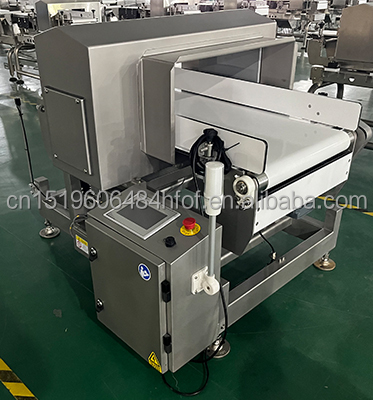

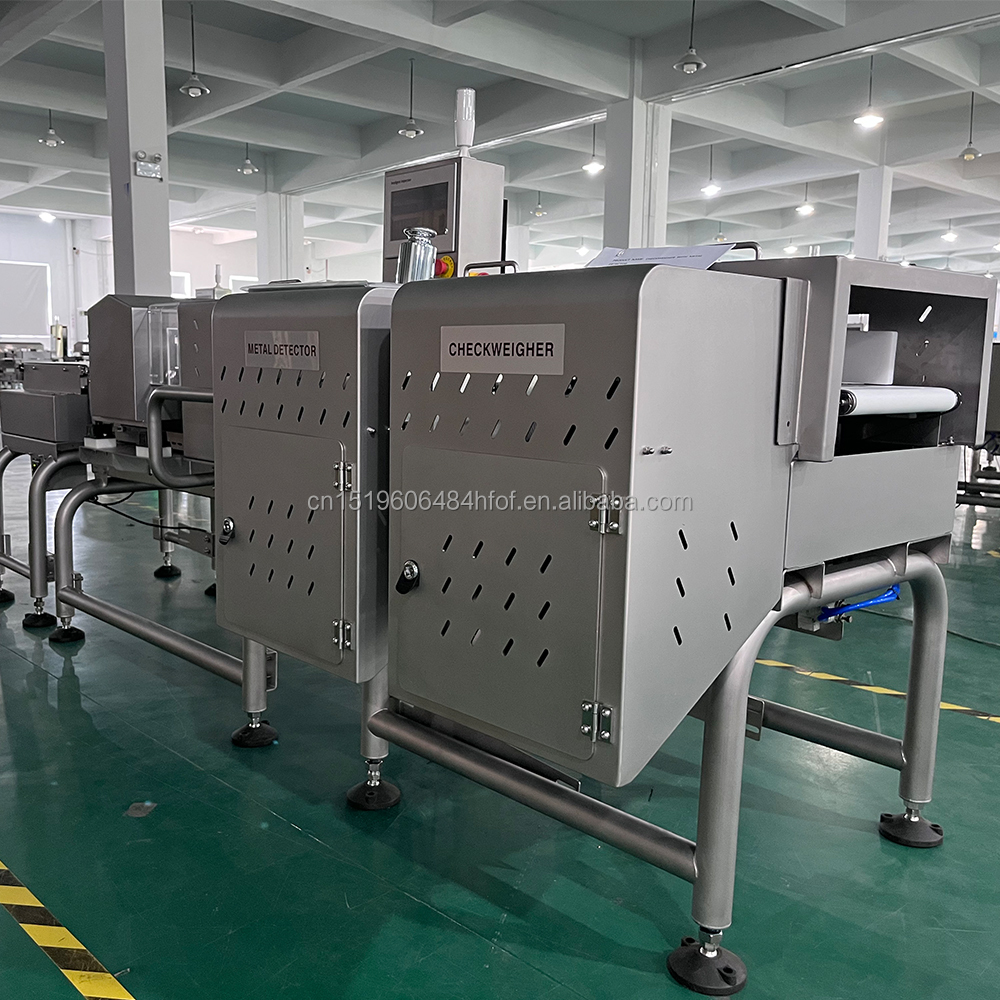

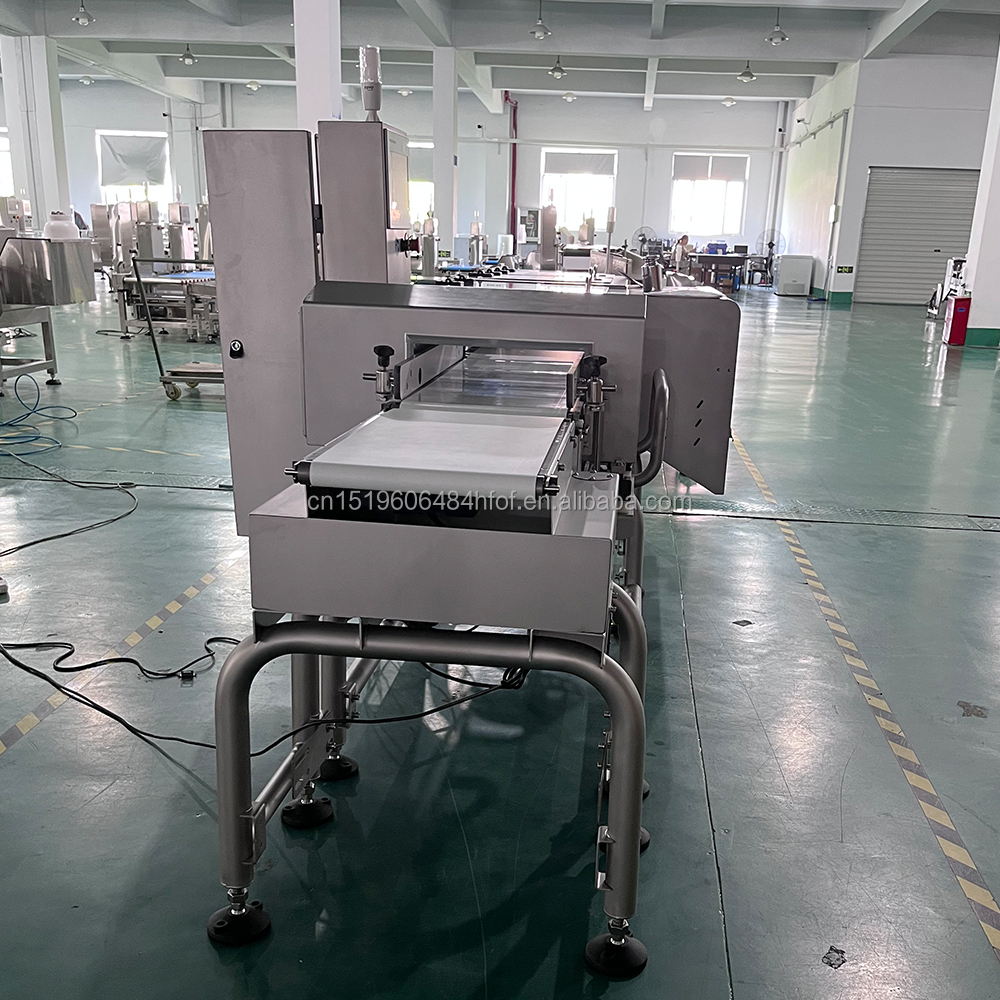

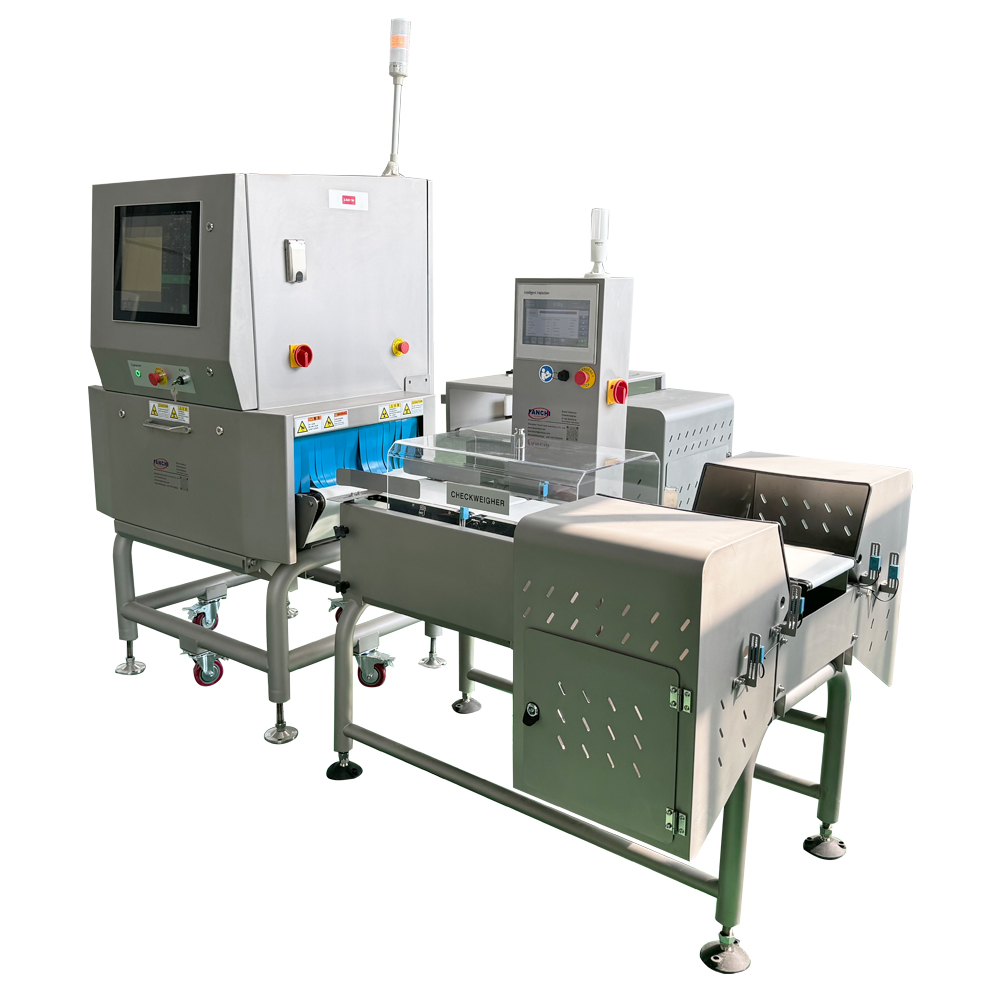

Integrated Combination Systems are the ideal way to inspect and weigh all in one machine, with the option of a system combining metal detection capabilities along with dynamic checkweighing. The ability to save space is an obvious advantage for a factory where room is a premium, as combining the functions can help save up to around 25% with this Combination System's footprint versus the equivalent if two separate machines were to be installed.
With Combination Systems being able to check the product's weight, they are perfect for checking food in its finished form, such as packaged food to go and convenience foods that is about to be shipped to the retailer. With a Combination System, customers have the reassurance of a robust Critical Control Point (CCP), as it is designed to highlight any detection and weight issues, helping improve quality of production output and simplifying processes.

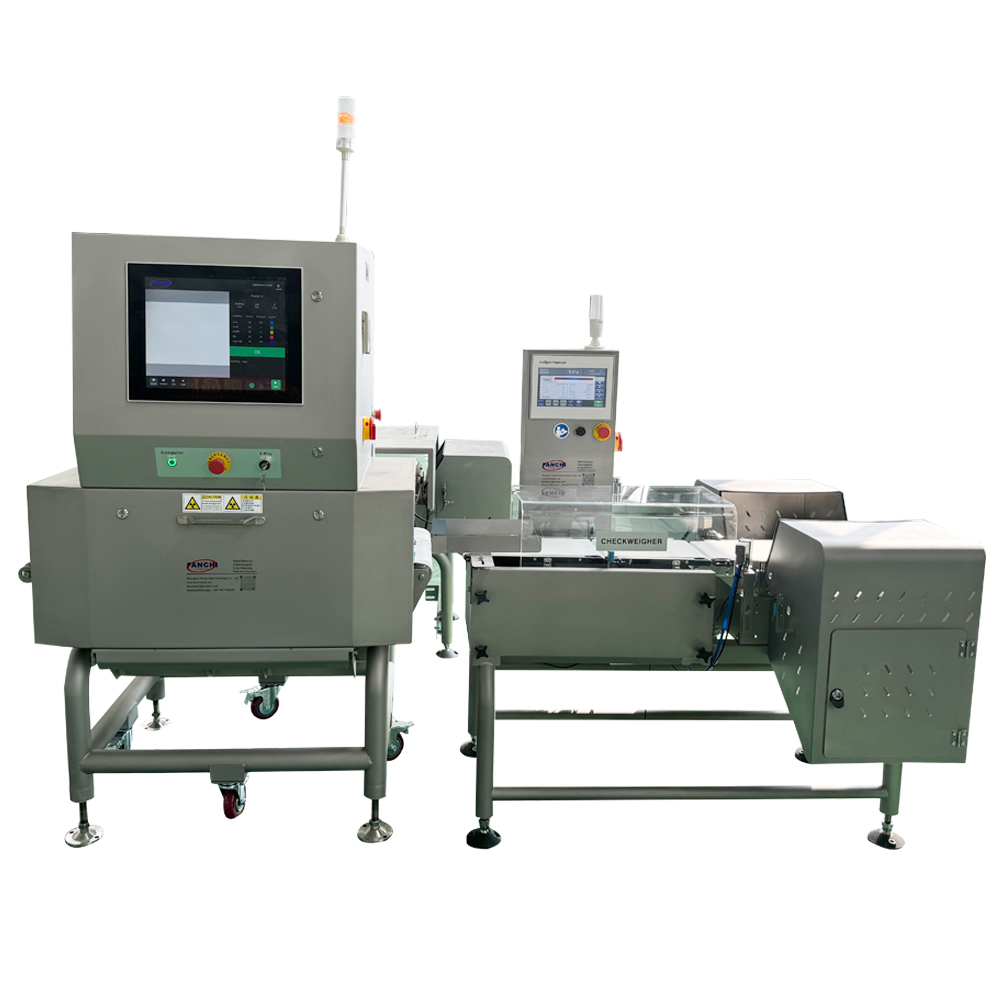

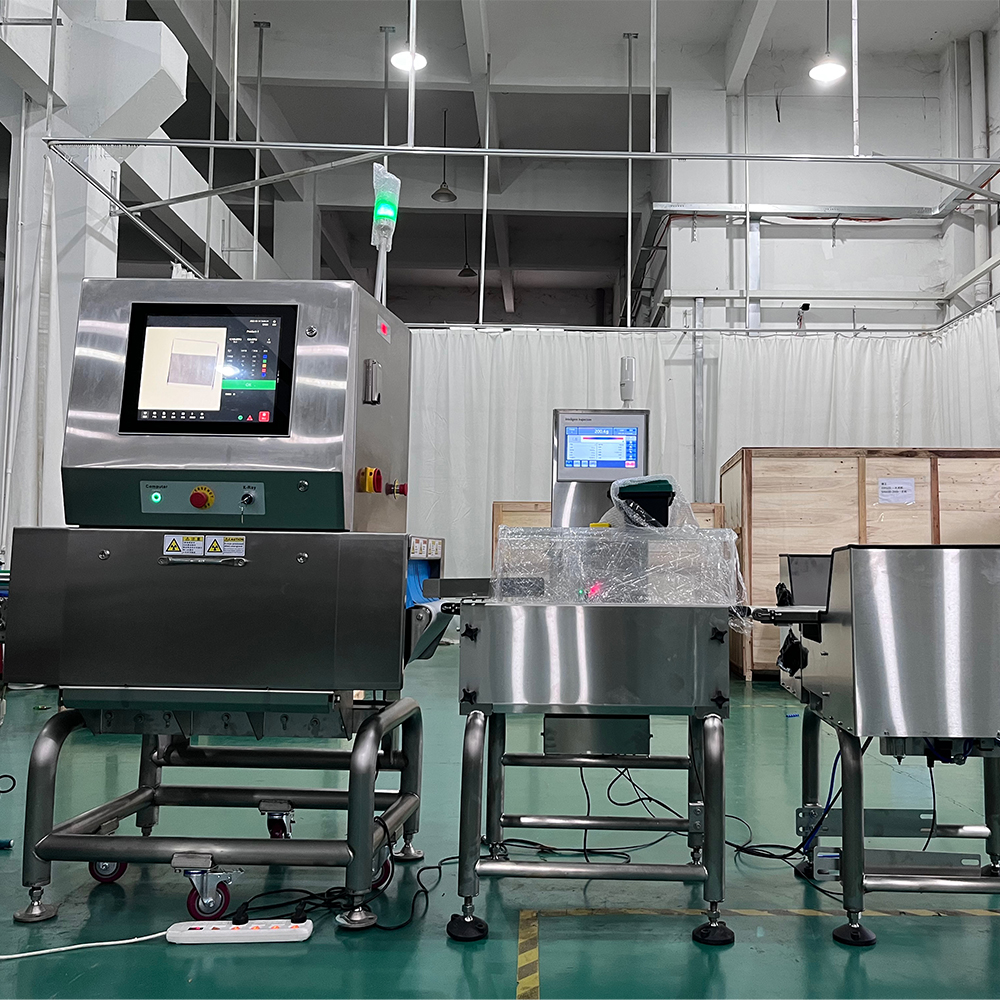

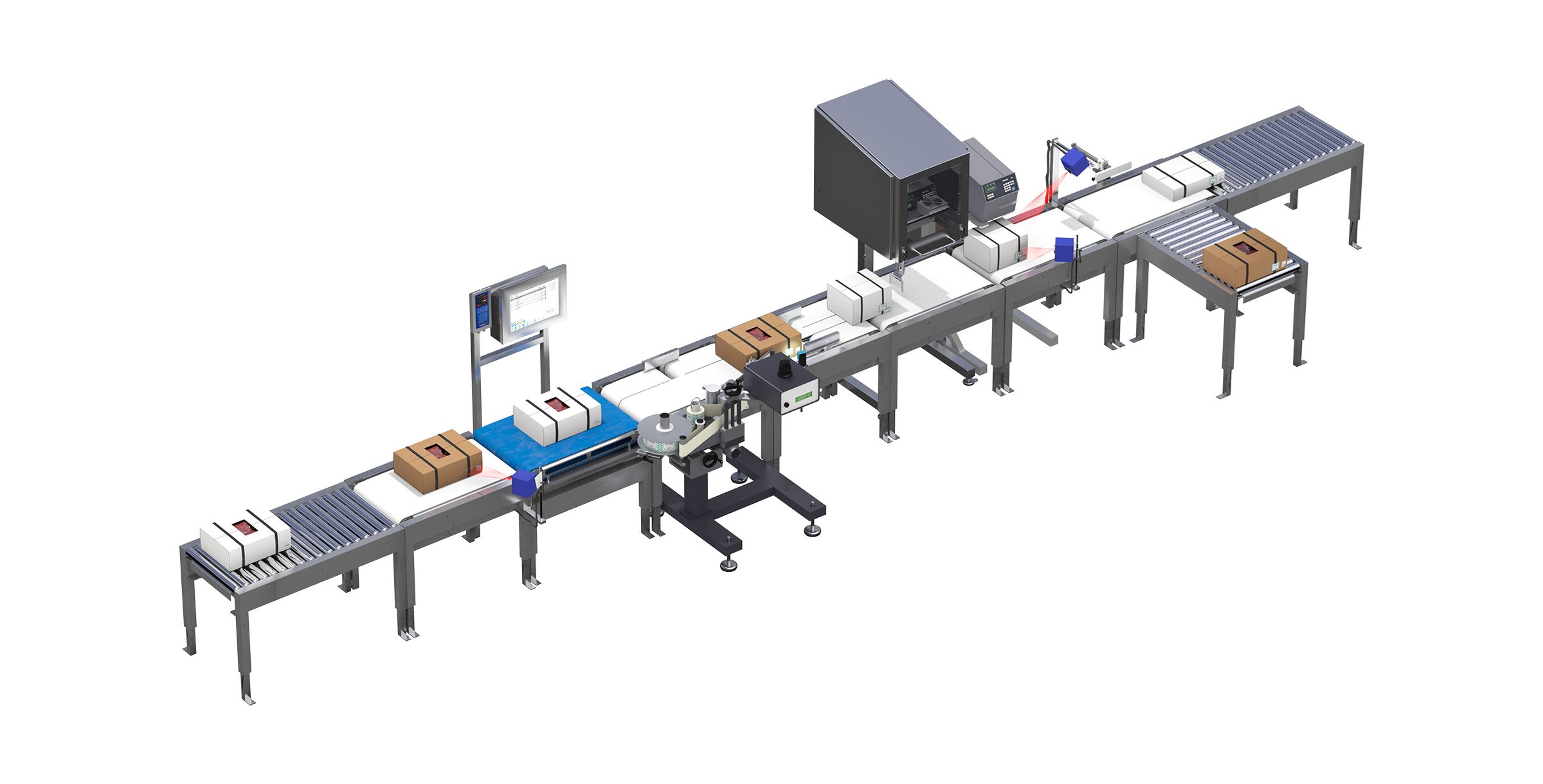

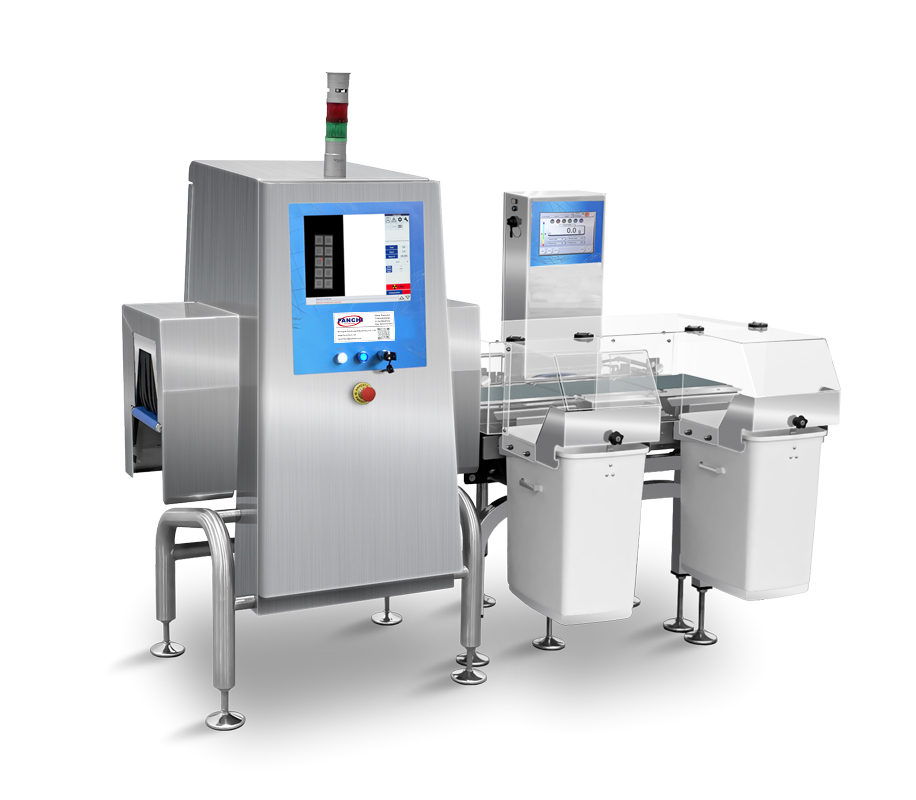

Our Dynamic Checkweigher systems are available in combination with metal detectors or x-ray machine, or labeling machine, which can save footprints greatly. Our checkweighers rapidly weigh products in motion on a conveyor line and automatically reject off-weight products, as specified in the product setup.
| Model | FA-CMC160 | FA-CMC230 | FA-CMC300 | FA-CMC360 | FA-CMC450 |
|---|---|---|---|---|---|
| Detecting Range | 3~200g | 5~1000g | 10~4000g | 10g~10kg | 10g~10kg |
| Scale Interval | 0.01g | 0.1g | 0.1g | 1g | 1g |
| Detecting Accuracy | ±0.1g | ±0.2g | ±0.3g | ±1g | ±1g |
| Detecting Speed | 150pcs/min | 150pcs/min | 100pcs/min | 75pcs/min | 75pcs/min |

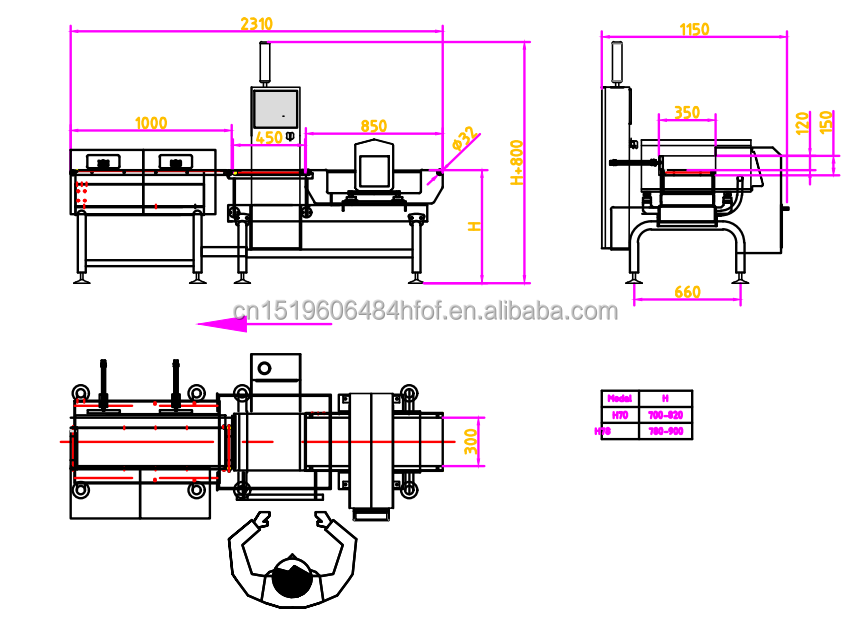

| Weigher Size (W*L mm) | 160x200 / 250 / 300 | 230x250 / 350 / 450 | 300x350 / 450 / 550 | 360x450 / 550 / 800 | 450x550 / 700 / 800 |
| Metal Detector Head | Tailored as per inspected product size | ||||
| Metal Detector Sensitivity | Fe≥0.6, NFe≥0.8, SUS304≥1.0 | ||||
| Material of Construction | Stainless Steel 304 | ||||
| Belt Type | PU Anti Static | ||||
| Line Height Options | 700, 750, 800, 850, 900, 950mm +/- 50mm (can be customized) | ||||
| Operation Screen | 7-inch LCD Touch Screen | ||||
| Memory | 100 kinds | ||||
| Weigh Sensor | HBM high accuracy load cell | ||||
| Data Retrieval | USB Port (Standard); Ethernet/RS232 (Optional) | ||||

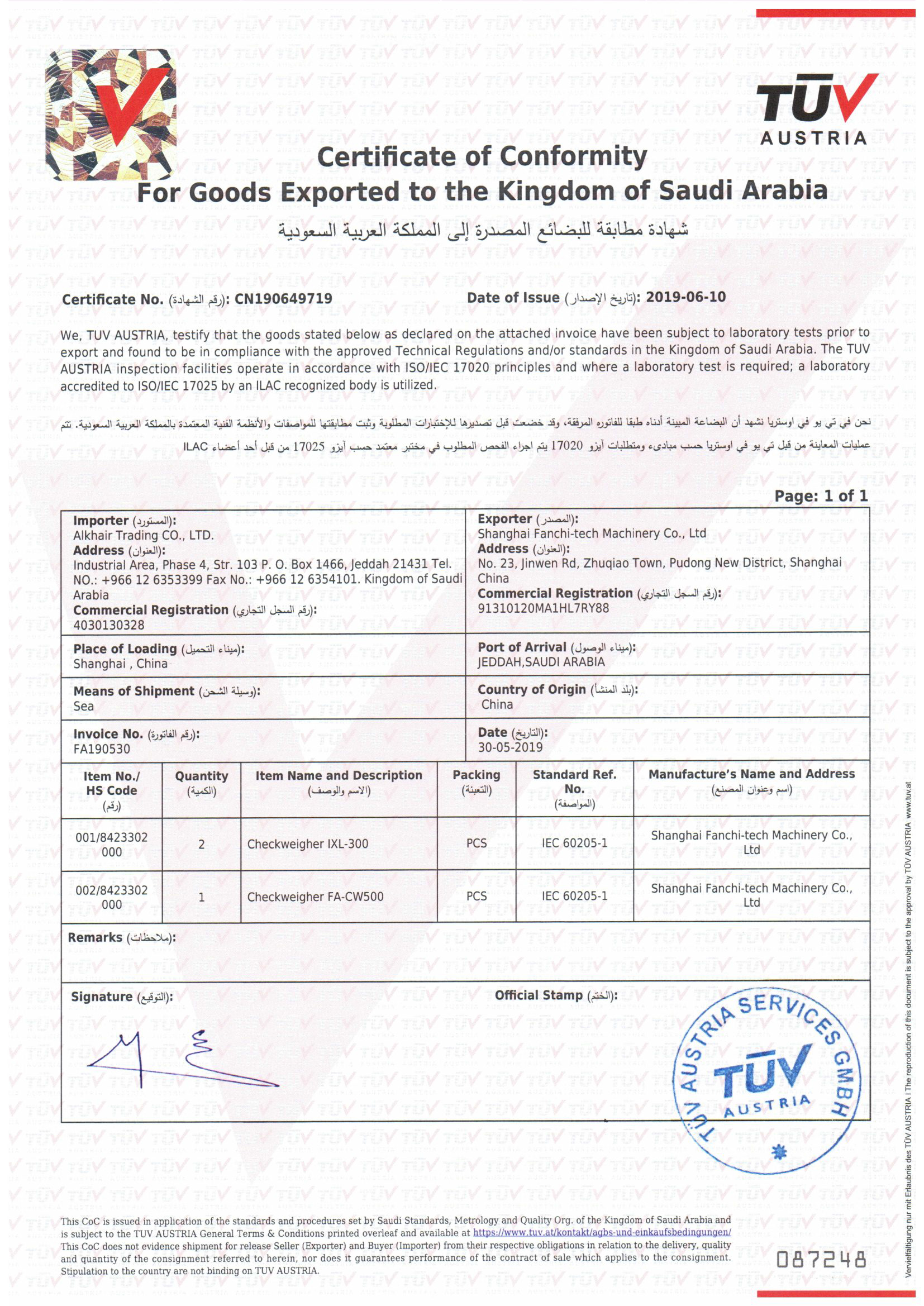

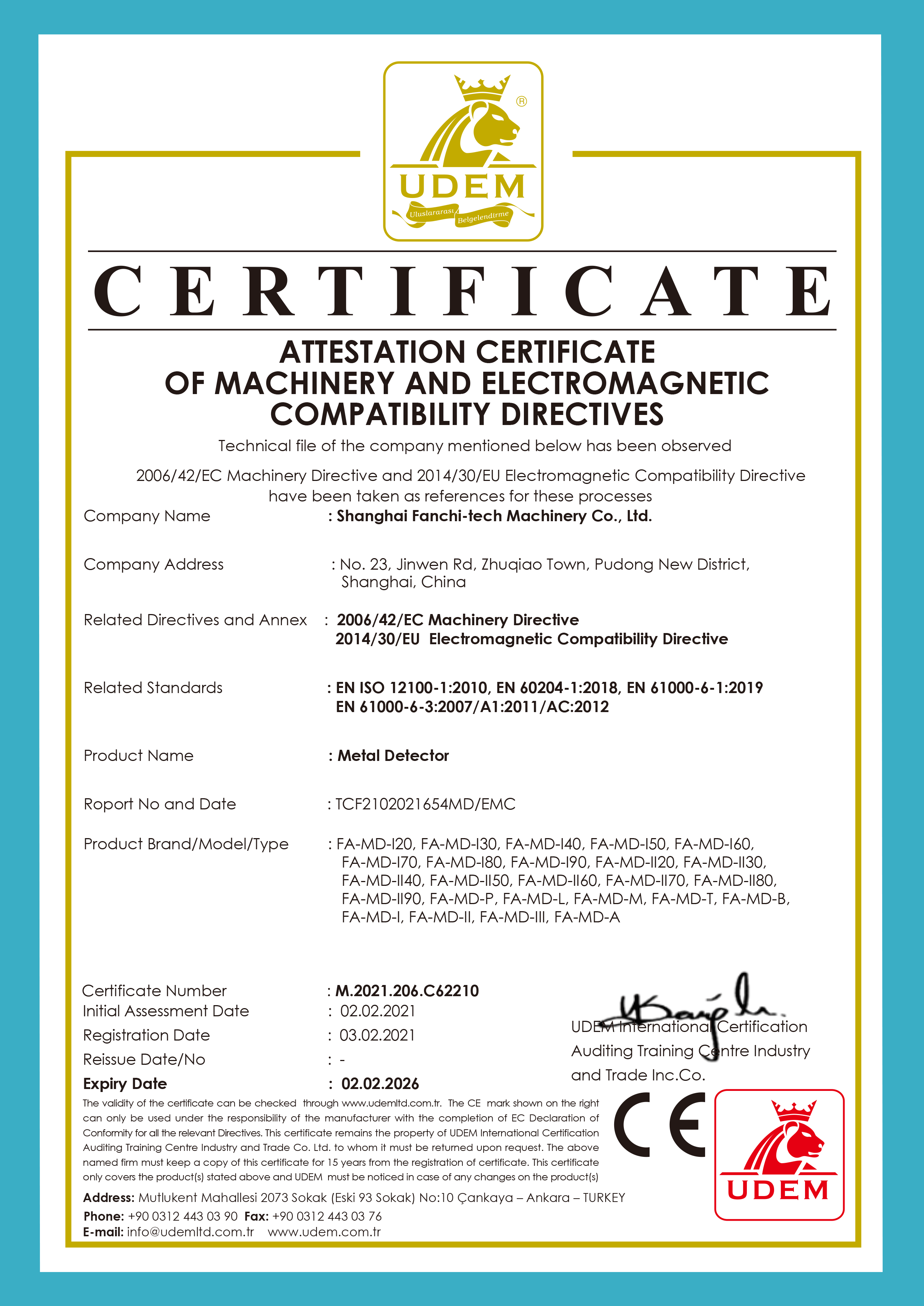

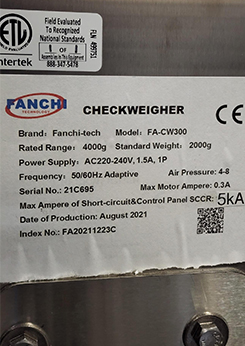

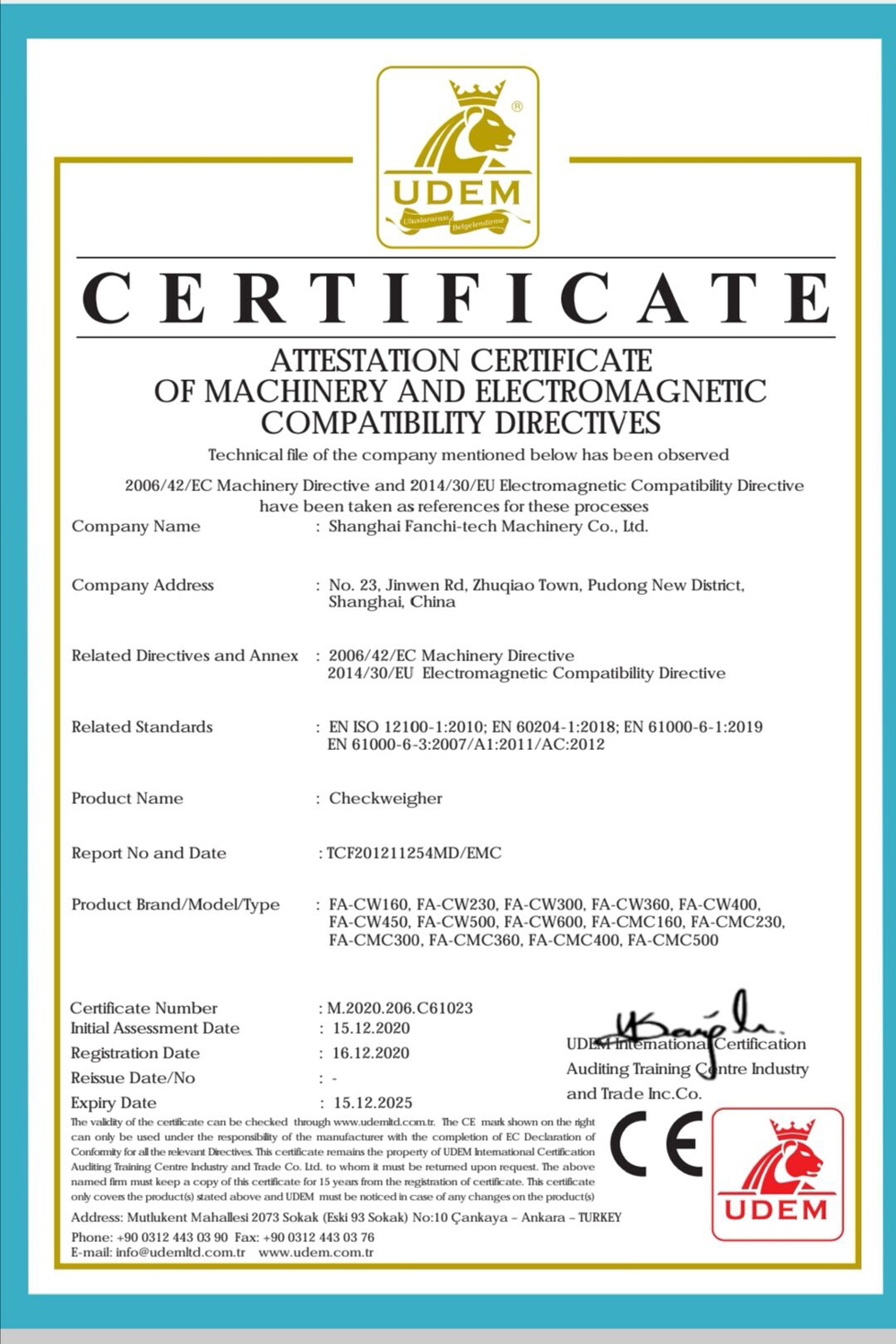

| Conformity | CE (Declaration of Conformity and Declaration of Manufacturer); UL (certified by our US customer) | ||||
| Software Language | English (Spanish/French/Russian, etc. optional) | ||||
| Rejector | Flipper / Pusher / Flapper / Air Blasting / Drop-down, etc. (Optional) | ||||
| Model | FA-CMC500 | FA-CMC600 | FA-CMC700 |
|---|---|---|---|
| Detecting Range | 0.1~25kg | 0.1~50kg | 0.1~60kg |
| Scale Interval | 1g | 1g | 1g |
| Detecting Accuracy | ±5g | ±10g | ±15g |
| Detecting Speed | 50pcs/min | 35pcs/min | 35pcs/min |
| Weigher Size (W*L mm) | 500x600/800 | 600x1200 | 700x1200 |
| Metal Detector Head | Tailored as per inspected product size | ||
| Metal Detector Sensitivity | Fe≥1.0, NFe≥1.5, SUS304≥2.0 | ||
| Material of Construction | Stainless Steel 304 | ||
| Belt Type | PU Anti Static | ||
| Line Height Options | 600, 650, 700, 750, 800, 850, 900mm +/- 50mm (can be customized) | ||
| Operation Screen | 7-inch LCD Touch Screen | ||
| Memory | 100 kinds | ||
| Weigh Sensor | HBM high accuracy load cell | ||
| Rejector | Heavy Pusher Rejector | ||
| Air Supply | 5 to 8 Bar (10mm Outside Dia) 72-116 PSI | ||
| Operating Temperatures | 0-40°C | ||
| Self-diagnosis | Zero error, photosensor error, setting error, products too close error. | ||
| Other Standard Accessories | Windshield cover (colorless and clear), photo sensor | ||
| Power Supply | AC110/220V, 1phase, 50/60Hz, 750W | ||
| Data Retrieval | Via USB (standard), Ethernet is optional | ||

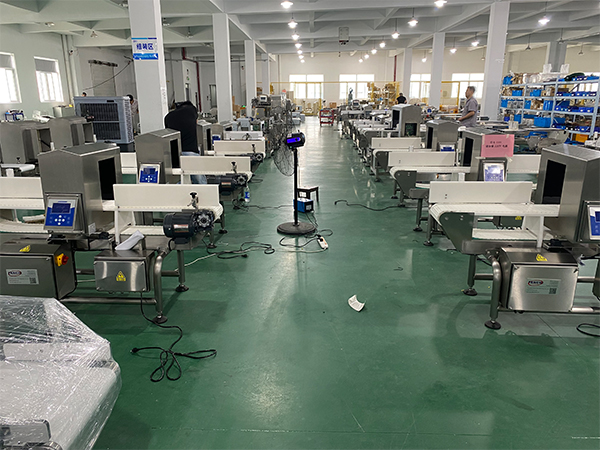

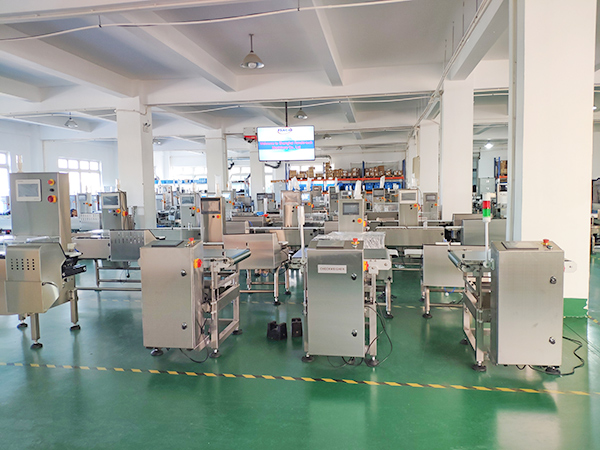

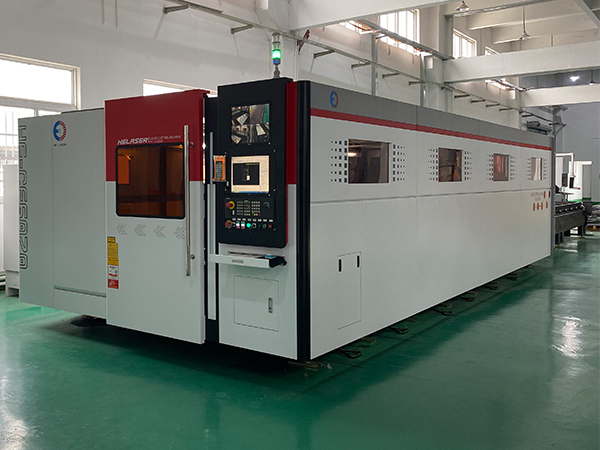

Our ISO-certified manufacturing operations handle everything from pre-production prototypes to high-volume production runs, performing all fabrication and finishing in-house. This ensures high-quality, quick-turn parts & equipment at competitive prices. Our versatility enables us to design, fabricate, finish, silk screen, assemble, program, commission, and more. Quality is assured at every step of the process with computerized and in-process inspections, alongside regular troubleshooting.

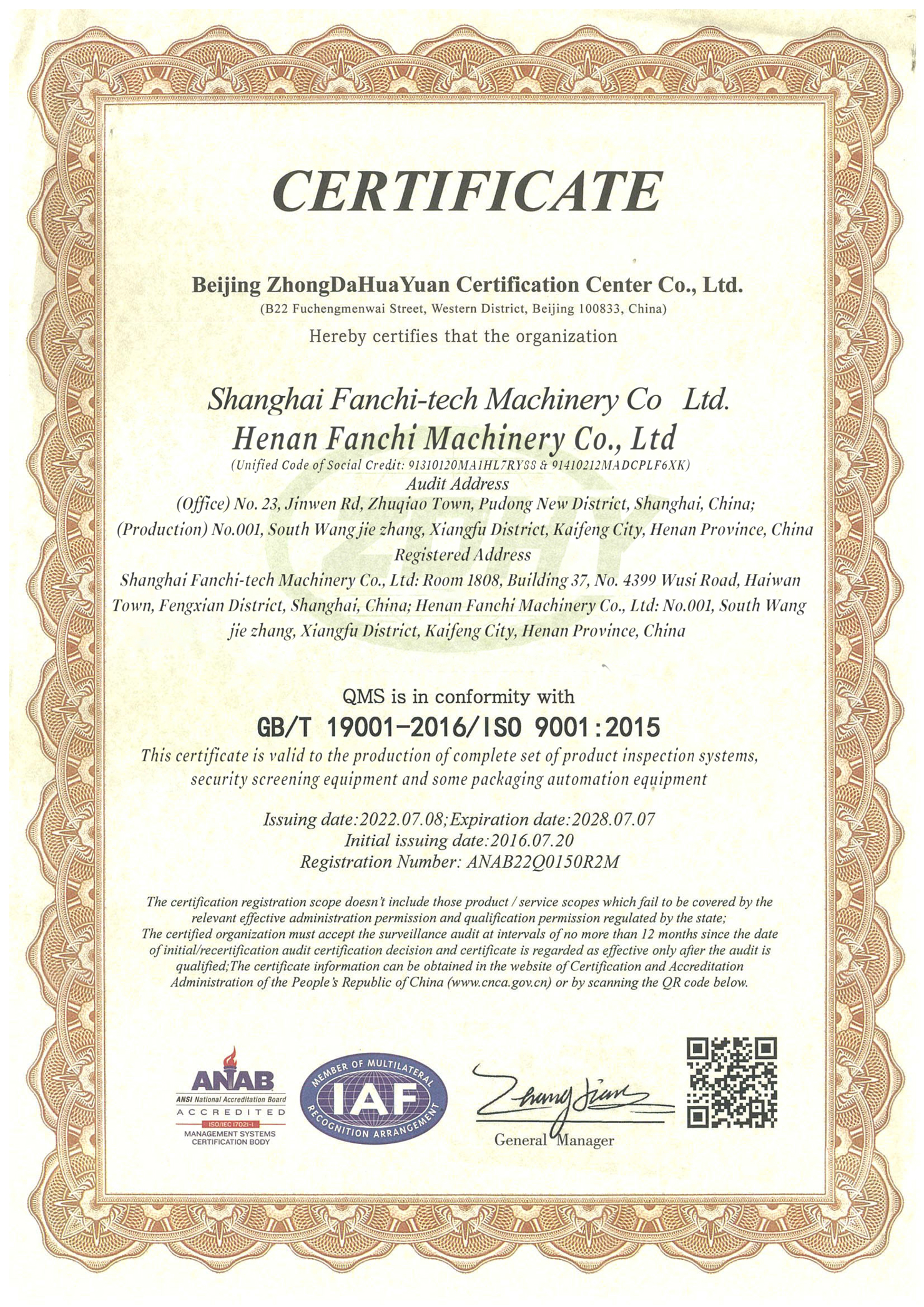

For product inspection applications, we design and manufacture dynamic checkweighers, metal detectors, and X-ray inspection systems to identify contaminants and defects. Quality is at the heart of our measurement standards, fully meeting the requirements of ISO 9001-2015, and EU safety standards.
Providing great service, with experienced personnel on time, shows the value of your investment in our inspection machinery. Our cost-effective designs and industrial ruggedness ensure a long service life of high-standard operation worldwide.
For ease of maintenance and reliability, we construct our systems using standard and universal components, enabling local technical teams to easily perform inspections and services in emergencies. All equipment supplied features standard warranty terms.
