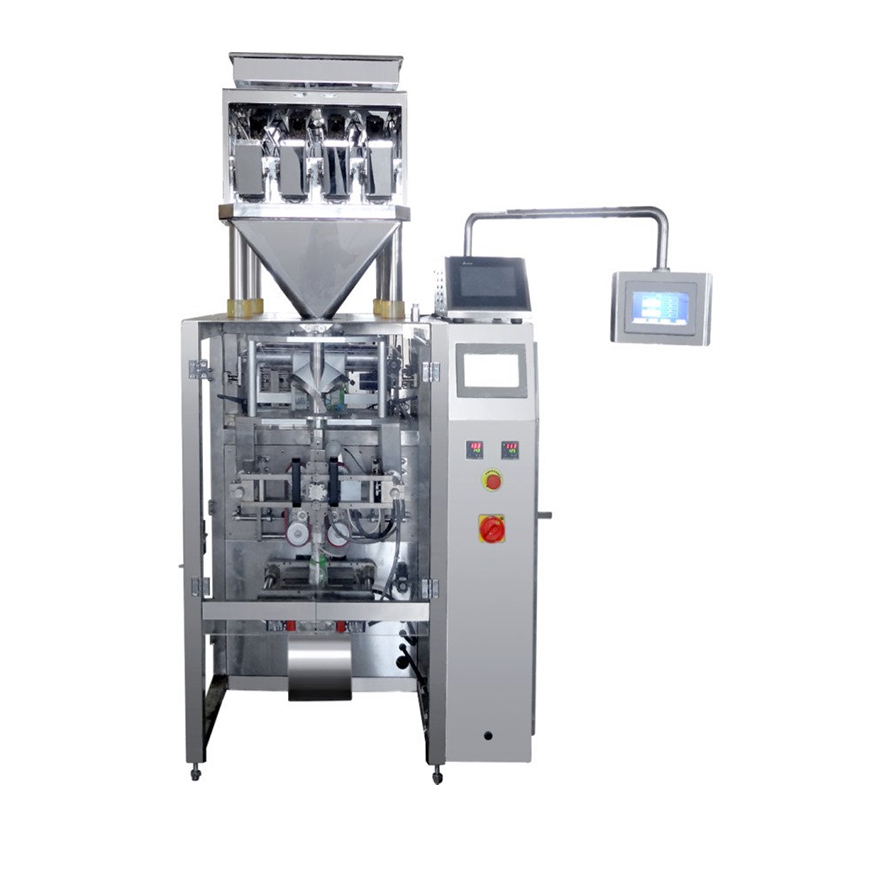

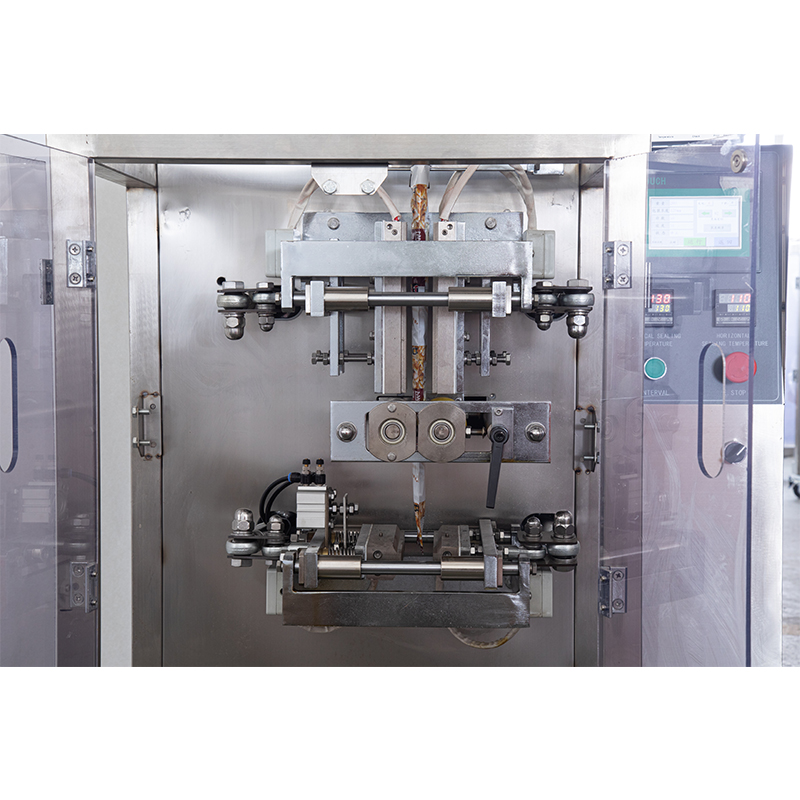

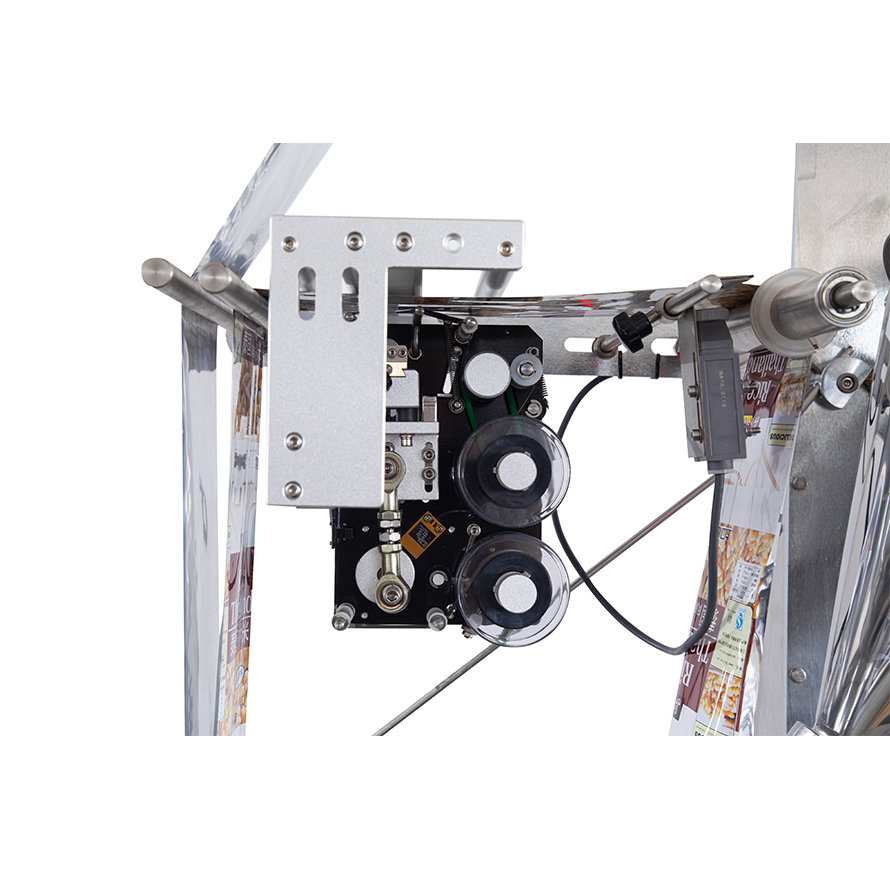

2-4 Head Combination Electronic Scale Multi-Function Automatic Vertical Wrapping Packaging Machine for Food Plastic Pouches Bags
2-4 Head Combination Electronic Scale Multi-Function Automatic Vertical Wrapping Packaging Machine for Food Plastic Pouches Bags
2-4 Head Combination Electronic Scale Multi-Function Automatic Vertical Wrapping Packaging Machine for Food Plastic Pouches Bags
2-4 Head Combination Electronic Scale Multi-Function Automatic Vertical Wrapping Packaging Machine for Food Plastic Pouches Bags
2-4 Head Combination Electronic Scale Multi-Function Automatic Vertical Wrapping Packaging Machine for Food Plastic Pouches Bags
1 / 5
2-4 Head Combination Electronic Scale Multi-Function Automatic Vertical Wrapping Packaging Machine for Food Plastic Pouches Bags
2-4 Head Combination Electronic Scale Multi-Function Automatic Vertical Wrapping Packaging Machine for Food Plastic Pouches Bags
2-4 Head Combination Electronic Scale Multi-Function Automatic Vertical Wrapping Packaging Machine for Food Plastic Pouches Bags
2-4 Head Combination Electronic Scale Multi-Function Automatic Vertical Wrapping Packaging Machine for Food Plastic Pouches Bags
2-4 Head Combination Electronic Scale Multi-Function Automatic Vertical Wrapping Packaging Machine for Food Plastic Pouches Bags

2-4 Head Combination Electronic Scale Multi-Function Automatic Vertical Wrapping Packaging Machine for Food Plastic Pouches Bags

Send Inquiry

Product Description

Packaging Machine Banner
Packaging Machine Categories
Machine Specifications
Technical Layout
Model JEV-420AW/AC JEV-520AC JEV-680AC JEV-820AC
Packaging material OPP/CPP OPP/CE PET/PE etc
Bag length(mm) 300 400 400 500
Bag width(mm) 100-200 150-250 180-320 250-400
Film width(mm) 420 520 680 820
Packaging speed(bag/min) 5-60 5-60 5-50 5-50
Measuring range(ml) 2500 6000 10000 15000
Atmospheric pressure(Mpa) 0.65 0.35 0.65 0.65
Air consumption(m³/min) 0.6 0.7 0.8 0.8
Power supply 220v 50/60Hz 220v 50/60Hz 220v 50/60Hz 220v 50/60Hz
Power(kw) 3.0 4.0 5.0 5.0
Weight(kg) 500 600 700 850
Dimensions(L×W×H)(mm) 1388×1160×1536 1795×1150×1650 1480×1380×1850 1600×1530×2100
Combined Parts
  • JEV series main machine
  • Two / four heads weigher
  • Material elevator
  • Finished product conveyor
Combined Parts Overview
Machine Detail 1 Machine Detail 2 Machine Detail 3 Machine Detail 4 Machine Detail 5 Machine Detail 6
Blowing Machine System
Blowing Process
Blowing Mold Details
Finished Bottles
Semi-Automatic PET Bottle Blowing Machine / Bottle Making Machine / Bottle Moulding Machine

PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Frequently Asked Questions (FAQ)
Q What packaging materials are compatible with the JEV series packaging machines?
The JEV series vertical packaging machines support various composite packaging films, including OPP/CPP, OPP/CE, PET/PE, and other heat-sealable laminated materials.
Q What is the average packaging speed of the JEV series?
Depending on the specific model, the packaging speed ranges from 5 to 60 bags per minute. The JEV-420 and JEV-520 models achieve up to 60 bags/min, while the JEV-680 and JEV-820 models run at up to 50 bags/min.
Q What components make up the combined JEV packaging system?
The integrated system typically includes the JEV series main machine, a two or four heads weigher, a material elevator, and a finished product conveyor for an automated workflow.
Q What sizes of bags can these machines produce?
The machine series can accommodate bag widths ranging from 100mm up to 400mm and bag lengths from 300mm up to 500mm, depending on the selected model configuration.
Q Is the PET bottle blowing machine suitable for different bottle shapes?
Yes, the semi-automatic PET bottle blowing machine/bottle moulding machine is designed to produce PET plastic containers and bottles in all kinds of shapes by changing the molds.
