Details Images
| Light Strip Put Wall |
| Size support (mm) |
250*300*200 |
| Weight range |
10g-5kg |
| Time effect |
1500 pieces |
| Identification Mode |
RFID |
| Support customization |
Yes |

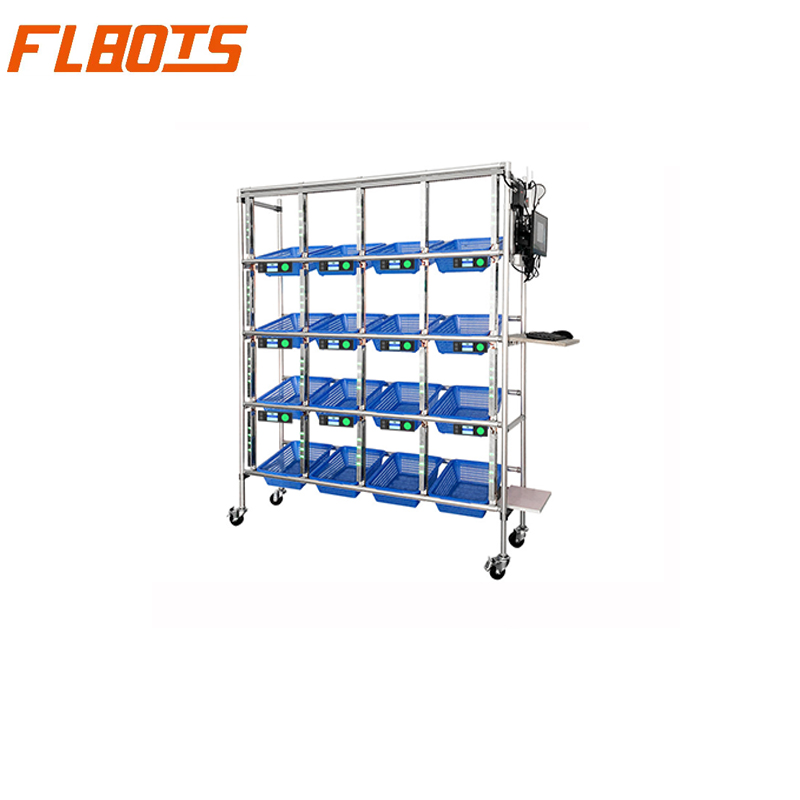

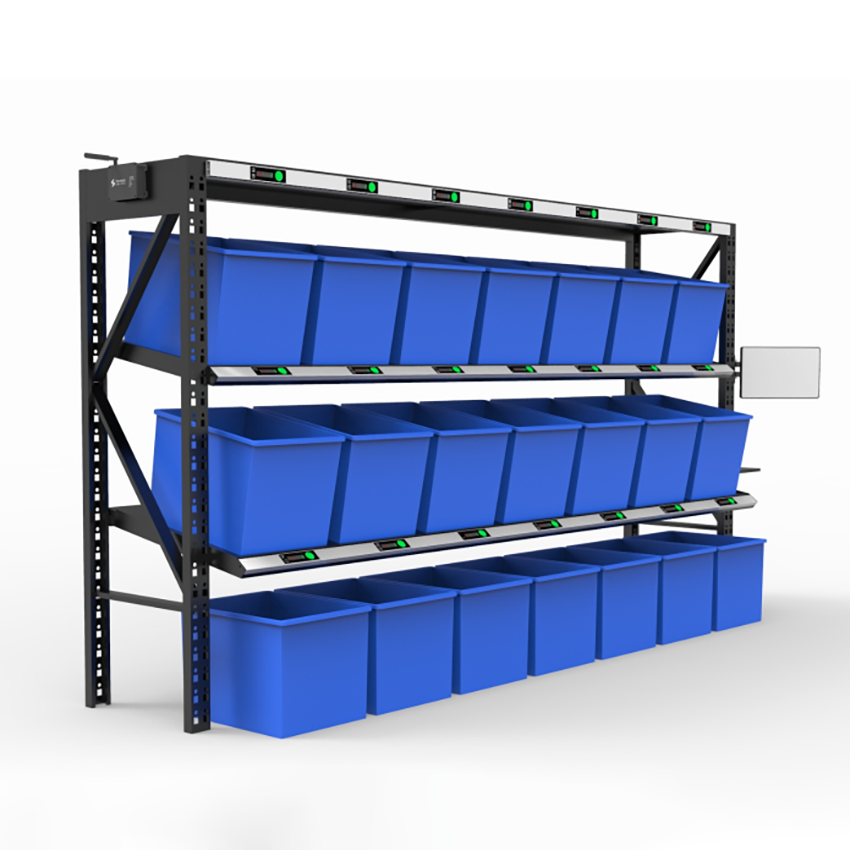

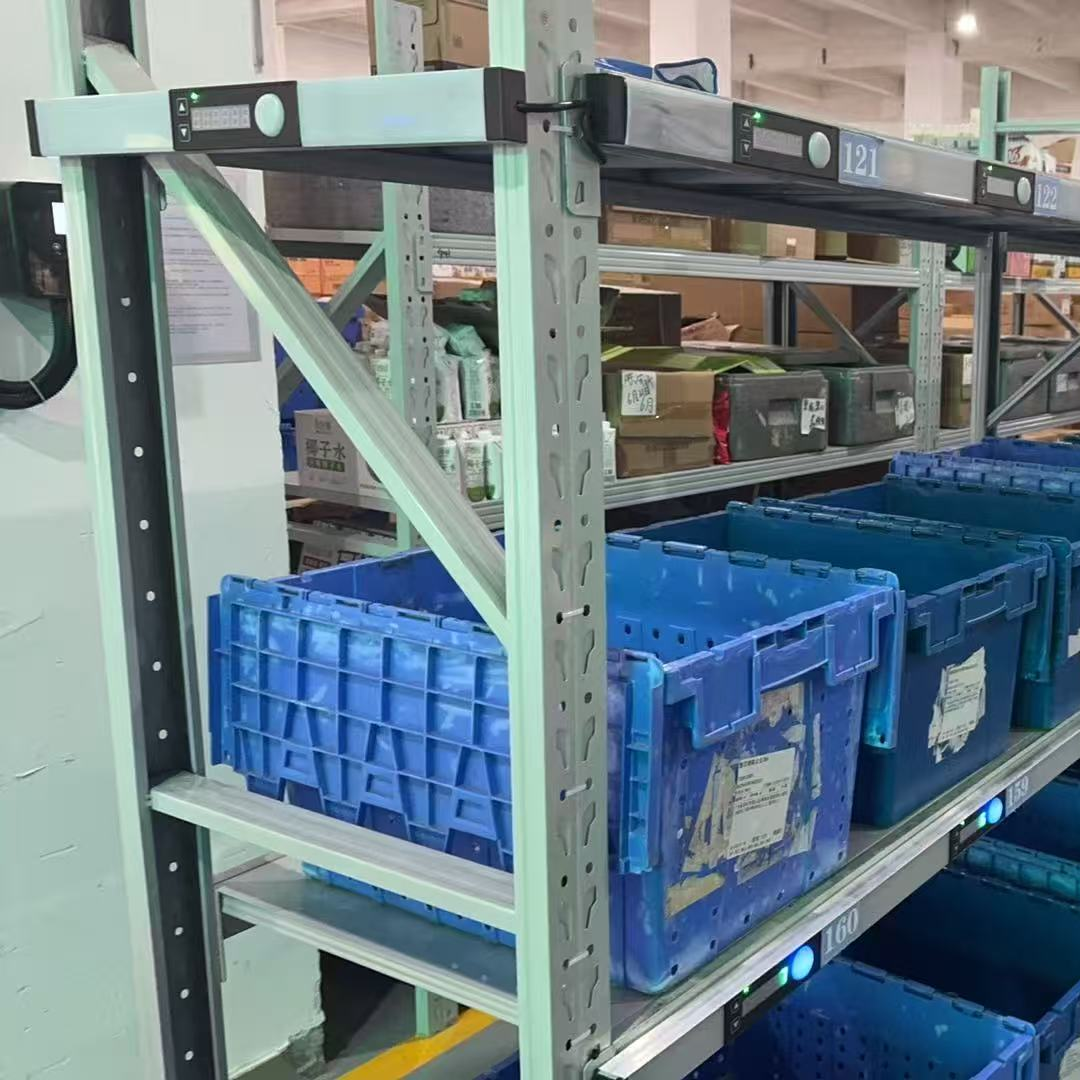

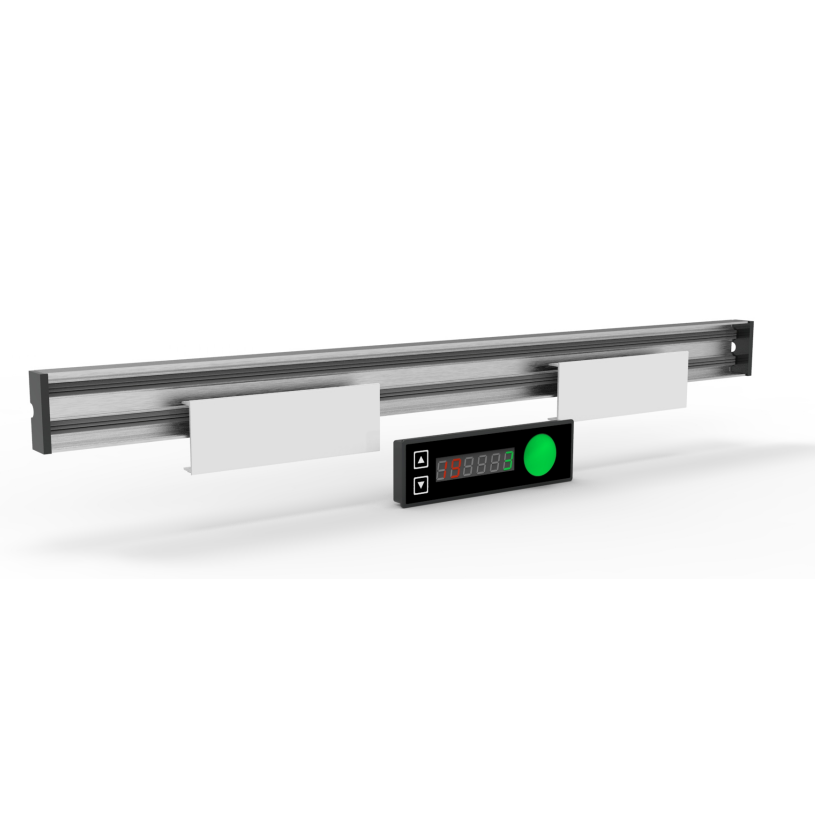

The light strip put wall is an intelligent electronic device used in secondary sorting of e-commerce warehousing. It is mainly used for automated sorting and packaging of goods. It comprises a put rack and a plurality of material grids. The material grids are used for storing sorted goods, and can be arranged in an array on the put rack.
During sorting operation, goods are usually classified according to order tasks, and placed in the storage grids of the put wall according to the order tasks. Finally, the goods in the storage grids are packaged and delivered according to the order.
The put wall equipment can effectively improve the delivery efficiency of the order and reduce personnel dependence and personnel use costs.
Products Description

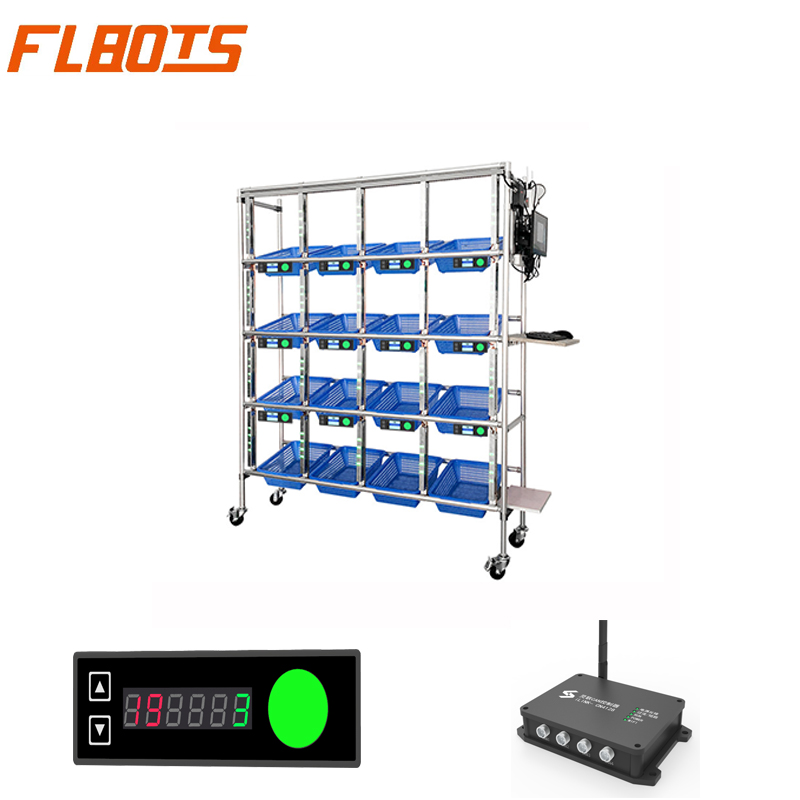

System framework
The controller service system provides secondary development SDK to enable users to control the functions of the driving hardware equipment independently. Users can fully customize their own picking process. The SDK adopts the web socket protocol, and the control data is transmitted in json format.
Used for warehouse management and logistics distribution
- Improve efficiency: Quickly locate materials through electronic tag guidance, reduce picking intervals, and improve efficiency and accuracy.
- Reduce errors: Assist personnel in picking goods based on light colors and displayed numbers.
- Improve order response speed.
- Can be integrated with other intelligent devices to reduce reliance on manpower.
- Lower operational threshold and easy to use.

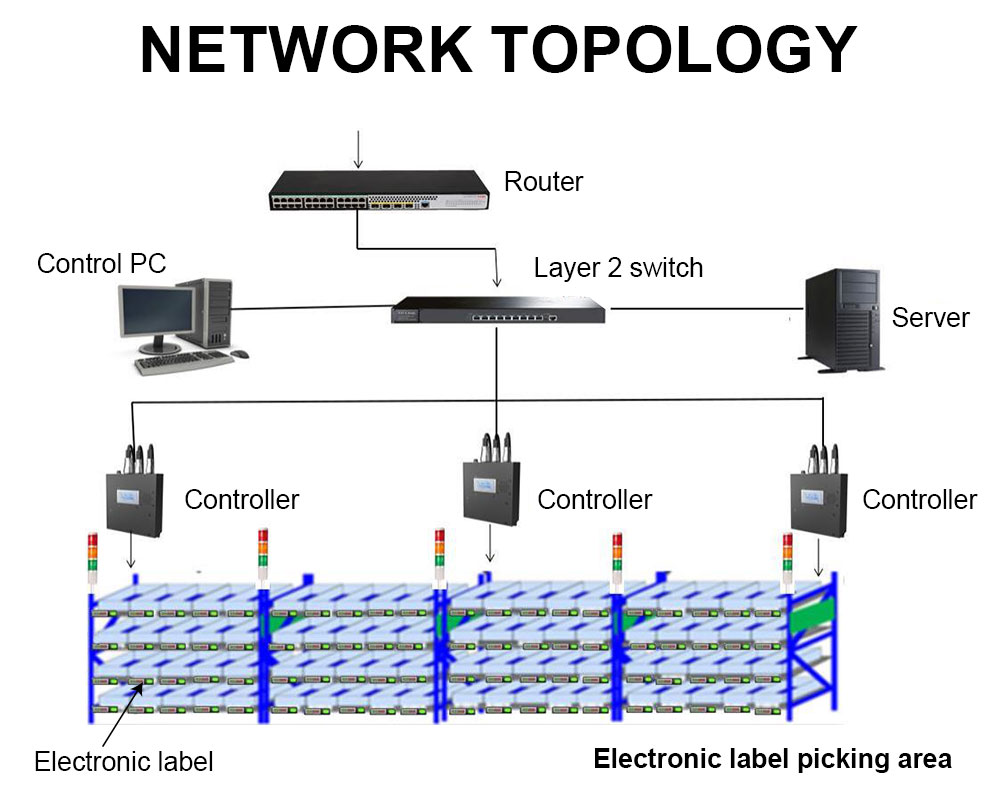

System architecture
- 1. Data source: The existing WMS system, ERP, MIS, etc. or manually inputting the information
- 2. Control PC: Using to download the order from WMS and send the outbound information to Intelligent BUS module through network switch.
- 3. Network switch: From one interface to multiple interfaces, also known as the bridge.
- 4. Intelligent BUS: control the work of signal lamp and electronic tags of captioning machine, and transmit the completed job information back to PC. Achieve two-way communication.
- 5. Alarm light: used in the working area to prompt the task to be done in the area.
- 6. multi-function label: can be connected to the alarm light and scanning gun.

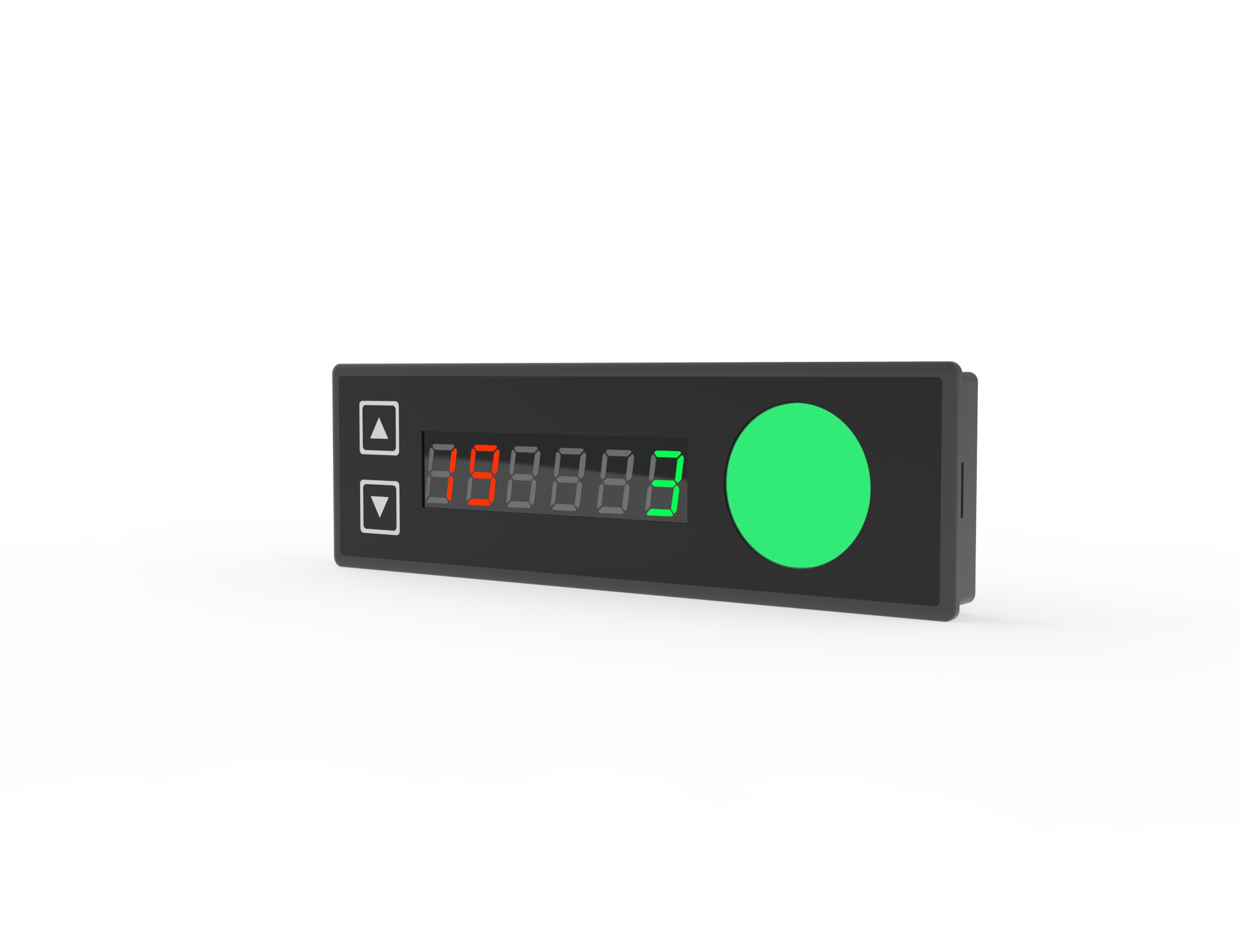

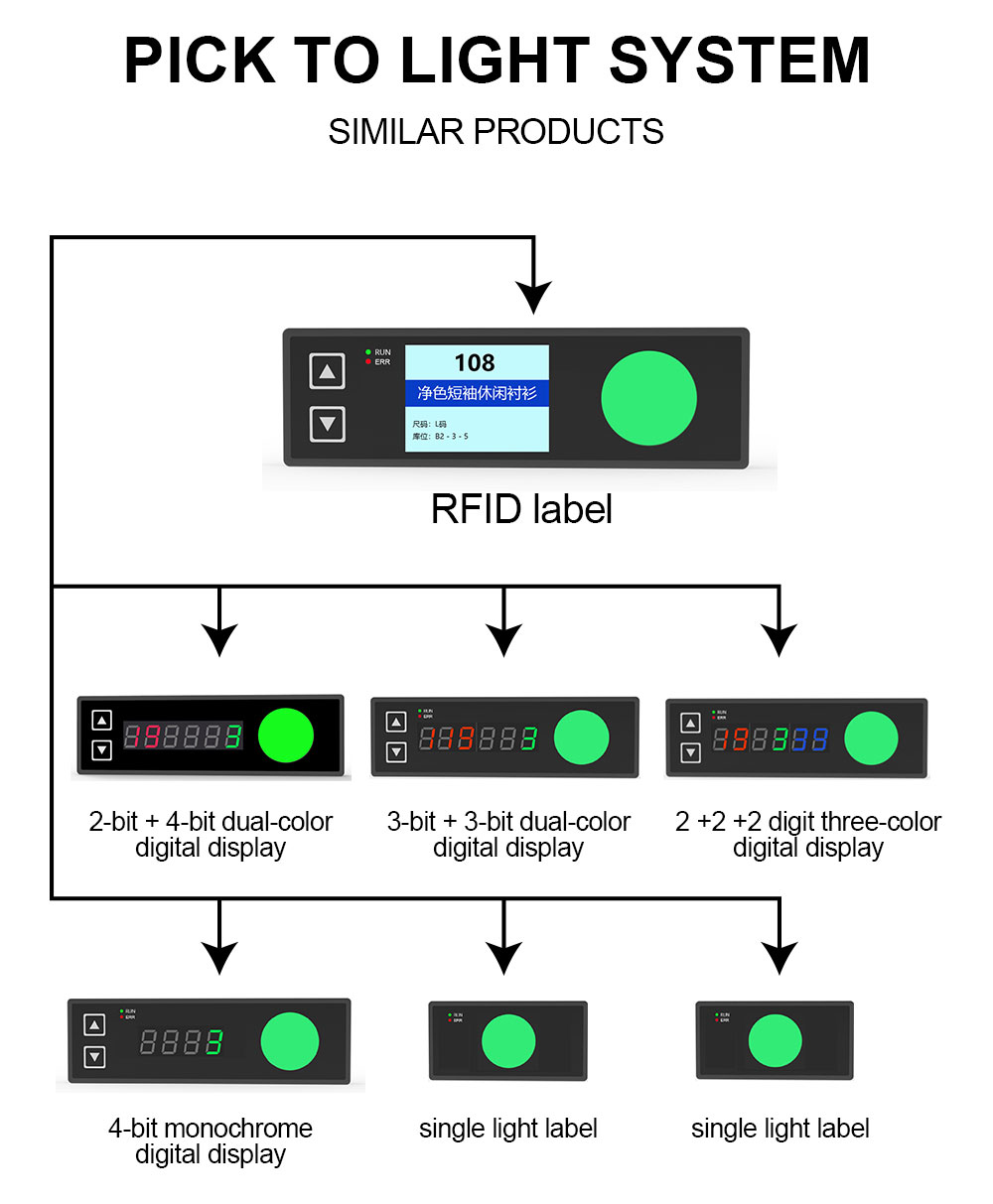

- 7. Electronic label: used to display the goods location, quantity and send out indicating information.

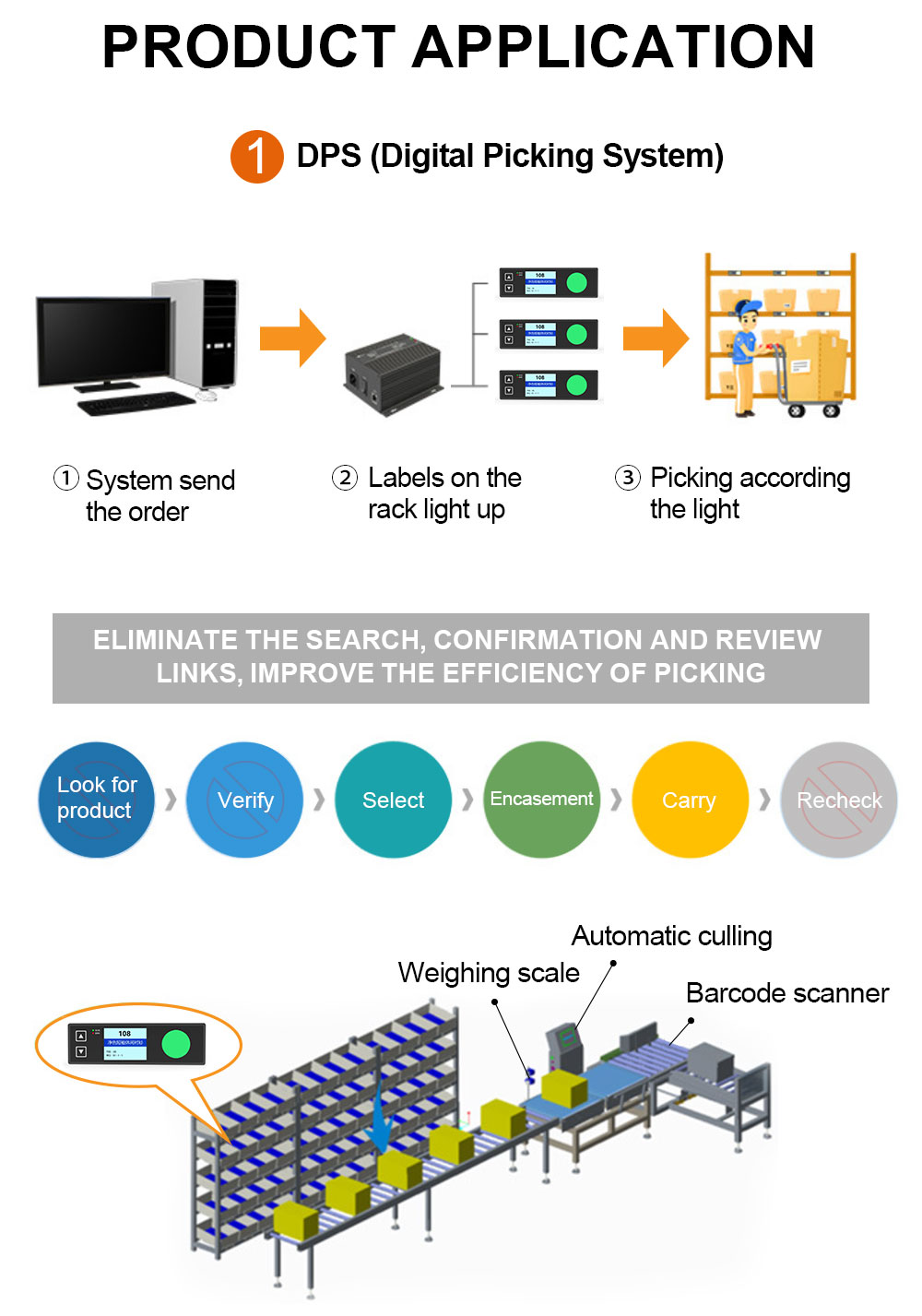

DPS (Digital Picking System)

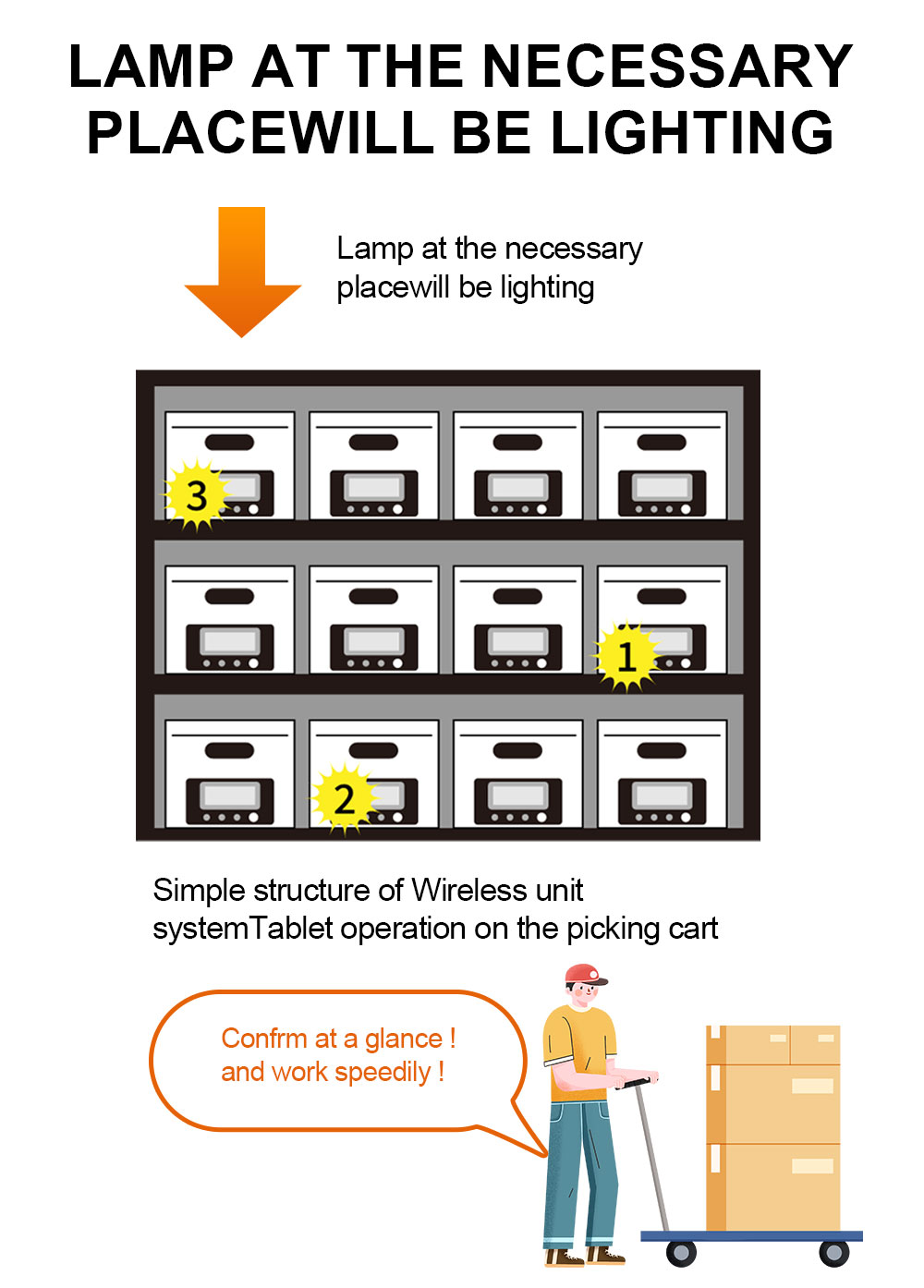

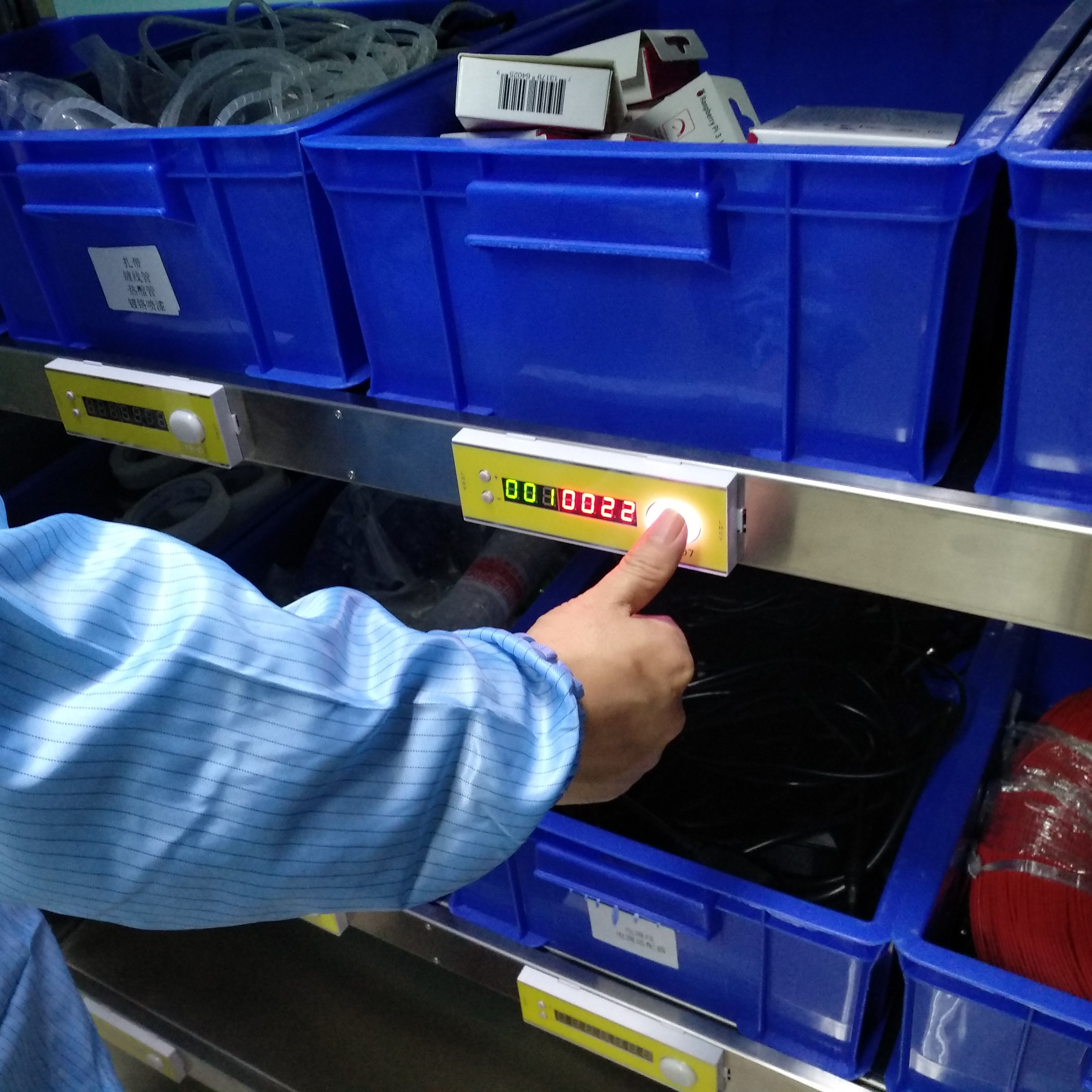

Install electronic labels on the shelf, in principle a place a product in the store (a label represents a product) and one order for a processing unit, the system causes the corresponding label to light up in the order, picking member according to the bright lights and digital display to take out the goods from the shelf. This is called pick to light according to the order.

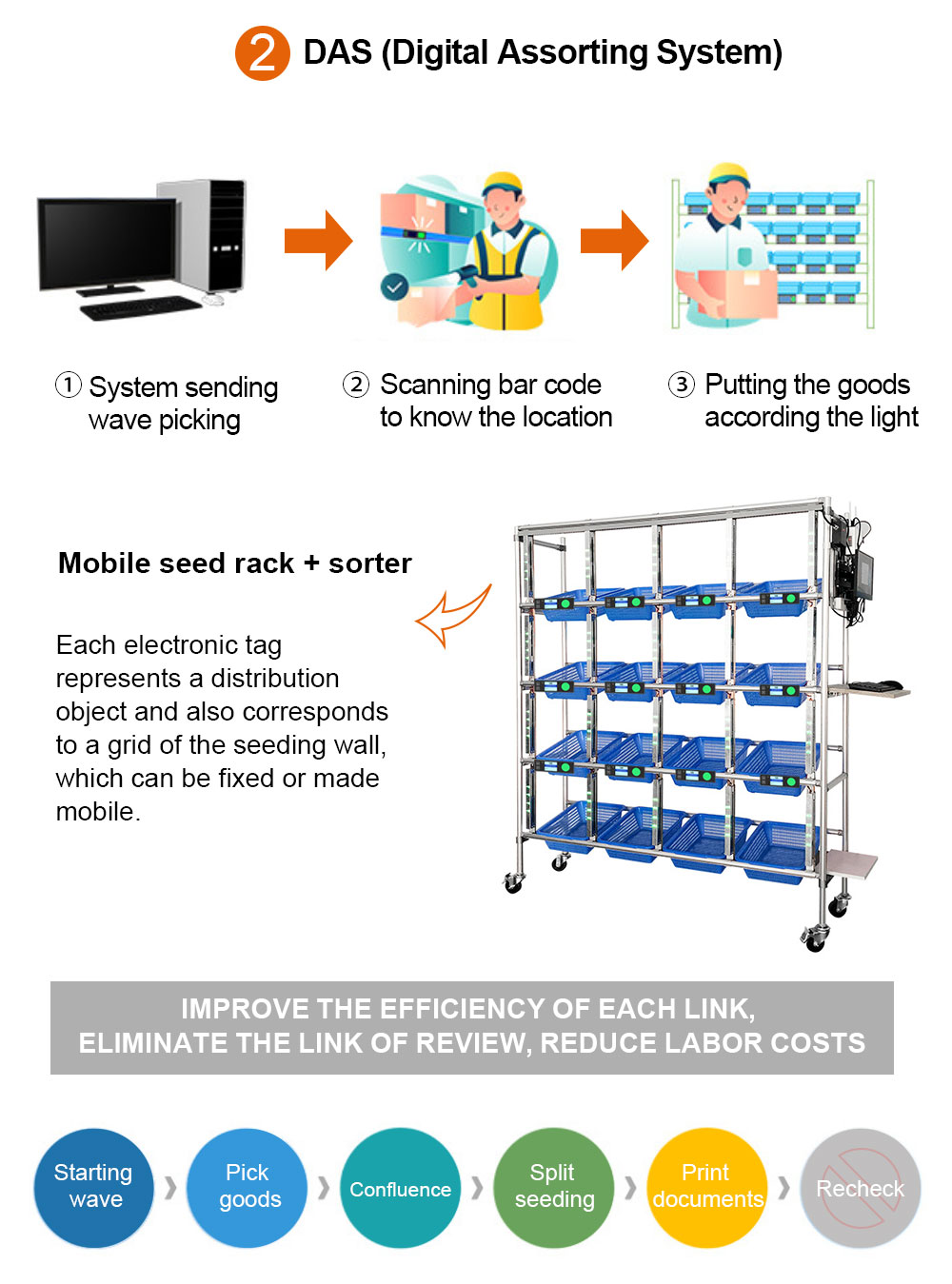

DAS (Digital Assorting System)
Each label represents an order customer or a distribution object. Taking out the total quantity of the ordered goods first, and scan the good's bar code to light up the according PTL label. The distributor can match the goods to the cargo space corresponding to the light or digital display of the PTL label. Put to light wall can be divided fixed type or mobile type.
Product Gallery
Frequently Asked Questions
?What is a light strip put wall?
The light strip put wall is an intelligent electronic device comprised of a put rack and material grids. It is widely used for automated, secondary sorting and packaging of goods in e-commerce warehousing.
?How does the Digital Picking System (DPS) function?
In DPS, electronic labels are installed on the shelves where each label represents a product. The system automatically lights up the corresponding label according to order sequences, directing personnel to pick items based on light cues and digital screens.
?What is the main difference between DPS and DAS?
While DPS is a "pick-to-light" system where labels indicate physical goods to pick, DAS (Digital Assorting System) works on a "put-to-light" standard. In DAS, each label represents an individual customer order or distribution object, and operators sort bulk-picked goods into specific grids as indicated by the lights.
?Does the system support secondary development customization?
Yes. The system's controller service provides a secondary development SDK that uses the web socket protocol and JSON formatted control data, allowing users to fully customize and control their unique hardware picking processes.
?How does this system improve warehouse efficiency?
It assists workers in locating materials quickly through precise visual electronic tags. This minimizes errors, lowers manual dependencies, shortens operational learning curves, and speeds up the overall logistics distribution response.
