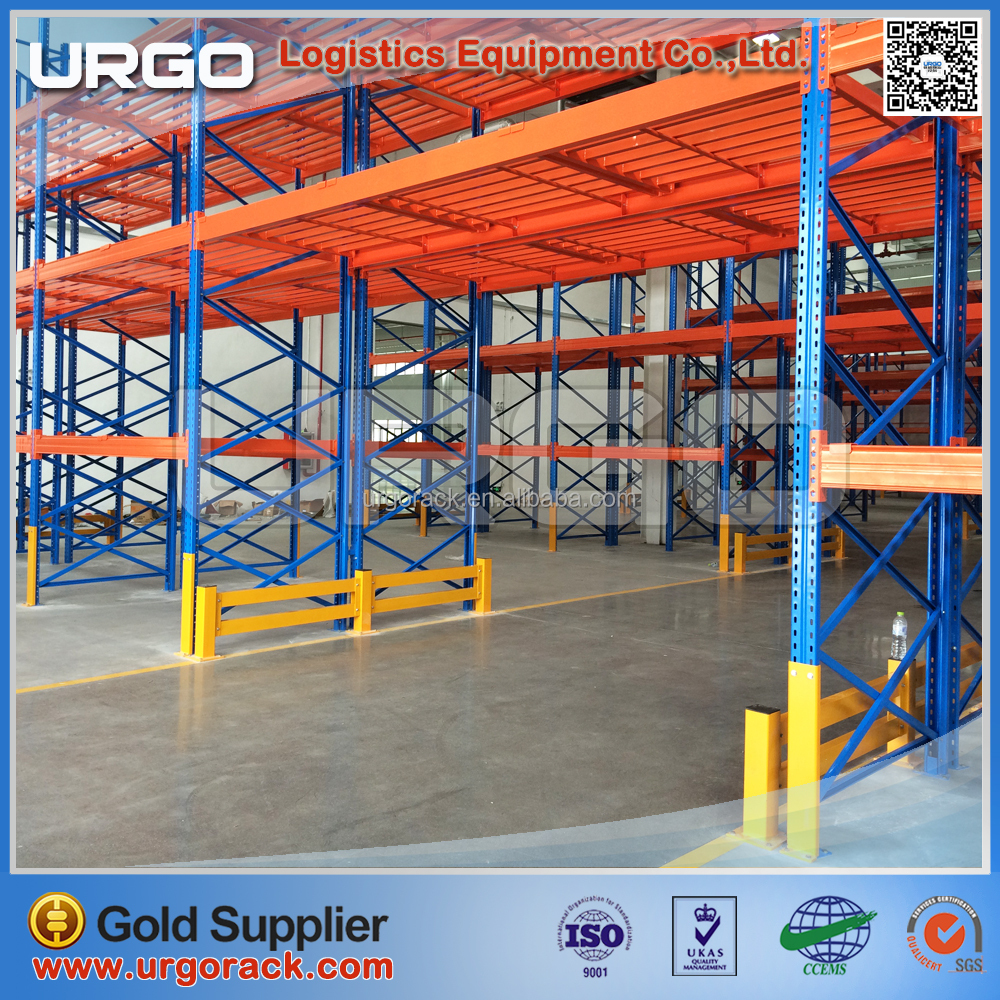

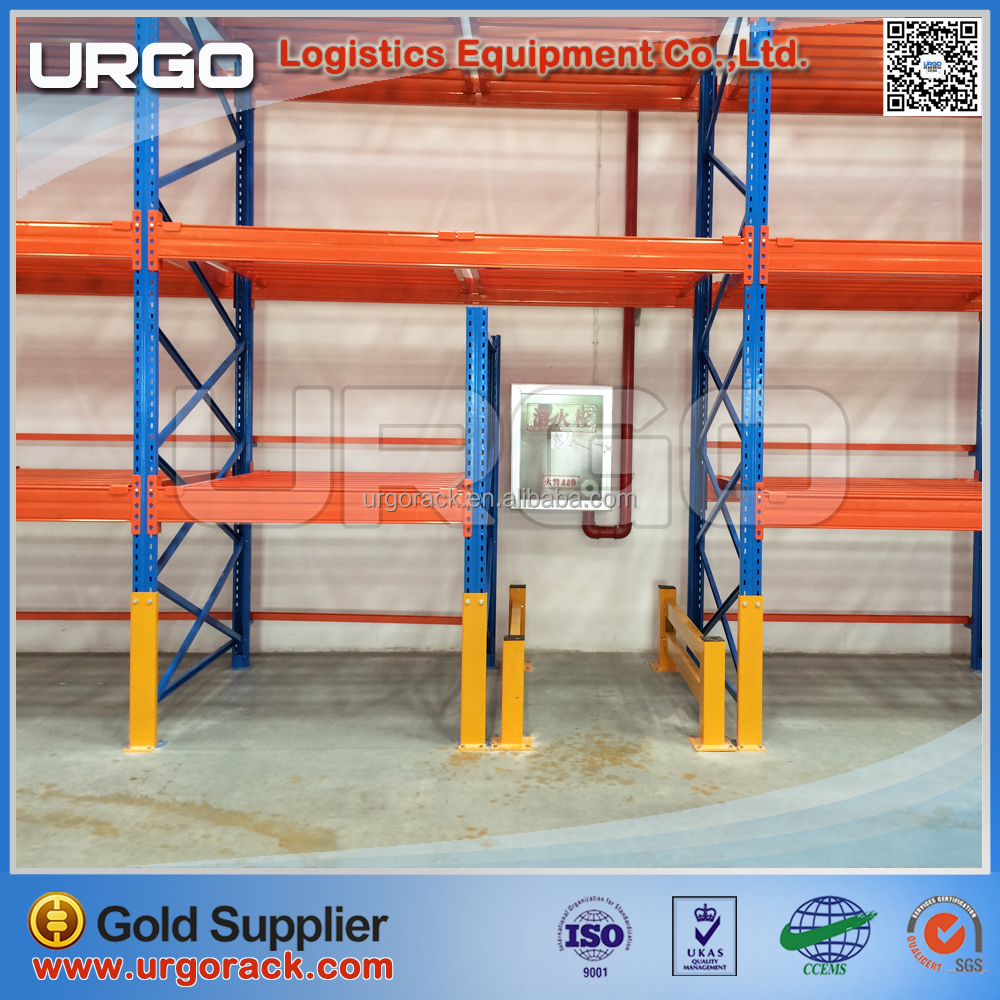

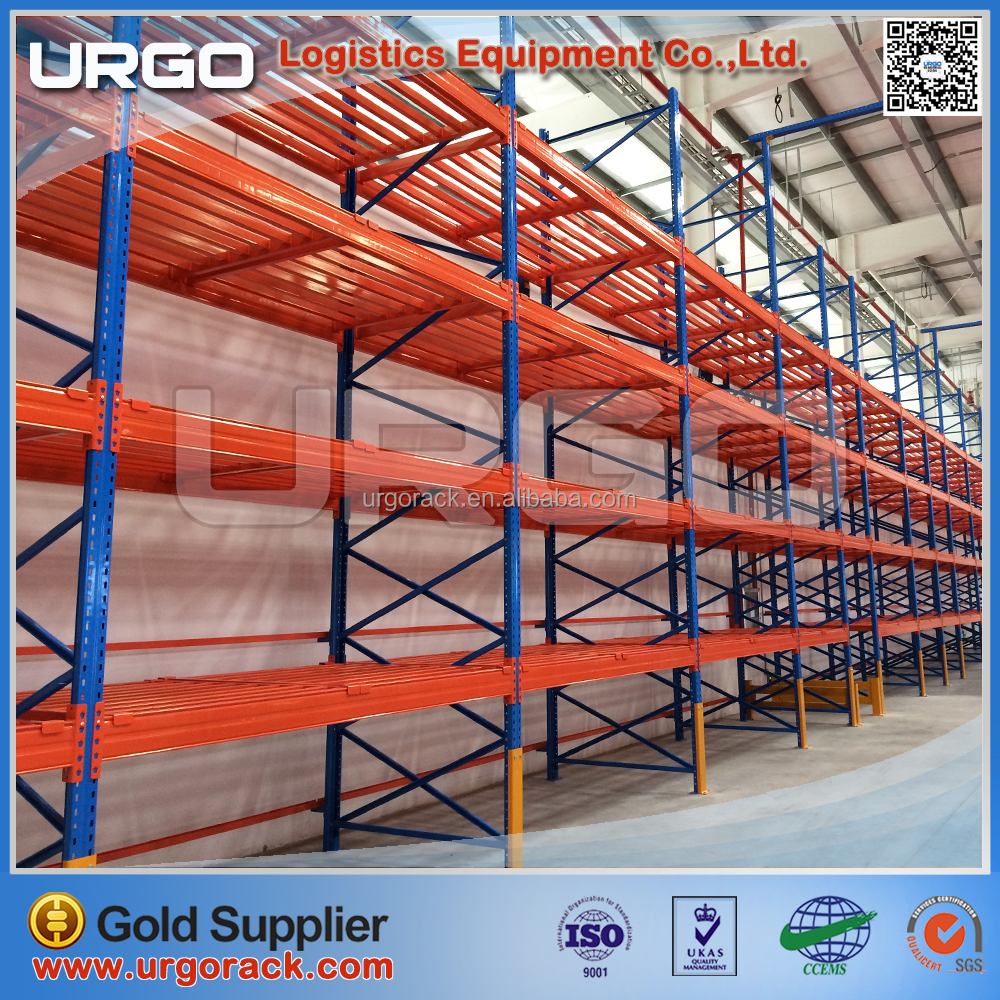

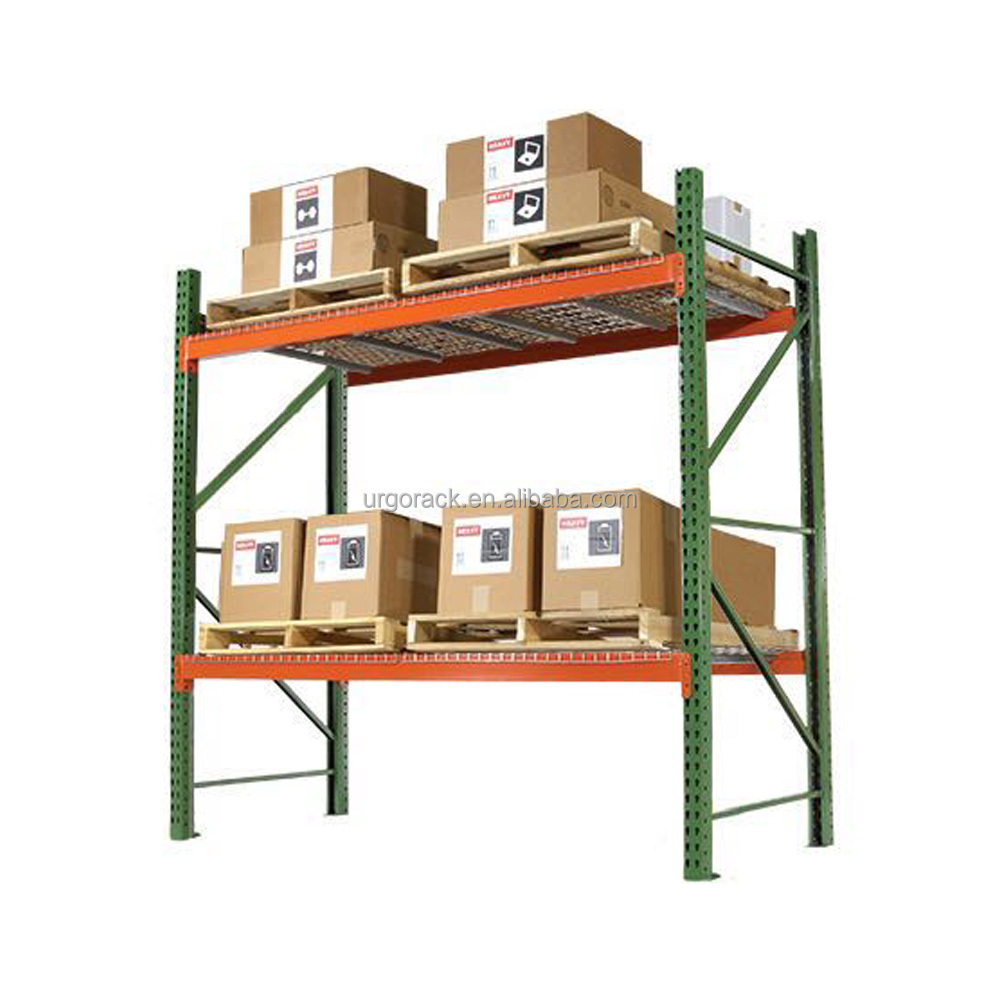

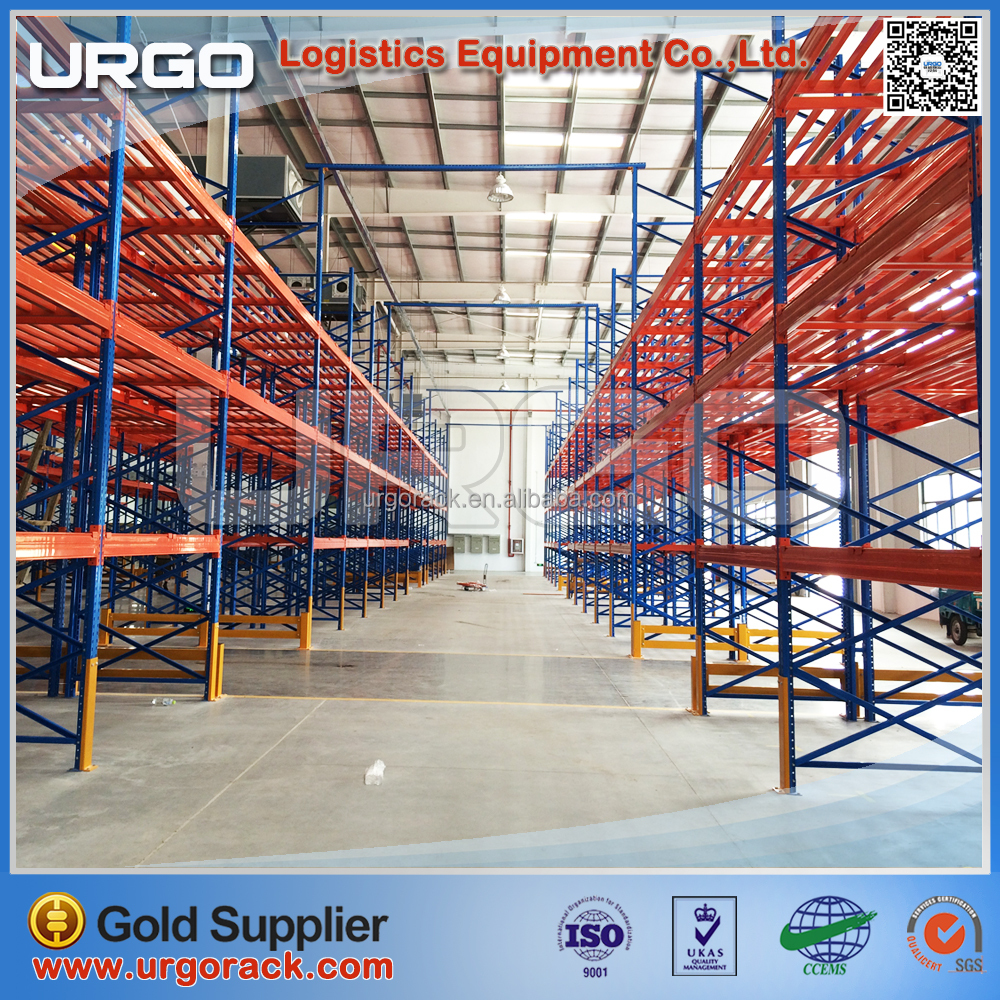

Heavy duty pallet rack is a highly cost-effective storage solution, providing high capacity and easy access to all pallets. It offers direct access to all pallets with great load flexibility, installs quickly, and adjusts easily to specific warehouse needs.
Utilizing high-quality raw materials from large domestic steel corps ensures stable quality. This system is ideal for warehouse & logistics, food/drug distribution, petroleum/chemical plants, automotive distributors, and big box retail stores.

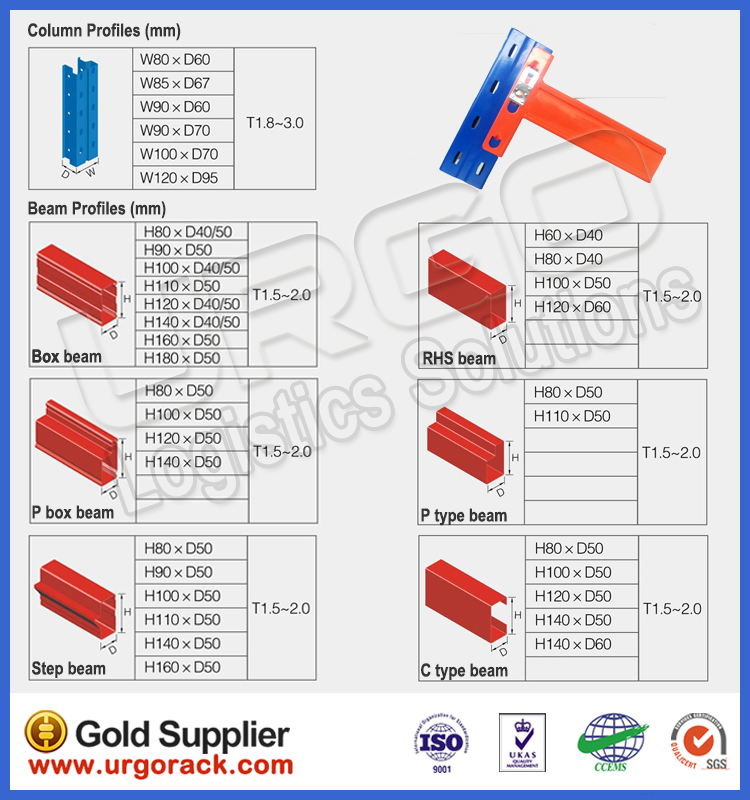

Column Specifications: Available in Type 80, 85, 90, 100, 120, and 140.
Beam Types: Rectangular tube beam, C-shape tube beam, Box beam, Corbel box beam, and P-type box beam.

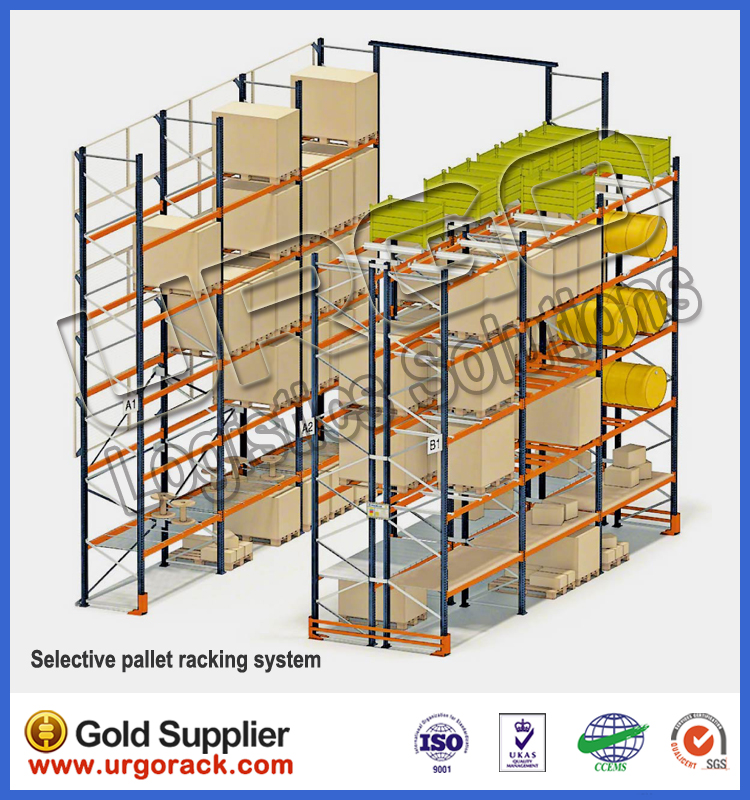

The structure includes uprights and beams. Specifications are selected based on actual pallet load capacity and warehouse dimensions.
Upright Features:
| Column Specification (mm) | Thickness (mm) | Upright Loading (kg) |
|---|---|---|
| W80 x D60 | 1.8-2.0 | 4000-6000 KG |
| W85 x D67 | 1.8-2.3 | 7500-12500 KG |
| W90 x D60 | 1.8-2.5 | 8000-10000 KG |
| W90 x D70 | 1.8-2.5 | 10000-12000 KG |
| W100 x D70 | 2.0-2.5 | 11000-14000 KG |
| W120 x D95 | 2.3-3.0 | 17000-21000 KG |
Beam Features:
| Box Beam Spec (mm) | Length 2300mm | Length 2700mm | Length 3300mm |
|---|---|---|---|
| 90 x 50 x 1.5 | 1800 kg | 1345 kg | 850 kg |
| 110 x 50 x 1.5 | 2640 kg | 1950 kg | 1340 kg |
| 140 x 50 x 1.5 | - | 3330 kg | 2370 kg |
| 160 x 50 x 2.0 | - | - | 4170 kg |

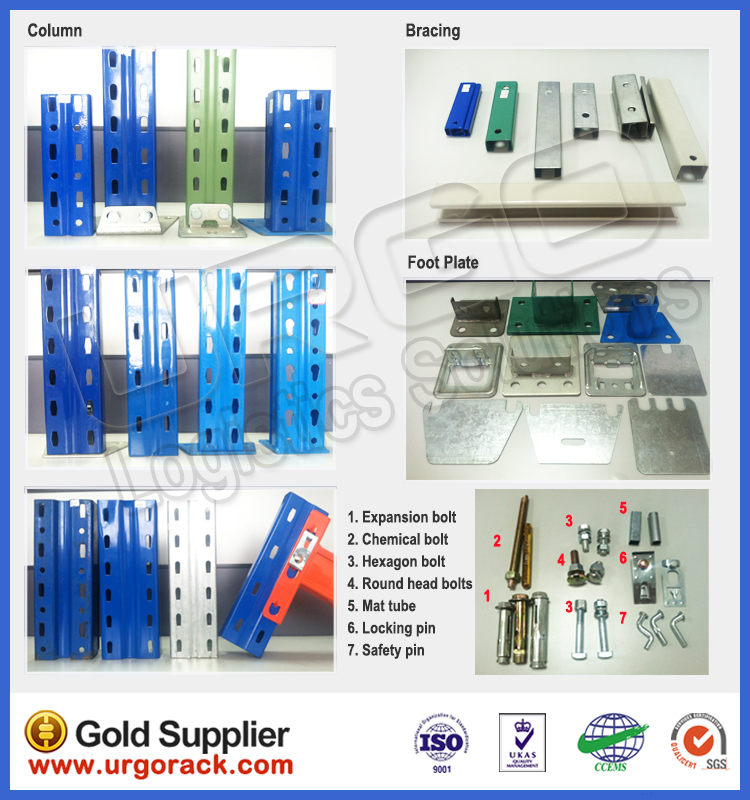

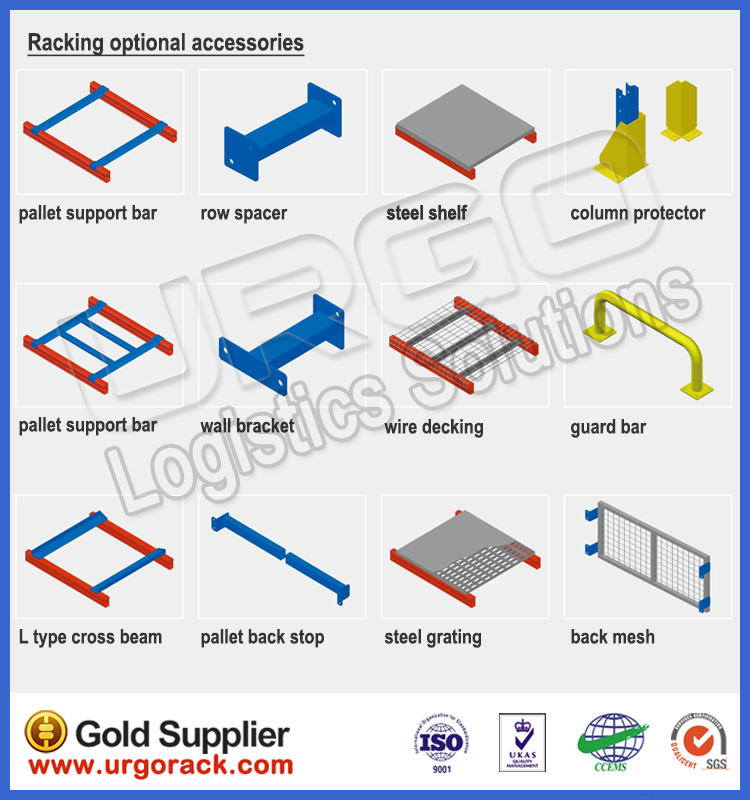

Conventional accessories include cross beams, back brake beams, back mesh, side mesh, steel plates, grid plates, column protectors, and guard bars.

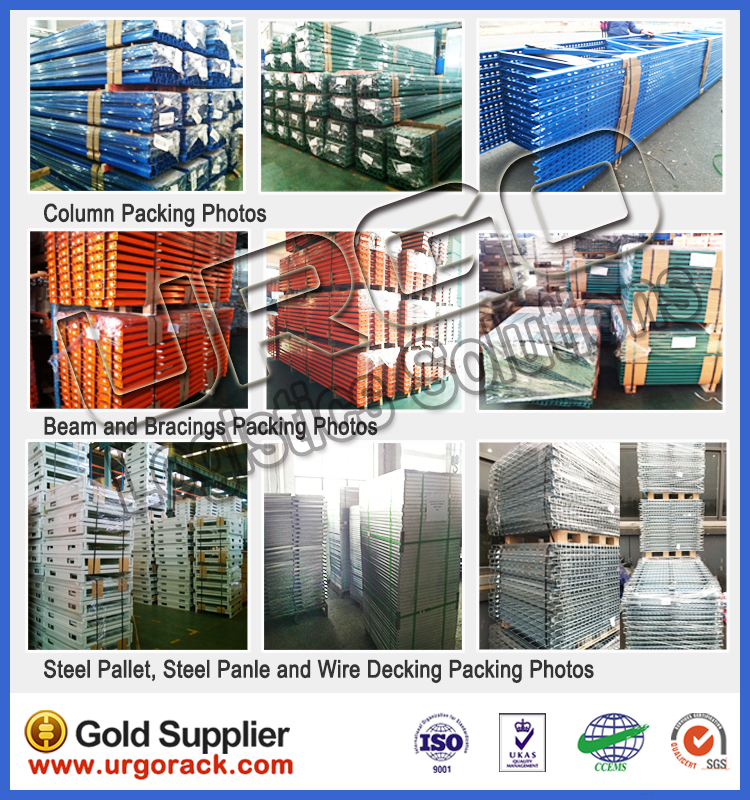

A professional logistics team ensures your cargo is safeguarded. We use first-class packaging techniques including plastic clips on beams and transparent film wrapping for uprights to prevent damage during transportation.

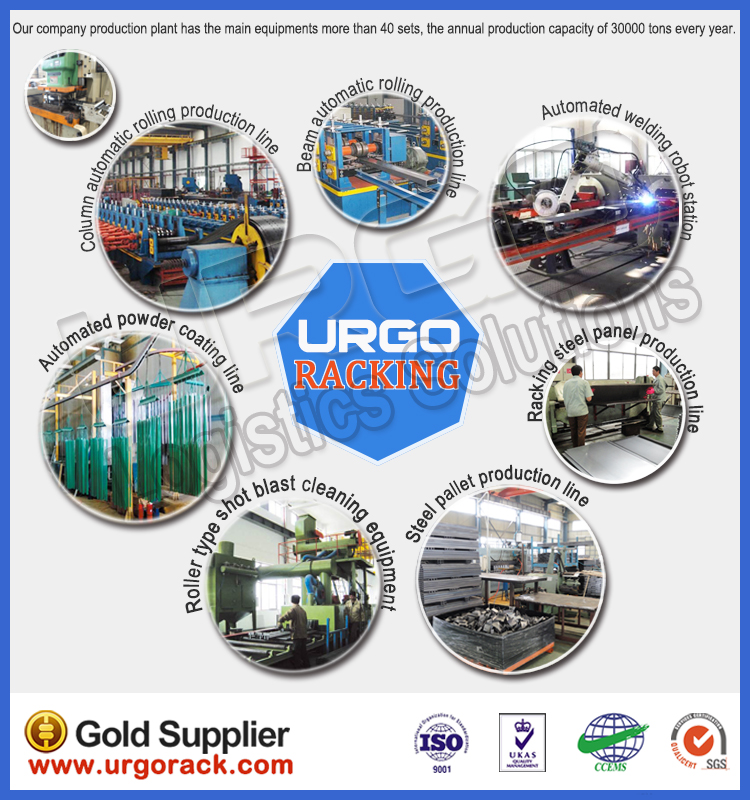

Annual production capacity reaches 30,000 tons. Main equipment includes automated rolling lines, welding robots, and automated powder coating lines.
