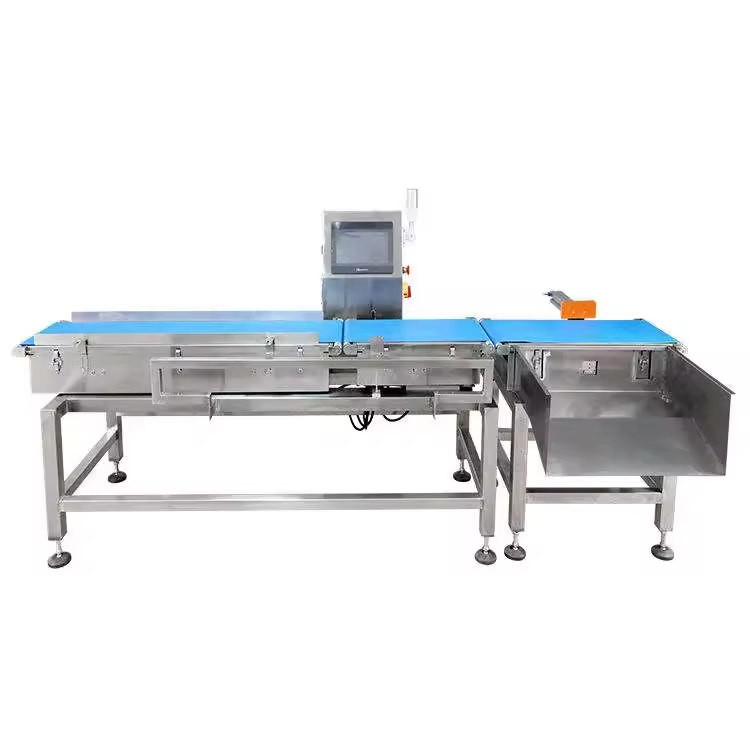

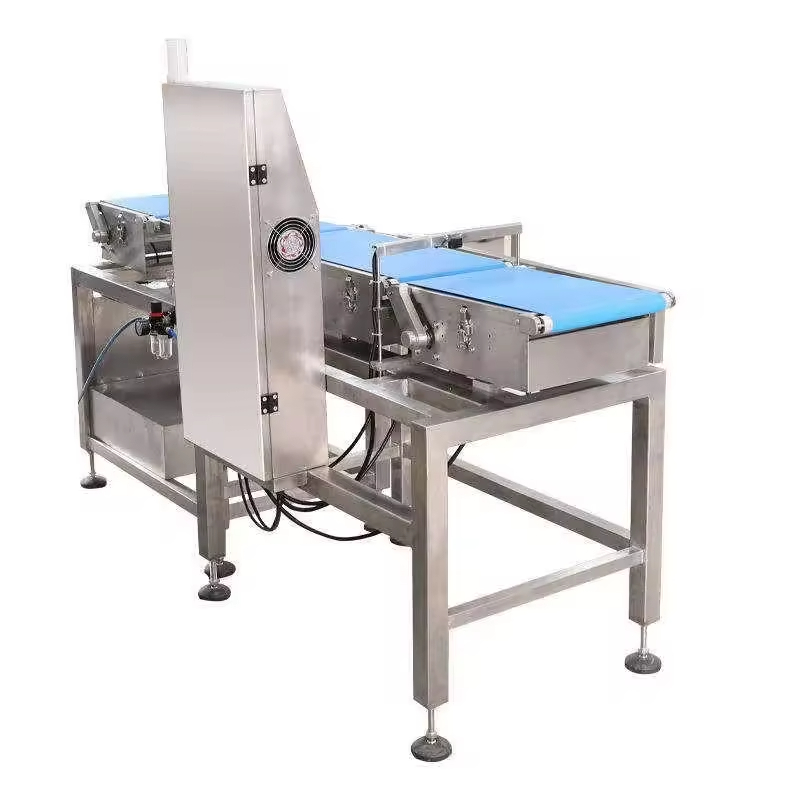

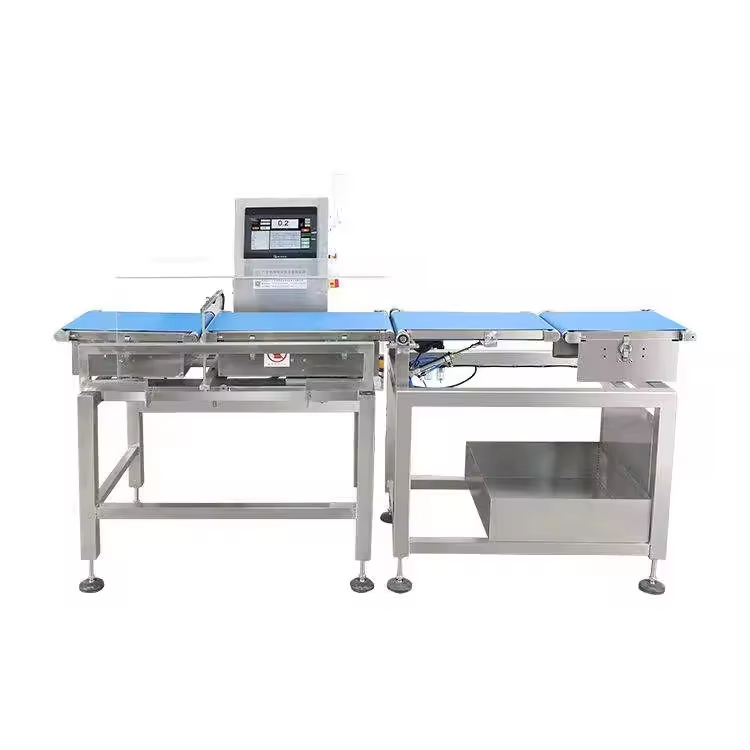

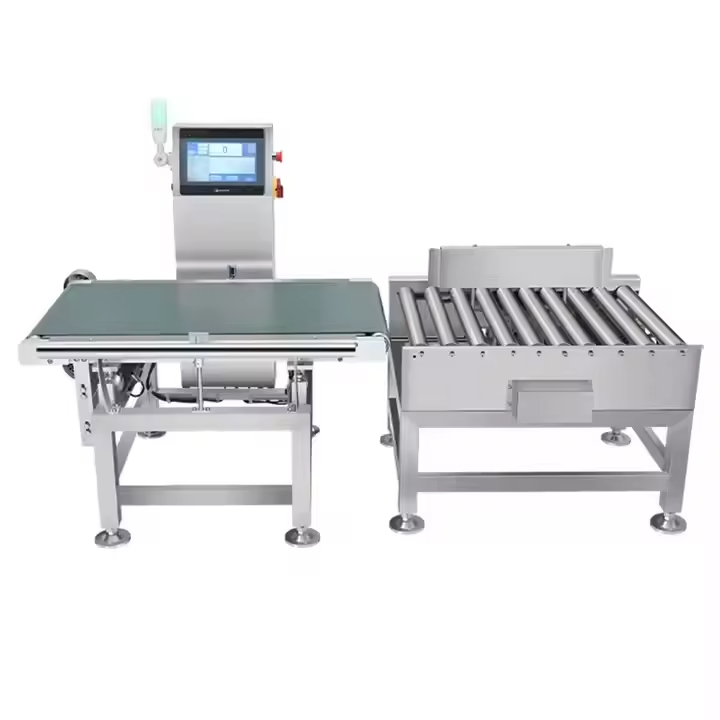

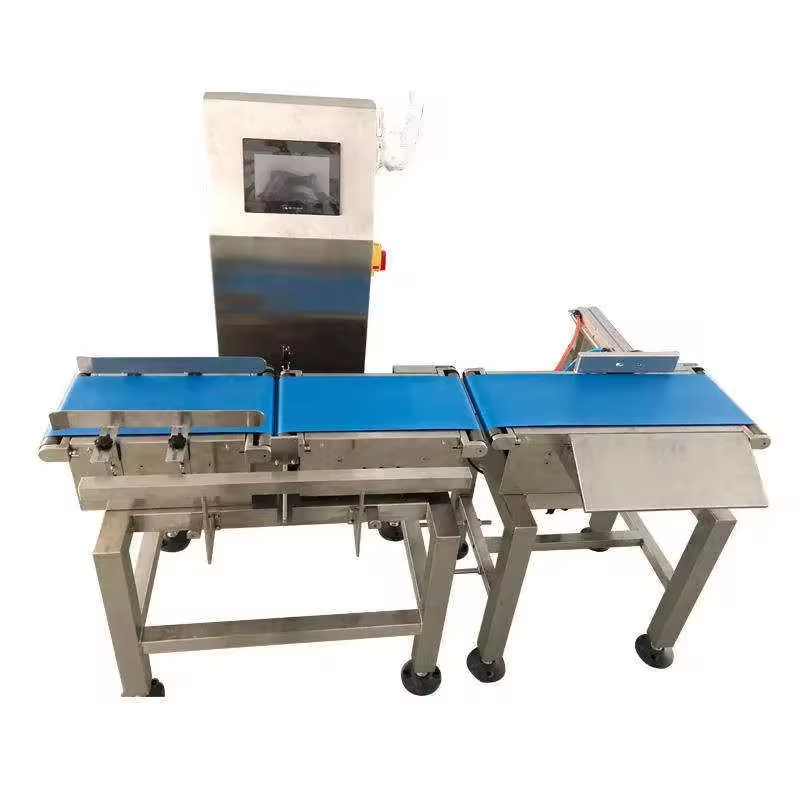

The Check weigher is designed for fully automated packaging lines,when find the overweight and ultra-light products the conveyor belt will stop and alarm, the screen will display the weight. When the substandard product removed from the product line, the belt will run automatically. Auto ejector is optional.

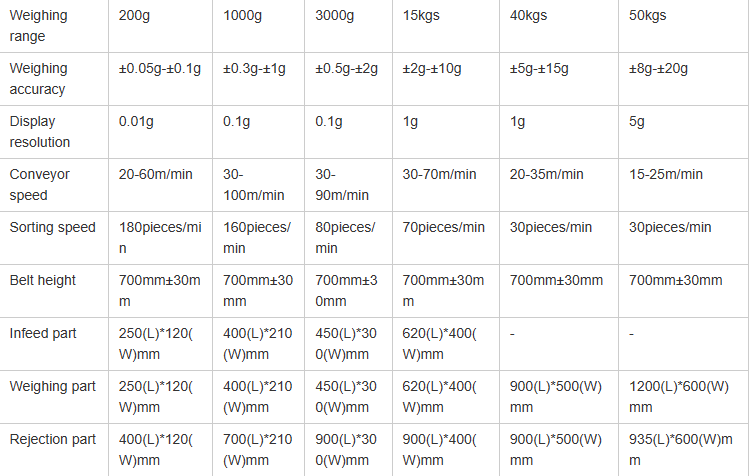

| Model | NG-709 |
| Numbers of Sections |
2 Sections: Weighing section + Rejection section 3 Sections: Cushion section + Weighing section + Rejection section |
| Weighing range | 1~200g / 5~1000g (Optional or specified) |
| Detection object size |
L : Max. 200 / 300 / 400 / 500 / 600 mm (Optional or specified) W : Max.150 / 200 / 300 / 400 mm (Optional or specified) H (mm): Max.100 / 150mm |
| Weighing section size |
L : 200 / 300 / 400 / 500 / 600 mm (Optional or specified) W : 150 / 200 / 300 / 400 mm (Optional or specified) |
| Touch Screen | 10.1 inch color TFT touch display |
| Minimum scale | 0.1g ( Based on Max. Weighing range ) |
| Sorting accuracy | ± 0.1g ~ ±1g (Based on size of weighing area) |
| Belt height from ground | 680mm~750mm (Or customized height) |
| Conveyor belt speed | 20m / min fixed speed or 15-30m / min adjustable speed (or customized) |
| Numbers of Sorting | 1 / 2 / 3 / 4 / 5 / 6 Outputs Sorting (or customized) |
| Material. Surface | 304 stainless steel surface polishing |
| Language | Chinese / English (or customized) |
| Input voltage / power | Single Phase AC220V 50Hz |

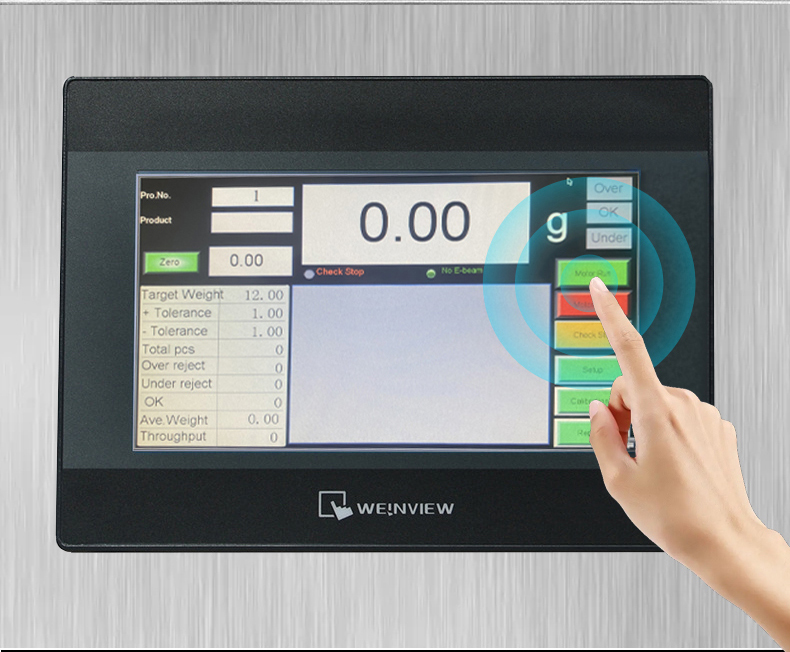

Large LCD touch screen display, Chinese and English interface, Language customized.
High-precision sensor with high detection accuracy and fast detection speed.
The graph shows the statistical distribution of the sorting results and grasps the sorting dynamics in real time.
100 kinds of product sorting parameters can be preset, and different products can be quickly switched.
High-speed and high-precision digital filtering algorithm, data filtering parameters, automatic learning.
Dynamic zero tracking, including zero tracking when the equipment is continuously running, can automatically correct the weight value.
Variable frequency motor drive, effectively improve the stability of equipment operation.
Preset data transmission interface, can set or export product sorting parameters via USB.
The photoelectric check weighing trigger method is adopted to effectively improve the accuracy of the equipment.

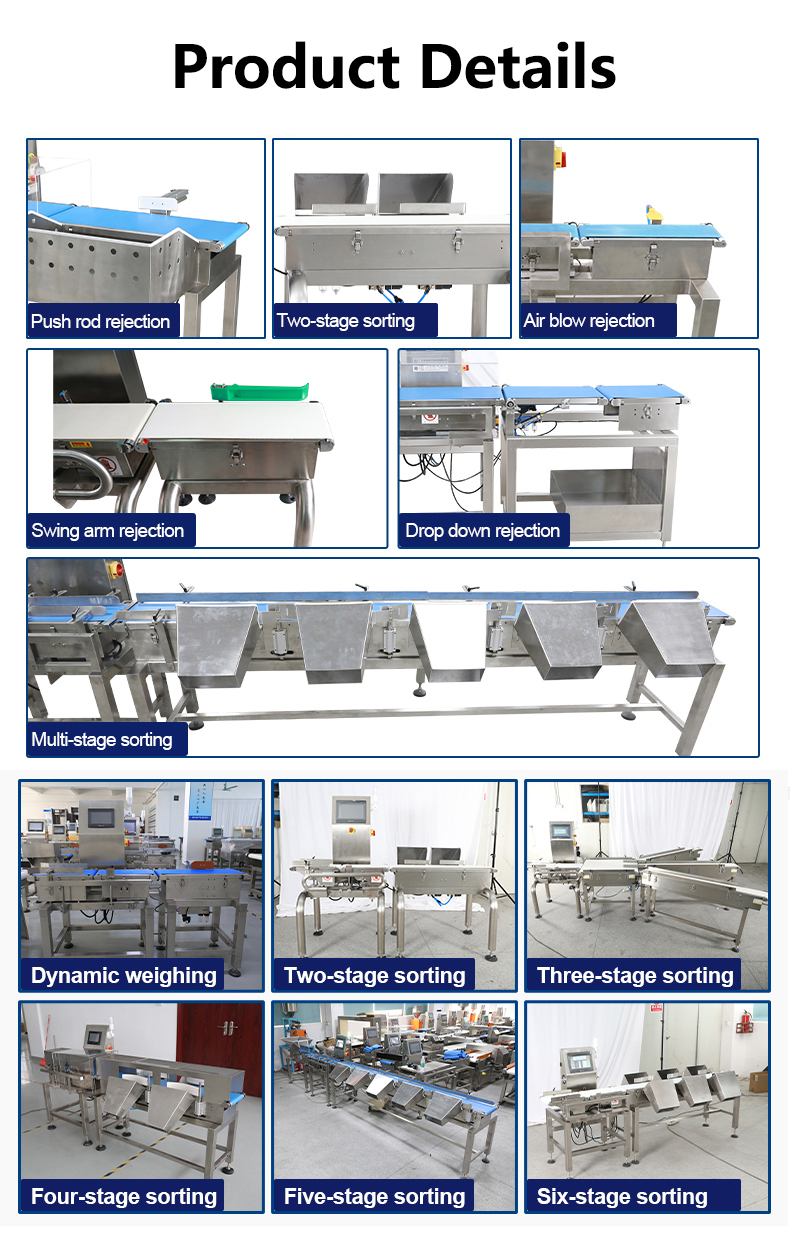

Multiple removal methods are optional, which can remove overweight or underweight products.
We will make the machine and function as per your needs. Contact us now to talk more!
We offer a factory + trade integration, with 20 years focusing on test instruments field and 6 years of exporting experience. OEM is also highly acceptable.
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specifications.
Most of the time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangements for you.
Yes, of course. We can offer not only standard machines, but also customized machines according to your request. Do not hesitate to share your requirements, we will try our best to meet your needs.
Yes, we warmly welcome and sincerely invite you or your team to visit our factory. We will help to arrange the hotel and pick you up from the airport.
This checkweigher is designed for fully automated packaging lines. It detects overweight and underweight products, automatically stops the conveyor belt, triggers an alarm, and displays the weight details on the screen.
