| Weighing Mode | Qualified, overweight, and underweight have different icon displays |
| Weighing Collection | High speed AD weighing and acquisition system |
| Weighing Speed | High speed mode can reach 4000 pieces/hour |
| Automatic Zero Chasing | Zero position automatic tracking |
| Parameter Saving | Product parameters and setting parameters can be saved after power outage |
| Stepping Speed Control | Belt speed can be adjusted according to requirements |
| Multilingual | The default is Chinese and English, which can be changed as needed. |
| Data Export | Can export detailed statistical data, including qualified, out of tolerance, total number, etc. (optional) |
| External Communication | Can connect to external 485 communication and support free protocol (optional) |
| Protection Level | IP54 |
| Power Supply | 220VAC, 50Hz, 60-120w power consumption, 100V-270V single-phase power supply, complete and reliable grounding |

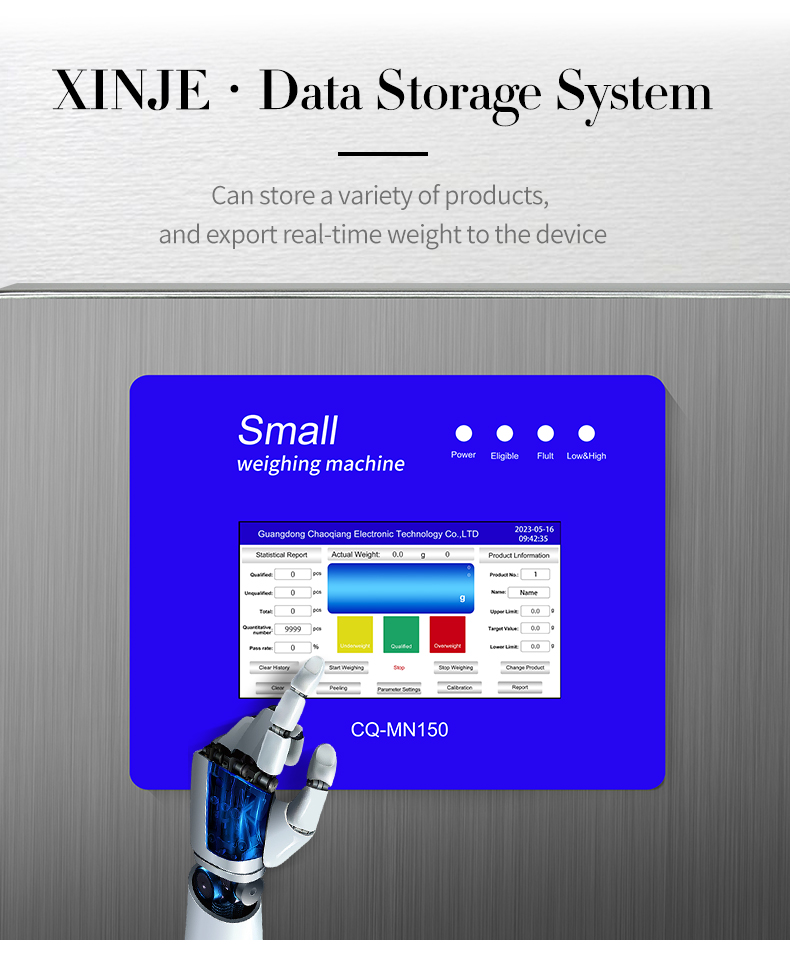

| Touch Screen | Customized 7-inch touch screen |

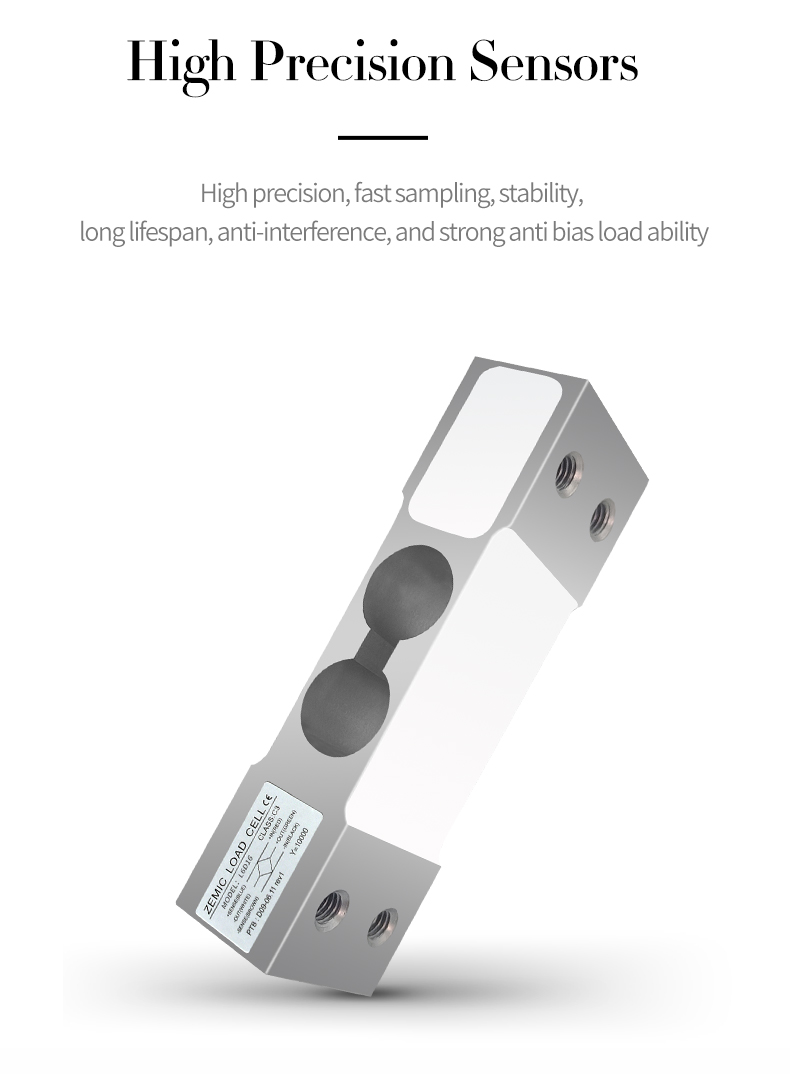

| Sensor | AVIC 10kg |
| Switching Mode Power Supply | Mingwei LRS-100-24 |
| Power Switch | Blue wave ship type switch |

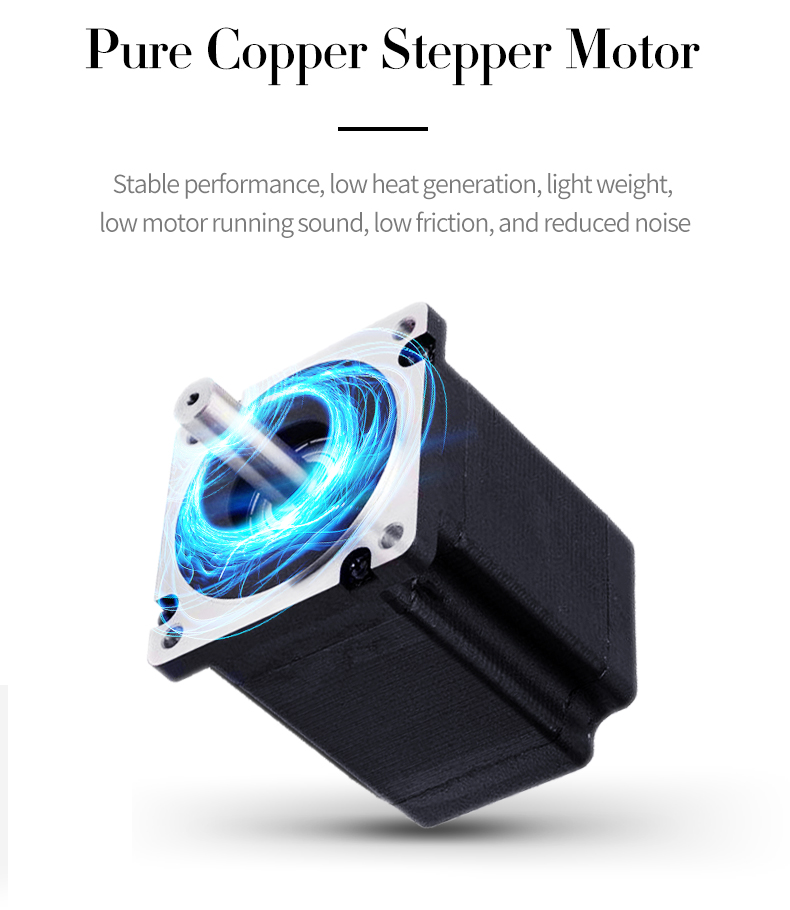

| Electrical Machinery | Lingsai Electric |
| Drive | Lei Sai |

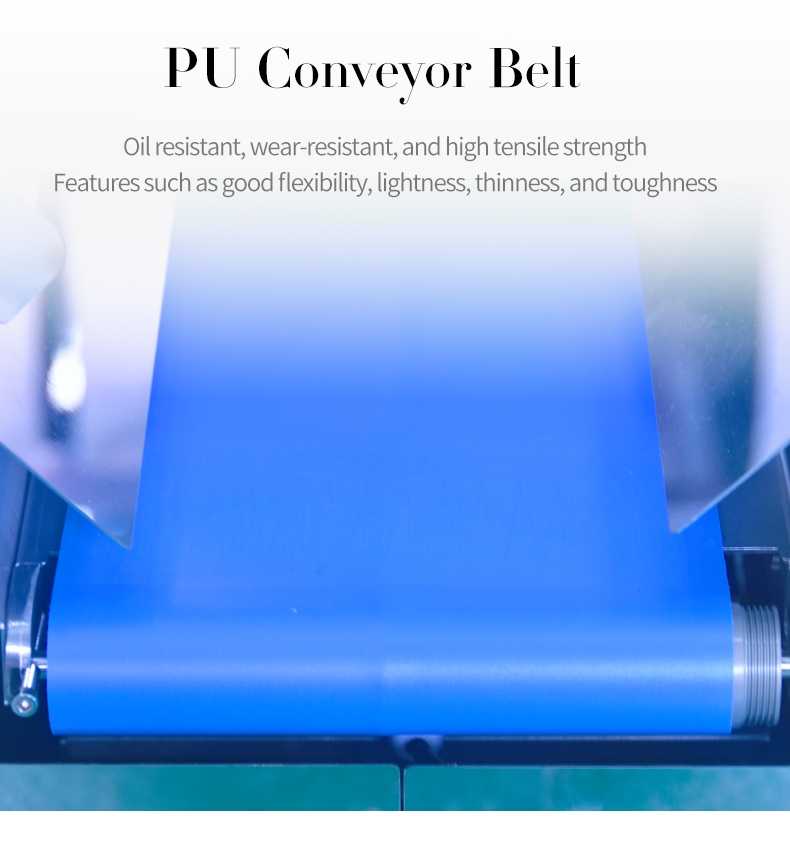

| Conveyor Belt | wynn |
| Metal Shell | SUS304 |
The machine features a high-speed mode that can process up to 4000 pieces per hour, depending on the product specifications and requirements.
You can store up to 100 different product detection intervals. These settings can be easily searched, edited, and called, and they are saved even in the event of a power outage.
Yes, the default languages are Chinese and English. Other languages can be customized and changed according to your specific needs.
The machine is built with a SUS304 metal shell and has an IP54 protection level, making it suitable for standard industrial environments.
Yes, the machine supports an optional data export function that allows you to export detailed statistical data, including qualified counts, out-of-tolerance counts, and total numbers.
The machine is designed with dual channels. Qualified and unqualified products flow through separate channels, and the sorting logic can be freely switched via the touch screen.
