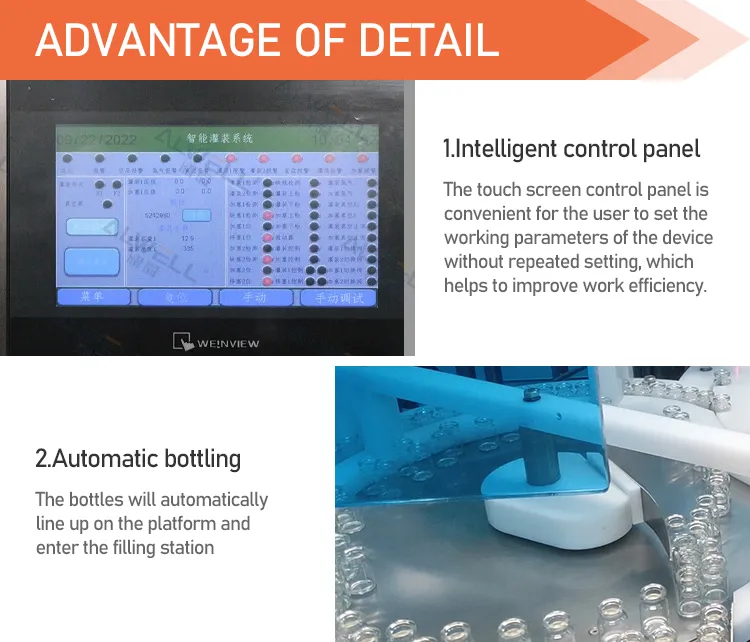

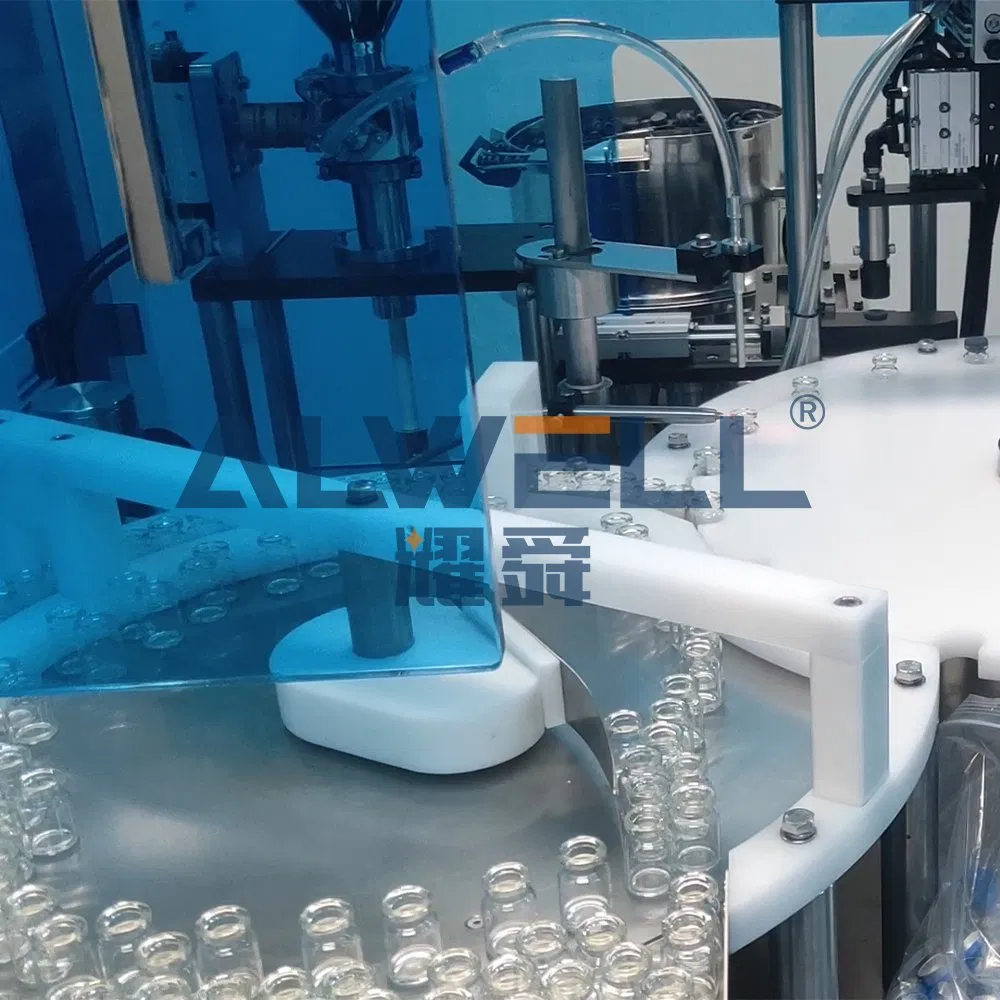

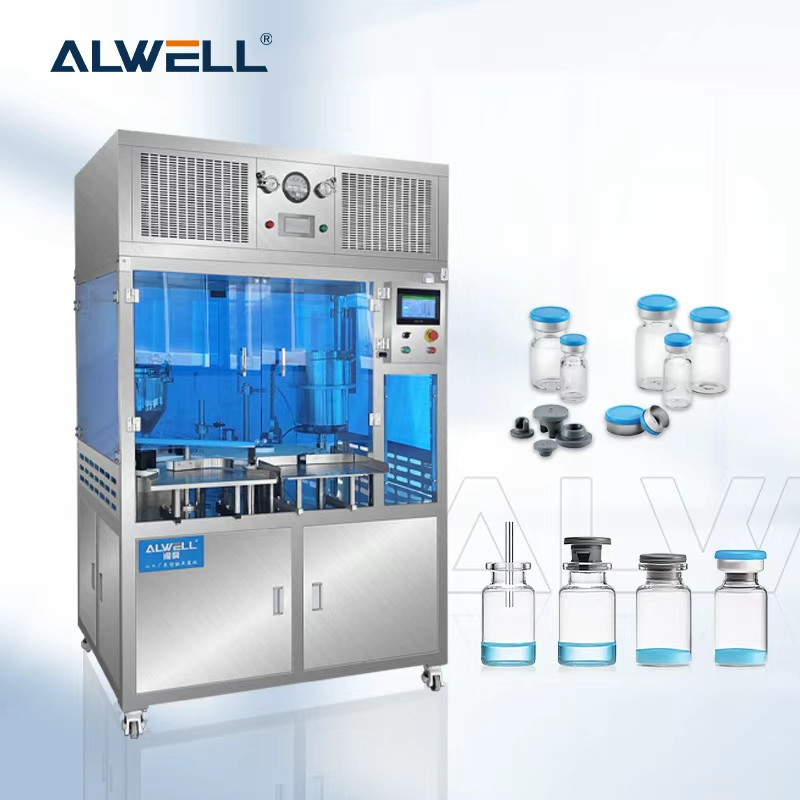

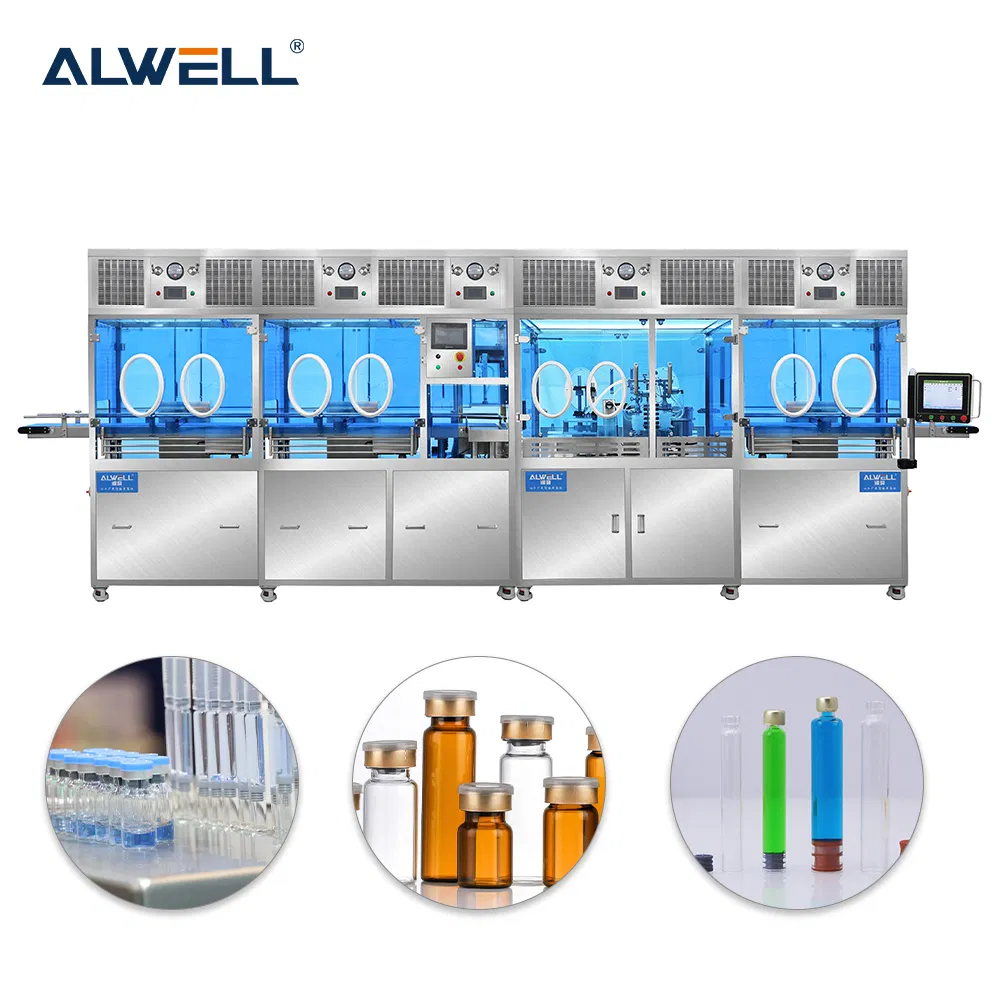

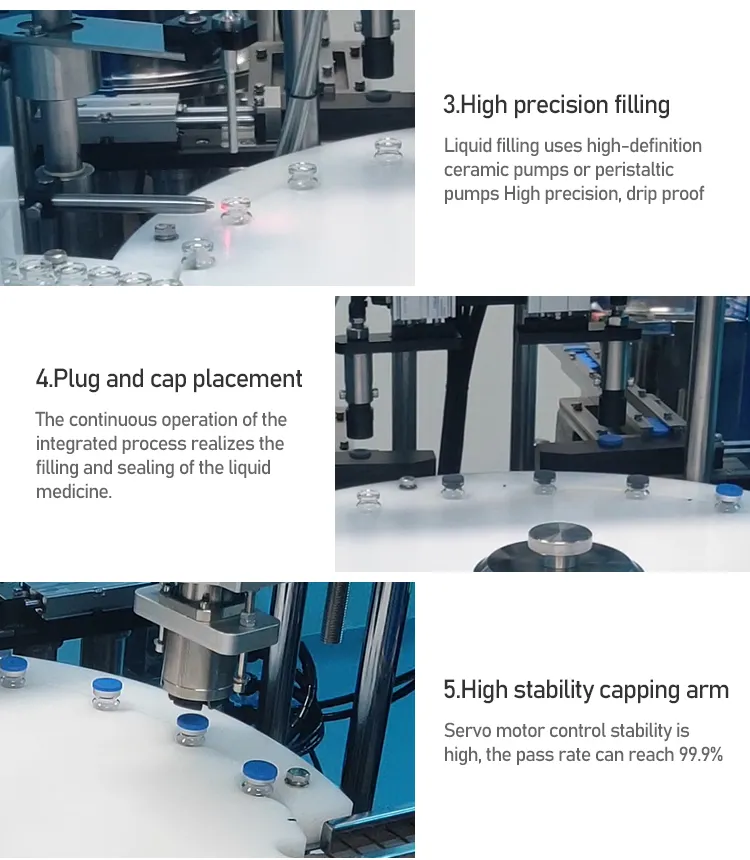

The automatic filling and capping machine is a device designed for bottled liquids. It uses peristaltic pump filling, positioning type cap feeder, capping, and magnetic moment capping. Equipped with PLC, touch screen control, and imported photoelectric detection, it provides high precision. It is widely used in pharmaceutical, food, chemical, health care products, pesticides and other industries, and is made in full compliance with the GMP requirements.
| Type | Vial bottle filling machine |
| Number of filling heads | 2/4/6/8 |
| Filling range | 1ml-50ml |
| Bottle diameter | 5-100mm (Can Customize) |
| Bottle height | 5-100mm |
| Working speed | 0-60 bottles/min. (depending on liquid, bottle and caps) |
| Filling accuracy | 1% |
| Qualified rate of finished products | industry/medicine/Chemical |
| Applicable bottle | vial bottle |
| Warranty | 1 Year |
| Material | Stainless Steel 304 |
| Machine weight | About 341kg |
| Package size | About 2350*1250*2100mm |
This system is ideally applicable for: essential oil, Medical syrup, Oral liquid, Injection bottle.

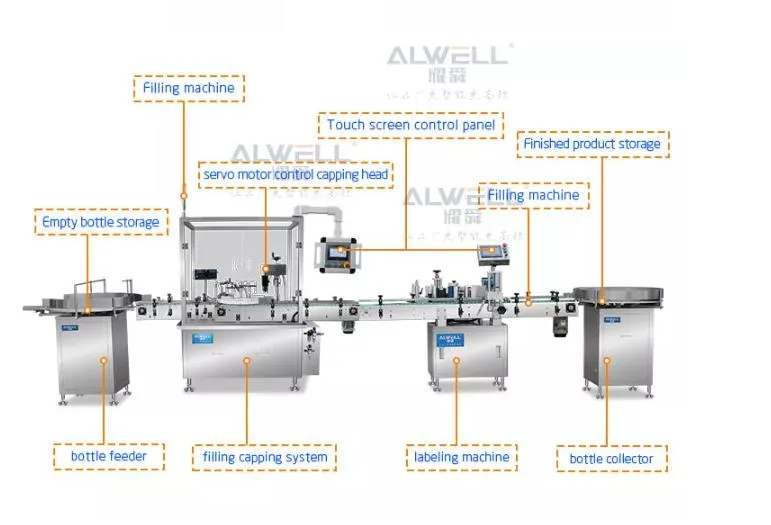

This machine is widely suitable for foodstuff, cosmetic, pharmaceutical, pesticide and other industries. It is designed for single-side labeling of round bottles, automatically controlled by computer (PLC) for easy operation. No bottle, no labeling. Specifications can be changed easily. It adopts a servo motor, achieving closed-loop control with low malfunction rates, high efficiency, and fast speed.
| Power supply | AC220V ; 50HZ (or according to client voltage requirement) |
| Power | 2.5kw |
| Label length | 6-300mm, label width: 20-150mm |
| Bottle size | 20 ≤ diameter ≤ 150mm, 20 ≤ height ≤ 300mm |
| Label speed | 20-120pcs/min |
| Label inner diameter | 76mm, Label outer diameter: 350mm |
| Label precision | ±1mm |
| Weight | 400kg |
A: We offer sea shipping, air shipping, and international express. After placing your order, we keep you updated on the production details via emails and photos.
A: We provide a 12-month free warranty with life-long maintenance.
A: Yes, we provide wearing parts such as motor belts and disassembly tools (free of charge), along with professional technical guidance.
A: We accept T/T, L/C, and International Credit Card payments.
A: The quotation is valid for 15 days from the date of the quotation.
A: Delivery is typically arranged within 15 days after receipt of your deposit.
