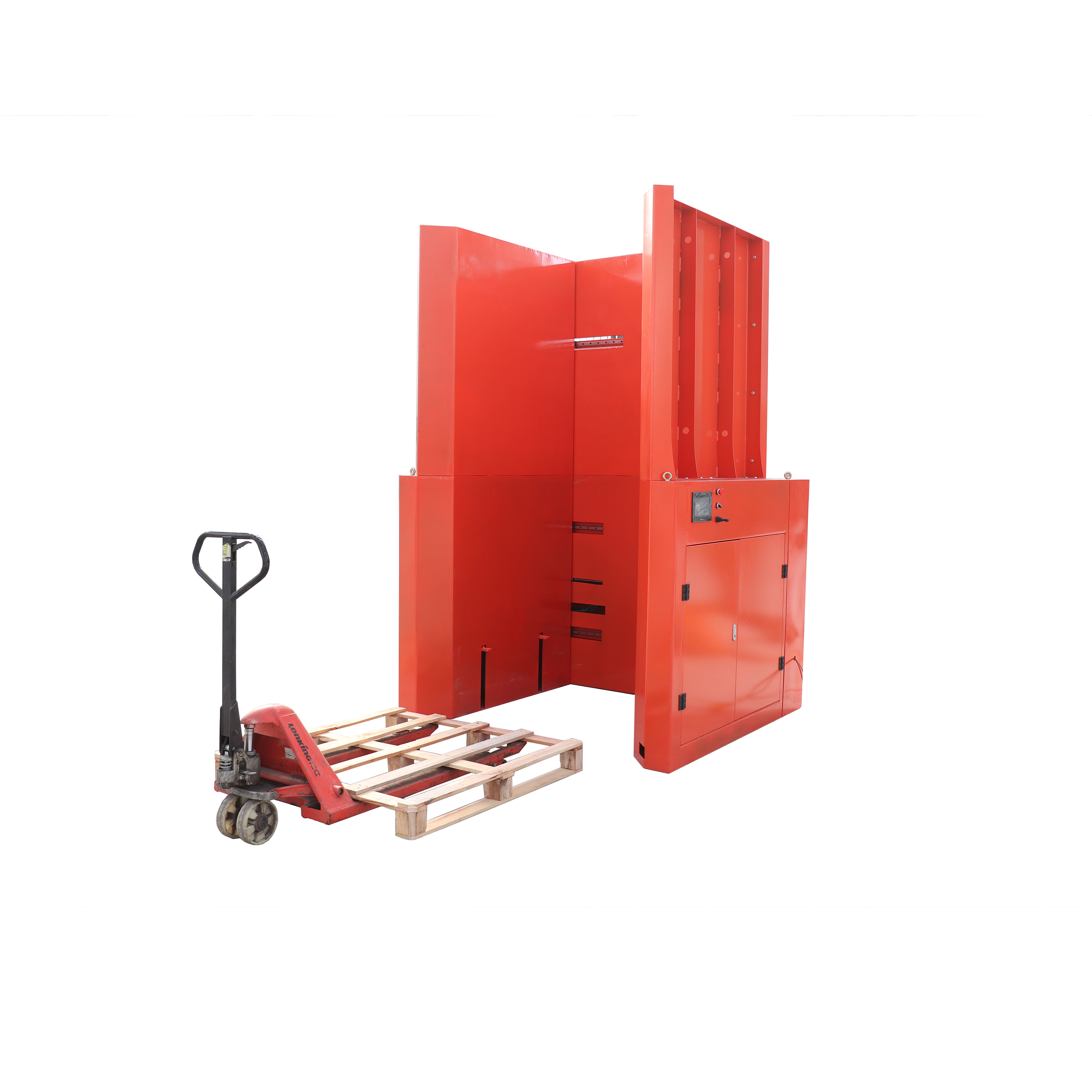

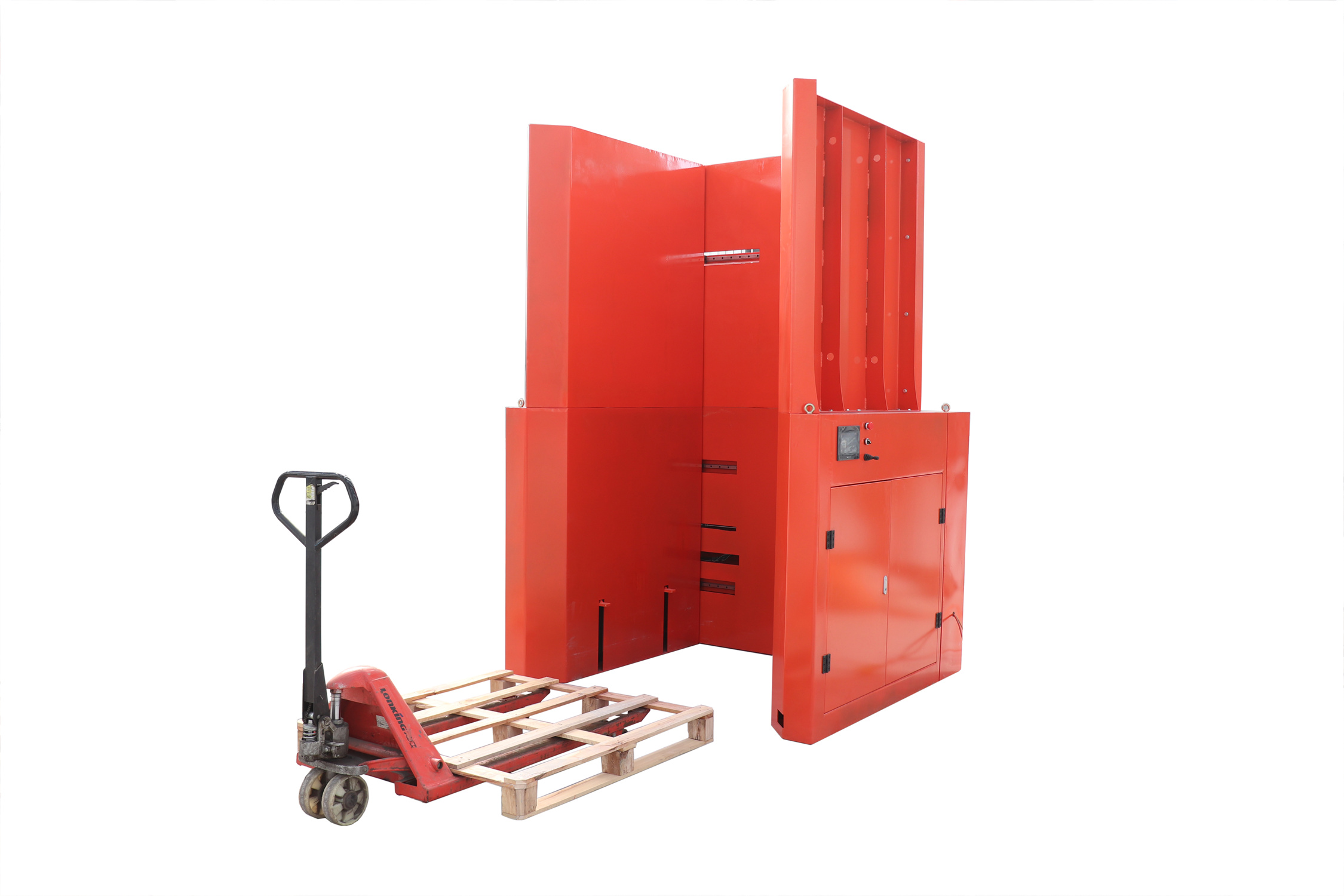

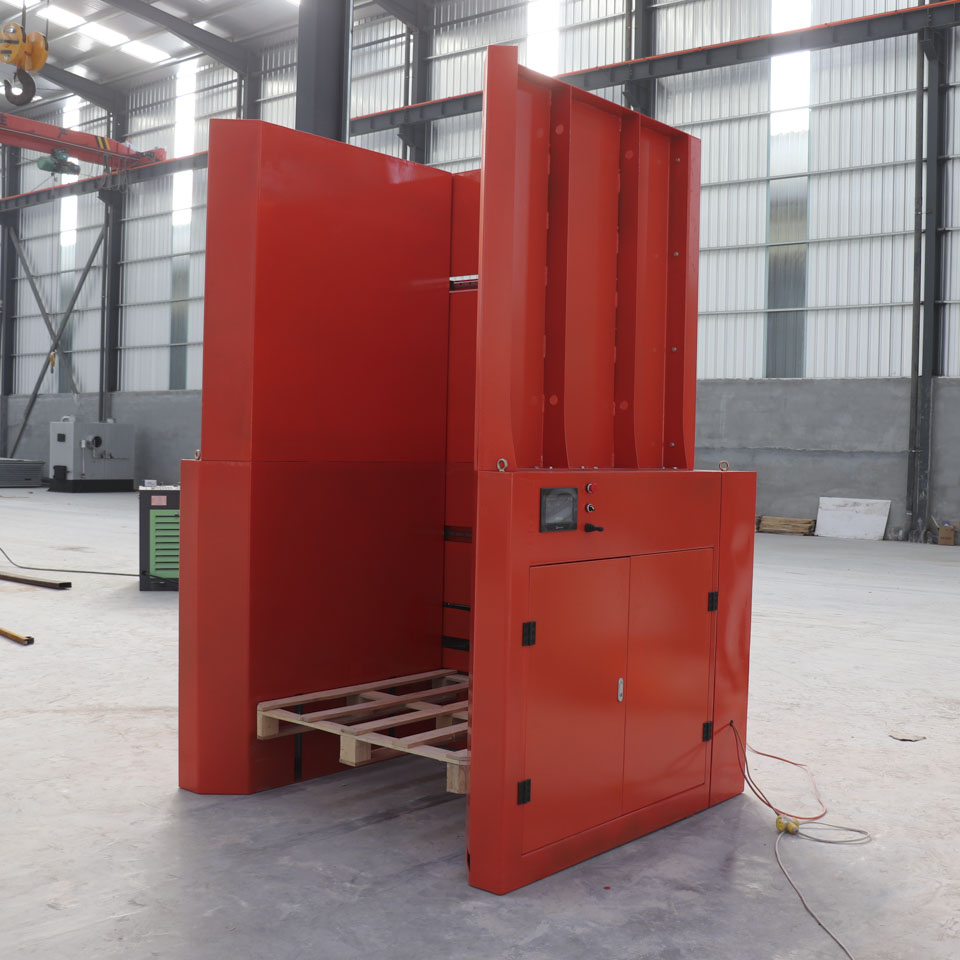

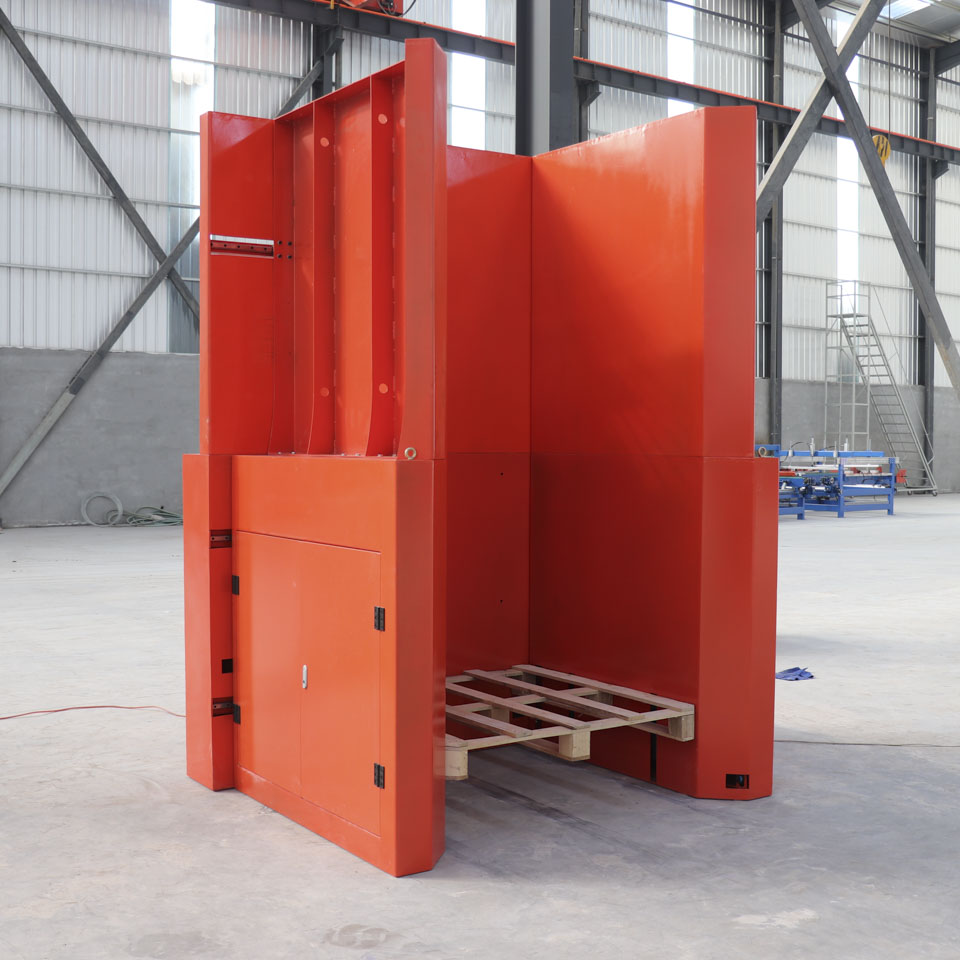

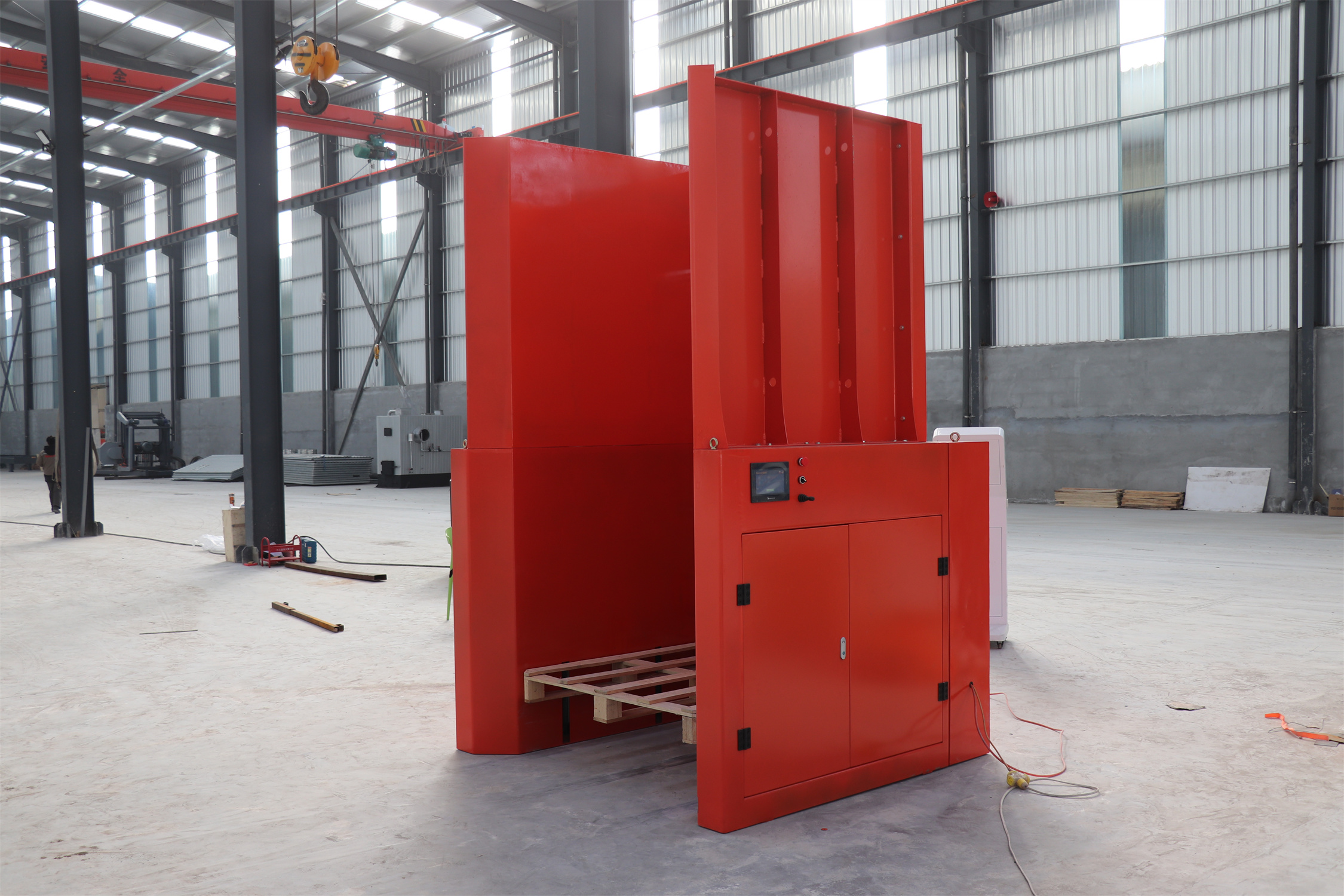

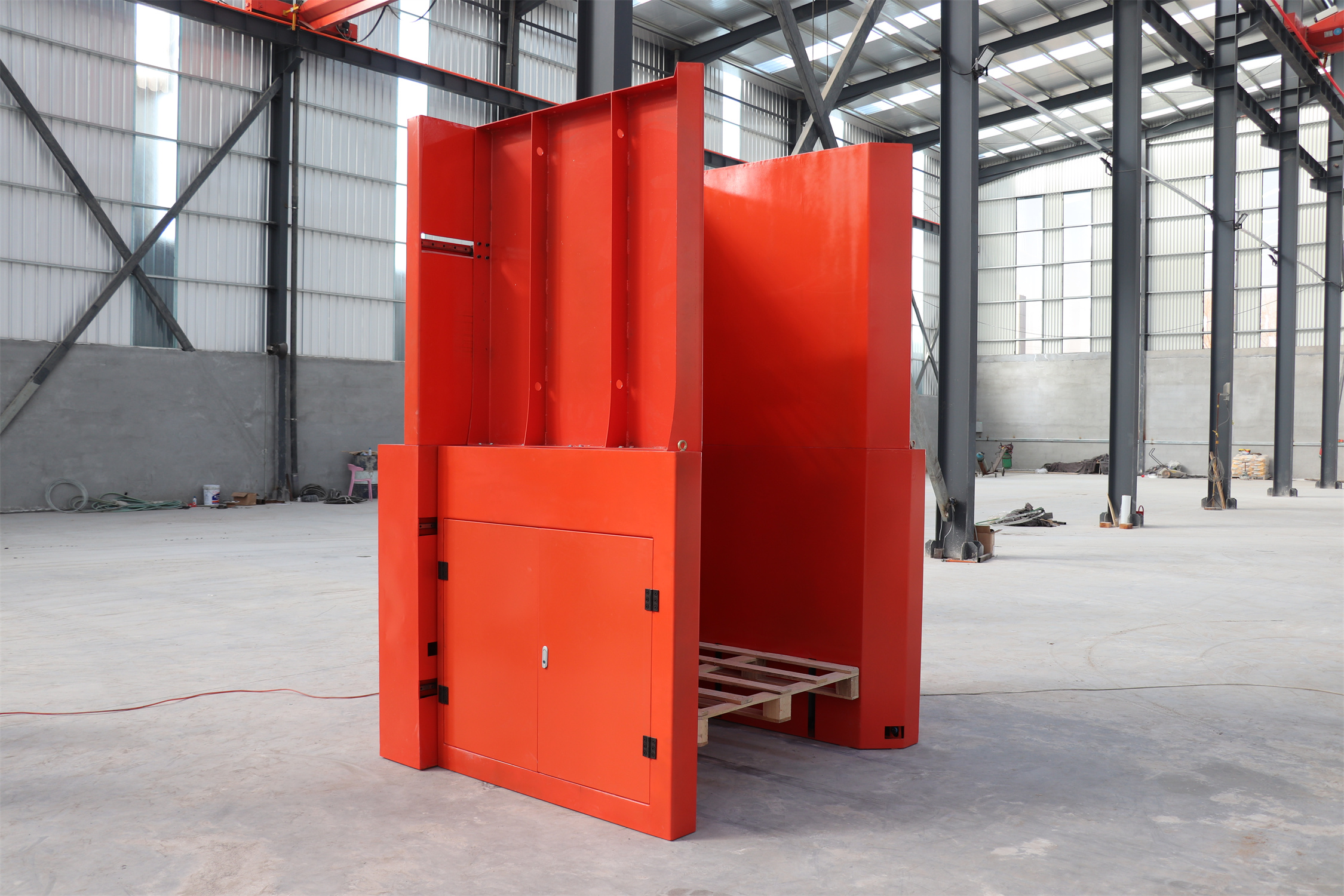

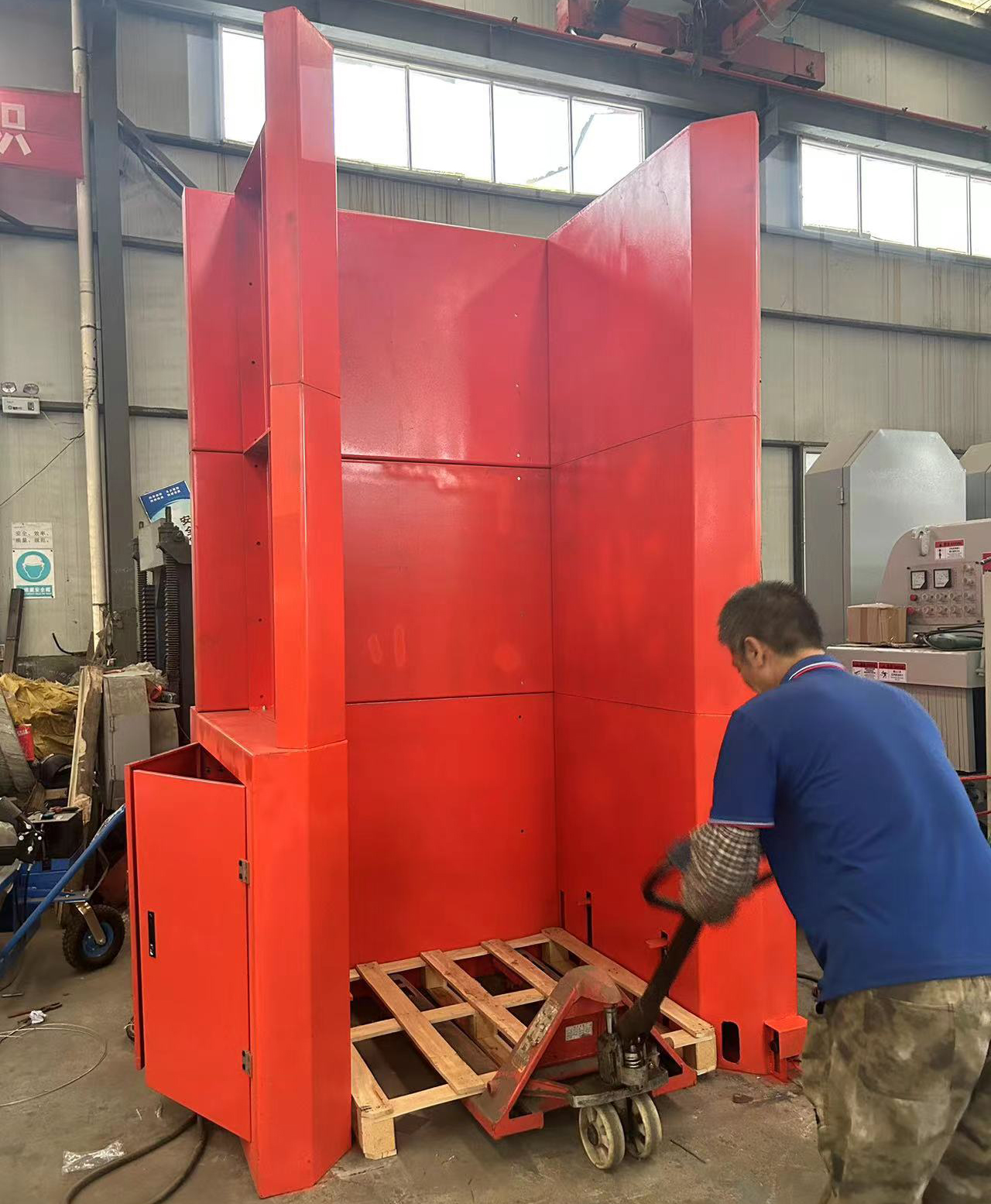

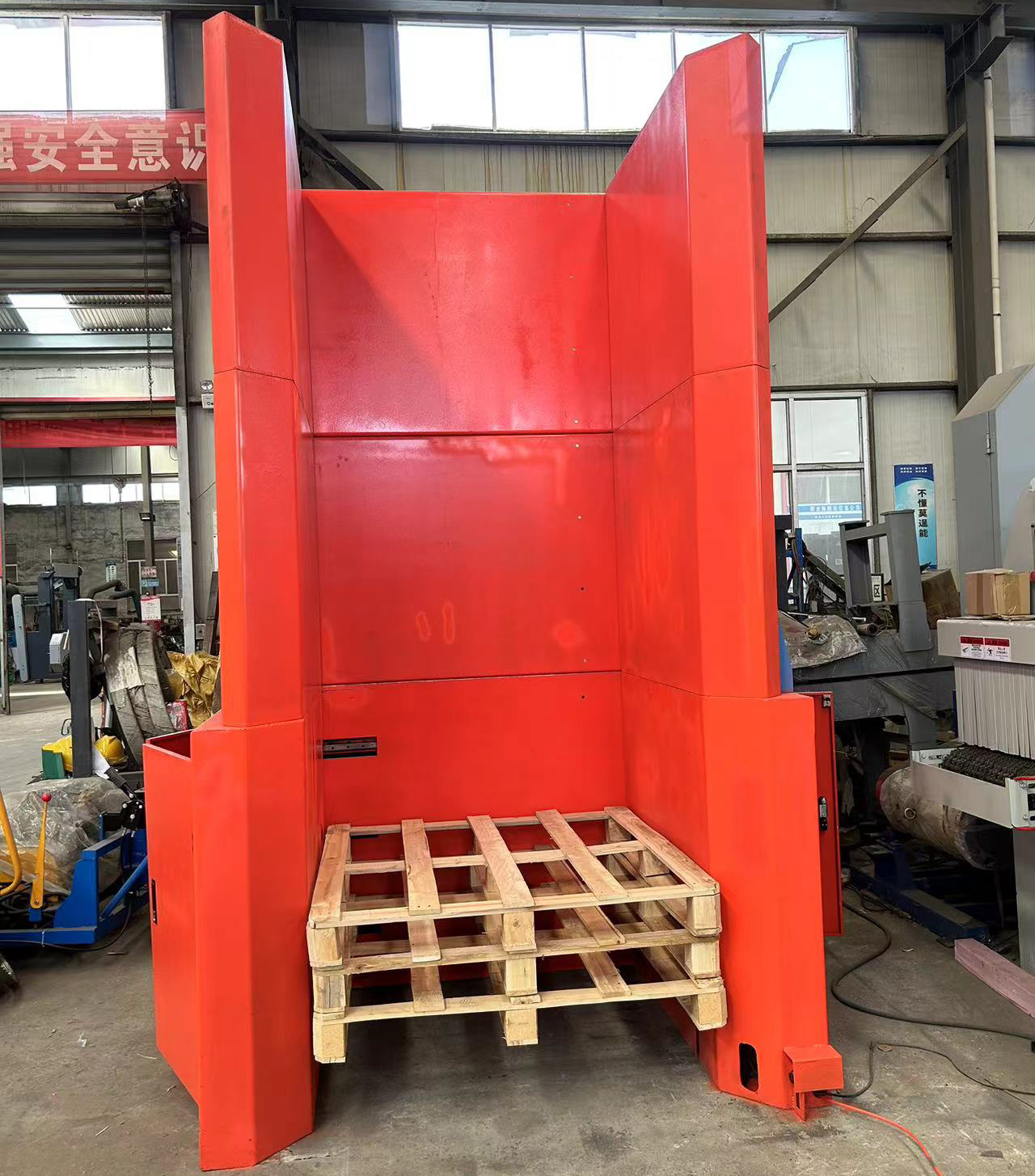

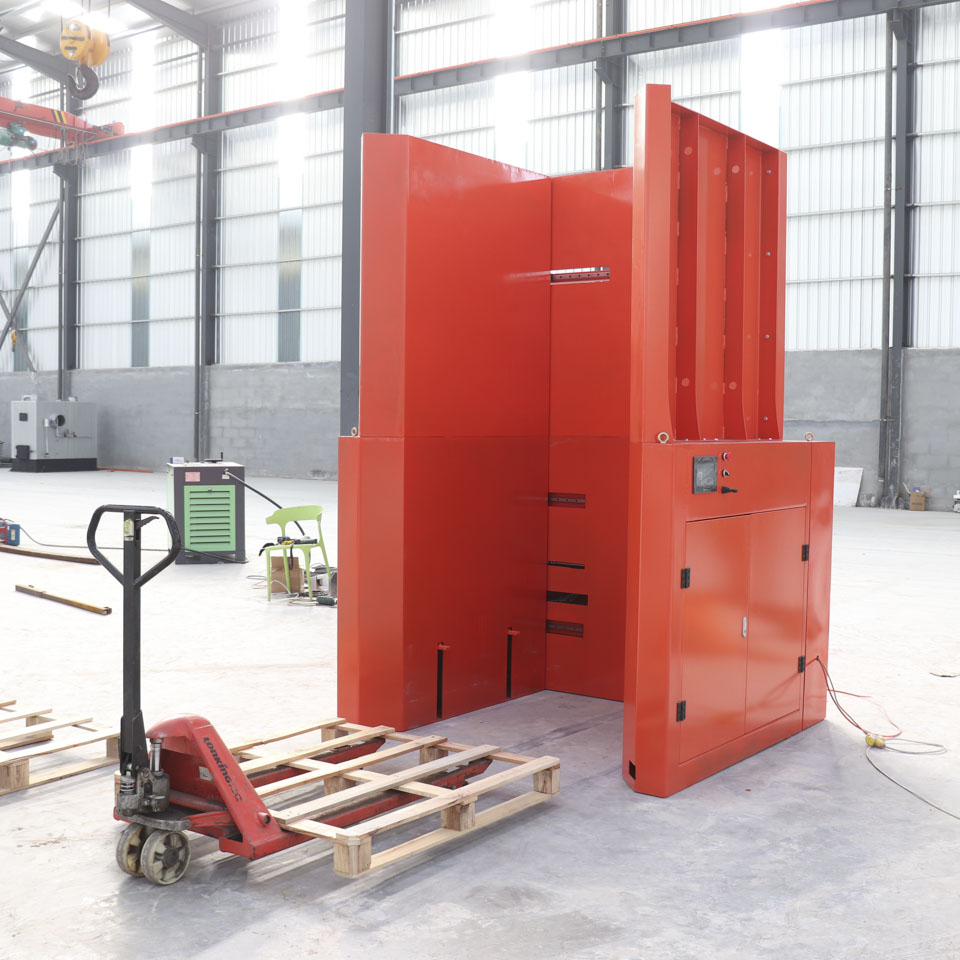

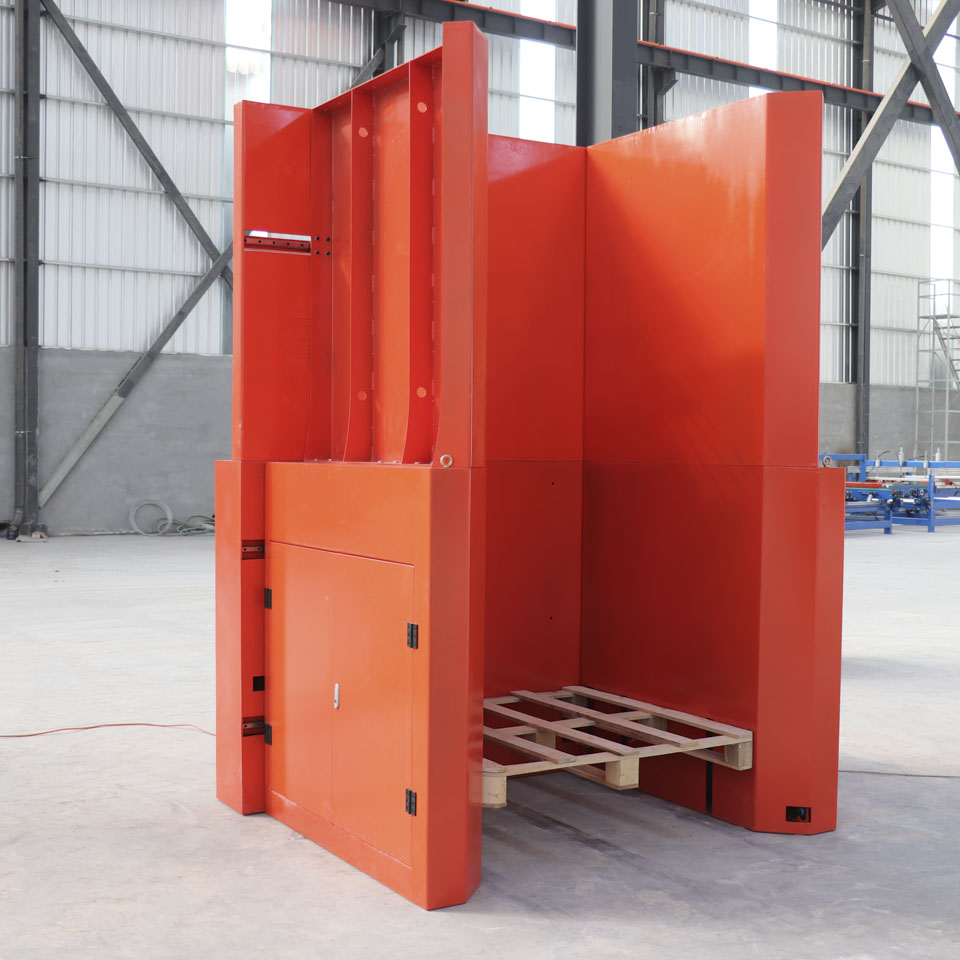

1. Pallet magazine / pallet dispenser automation is a key word in obtaining efficiency.
2. The pallet magazine/ pallet dispenser automates the pallet handling, and the procedure of pallet stacking and destacking is made noticeably more efficient.
3. The pallet magazines/pallet dispensers in the stand alone line is designed for companies, who have a need for handling empty pallets at floor level.
4. This machine is an independent unit, which adds efficiency to your pallet handling and at the same time protects your employees from inappropriate manual heavy lifting.
| Model | TPC1300 |
| Pallet Width | 800-1300mm |
| Pallet Length | 800-1300mm |
| Pallet Height | 100-200mm |
| Number Of Palletizes | 15-25pcs |
| Capacity | 700 kg |
| Palletizing System | Pneumatic |
| Voltage | 220-240V AC, 50 Hz |
| Weight | 1200kg |
Pallet dispenser is an automated device used for efficiently and accurately allocating or sorting pallets, and its core functions are usually achieved through the following components:

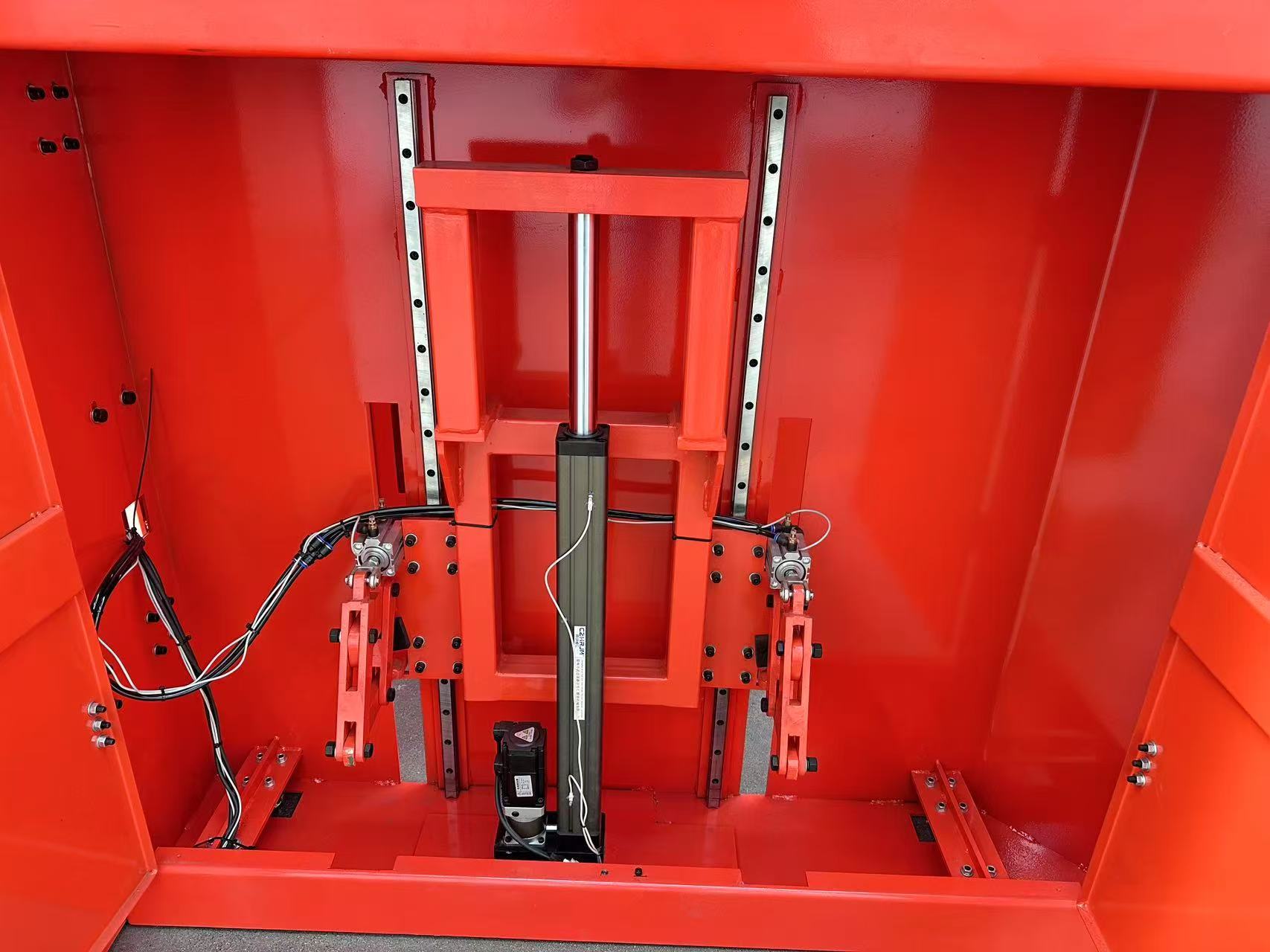

As a power actuator, it drives mechanical movements through compressed air.
Function:
1. Push the pallet into the designated position
2. Control the lifting and lowering of the baffle
3. Switch between different conveying paths during sorting.

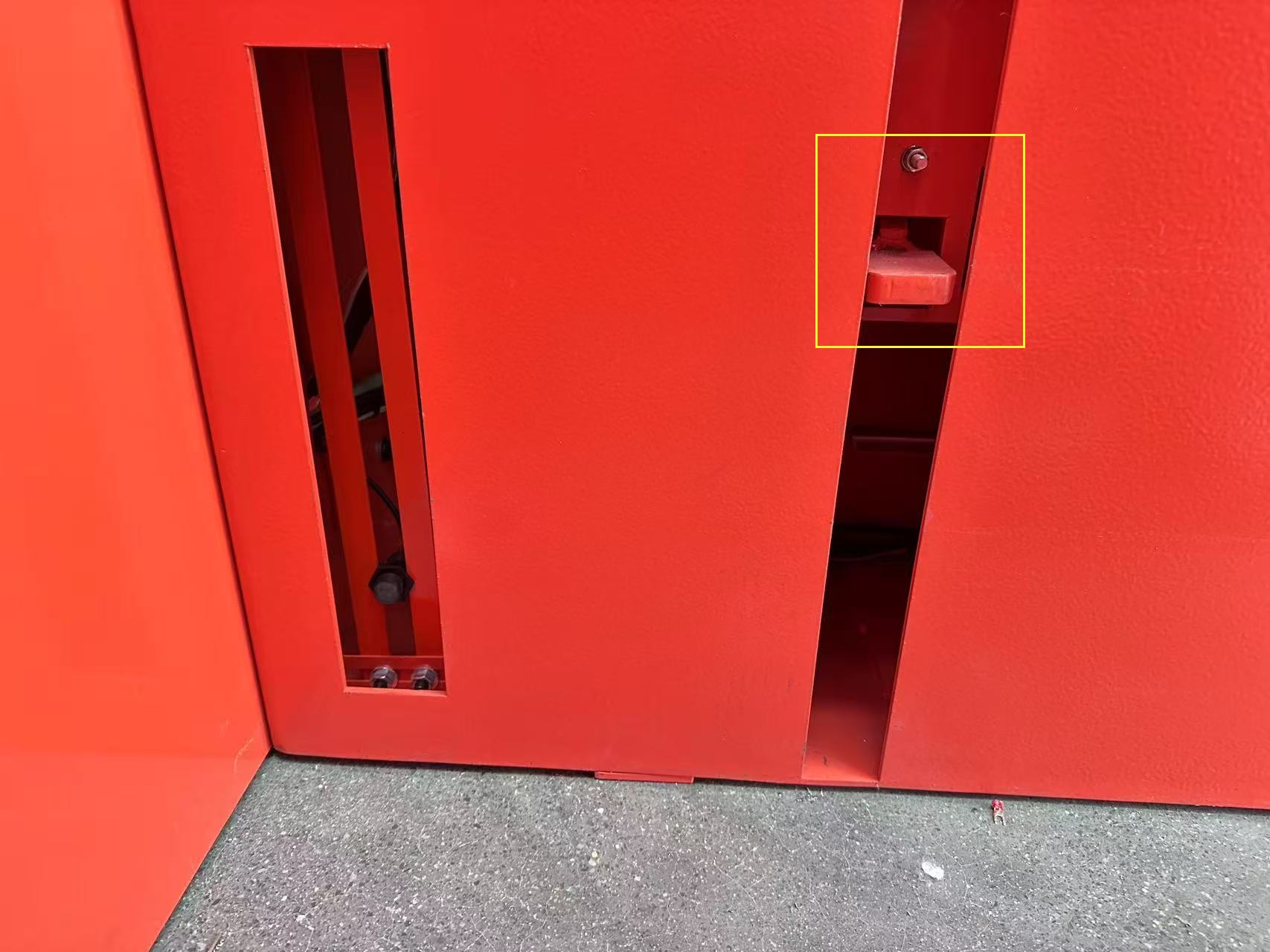

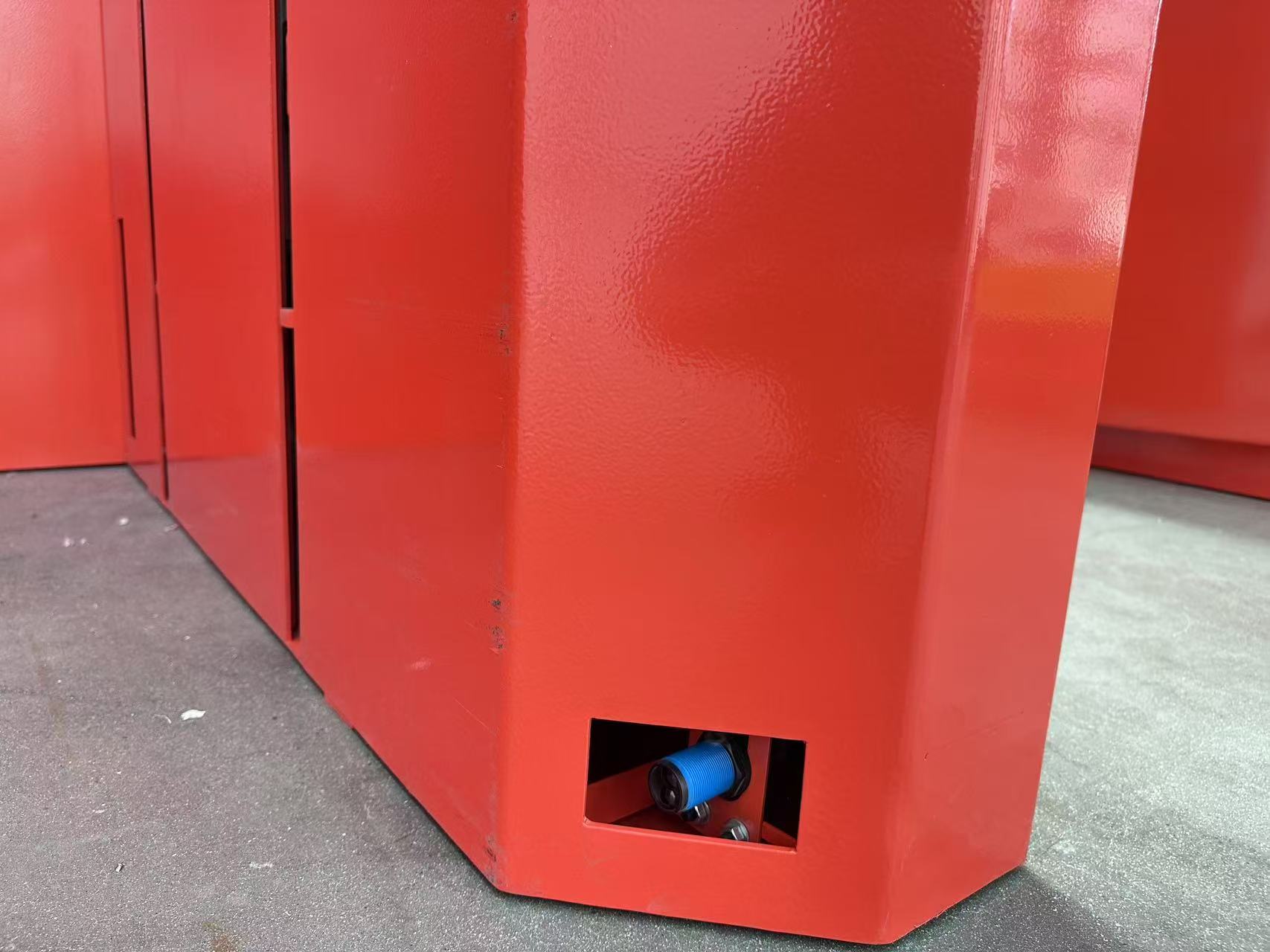

Locate the end point of the pallet. In conjunction with the photoelectric sensor, ensure that the baffle operates at the correct time.
Identify the reflected signals on the surface of the tray for counting or positioning.
Function:
- Trigger the cylinder action
- Prevent misoperation of empty pallets
- Count the allocation quantity

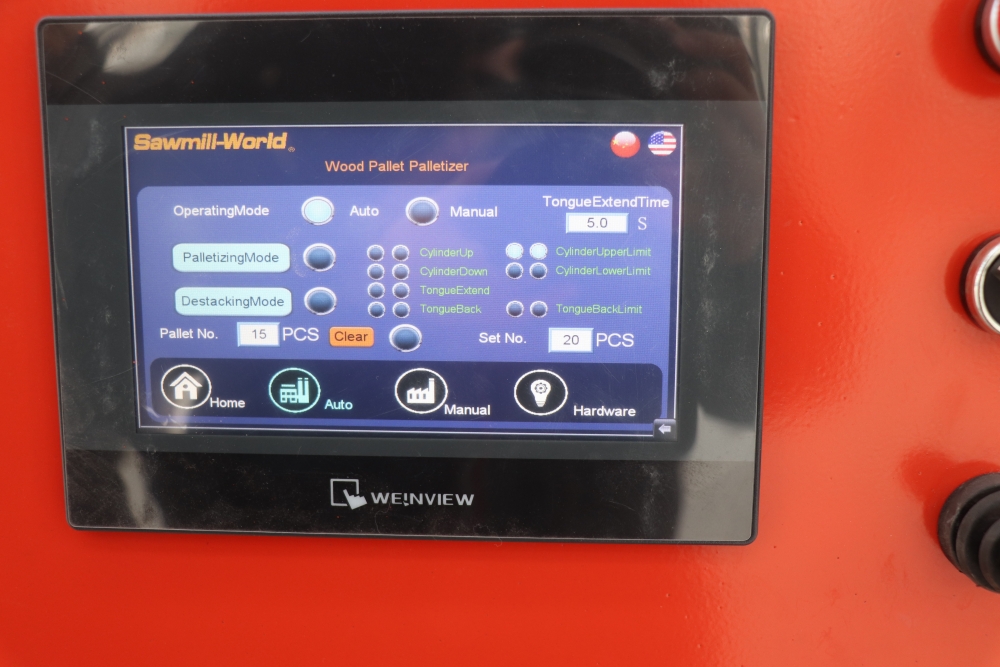

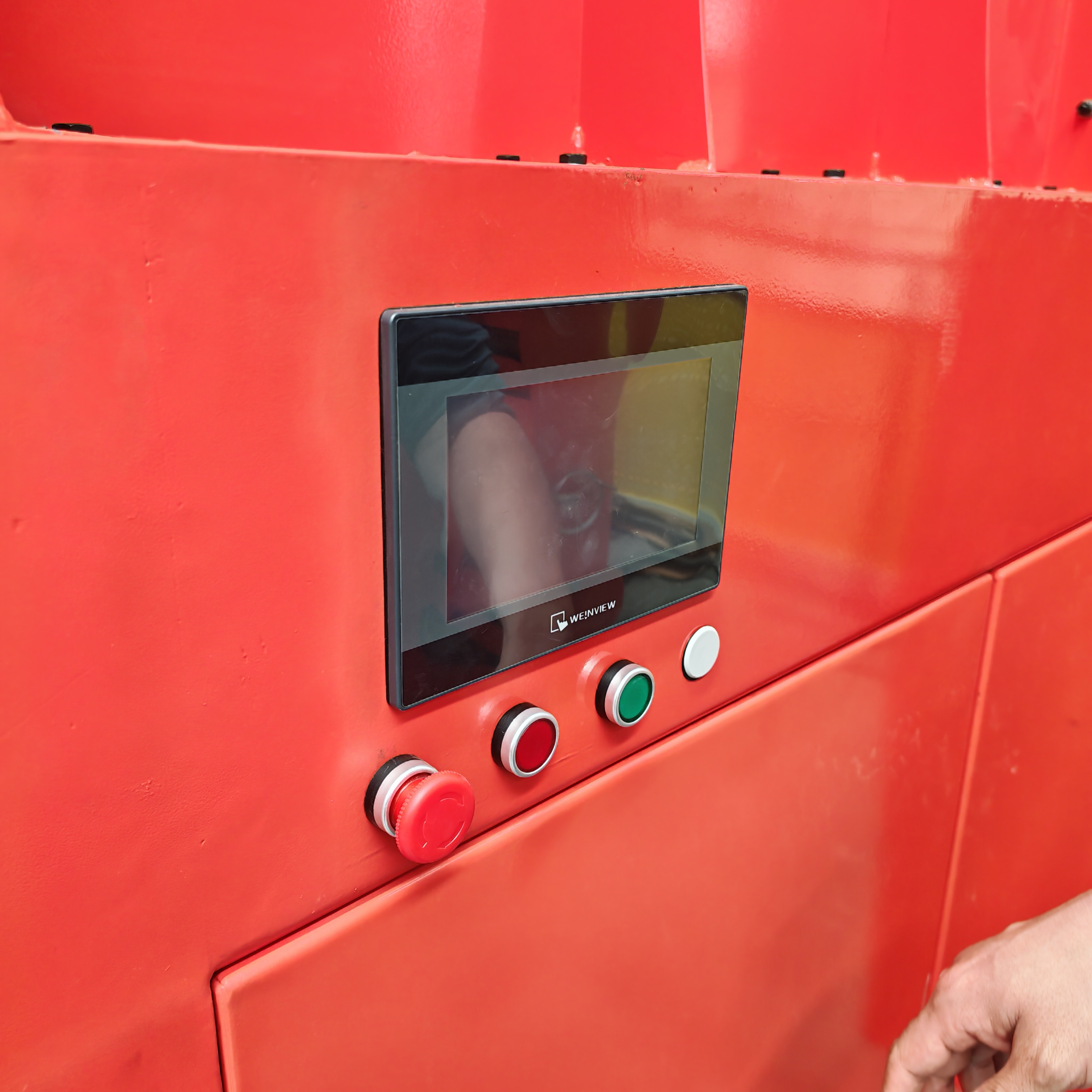

Controls:
- Parameter setting
- Mode selection: Switch between manual and automatic modes
- Status monitoring
- Fault diagnosis
| Packing Size | 1900mm*1800mm*2700mm |

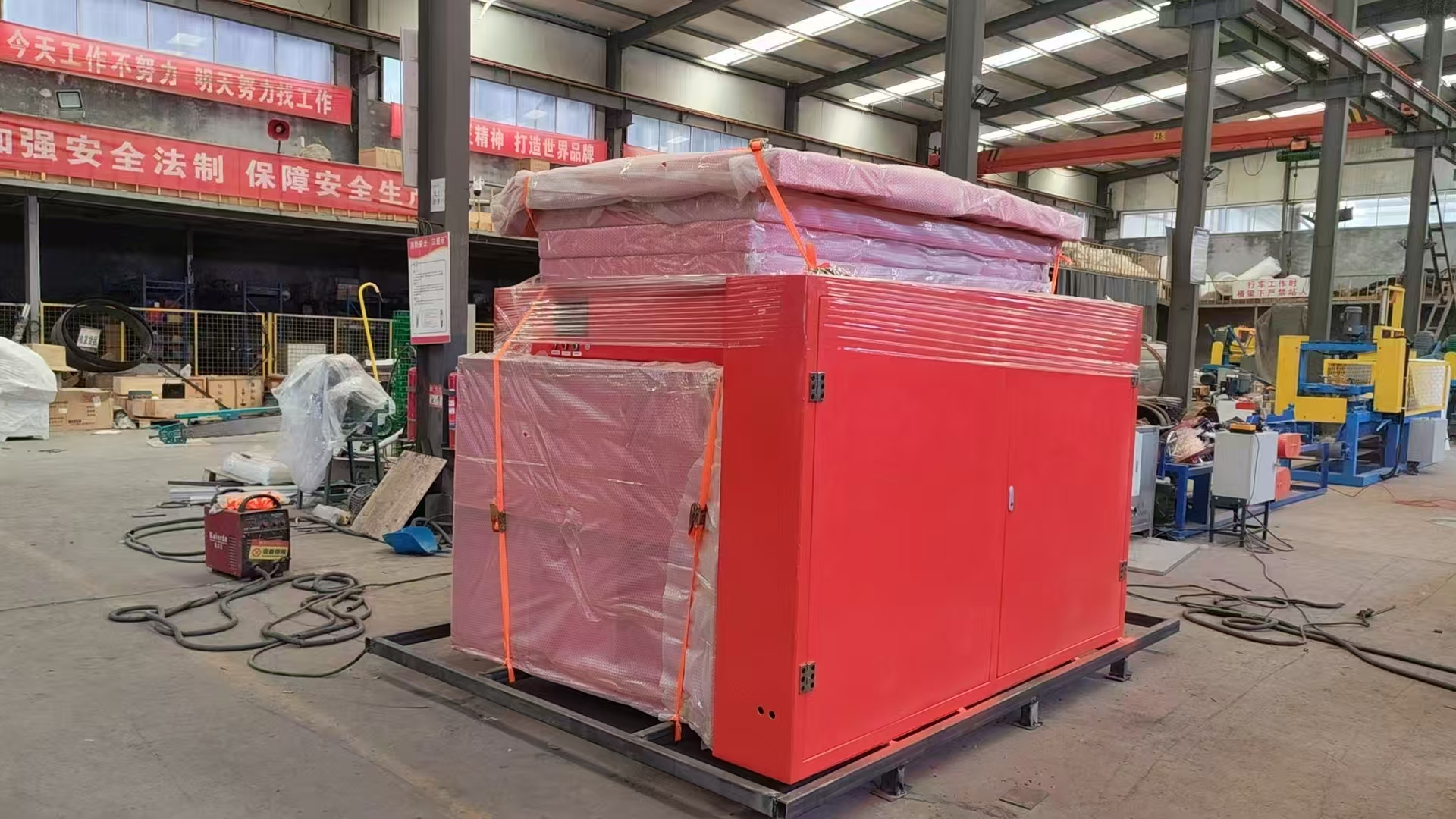

| Packing method | Iron stand |
| Mode of transport | Less than container load (LCL) |
| Terms | EXW FOB CIF |
