Product Description

Basic Information
Model NO.
ZY-CON-502
Appearance
7035 Industrial Gray Paint
Yield
98%
Voltage
AC220V 50Hz
Condition
New
Package
Wooden Case
Dimensions
8300L*1200W*1950H
HS Code
8479819000
Product Description

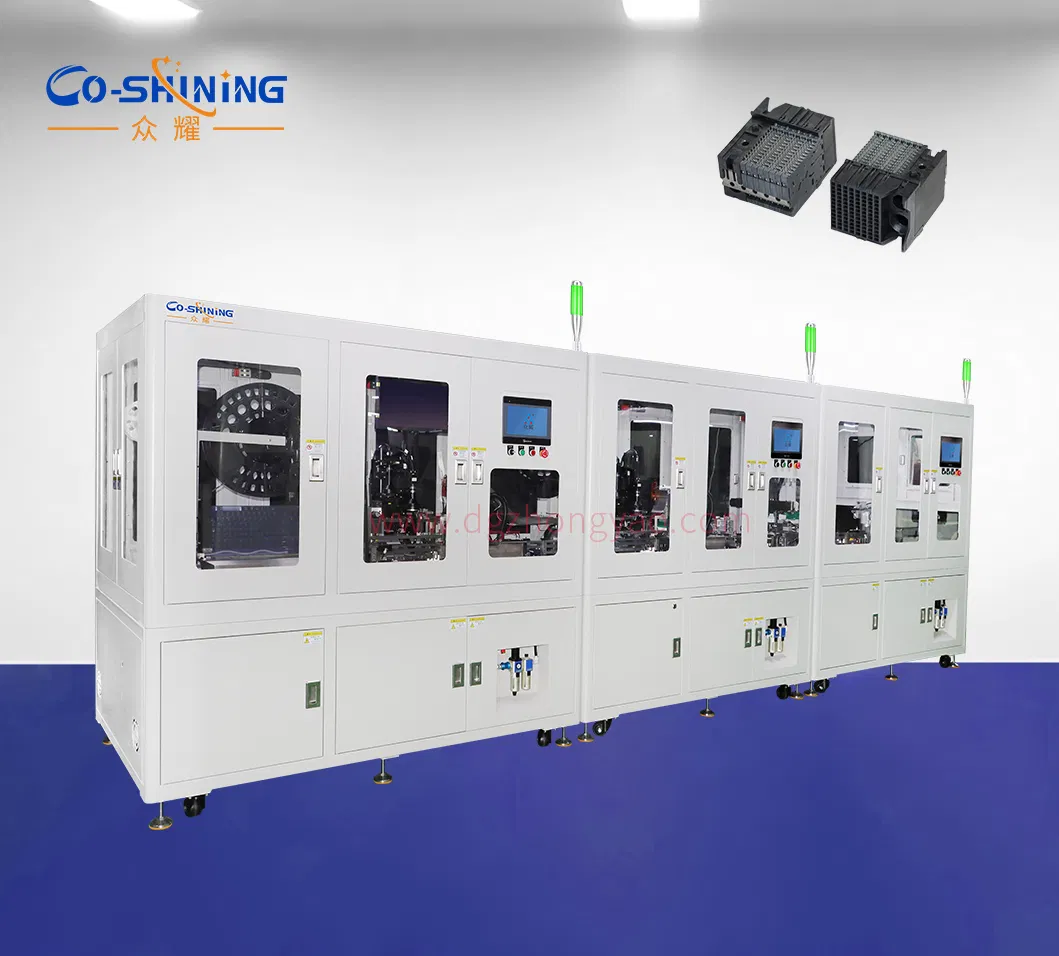

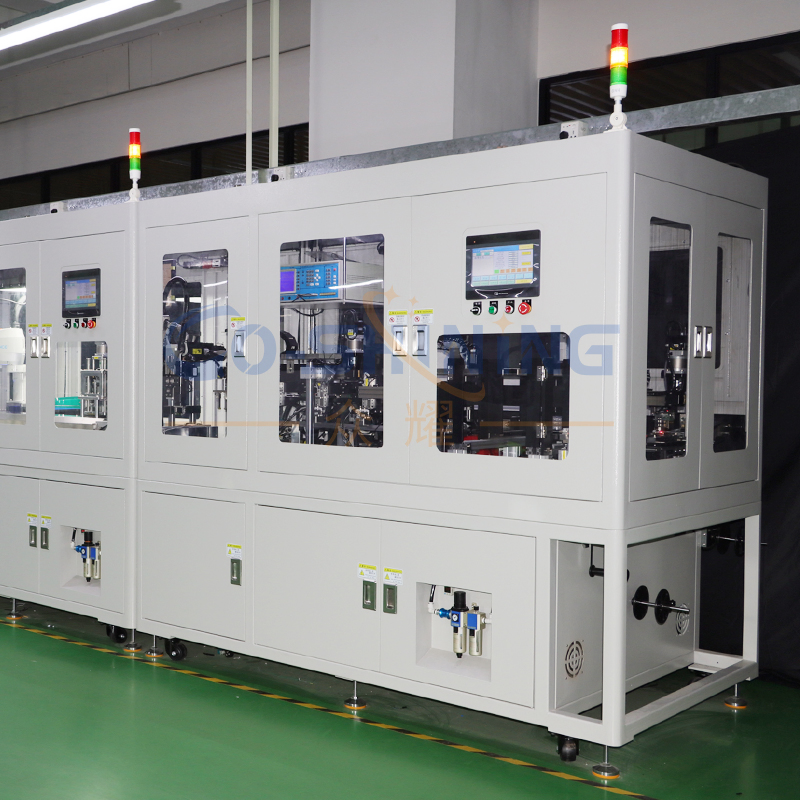

Advanced Board End Connector Assembly Equipment

Our stunning and adaptable design presents a sleek look that's both secure and practical. The door ensures controlled access, merging elegance with seamless operation and safety.

Our modular and standardized design ensures unmatched reliability and stability. We use top-quality branded parts from global and local sources, focusing on servo-driven, high-speed, quiet, and energy-efficient performance.
Technical Specifications
Parameter Details
Work efficiency≥1200PCS/H
Work yield≥99%
Environment Temp-10 to 50 degrees
Air pressure5-6KG (water-free and oil-free)
Device functionCam pin, product cleaning, CCD inspection, carrier tape packaging
VoltageAC 220V/50HZ
DimensionsL8300mm / W1200mm / H1950mm
Security settingsLeak protection, access control switch, emergency stop, alarm prompt
Packaging & Delivery
Packaging Detail 1 Packaging Detail 2
Package Size
300.00cm * 220.00cm * 220.00cm
Gross Weight
3500.000kg
Professional Automation Solutions

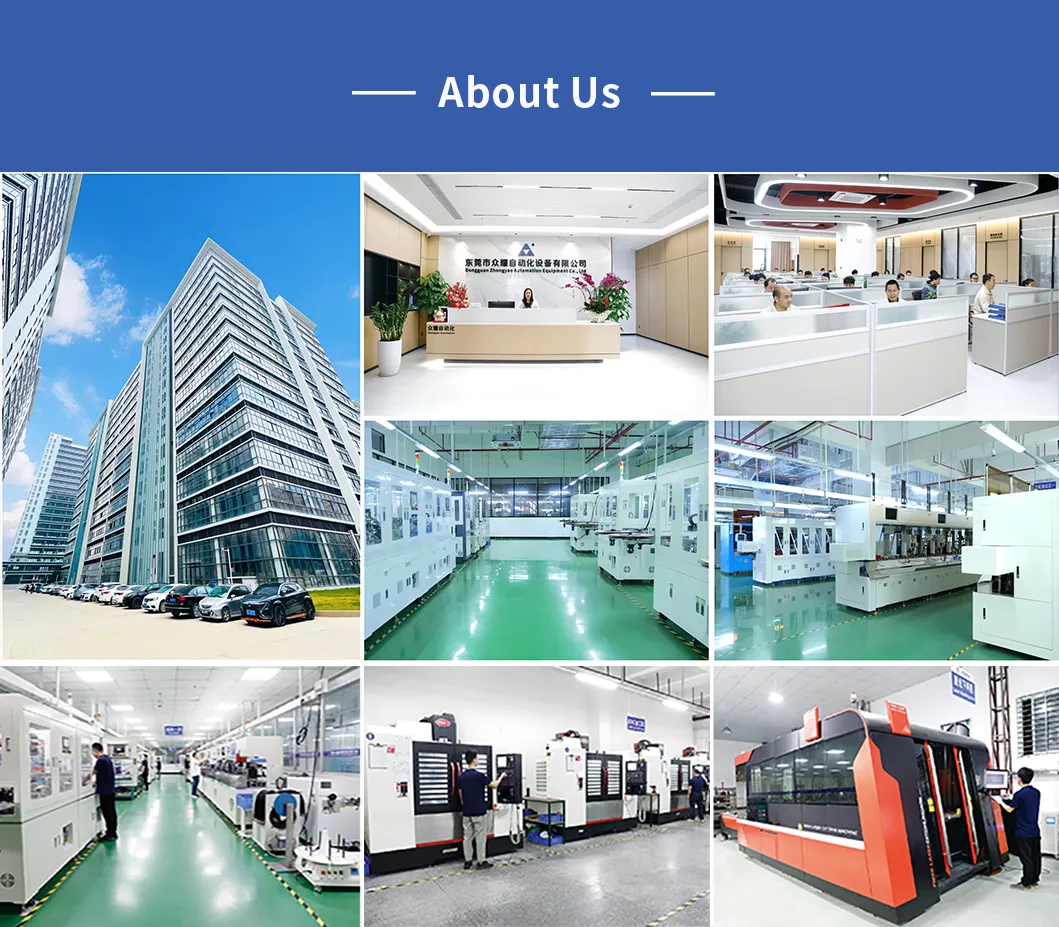

Founded in 2009, we are a pioneering high-tech leader specializing in R&D, production, sales, and service of advanced automation equipment. Our 8,000-square-meter facility boasts over 60 cutting-edge machines and a team of 160+ dedicated experts.

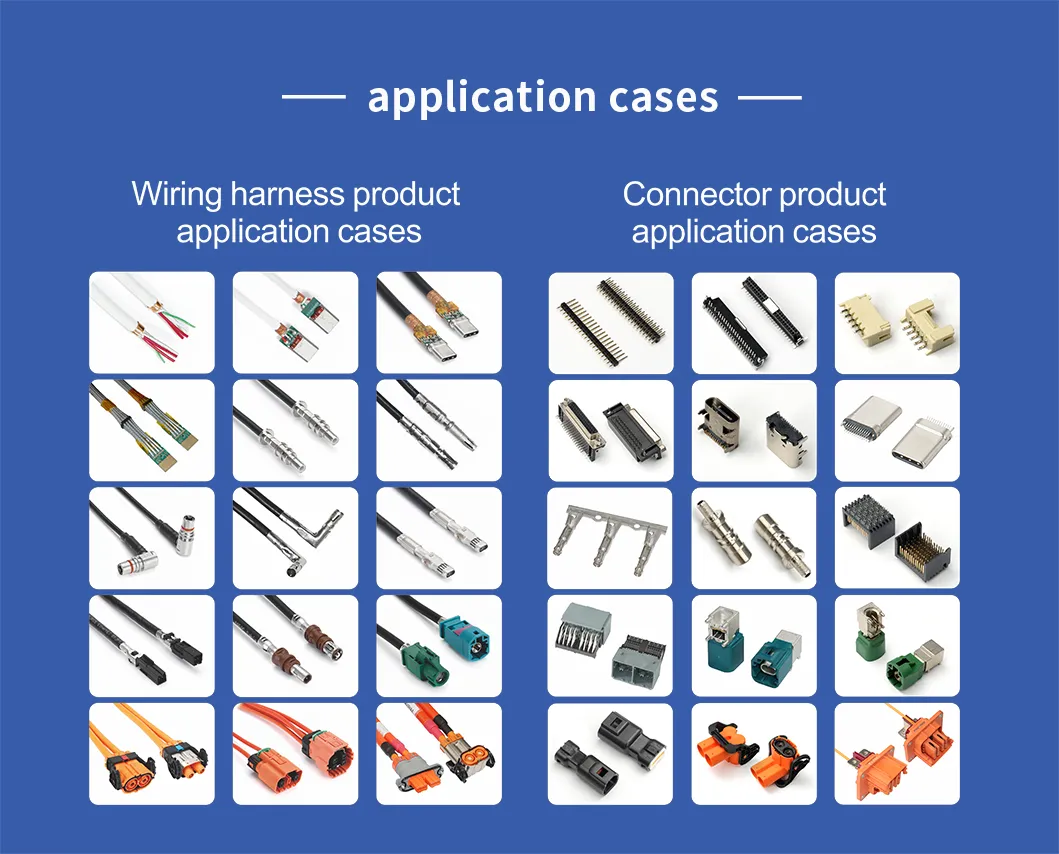

Our systems include FAKRA, Ethernet, HSD, new energy AC/DC, USB TYPE-C 2.0/3.1/4.0, and high-speed harnesses. We offer comprehensive solutions from stripping, crimping, welding, to assembly and testing. We lead in designing fully automated systems for line-end and board-end connectors in electronics, industrial, communication, automotive, and medical sectors.

Equipment Display 1 Equipment Display 2 Equipment Display 3
Equipment Display 4
Frequently Asked Questions
What is the production capacity of this equipment?
The equipment achieves a high work efficiency of ≥1200 pieces per hour, ensuring rapid production for large-scale requirements.
What kind of connectors can this machine assemble?

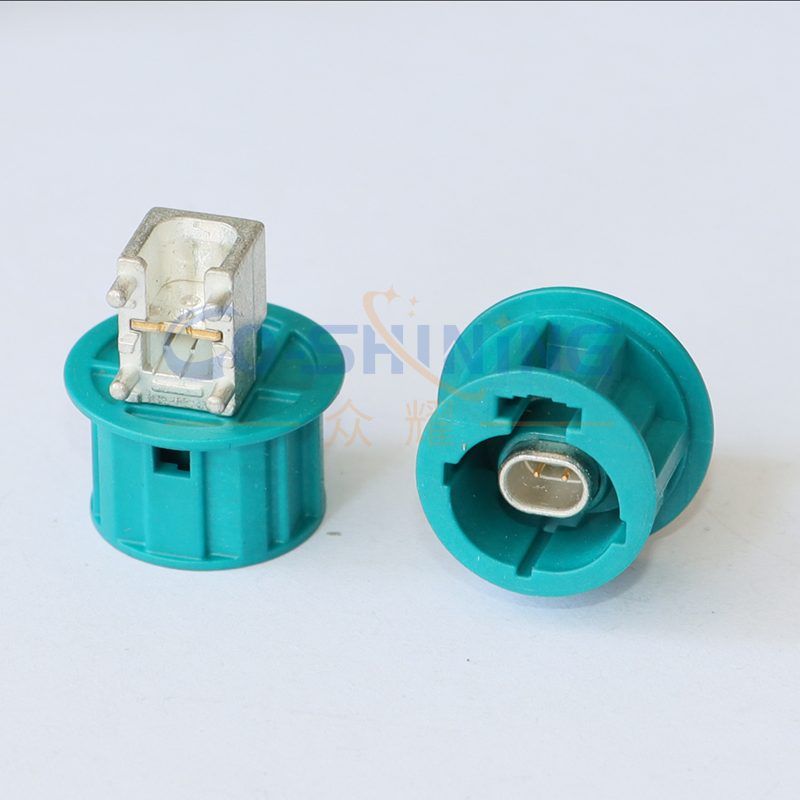

It is designed for board-end and line-end connectors, including FAKRA, HSD, Ethernet, and USB TYPE-C 2.0/3.1/4.0 systems.
How is the quality of the finished products ensured?
The system integrates CCD visual inspection and advanced sensors to maintain a yield rate of ≥99% and high-precision assembly.
What safety measures are implemented in the design?
Safety is prioritized with features such as leakage power protection, access control switches, emergency stop buttons, and real-time alarm prompts.
What are the installation requirements?
The machine requires a standard AC 220V/50HZ power supply and a clean, oil-free air pressure source of 5-6KG.
Can the equipment handle different working environments?
Yes, the machine is engineered to operate reliably in ambient temperatures ranging from -10 degrees to 50 degrees Celsius.
