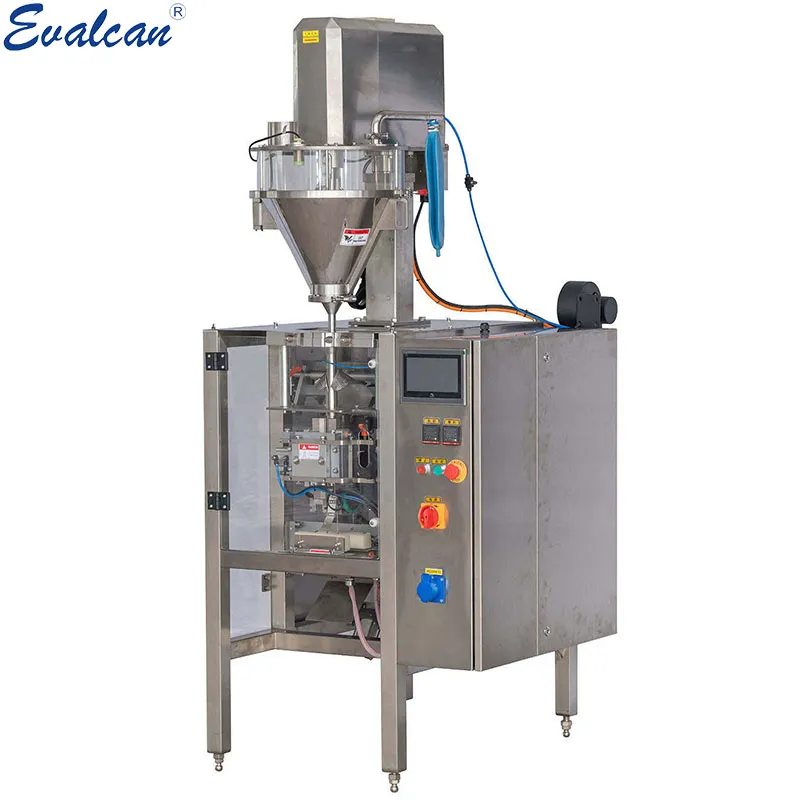

Regular Model Specifications
| Model |
320 |
420 |
520 |
620 |
| Packing Speed |
≤70bags/min |
≤80bags/min |
≤70bags/min |
≤65bags/min |
| Bag Size |
L40~190mm W40-150mm |
L80~300mm W80-200mm |
L100~350mm W100-250mm |
L100~400mm W150-300mm |
| Electrical Type |
AC220V/50HZ |
AC220V/50HZ |
AC220V/50HZ |
AC220V/50HZ |
| Power |
2.3KW |
3KW |
5KW |
4KW |
| Compressed Air |
0.6-0.8Mpa |
0.6-0.8Mpa |
0.6-0.8Mpa |
0.6-0.8Mpa |

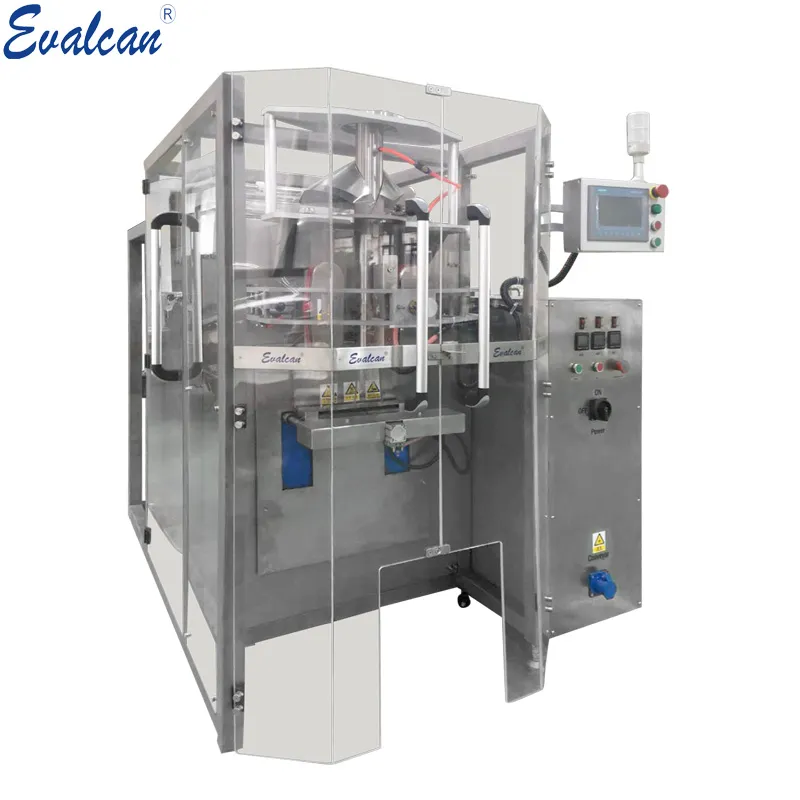

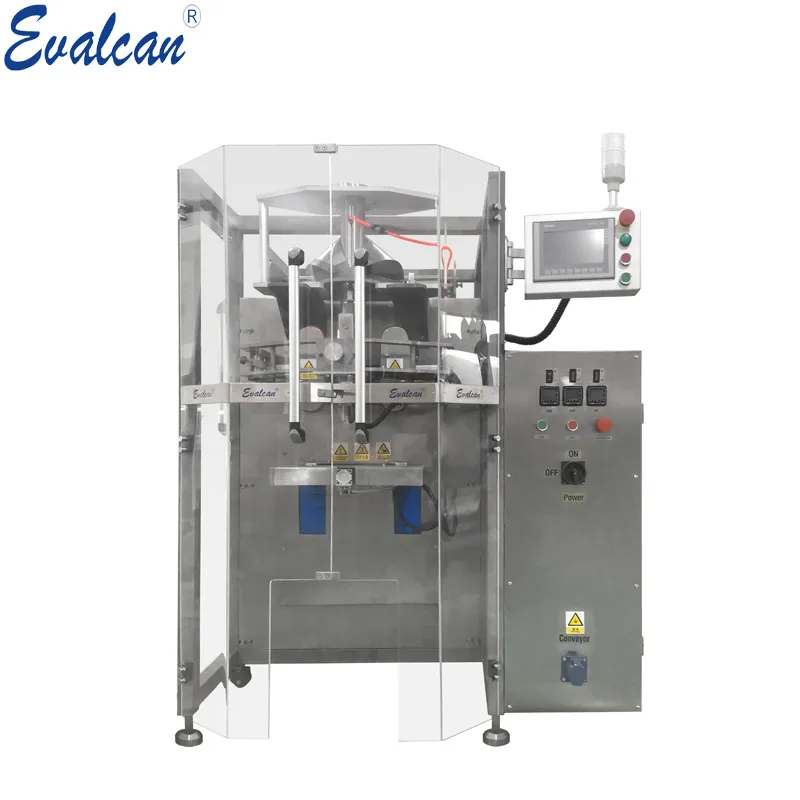

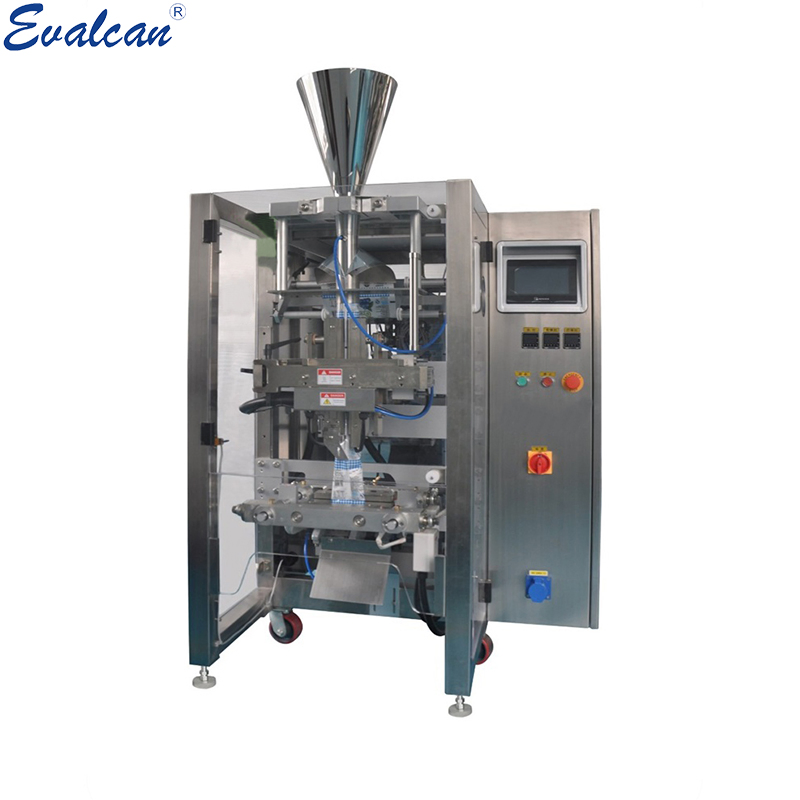

High Speed Model Performance
| Model Name |
LPD520A |
| Power |
6.2KW |
| Packing Film |
Laminated film (BOPP/CPP, PA/PE), thickness 30-130 microns |
| Bag Size Range |
Length 0-400mm | Width 80-250mm |
| Bag Shape |
Pillow type |
| Max Packing Speed |
Max. 190PPM |
| Dimensions |
2570*1400*1770mm |
| Weight |
Approx. 680kg |
| Electricity Requirements |
380V/50HZ/3P |
| Compressed Air |
0.4-0.8Mpa, 0.6m³/min |
Optional Accessories & Functions
Enhance your packaging capabilities with our selection of specialized accessories:
◈ Air or nitrogen filling device
◈ Air discharging device
◈ Ink jet printing device
◈ Variable bag width configuration
◈ Easy-tear line cutting system
◈ Diverse measuring systems
Advanced Measuring Systems
| Measuring System |
Type |
Material Suitability |

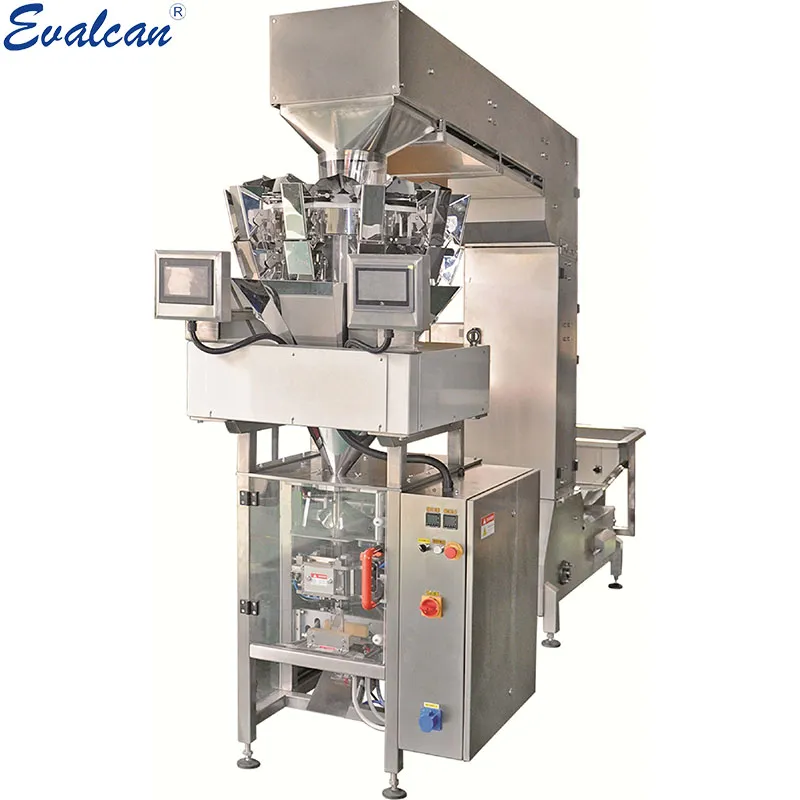

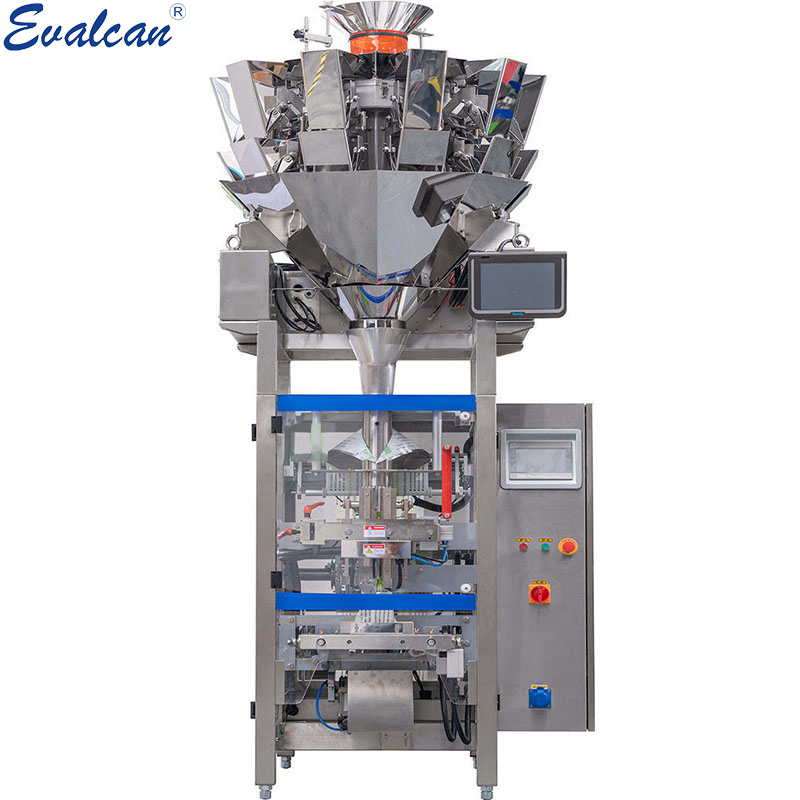

| Multi-head weigher |
By weight |
Granules, solid items (chips, detergent, candy, etc.) |

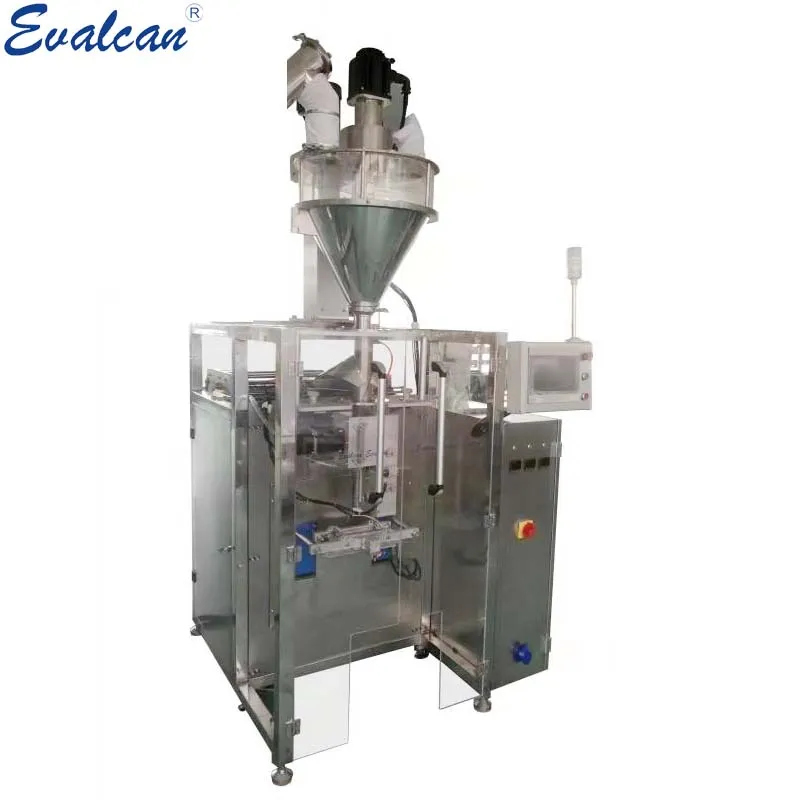

| Auger filler |
By volume |
Powder materials (milk powder, flour, detergent powder) |

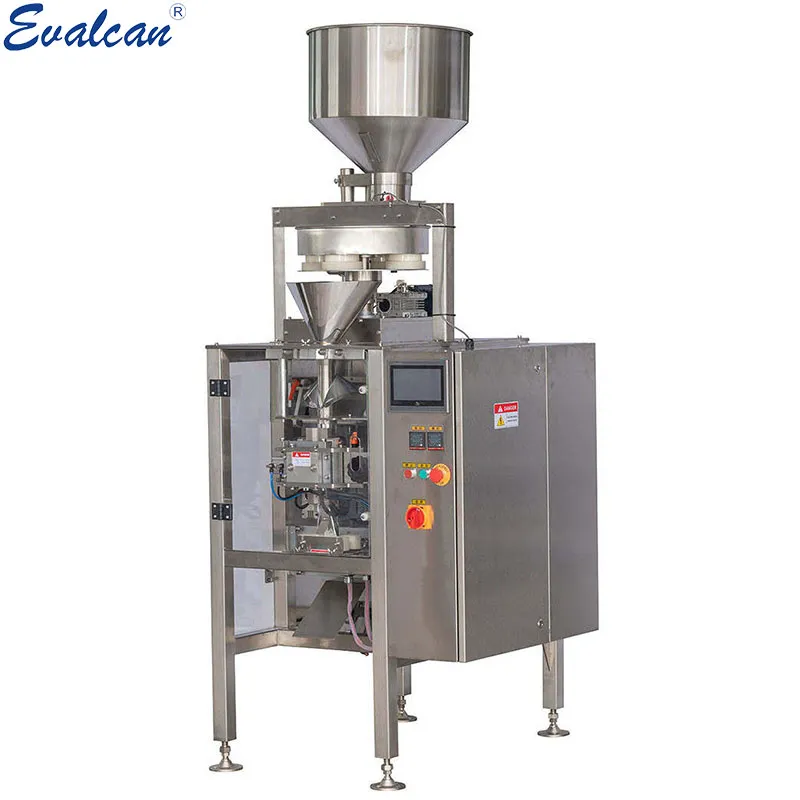

| Volumetric cup |
By volume |
Heavy powder and small granules (seeds, beans, salt, sugar) |
| Measuring pump |
By volume |
Liquid type materials (juice, paste, etc.) |
Professional Services
✓ Installation manuals and setup videos provided for all settings and maintenance.
✓ Complimentary customized packing solutions from our chief engineers.
✓ Dedicated project management team to ensure high-quality and timely production.
✓ 24/7 online communication and technical support for immediate troubleshooting.
✓ Worldwide on-site technician availability for technical services.
✓ Comprehensive one-year machine warranty with free replacement of non-man-made broken parts.
Frequently Asked Questions
How do I choose the right packing machine for my product?
To provide the best recommendation, please share details about: the type of product, bag/pouch dimensions (length and width), the target weight per pack, and your specific requirements for bag shape.
Is overseas engineering support available?
Yes, technicians can be sent overseas. Additionally, we provide comprehensive installation videos and remote assistance to help you save on travel costs while ensuring successful setup.
How is machine quality verified after placing an order?
Before delivery, we send detailed photos and videos of your machine in operation. You are also welcome to arrange for a quality inspection personally or through a third-party agency.
What is the standard transaction process?
The process includes: 1. Signing the contract; 2. A 40% deposit; 3. Production; 4. Rigorous testing; 5. Final inspection by the customer or third party; 6. Balance payment before shipment.
Do you provide logistics and delivery services?
Yes. Simply provide your final destination, and we will coordinate with our shipping agents to provide a competitive quote for your reference before delivery.
What materials can the machine handle?
Our machines are versatile and can handle granules, solids (chips, candy), powders (flour, milk powder), and liquids (juice, paste) depending on the measuring system selected.
