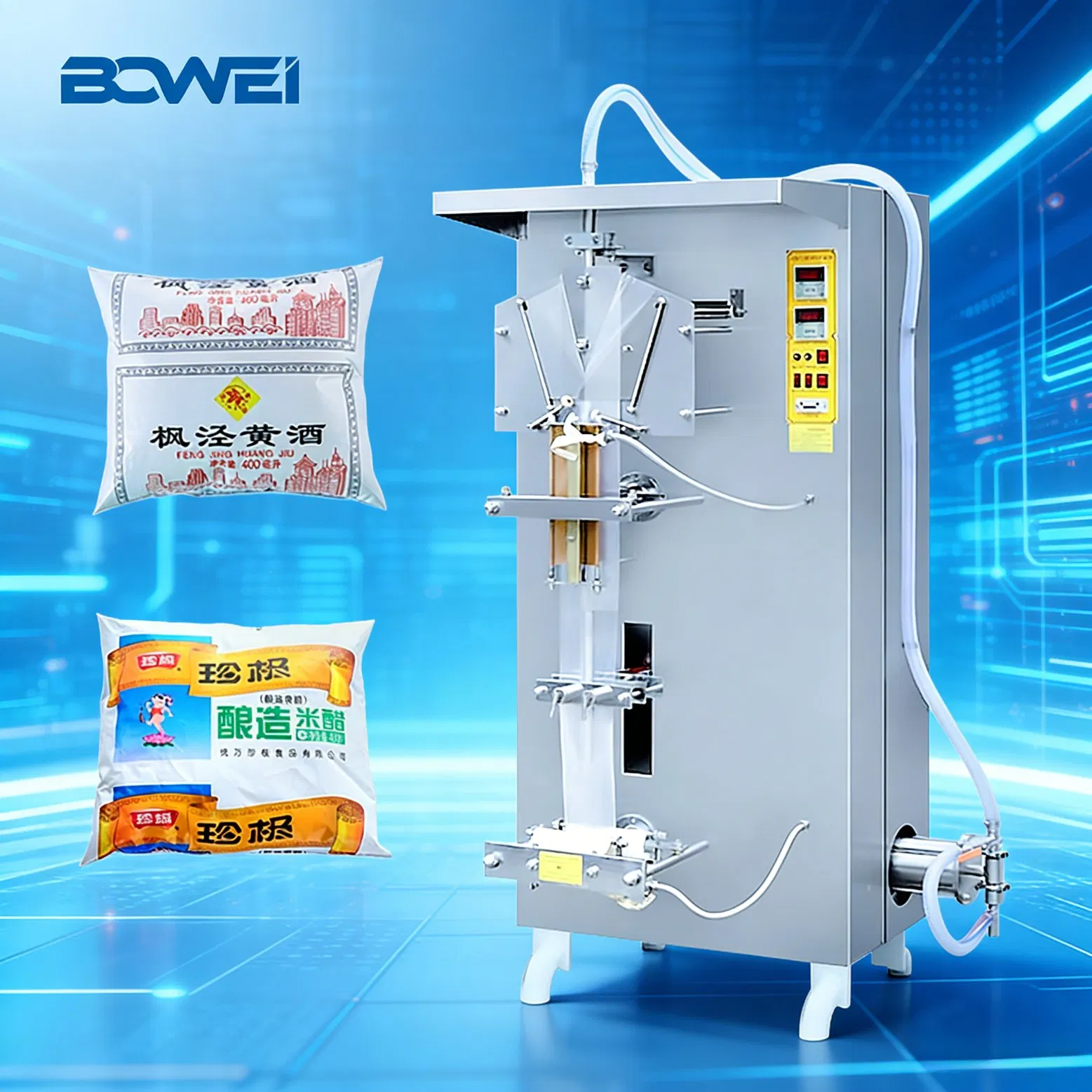

Bowei Automatic Sachet Plastic Bag Water Production Flow Chart Bagging Filling Packing Machine and Filter Pump
Bowei Automatic Sachet Plastic Bag Water Production Flow Chart Bagging Filling Packing Machine and Filter Pump
Bowei Automatic Sachet Plastic Bag Water Production Flow Chart Bagging Filling Packing Machine and Filter Pump
Bowei Automatic Sachet Plastic Bag Water Production Flow Chart Bagging Filling Packing Machine and Filter Pump
Bowei Automatic Sachet Plastic Bag Water Production Flow Chart Bagging Filling Packing Machine and Filter Pump
1 / 5
Bowei Automatic Sachet Plastic Bag Water Production Flow Chart Bagging Filling Packing Machine and Filter Pump
Bowei Automatic Sachet Plastic Bag Water Production Flow Chart Bagging Filling Packing Machine and Filter Pump
Bowei Automatic Sachet Plastic Bag Water Production Flow Chart Bagging Filling Packing Machine and Filter Pump
Bowei Automatic Sachet Plastic Bag Water Production Flow Chart Bagging Filling Packing Machine and Filter Pump
Bowei Automatic Sachet Plastic Bag Water Production Flow Chart Bagging Filling Packing Machine and Filter Pump

Bowei Automatic Sachet Plastic Bag Water Production Flow Chart Bagging Filling Packing Machine and Filter Pump

Customization: Available
Type: Sachet Liquid Filling Machine
Automatic Grade: Automatic
Send Inquiry

Product Description

Basic Information
Model NO.
BWLF-1000/BWLF-2000
Material Type
Liquid
Filling Valve Head
Single-Head
Dosing Device
Plunger
Filling Principle
Pressure
Structure
Linear
Packaging
Bag / Film
Capacity
2000-2200bph / 1100-1300bph
Origin
China
HS Code
842230
Product Description

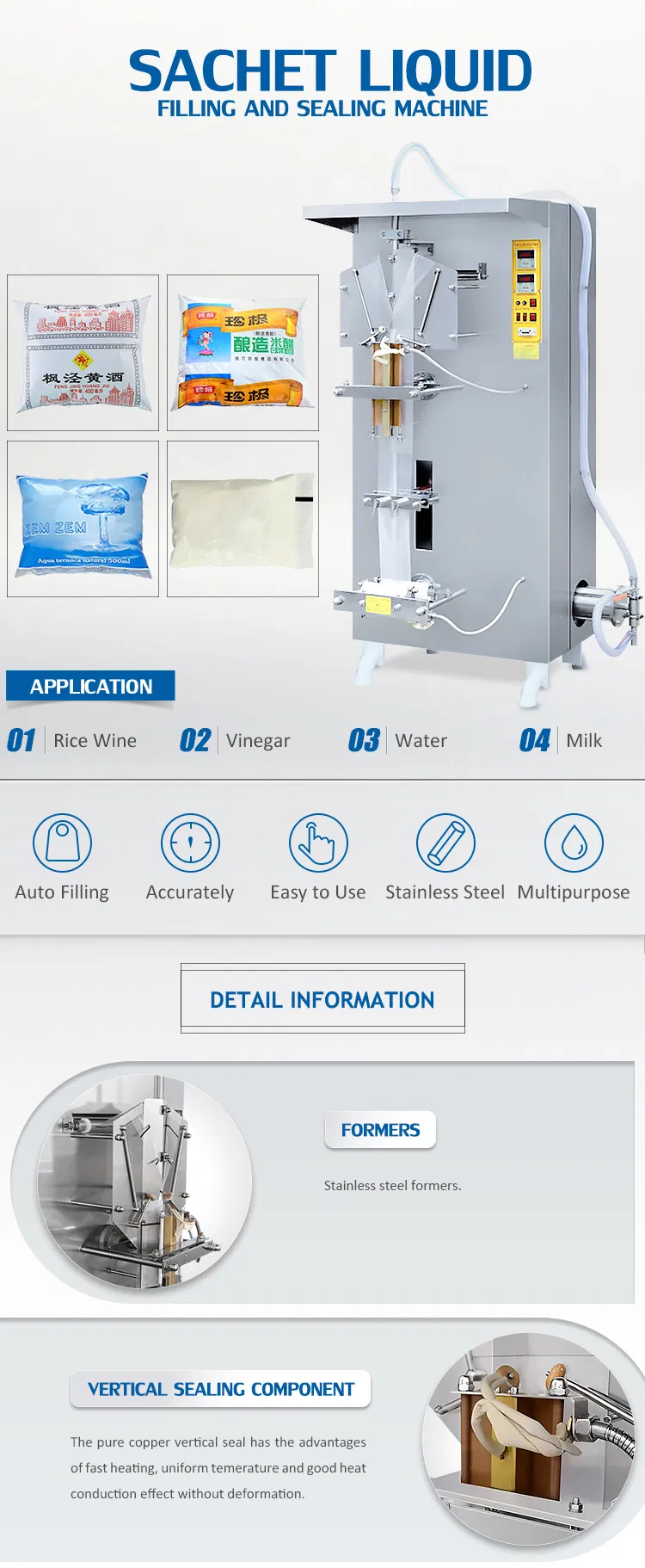

Sachet Liquid Pouch Filling Machine Flow Chart

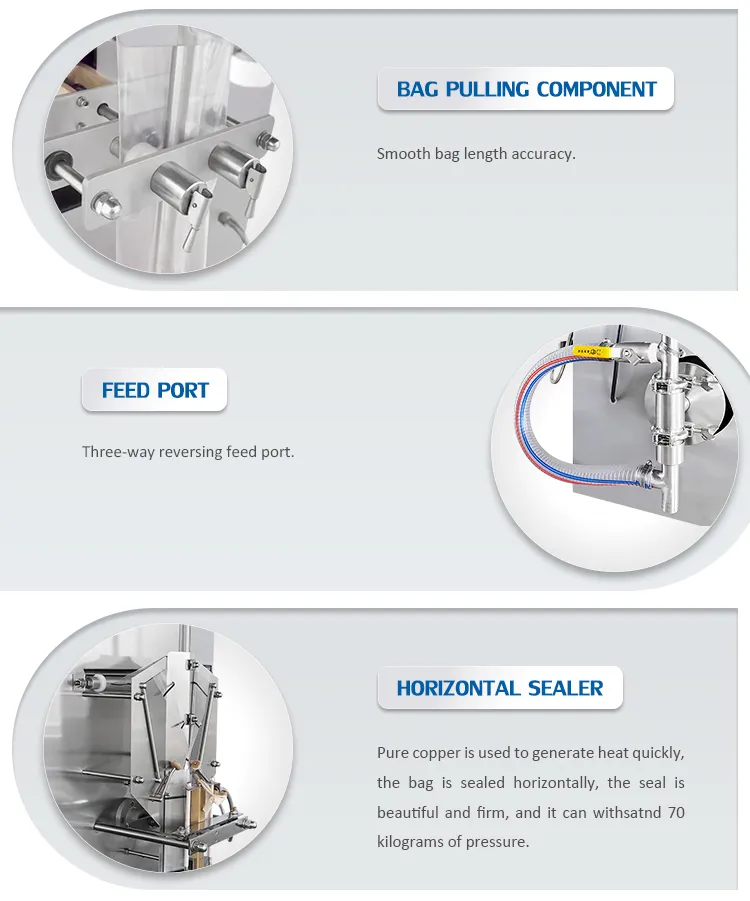

Sachet Packing Machine Details
Liquid Pouch Filling Machine
⚙️
Key Function: Back sealing, valve piston pump filling meter.
✨
Hygienic Design: Film and liquid disinfection included; body made of stainless steel.
🚀
Full Automation: Automatically finishes bag-making, metering, filling, sealing, cutting, counting, and printing.
Technical Specifications
Model BWLF-1000 BWLF-2000
Bag-making Length50-150mm50-250mm
Bag-making Width40-150mm40-175mm
Packing Film Width100-320mm100-380mm
Packing Capacity50-550ml200-1000ml
Packing Speed2000-2200 bags/hour1100-1300 bags/hour
Power1.6KW2.5KW
Voltage220v220v
Dimension880*760*1800mm1050*850*2050mm
Weight275kg380kg

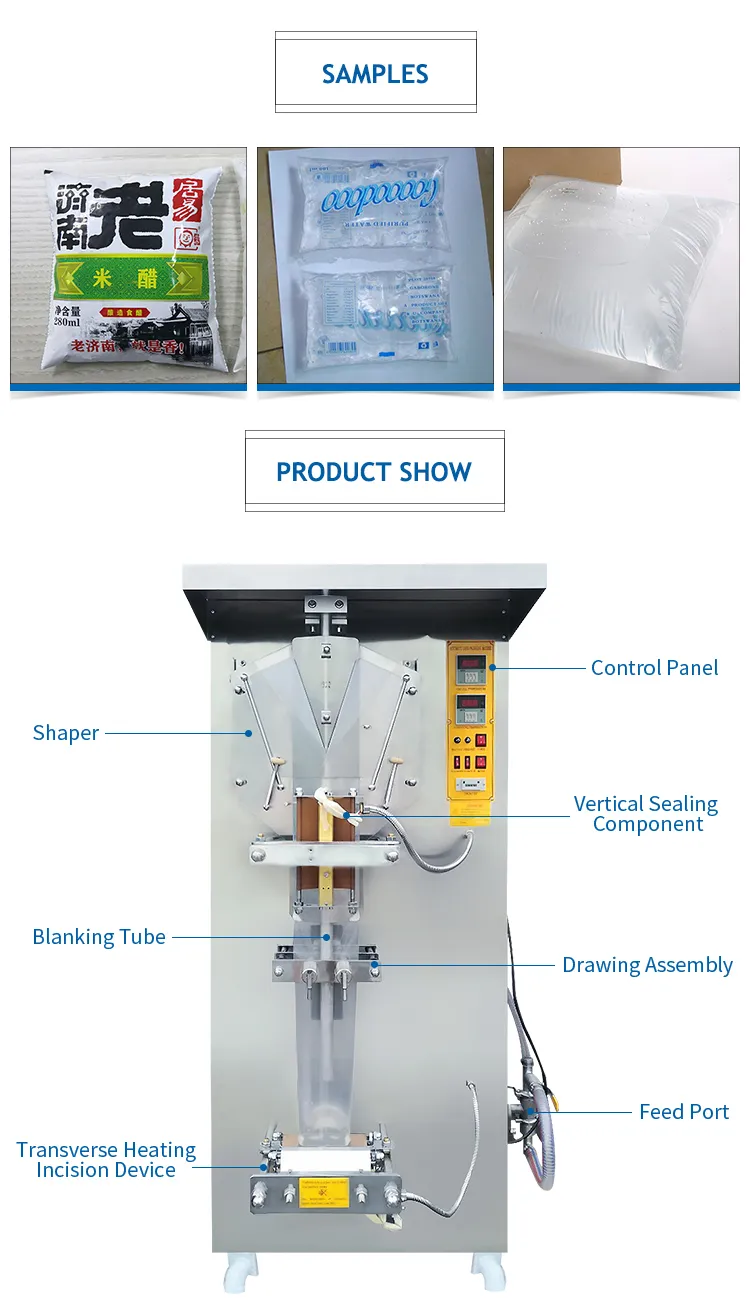

Machine Structure Overview
Application Scope
💧
Applicable Liquids: Ideal for packing milk, soy sauce, vinegar, rice wine, and various other liquids.
📦
Packaging Material: Heat-sealable plastic film, such as polyethylene (PE).
Liquid Packaging Samples
Frequently Asked Questions
Q: What types of liquids can this machine handle? A: This machine is designed for a wide range of liquids, including milk, soy sauce, vinegar, rice wine, and other similar low-viscosity fluids.
Q: What functions are integrated into the automatic process? A: The machine provides a complete 2-in-1 solution that automatically handles bag-making, metering, filling, sealing, cutting, counting, and printing batch numbers.
Q: What is the maximum filling capacity of the BWLF series? A: The BWLF-1000 supports up to 550ml, while the BWLF-2000 model can handle larger pouches from 200ml up to 1000ml.
Q: Is the machine constructed from food-grade materials? A: Yes, the machine body and all parts that come into contact with the liquid are made of high-quality stainless steel to ensure hygiene and safety.
Q: What kind of packaging film should I use? A: The machine is optimized for heat-sealable plastic films, specifically polyethylene (PE) film.
Q: Does the machine include a disinfection system? A: Yes, it features both film disinfection and liquid disinfection systems to maintain high standards of product purity.
