Automatic Film Flat Sachet 3/4 Side Sealing Bag Spice/Milk/Medicine/Coffee/Detergent Powder Pouch Filling Sealing Bagging Packing Packaging Machine Manufacturer

Customization: Available
After-sales Service: Oversea Service
Warranty: 1 Year

Product Description

`
Overview & Specifications

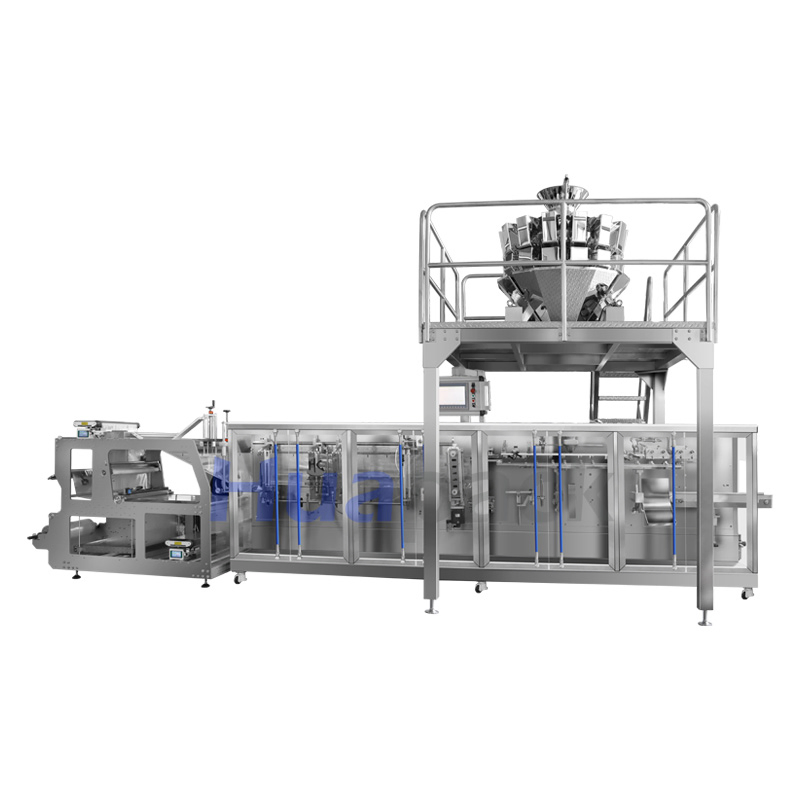

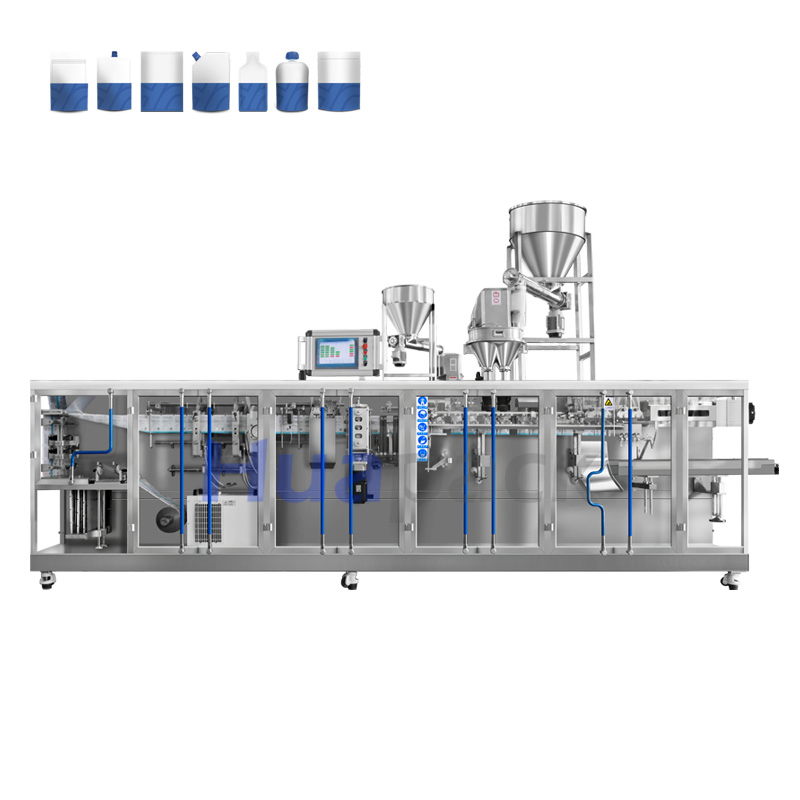

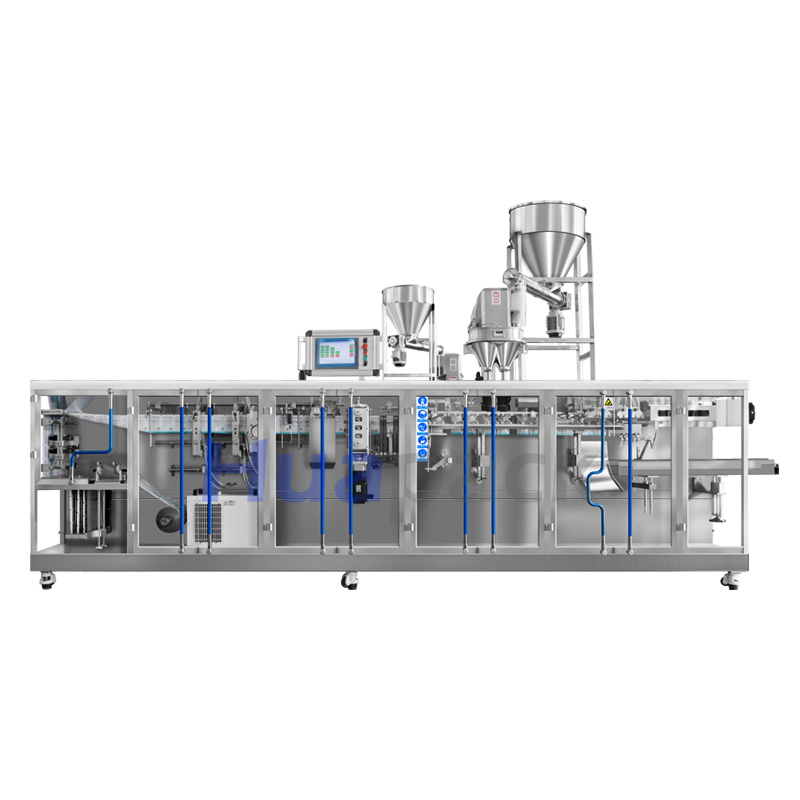

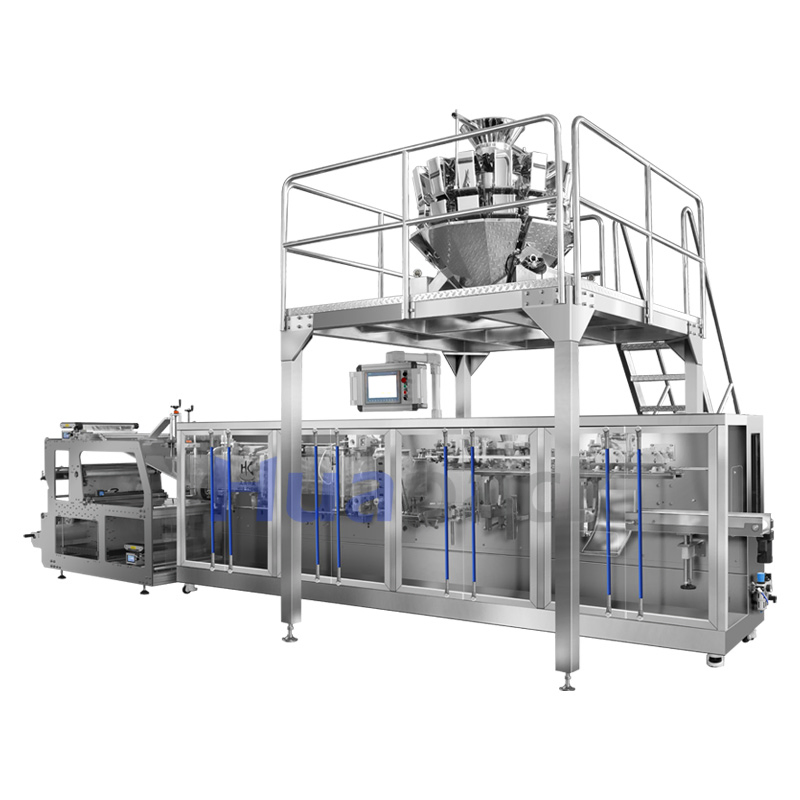

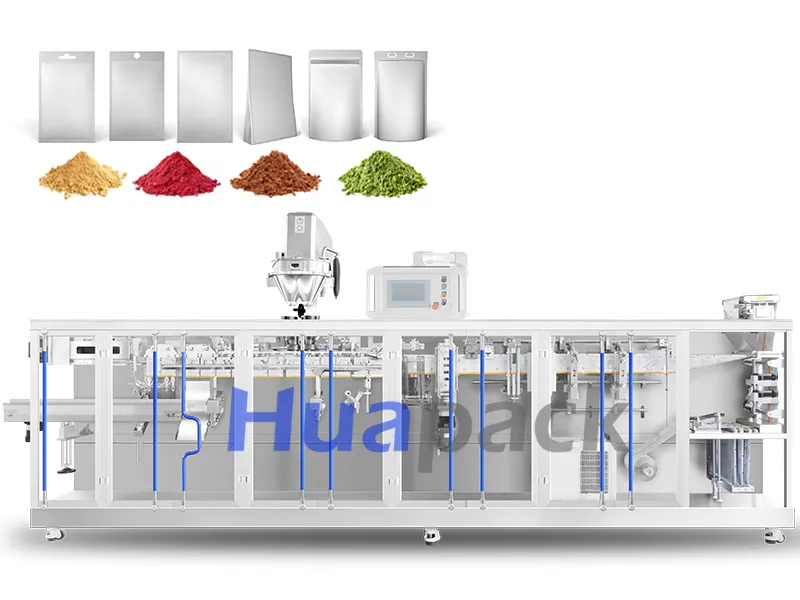

Horizontal flat bag form fill seal sachet packing machine
The HC-N series is designed for sachet production with advanced functions including bag making, filling, sealing, hanging hole creation, special shape forming, and zipper or spout application. Built to high-quality standards, the machine offers competitive market performance.
The design is based on the modular frame construction, composed of three independent modules: unwinding, pouch forming and dosing-sealing.
Model NO.
NG Series
Automatic Grade
Automatic
Application
Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
Type
Forming Filling Sealing Machine
Forming Species
Bag Moulding
Forming Function
Forming, Filling, Seal
Driven Type
Electric
Material Type
Powder/Liquid/Granule
Packaging
Bag
Packaging Material
Film
Bag Shape
Flat Bag
Keyword
Flat Sachet Pouch Packing Machine
Driven
Servo Motors
Film Forming
Align Ensured
Optional
Coding Device, Conveyor
Filling Device
Weighter or Volume Cup Filler
Certificate
CE & ISO
Function
Bag Forming, Filling and Sealing
Speed
40-60bpm / Duplex 80-120bpm
Transport Package
Plywood
Specification
SS304 food grade
HS Code
84223030
Production Capacity
500 sets / Year
Package Size
4500.00cm * 9700.00cm * 1460.00cm
Package Gross Weight
2100.000kg
Product Parameters

Simplex Model Specifications

Simplex model flat bag 180N 130N/130NZ 110N/110NZ 240N
Parameters Min(W*H) 75×85mm 60×80mm 20×80mm 75×85mm
Max(W*H) 180×225mm 130×180mm 50×100mm 240x330mm
packing vol max 400ml 160ml 100ml 2000ml
speed(bag/min) ≤70 ≤70 ≤70 ≤60
film thickness 60-140ų 60-130ų 60-130ų 60-180ų
film roll outer.dia 500mm 500mm 500mm 500mm
film roll inner.dia 70-80mm 70-80mm 70-80mm 70-80mm
machine size (mm) 3500×970×1450 2850×920×1460 2650×900×1460 4500×9700×1460
work condition machine weight 900kg 800kg 800kg 2100kg
temperature -10ºC-+55ºC -10ºC-+55ºC -10ºC-+55ºC -10ºC-+55ºC
moisture below 85% below 85% below 85% below 85%
vol. AC380V,50Hz AC380V,50Hz AC380V,50Hz AC380V,50Hz
power 5Kw 3.5Kw 3.5Kw 5.5Kw
air 200L/min 100L/min 100L/min 300L/min

Duplex Model Specifications (Double doypack bags per cycle)

Duplex model 180ND 360N quadruplex 240N 240ND
Parameters 70×90mm 75x80mm 75×85mm 75×85mm
90×180mm 130x180mm 240x330mm 120×225mm
100ml 100ml 2000ml 2000ml
≤140 4*30-4*50 ≤60 60-120
70-130ų 70-130ų 60-180ų 60-180ų
500mm 500mm 500mm 500mm
70-80mm 70-80mm 70-80mm 70-80mm
3500mm×970mm×1350mm 6100mm×1100mm×1400mm 4500mm×9700mm×1460mm 5200mm×1100mm×1460mm
work condition 950kg 1800kg 2100kg 2100kg
-10ºC-+55ºC -10ºC-+55ºC -10ºC-+55ºC -10ºC-+55ºC
below 85% below 85% below 85% Below 85%
AC380V,50Hz AC380V,50Hz AC380V,50Hz AC380V,50Hz
0.6Mpa 0.6Mpa 0.6Mpa 0.6Mpa
300L/min 300L/min 300L/min 300L/min
Our Advantages
  • HMI Display: Includes standard operating manual and active troubleshooting assistance.
  • Parallel Motion Vertical Sealing Bars: Improves overall sealing quality and ensures easier operational maintenance.
  • Full Servo Motion: Allows independent configuration between key stations, providing high reliability with minimal maintenance needs.
  • Walking Beam transport system: Beams and grippers securely hold and move pouches dynamically through each process step.
  • Multi-stage Sealing process: Guarantees superior air-tight sealing finish quality.
  • Dual Filling Capabilities: Fully compatible with both hot and cold filling processes.

1. Film Unwinding Design (Ensures precise alignment)

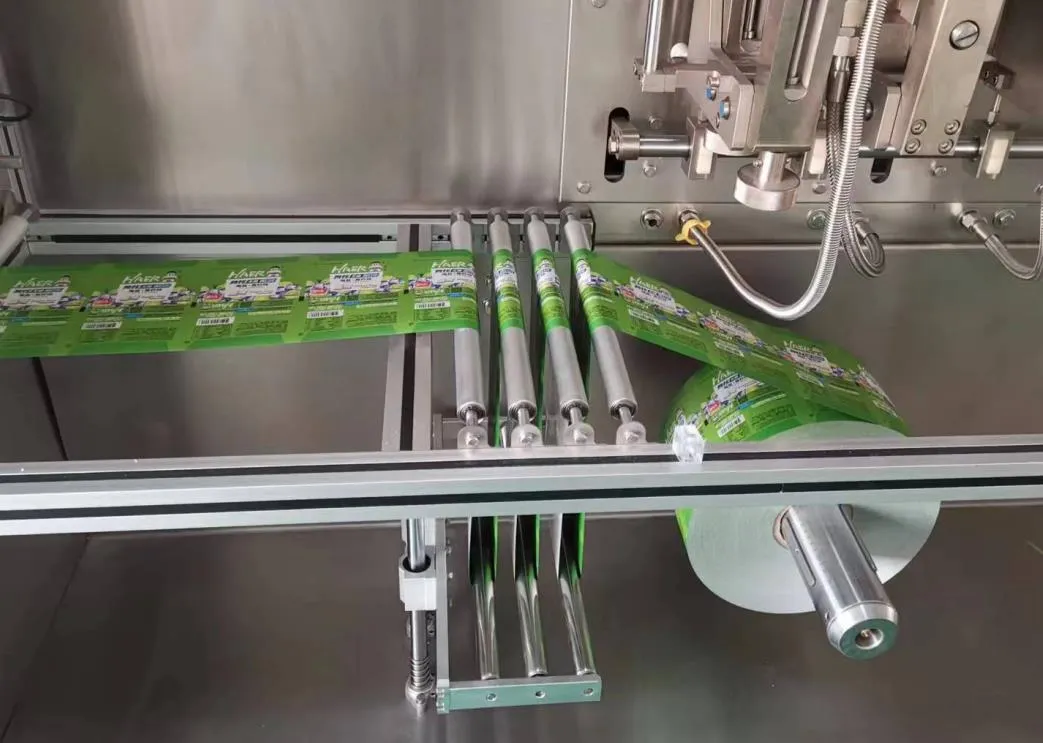

Film Unwinding Setup 1

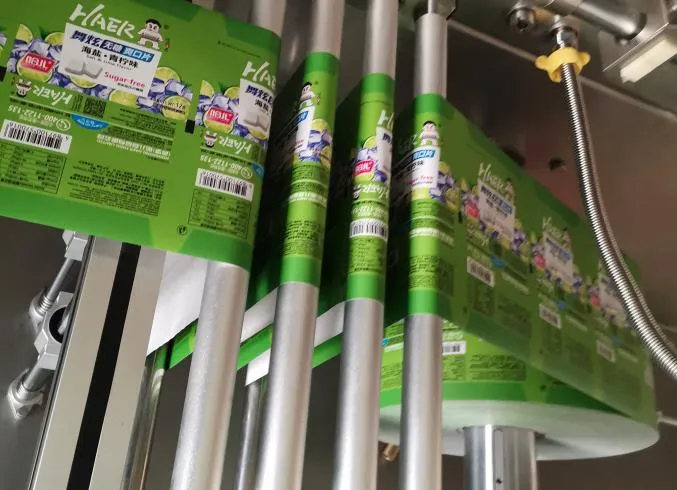

Film Unwinding Setup 2

2. Servo Film Pulling (Stable motion & simple size adjustments)

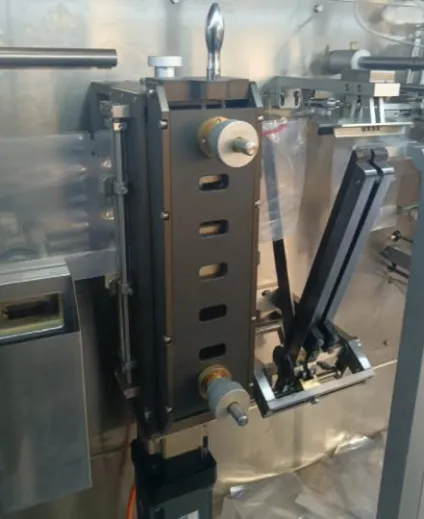

Servo Pulling Module 1

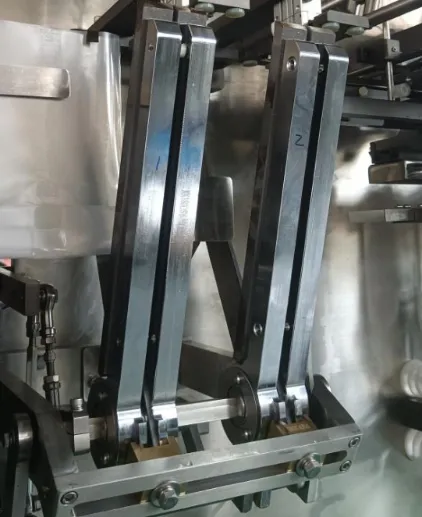

Servo Pulling Module 2

3. Lightweight Working Beam (Faster cycle speeds & long service life)

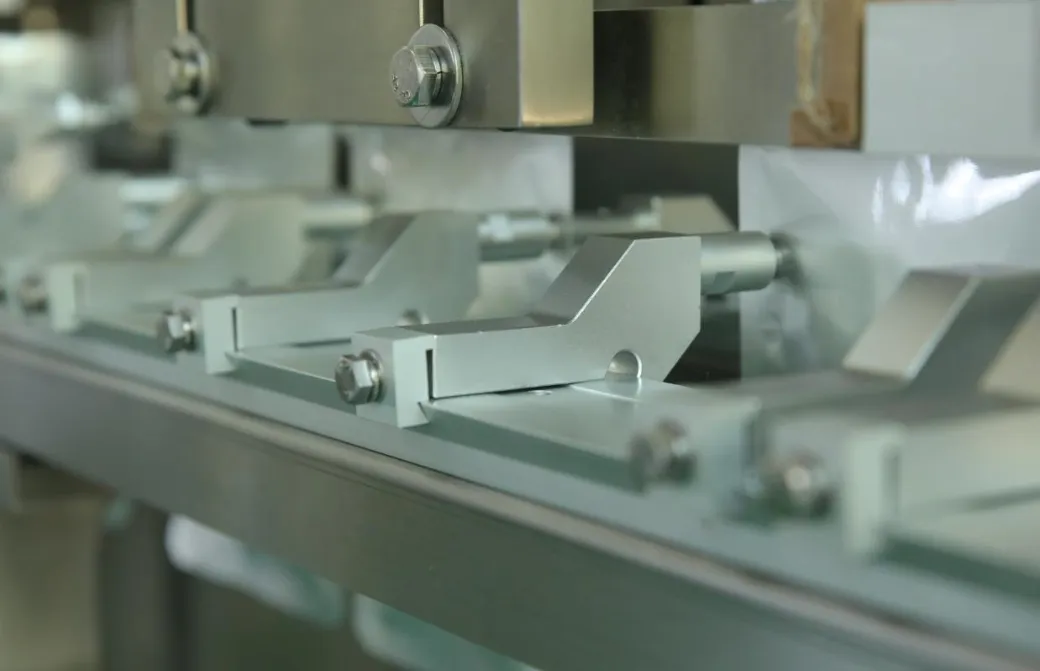

Working Beam Component 1

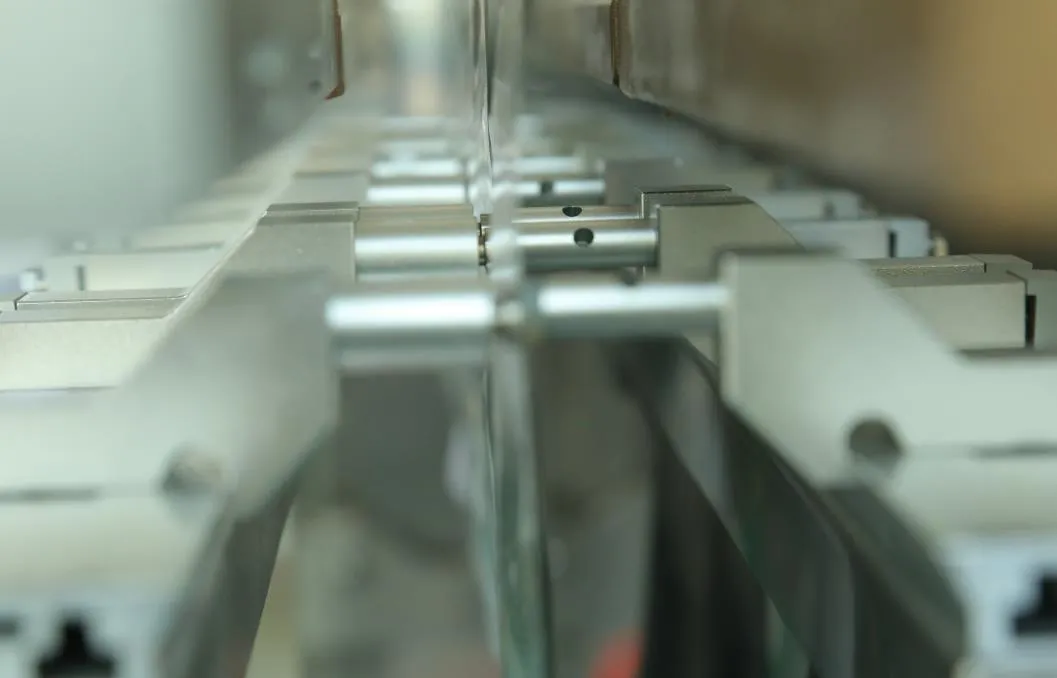

Working Beam Component 2

Standard & Optional Features

Feature Station Capability Details
1. Coding Cold press coding, touch coding, date QR code, and barcode application.
2. Easy Notch Clean tearing easy notch cuts.
3. Hanging Hole Round hole or standard euro-slot designs.
4. Eyemark Tracking Advanced photoelectric sensor tracking system.
5. Zipper (Optional) Optional integrated zipper-reseal feeding device.
6. Top Spout (Optional) Top-center rigid spout inserting station.
7. Corner Spout (Optional) Angular corner spout inserting station.
8. Double Time Filling Multi-head configuration for high-volume package efficiency.
9. Bag Support Additional physical support structures for large heavy-duty bags.
10. Conveyor Automated outfeed conveyor belts for product discharge.
Certifications
Product Compliance Certificates
Company Profile

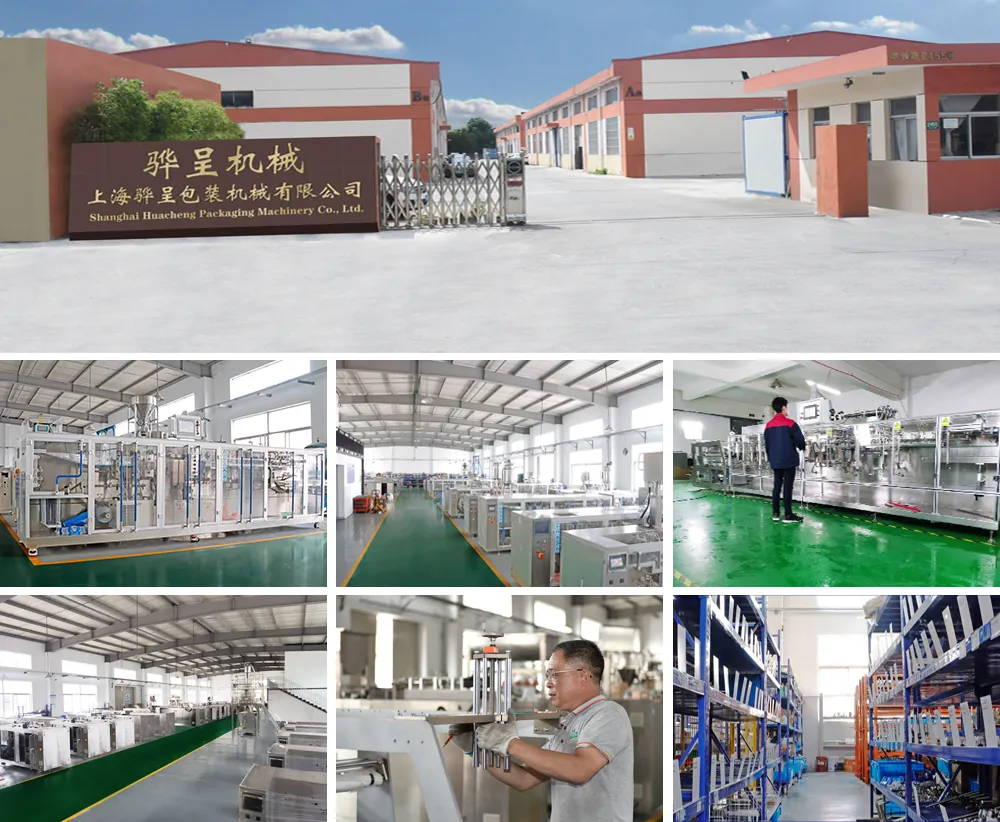

Production Workshop Overview
We are a technology-driven manufacturing enterprise specialized in producing horizontal sachet and pouch packaging machinery as well as high-performance bottle filling lines. Our systems support multiple sectors, including retail food & beverages, pharmaceuticals, cosmetics, and chemical products. We engineer equipment designed to operate from both rollstock film and pre-made pouches.
Our specialized knowledge within this packaging sector allows us to deliver optimized, custom configurations that integrate top-tier features and quality finishes. We remain committed to sustainable business operations and look forward to fostering strong, mutually beneficial global trade partnerships.
Exhibitions
Industry Trade Show Presence
Packaging & Shipping
Export Packing Standards
Our Service
  • We supply standalone machines as well as complete dynamic integrated packaging solutions, with full engineering assistance.
  • OEM designs and custom specification request adjustments are fully welcomed.
  • Includes a standard 1-year product warranty alongside 1-year of mechanical spare parts coverage.
  • We offer ongoing communication support whenever your engineering team requires assistance.
Frequently Asked Questions (FAQ)
Q1: Can your machines meet our specific processing needs?
A1: Yes. We customize proposals based on your exact requirements. Each machine is individually configured to ensure your operational specifications are met.
Q2: Are you a factory or a trading company?
A2: We are an original manufacturer with a dedicated team of technical experts, each possessing over a decade of industry expertise in the design of packaging systems.
Q3: What are the terms of the warranty and after-sales support?
A3: We provide a 1-year product warranty alongside 1-year of functional spare parts. Additionally, we offer online technical support and problem resolution, and accept custom OEM configurations.
Q4: How do you verify machine quality after order placement?
A4: Prior to shipment, we provide photos and videos of the working equipment. Alternatively, you may perform inspections in person or request an independent third-party agency to inspect the machinery on your behalf.
Q5: How can we guarantee secure delivery after completing payment?
A5: We are a registered entity possessing valid business registration licenses, industry certifications, and established shipping compliance records.
Q6: Do you support customized product configurations?
A6: Yes, specialized adjustments—including custom zip seals, spout systems, distinct bag geometries, and localized voltage configurations—can be engineered to match your plant's setup.
